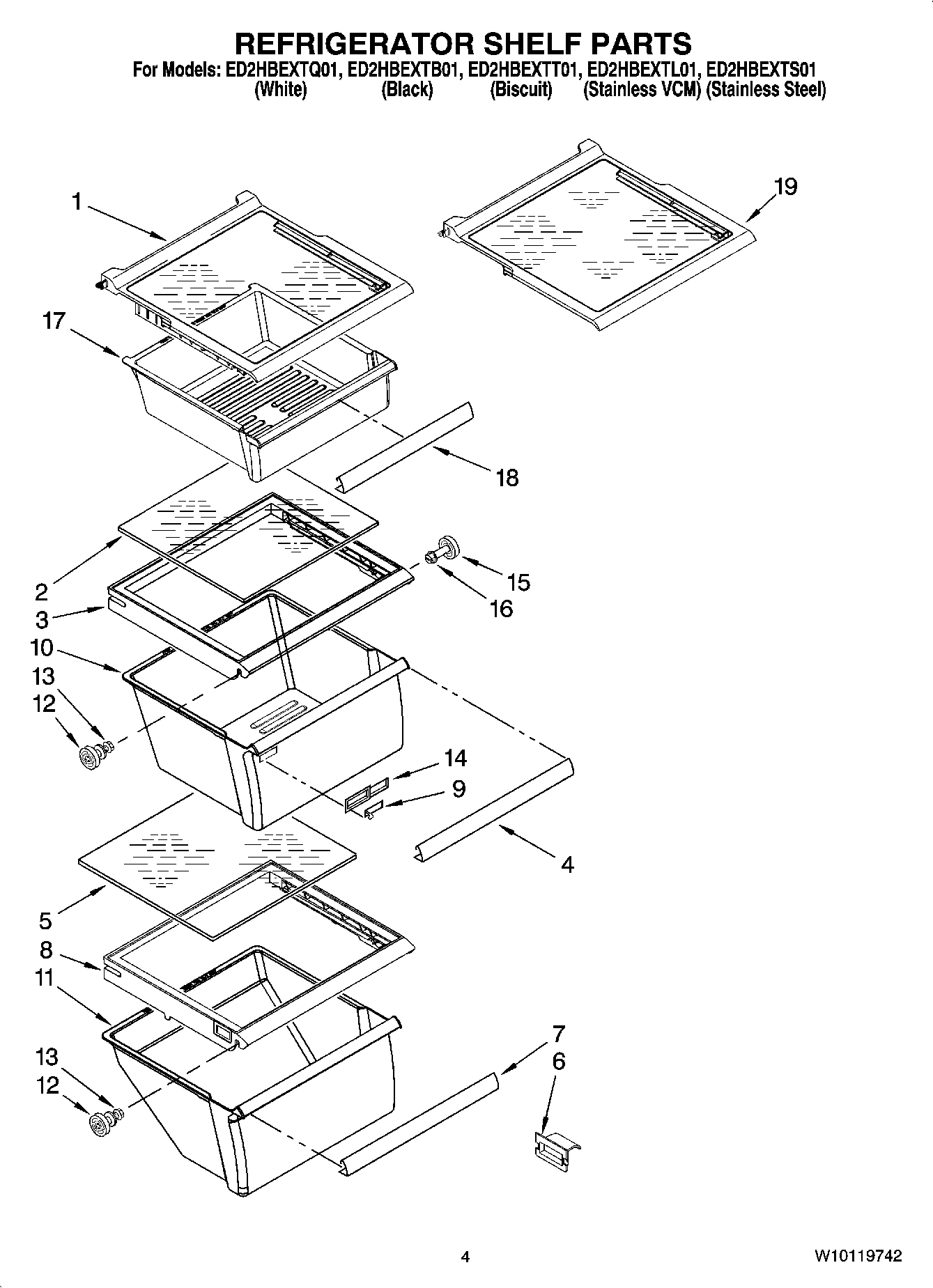

Model Whirlpool ED2HBEXTB01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stainless Steel WPL 2308388 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

Important: The spray paint is not to be used WPL ARI30775A9 Contact Us For Availability

WPL ARI30776A9 WPL ARI30776A9 Contact Us For Availability

WPL ARI30777A5 WPL ARI30777A5 Contact Us For Availability

WPL ARI30778A8 WPL ARI30778A8 Contact Us For Availability

1

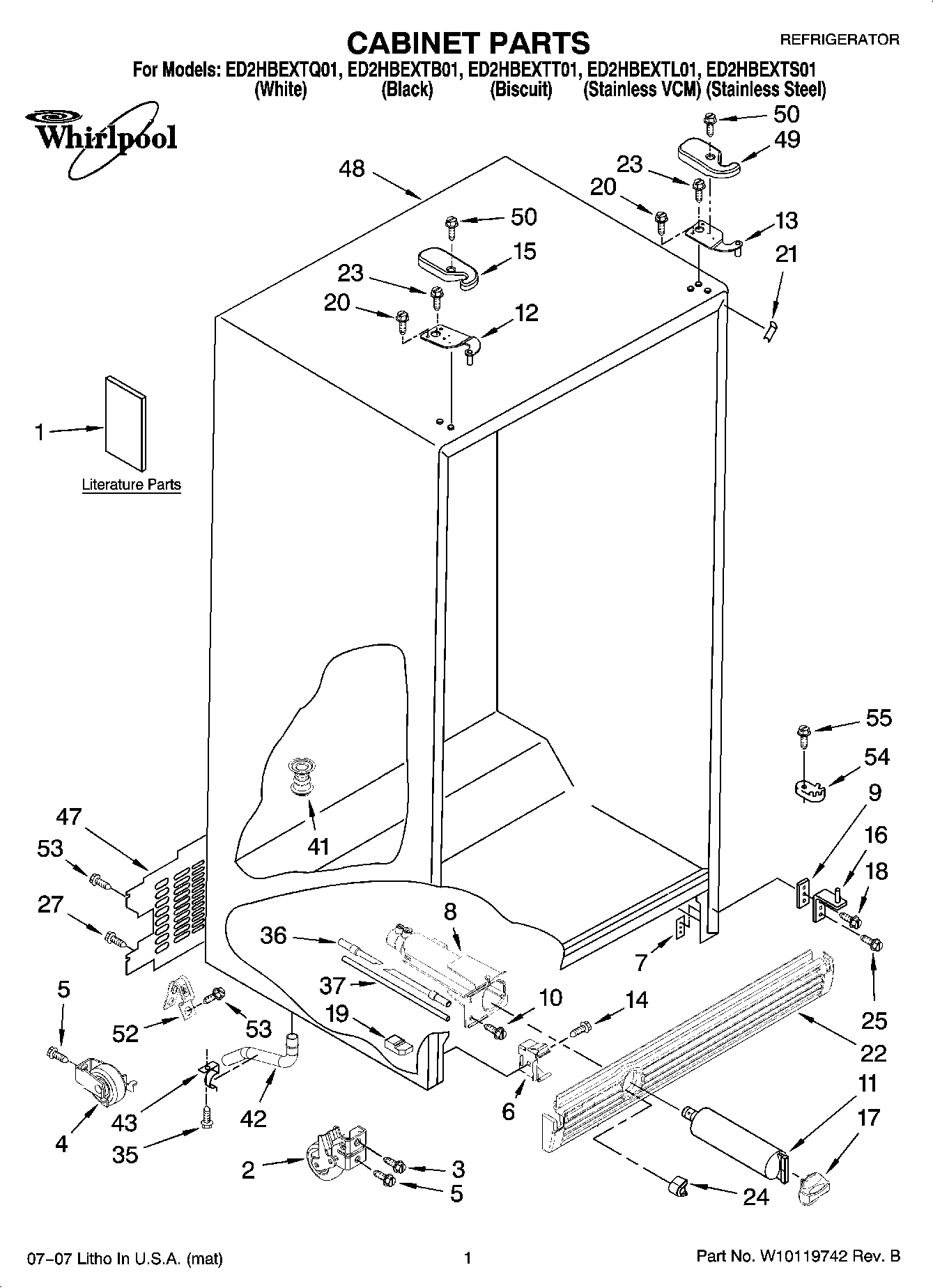

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

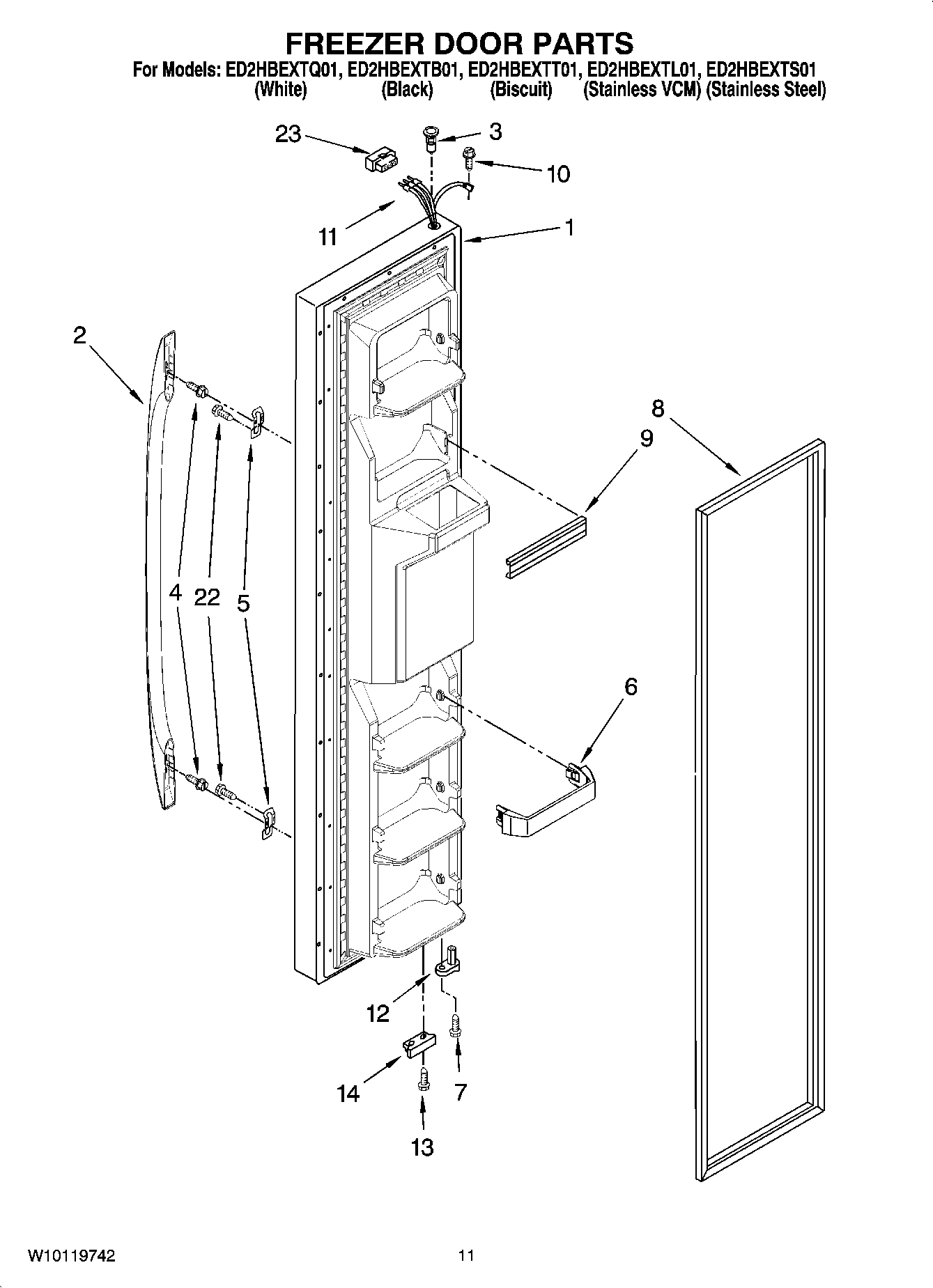

Freezer Door (Includes Item 8 And Dispenser F WPL 2309670B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2309670L Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2309670S Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2309670T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2309670W Contact Us For Availability

2

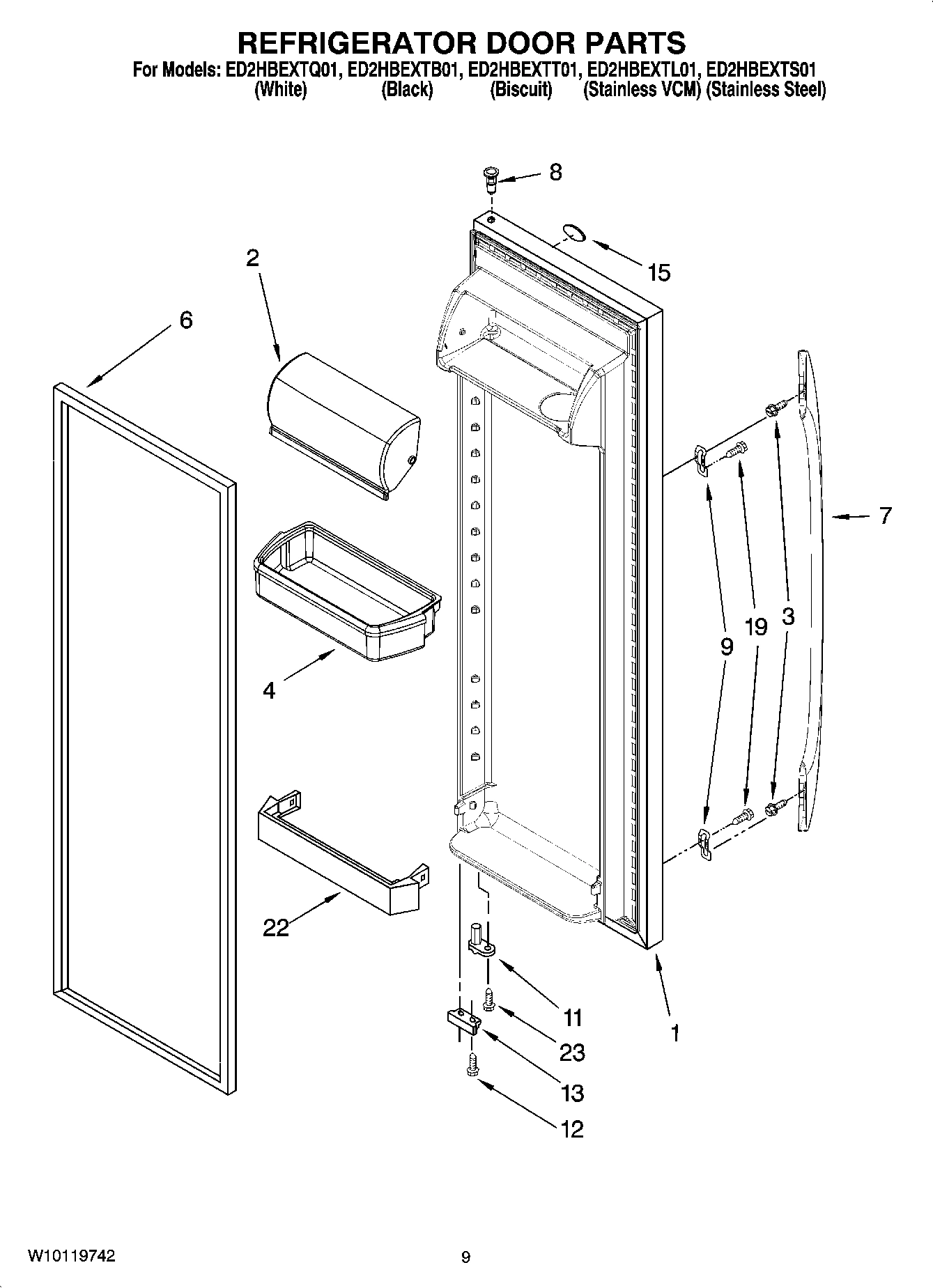

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W10187086 Whirlpool Refrigerator Handle Backorder WPL W10187086 $233.11

2

W10187087 Whirlpool Refrigerator Handle Backorder WPL W10187087 $238.78

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (Includes 4) (White) WPL 2313345W Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

SCREW WPL 8533920 Contact Us For Availability

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2309717 Whirlpool Refrigerator Door Trim Backorder WPL WP2309717 $36.45

6

Air Scoop WPL 2161231 Contact Us For Availability

7

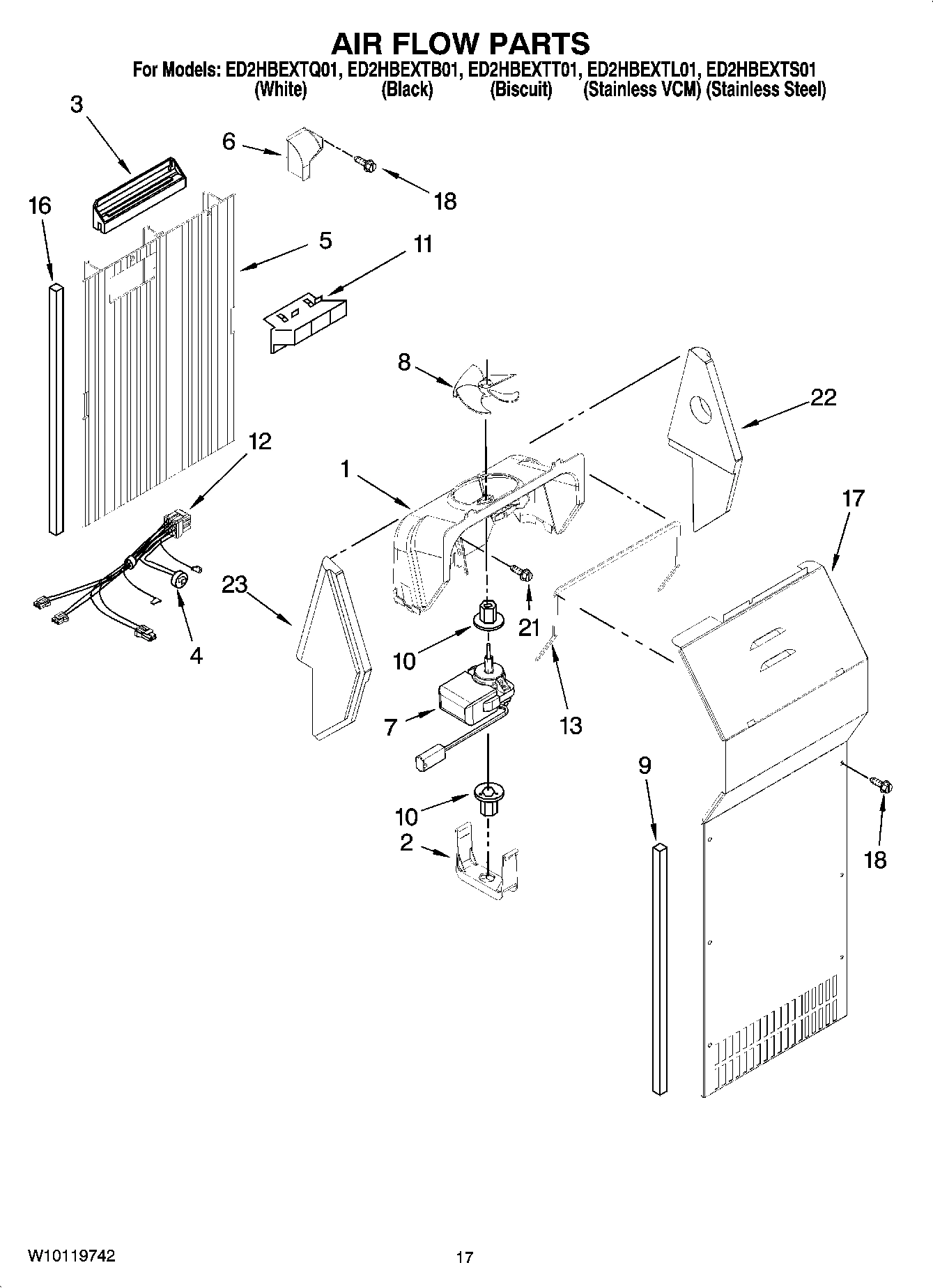

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Shim (2) WPL 2209697 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

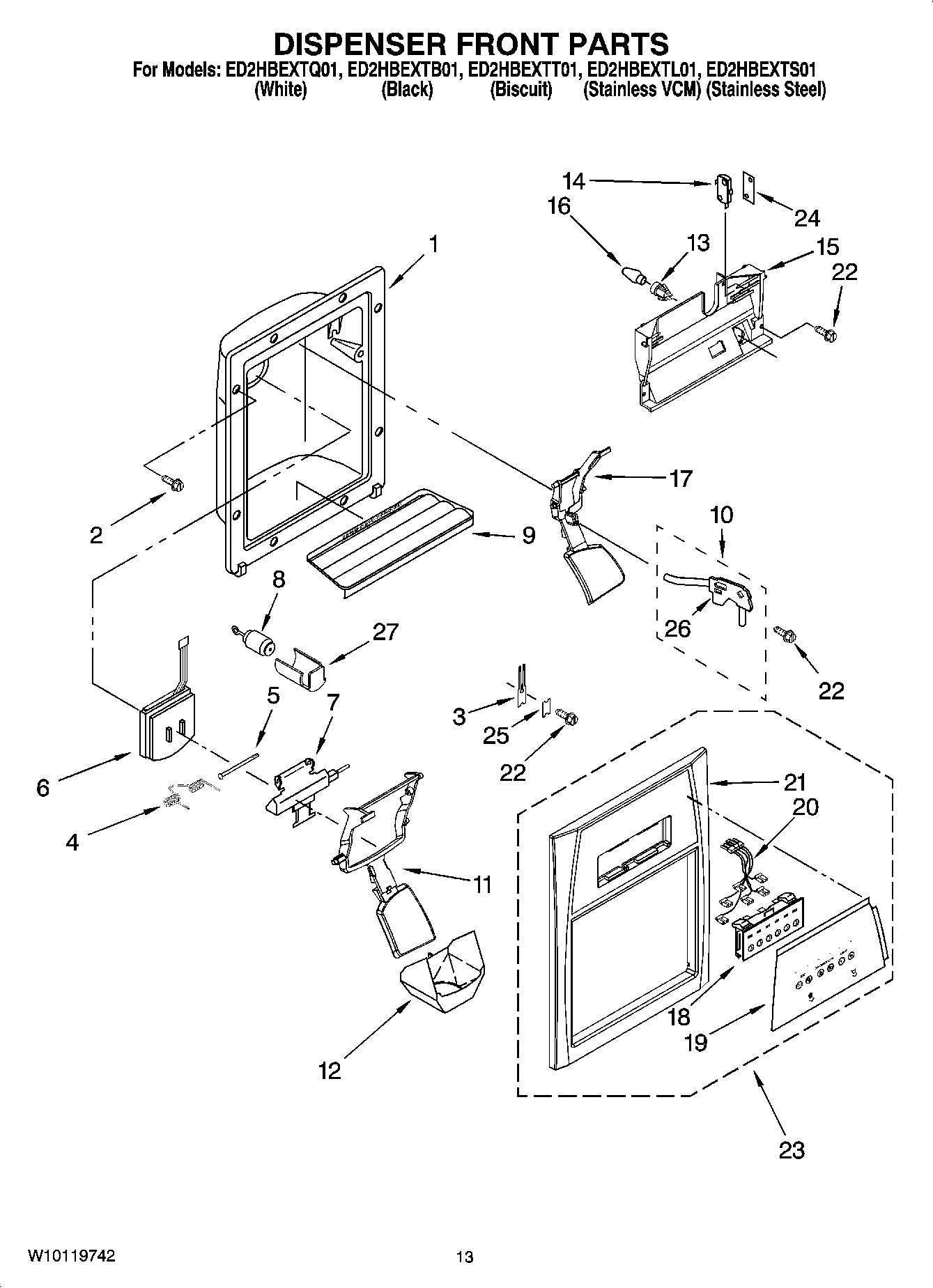

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2311642 Whirlpool Refrigerator Wire Harness Backorder WPL 2311642 $92.89

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.16

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $58.93

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

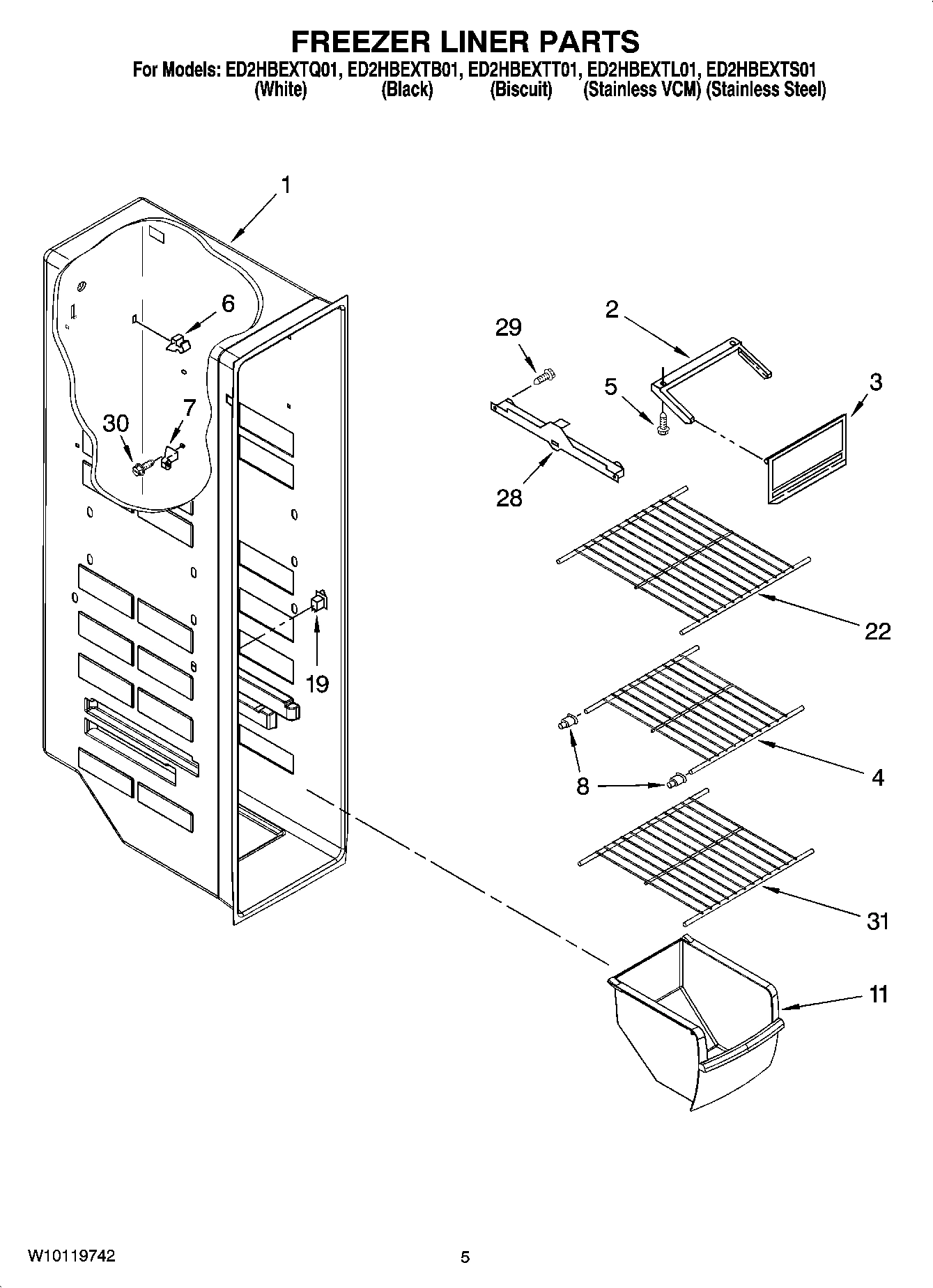

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

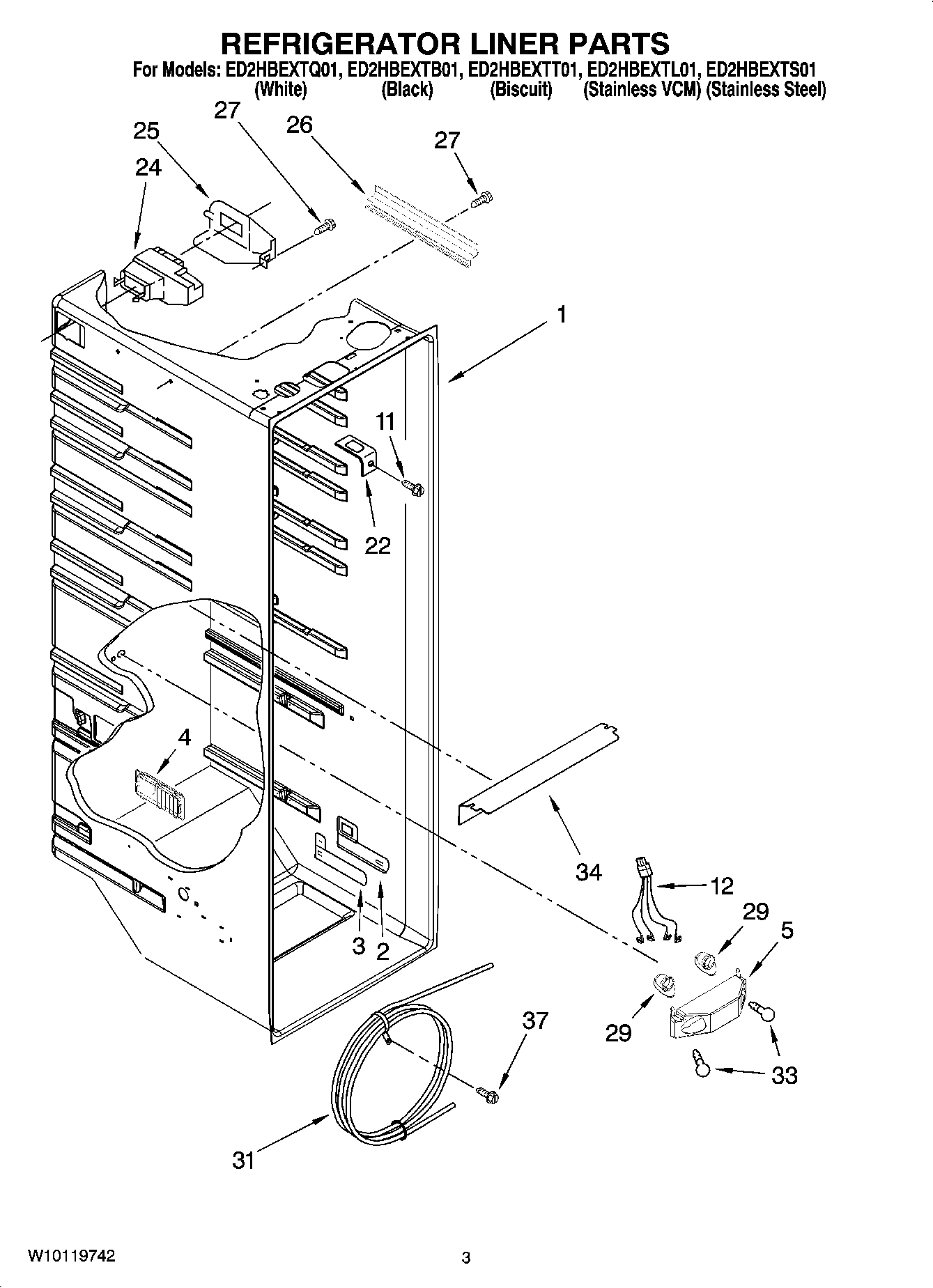

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

Cap, Water Filter (Biscuit) WPL 2260518T Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

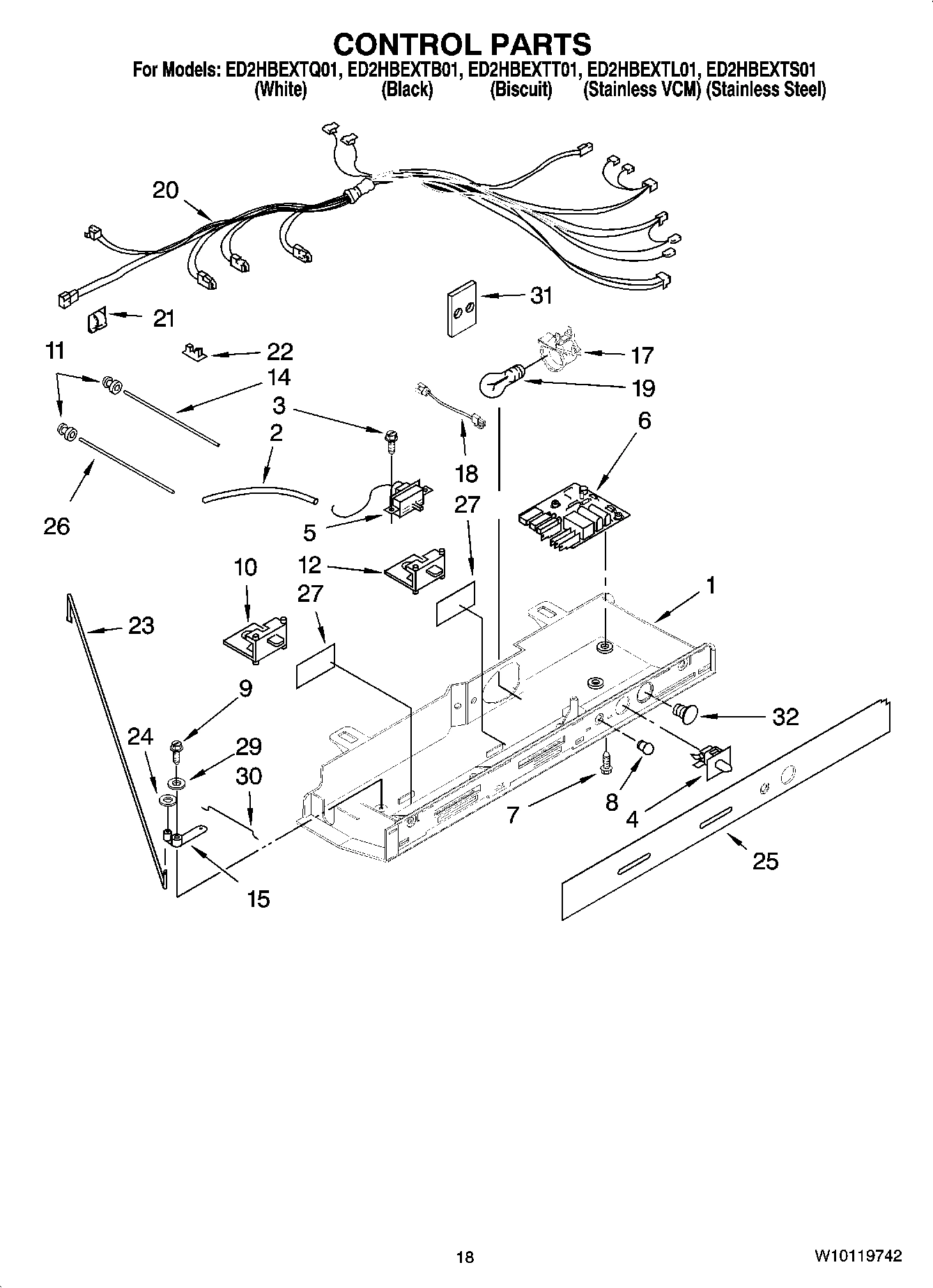

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

20

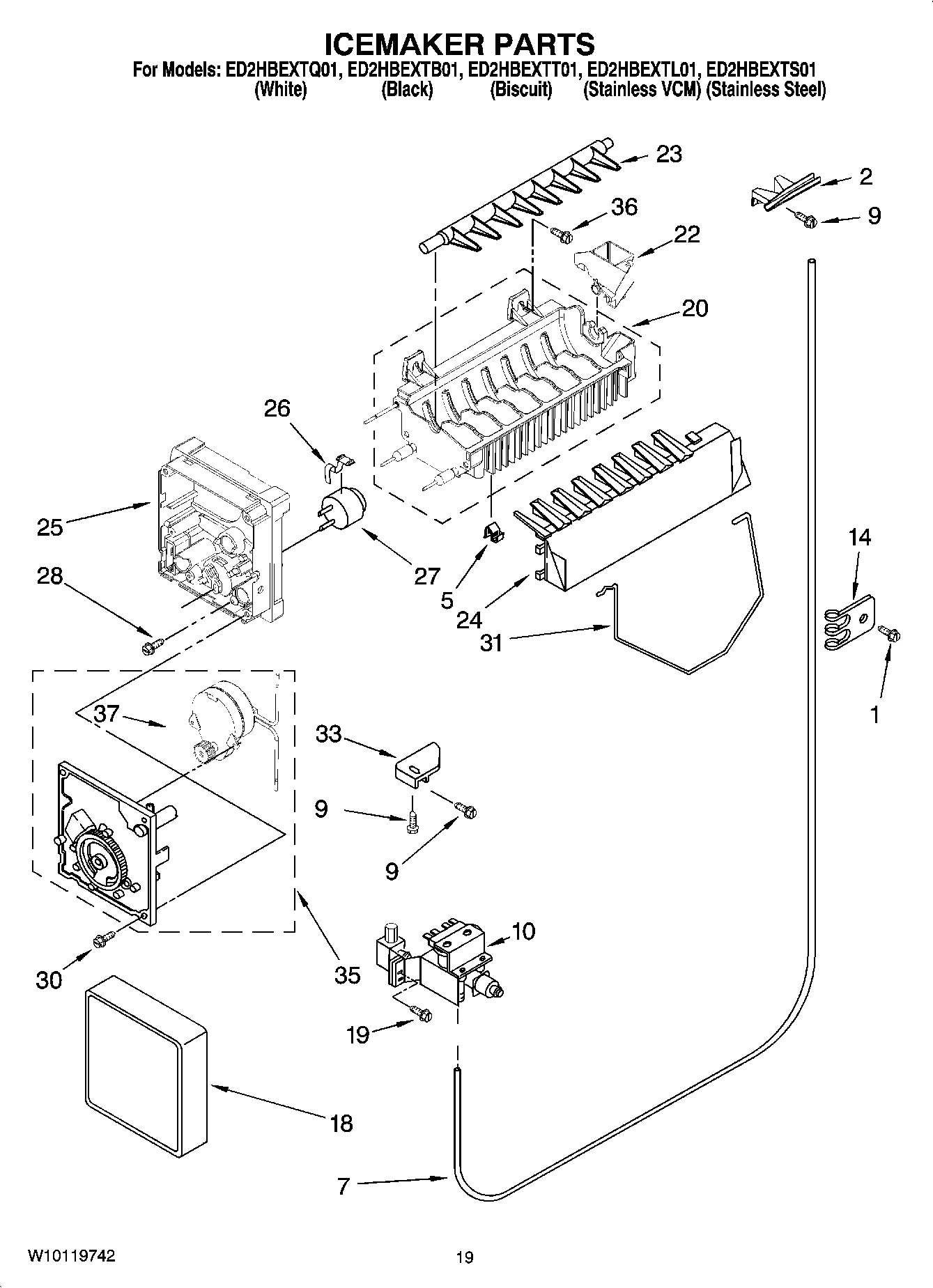

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

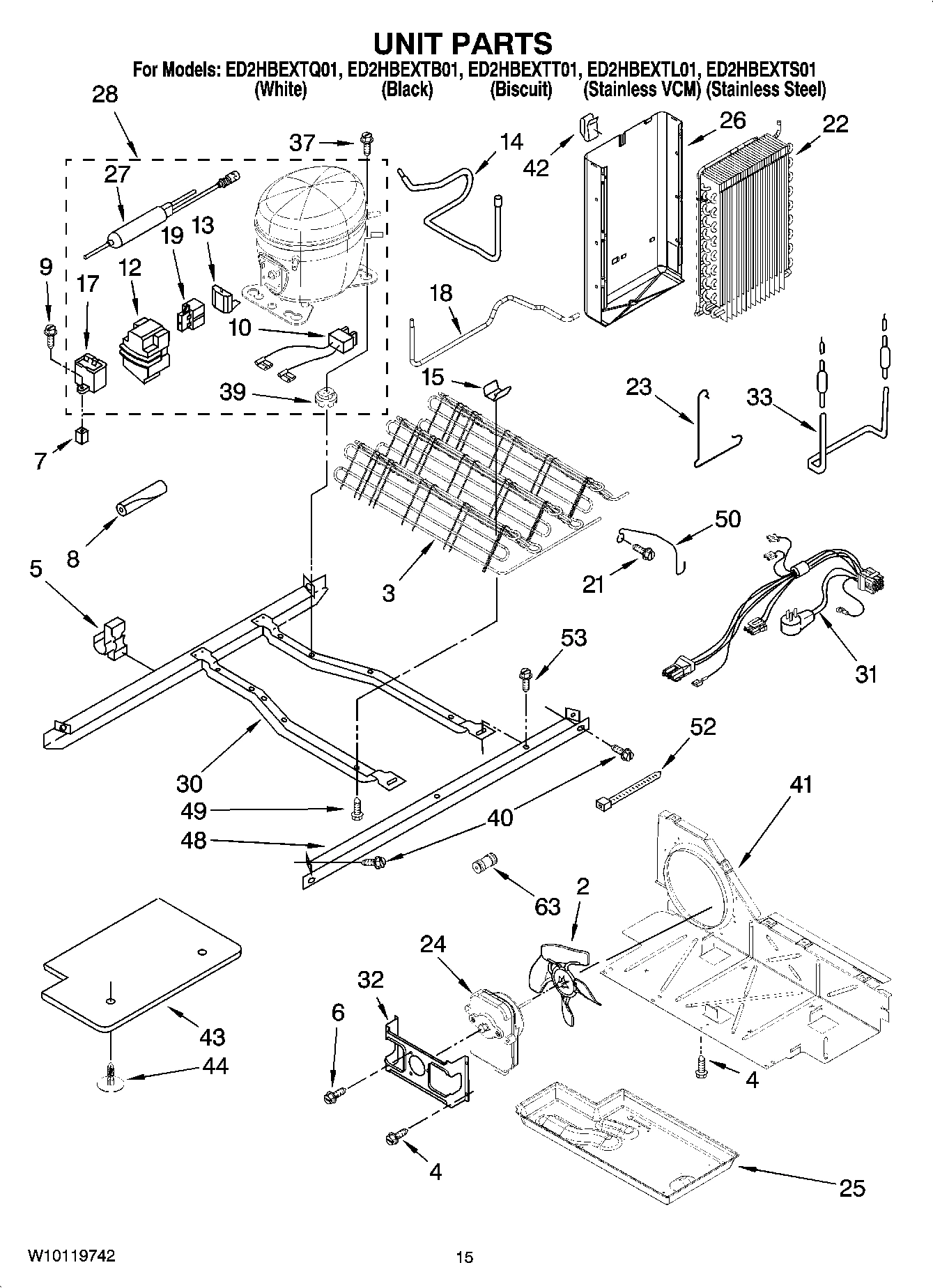

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2311693W Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

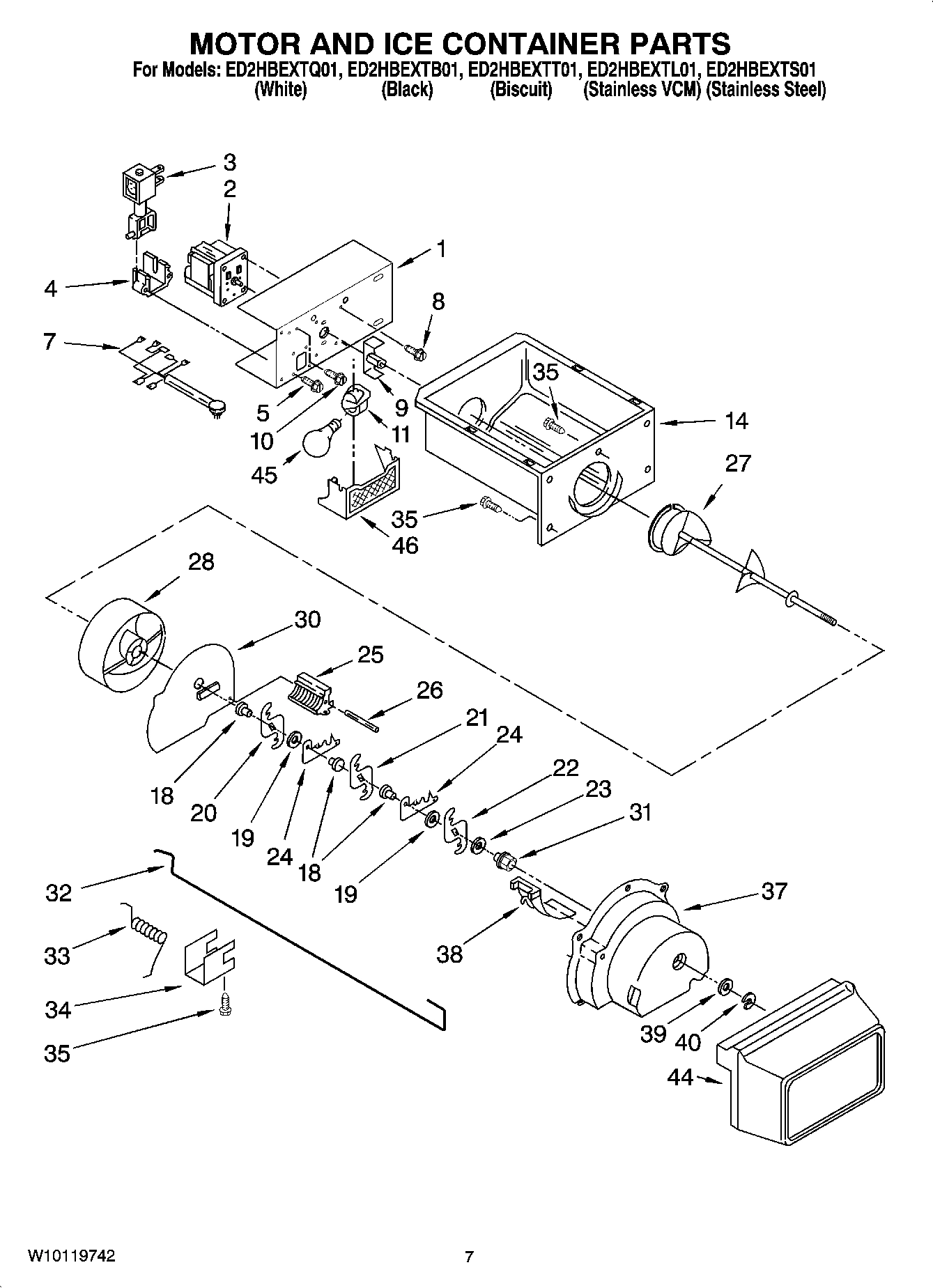

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

Motor (Not Serviced, Order 35) WPL ARI30774A5 Contact Us For Availability

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

WPW10190965 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190965 $70.55

100

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07
