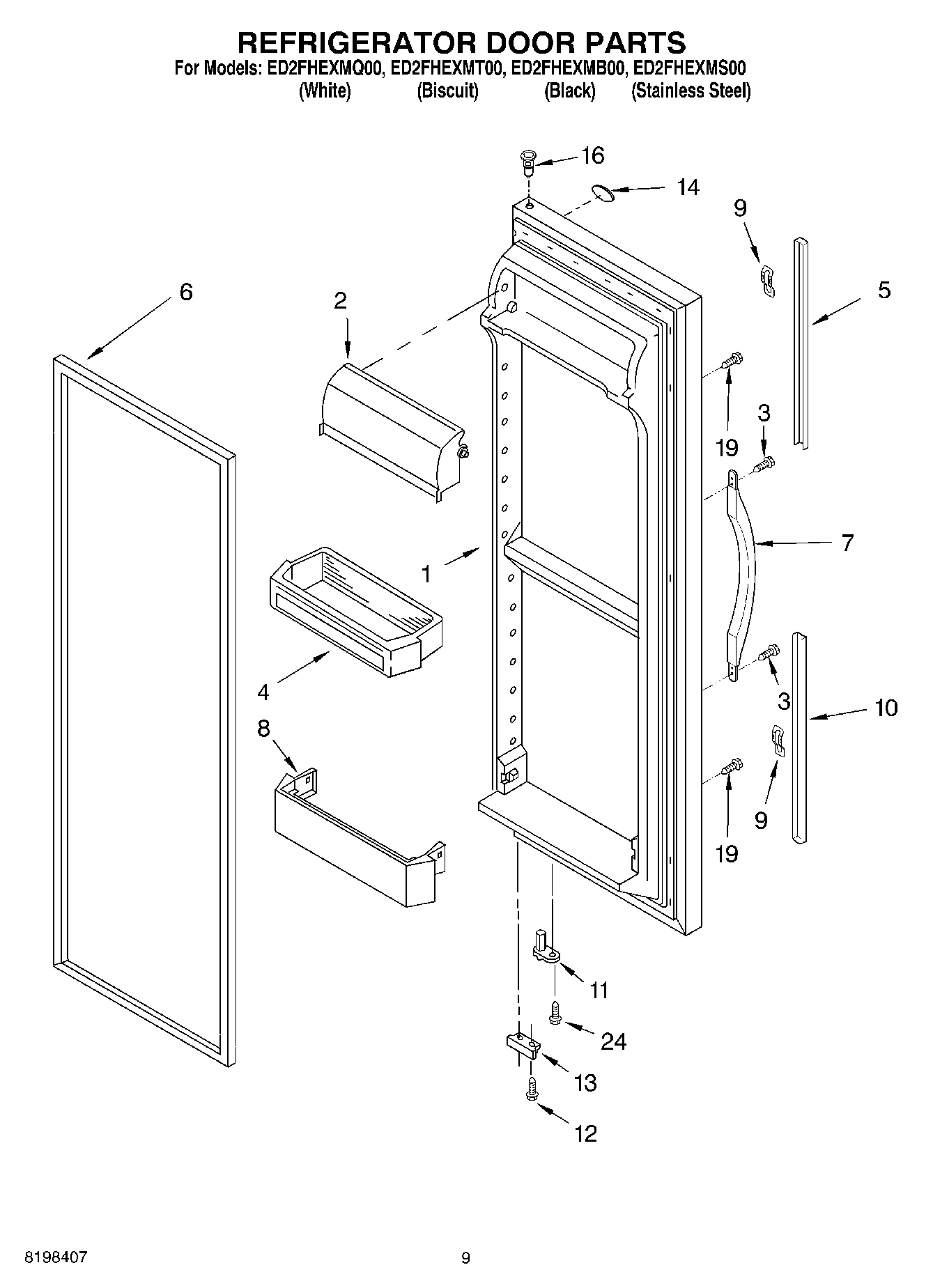

Model Whirlpool ED2FHEXMT00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

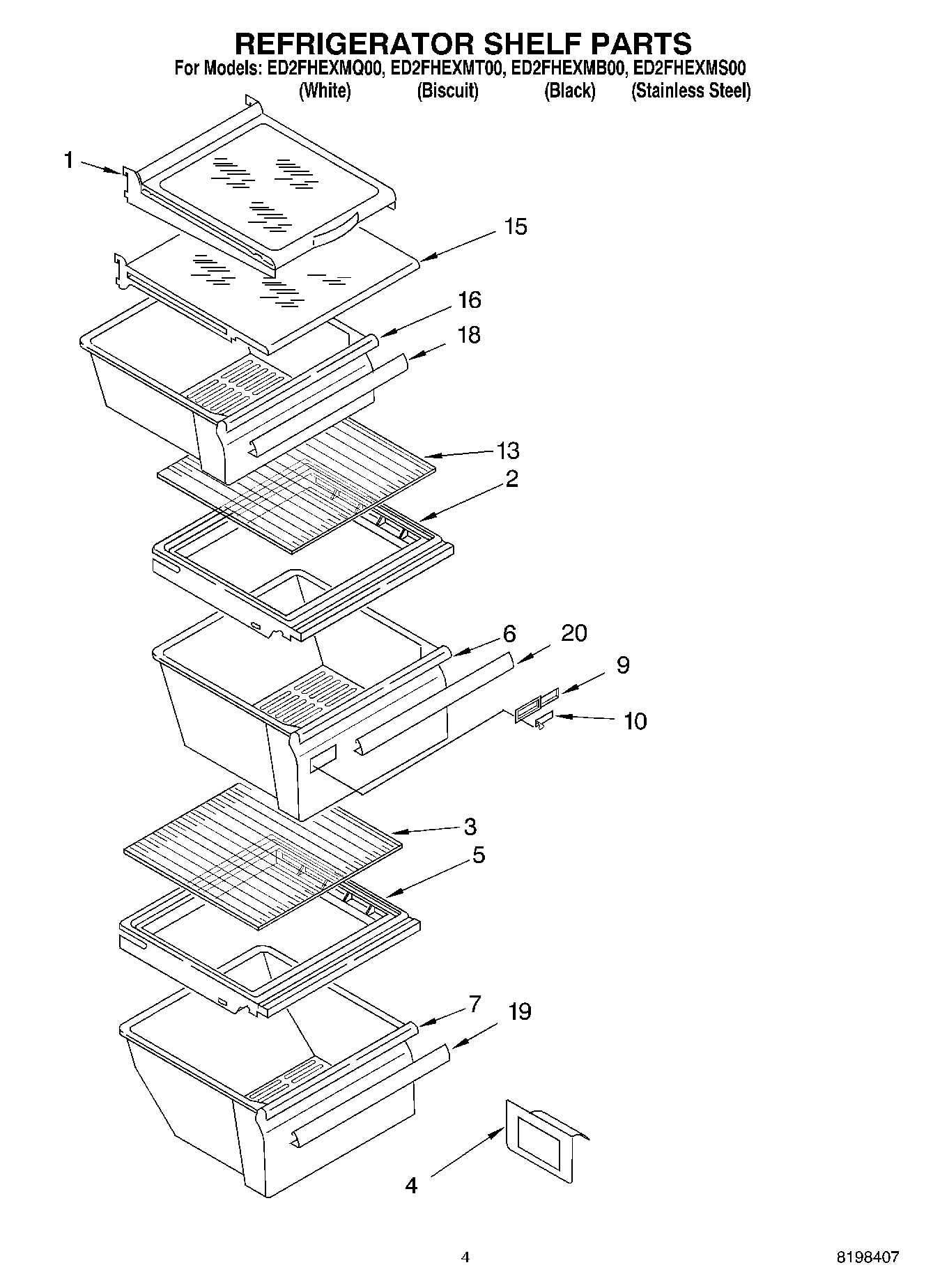

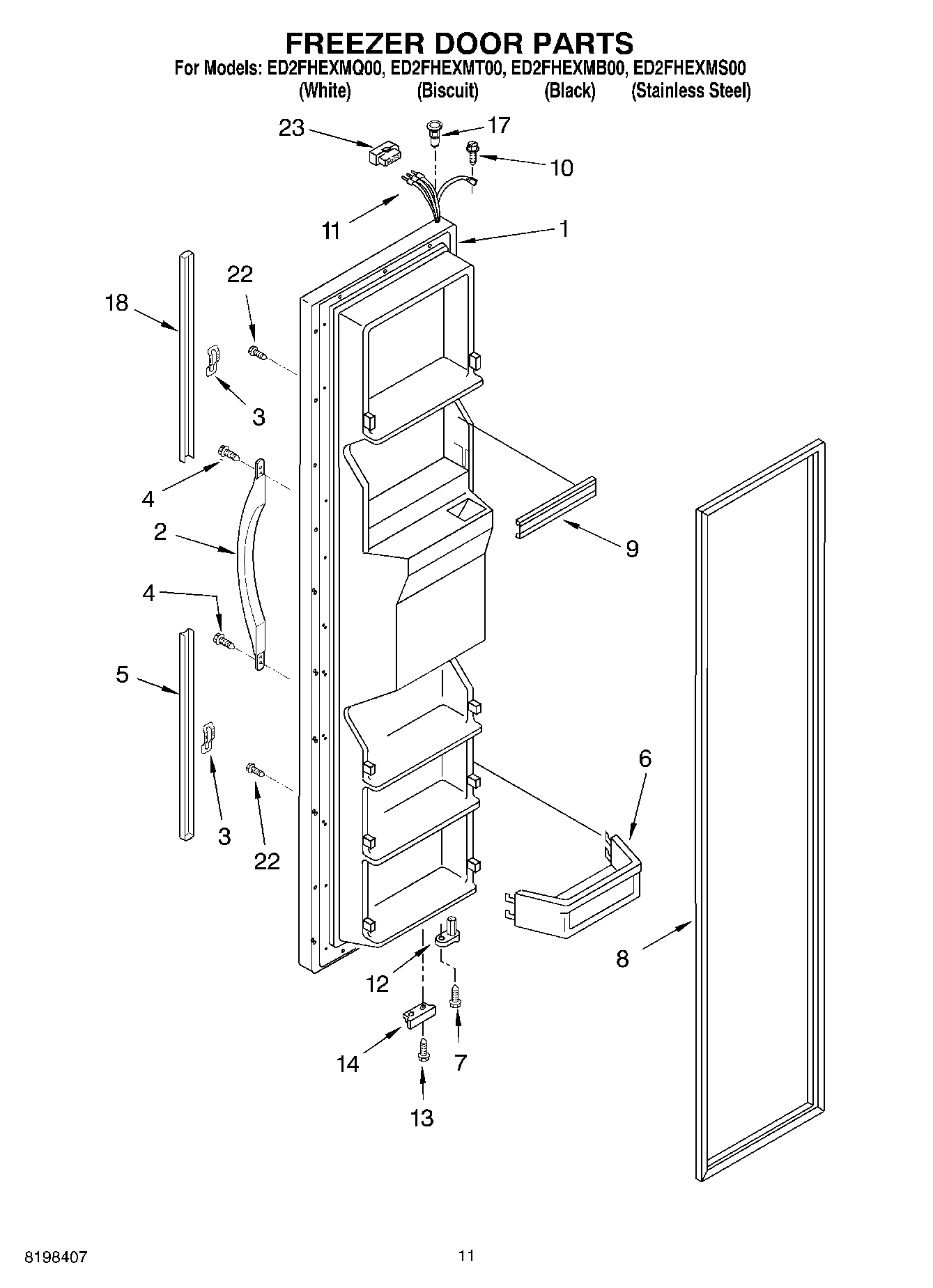

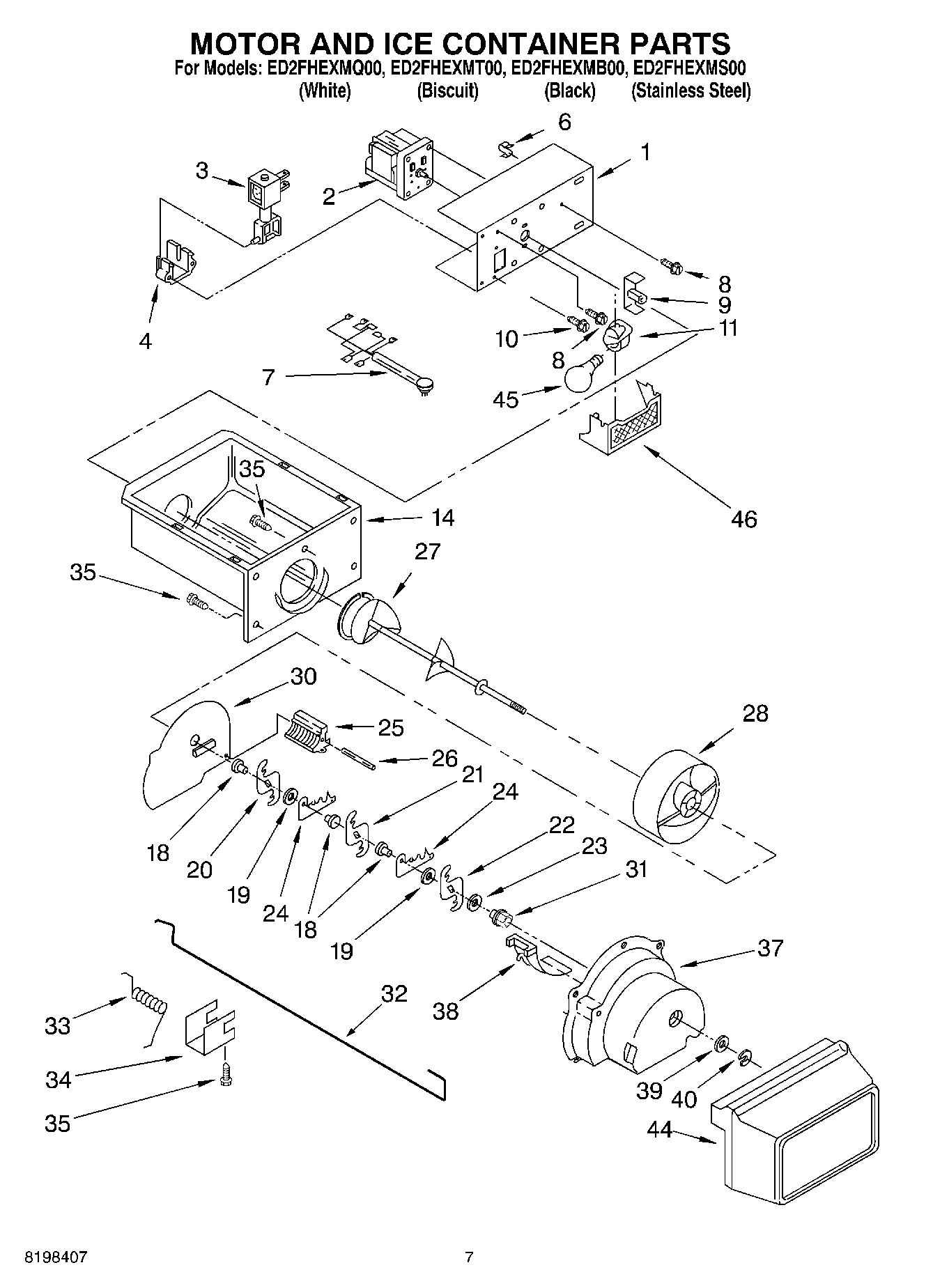

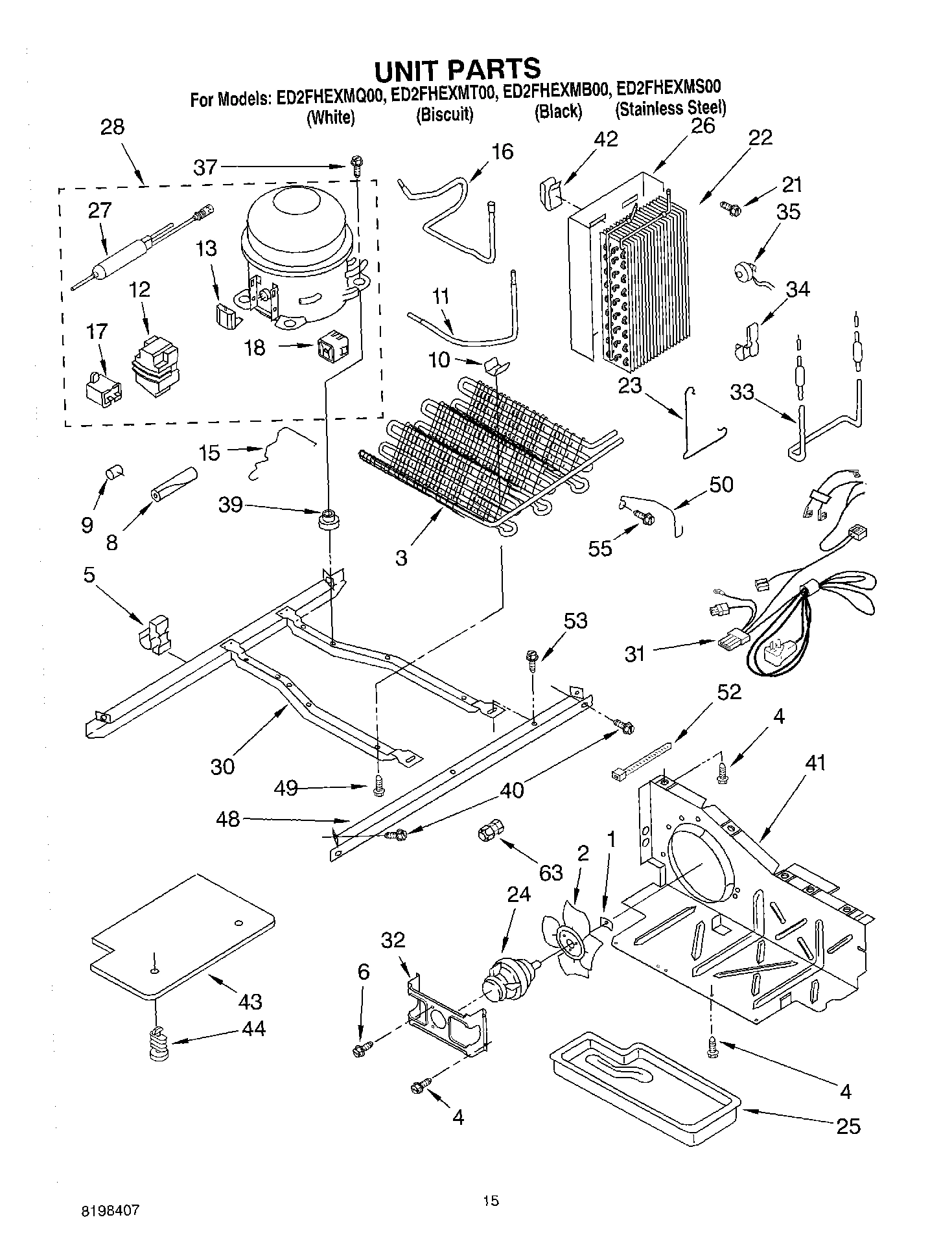

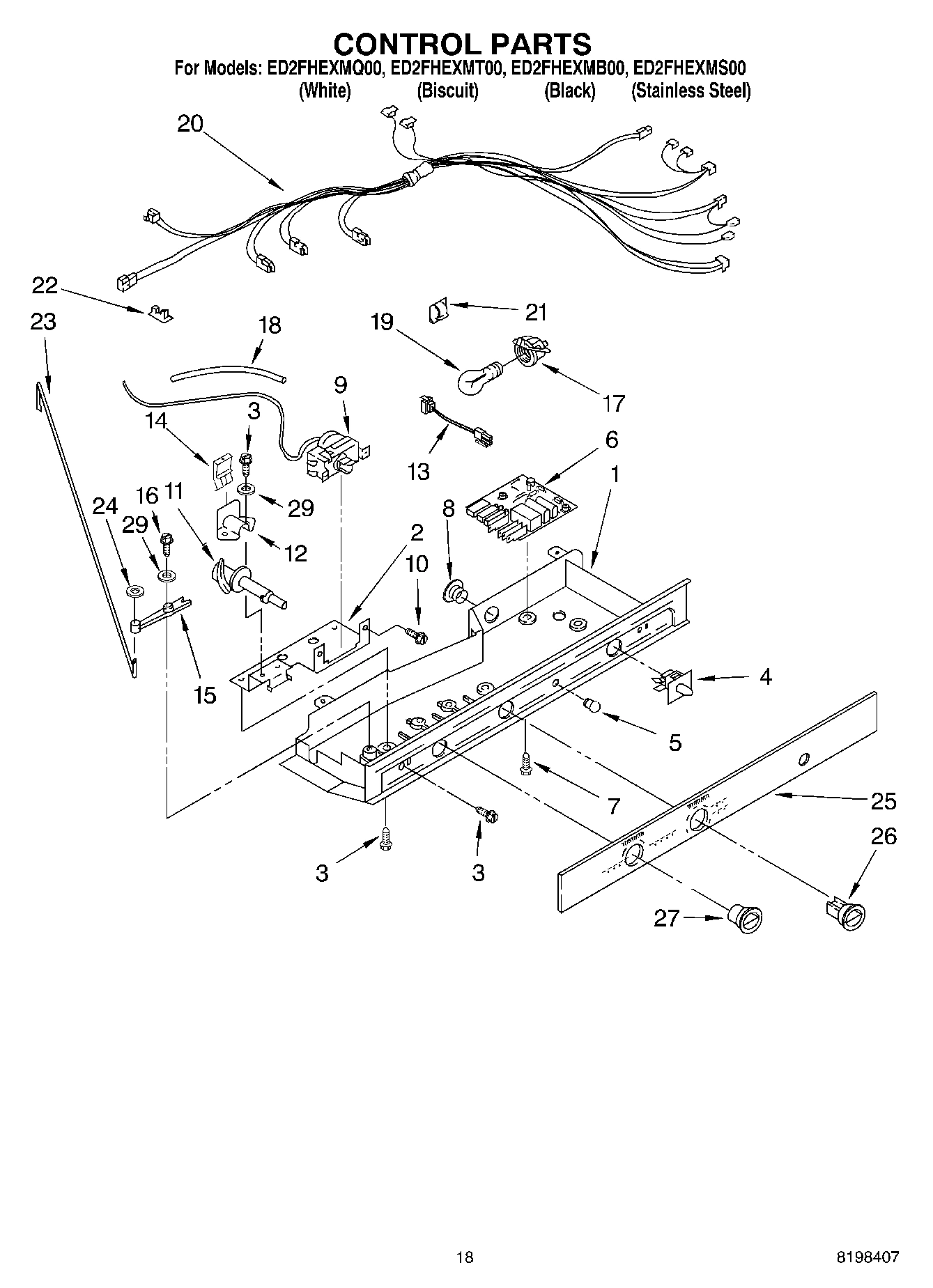

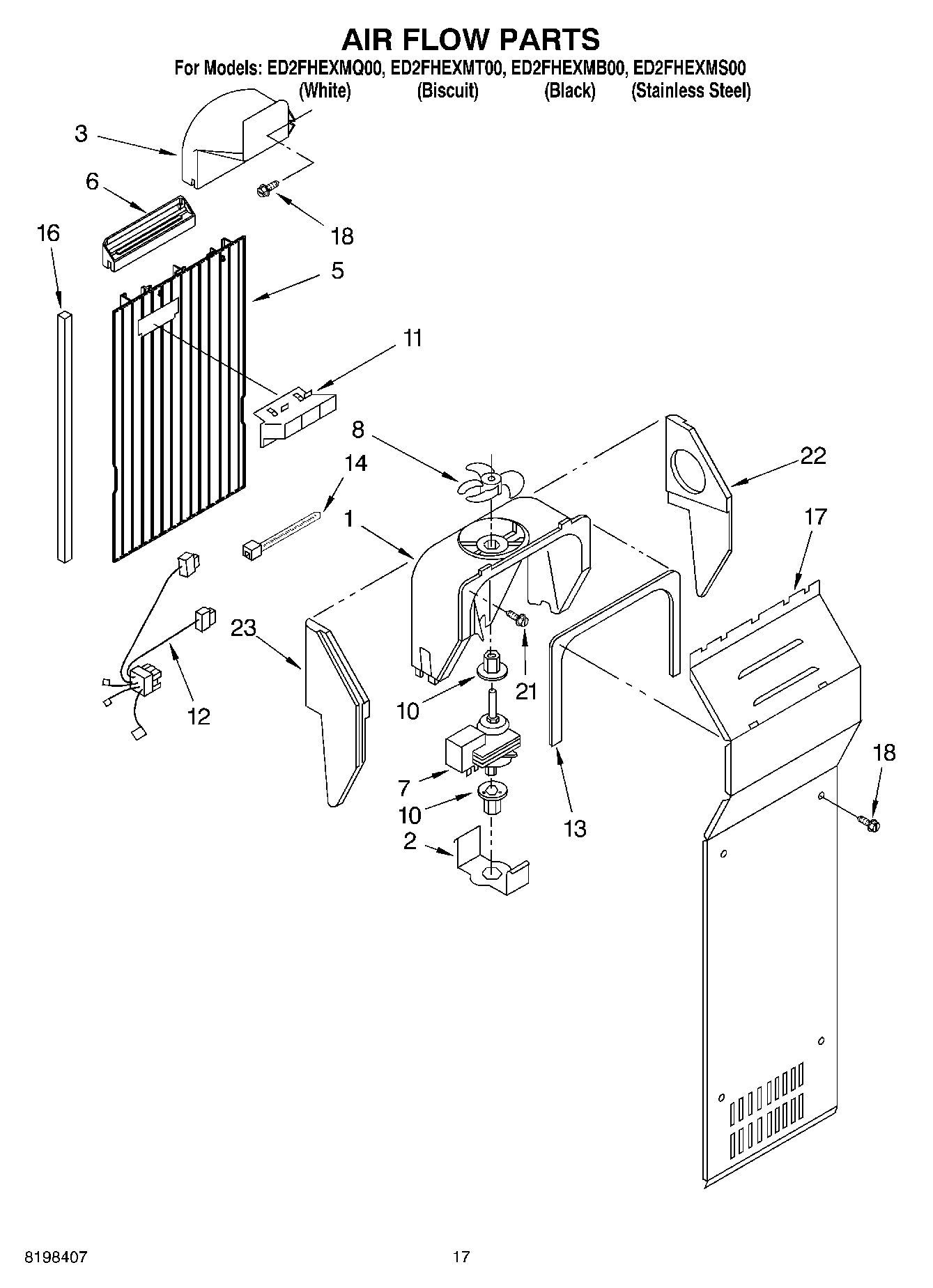

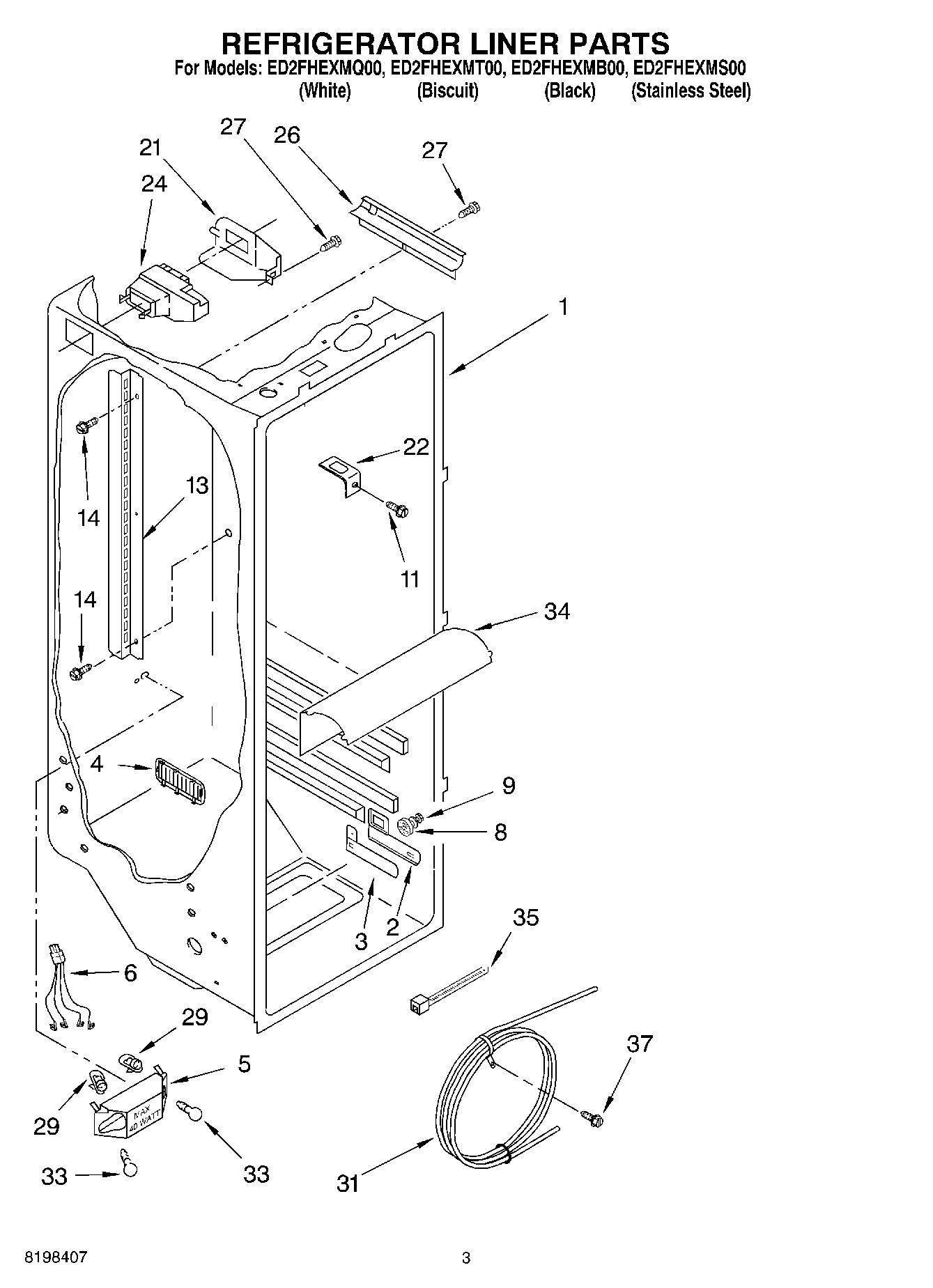

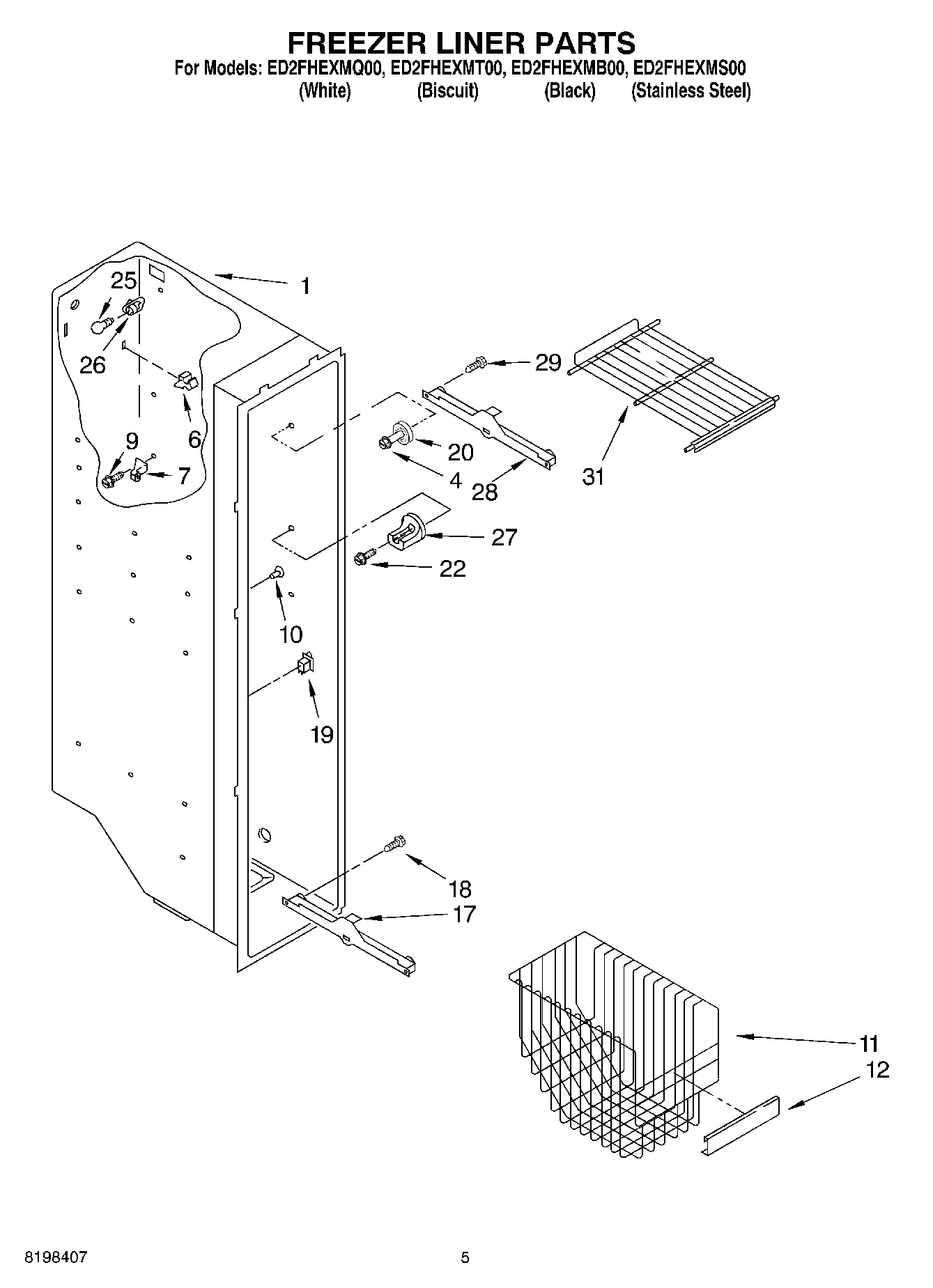

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Seviceable Part) Compartment WPL ARI29304A5 Contact Us For Availability

1

Bracket, Motor WPL 2183728 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Black) WPL 2206716B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2206716SB Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2206716T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2206716W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.33

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $101.23

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $27.32

5

WP2194971B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194971B $54.74

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Cover, Meat Pan WPL 2217039 Contact Us For Availability

5

Extension, Top (Biscuit) WPL 2194971T Contact Us For Availability

6

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.91

6

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $156.14

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $81.31

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

7

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

7

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

8

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

8

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

8

Shim WPL 2209697 Contact Us For Availability

9

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $46.16

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $55.82

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

Grommet WPL 2176134 Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Freezer Bin WPL 2223278 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2195904K Whirlpool Refrigerator Basket Trim Backorder WPL 2195904K $30.25

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

13

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

13

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $79.24

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

15

Pivot Arm WPL 1110559 Contact Us For Availability

15

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

Max-Ice Assembly WPL 2255794 Contact Us For Availability

Extension, Top (White) WPL 2194971W Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.68

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

20

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

21

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

Shield, Ice Door WPL 987121 Contact Us For Availability

27

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $103.10

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud, Rear WPL 2196207 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $33.09

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.97

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $113.37

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Shelf (2) WPL 2174265 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

43

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

100

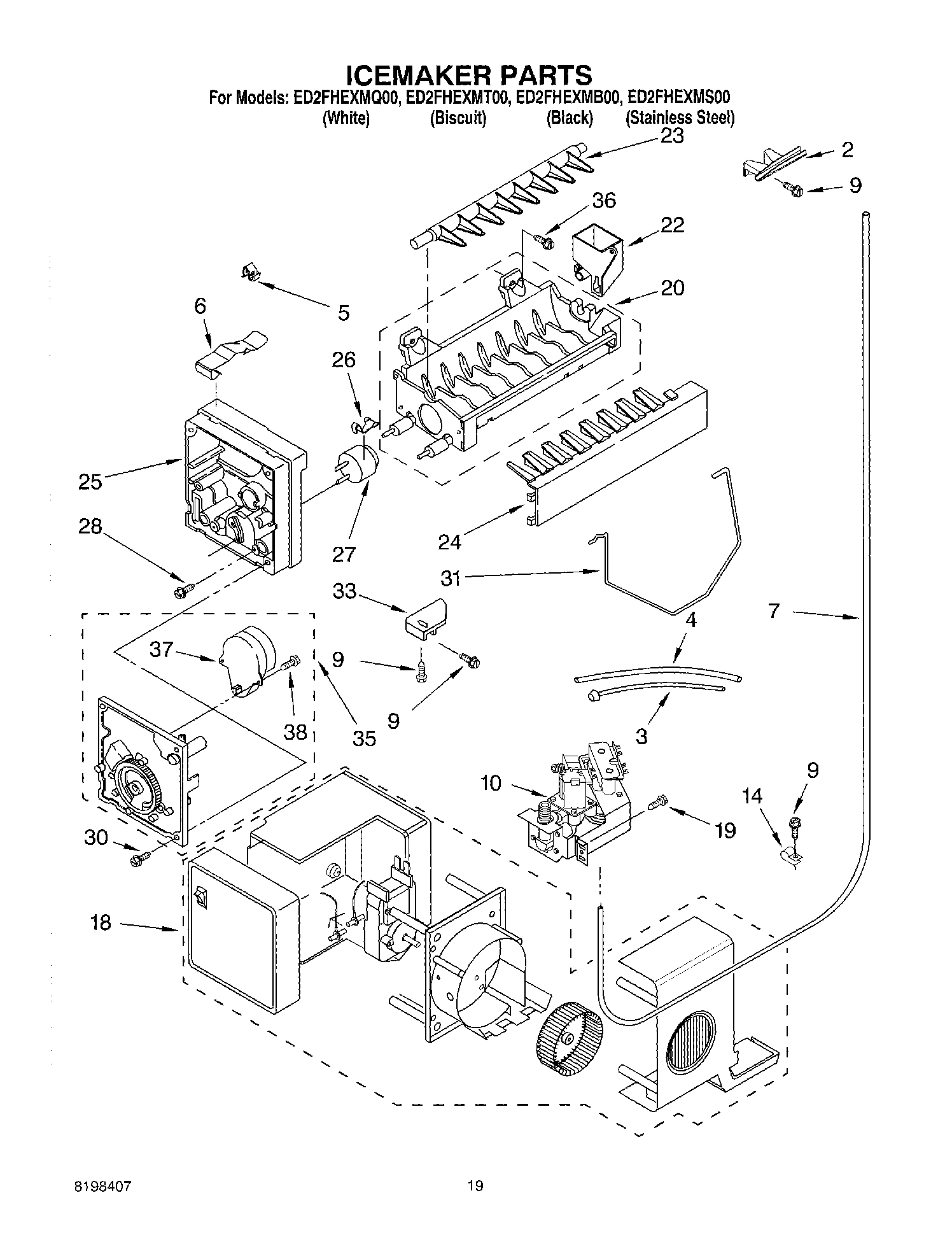

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $90.29

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
