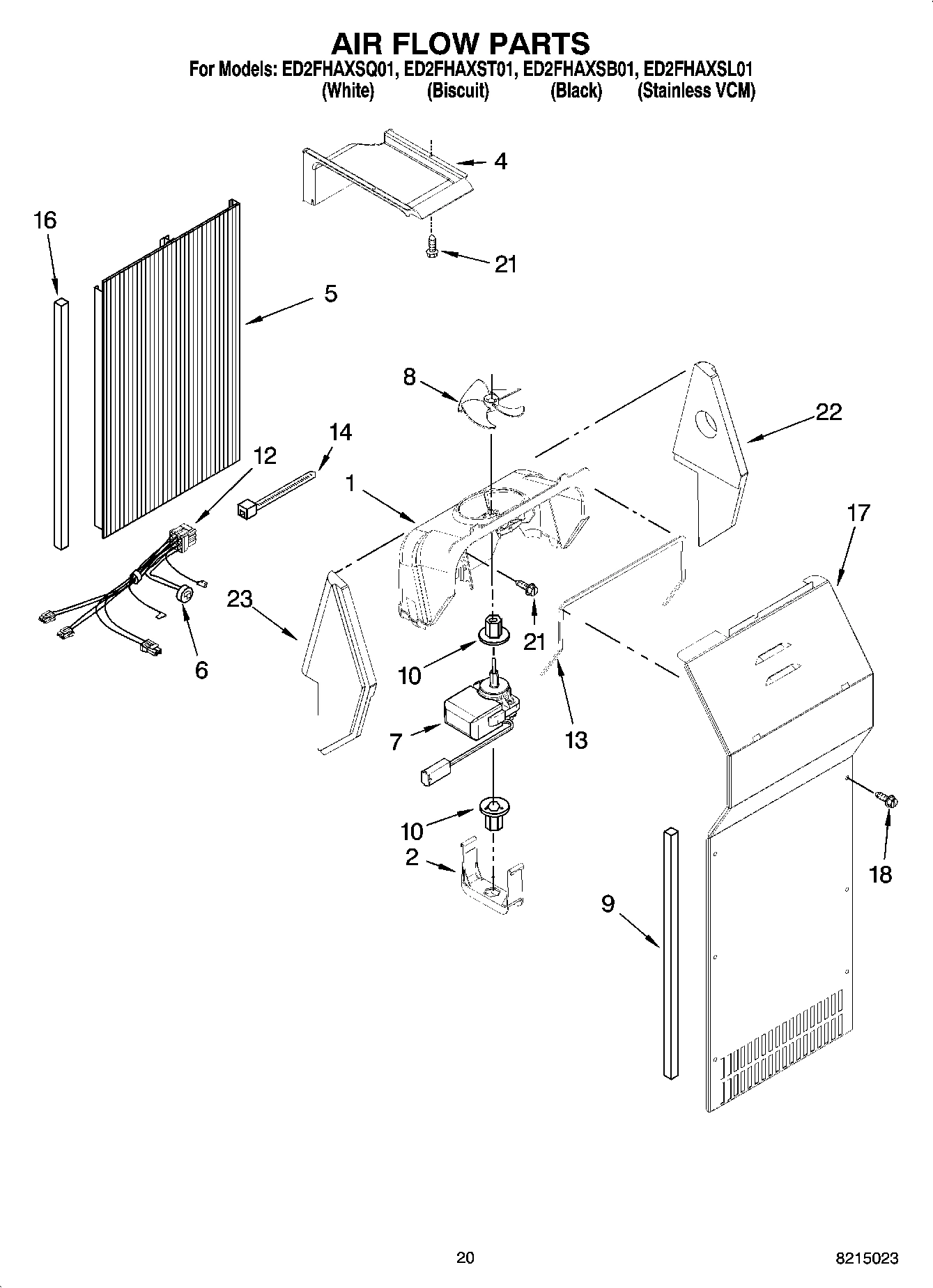

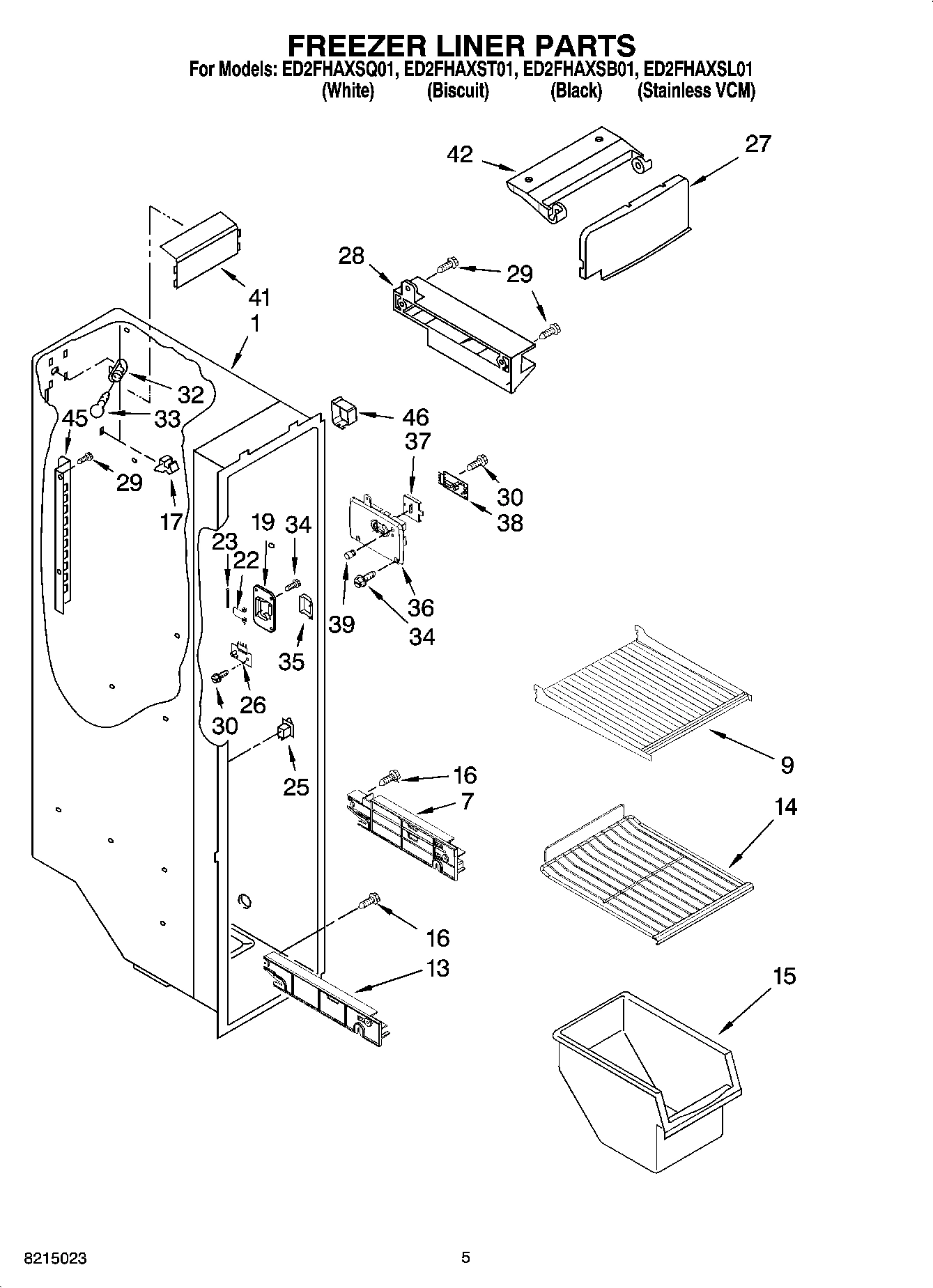

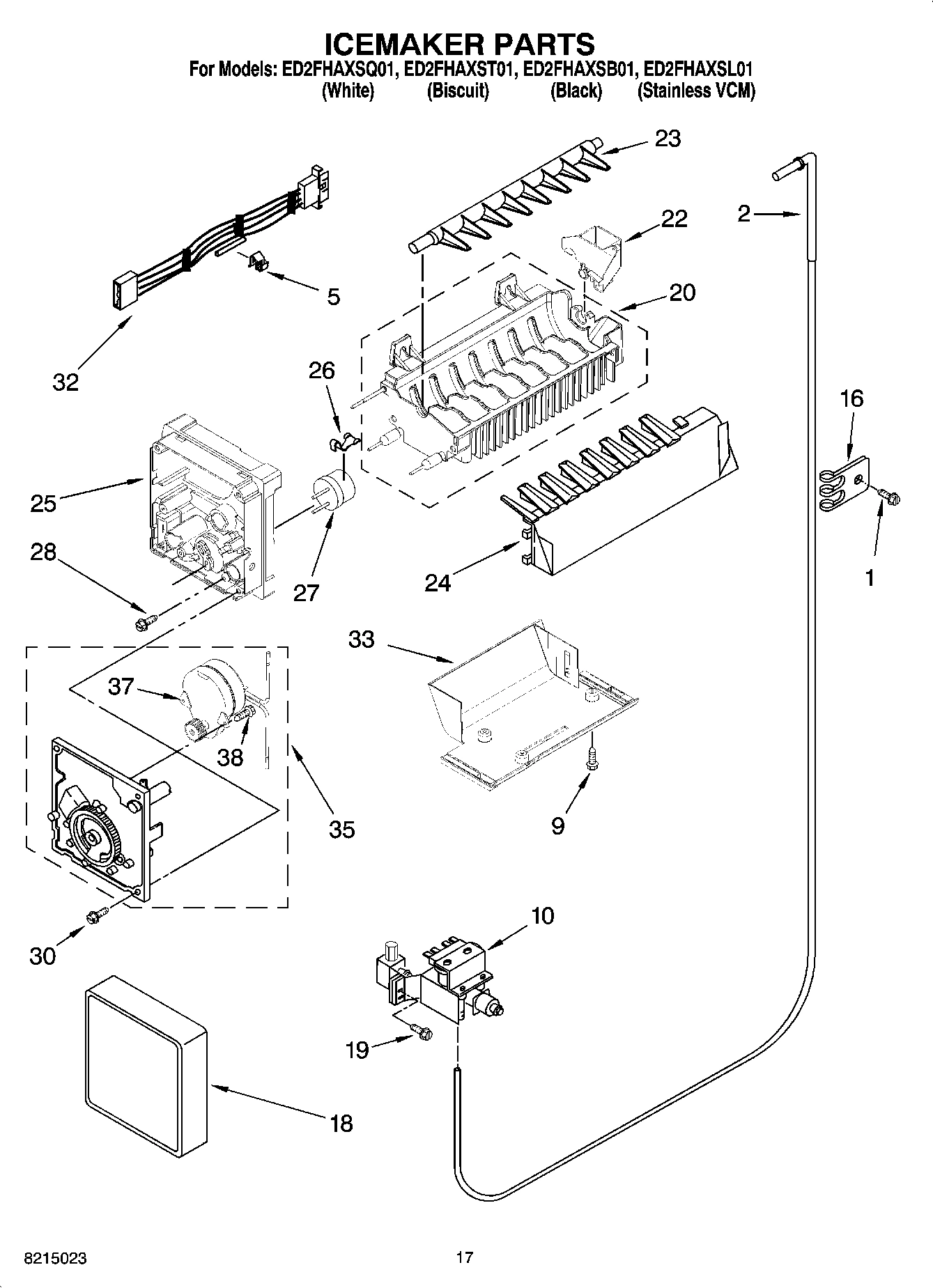

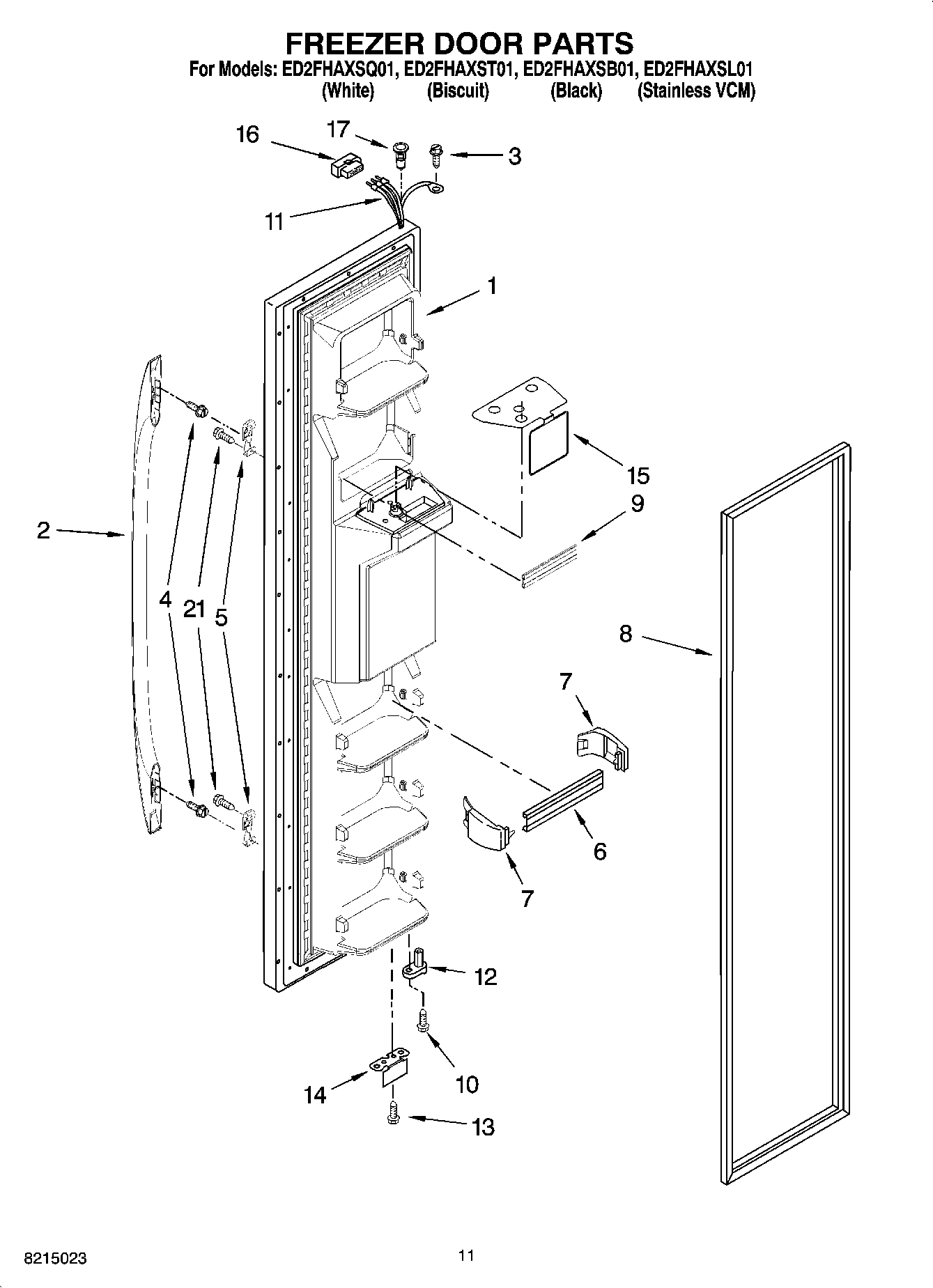

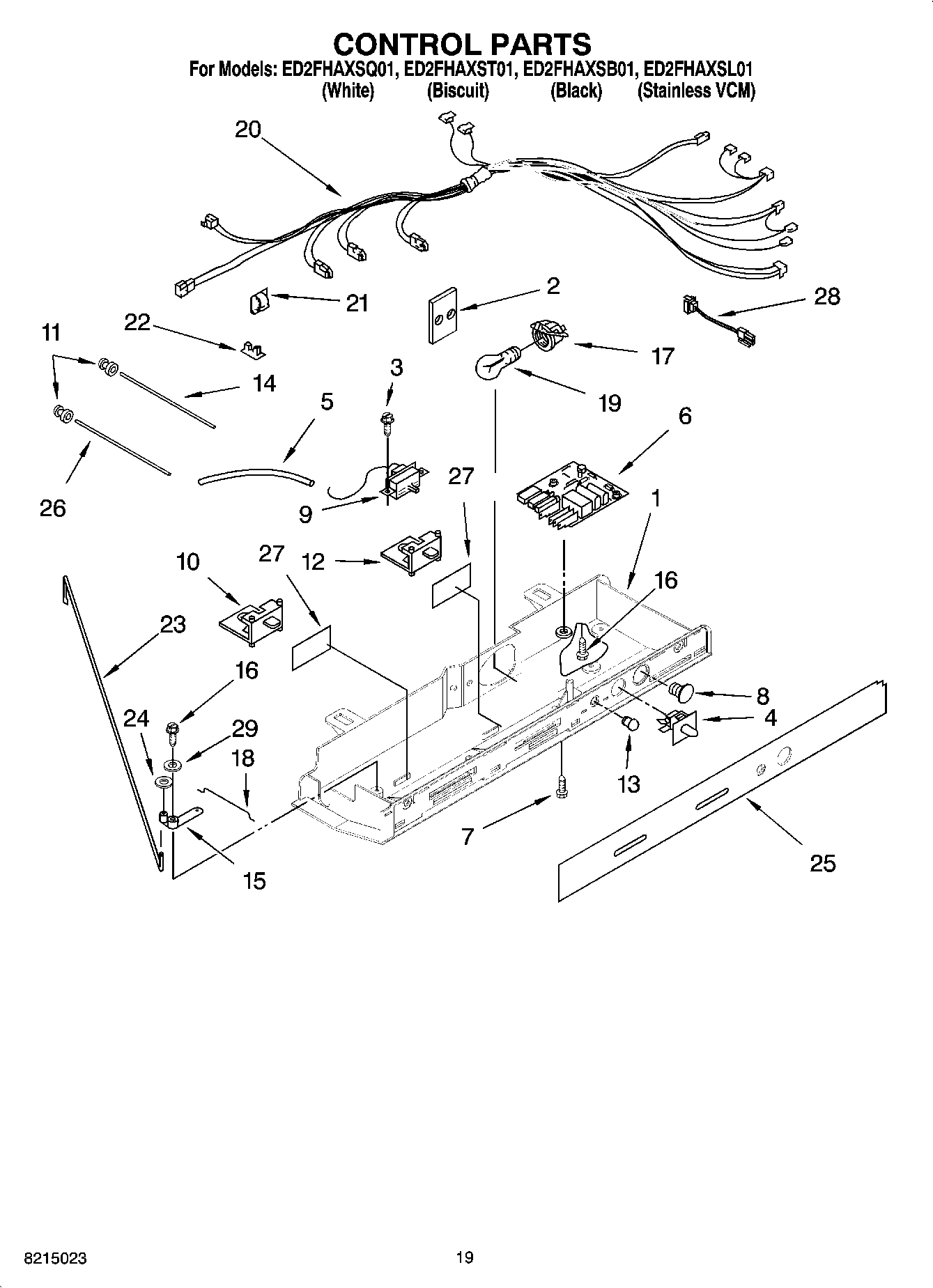

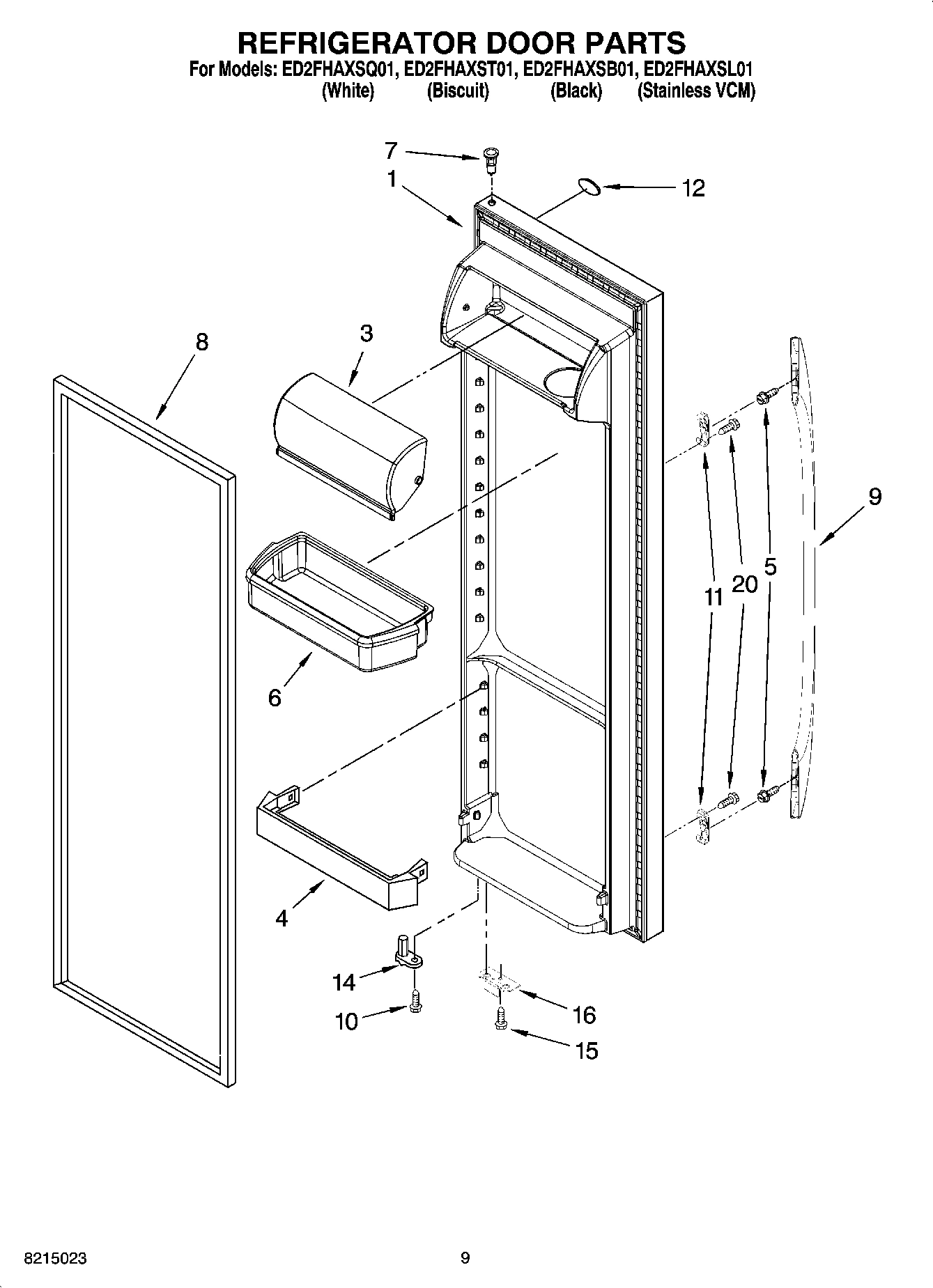

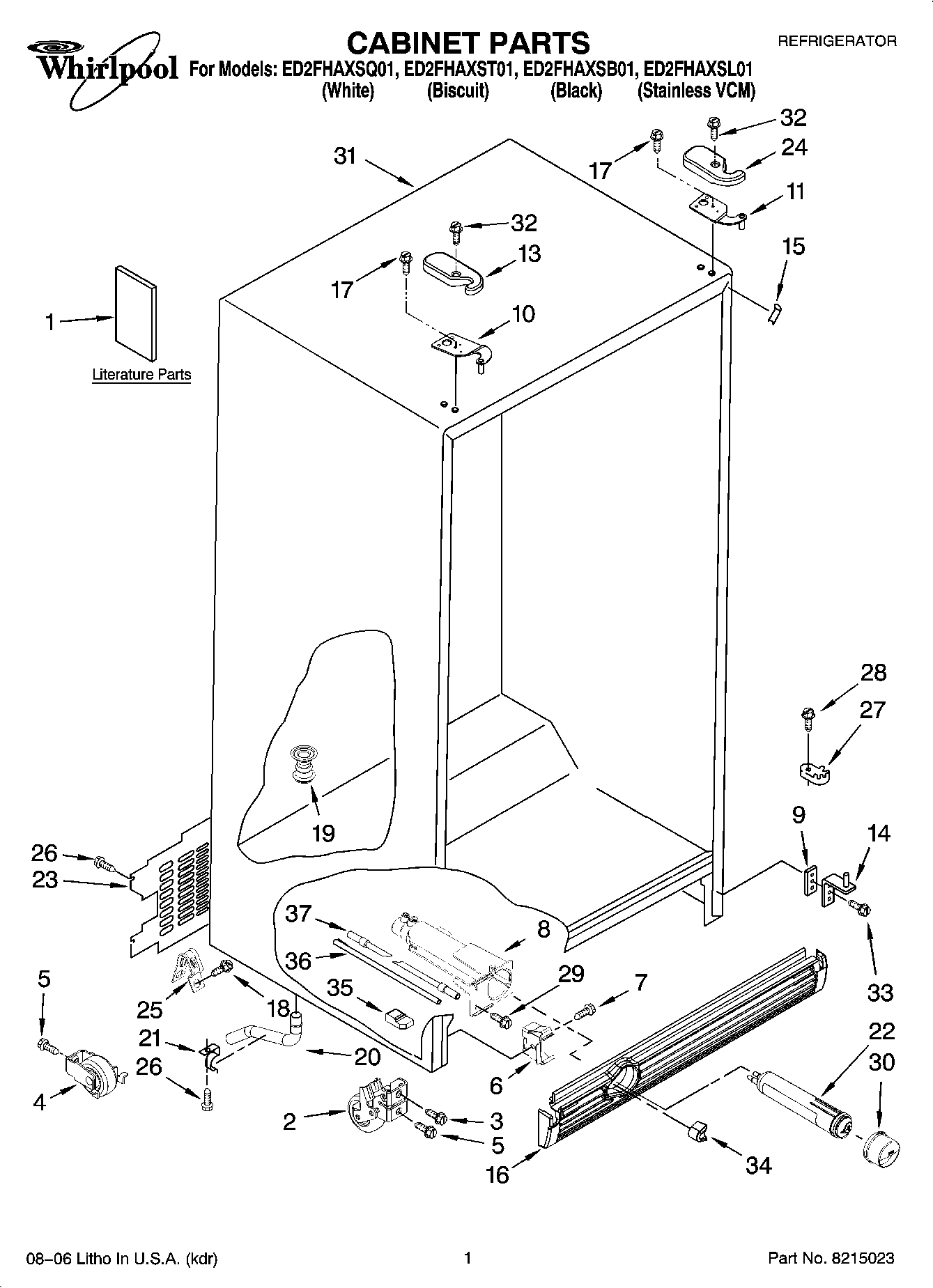

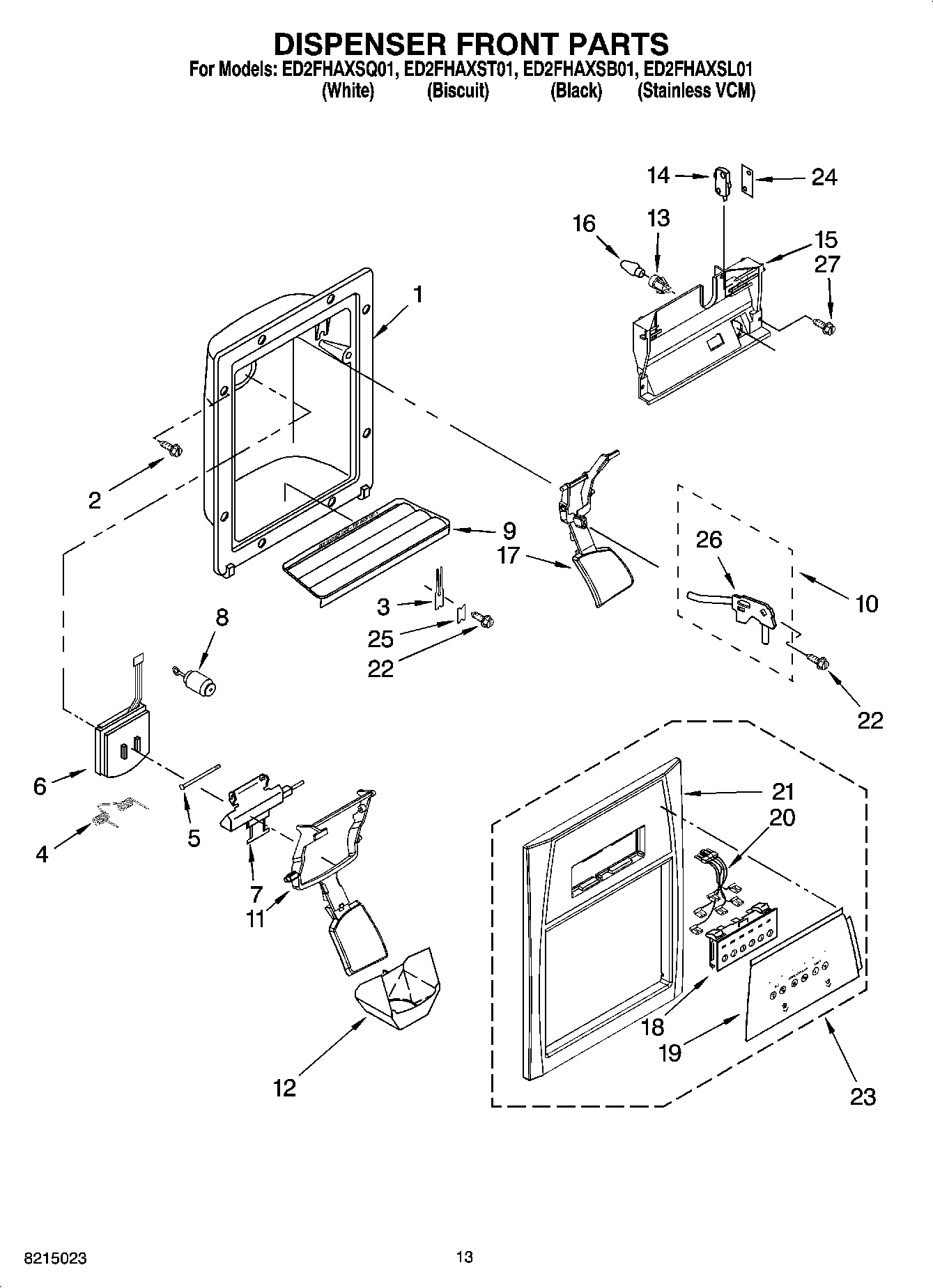

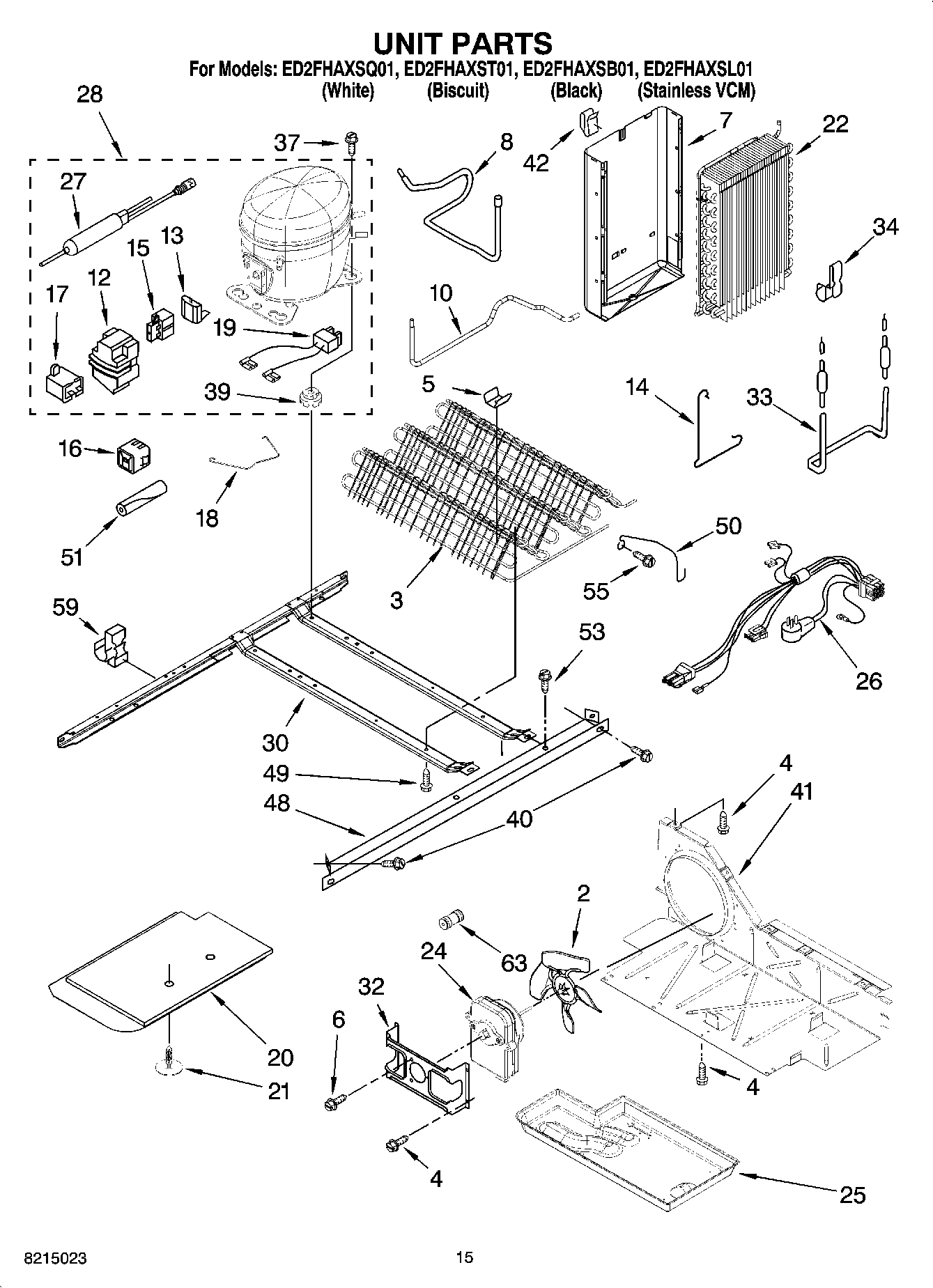

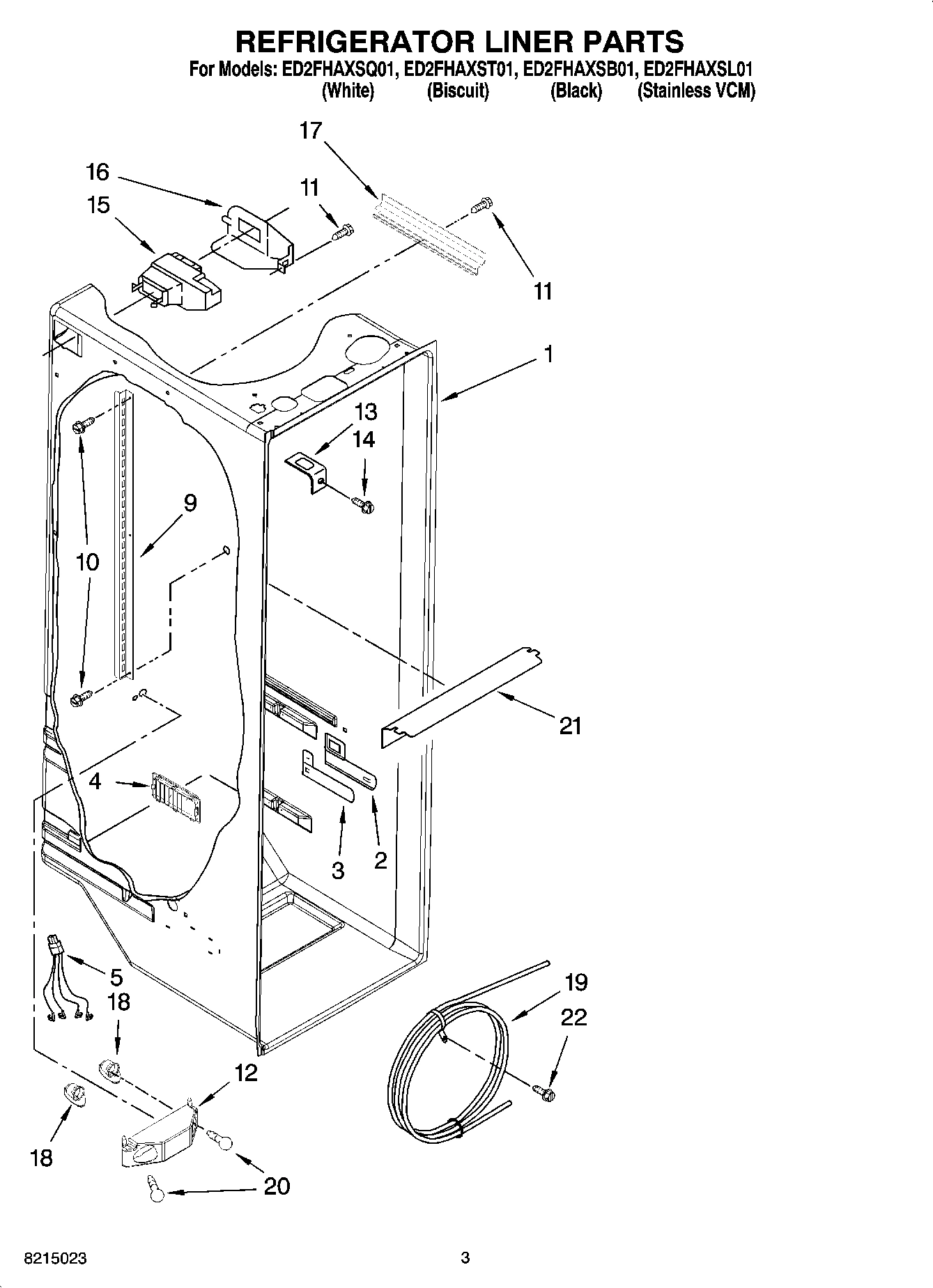

Model Whirlpool ED2FHAXSQ01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Refrigerator Door (Includes Item 8) (Black) WPL 2307101B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Stainles WPL 2307101LG Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2307101T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2307101W Contact Us For Availability

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

SCREW WPL 8533920 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

6

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $27.32

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

7

Heat Shield And Drain Pan WPL 2304288 Contact Us For Availability

8

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.91

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $156.14

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

9

W10187086 Whirlpool Refrigerator Handle Backorder WPL W10187086 $233.11

9

W10187087 Whirlpool Refrigerator Handle Backorder WPL W10187087 $238.78

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shim (2) WPL 2209697 Contact Us For Availability

9

Handle (White) WPL 2313345W Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $76.51

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Cover, Indicator Light WPL 2200096 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

Freezer Bin WPL 2216111 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Relay (Service Only) WPL 2183454 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $87.84

20

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $244.13

20

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

CLIP, WIRING WPL 1115375 Contact Us For Availability

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $47.56

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 19, 20 & WPL 2318558B Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489391 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

25

Escutcheon, Control Box WPL 2315154 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $139.29

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

27

Window WPL 2175513 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

37

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2260516 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $24.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated WPL ARI29108A5 Contact Us For Availability

and Optional Parts Not Included WPL ARI29109A3 Contact Us For Availability

REFRIGERANT CHA WPL ARI29110A3 Contact Us For Availability
