Model Whirlpool ED27DSXDW06 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

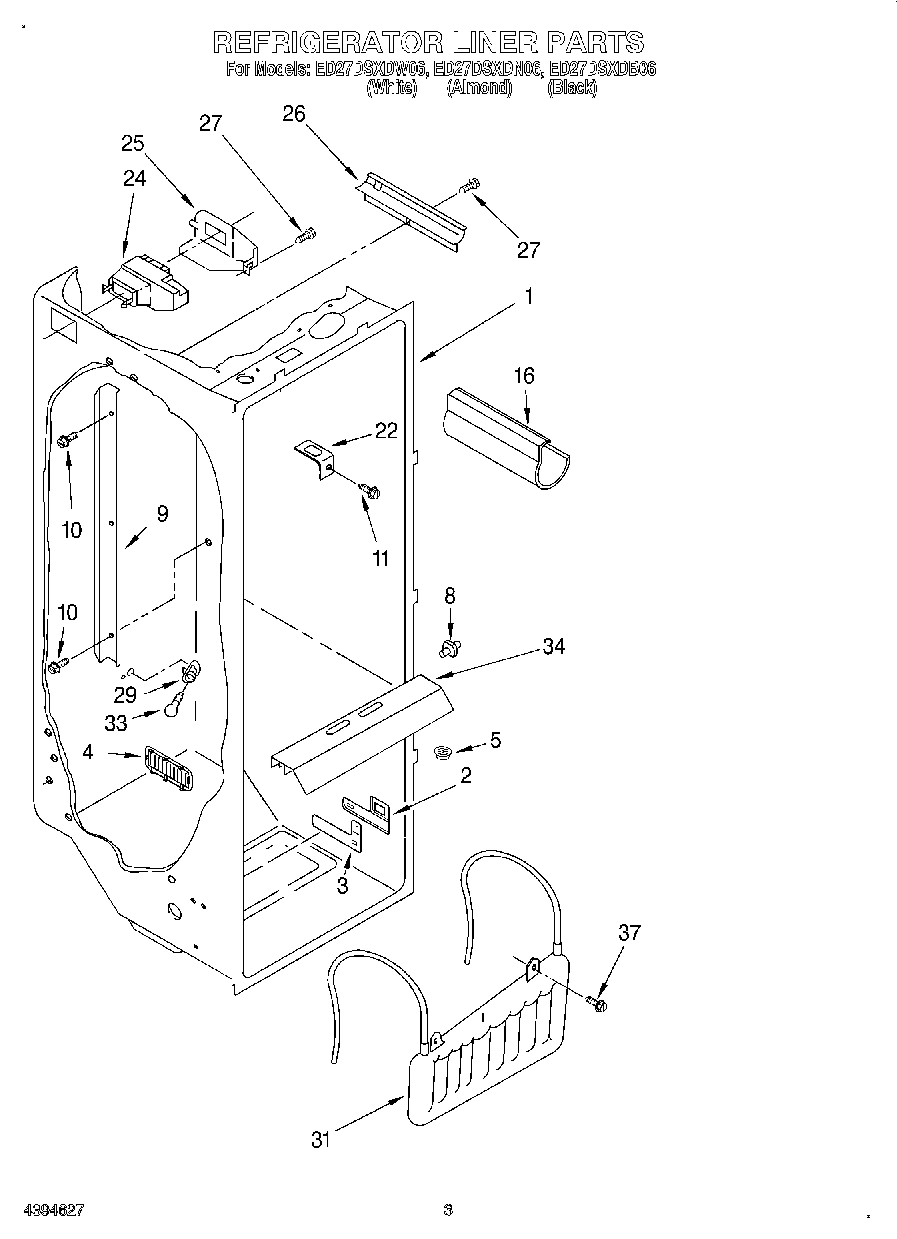

02 - REFRIGERATOR LINER

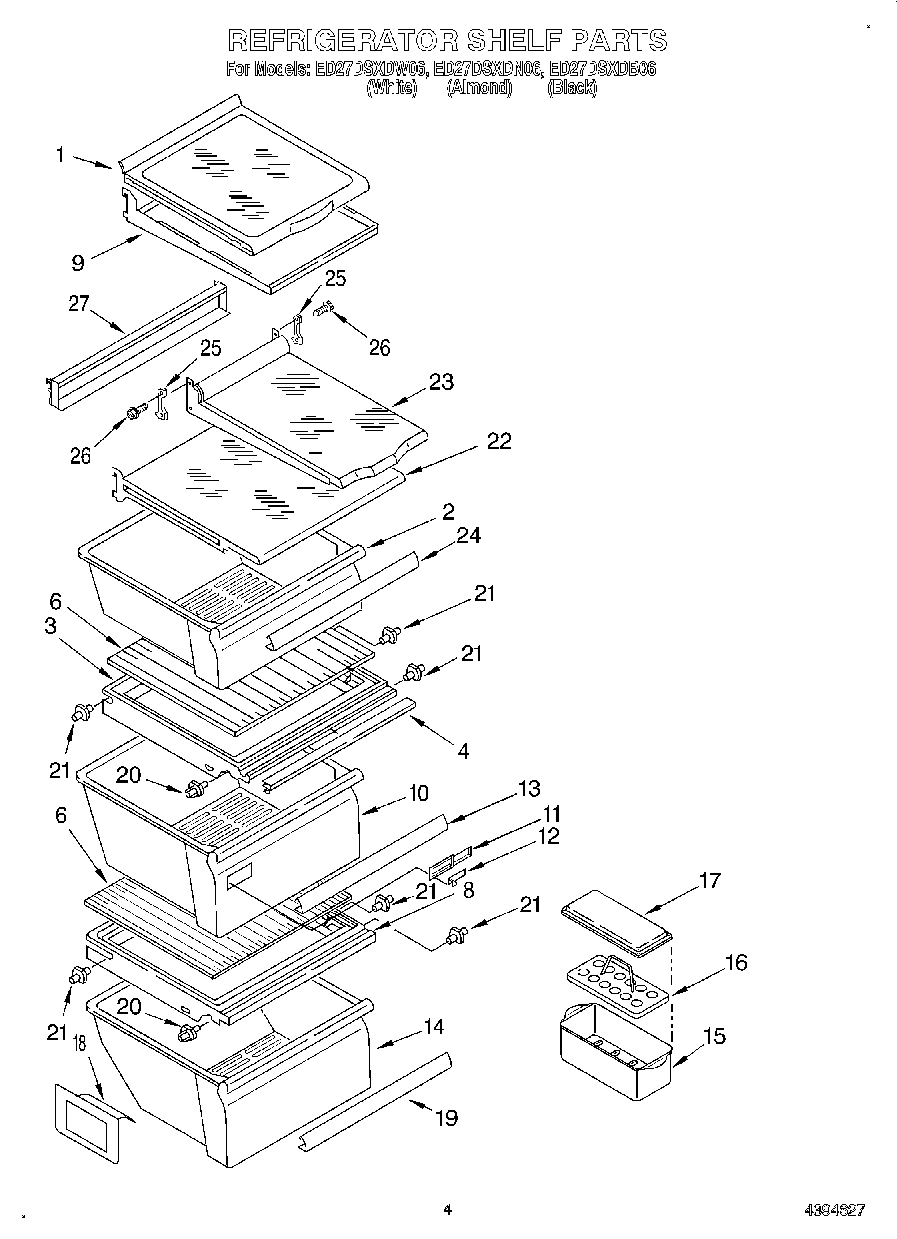

03 - REFRIGERATOR SHELF
10 - AIR FLOW

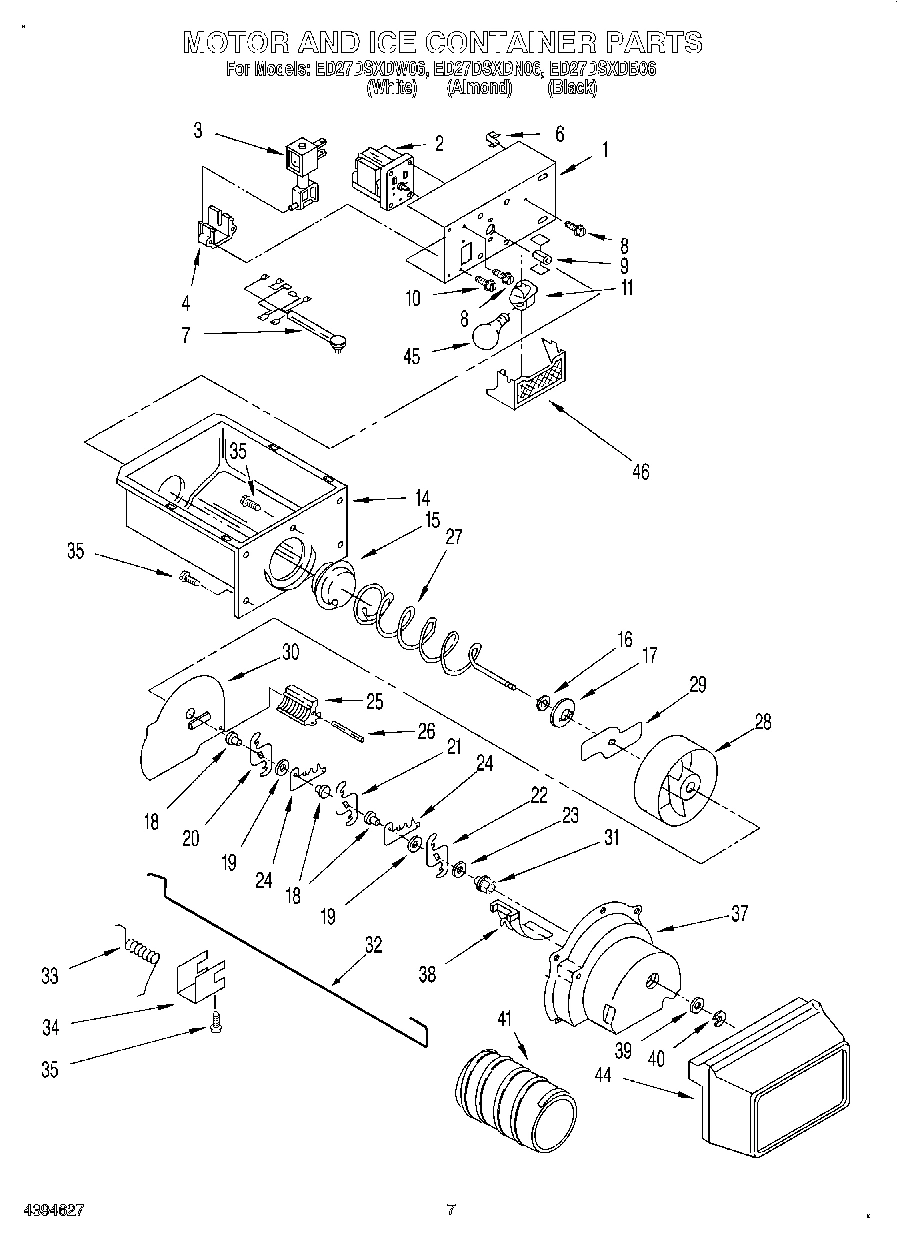

05 - MOTOR AND ICE CONTAINER

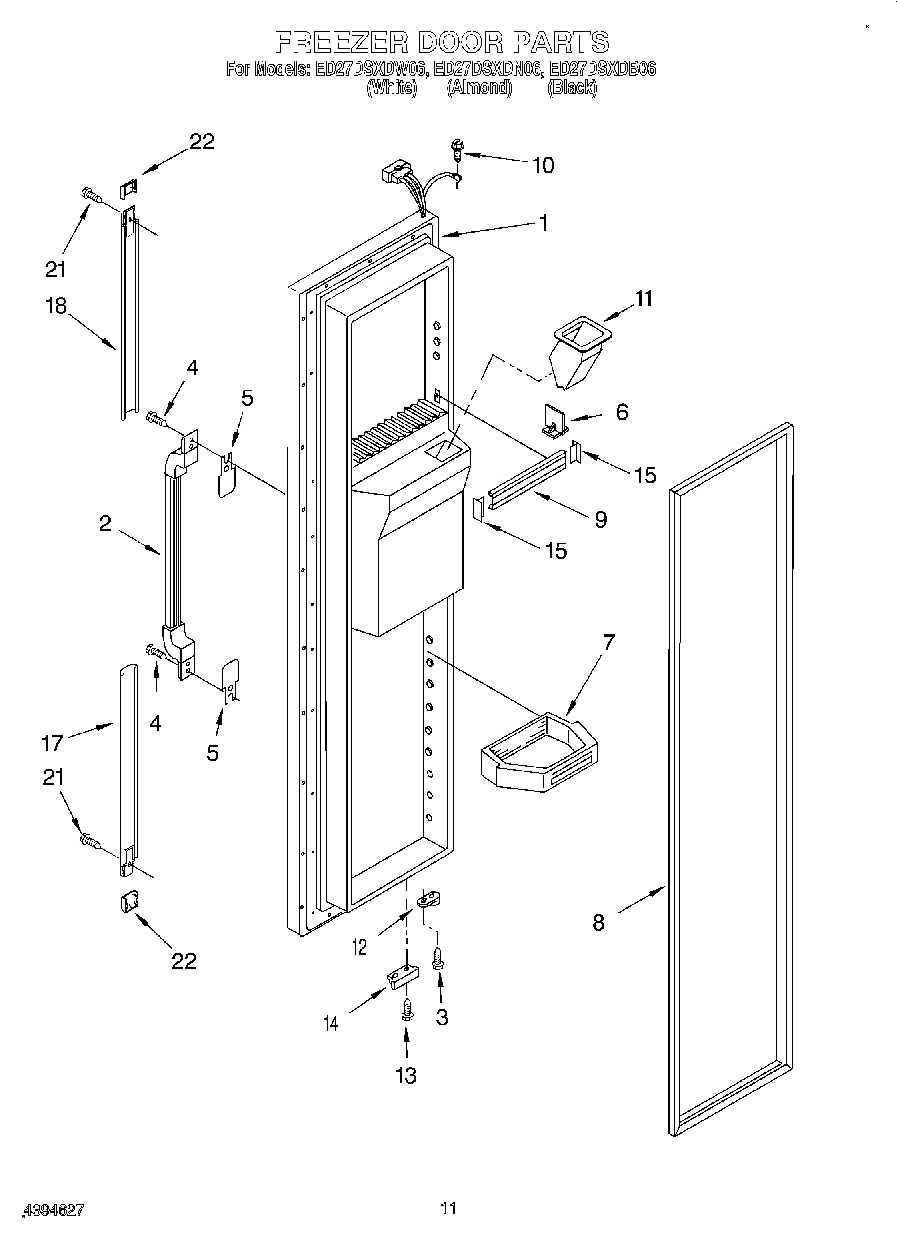

07 - FREEZER DOOR
04 - FREEZER LINER

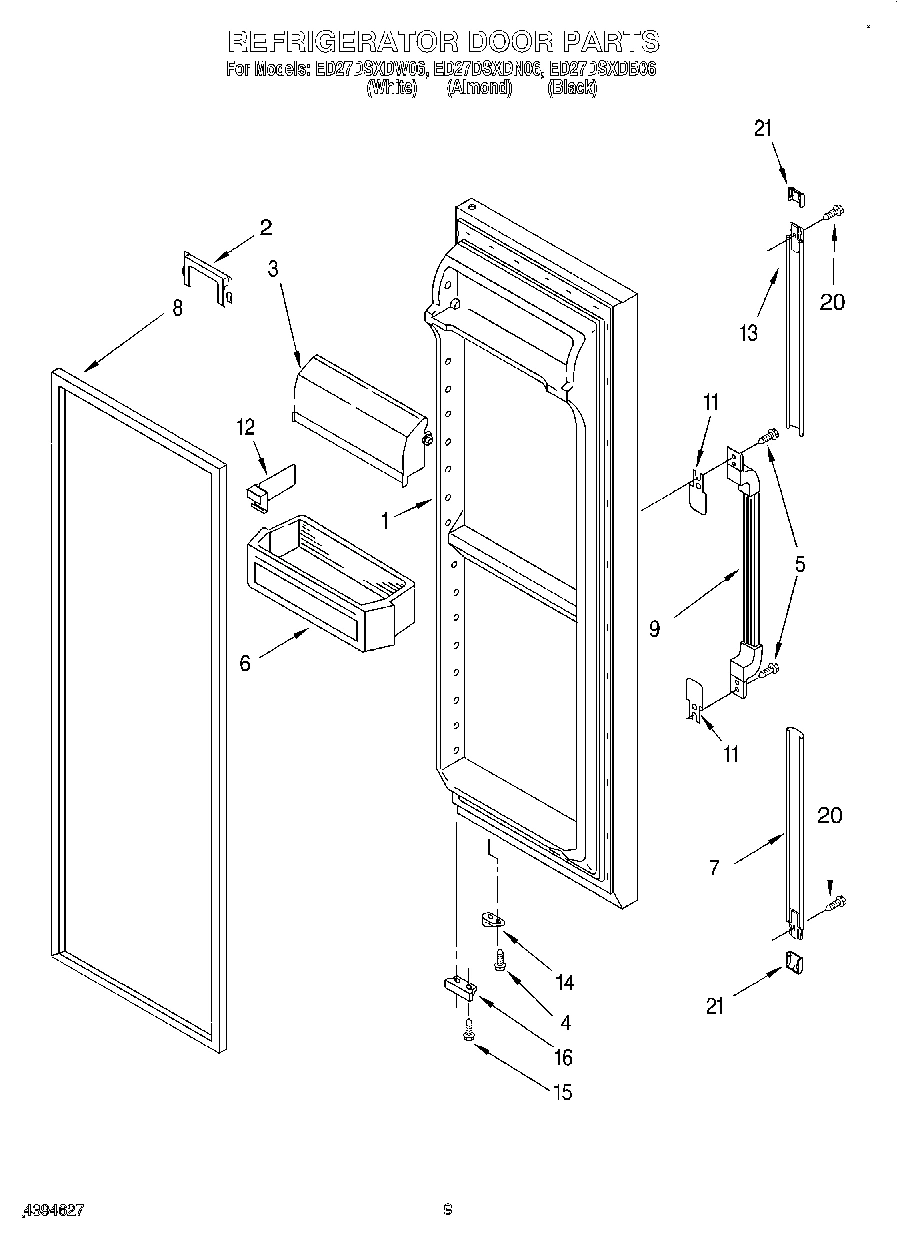

06 - REFRIGERATOR DOOR

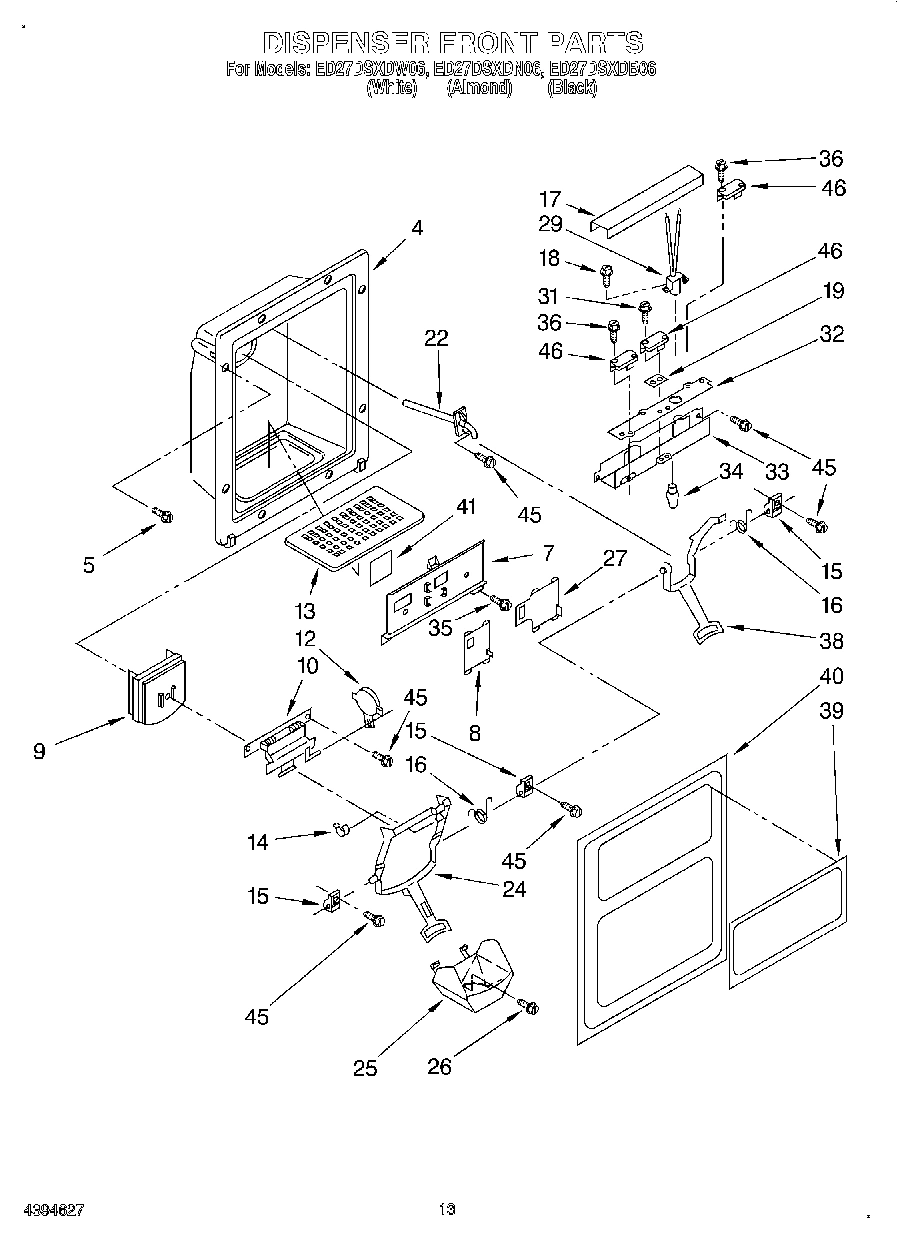

08 - DISPENSER FRONT

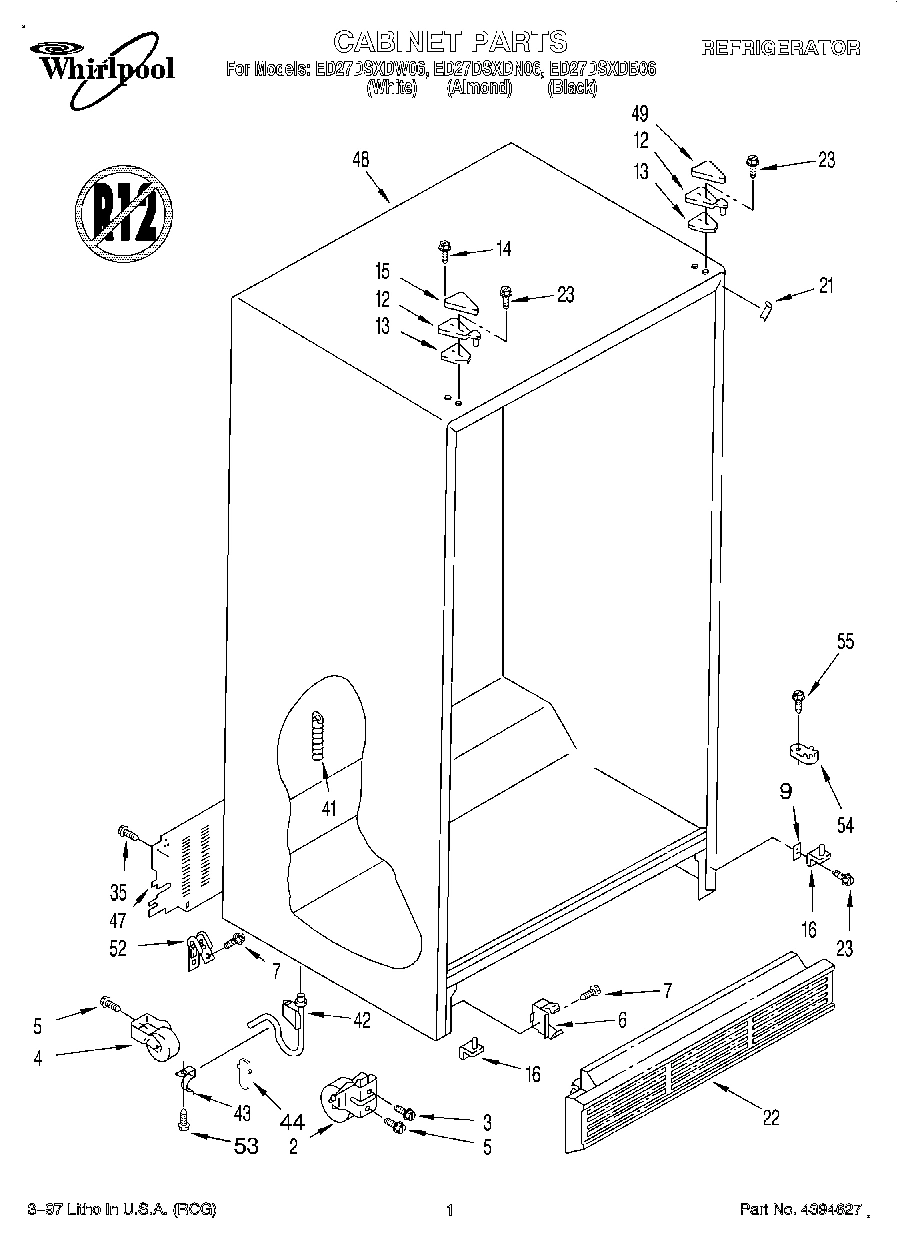

01 - CABINET
12 - ICE MAKER, LIT/OPTIONAL

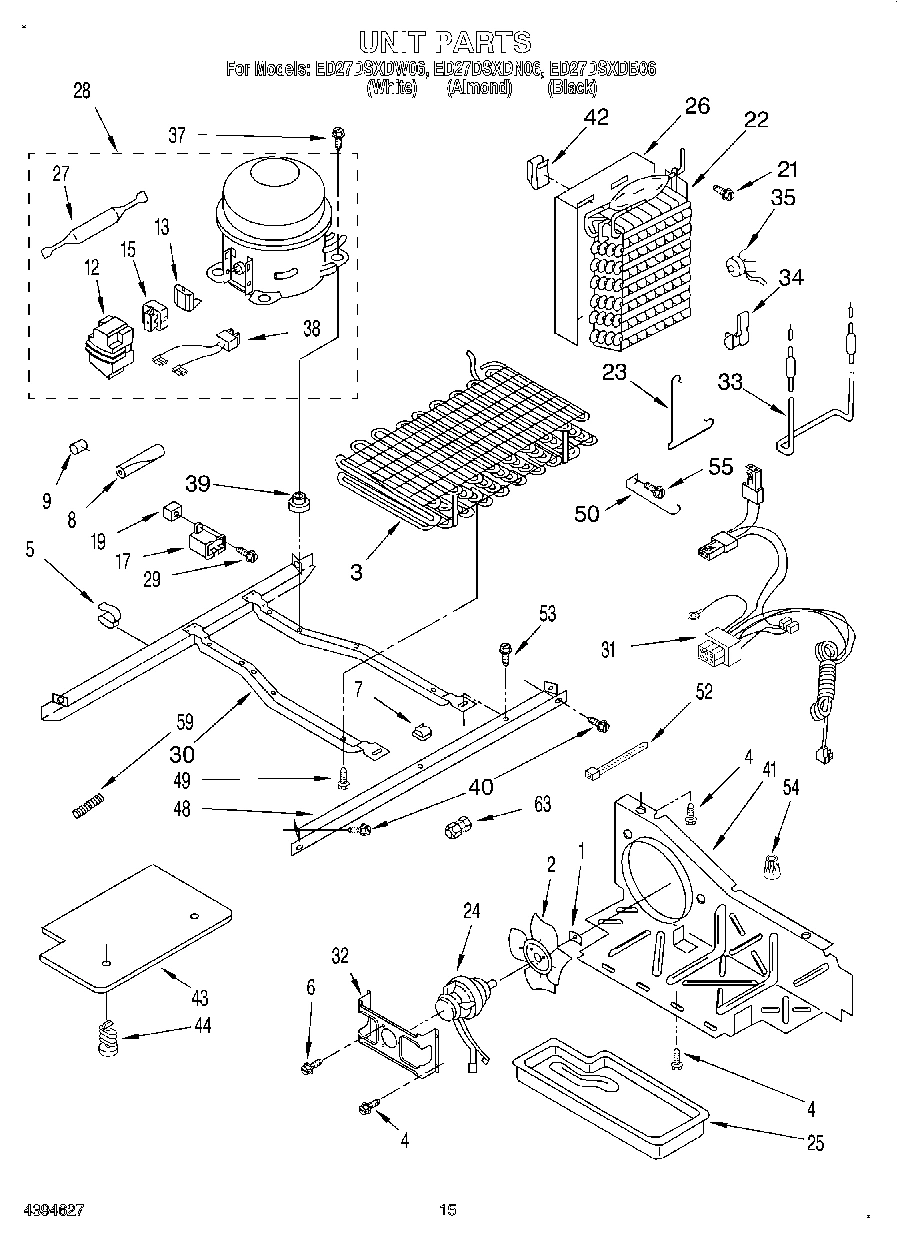

09 - UNIT

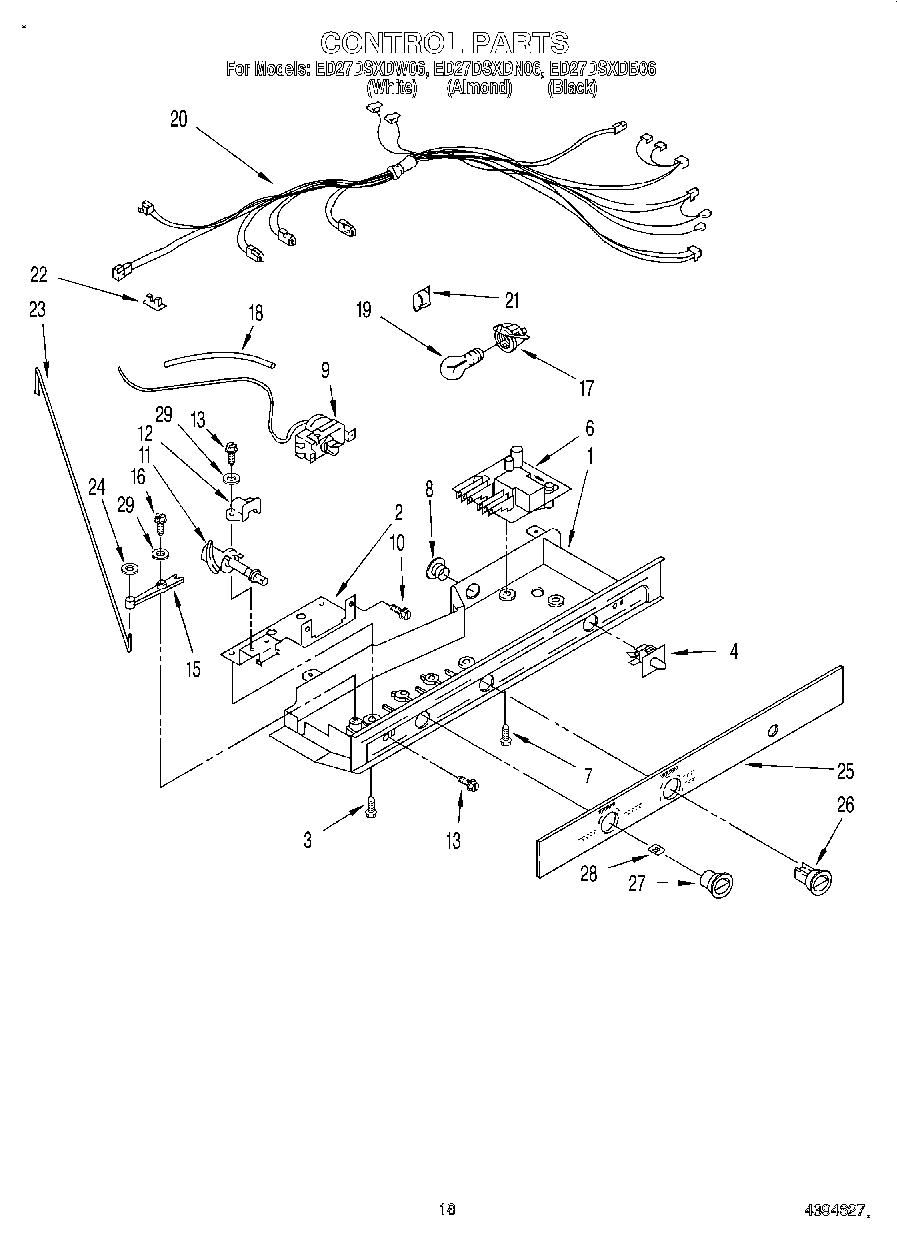

11 - CONTROL
Common parts from model Whirlpool ED27DSXDW06 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175298 WPL LIT2175298 Contact Us For Availability
WPL LIT2176077 WPL LIT2176077 Contact Us For Availability
WPL LIT2194920 WPL LIT2194920 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI28431A4 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Extension, Top (Black) WPL 2194765B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194765N Contact Us For Availability
13
Extension, Top (White) WPL 2194765W Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
15
Relay (See Overload) WPL ARI28432A5 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2195015 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
21
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
31
Unit Harness WPL 2194876 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2179206 Contact Us For Availability
39
Plaque, Front Cover (Black) WPL 2179207 Contact Us For Availability
40
Front Cove WPL 2174310 Contact Us For Availability
40
WPL 2179202 WPL 2179202 Contact Us For Availability
40
WPL 2179203 WPL 2179203 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI28428A7 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT. WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
