Model Whirlpool ED27DSXDB06 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

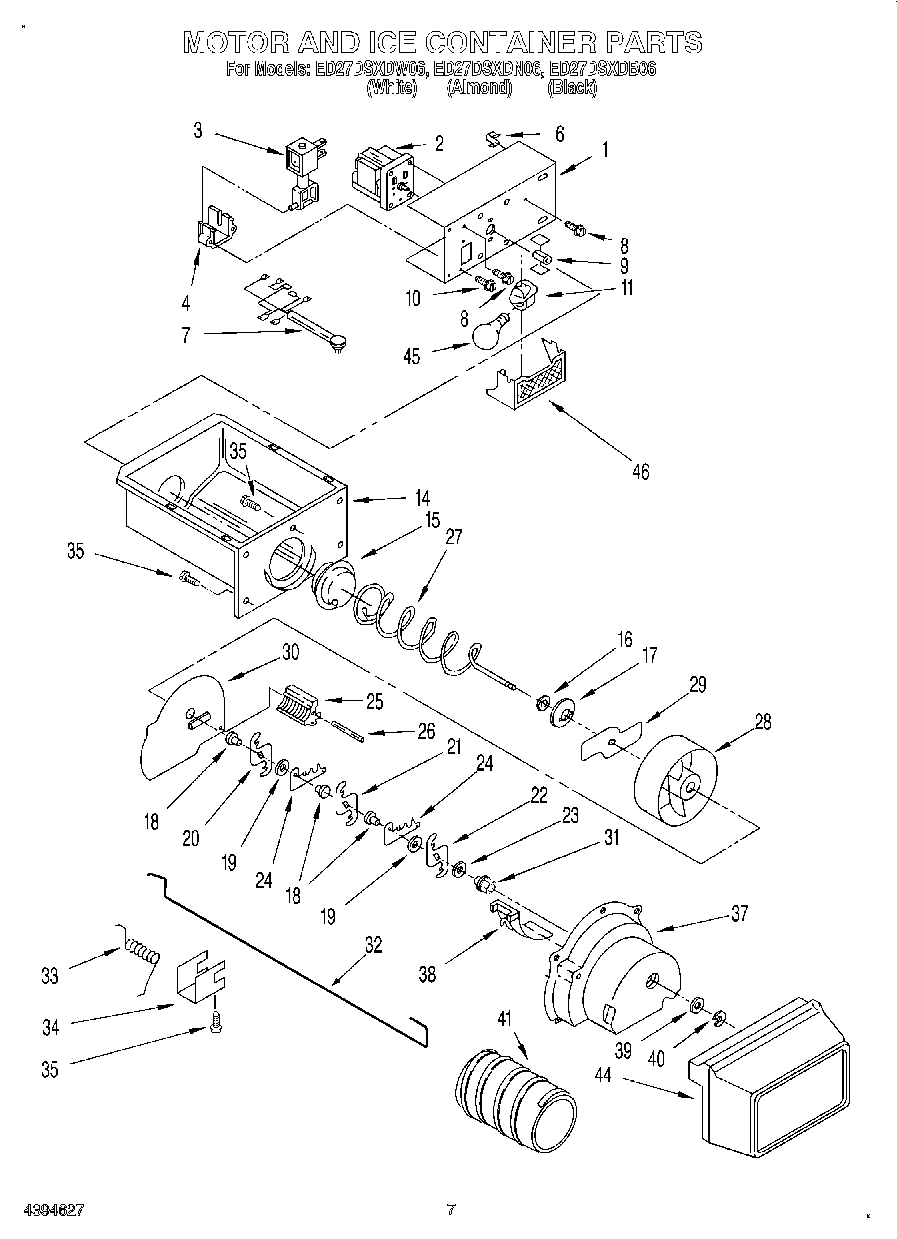

05 - MOTOR AND ICE CONTAINER
12 - ICE MAKER, LIT/OPTIONAL
07 - FREEZER DOOR
09 - UNIT
11 - CONTROL
08 - DISPENSER FRONT
10 - AIR FLOW
03 - REFRIGERATOR SHELF
01 - CABINET
02 - REFRIGERATOR LINER
04 - FREEZER LINER
06 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED27DSXDB06 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28379A7 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28380A4 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194514B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194514N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194514W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI28381A5 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Extension, Bottom (Black) WPL 2194766B Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
7
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
9
Handle, Center (Black) WPL 2194759B Contact Us For Availability
9
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
9
Handle, Center (White) WPL 2194759W Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Basket WPL 2181763 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Extension, Top (Black) WPL 2194765B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194765N Contact Us For Availability
13
Extension, Top (White) WPL 2194765W Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
21
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Door, Top Compartment WPL 2194090 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2179206 Contact Us For Availability
39
Plaque, Front Cover (Black) WPL 2179207 Contact Us For Availability
40
Front Cove WPL 2174310 Contact Us For Availability
40
WPL 2179202 WPL 2179202 Contact Us For Availability
40
WPL 2179203 WPL 2179203 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI28378A1 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
