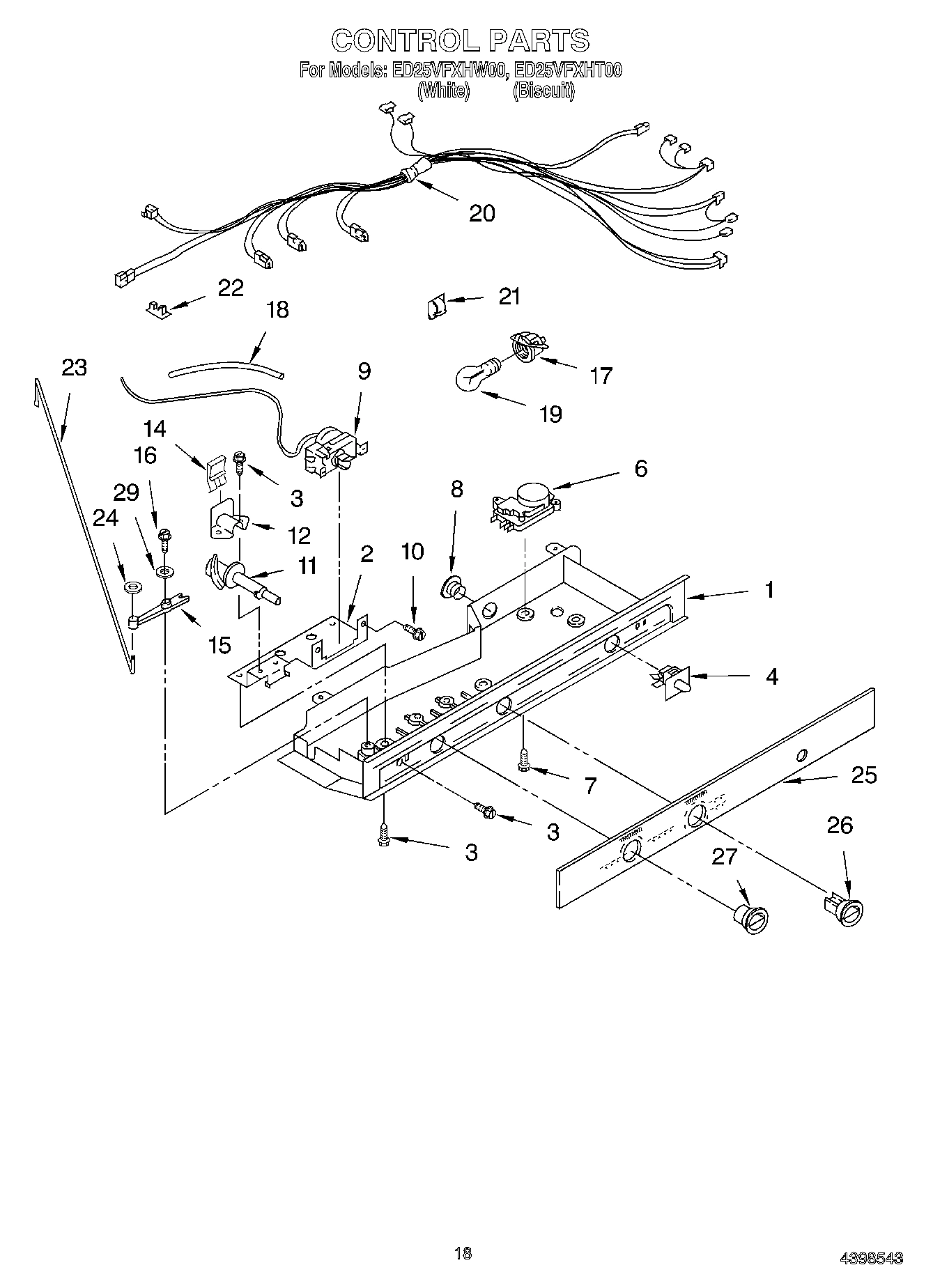

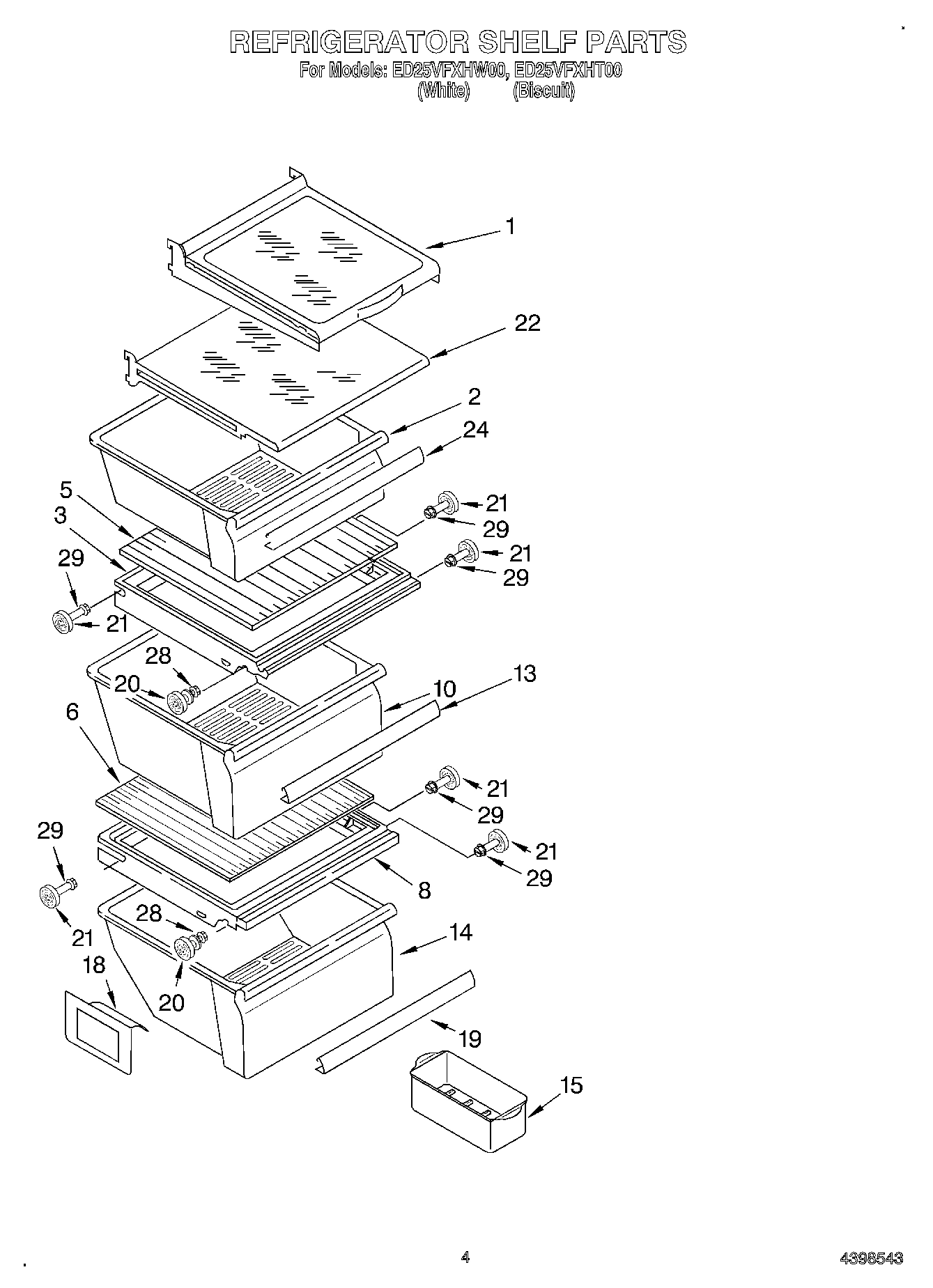

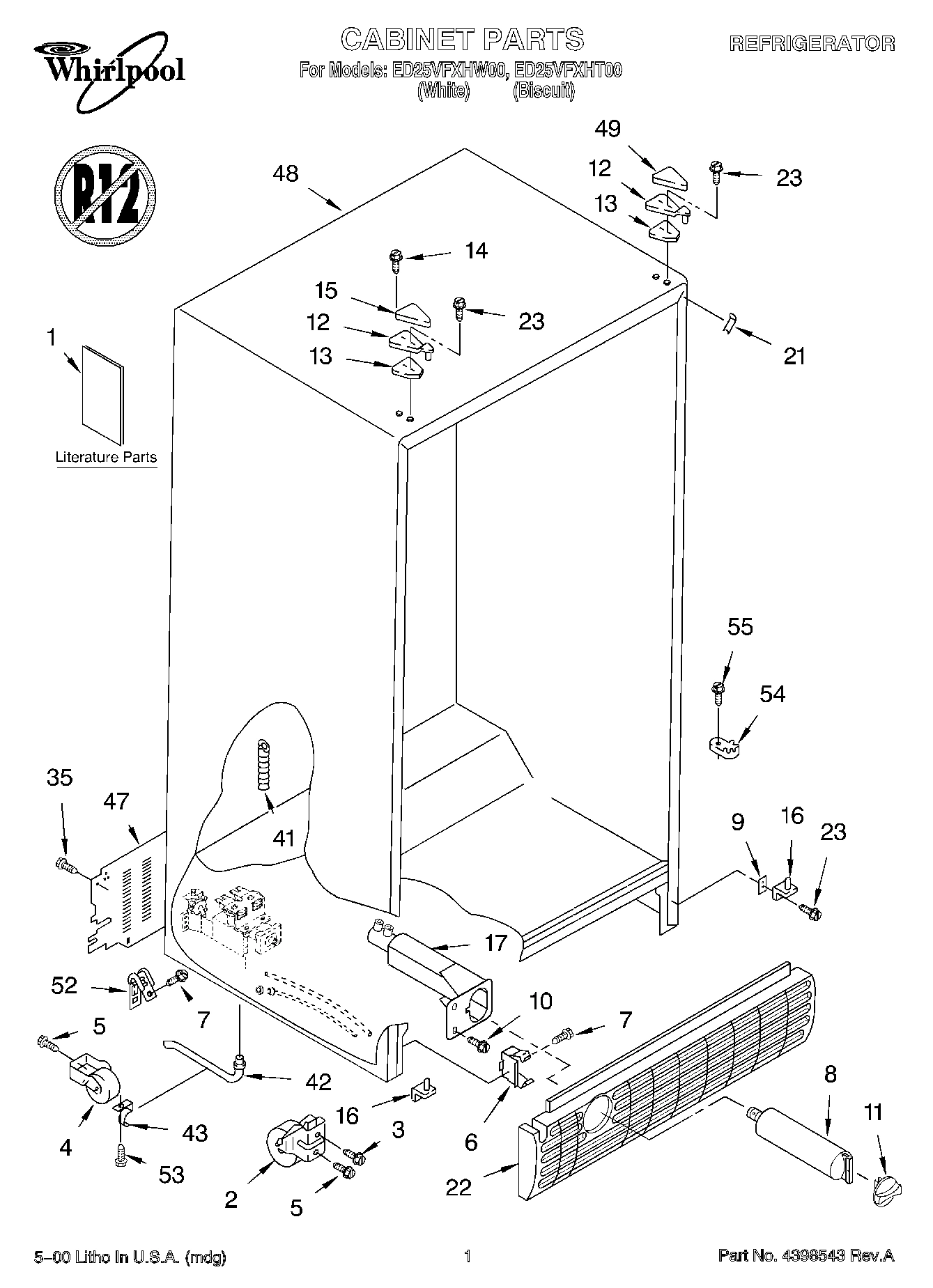

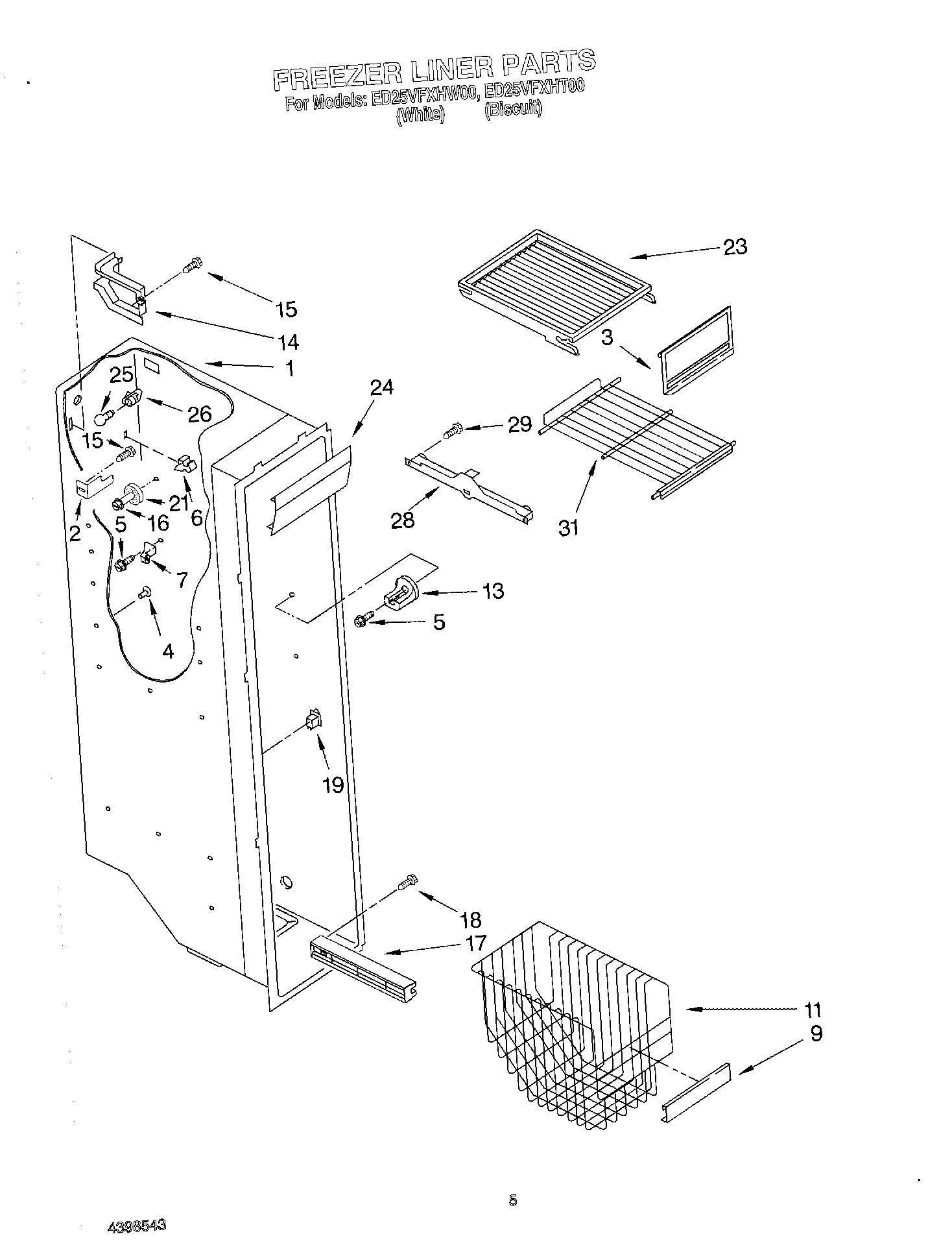

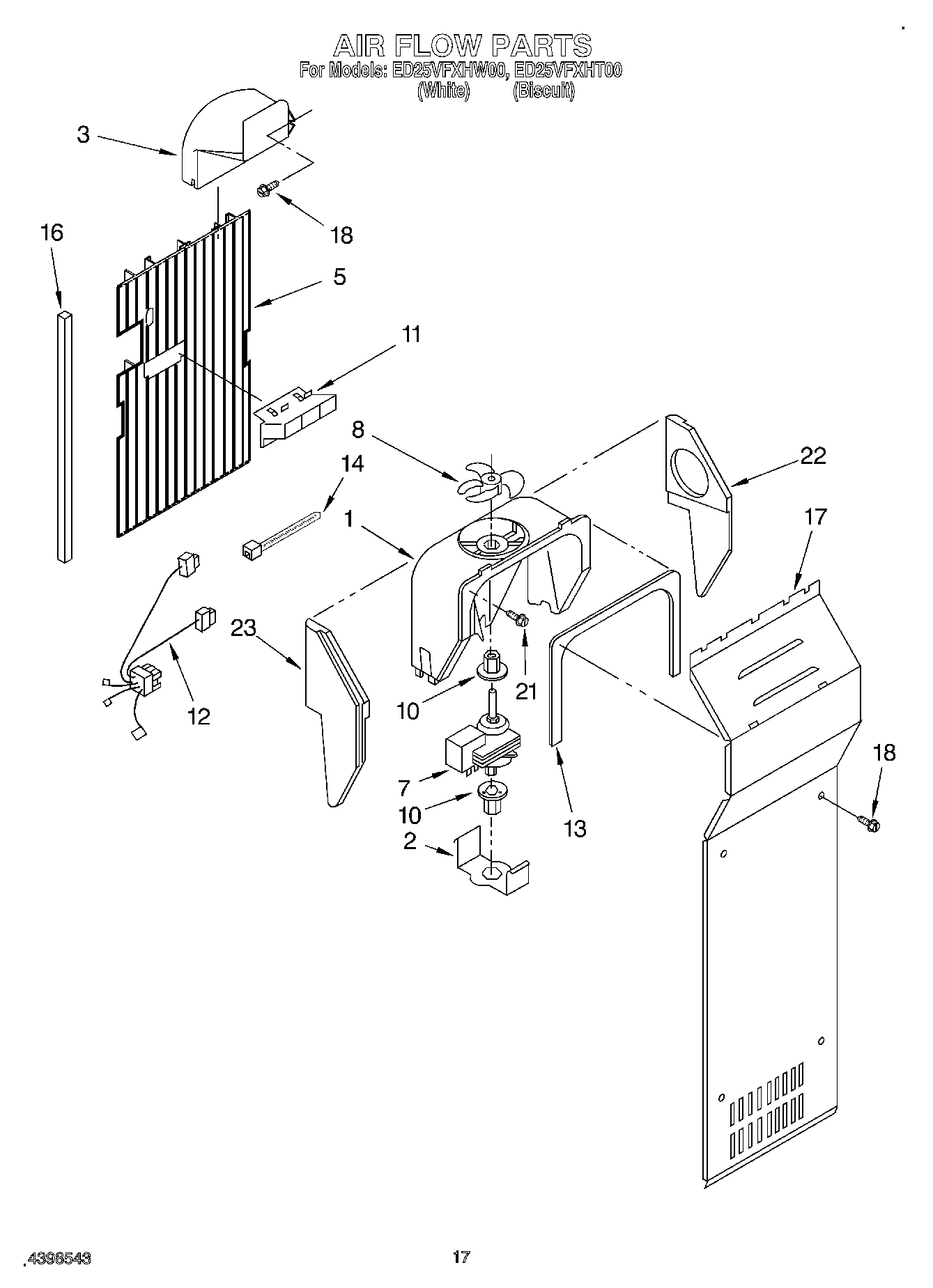

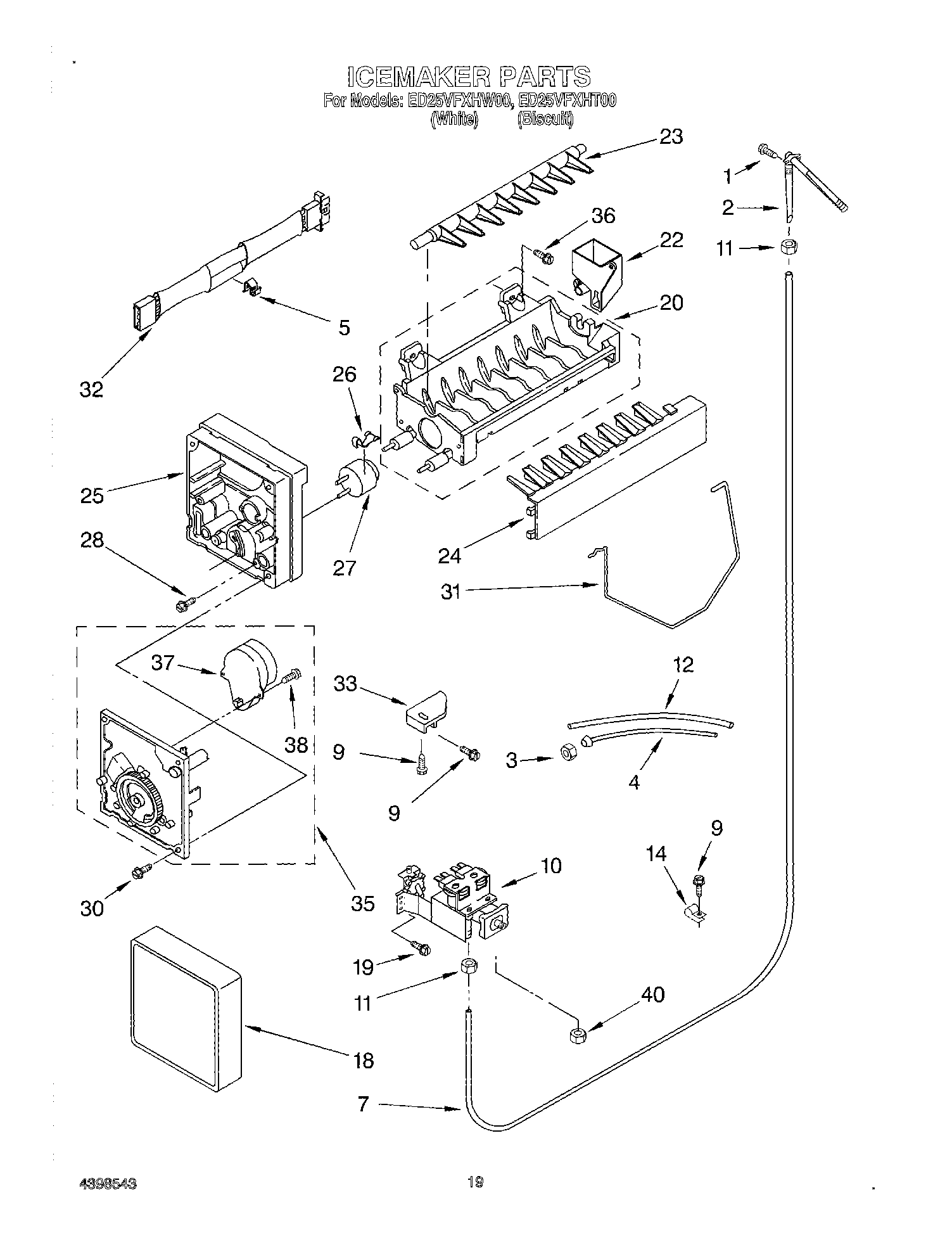

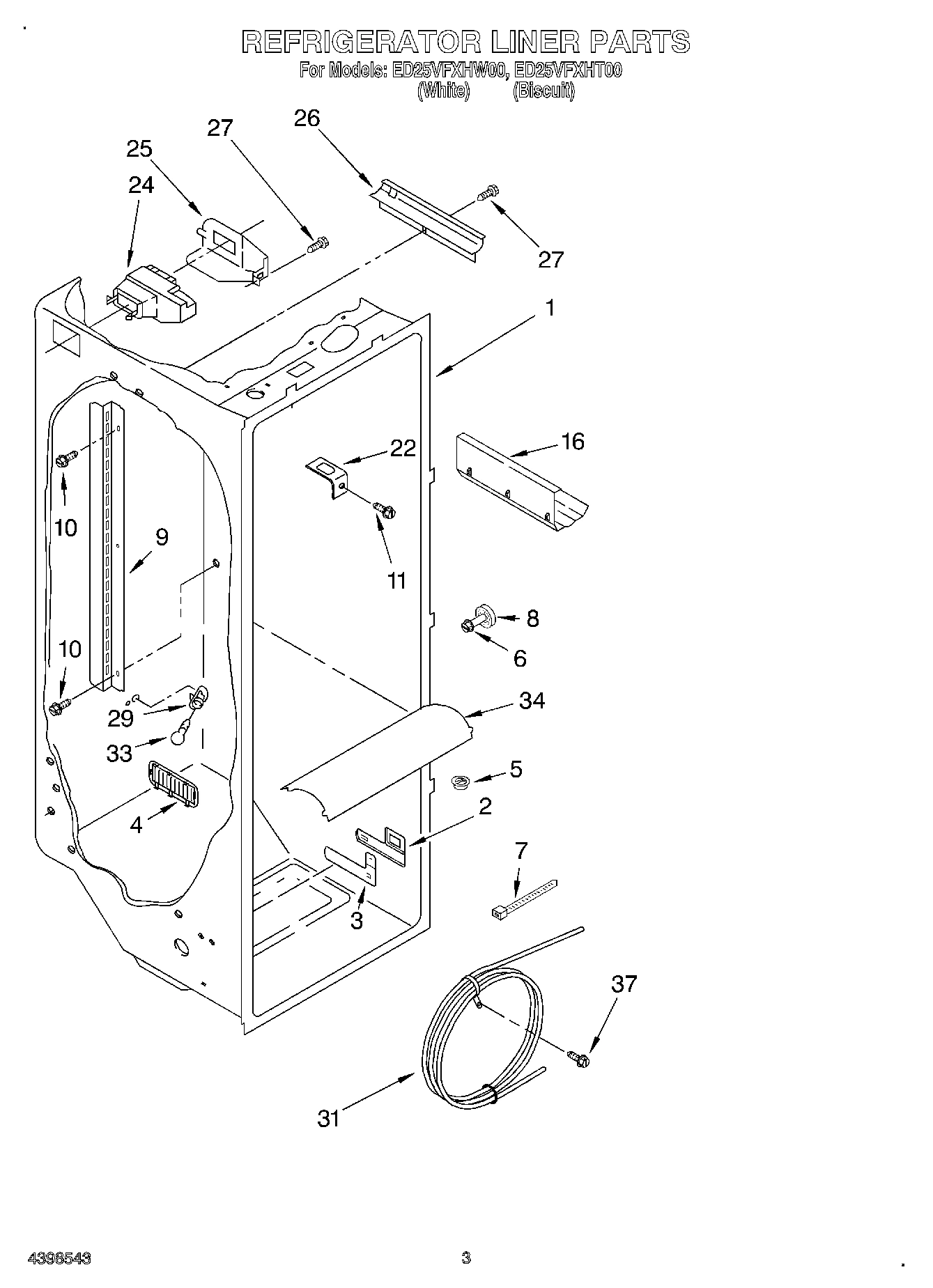

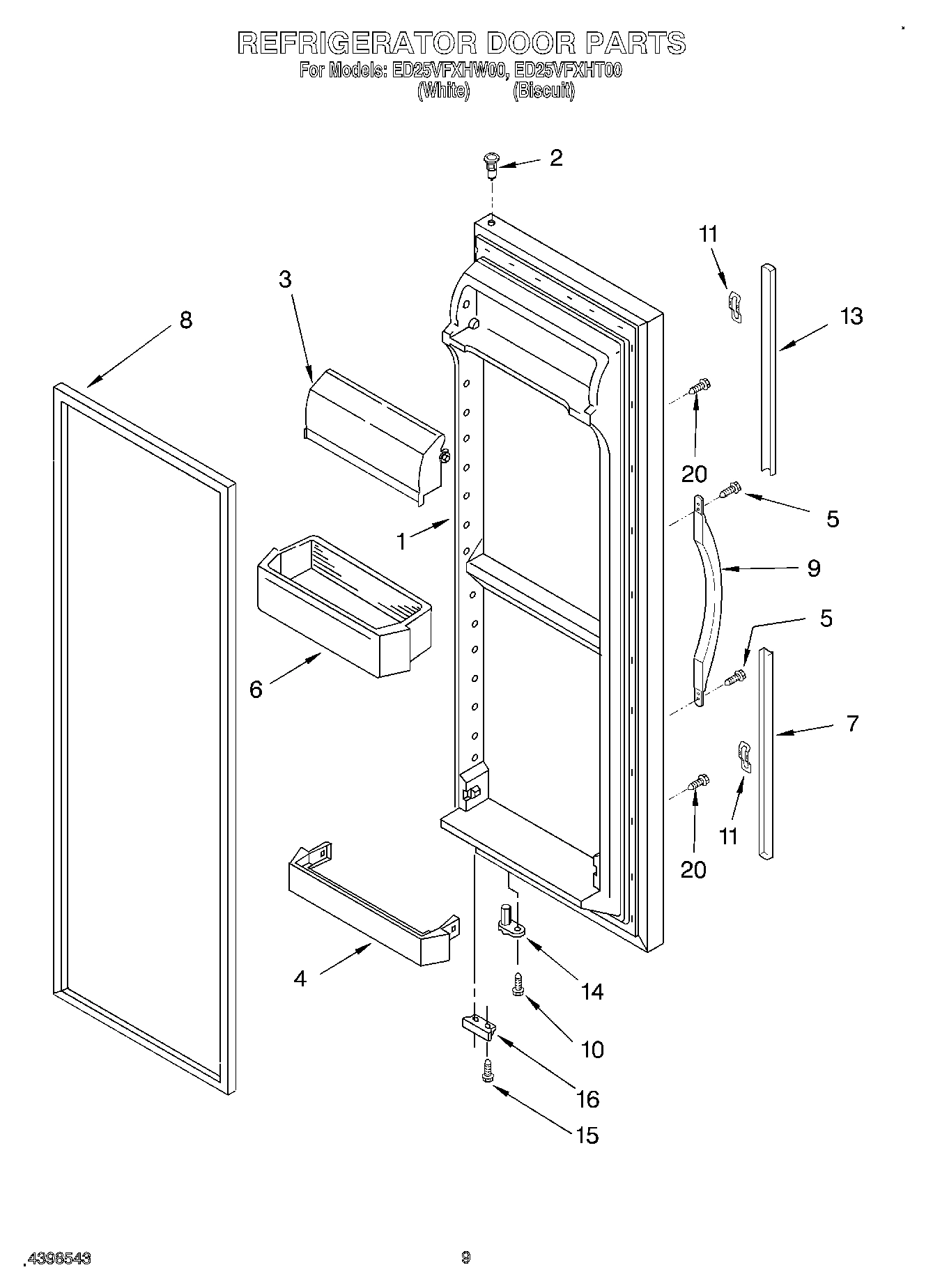

Model Whirlpool ED25VFXHT00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

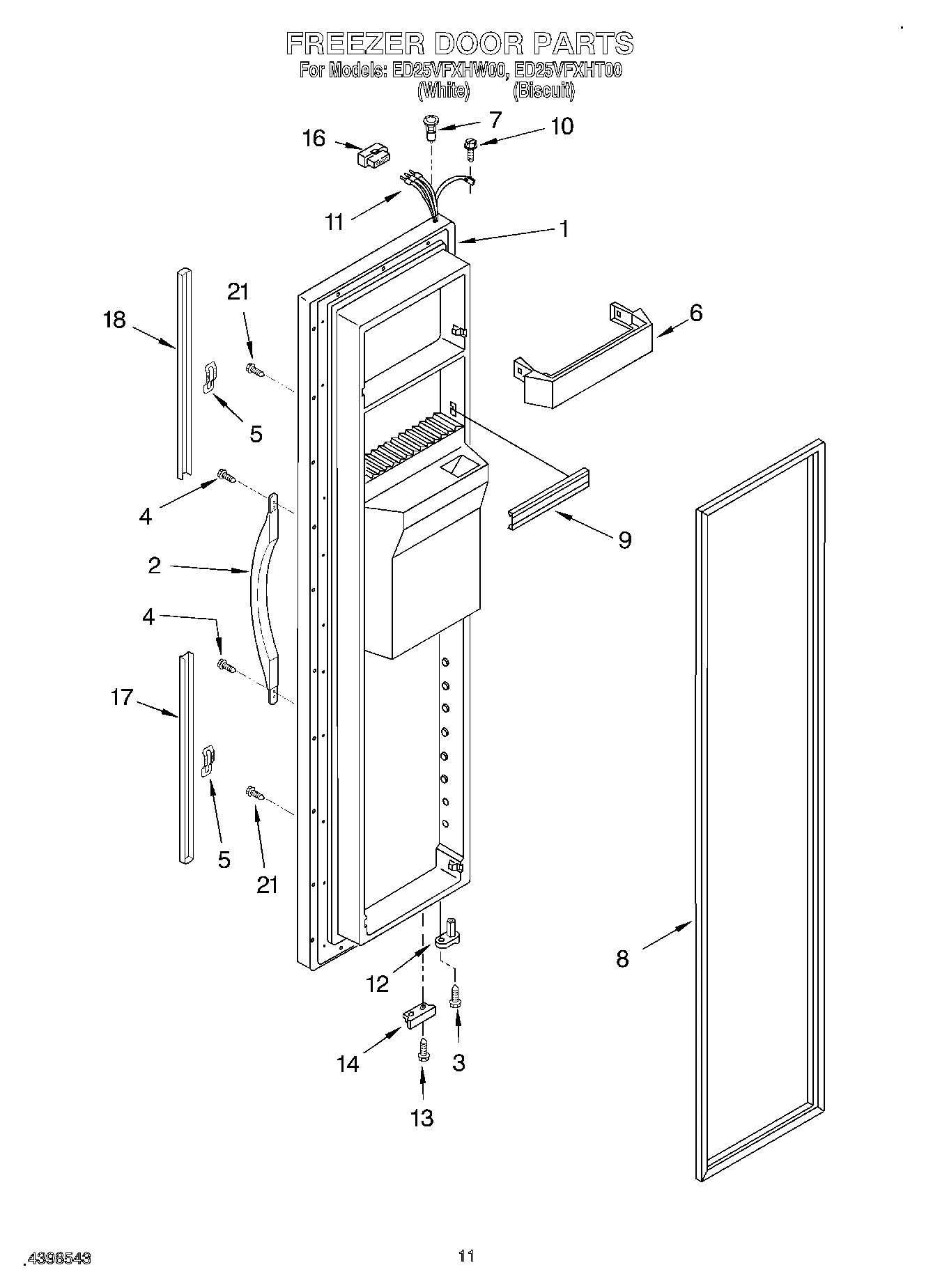

Freezer Door (Includes Item No.8 And Dispense WPL 2200193T Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2200193W Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2194281 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI28208A2 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI28209A8 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

2

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

6

Trivet, Shelf (4) WPL 2177963 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $120.22

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

9

Trim, Basket WPL 2195905 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $94.79

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Wiring Harness WPL 2183713 Contact Us For Availability

Basket, Slope WPL 2181764 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Stud, Rear WPL 2196207 Contact Us For Availability

Trim, Handle WPL 2194905 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $91.46

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

20

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Shelf, Snack Bin WPL 2209601 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2174493 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

27

Knob, Air Control WPL 2197871 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

Shelf, Large (2) WPL 2174268 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
