Model Whirlpool ED25TQXEN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
09 - UNIT
11 - CONTROL

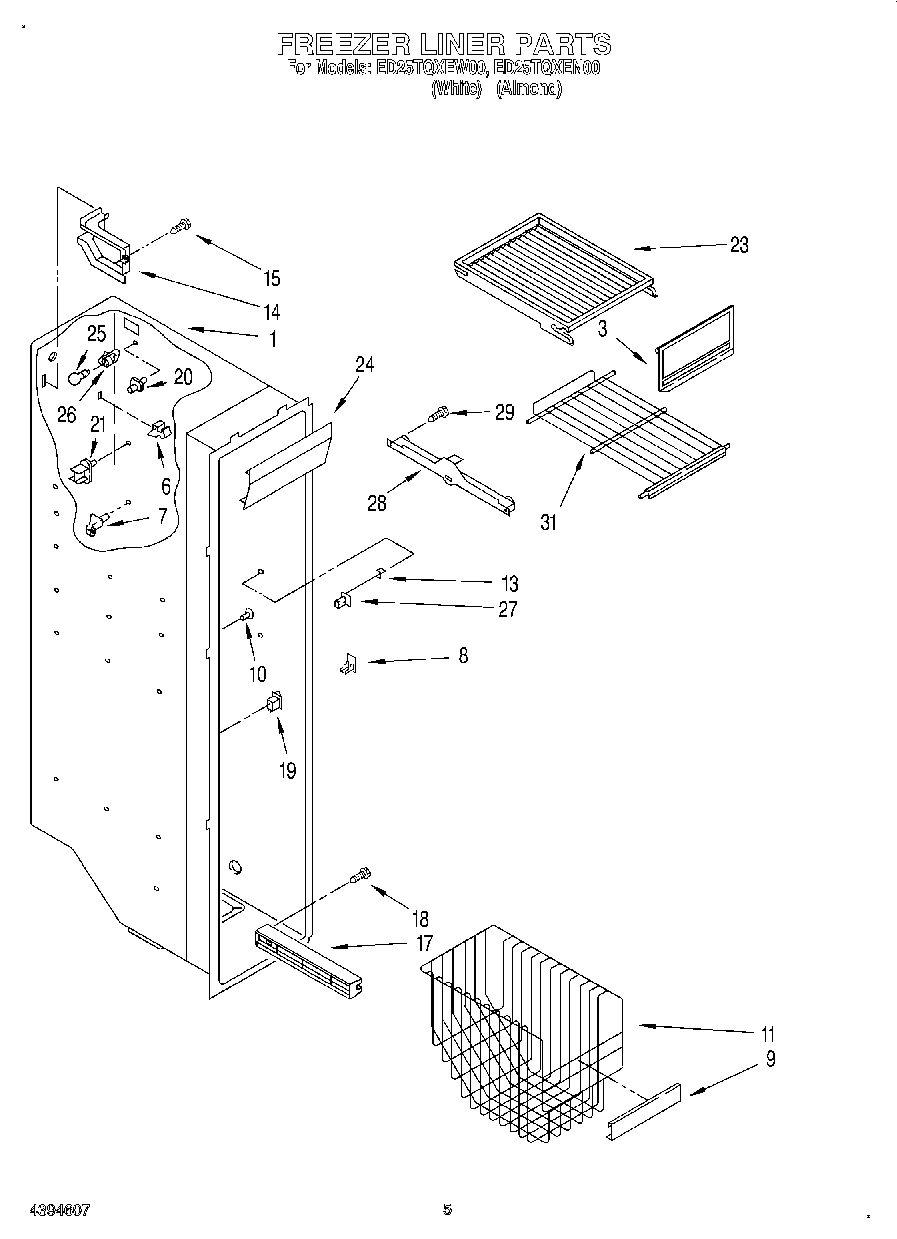

04 - FREEZER LINER

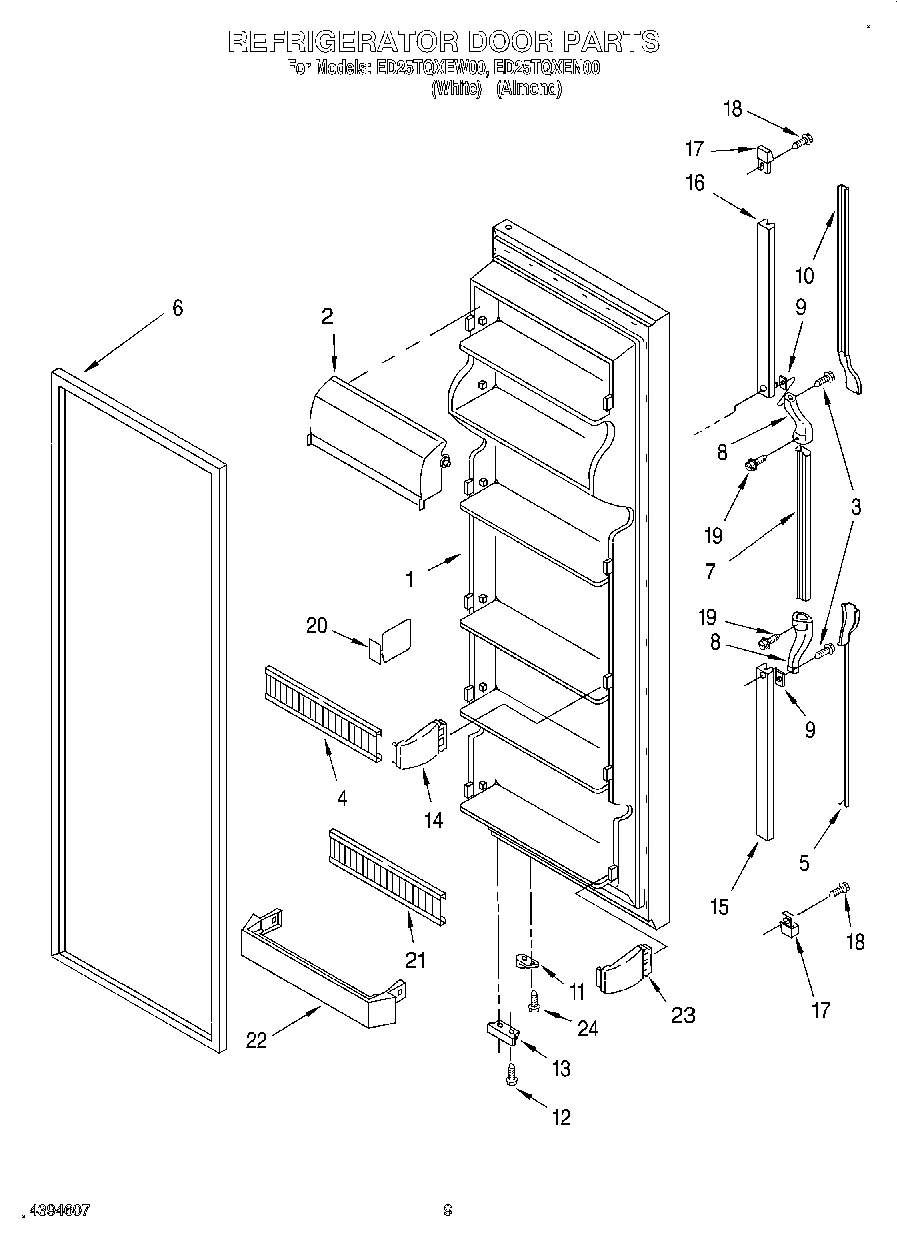

06 - REFRIGERATOR DOOR
01 - CABINET

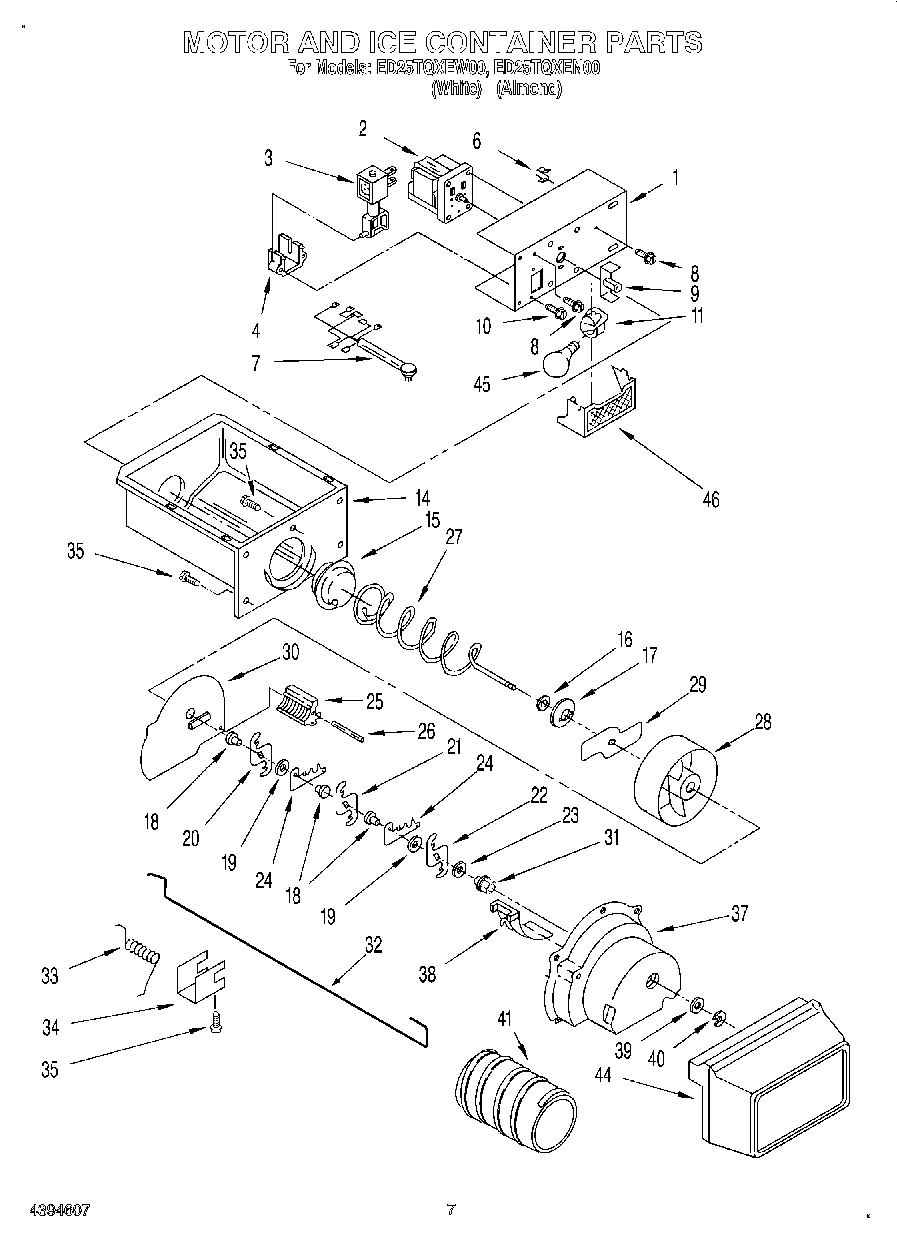

05 - MOTOR AND ICE CONTAINER

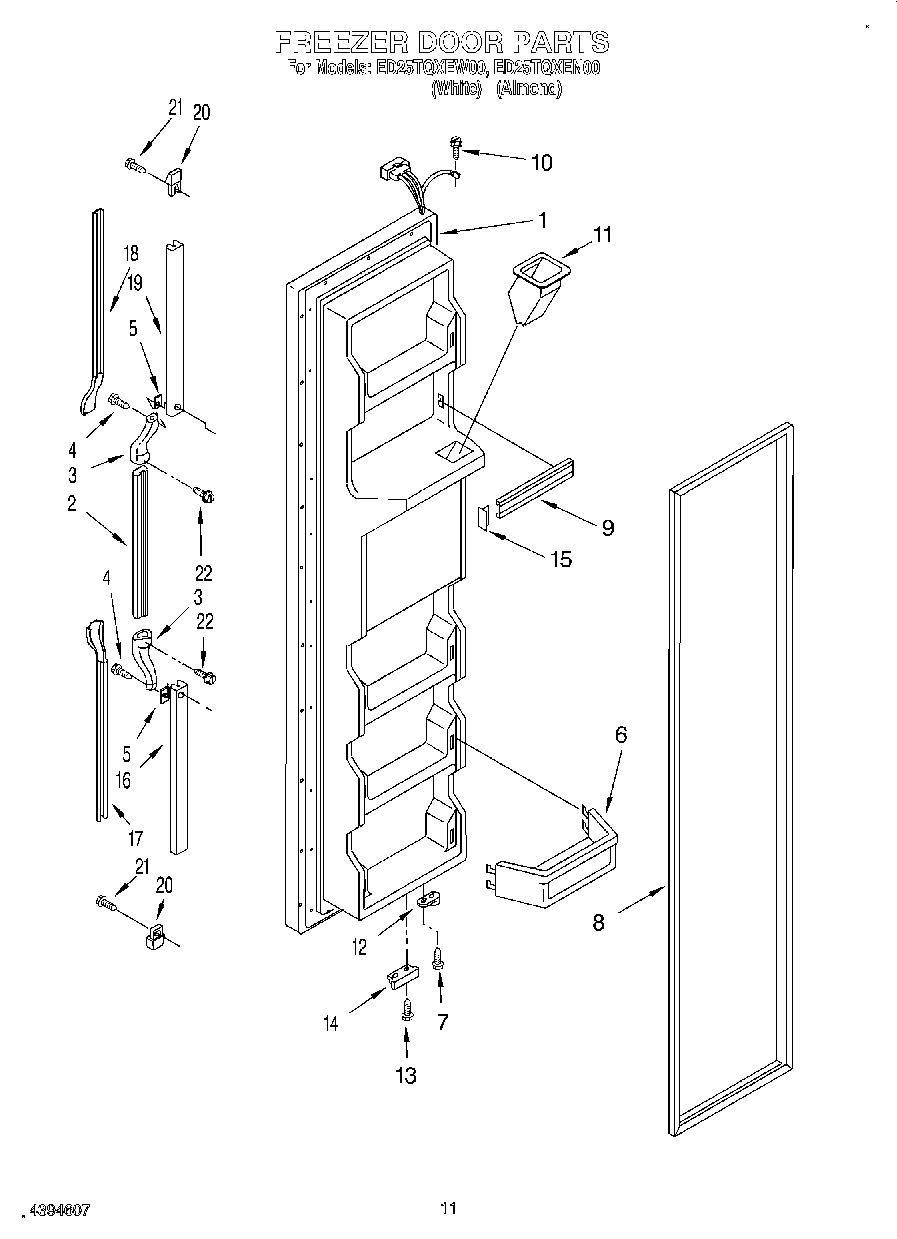

07 - FREEZER DOOR

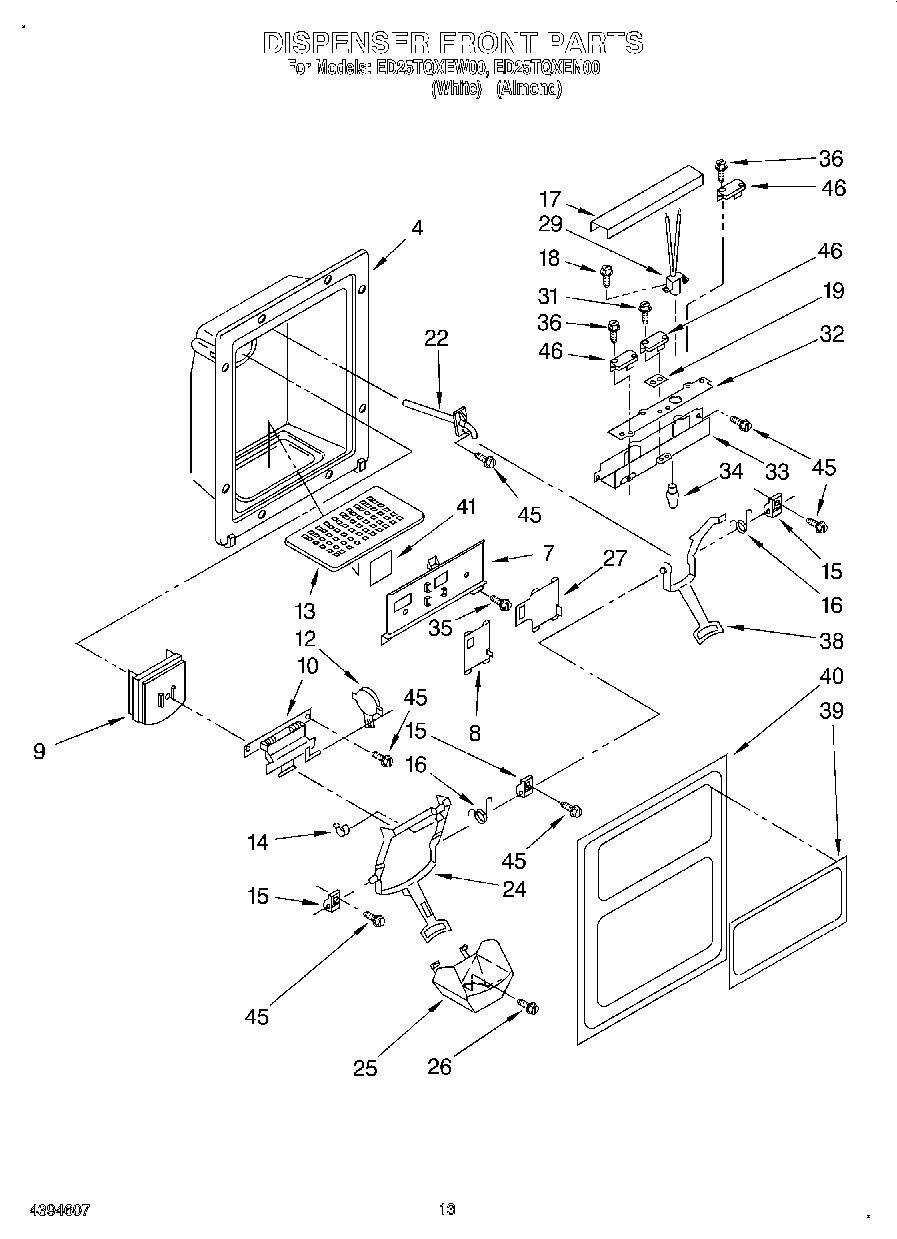

08 - DISPENSER FRONT

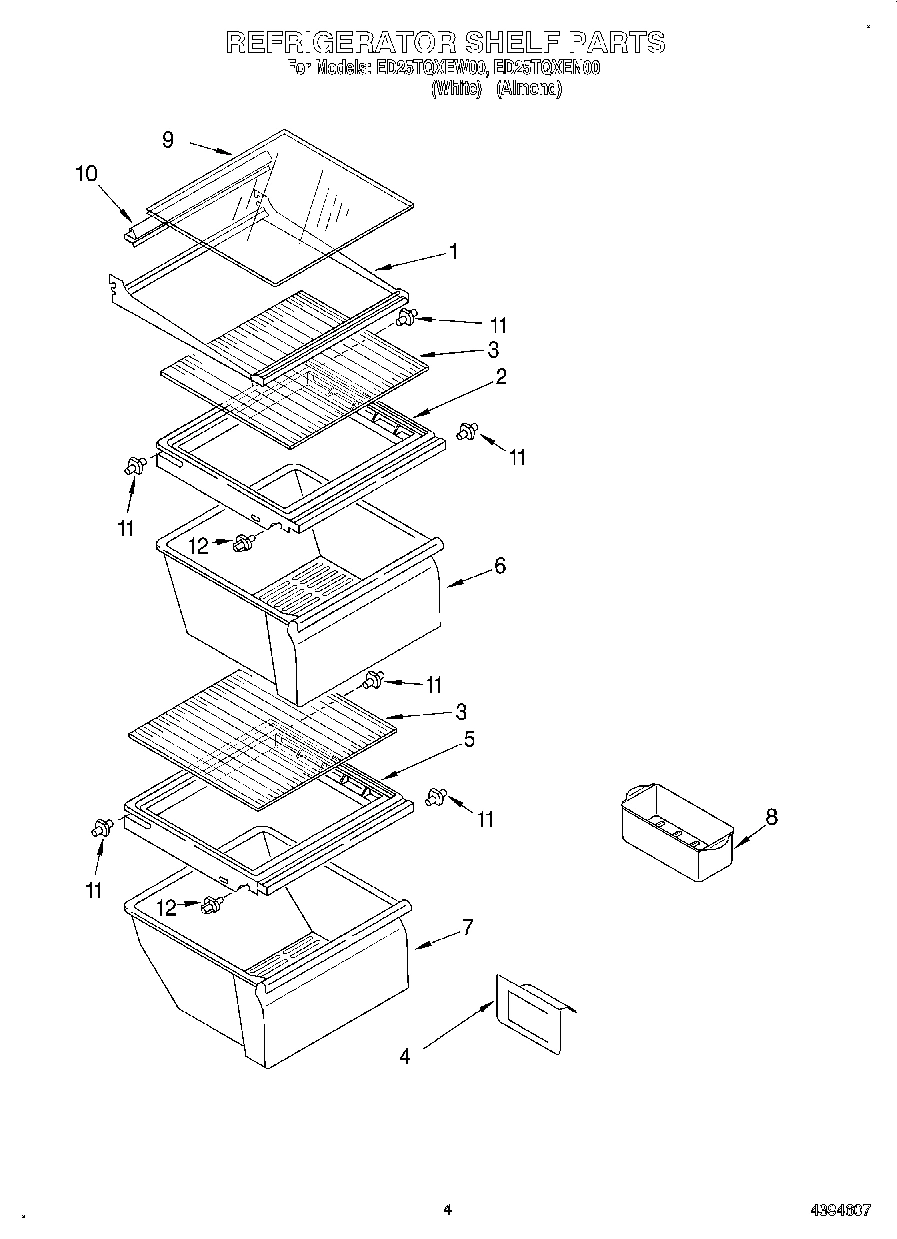

03 - REFRIGERATOR SHELF
10 - AIRFLOW
12 - ICEMAKER, LIT/OPTIONAL

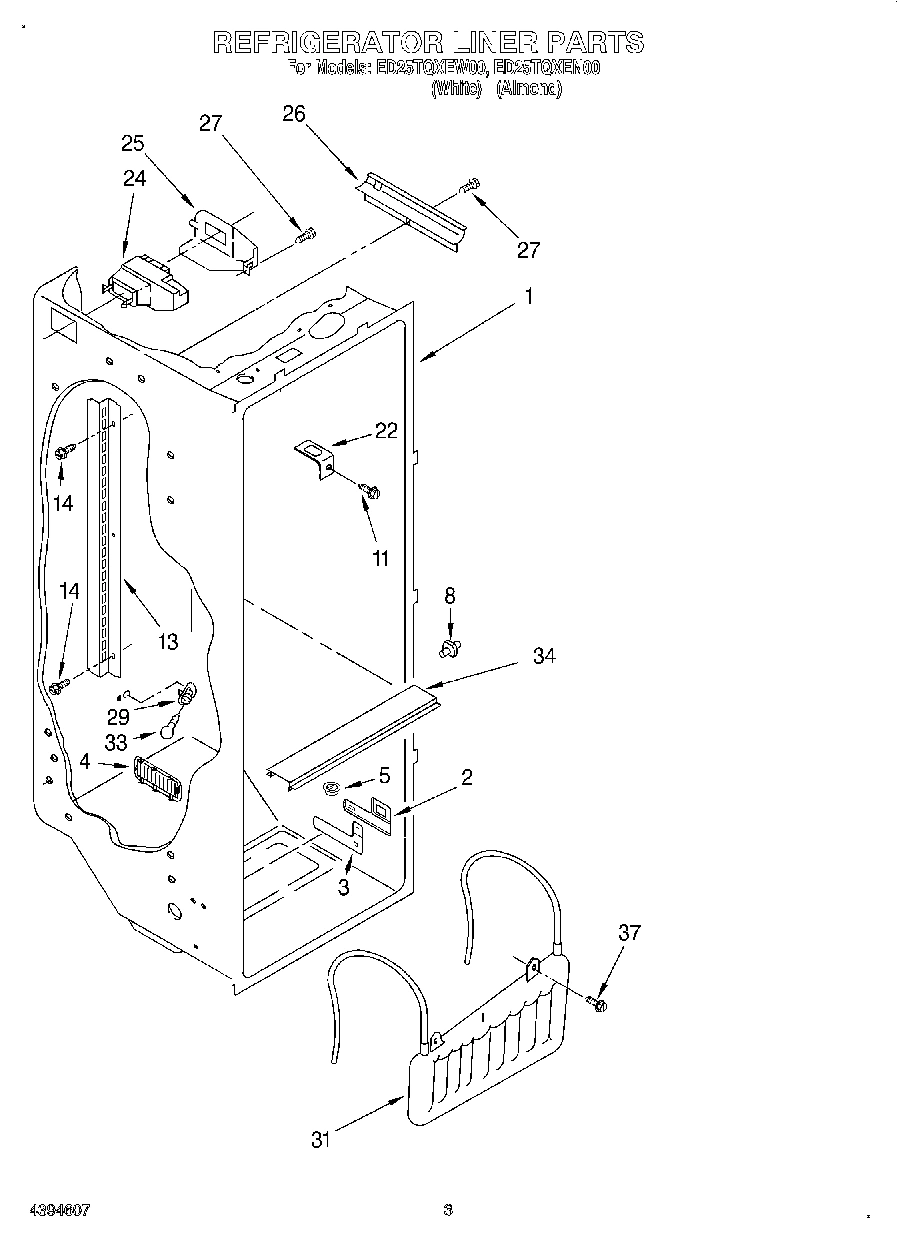

02 - REFRIGERATOR LINER
Common parts from model Whirlpool ED25TQXEN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176787 WPL LIT2176787 Contact Us For Availability
WPL LIT2194921 WPL LIT2194921 Contact Us For Availability
WPL LIT2198133 WPL LIT2198133 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2194806N Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2194806W Contact Us For Availability
1
Shelf, Cantilever (3) WPL 2163572 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28080A1 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI28082A1 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171168 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Glass, Shelf WPL 2175987 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Reflector WPL 2170621 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Shelf Ladder WPL 2181796 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Insert WPL 2194770 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
17
Insert, Handle (White) WPL 2194773W Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2194775N Contact Us For Availability
18
Insert, Handle (White) WPL 2194775W Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Retainer, Insert WPL 2194772 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2162923 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2162924 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2198154N Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2198154W Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196004 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
