Model Whirlpool ED25PWXBW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

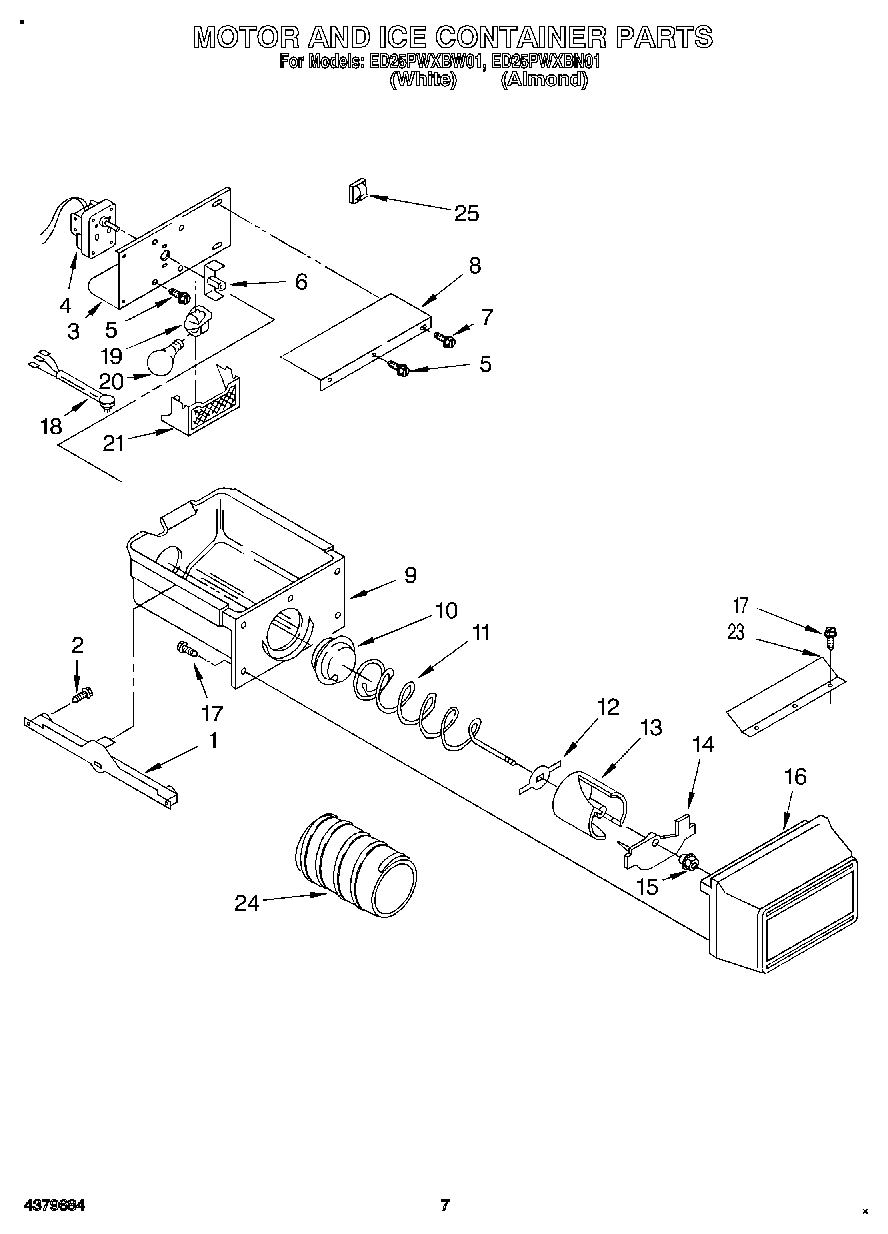

05 - MOTOR AND ICE CONTAINER

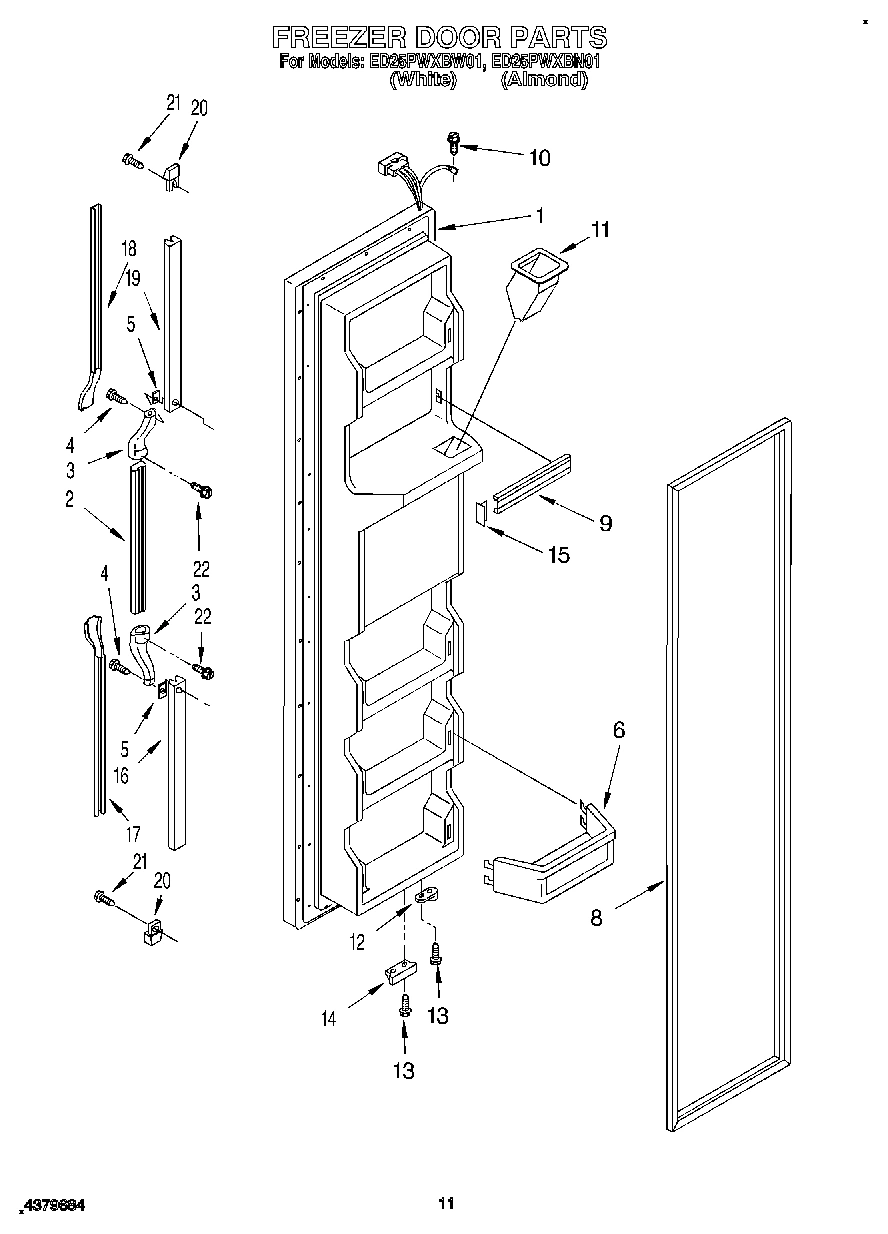

07 - FREEZER DOOR
09 - UNIT

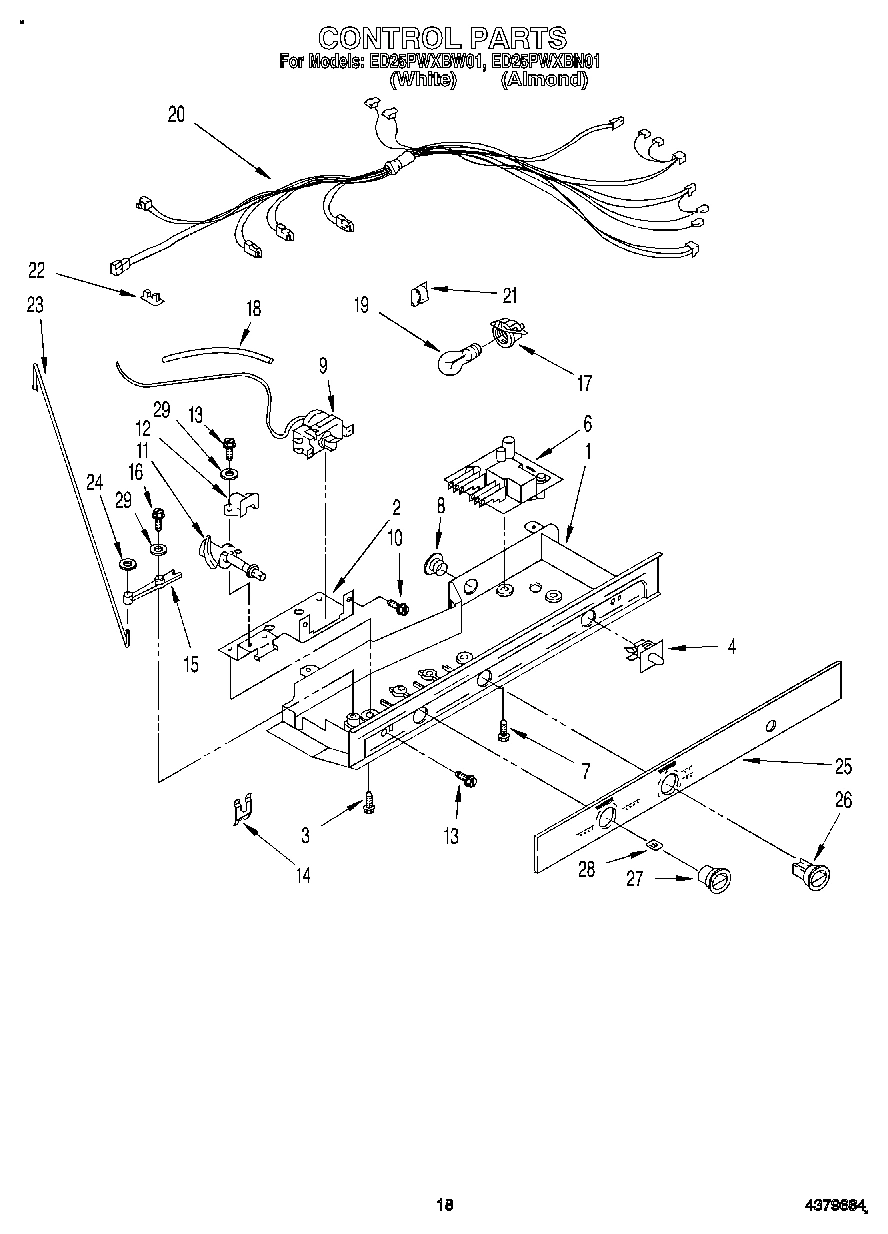

11 - CONTROL
01 - CABINET

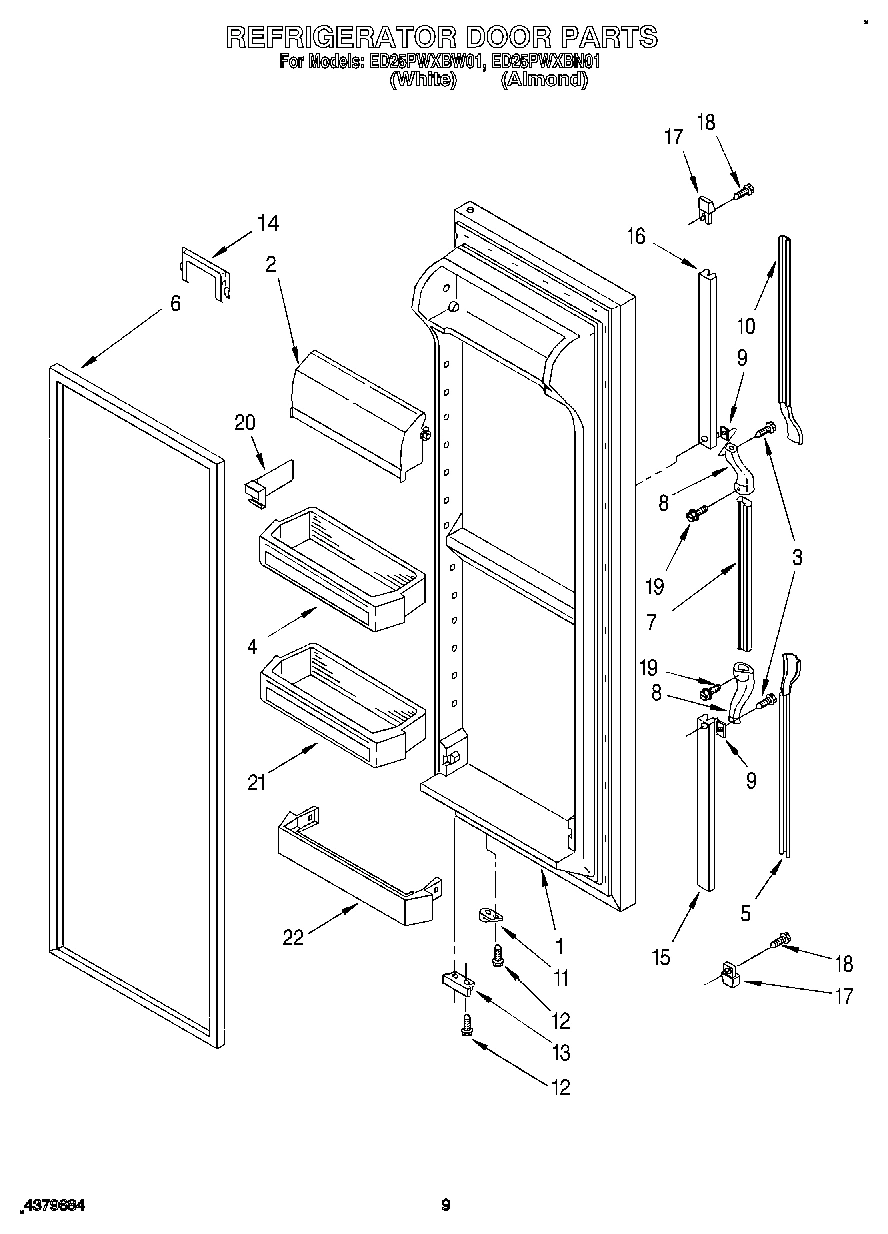

06 - REFRIGERATOR DOOR
10 - AIR FLOW
12 - ICE MAKER, LIT/OPTIONAL
02 - REFRIGERATOR LINER

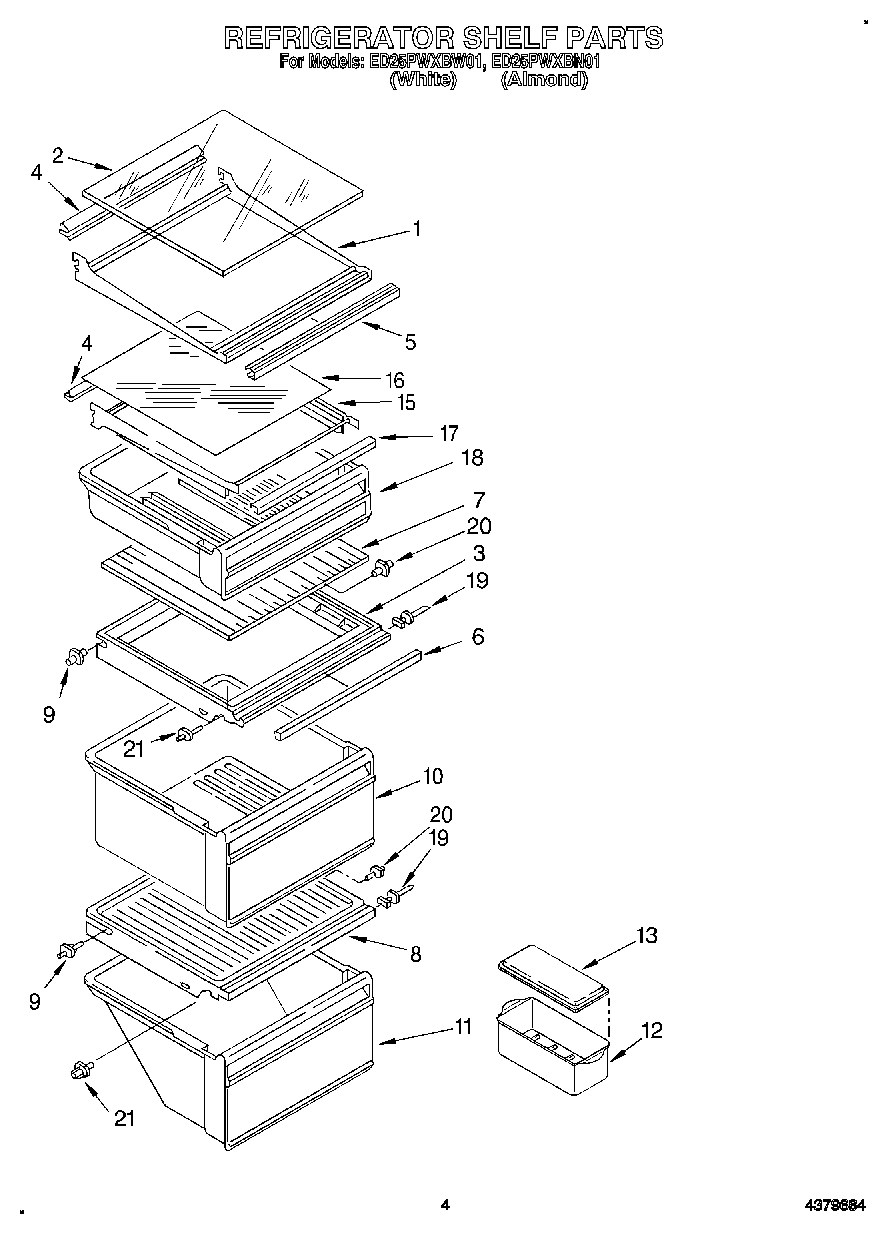

03 - REFRIGERATOR SHELF
04 - FREEZER LINER
08 - DISPENSER FRONT
Common parts from model Whirlpool ED25PWXBW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170711 WPL LIT2170711 Contact Us For Availability
WPL LIT2170990 WPL LIT2170990 Contact Us For Availability
WPL LIT2176726 WPL LIT2176726 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2159374 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2170756 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146080A Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146081A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 2170791 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Reflector, Shelf WPL 2170621 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI146082A Contact Us For Availability
5
Insert, Handle (White) WPL 1119361 Contact Us For Availability
5
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Trim, Shelf WPL 2170597 Contact Us For Availability
6
Trim, Crisper Cover WPL 2170835 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI146083A Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Handle, Center WPL 1118417 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
9
Shelf Stud WPL 1115290 No Longer Available
9
Shim WPL 935075 Contact Us For Availability
9
Trim, Basket WPL 2170763 Contact Us For Availability
10
Insert, Handle (White) WPL 1119373 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
10
Shelf WPL 1116956 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Meat Pan WPL 2170932 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Bracket, Door Stop WPL 2155334 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Shelf Ladder WPL 1116794 Contact Us For Availability
13
Cover WPL 2170949 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119372 Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Trim, Front WPL 2170594 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Snack Bin WPL 2170938 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Trim Kit WPL 4210344 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4210352 Contact Us For Availability
22
Black Handle Insert WPL 4210378 Contact Us For Availability
22
Woodgrain Handle Insert WPL 4210446 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Trim, Shelf WPL 2162939 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Screw WPL ARI146085A Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser WPL 2159196 Contact Us For Availability
39
Plaque, Front Cover WPL 2150335 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150339 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI146079A Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Bla WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
