Model Whirlpool ED25PWXBW00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2169198 WPL LIT2169198 Contact Us For Availability

WPL LIT2170711 WPL LIT2170711 Contact Us For Availability

WPL LIT2170750 WPL LIT2170750 Contact Us For Availability

WPL LIT628370 WPL LIT628370 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

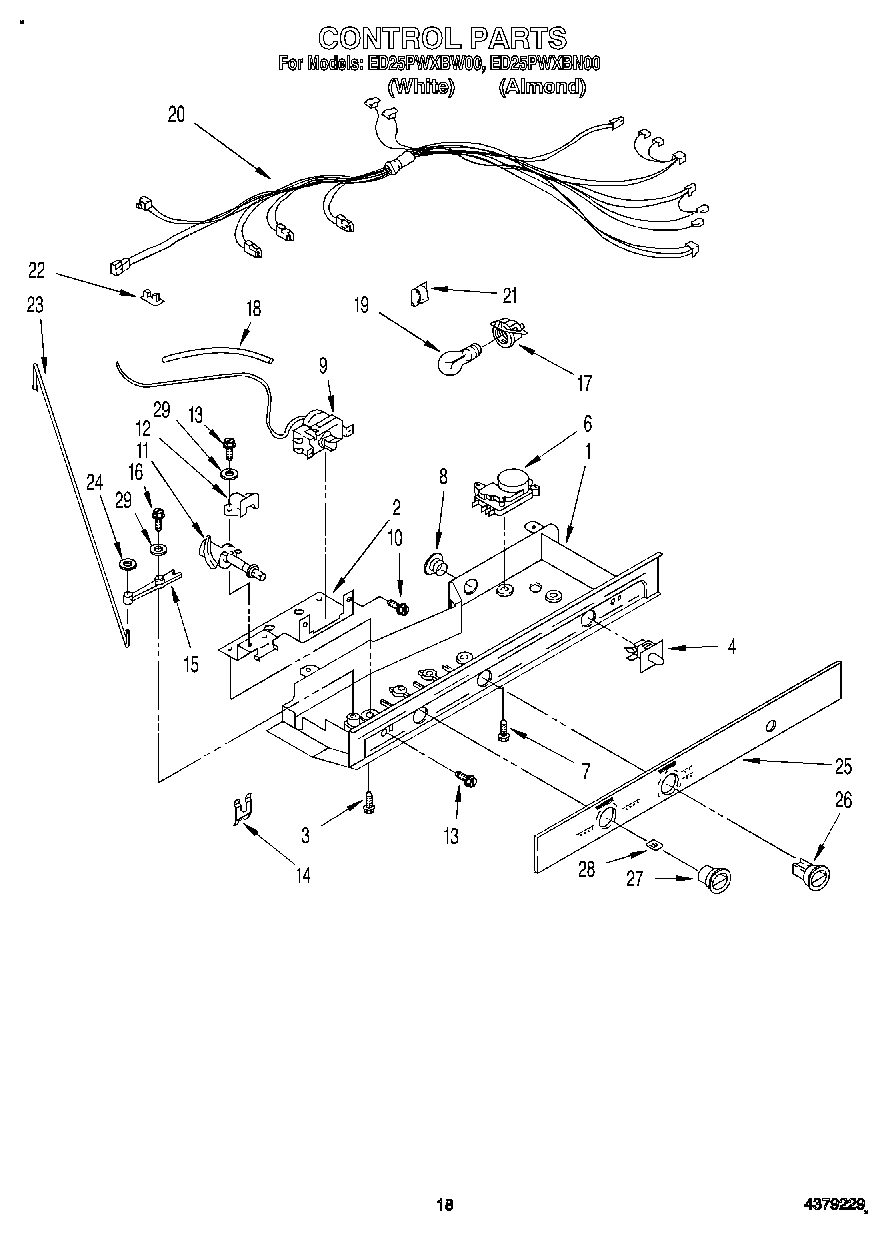

Control Box WPL 2169147 Contact Us For Availability

1

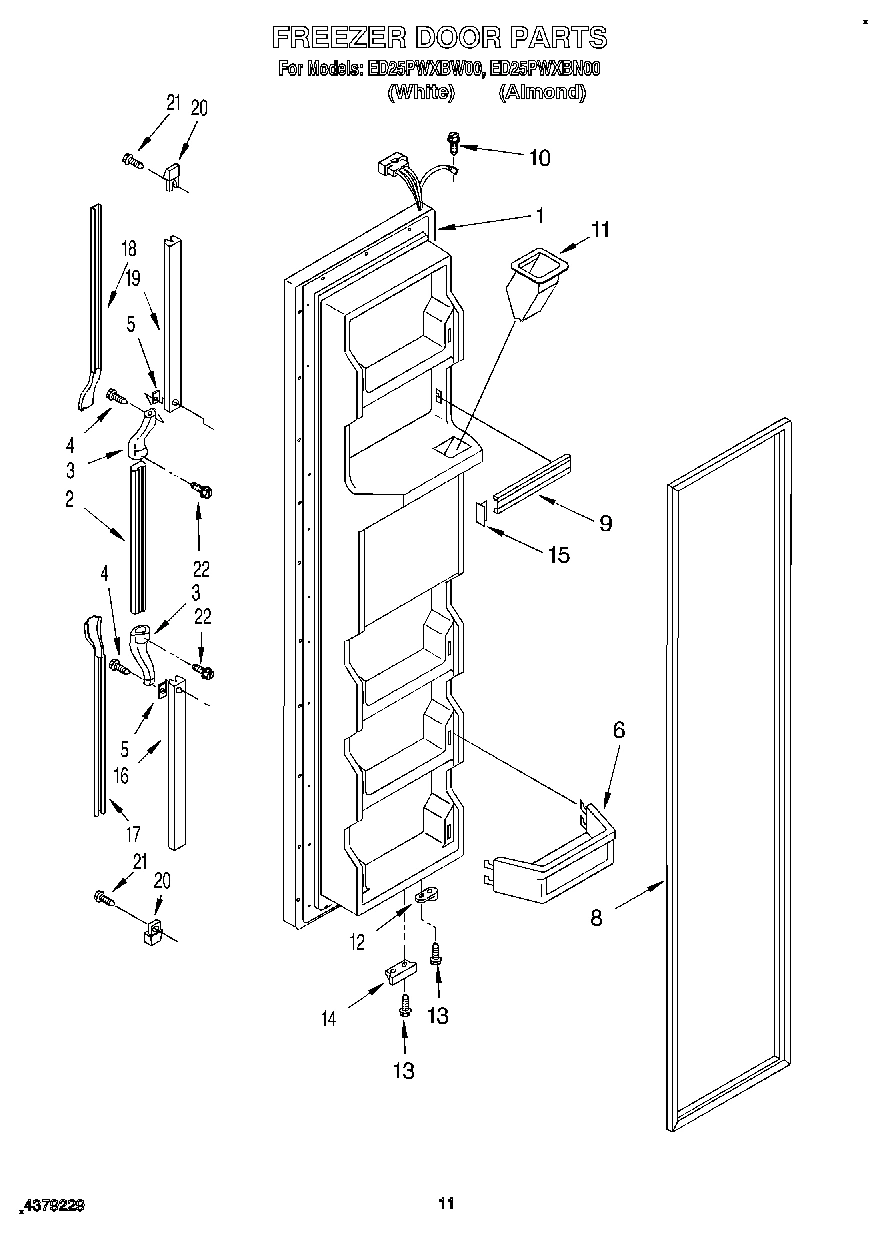

Freezer Door (Includes Item 8 And Dispenser F WPL 2170754 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2170755 Contact Us For Availability

1

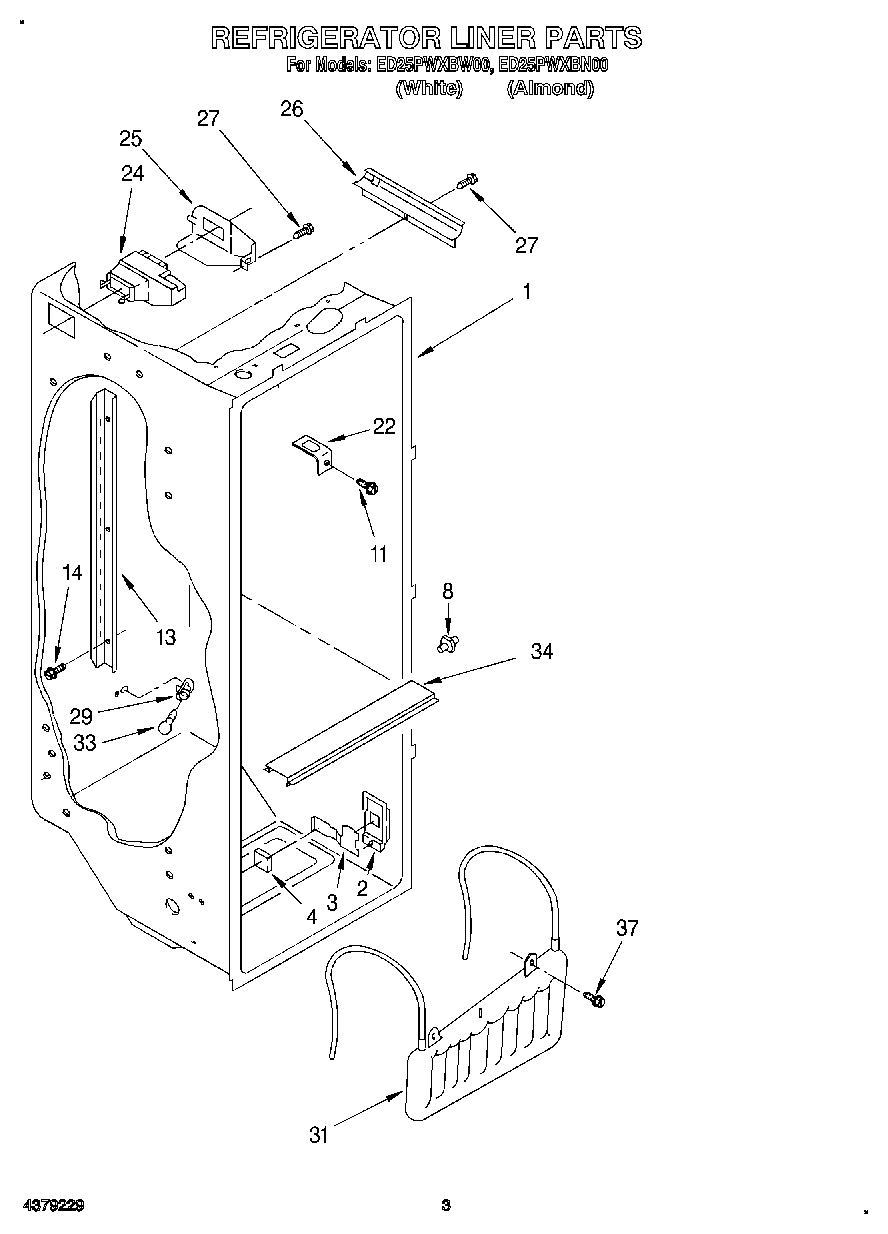

Liner (Not A Serviceable Part) WPL ARI146074A Contact Us For Availability

1

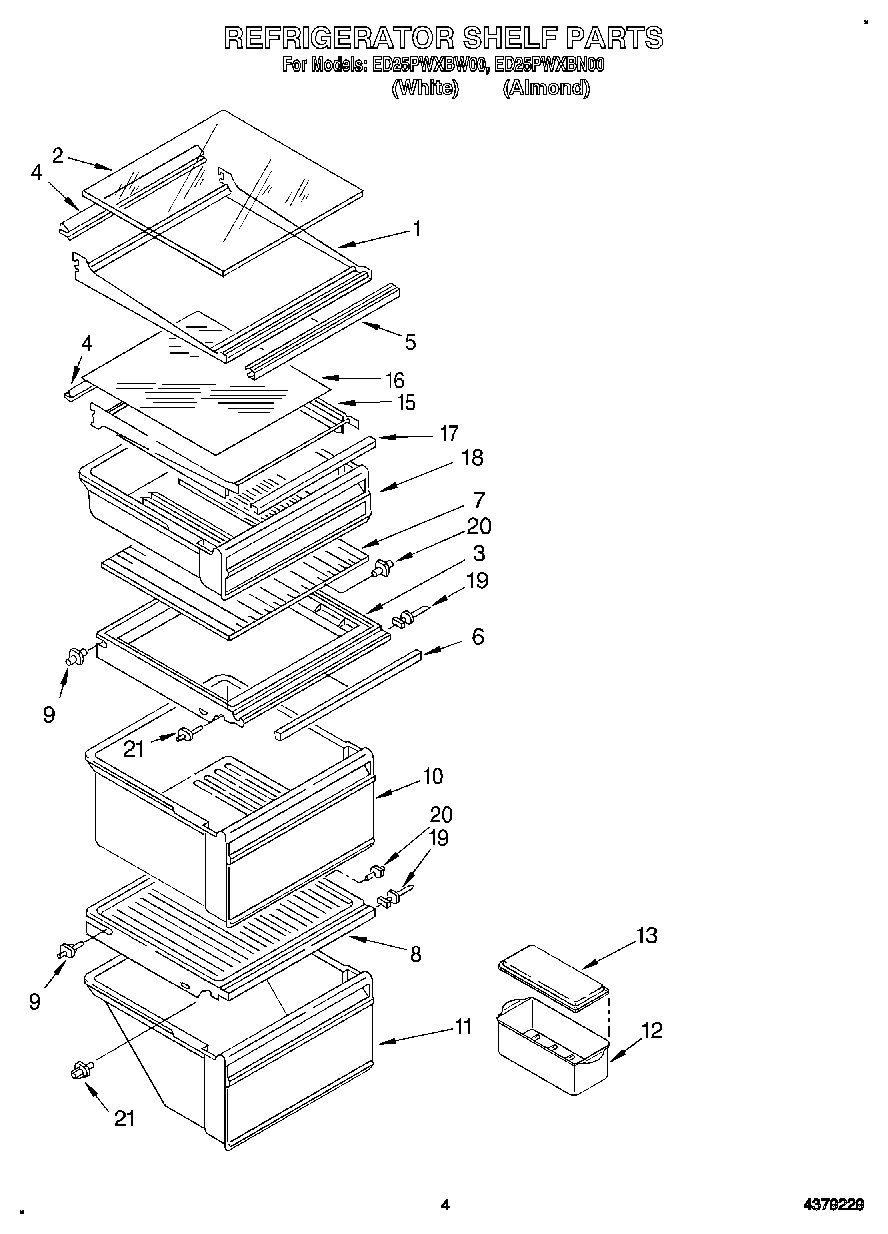

Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability

2

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center WPL 1118417 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability

2

Front Roller (2) WPL 2152011 Contact Us For Availability

2

Glass, Shelf WPL 2148237 Contact Us For Availability

3

WP1126289 Whirlpool Refrigerator Cover Backorder WPL WP1126289 $68.02

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

End Cap (2) WPL 1119359 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Condenser Assembly WPL 2164504 Contact Us For Availability

3

Screw WPL 489393 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Shelf Bin (2) WPL 2170614 Contact Us For Availability

4

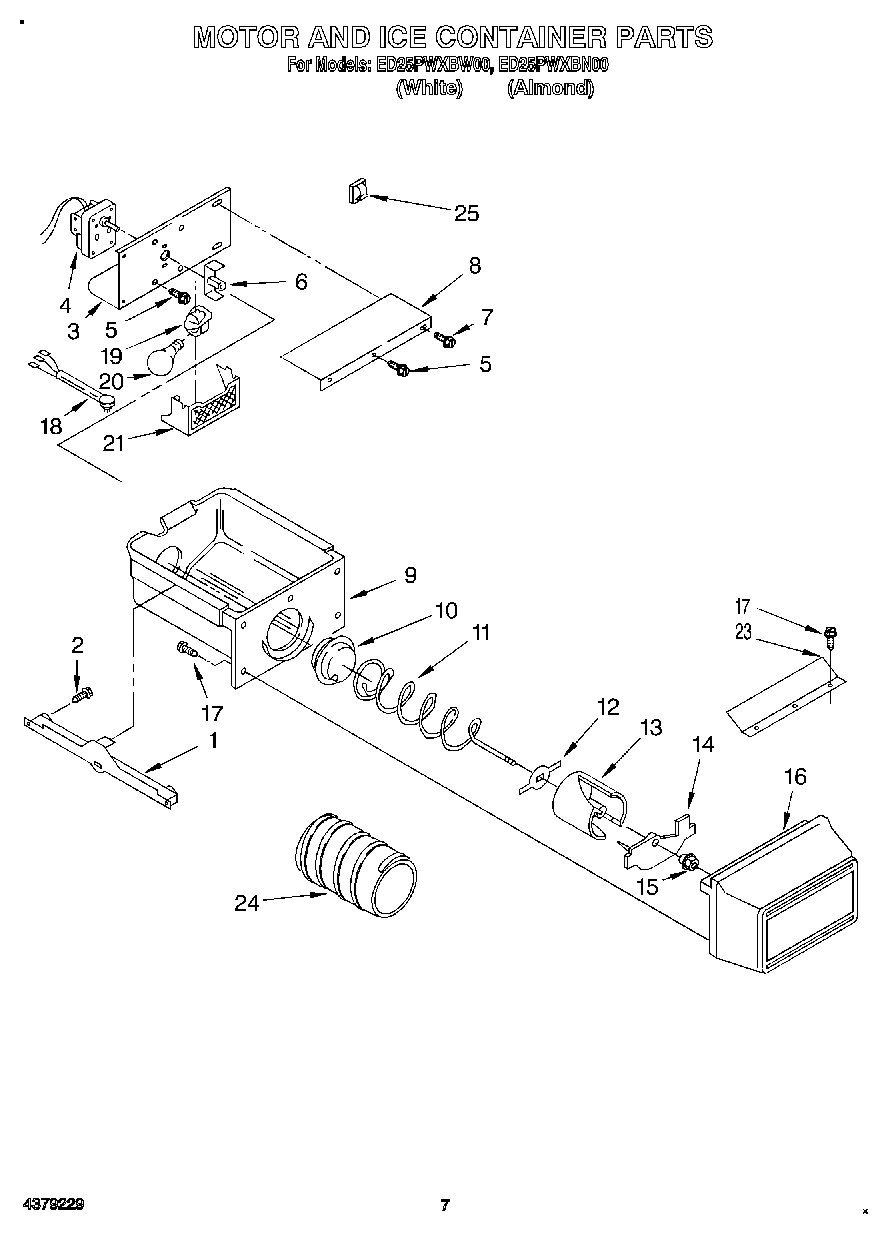

Motor WPL 2155262 Contact Us For Availability

4

Pad, Foam WPL 992358 Contact Us For Availability

4

Reflector, Shelf WPL 2170621 Contact Us For Availability

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Shim, End Cap (2) WPL 935075 Contact Us For Availability

5

Clip, Wire WPL 2155658 Contact Us For Availability

5

Screw, WPL 488454 Contact Us For Availability

5

Trim, Shelf WPL 2170597 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

6

Defrost Timer WPL 2162046 Contact Us For Availability

6

Trivet, Shelf (4) WPL 2170759 Contact Us For Availability

6

Trim, Crisper Cover WPL 2170835 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

7

Glass, Crisper Cover WPL 1114687 Contact Us For Availability

7

Clip, Tube (3) WPL 934011 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2148298 Whirlpool Refrigerator Deli Drawer Backorder WPL WP2148298 $93.36

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Cover, Motor WPL 1115339 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $76.54

9

Shelf Stud WPL 1115290 Contact Us For Availability

9

Shim WPL 836196 Contact Us For Availability

4318046 Whirlpool Dual Water Inlet Valve In Stock WPL 4318046 $32.43

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2148279 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2148279 $97.12

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Cam Assembly WPL 2161250 Contact Us For Availability

Conveyor WPL 1115214 Contact Us For Availability

Chute, Ice WPL 2156146 Contact Us For Availability

Strap (Service) WPL 938384 Contact Us For Availability

Strap (Production) WPL 943322 Contact Us For Availability

Meat Pan WPL 2170681 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $80.45

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Cover (Production) WPL 1105055 Contact Us For Availability

Cover (Service) WPL 1108115 Contact Us For Availability

4388953 Whirlpool Overload Relay Backorder WPL 4388953 $70.86

WP61006294 Whirlpool Refrigerator Overload Backorder WPL WP61006294 $48.79

Grille, Overflow WPL 983900 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Tube, Water Inlet WPL 2155247 Contact Us For Availability

Shelf Ladder WPL 1116794 Contact Us For Availability

Cover WPL 2170780 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Bracket, Door Stop WPL 2155334 Contact Us For Availability

Retainer, Bottle WPL 2163566 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Baffle WPL 1115362 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

Pivot Arm WPL 1110559 Contact Us For Availability

Nut, Bearing WPL 946195 Contact Us For Availability

Relay (See Overload) WPL ARI146078A Contact Us For Availability

Pan Shelf & Slide WPL 2148122 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

Spring, Lever (2) WPL 983696 Contact Us For Availability

Retainer, Insert WPL 1119360 Contact Us For Availability

Front Cover WPL 2170792 Contact Us For Availability

Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability

Glass WPL 2148300 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Insert, Handle (White) WPL 1119361 Contact Us For Availability

Insert, Handle (Almond) WPL 1119363 Contact Us For Availability

Running Capacitor (Service) WPL 2154565 Contact Us For Availability

Trim, Front WPL 2170594 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Insert, Handle (White) WPL 1119373 Contact Us For Availability

Insert, Handle (Almond) WPL 1119375 Contact Us For Availability

Cover WPL 628355 Contact Us For Availability

Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability

Snack Bin WPL 2170687 Contact Us For Availability

19

Retainer, Insert WPL 1119372 Contact Us For Availability

19

Screw Grommet WPL 509812 Contact Us For Availability

19

Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

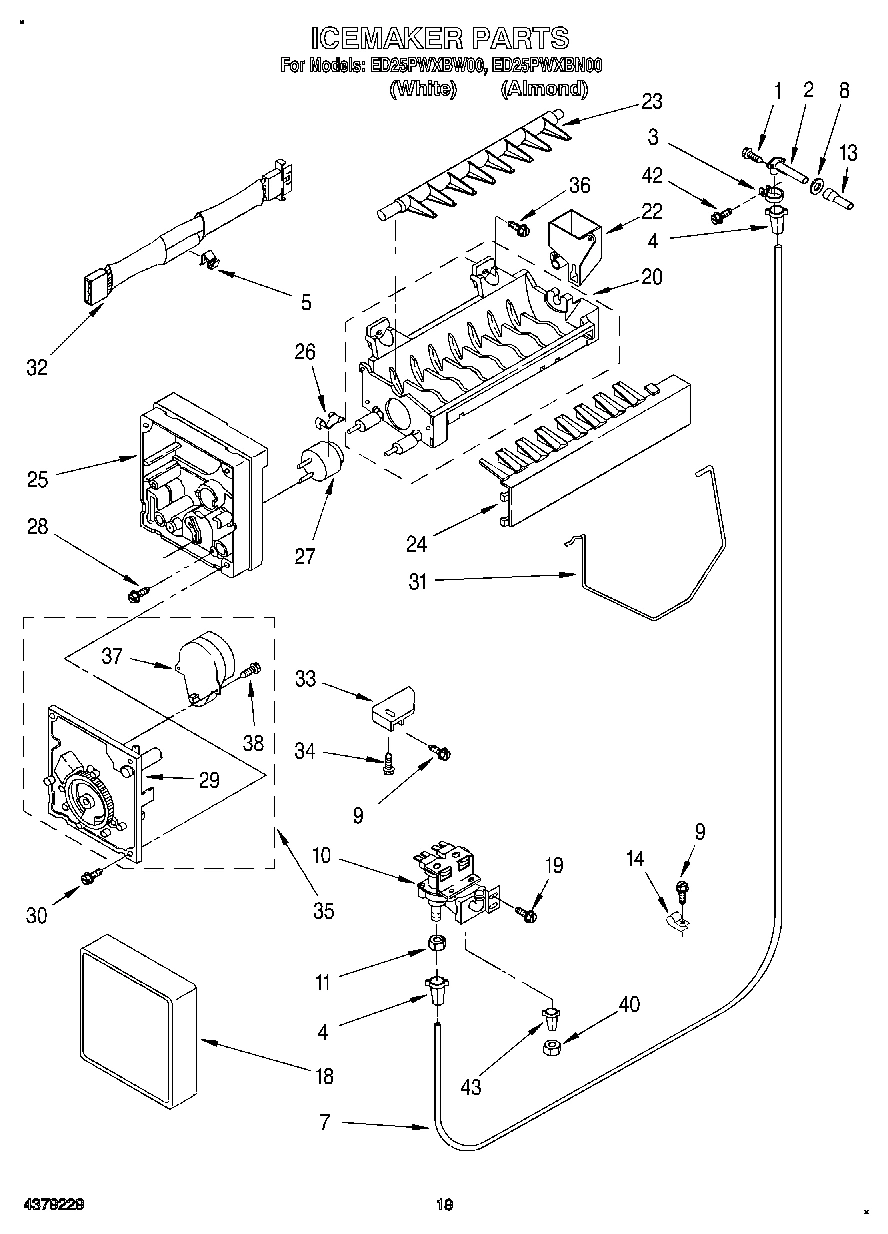

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

End Cap (2) WPL 2156220 Contact Us For Availability

Divider (3) WPL 2152335 Contact Us For Availability

Control Box Harness WPL 2149186 Contact Us For Availability

Spacer, Hinge WPL 1129868 Contact Us For Availability

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $4.34

Screw WPL 489075 Contact Us For Availability

Shelf Bin WPL 2170613 Contact Us For Availability

Lens, Dispenser Light WPL 983359 Contact Us For Availability

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $34.07

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille WPL 2155485 Contact Us For Availability

Screw WPL 489022 Contact Us For Availability

Trim Kit WPL 4210344 Contact Us For Availability

Trimless Black Decor Panel WPL 4210352 Contact Us For Availability

Black Handle Insert WPL 4210378 Contact Us For Availability

Woodgrain Handle Insert WPL 4210446 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Evaporator WPL 2164519 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Clamp WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

Deflector, Ice Container WPL 1119043 Contact Us For Availability

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $82.48

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Escutcheon, Control Box WPL 2170787 Contact Us For Availability

Tray, Evaporator WPL 1110674 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Heat Shield WPL 2149294 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stop, Glass WPL 1119056 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

Knob, Retainer WPL 837444 Contact Us For Availability

Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Unit, Harness WPL 2149199 Contact Us For Availability

Tap Plate (2) WPL 2147310 Contact Us For Availability

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

Heater, Defrost WPL 2161323 Contact Us For Availability

34

Screw, WPL 489365 Contact Us For Availability

34

Light Lens WPL 1118259 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

37

Screw (2) WPL 488280 Contact Us For Availability

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

Grommet (4) WPL 2162067 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Nut, Compression WPL 1129179 Contact Us For Availability

40

Cord, Service WPL 937360 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

Insert WPL 1129177 Contact Us For Availability

43

Unit Cover, Bottom WPL 2161363 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

47

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

48

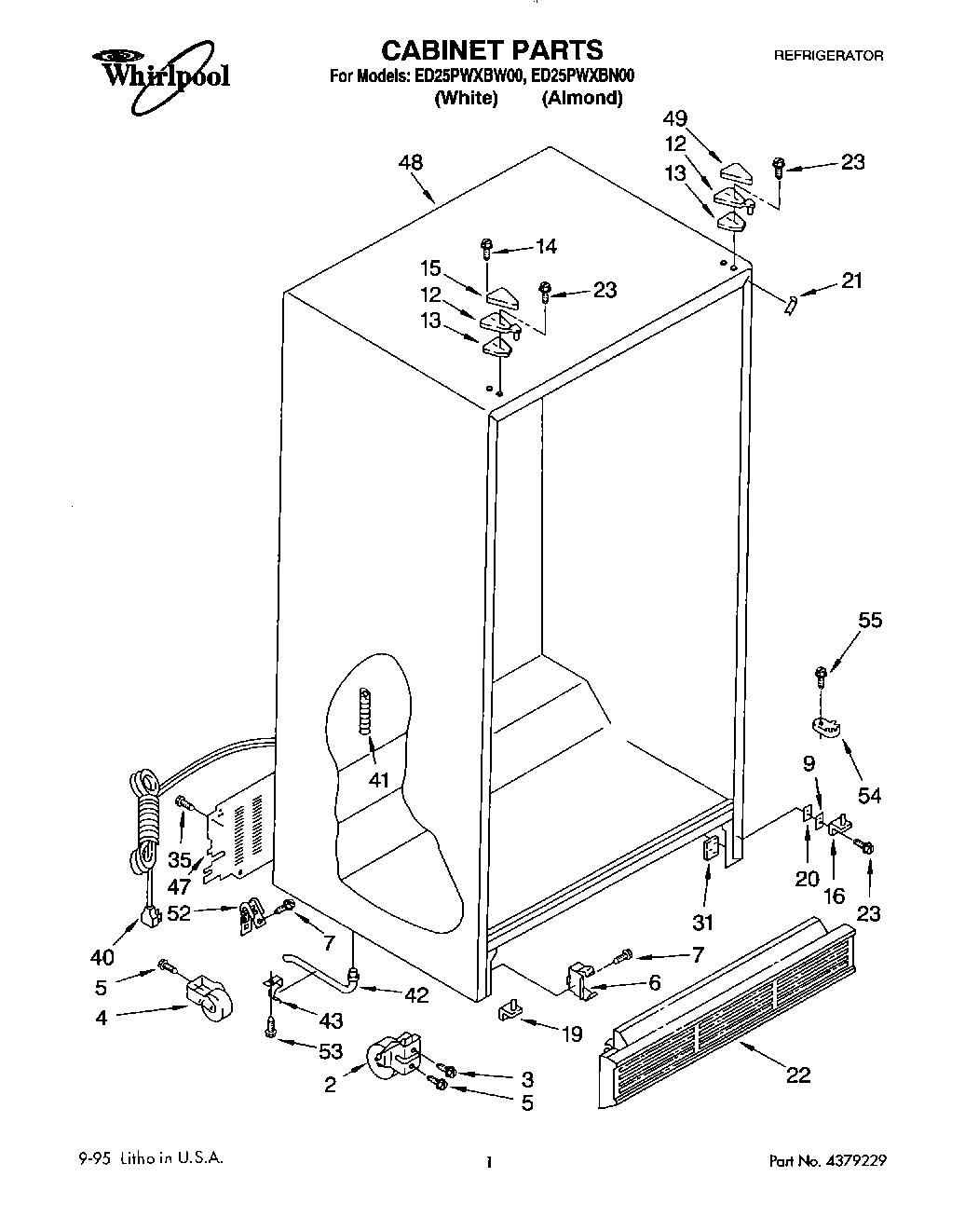

Cabinet (Not A Serviceable Part) WPL ARI146073A Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 1110663 Contact Us For Availability

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

54

Wire Connector WPL 227991 Contact Us For Availability

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

59

Spring-Tube WPL 983659 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Transformer (115-230 Volt) WPL 515393 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
