Model Whirlpool ED25PWXBN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
07 - FREEZER DOOR

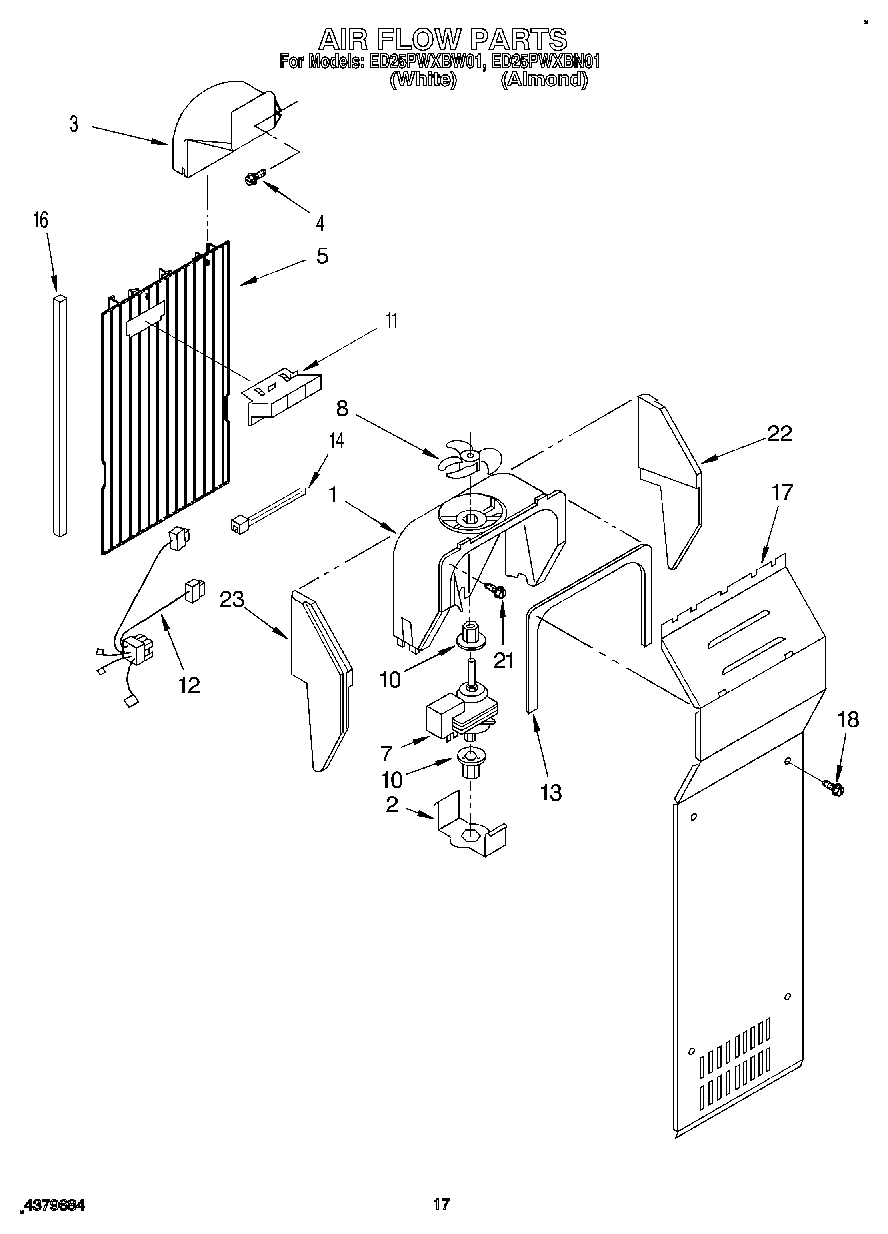

10 - AIR FLOW
11 - CONTROL

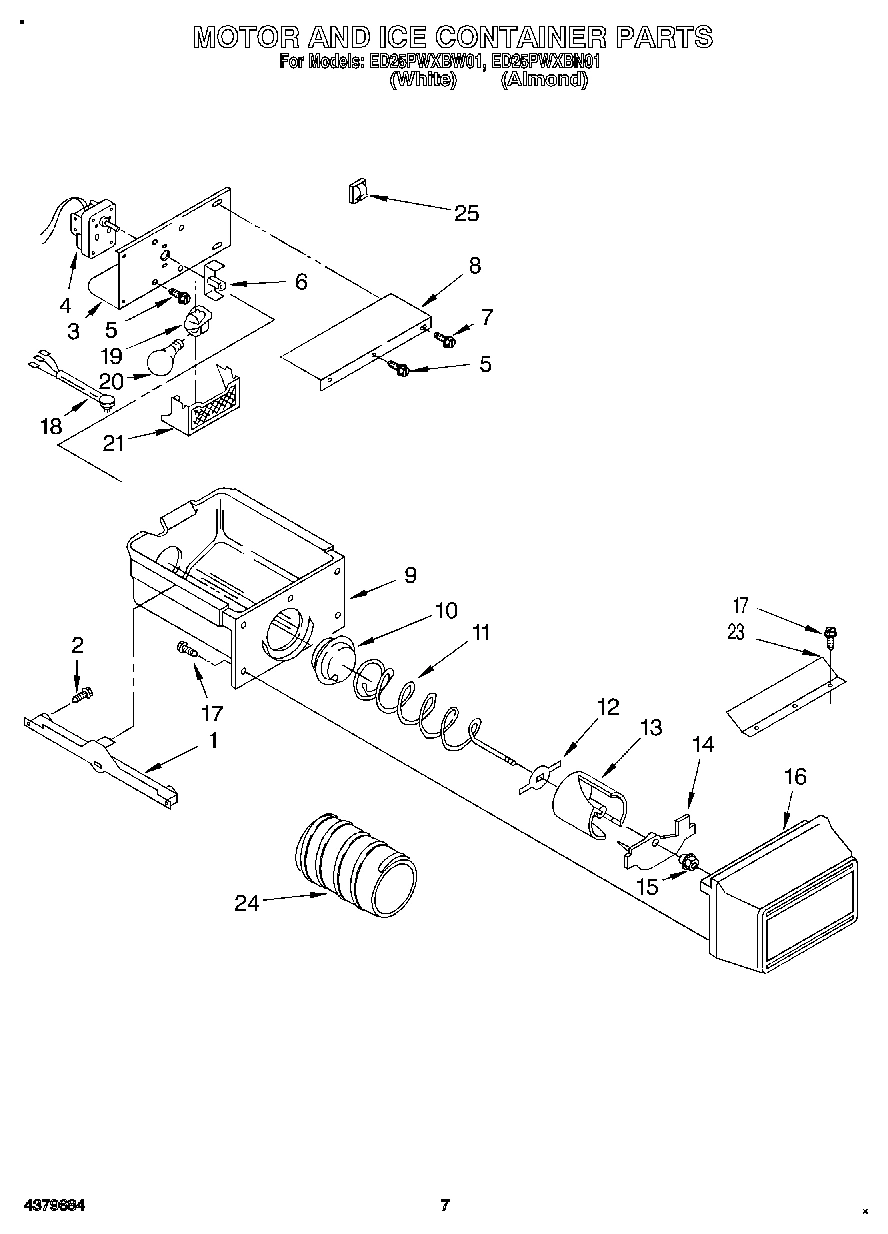

05 - MOTOR AND ICE CONTAINER
12 - ICE MAKER, LIT/OPTIONAL
02 - REFRIGERATOR LINER

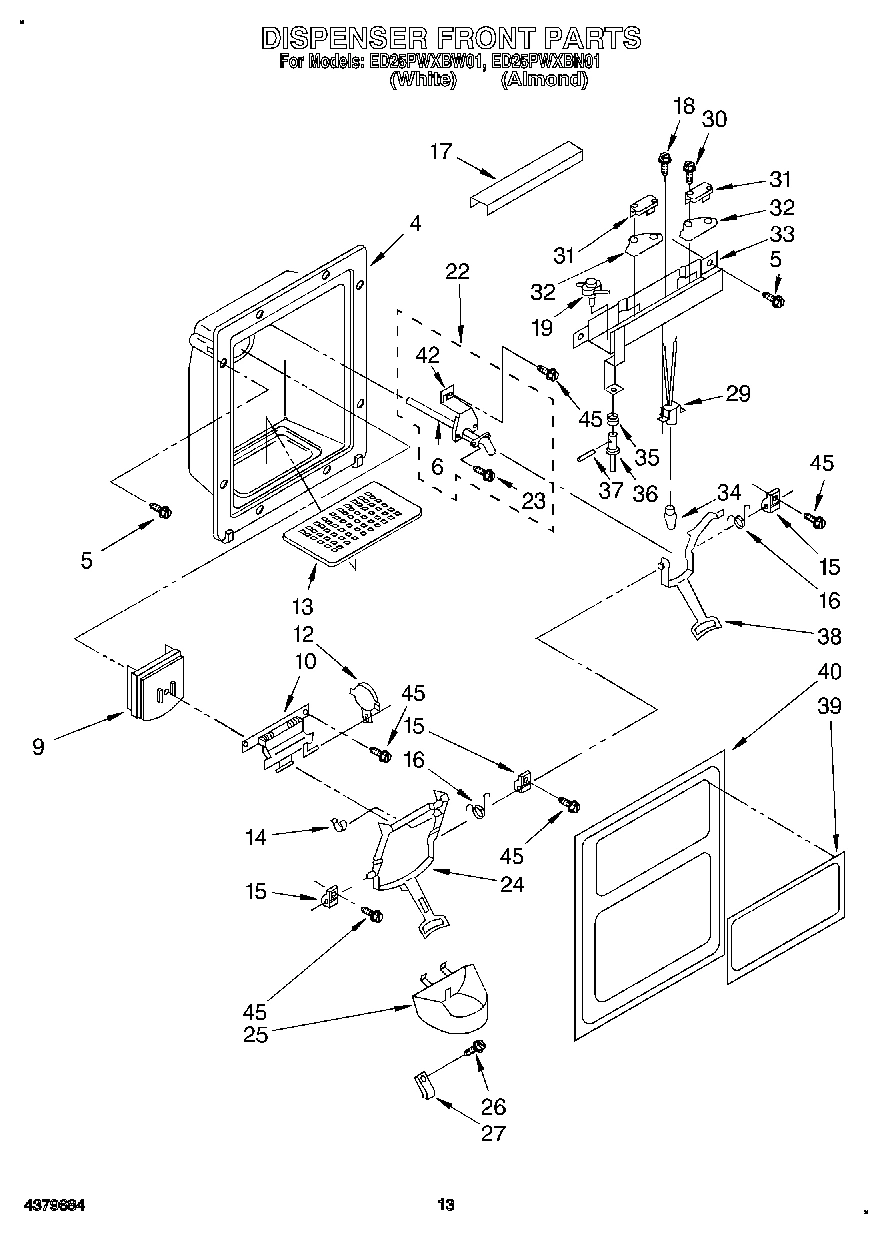

08 - DISPENSER FRONT

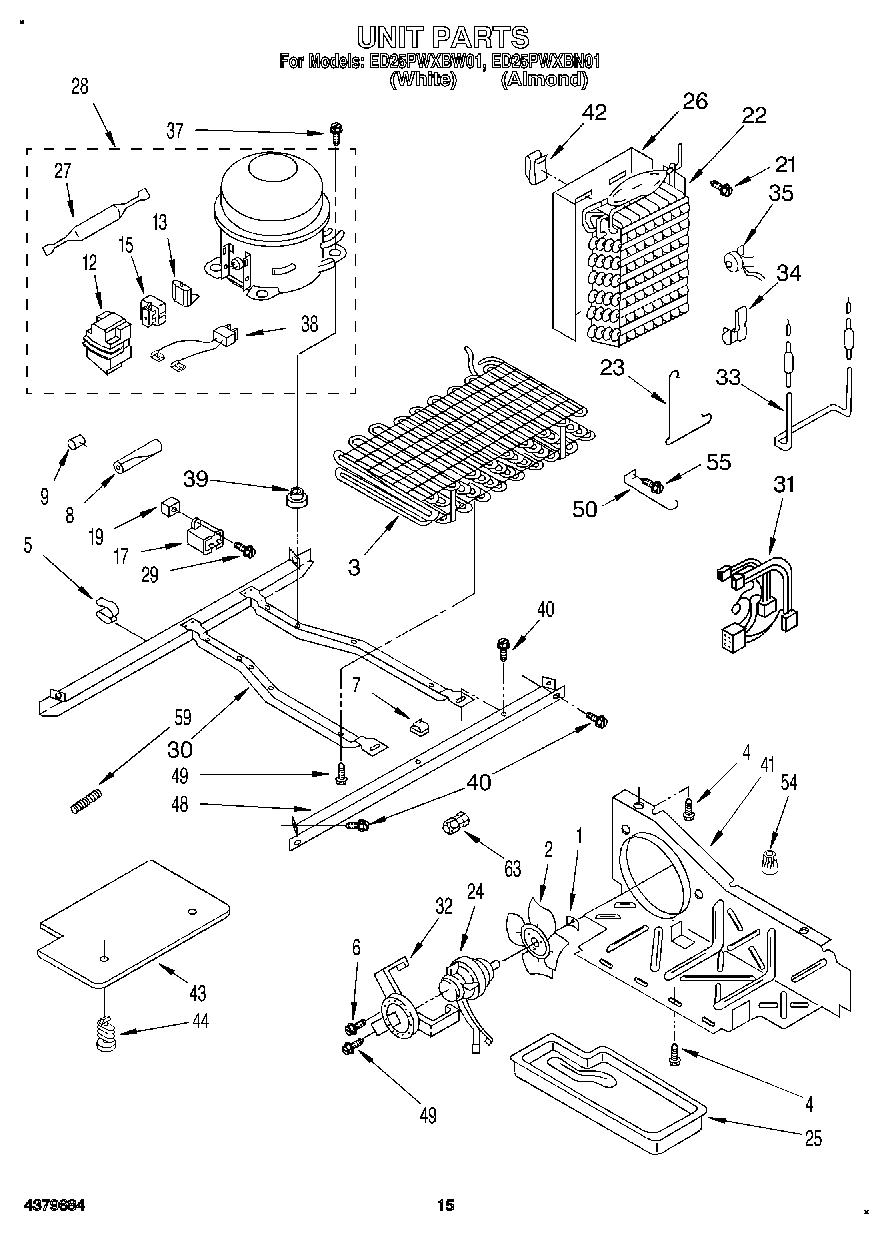

09 - UNIT

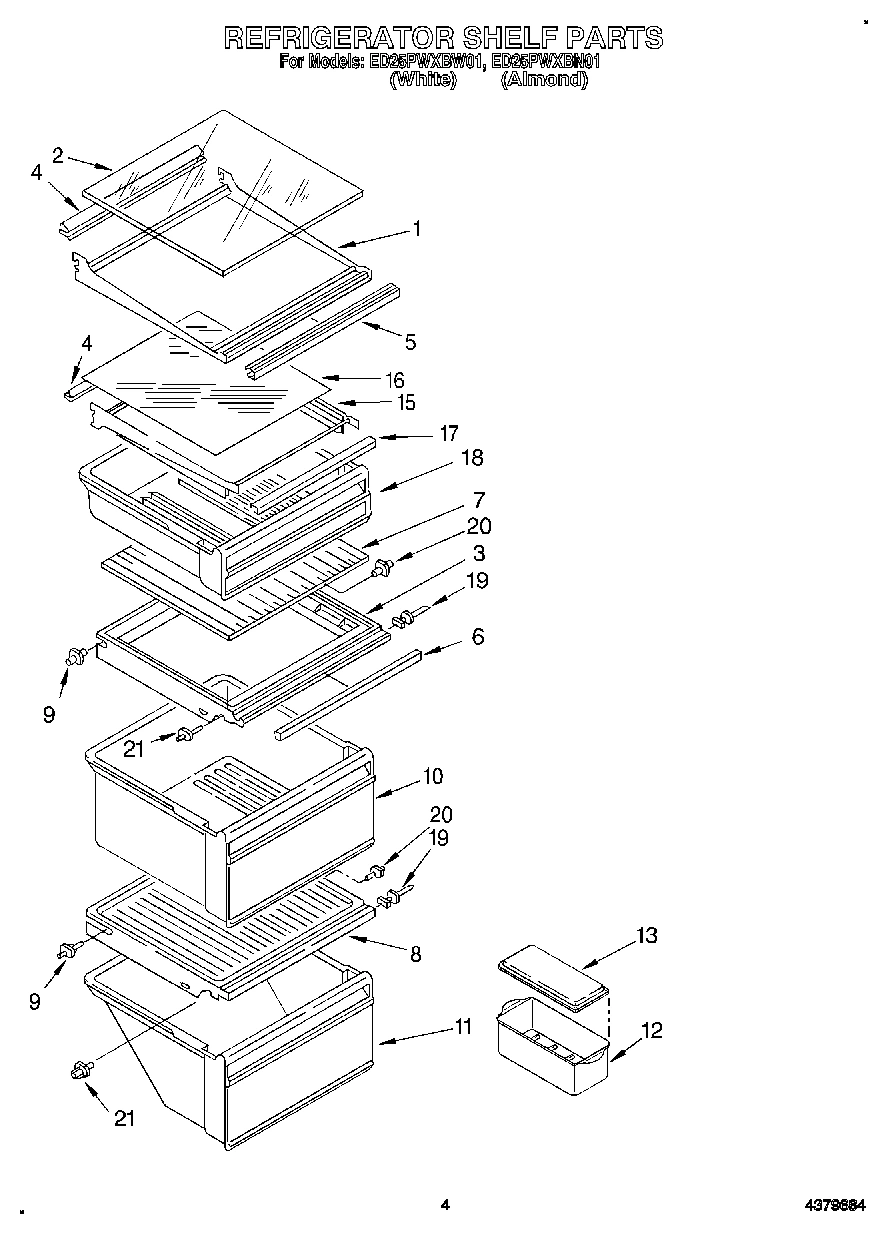

03 - REFRIGERATOR SHELF

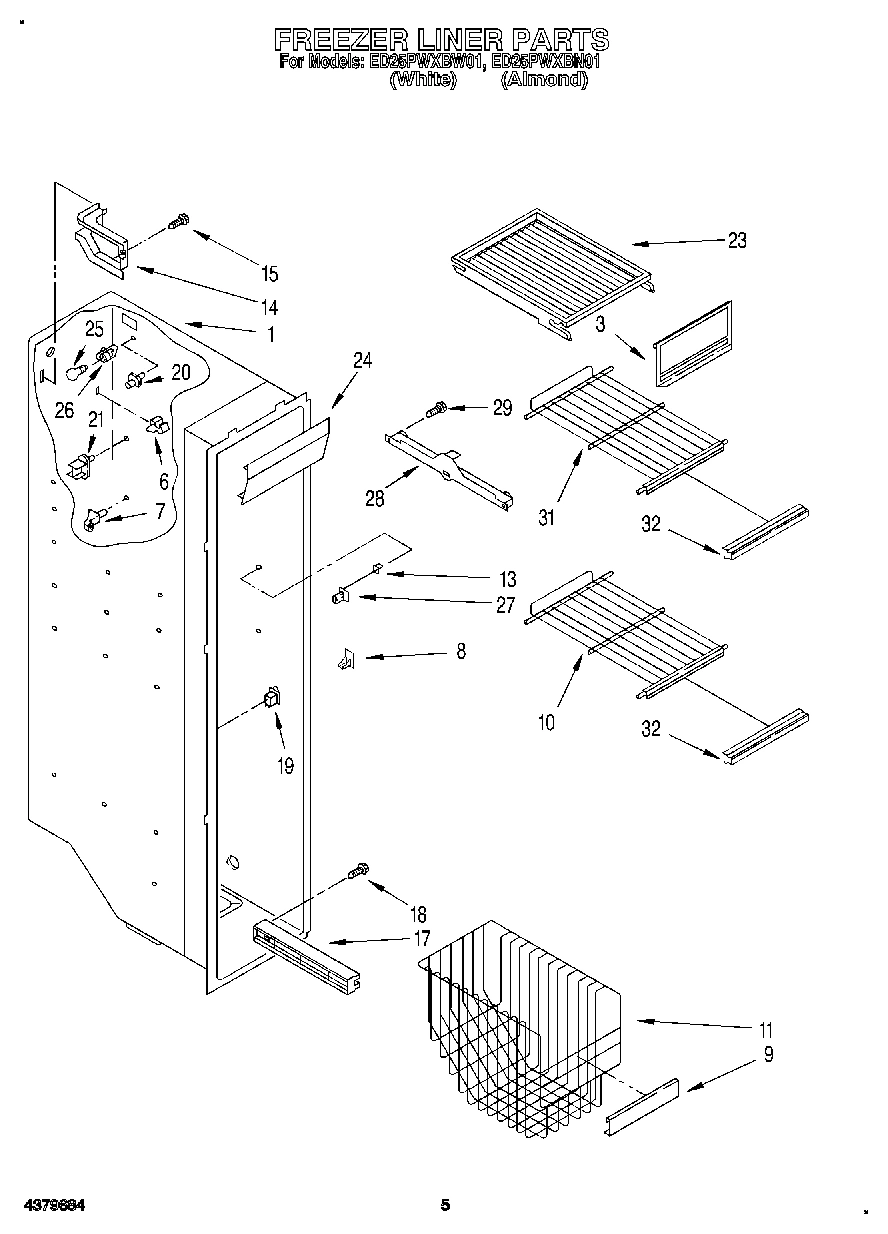

04 - FREEZER LINER
06 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED25PWXBN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170711 WPL LIT2170711 Contact Us For Availability
WPL LIT2170990 WPL LIT2170990 Contact Us For Availability
WPL LIT2176726 WPL LIT2176726 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146067A Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146068A Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2159374 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2170756 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Door, Ice Compartment WPL 2170791 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI146069A Contact Us For Availability
4
Reflector, Shelf WPL 2170621 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Trim, Shelf WPL 2170597 Contact Us For Availability
5
Insert, Handle (White) WPL 1119361 Contact Us For Availability
5
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI146070A Contact Us For Availability
6
Trim, Crisper Cover WPL 2170835 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Handle, Center WPL 1118417 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
9
Shelf Stud WPL 1115290 Contact Us For Availability
9
Trim, Basket WPL 2170763 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Shelf WPL 1116956 Contact Us For Availability
10
Insert, Handle (White) WPL 1119373 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Meat Pan WPL 2170932 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Shelf Ladder WPL 1116794 Contact Us For Availability
13
Cover WPL 2170949 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Bracket, Door Stop WPL 2155334 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI146071A Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2170792 Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
16
Retainer, Insert WPL 1119372 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Trim, Front WPL 2170594 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Snack Bin WPL 2170938 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Trim Kit WPL 4210344 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4210352 Contact Us For Availability
22
Black Handle Insert WPL 4210378 Contact Us For Availability
22
Woodgrain Handle Insert WPL 4210446 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Deflector, Ice Container WPL 1119043 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Trim, Shelf WPL 2162939 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Screw WPL ARI146072A Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser WPL 2159196 Contact Us For Availability
39
Plaque, Front Cover WPL 2150335 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150339 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Bla WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
