Model Whirlpool ED25DQXDW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - REFRIGERATOR SHELF

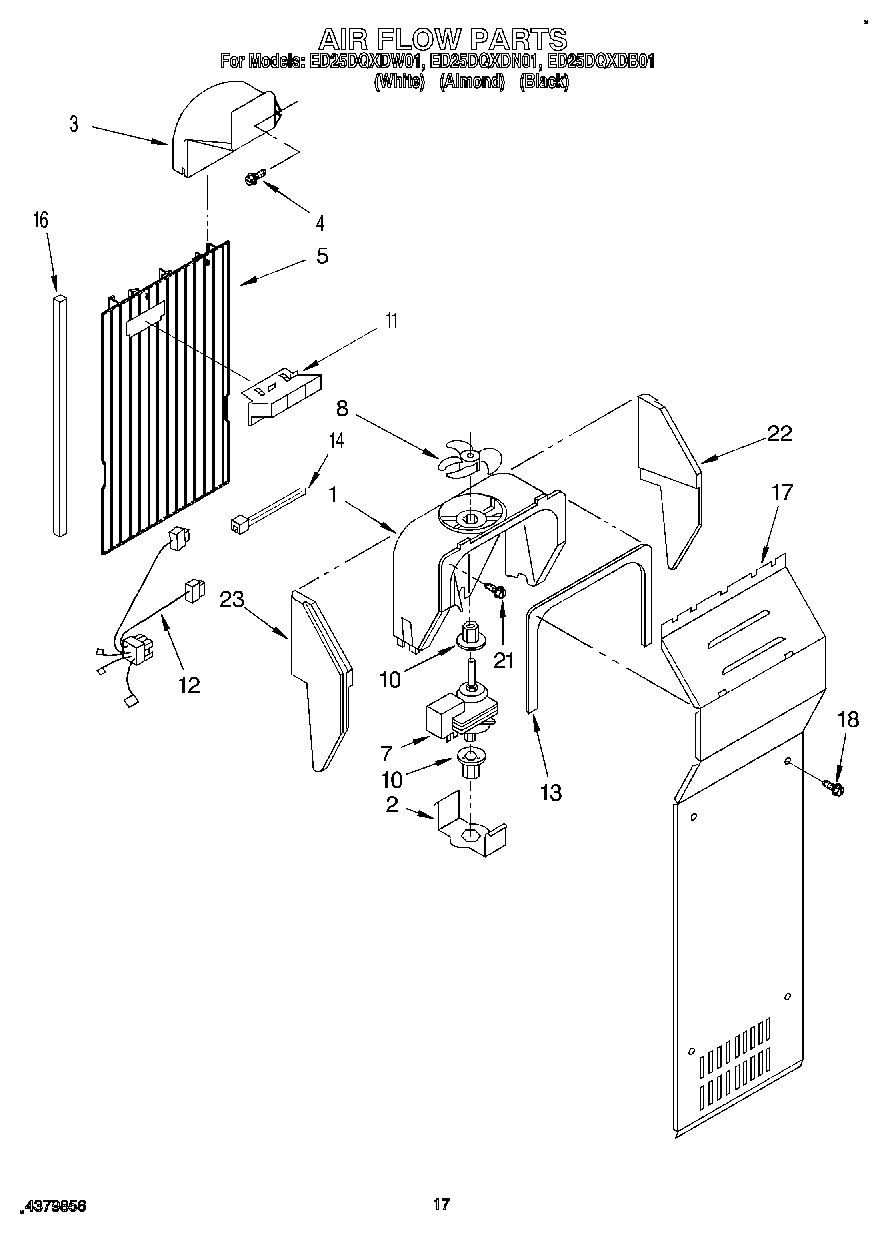

10 - AIR FLOW

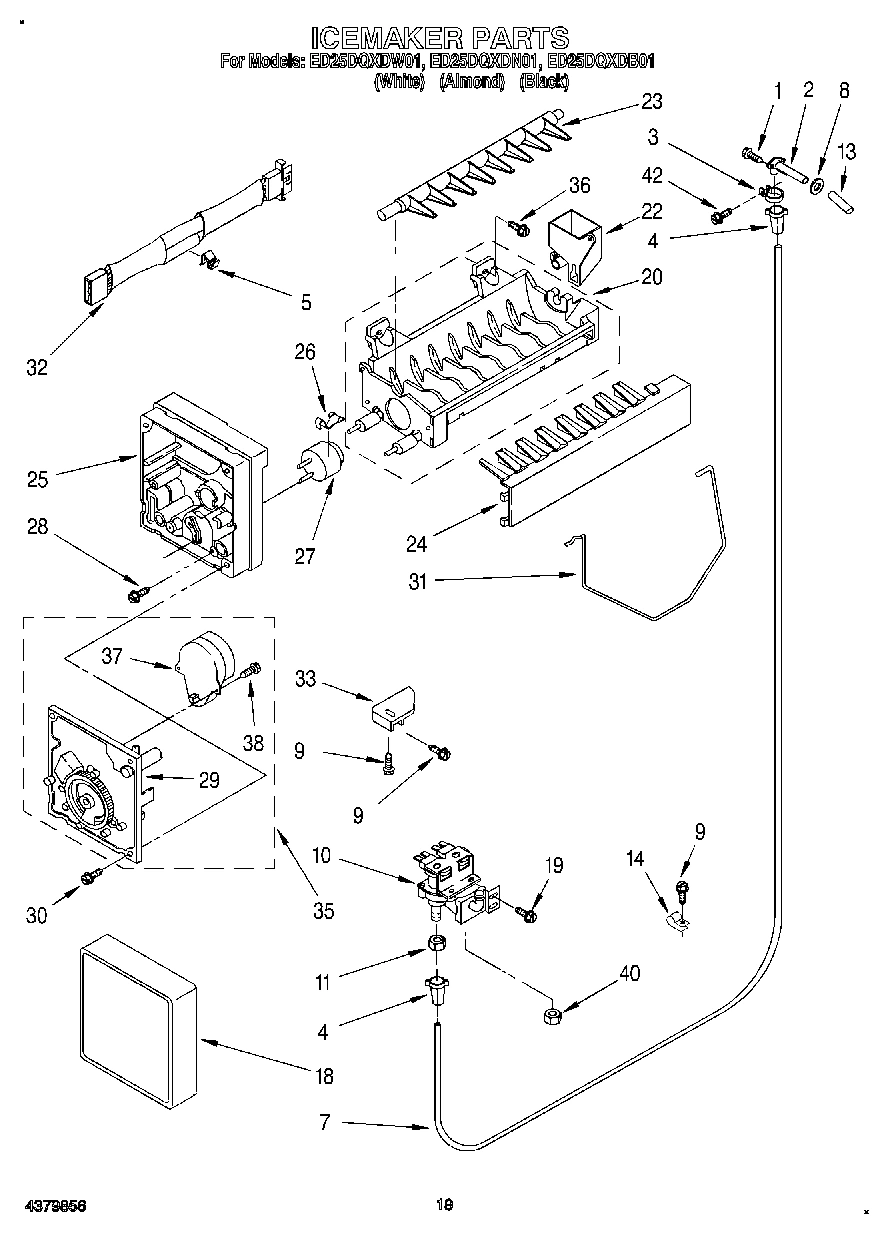

12 - ICEMAKER, LIT/OPTIONAL

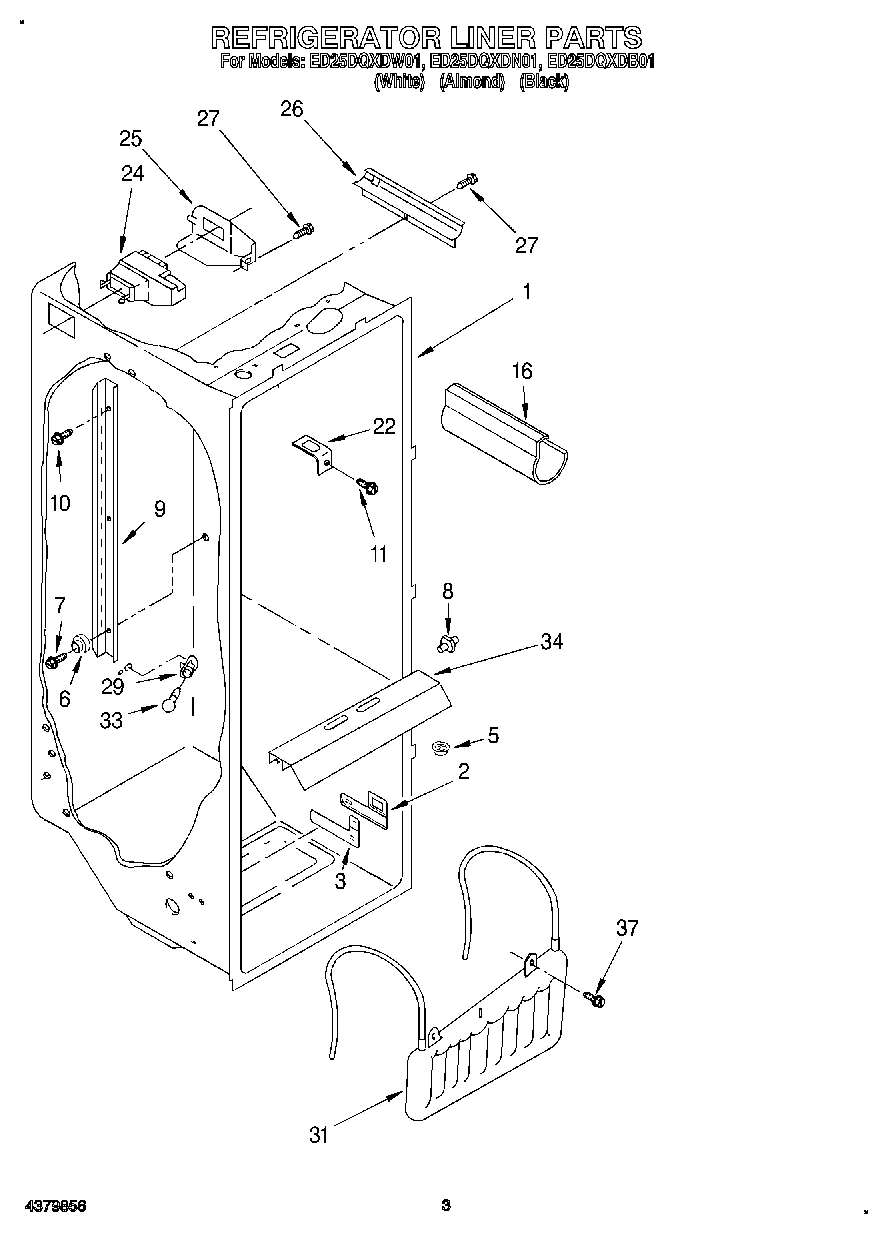

02 - REFRIGERATOR LINER

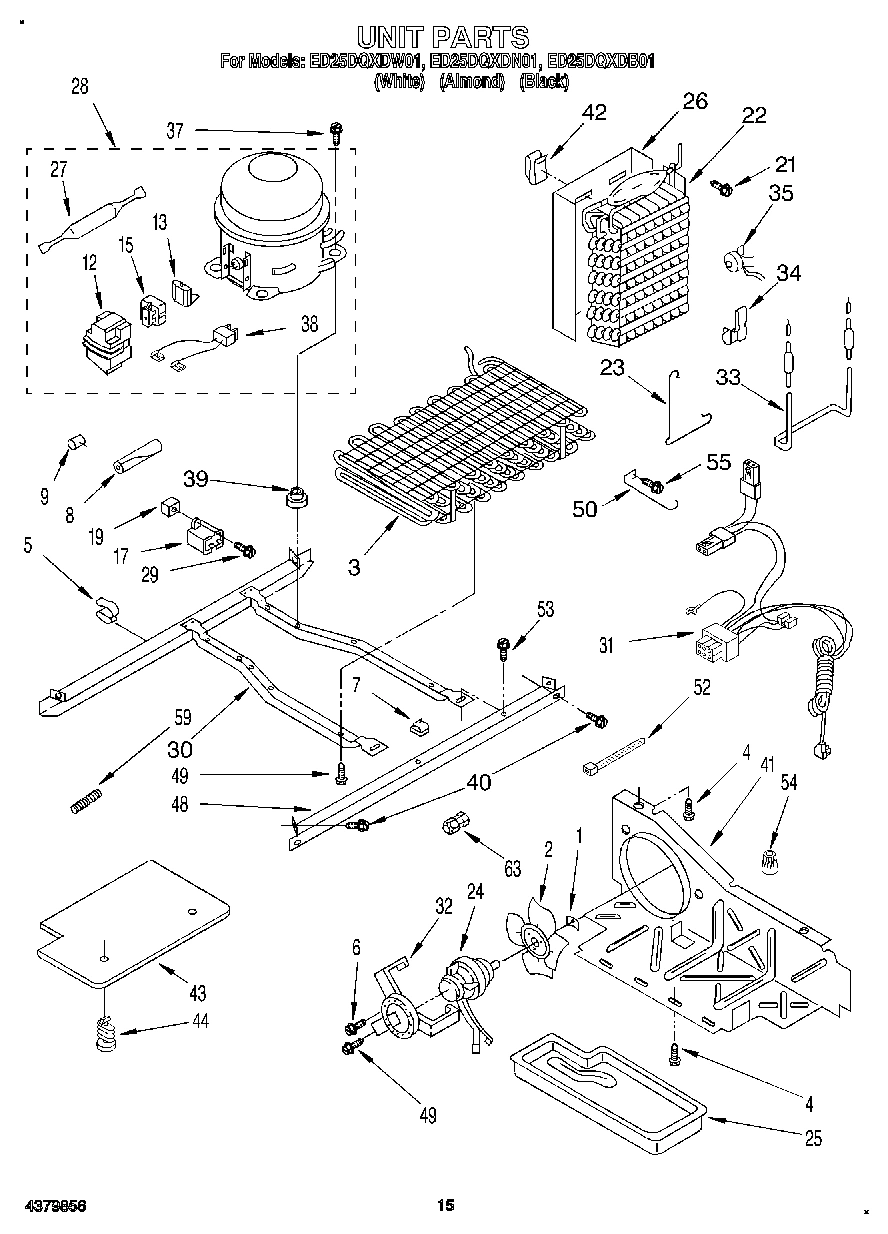

09 - UNIT

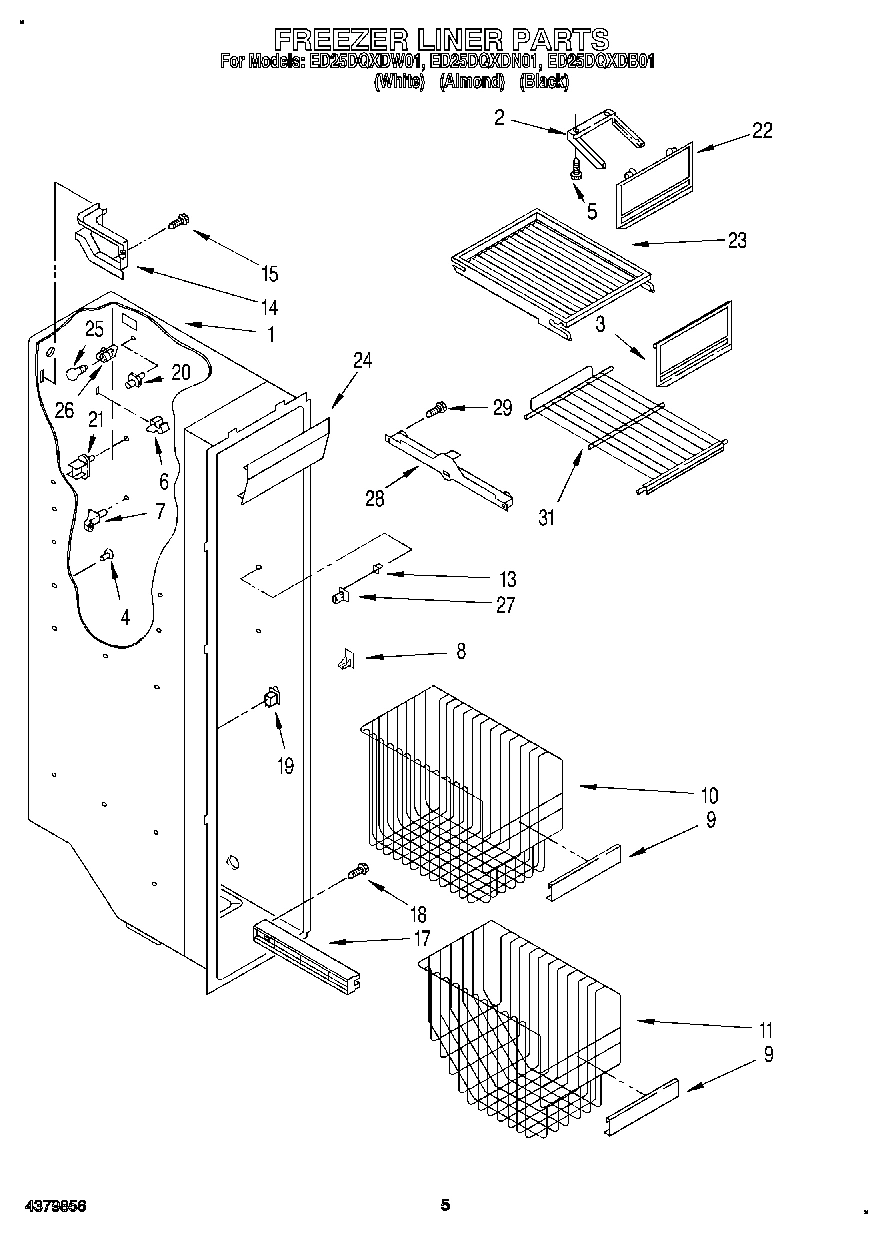

04 - FREEZER LINER

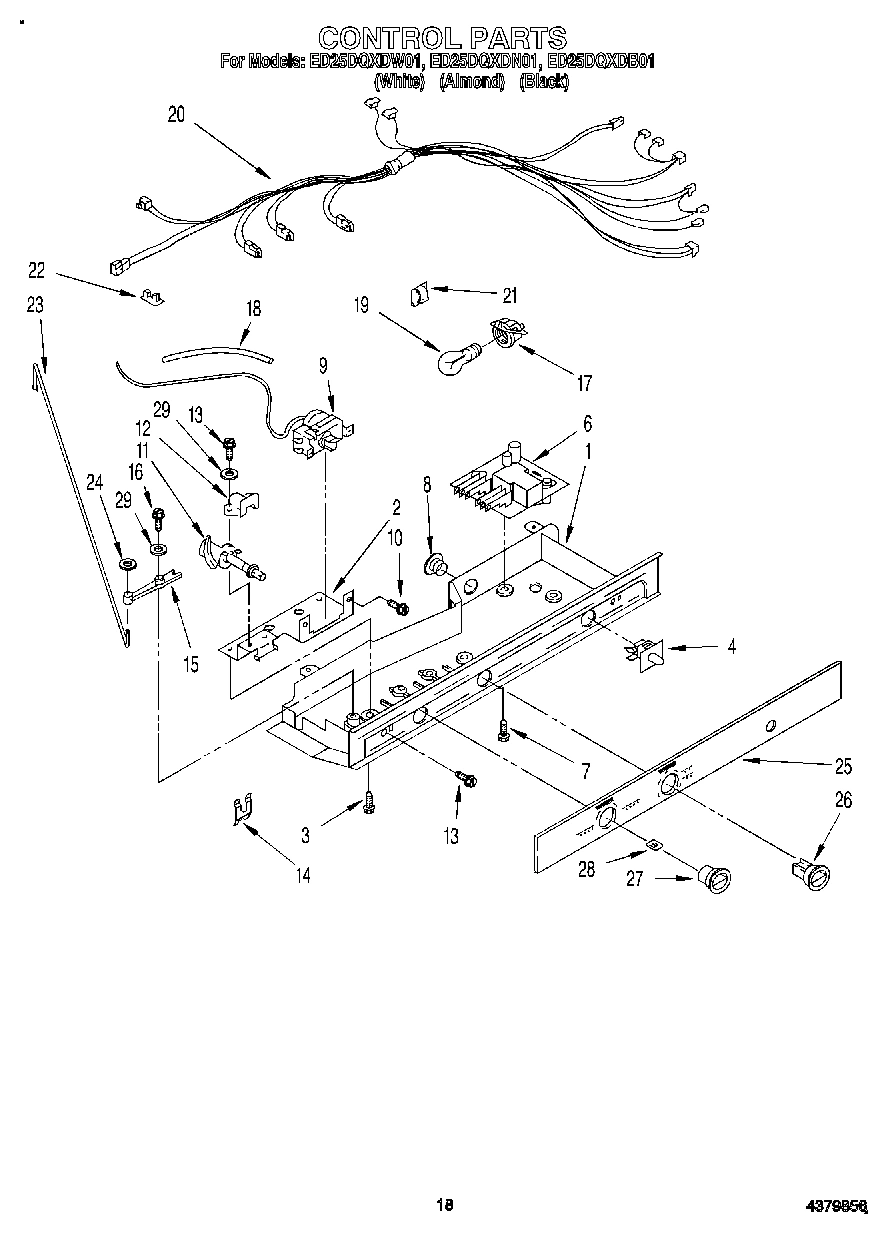

11 - CONTROL

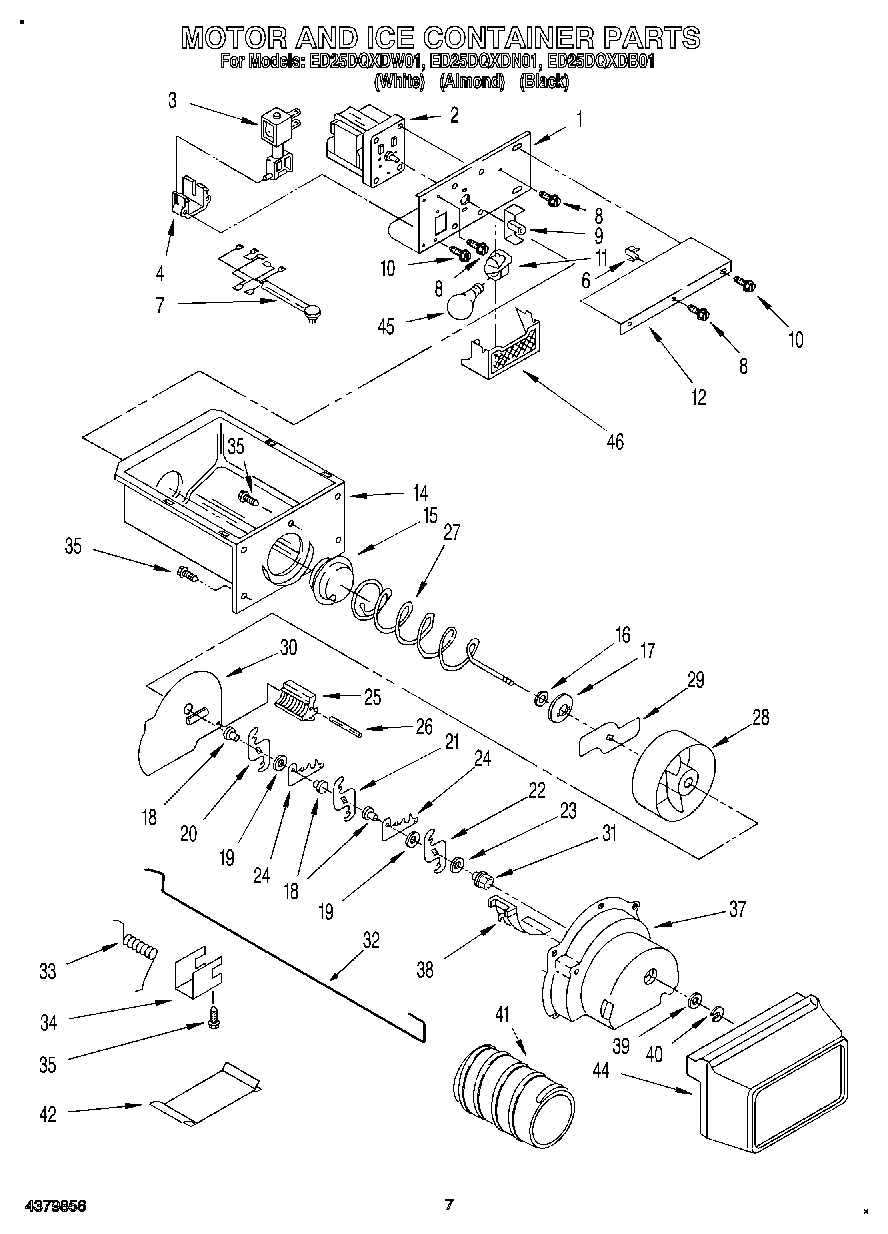

05 - MOTOR AND ICE CONTAINER

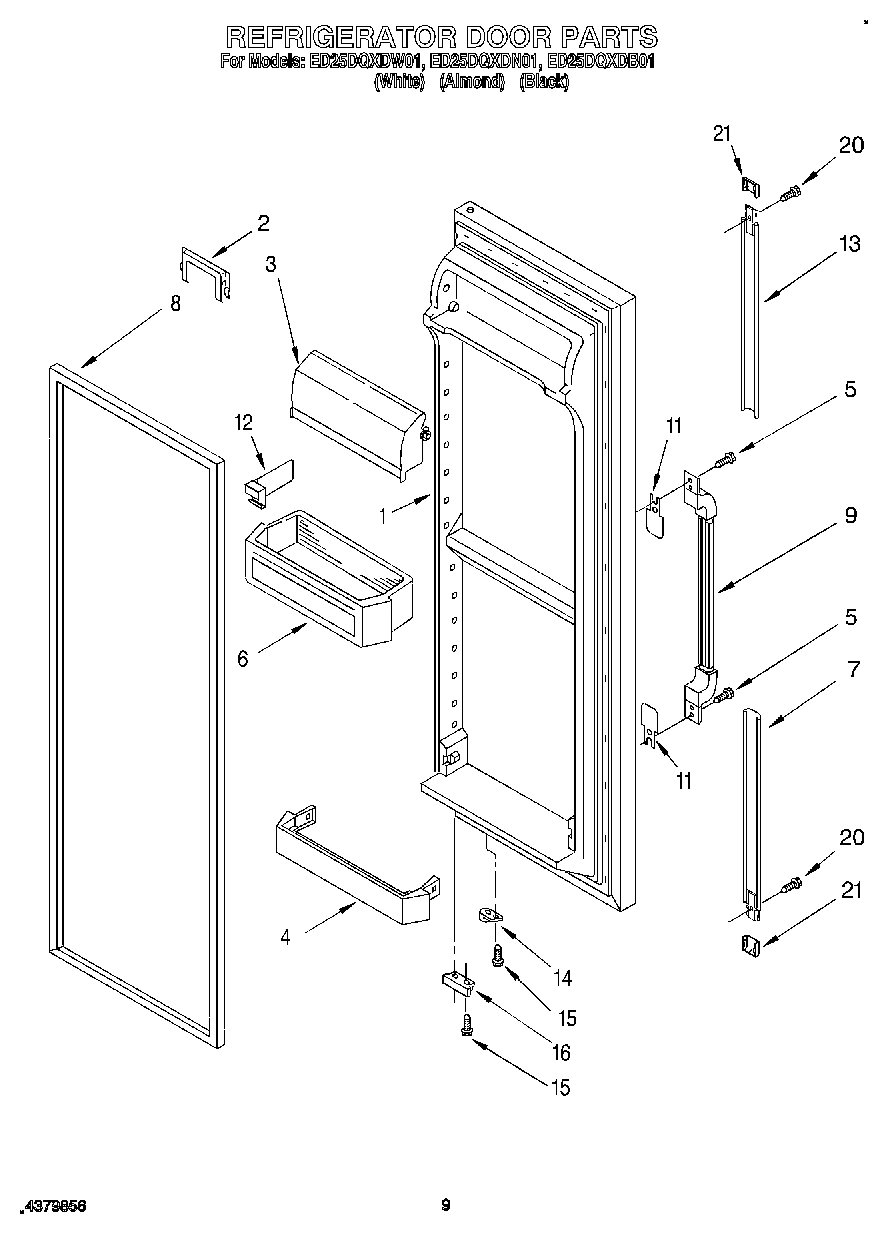

06 - REFRIGERATOR DOOR

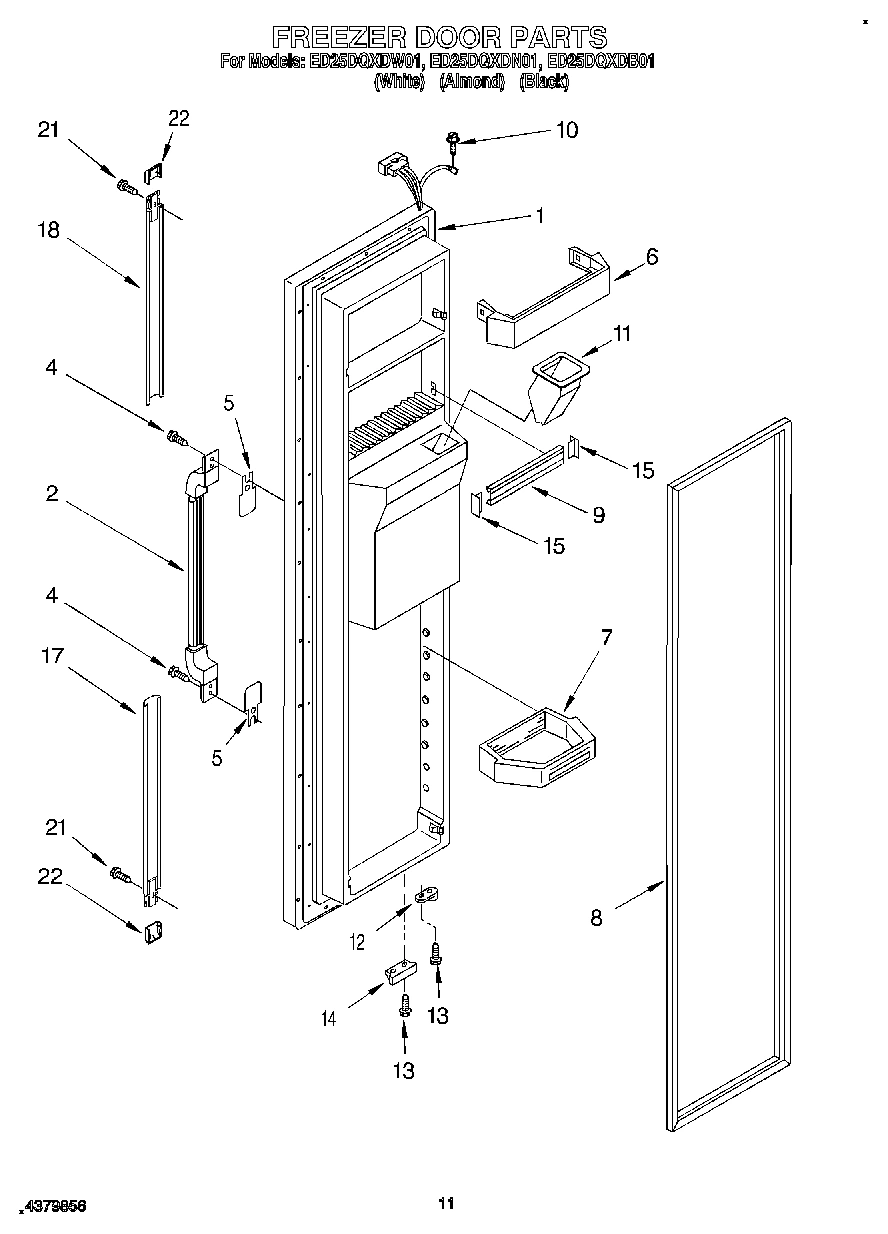

07 - FREEZER DOOR

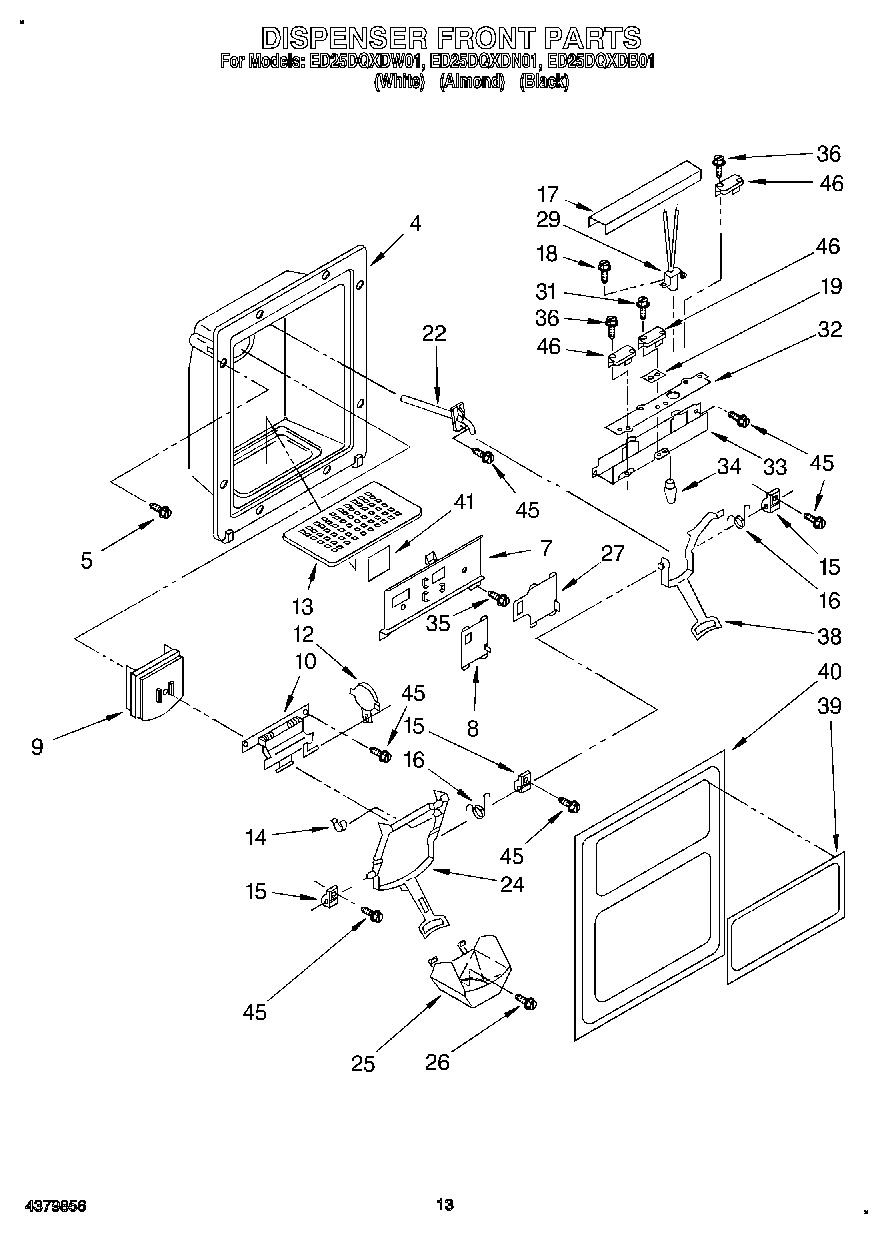

08 - DISPENSER FRONT
Common parts from model Whirlpool ED25DQXDW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27463A6 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2177319 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2177320 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2177321 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2177102 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2177220 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2177222 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Handle, Center (White) WPL 2179366 Contact Us For Availability
2
Handle, Center (Almond) WPL 2179367 Contact Us For Availability
2
Handle, Center (Black) WPL 2179368 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI27464A4 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (2) WPL 2179576 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Trim, Basket WPL 2171770 Contact Us For Availability
10
Basket, Tall WPL 2171702 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Basket, Slope WPL 2171701 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI27465A6 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2171777 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2171778 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Extension, Bottom (White) WPL 2174282 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2174283 Contact Us For Availability
17
Extension, Bottom (Black) WPL 2174284 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Extension, Top (White) WPL 2174279 Contact Us For Availability
18
Extension, Top (Almond) WPL 2174280 Contact Us For Availability
18
Extension, Top (Black) WPL 2174281 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Door, Top Compartment WPL 2174343 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Unit, Harness WPL 2181709 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2179206 Contact Us For Availability
39
Plaque, Front Cover (Black) WPL 2179207 Contact Us For Availability
40
Front Cove WPL 2174310 Contact Us For Availability
40
WPL 2179202 WPL 2179202 Contact Us For Availability
40
WPL 2179203 WPL 2179203 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
