Model Whirlpool ED25CQXHW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

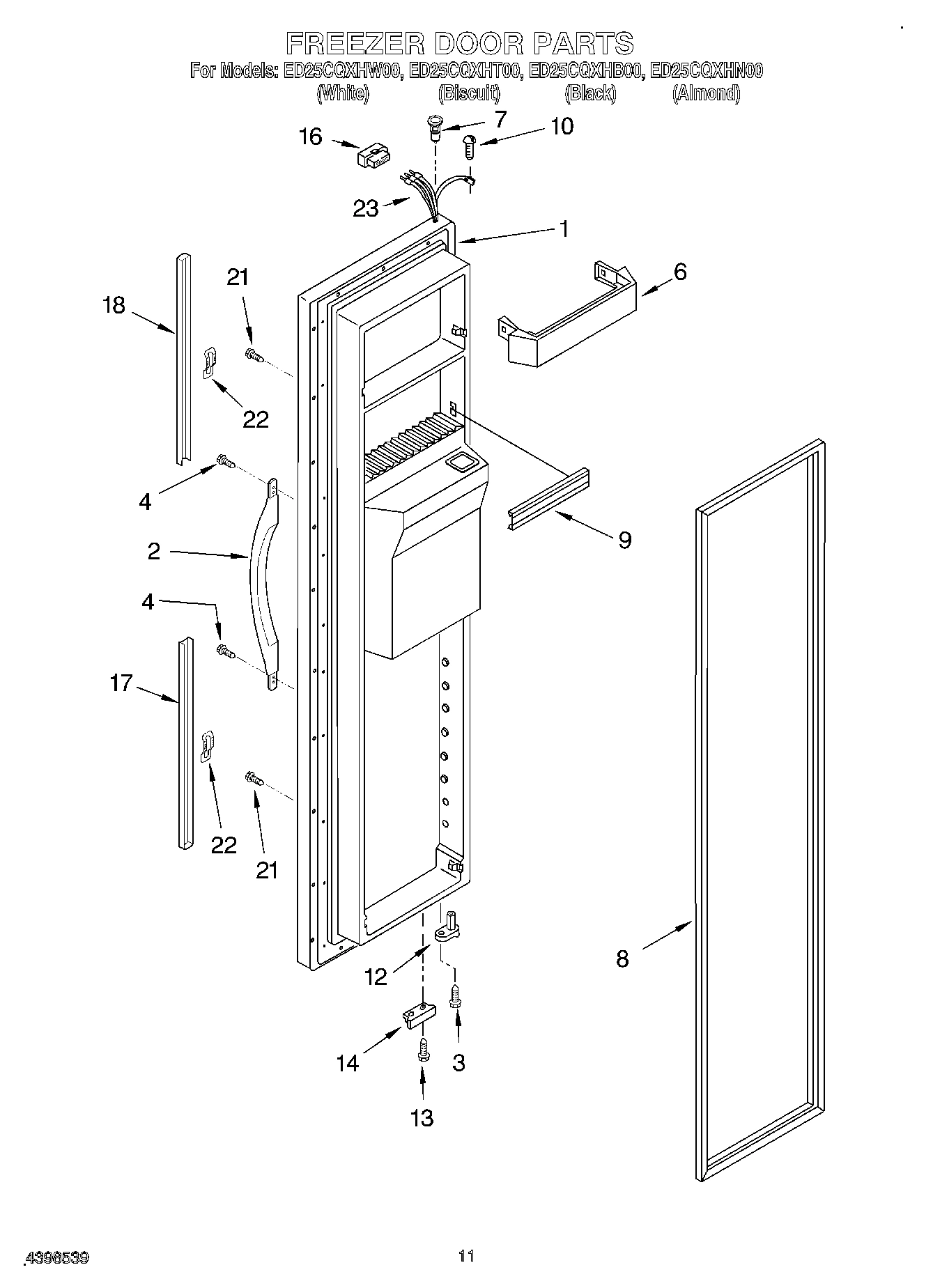

07 - FREEZER DOOR

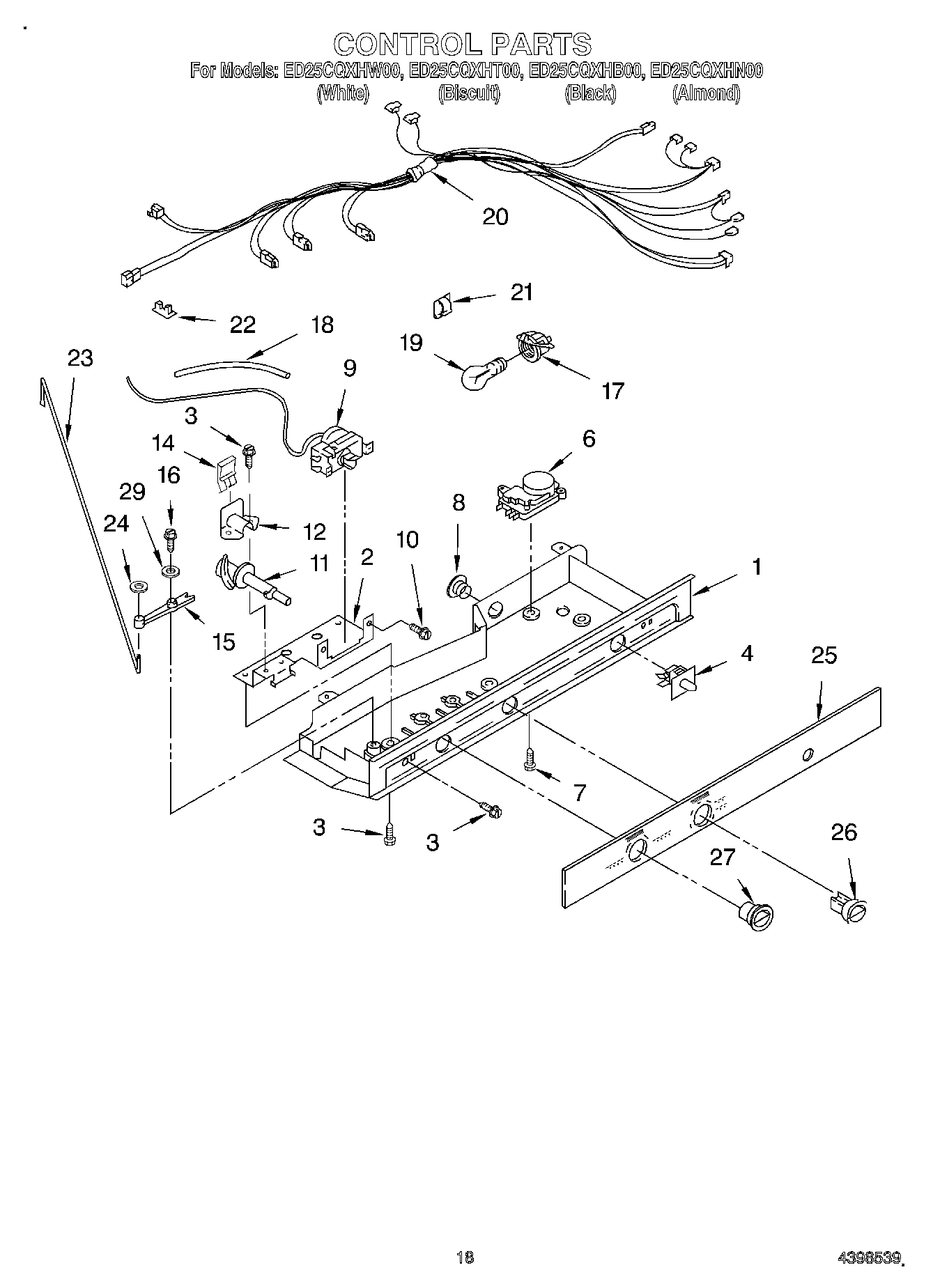

11 - CONTROL

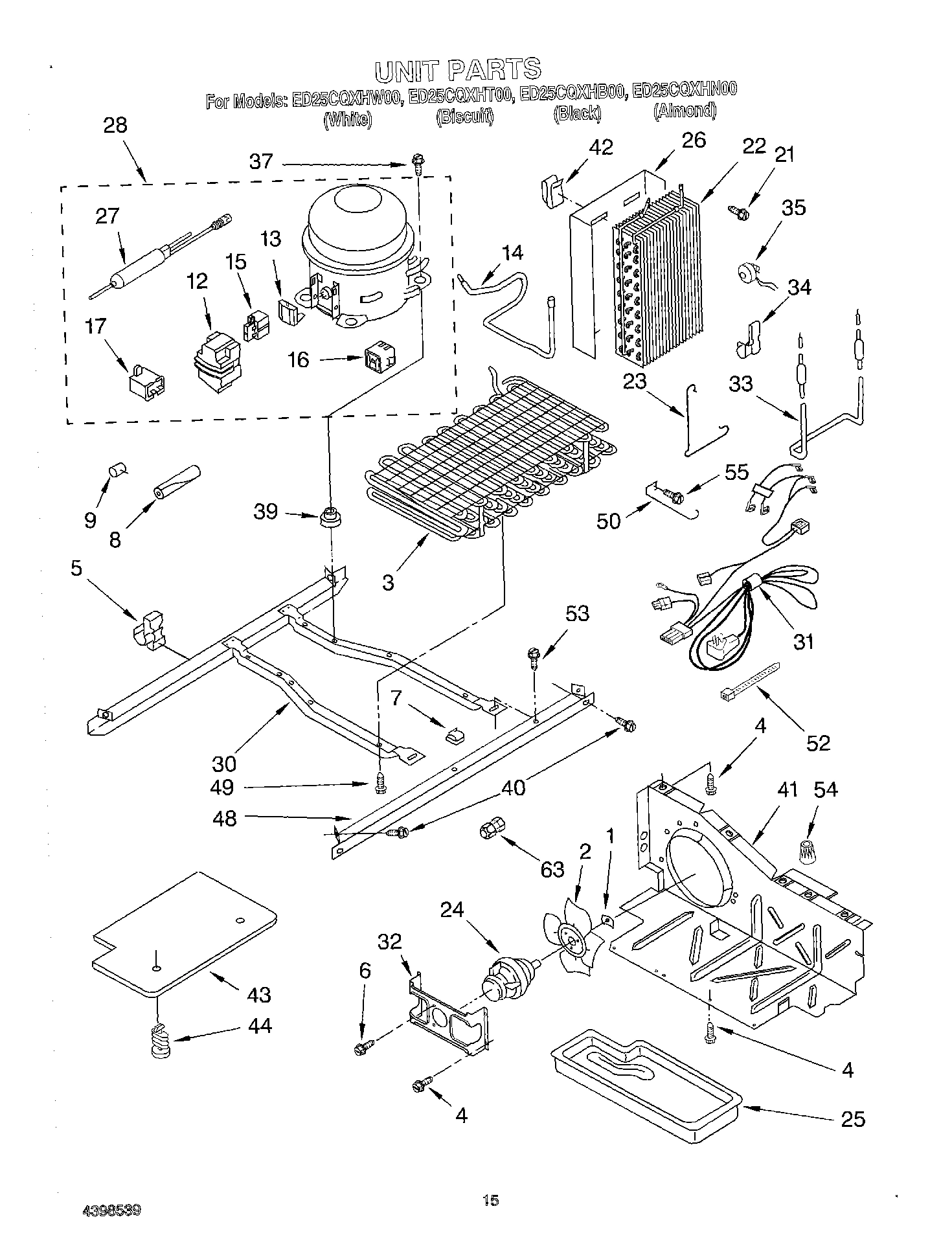

09 - UNIT
10 - AIR FLOW

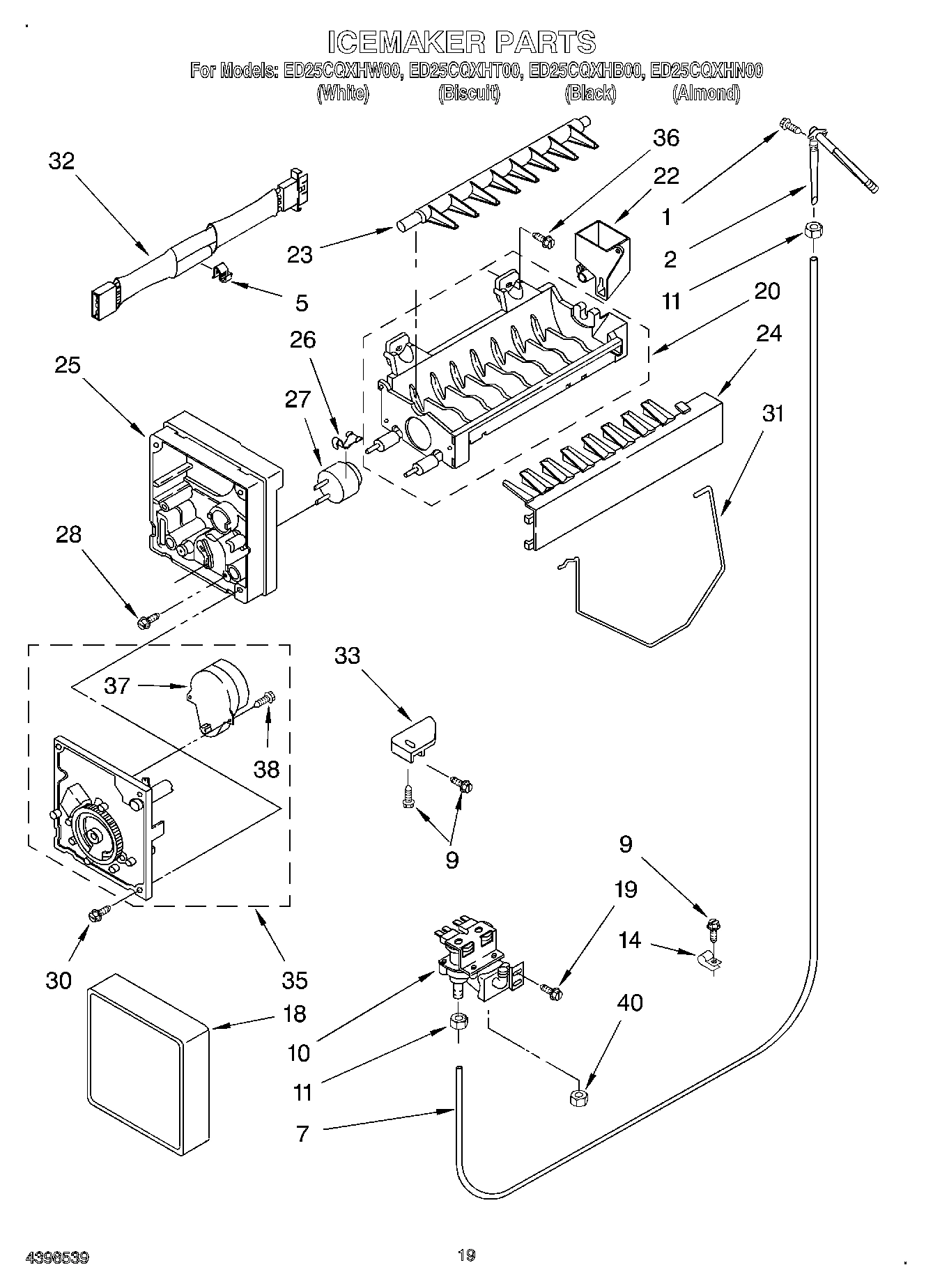

12 - ICE MAKER, OPTIONAL

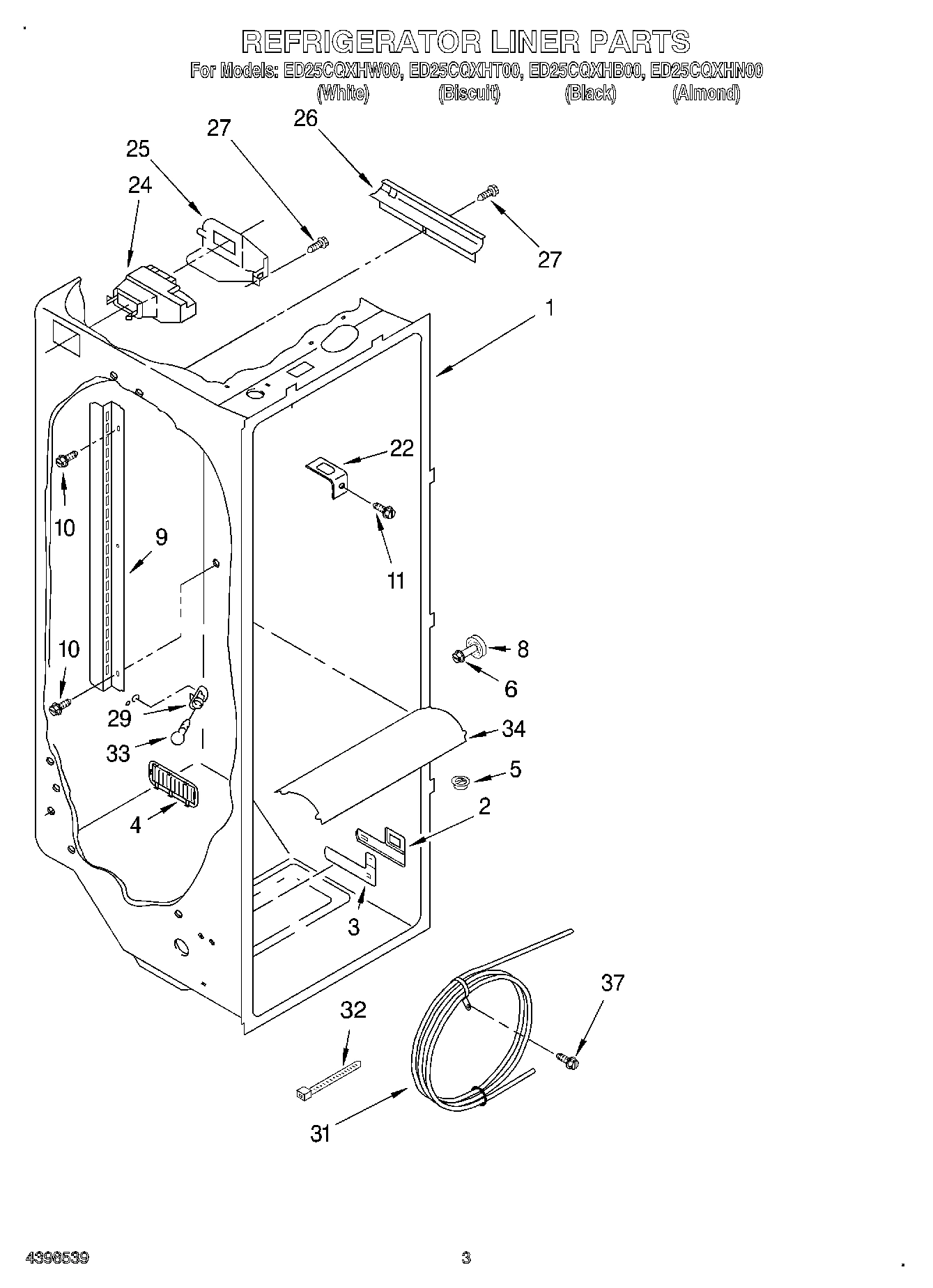

02 - REFRIGERATOR LINER

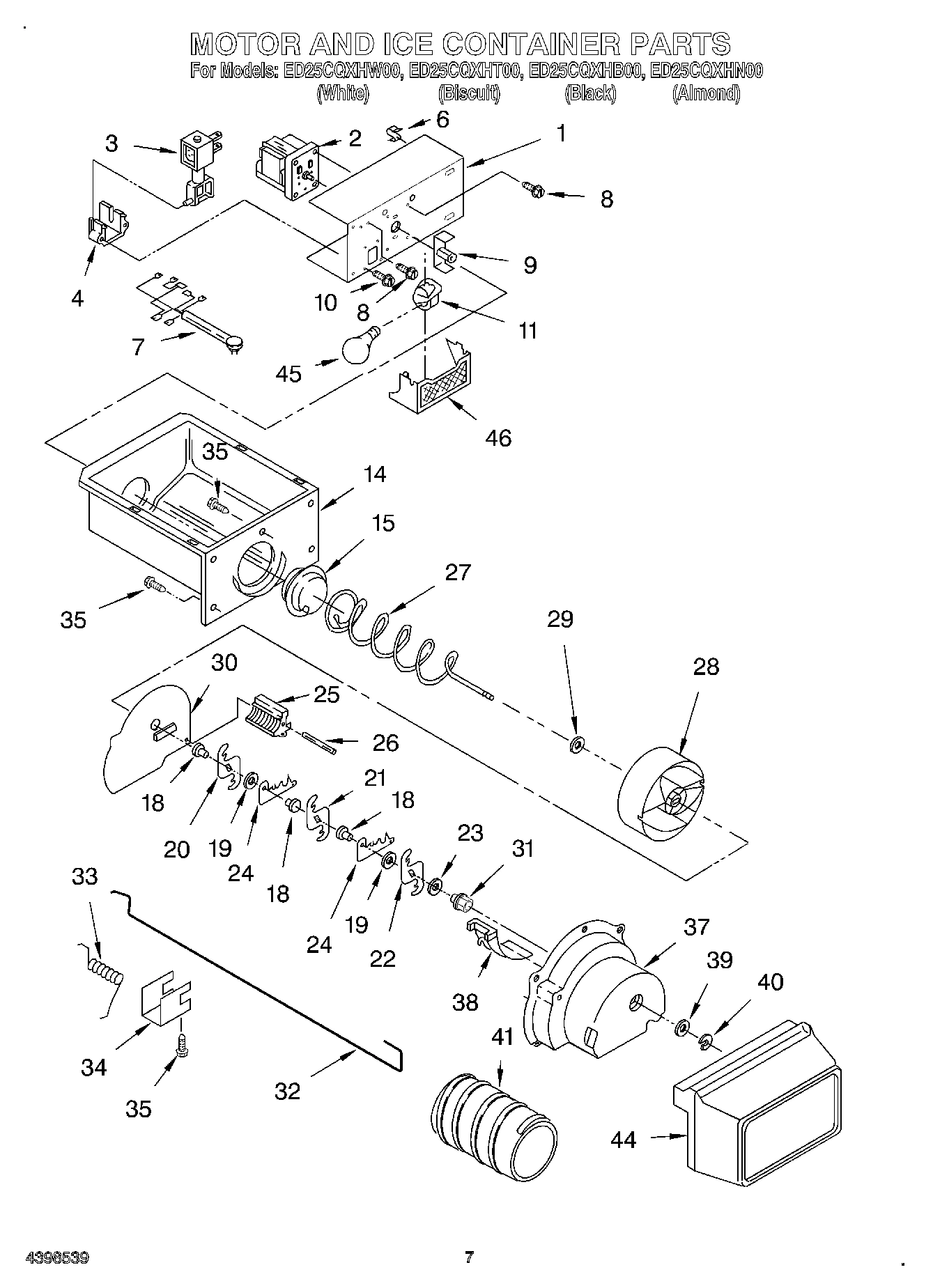

05 - MOTOR AND ICE CONTAINER

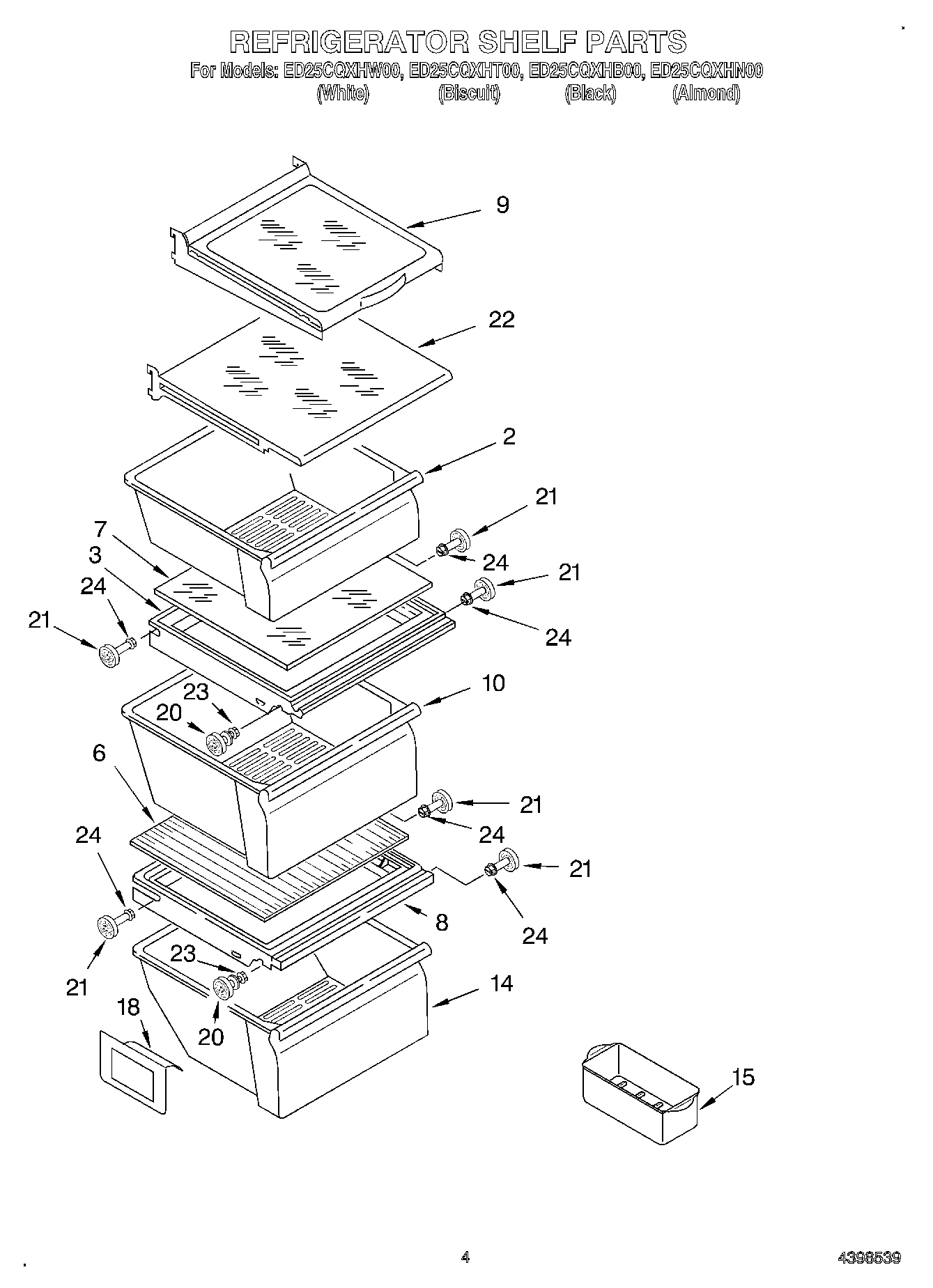

03 - REFRIGERATOR SHELF

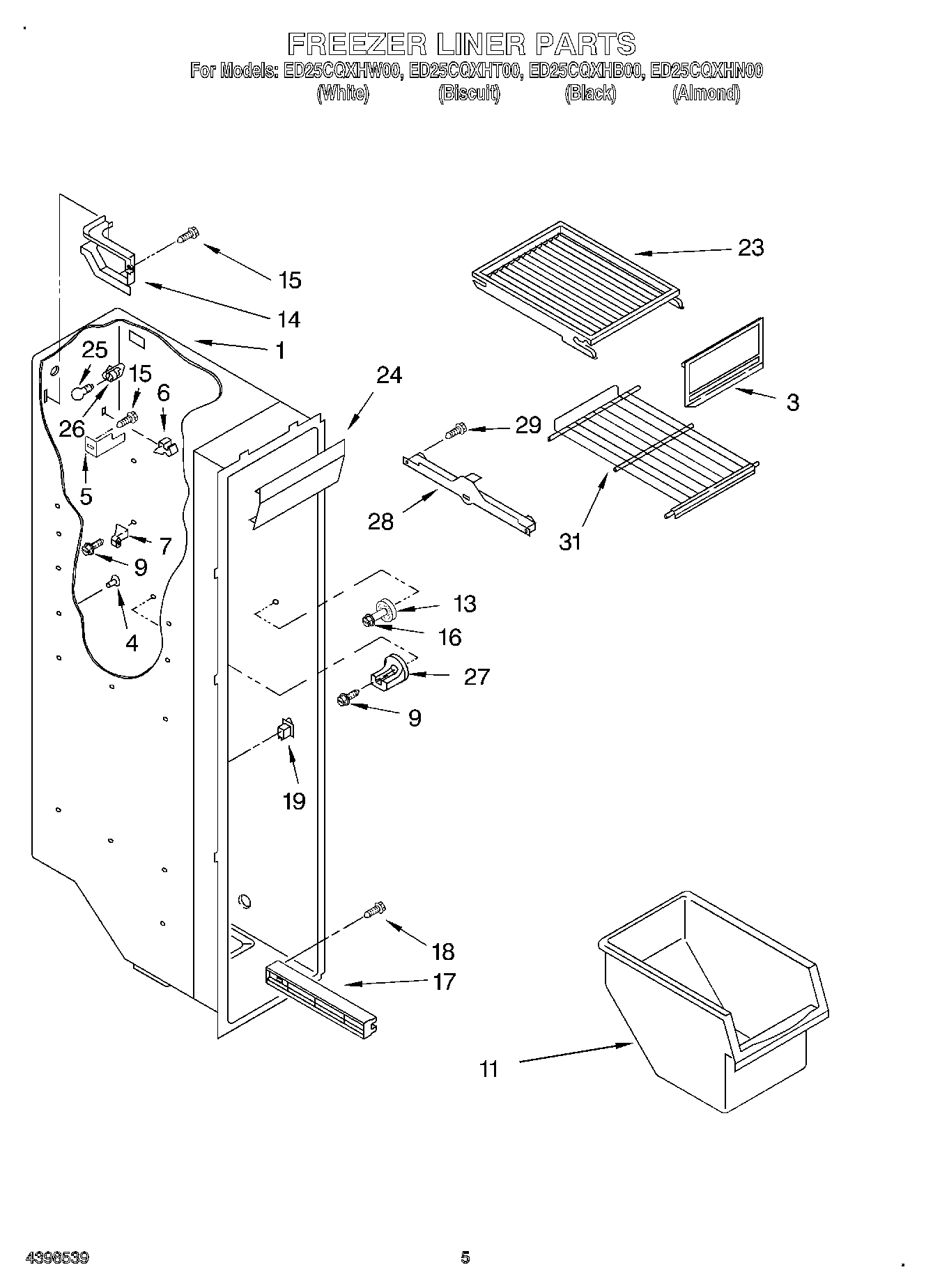

04 - FREEZER LINER

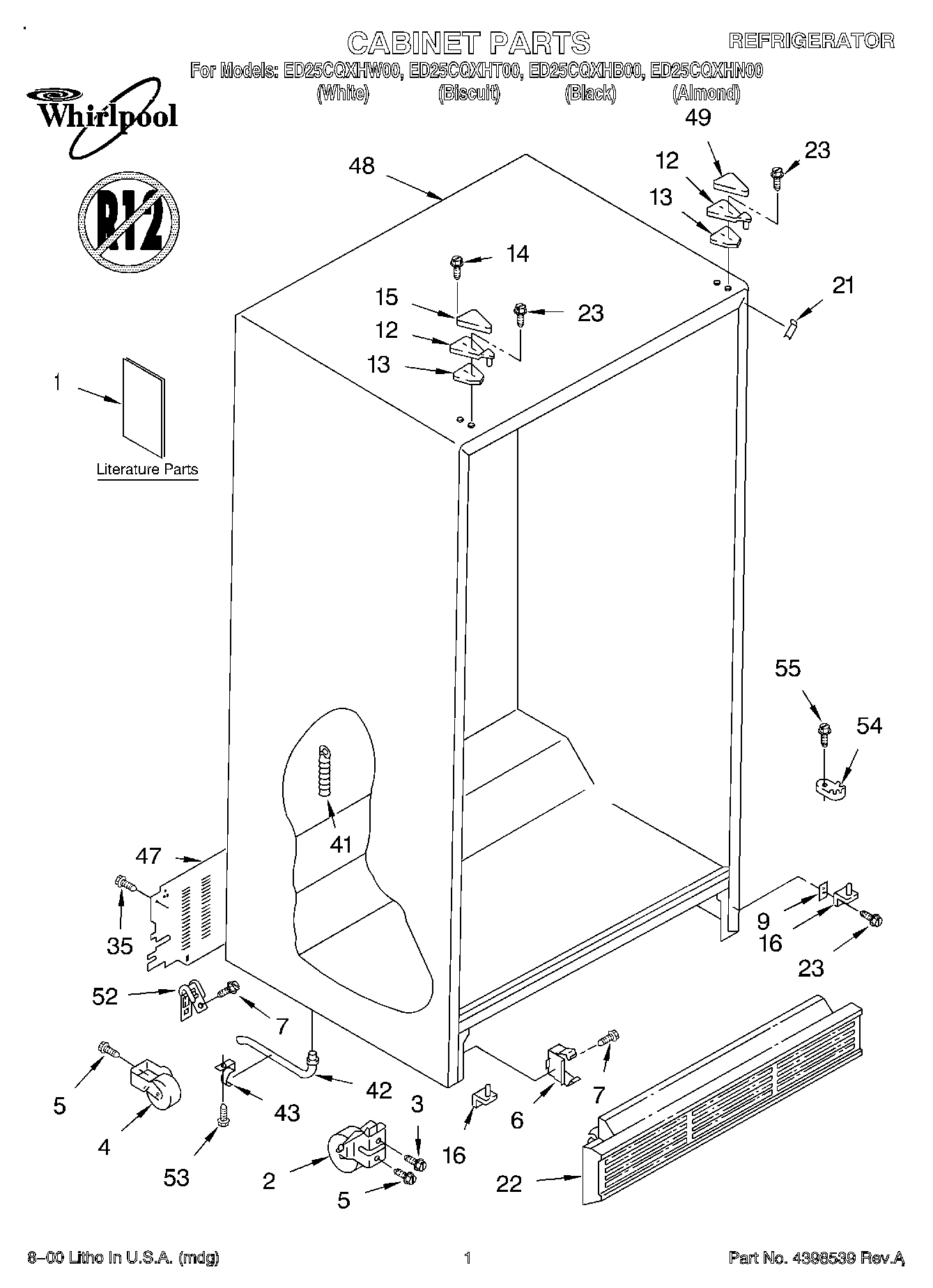

01 - CABINET, LITERATURE

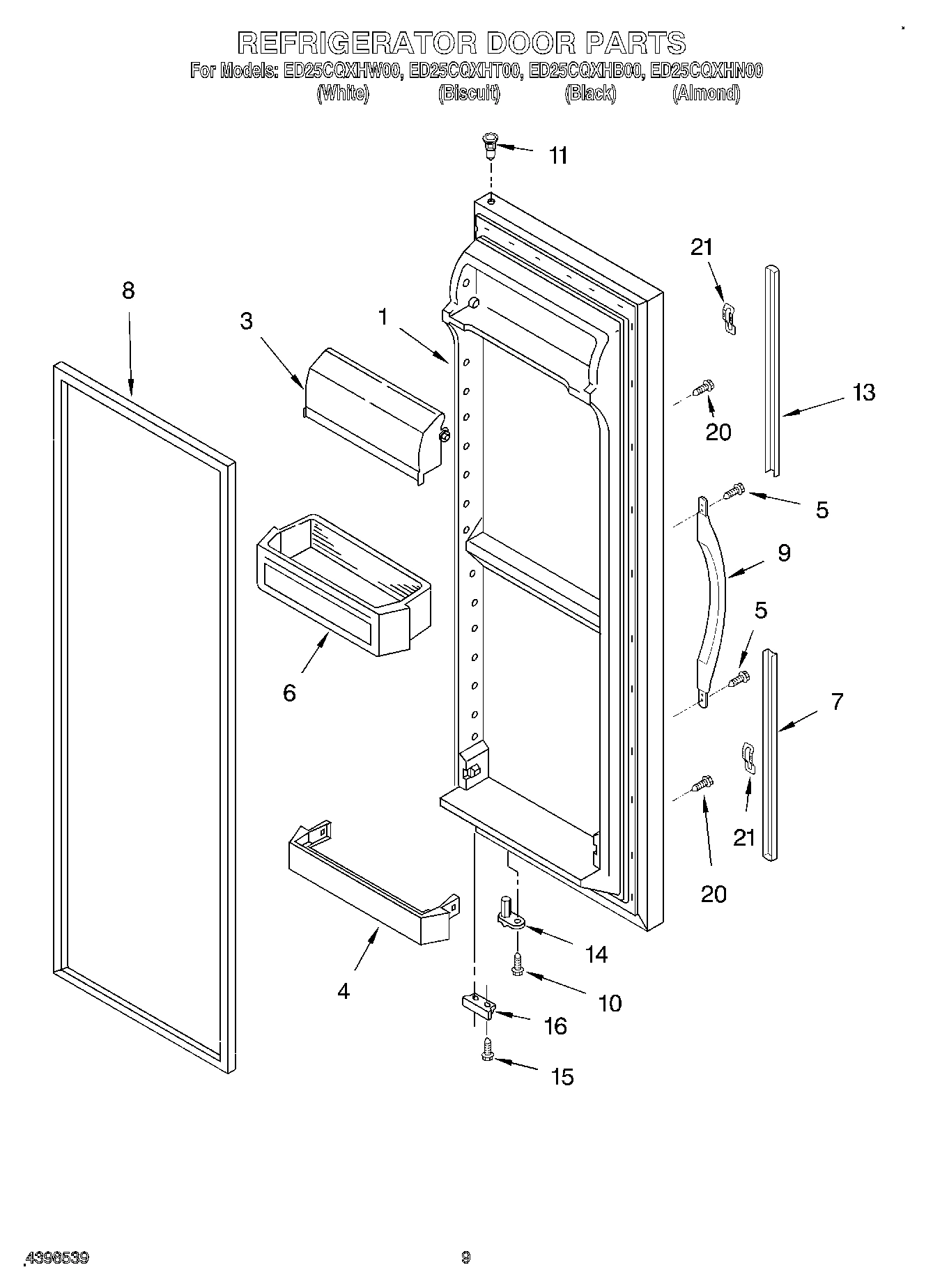

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
Common parts from model Whirlpool ED25CQXHW00 SIDE BY SIDE REFRIGERATOR
Service & Wiring Sheet WPL LIT2186936 Contact Us For Availability
Energy Guide WPL LIT2205970 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Use & Care Guide WPL LIT2205958 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194509B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194509N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Biscu WPL 2194509T Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194509W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI27369A3 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
7
Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Delay Mechanism WPL 2205686 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Black) WPL 2183787B Contact Us For Availability
9
Handle, Center (Black) WPL 2186649B Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
9
Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2183787T Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Extension, Top (Black) WPL 2194973B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
13
Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
15
Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
17
Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2180355 Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2180356 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2180357 Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2205768 Contact Us For Availability
20
Wire Assembly WPL 2196198 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
21
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI27370A8 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608T Contact Us For Availability
23
Front Cover Assemb WPL 2194608W Contact Us For Availability
24
WPL 625834 WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
31
Shelf, Large (2) WPL 2174268 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27366A3 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
