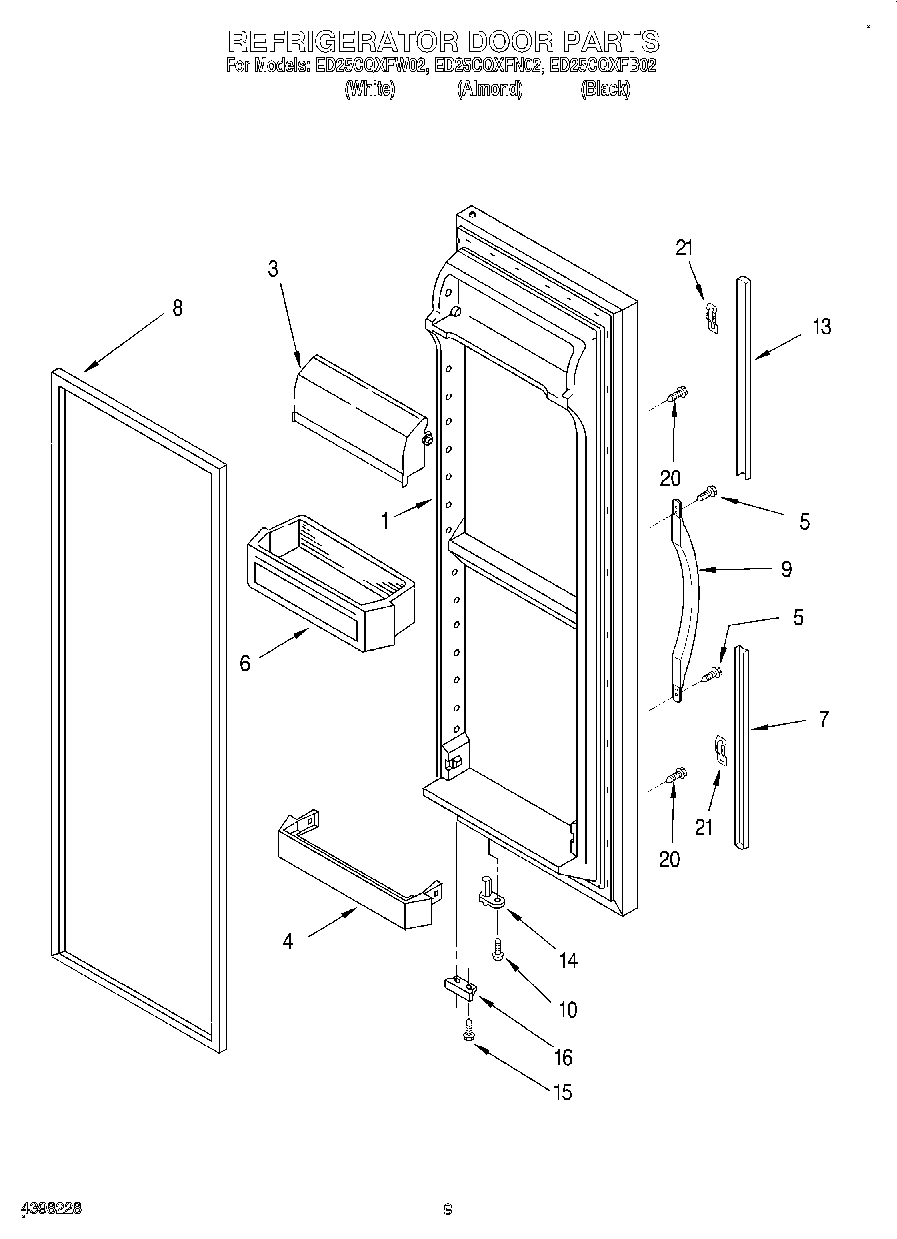

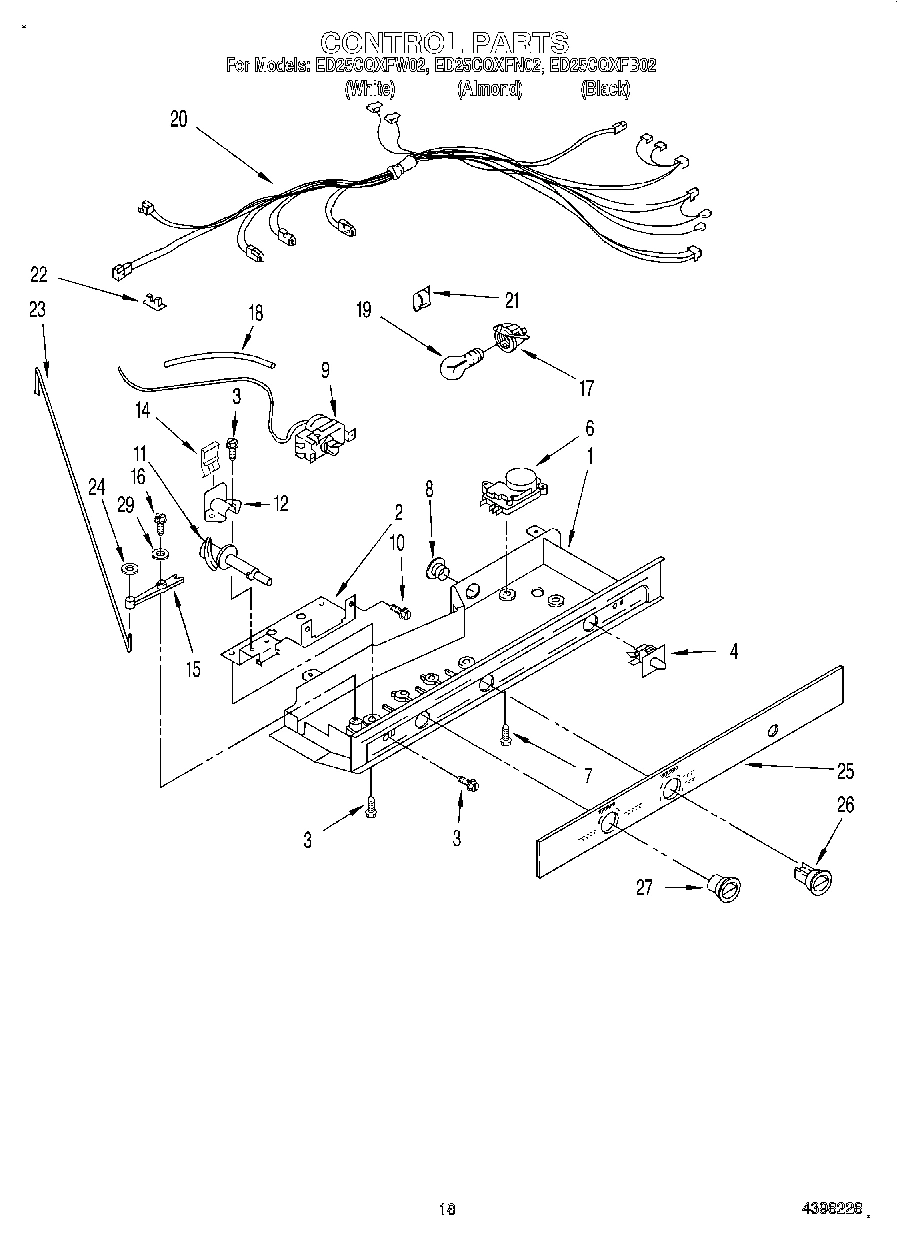

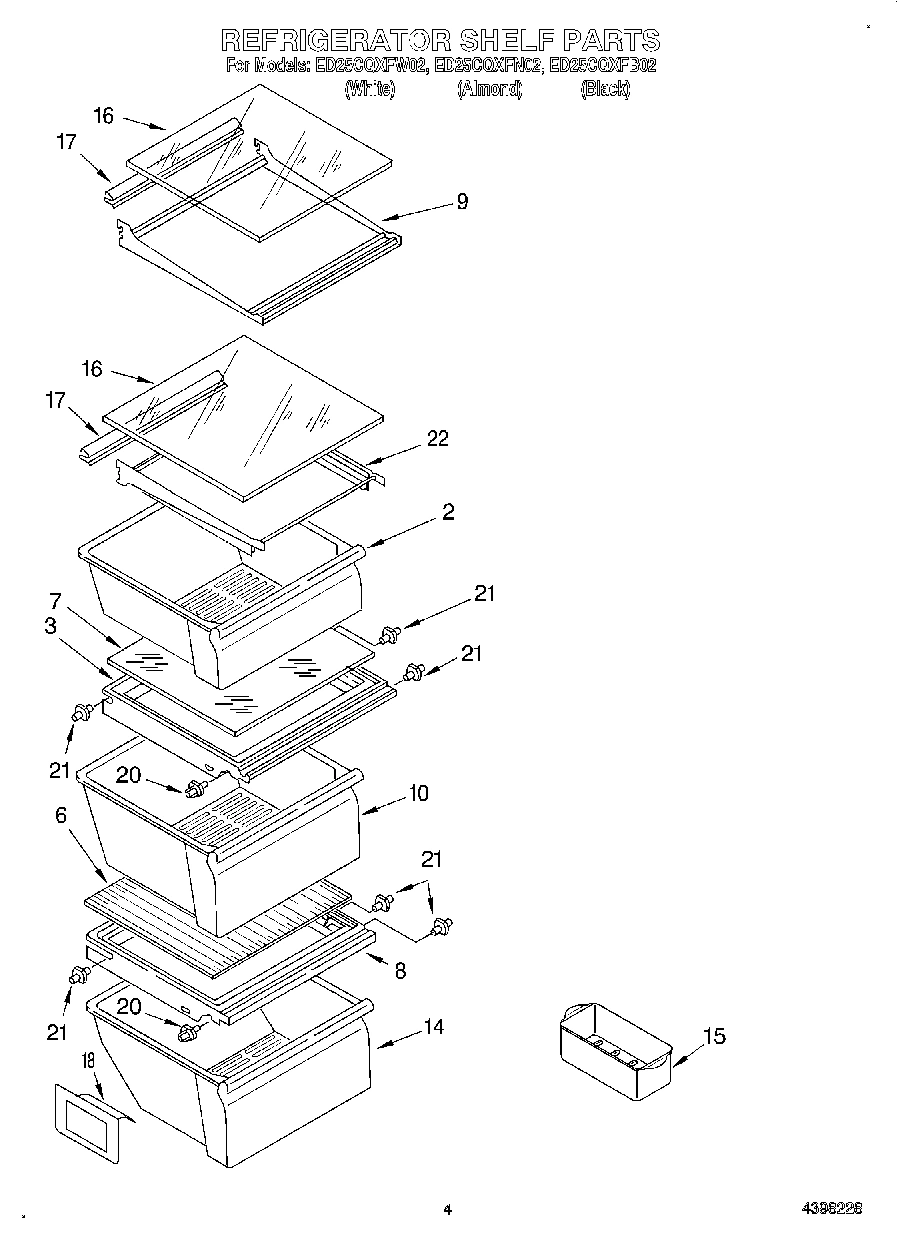

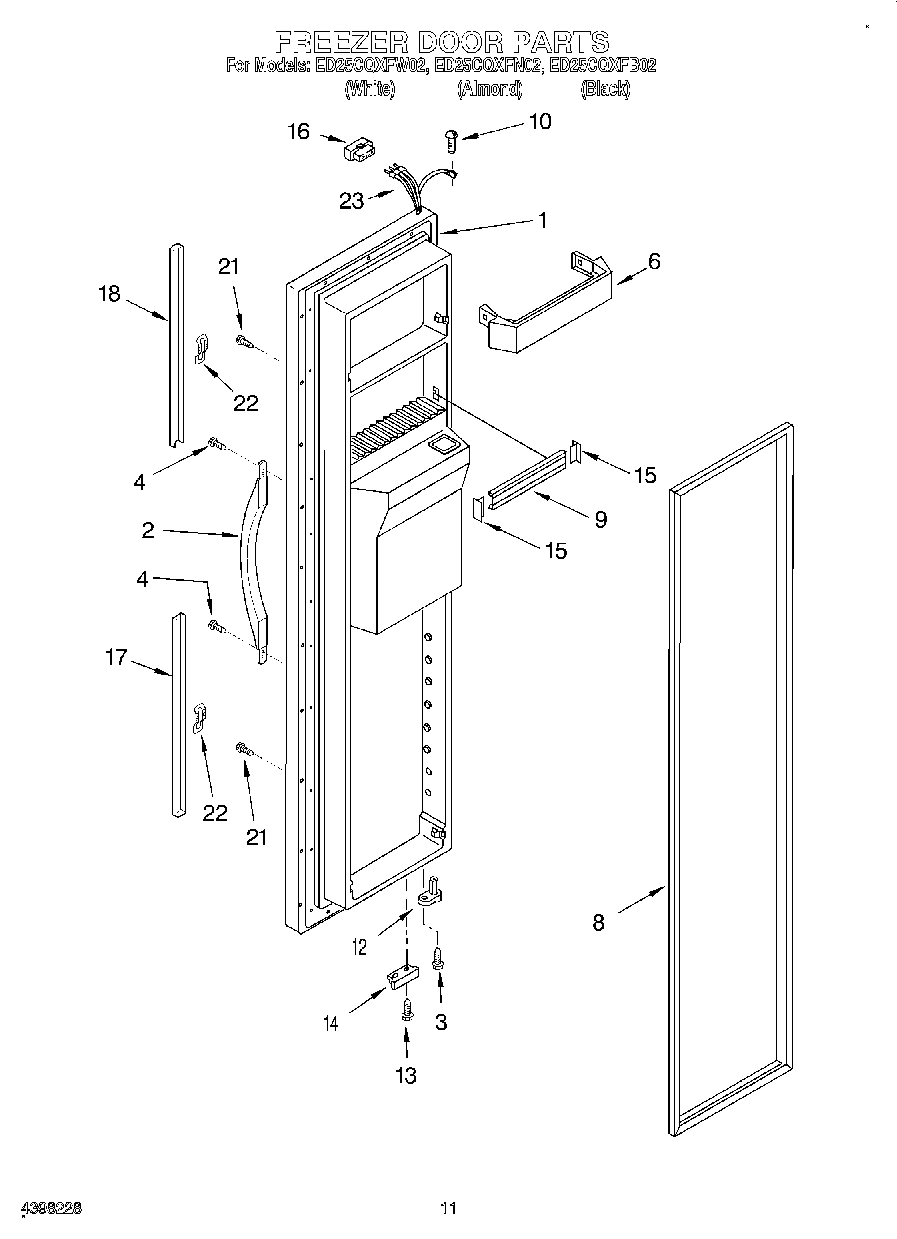

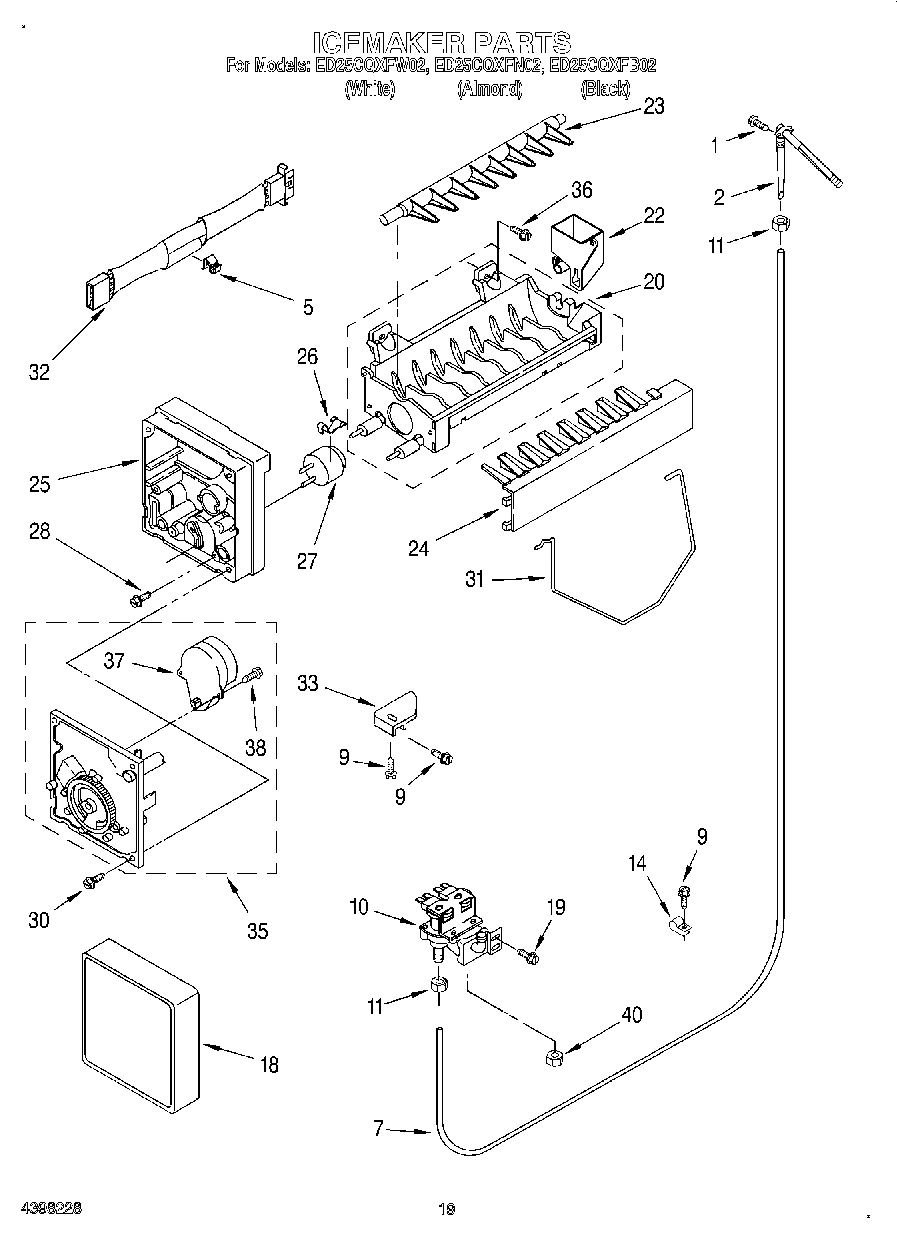

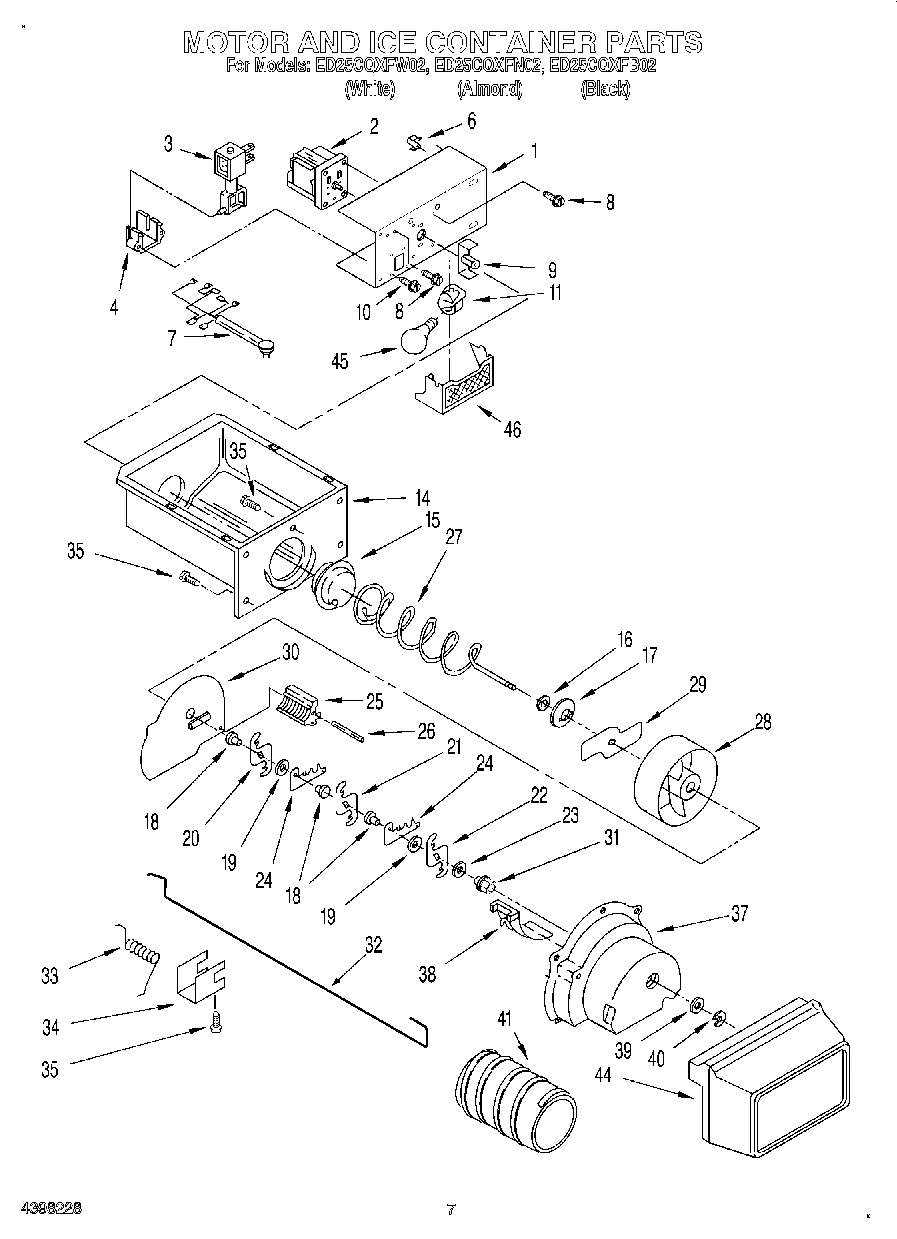

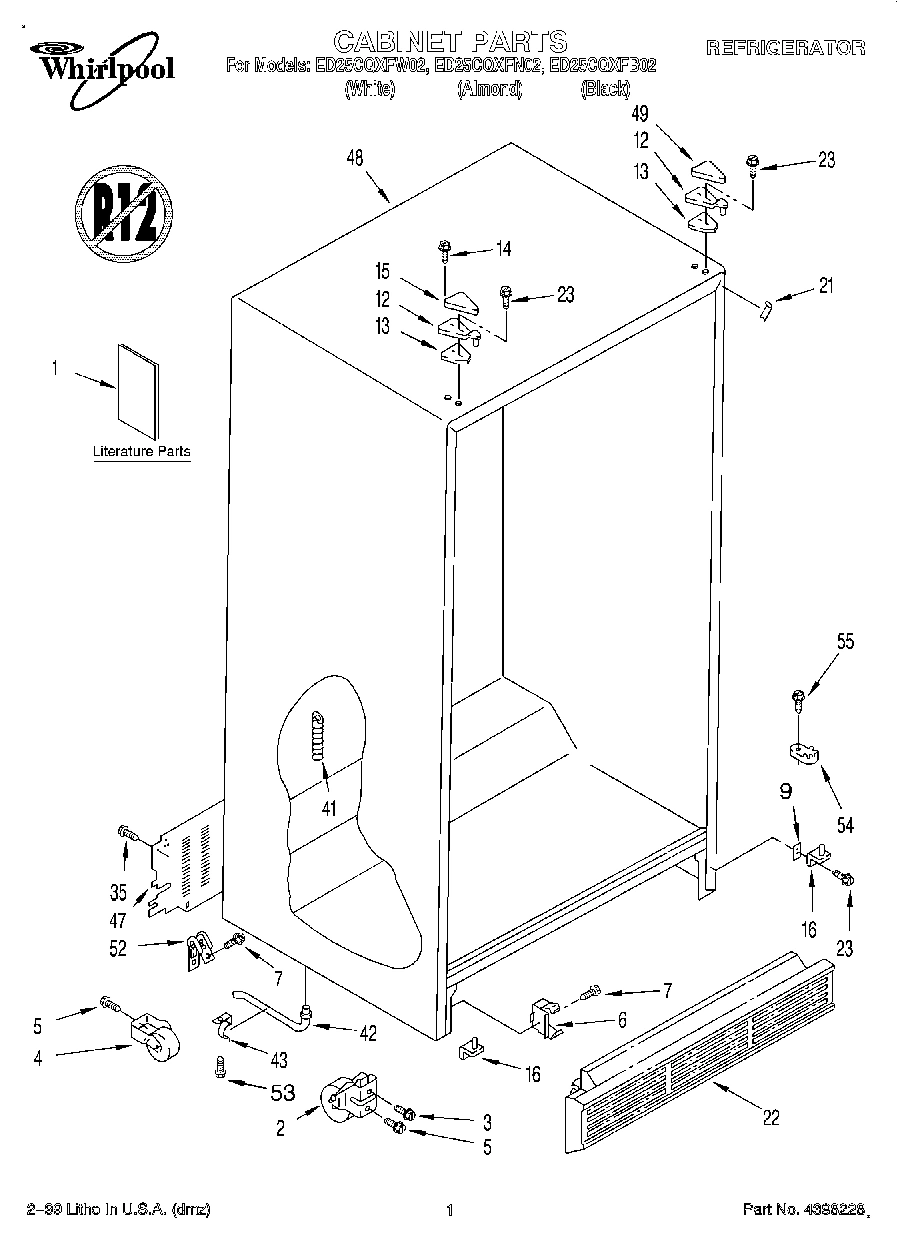

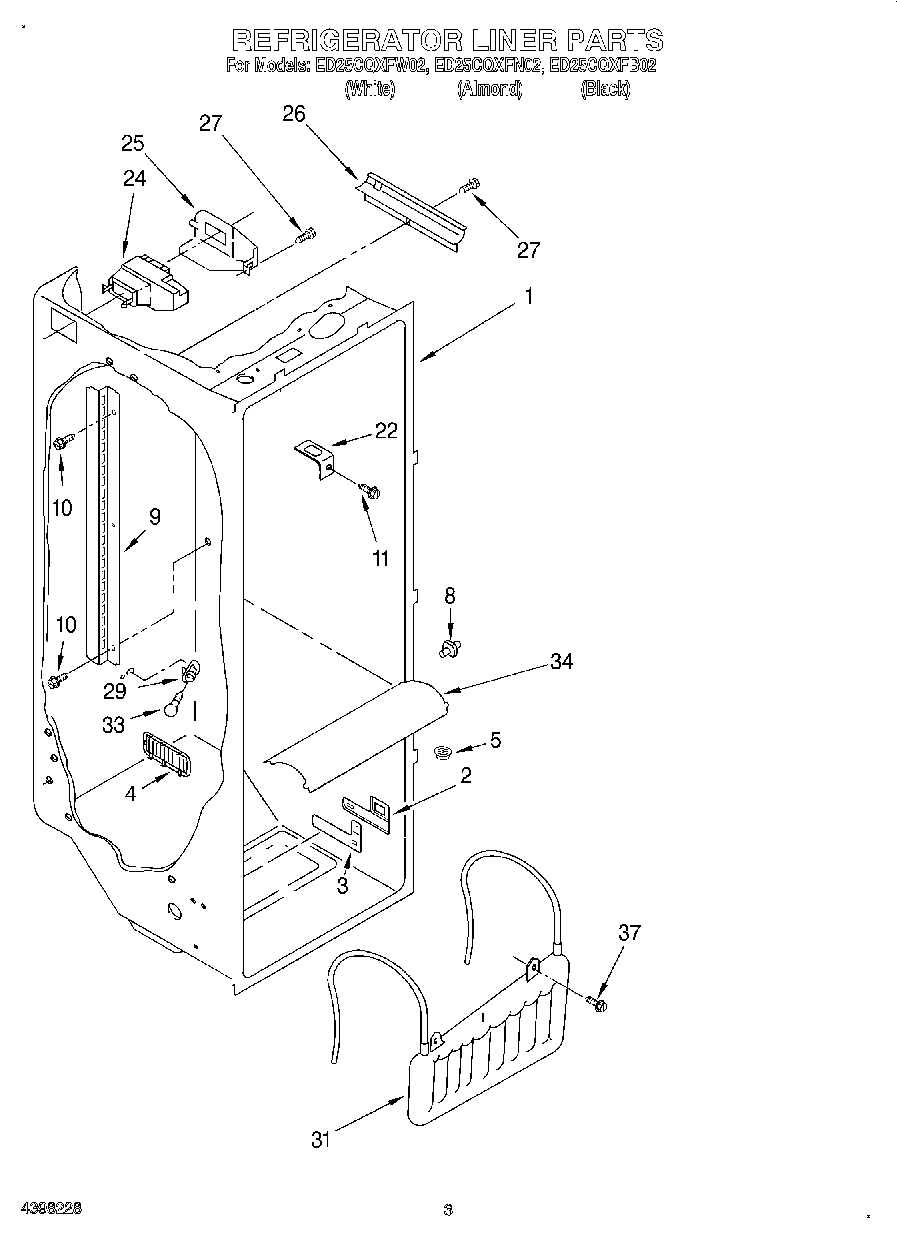

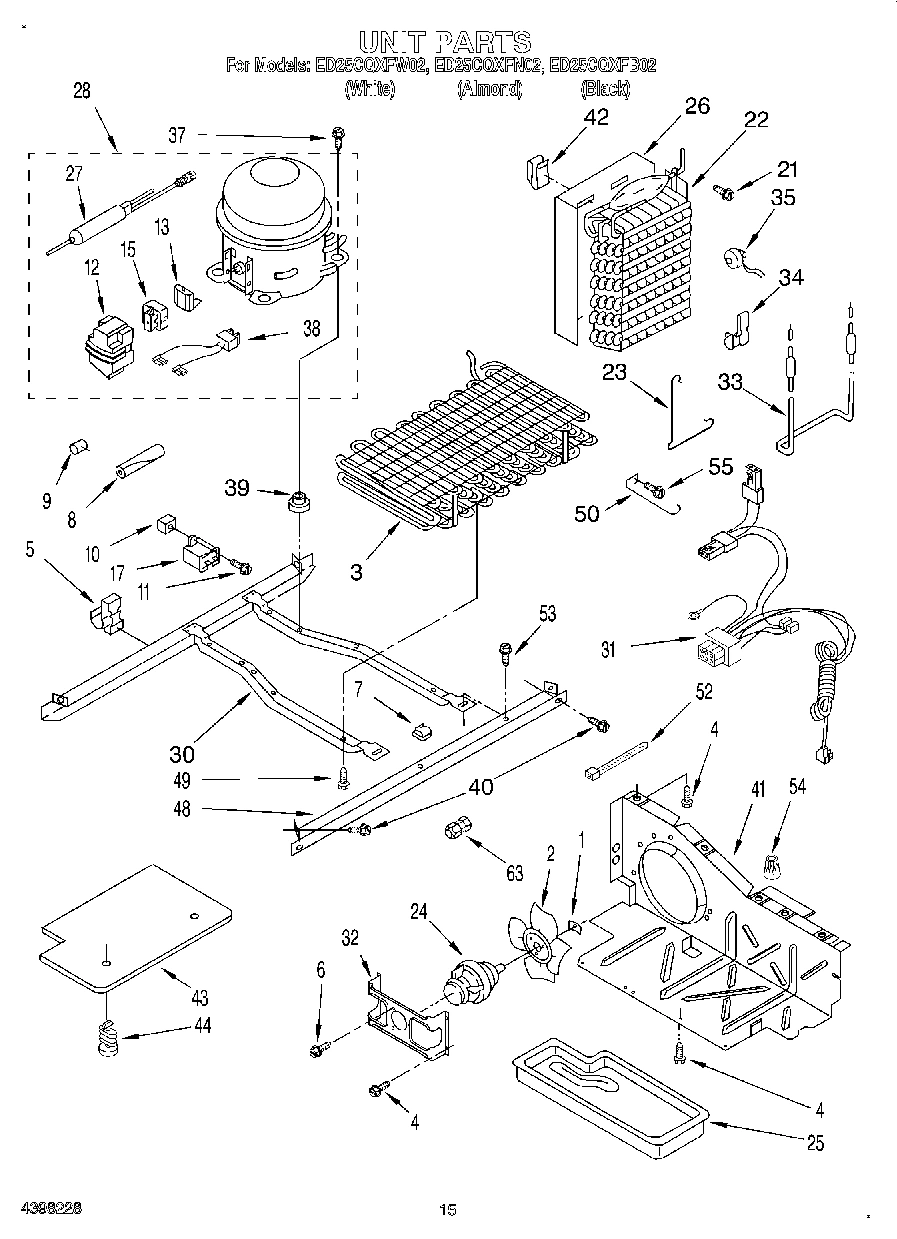

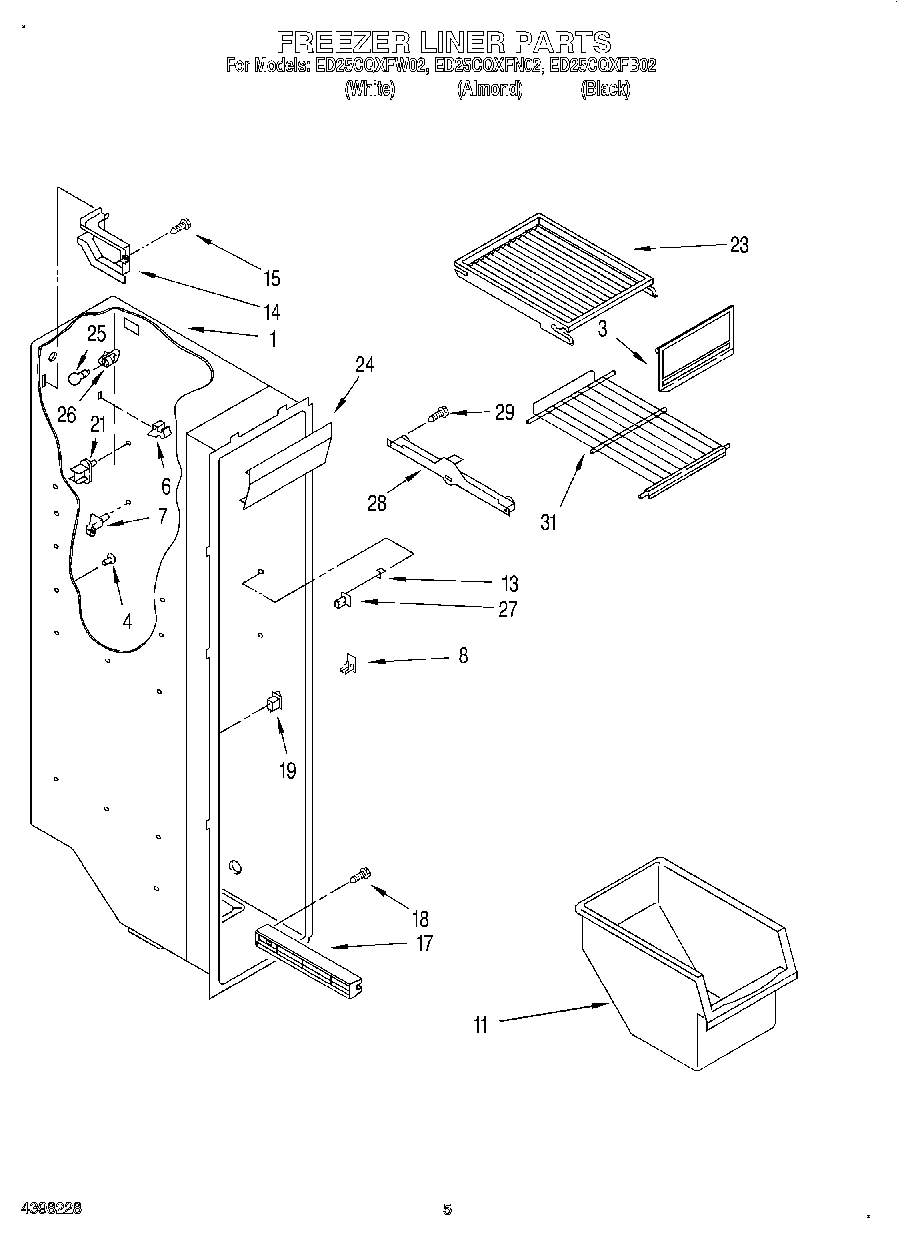

Model Whirlpool ED25CQXFW02 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Freezer Door (Includes Item No.8 And Dispense WPL 2194502B Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2194502N Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2194502W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI27298A7 Contact Us For Availability

1

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $31.93

6

Door, Ice WPL 2180205 Contact Us For Availability

6

Defrost Timer WPL 2176648 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Black) WPL 2183787B Contact Us For Availability

9

Handle, Center (White) WPL 2186649W Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $71.88

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability

Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2183456 Whirlpool Refrigerator Overload Backorder WPL WP2183456 $47.53

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

14

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

14

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

Pivot Arm WPL 1110559 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Glass WPL 2177986 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $53.75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability

Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $87.10

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Extension, Top (Black) WPL 2194973B Contact Us For Availability

Extension, Top (Almond) WPL 2194973N Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

Overlay, Front Cover (White) WPL 2180355 Contact Us For Availability

Overlay, Front Cover (Almond) WPL 2180356 Contact Us For Availability

Overlay, Front Cover (Black) WPL 2180357 Contact Us For Availability

20

Wire Assembly WPL 2196198 Contact Us For Availability

20

Control Box Harness WPL 2186802 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Stud, Shelf (4) WPL 1115386 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI27299A7 Contact Us For Availability

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Shelf, Cantilever (Snack Bin) WPL 2179443 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

Wire Assembly WPL 2183713 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2194608B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2194608N Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2194608W Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud, Rear R.S. WPL 1106982 Contact Us For Availability

27

Stud, Front R.S. WPL 946356 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

31

Shelf, Large (2) WPL 2174268 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

49

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
