Model Whirlpool ED25CEXJT01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
04 - FREEZER LINER

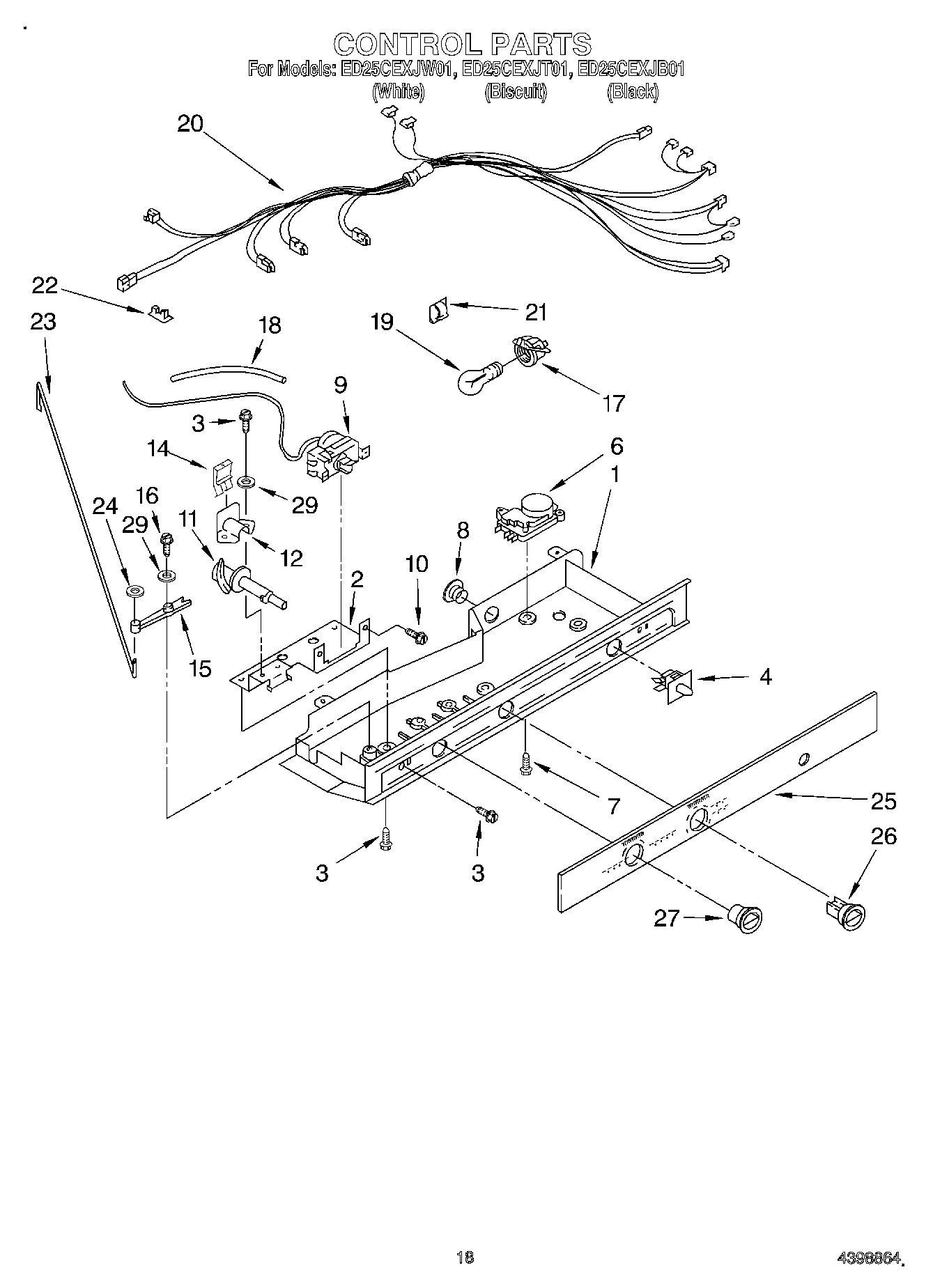

11 - CONTROL

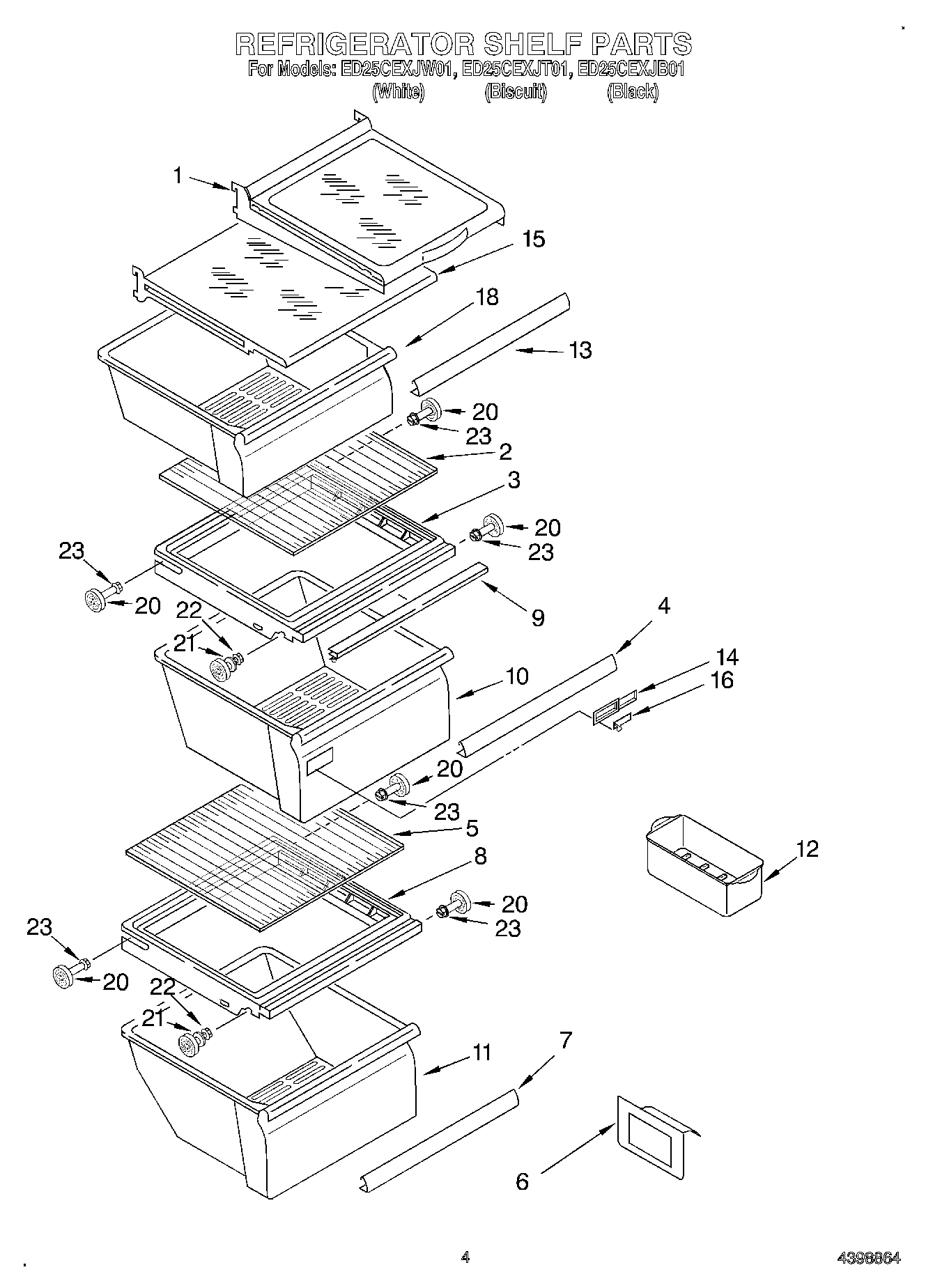

03 - REFRIGERATOR SHELF

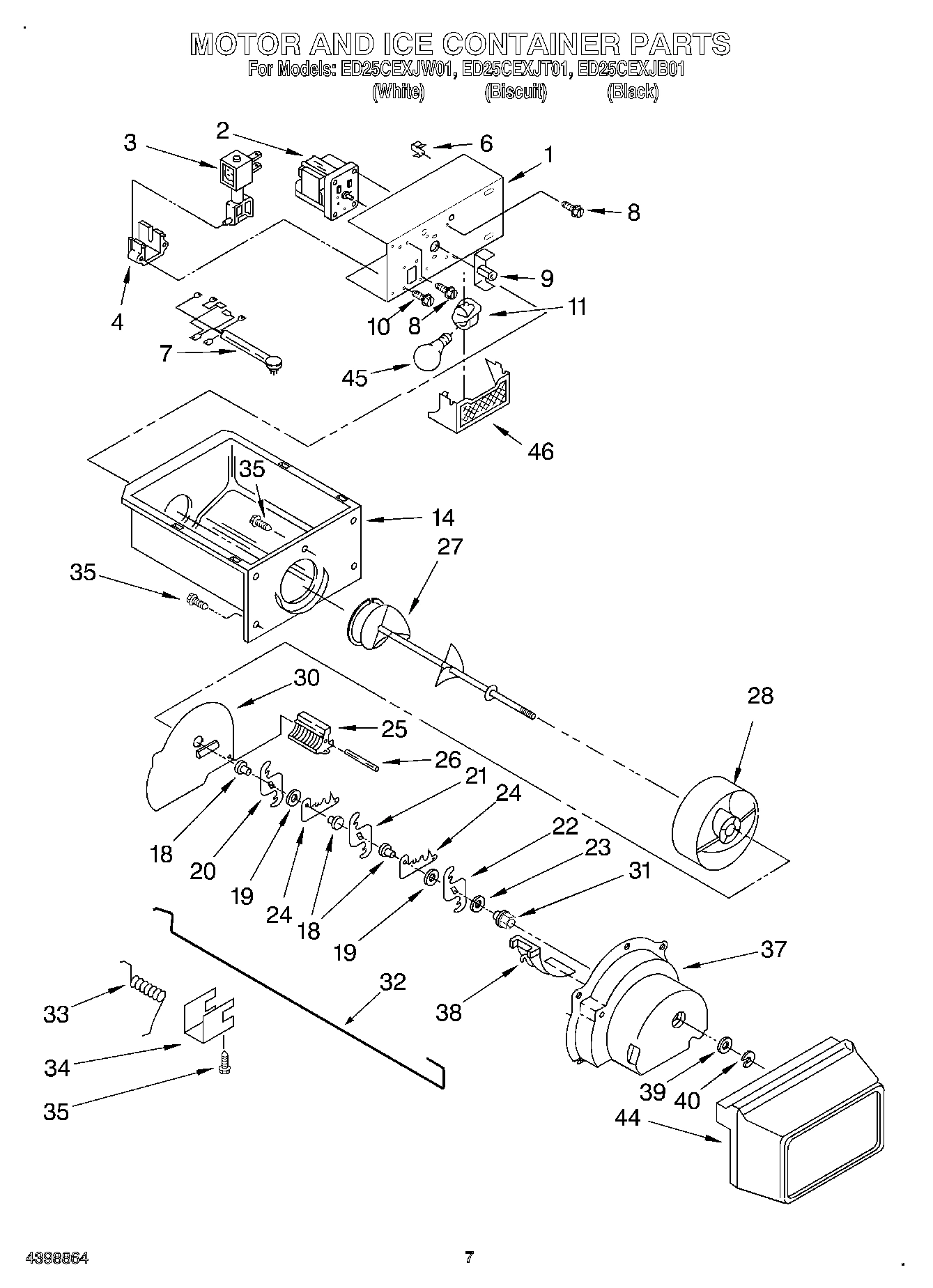

05 - MOTOR AND ICE CONTAINER
10 - AIR FLOW

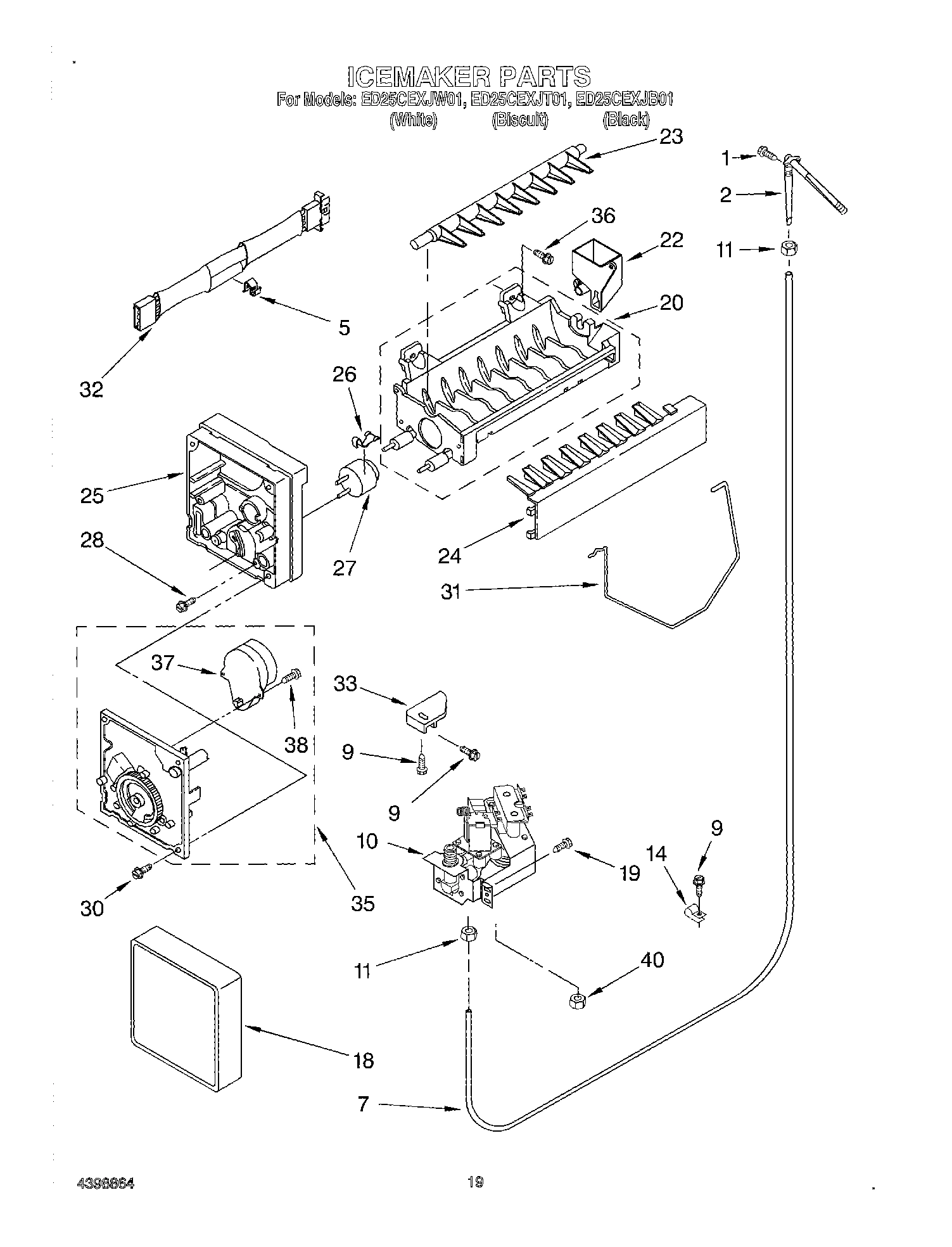

12 - ICE MAKER, OPTIONAL

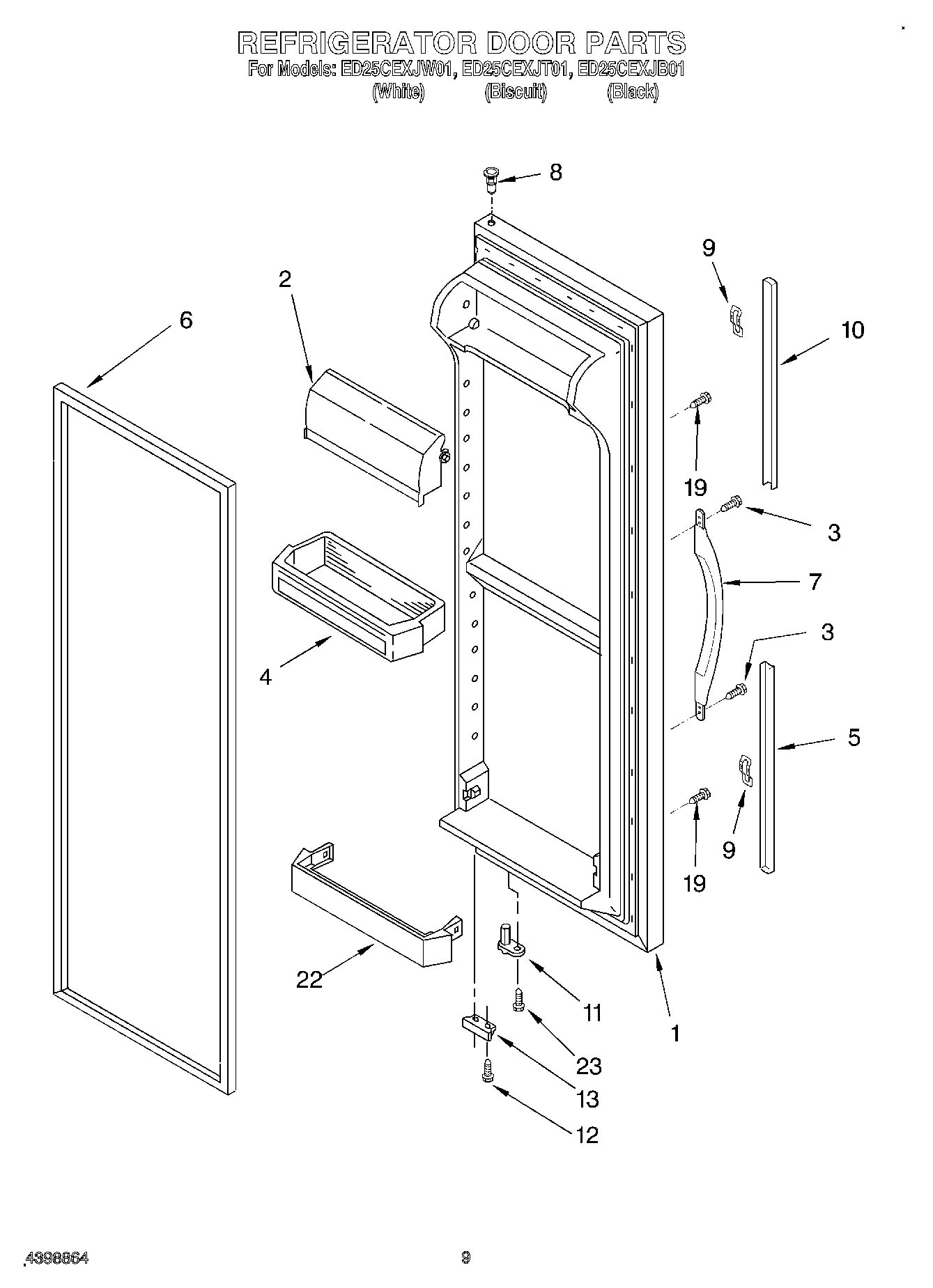

06 - REFRIGERATOR DOOR

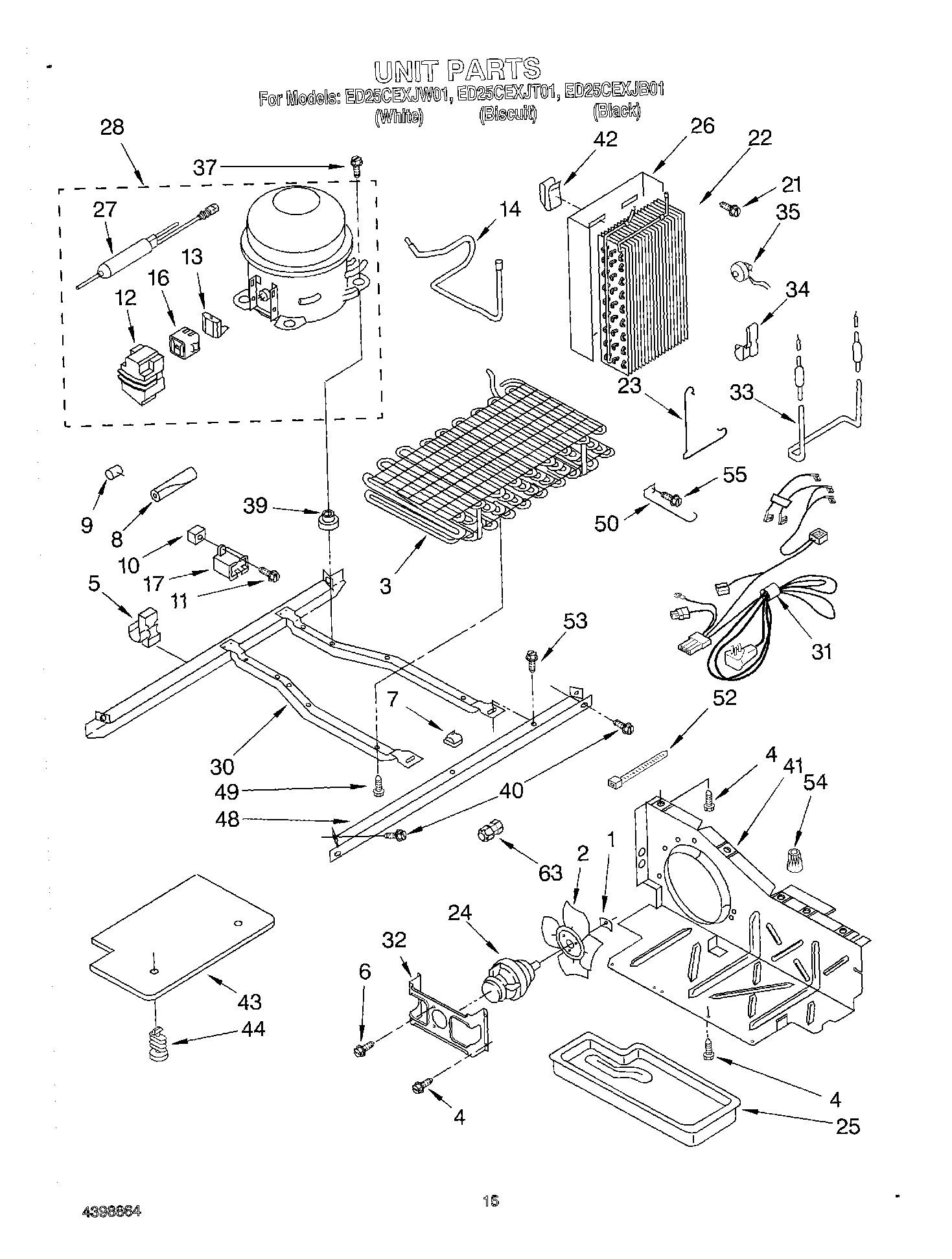

09 - UNIT
01 - CABINET, LITERATURE

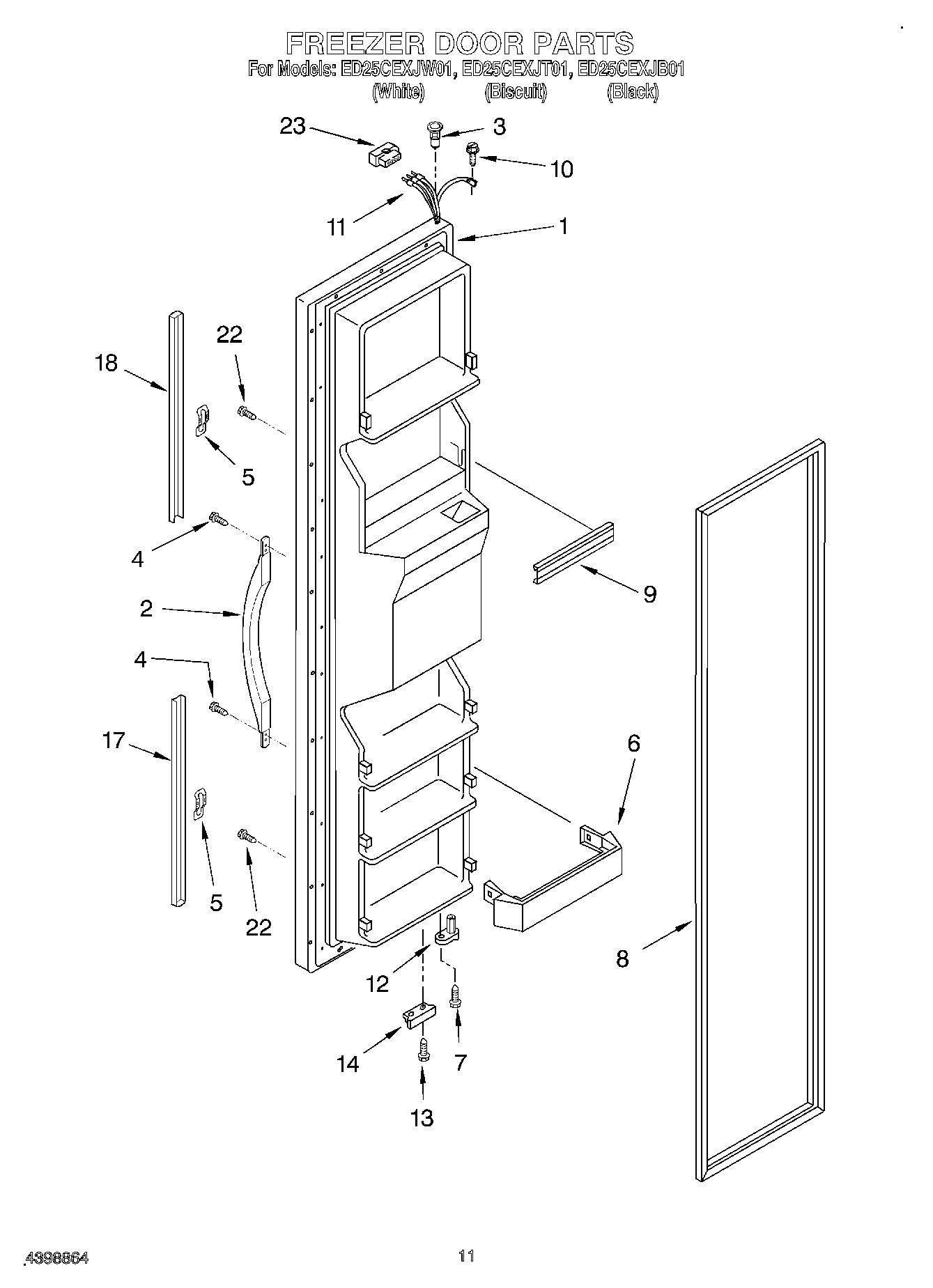

07 - FREEZER DOOR
08 - DISPENSER FRONT
Common parts from model Whirlpool ED25CEXJT01 SIDE BY SIDE REFRIGERATOR
Service & Wiring Sheet WPL LIT2204338 Contact Us For Availability
Energy Label WPL LIT2211832 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Use & Care Guide WPL LIT2205958 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2205865B Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2205865T Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2205865W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI27240A5 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Handle, Center (Black) WPL 2186649B Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Delay Mechanism WPL 2205686 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Black) WPL 2183787B Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2183787T Contact Us For Availability
10
Valve, Solenoid WPL 2206123 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability
11
Wire Harness WPL 2183713 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
TUBE, SUCTION WPL 2205765 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
15
Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability
17
Extension, Handle (White) WPL 2194969W Contact Us For Availability
17
Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability
17
Extension, Handle (Biscuit) WPL 2194969T Contact Us For Availability
18
Extension, Handle (Black) WPL 2194973B Contact Us For Availability
18
Extension, Handle (Biscuit) WPL 2194973T Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2205861B Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2205861T Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2205861W Contact Us For Availability
20
Wire Assembly WPL 2196198 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
21
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI27241A9 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2205863B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2205863T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2205863W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27237A5 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
