Model Whirlpool ED22TQXFN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
10 - UNIT
11 - ICEMAKER

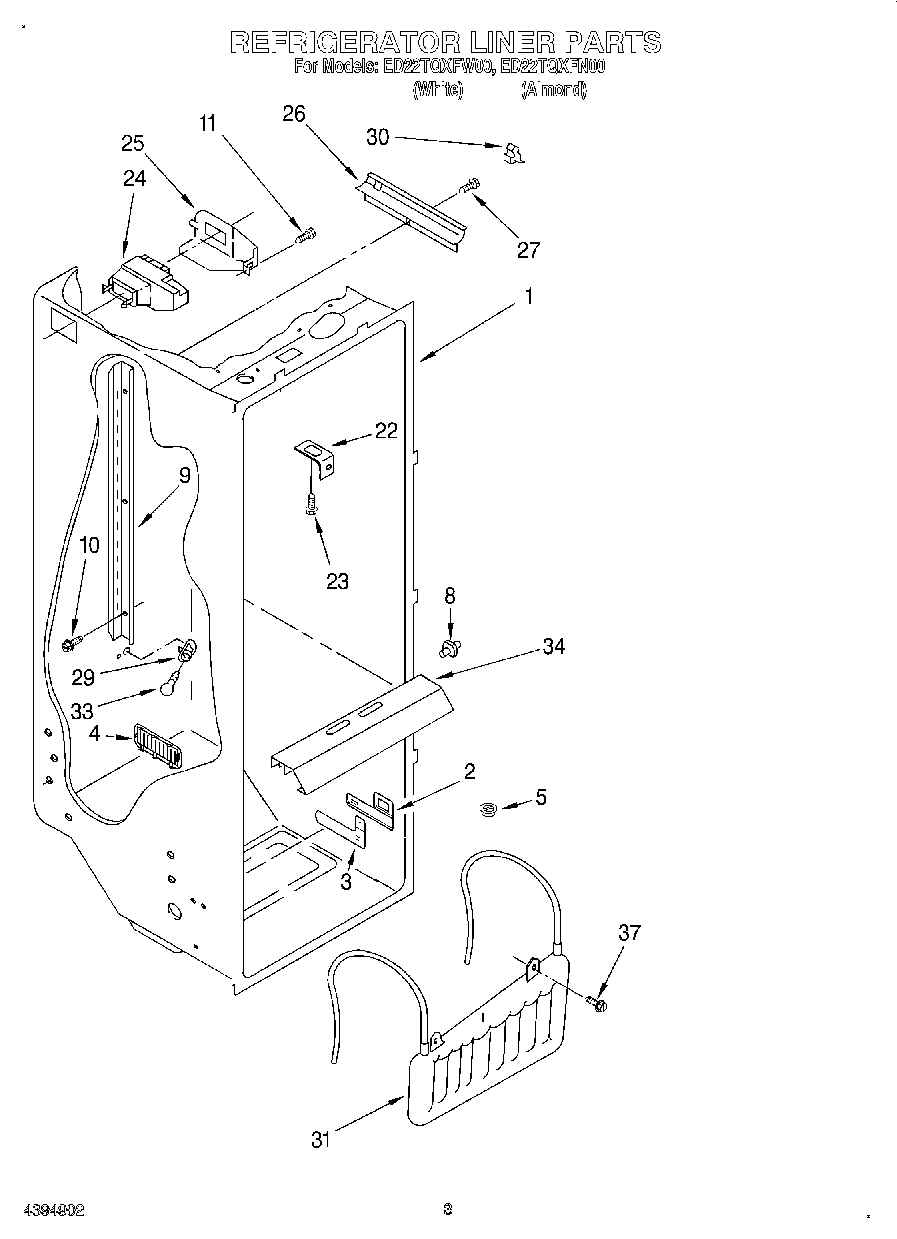

02 - REFRIGERATOR LINER

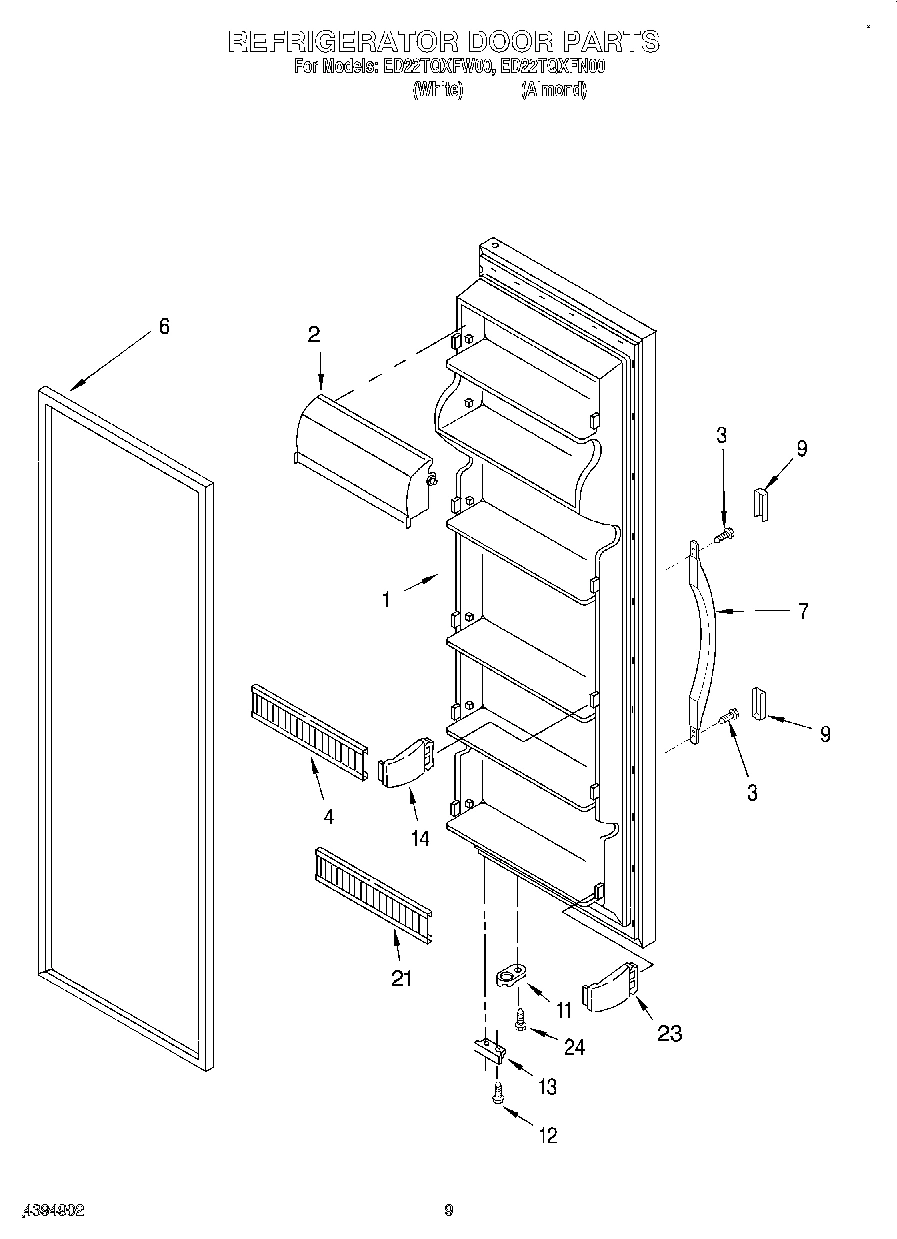

07 - REFRIGERATOR DOOR
05 - AIR FLOW

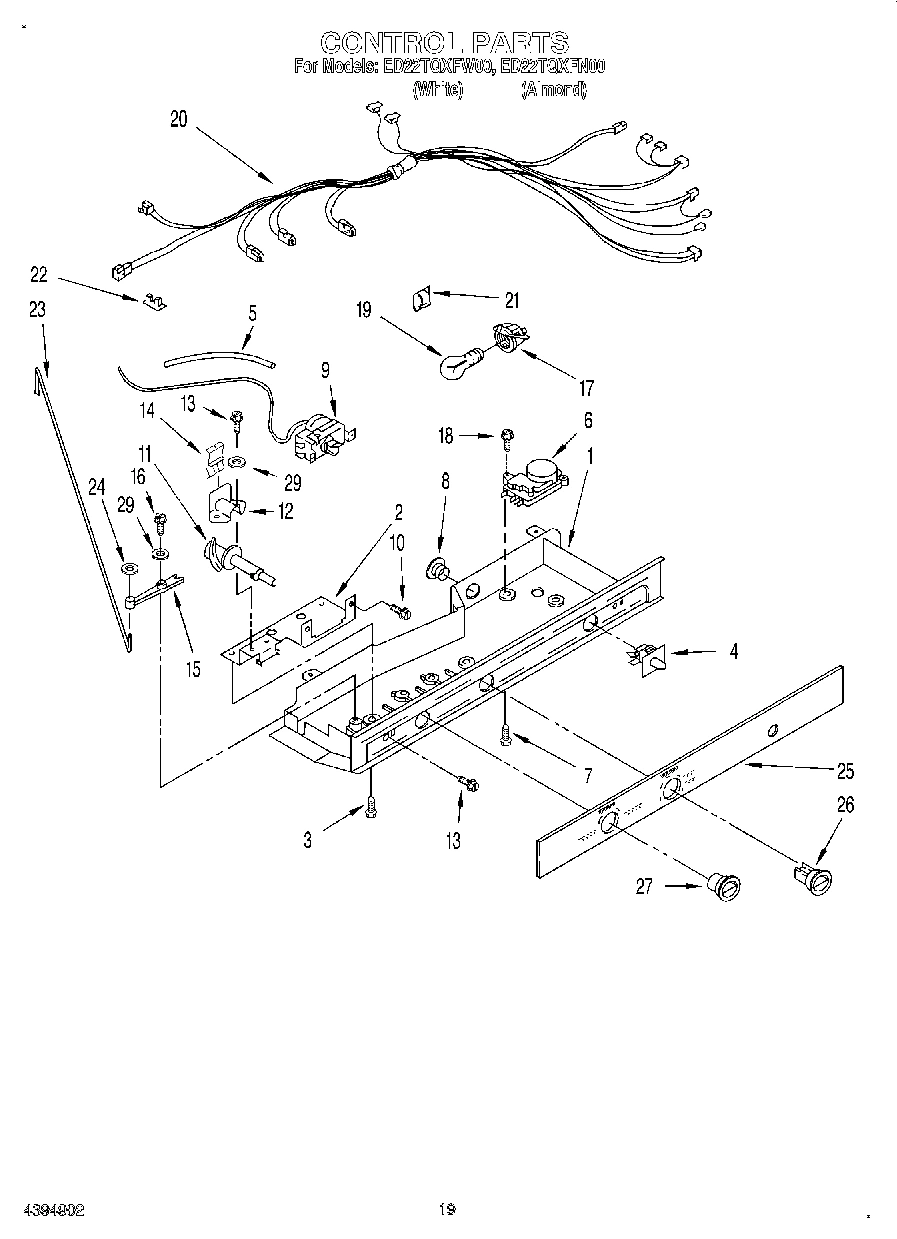

12 - CONTROL, LIT/OPTIONAL

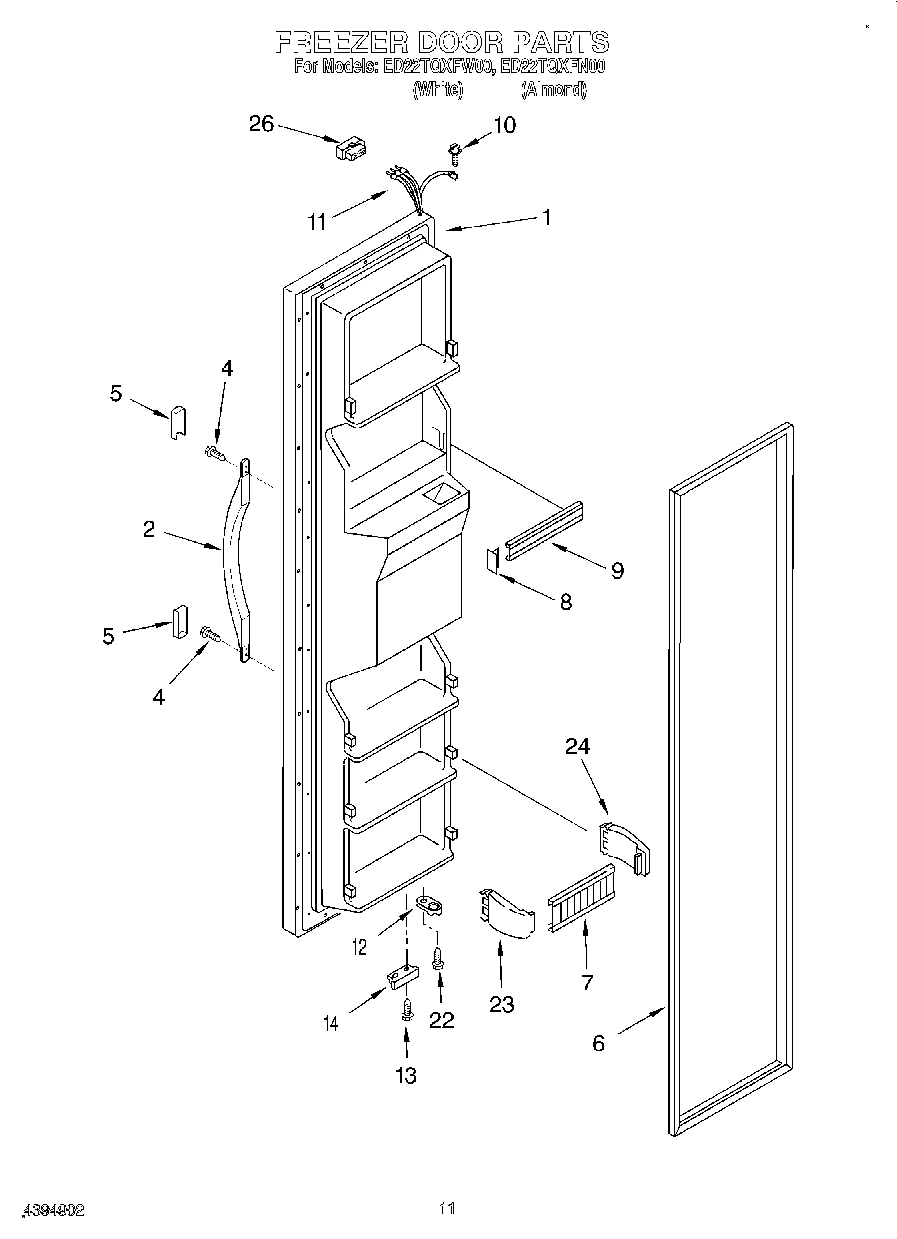

08 - FREEZER DOOR
09 - DISPENSER FRONT

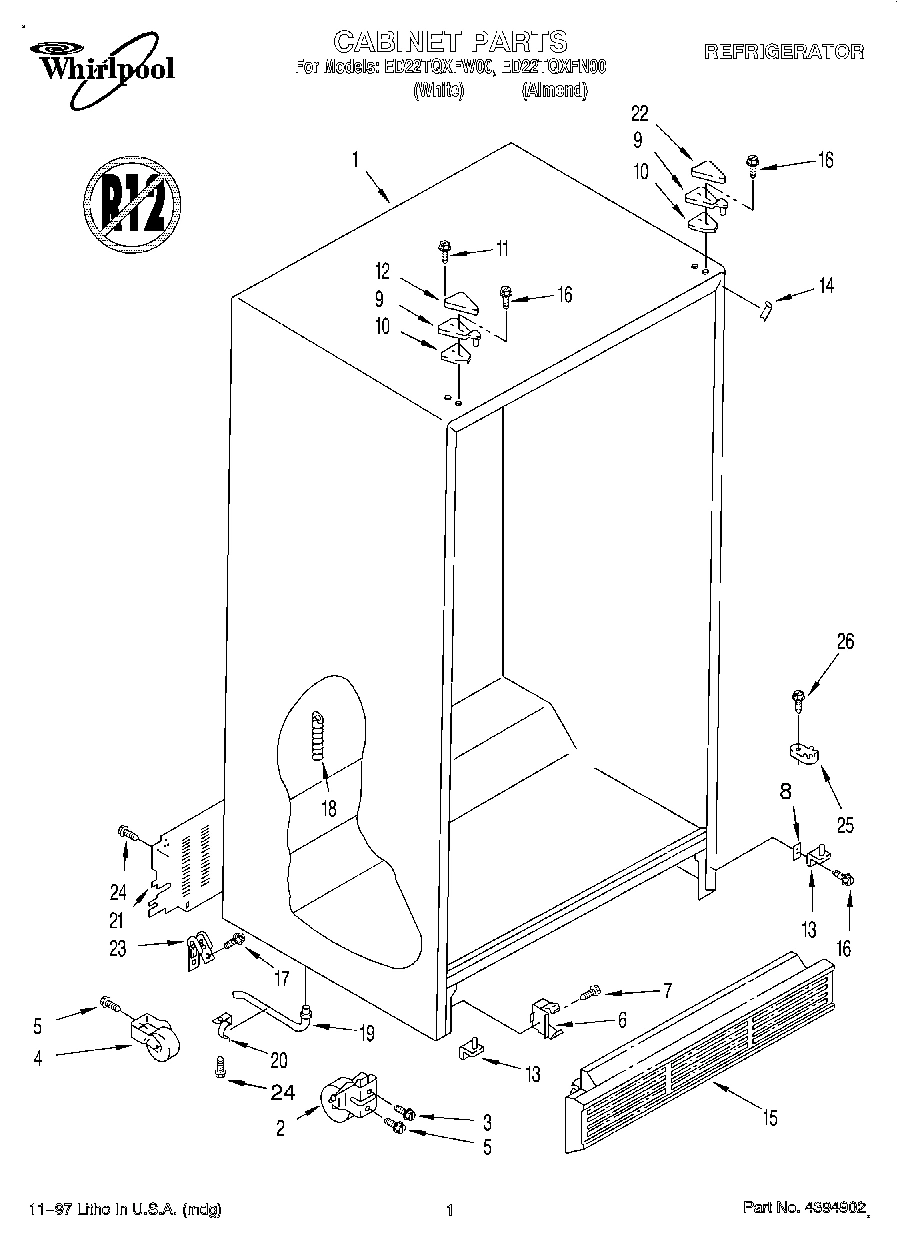

01 - CABINET

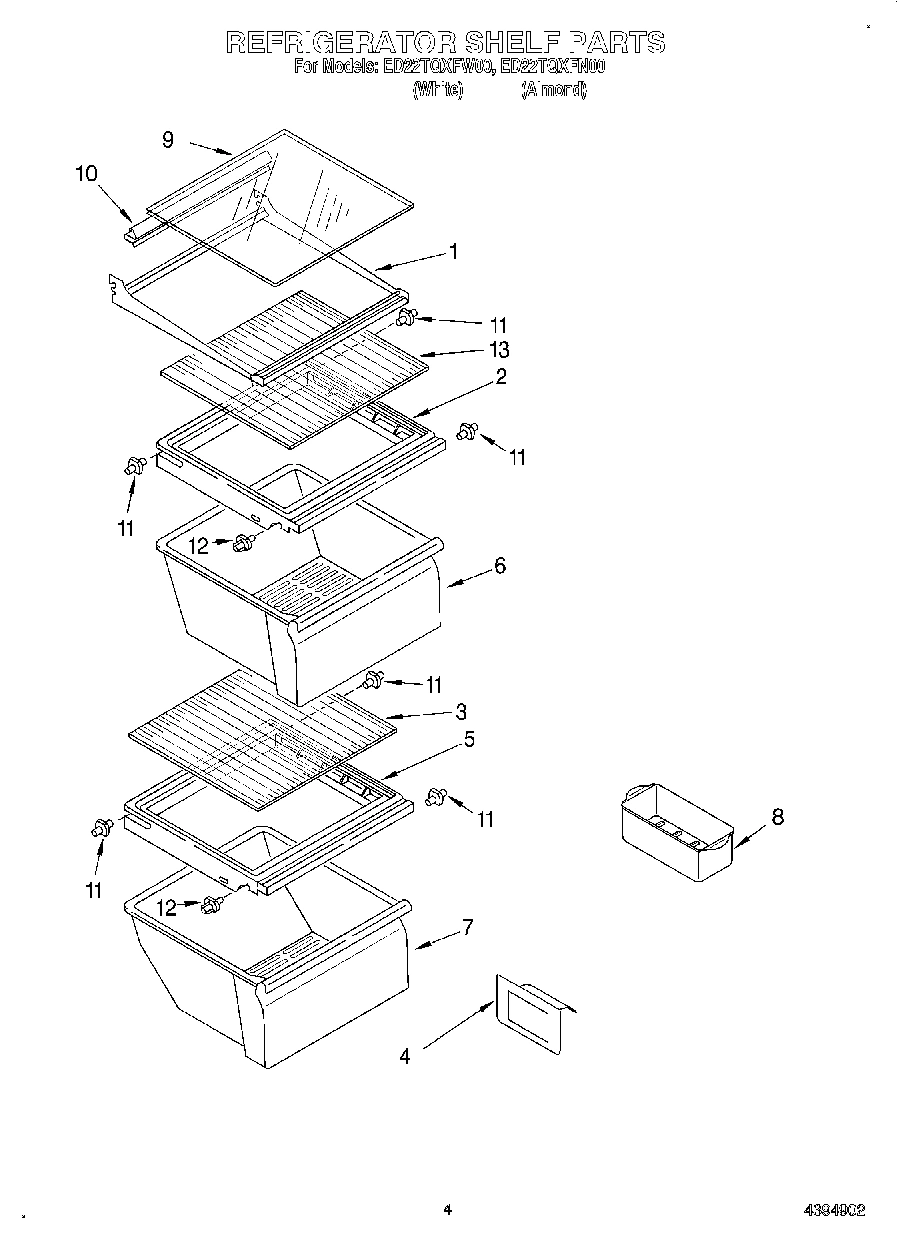

03 - REFRIGERATOR SHELF

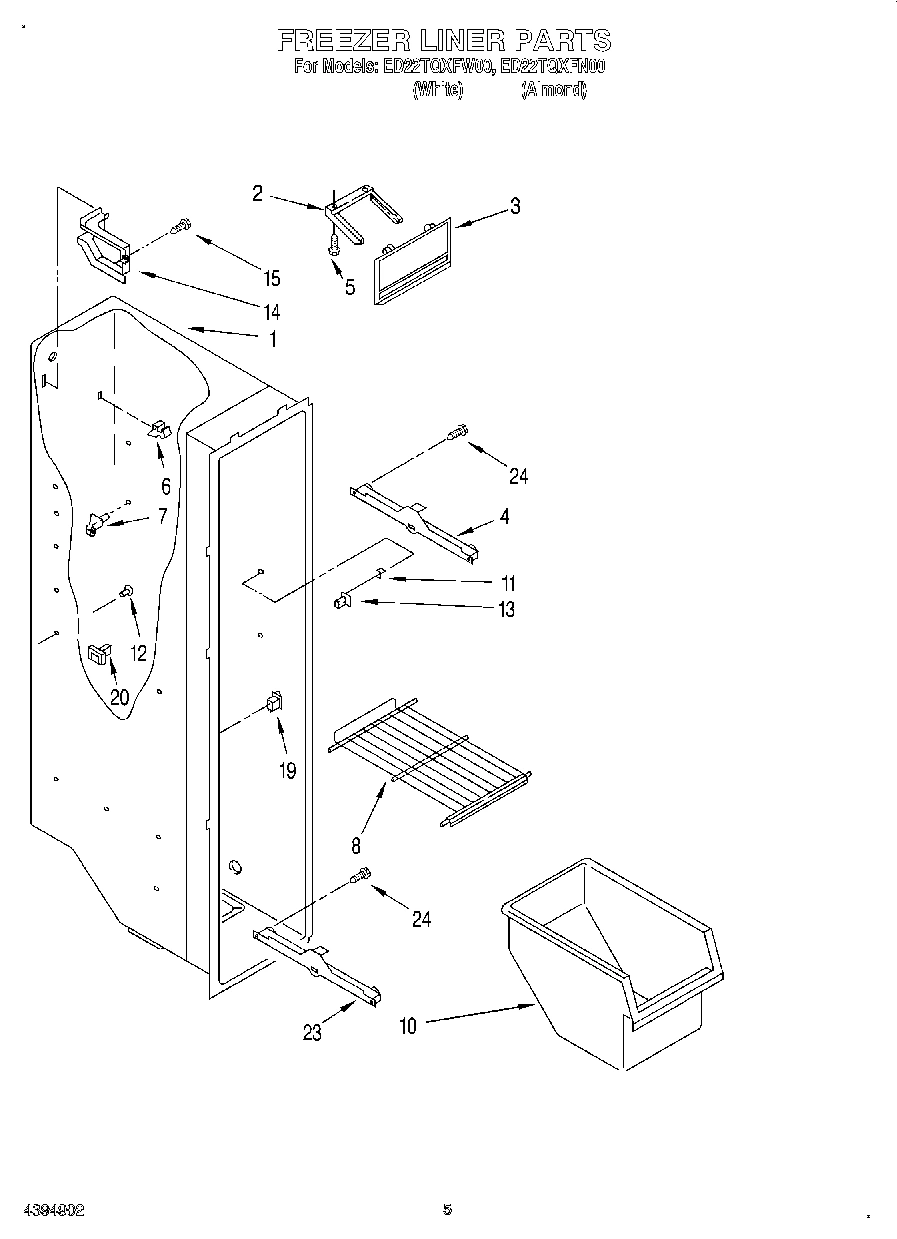

04 - FREEZER LINER

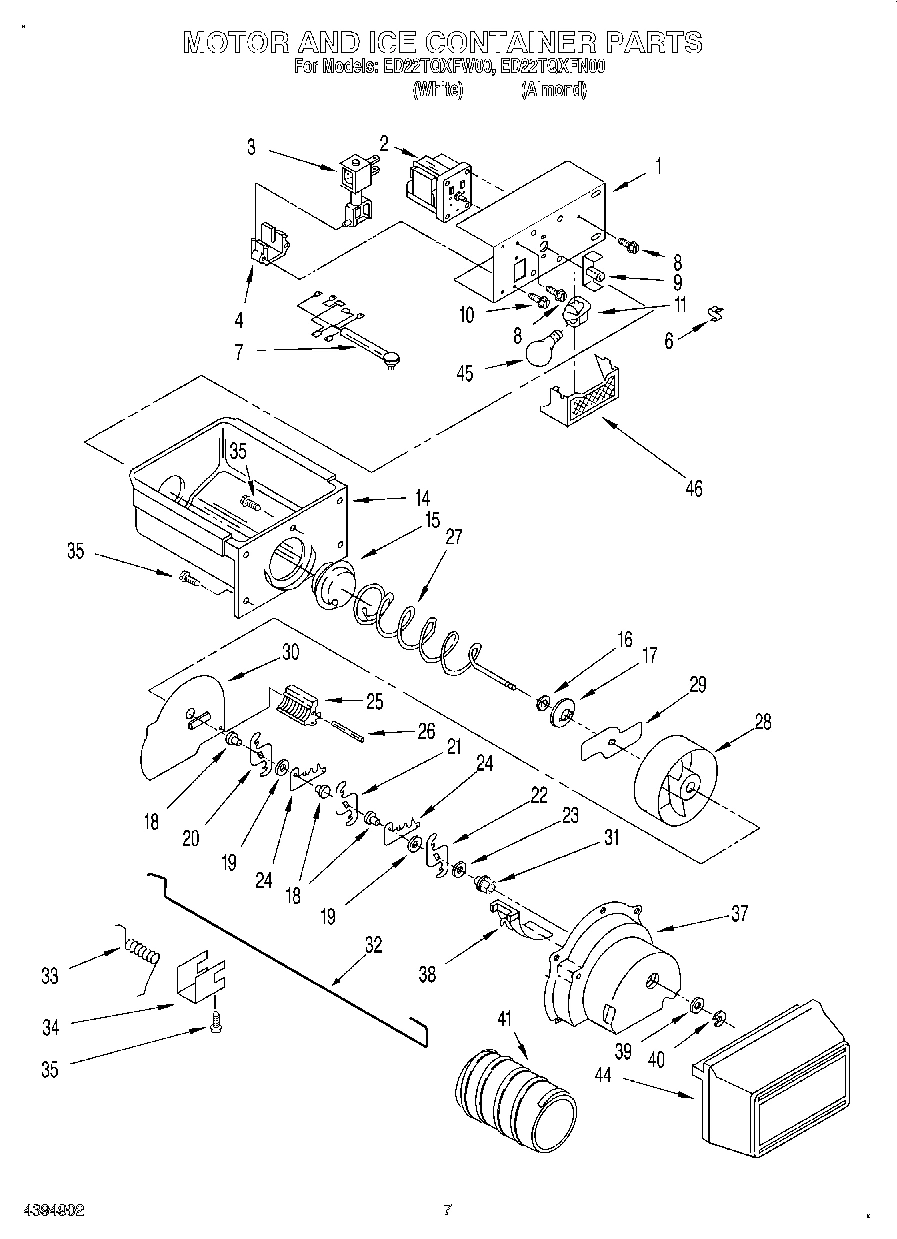

06 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool ED22TQXFN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI27088A2 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 2163572 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27090A2 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Meat Pan WPL 2174118 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Glass, Shelf WPL 2177986 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
10
Shim, Hinge Top WPL 2196048 Contact Us For Availability
10
Retainer WPL 1125594 Contact Us For Availability
10
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
11
Screw WPL 489284 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
14
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Grille (White) WPL 2155477 Contact Us For Availability
15
Grille (Almond) WPL 2155478 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180355 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180356 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI27092A1 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194569N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194569W Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
