Model Whirlpool ED22TEXHN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

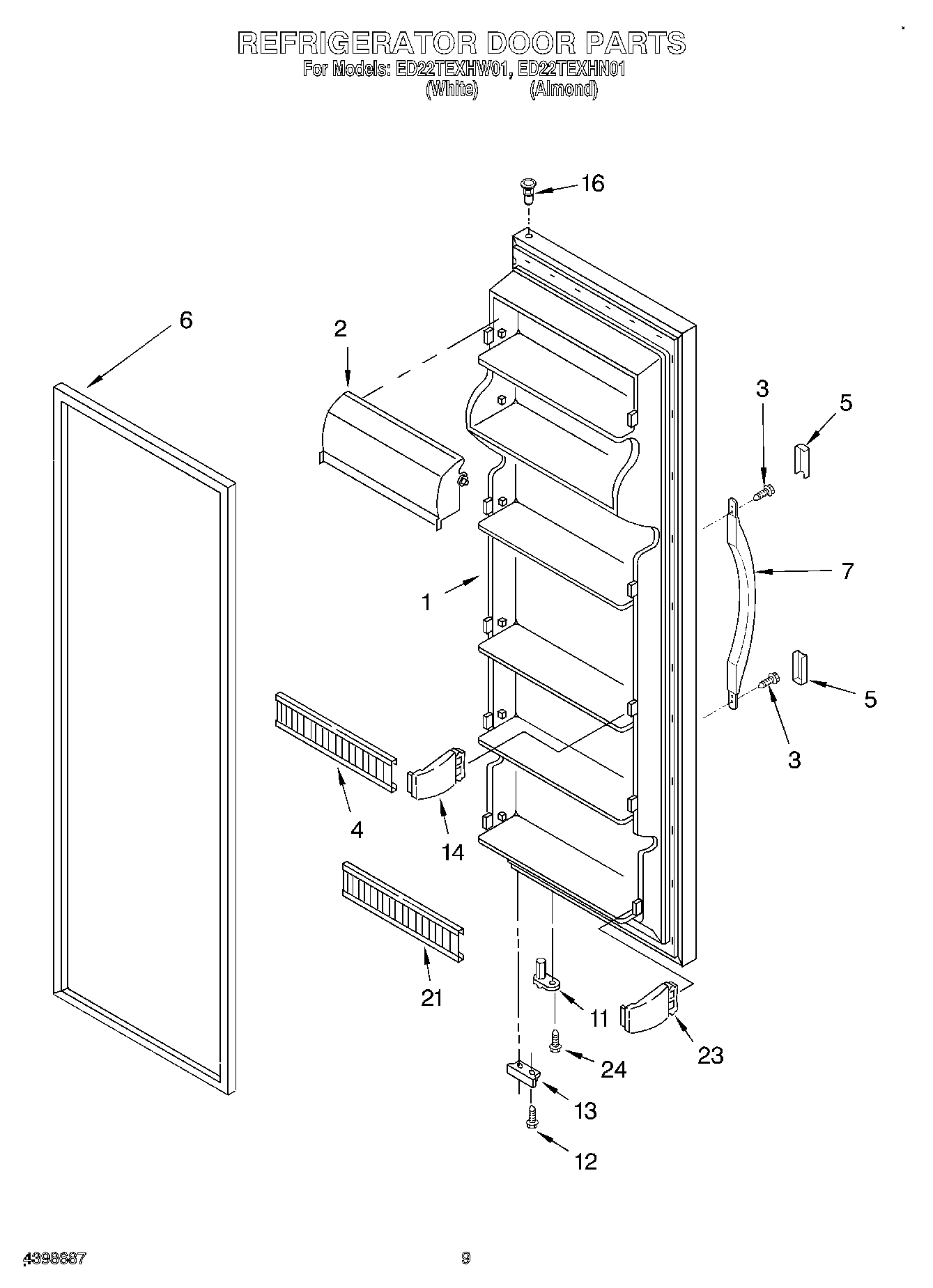

06 - REFRIGERATOR DOOR

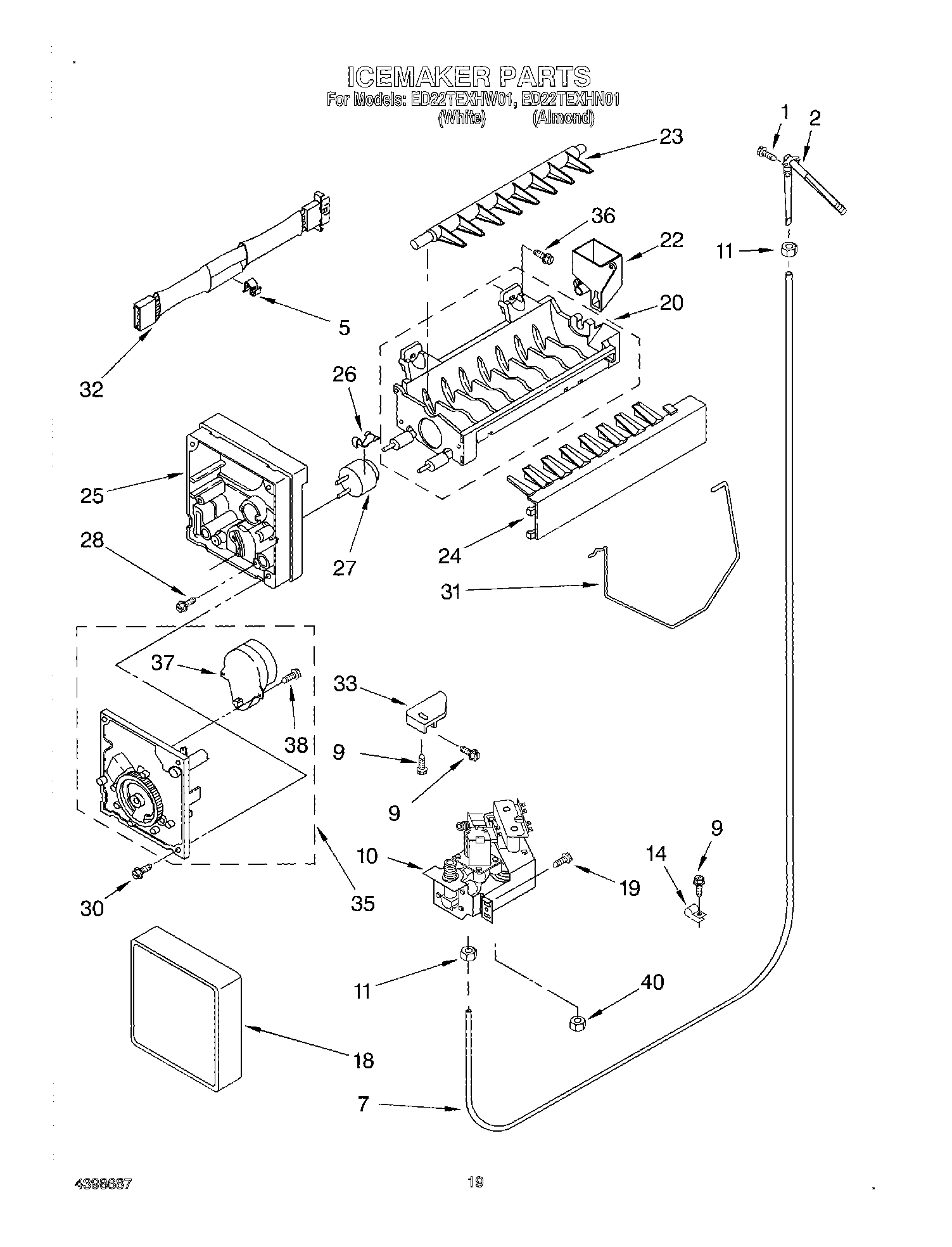

12 - ICE MAKER, OPTIONAL

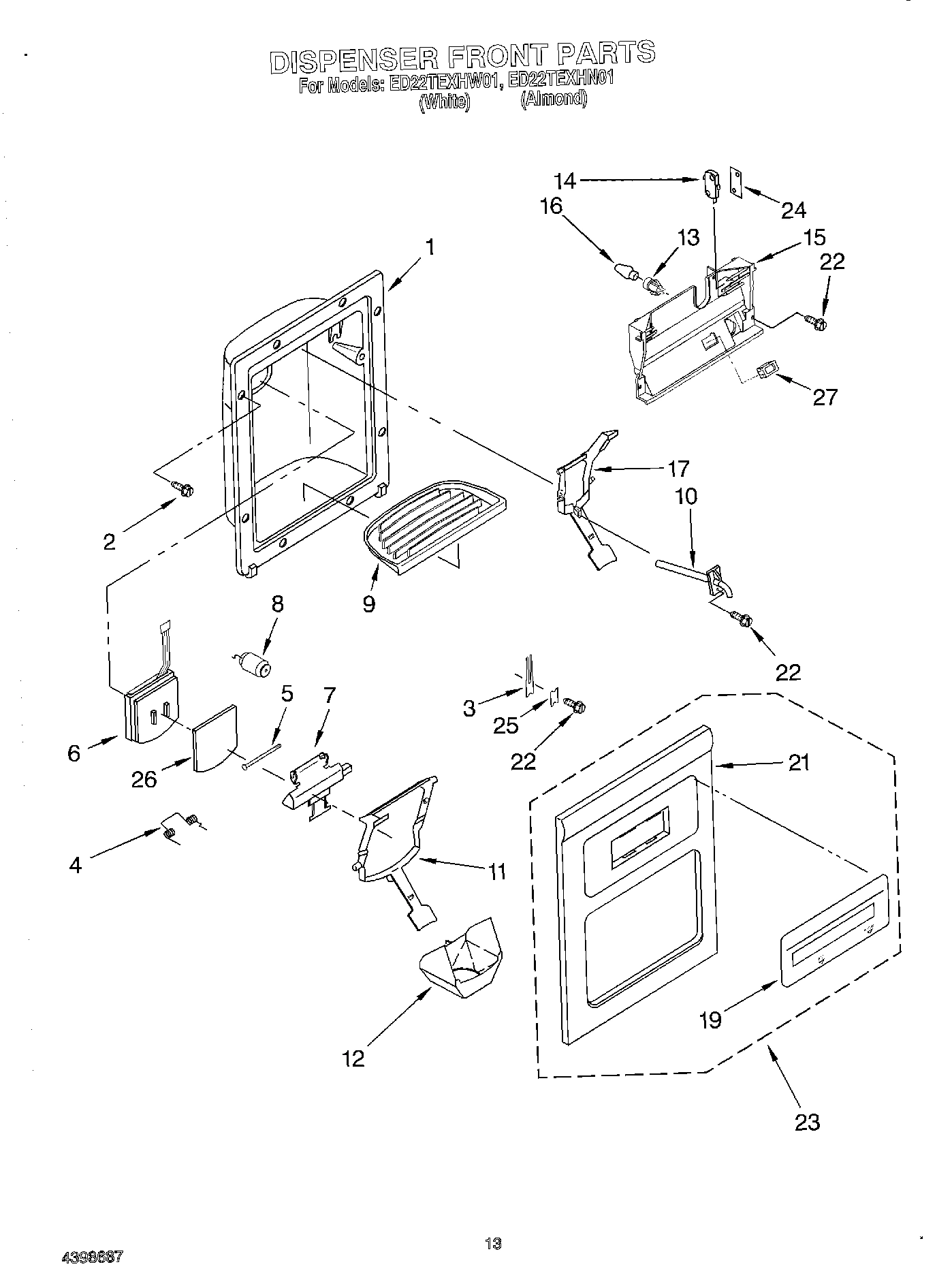

08 - DISPENSER FRONT
10 - AIR FLOW

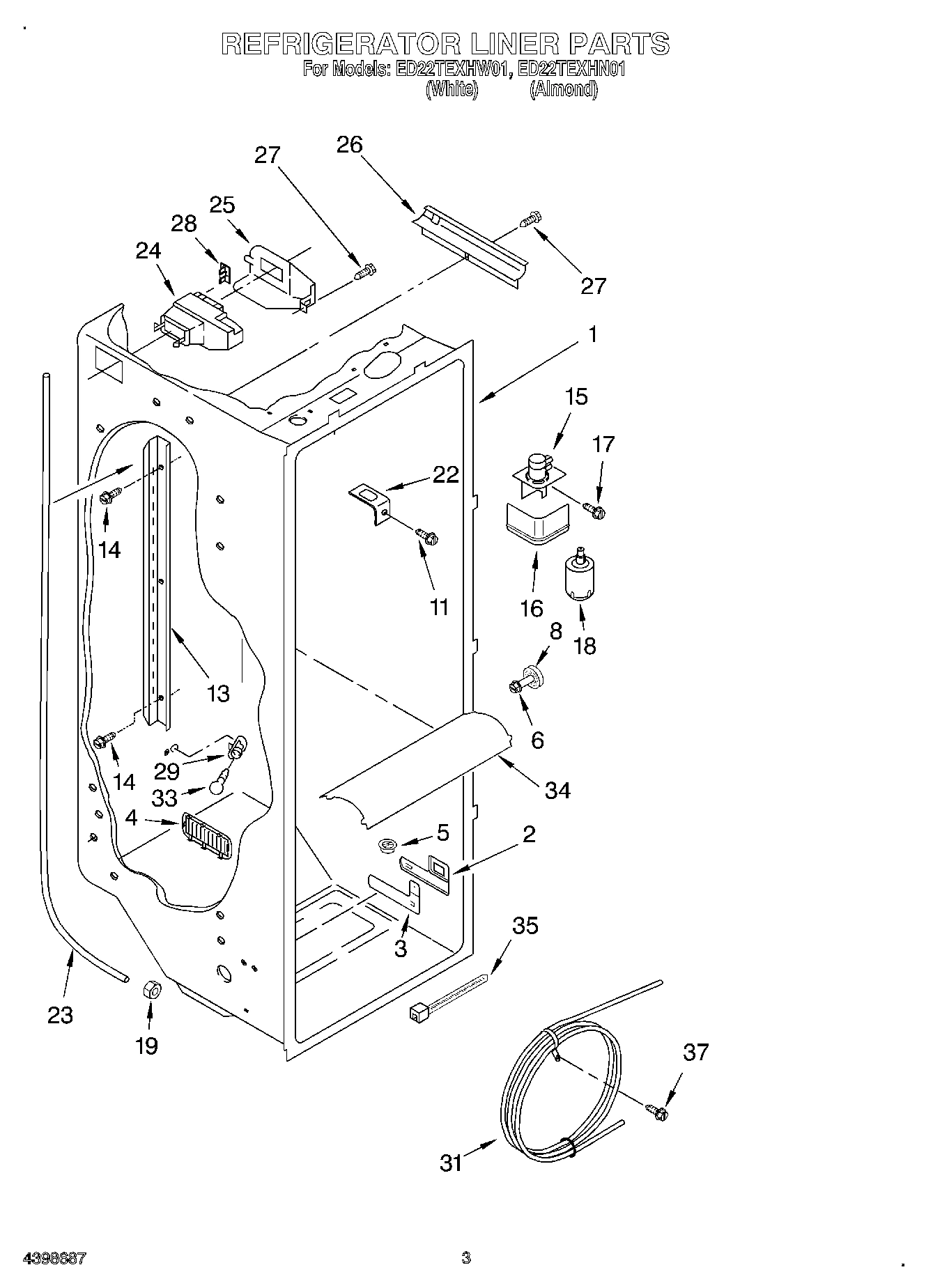

02 - REFRIGERATOR LINER

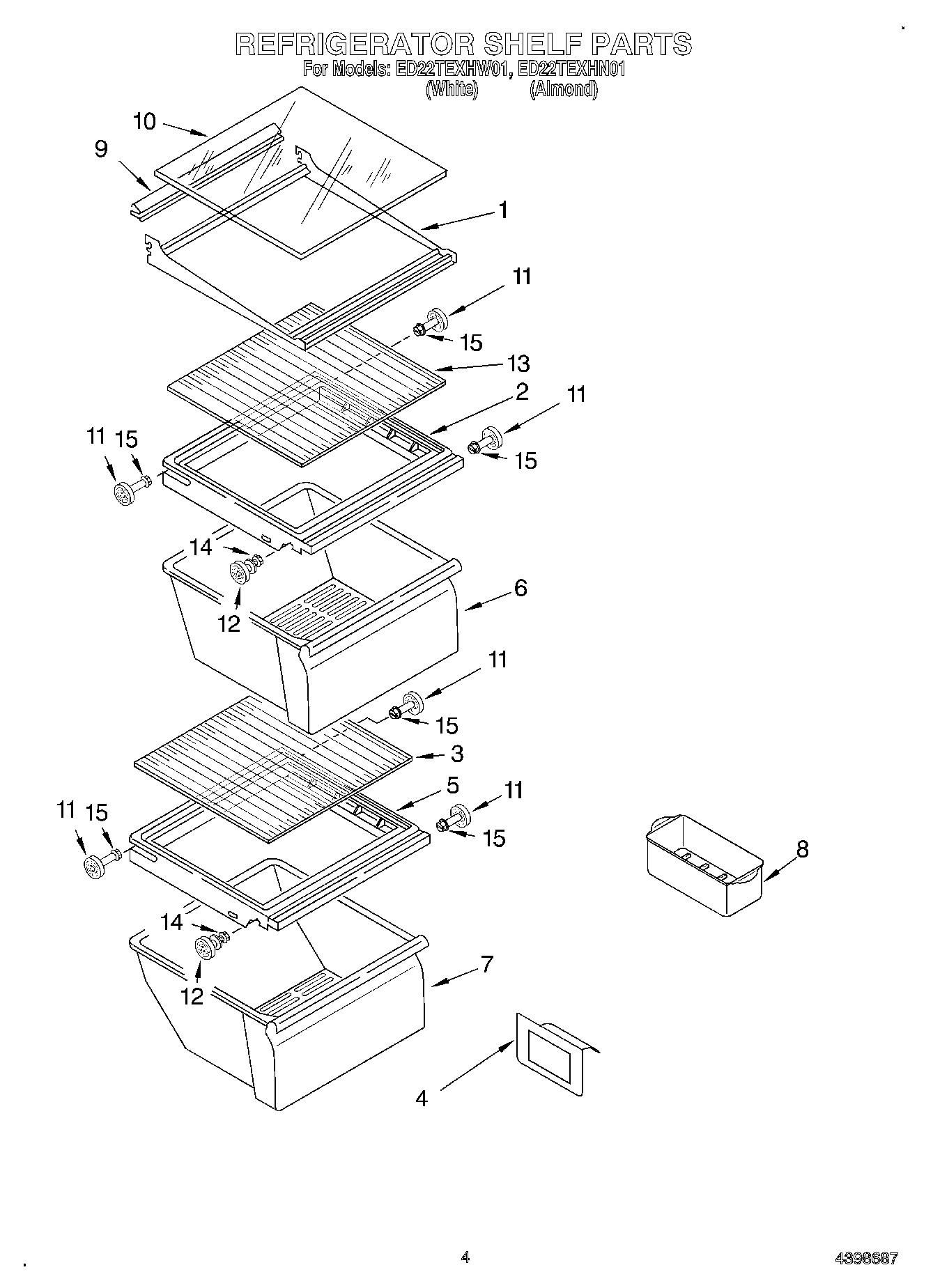

03 - REFRIGERATOR SHELF

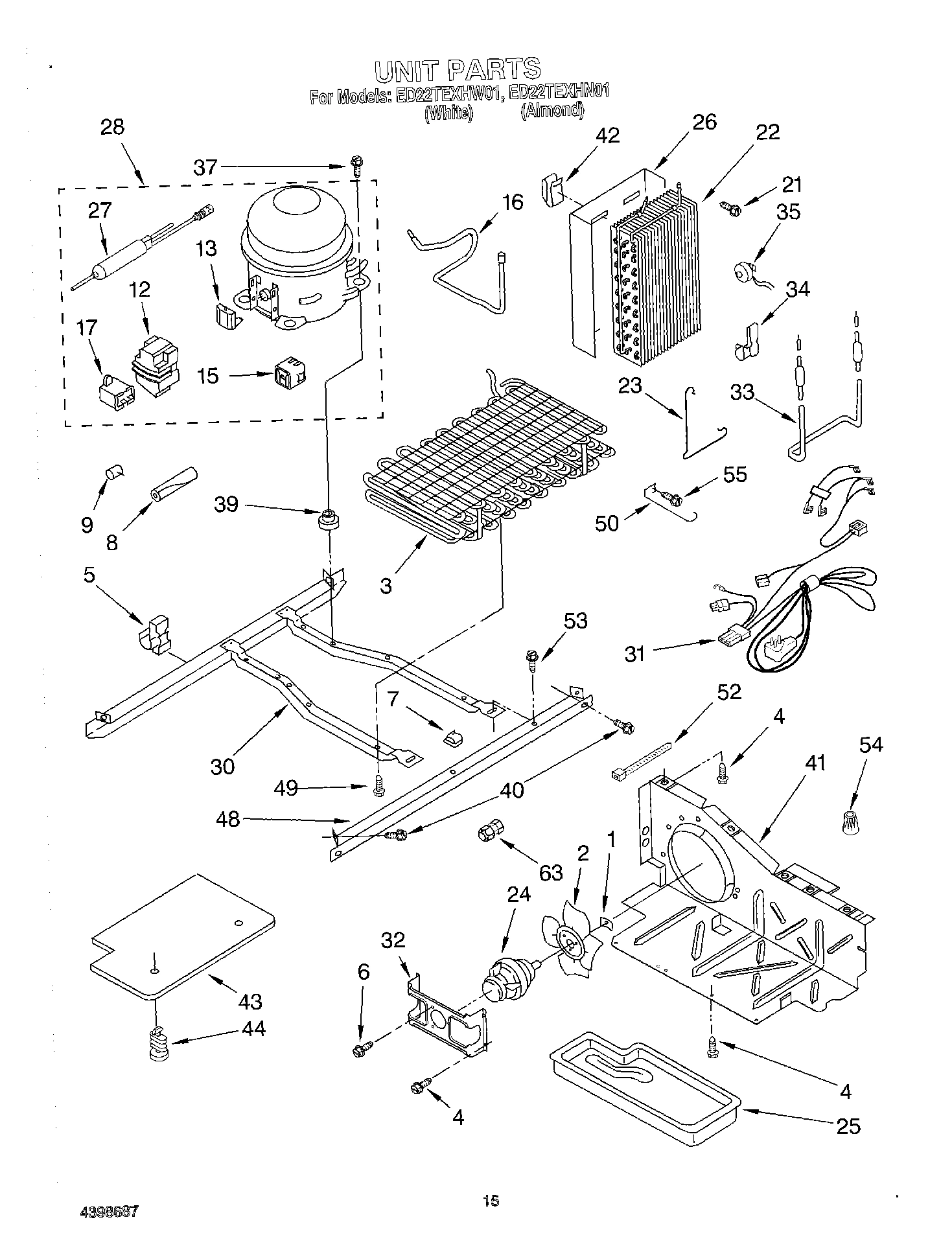

09 - UNIT

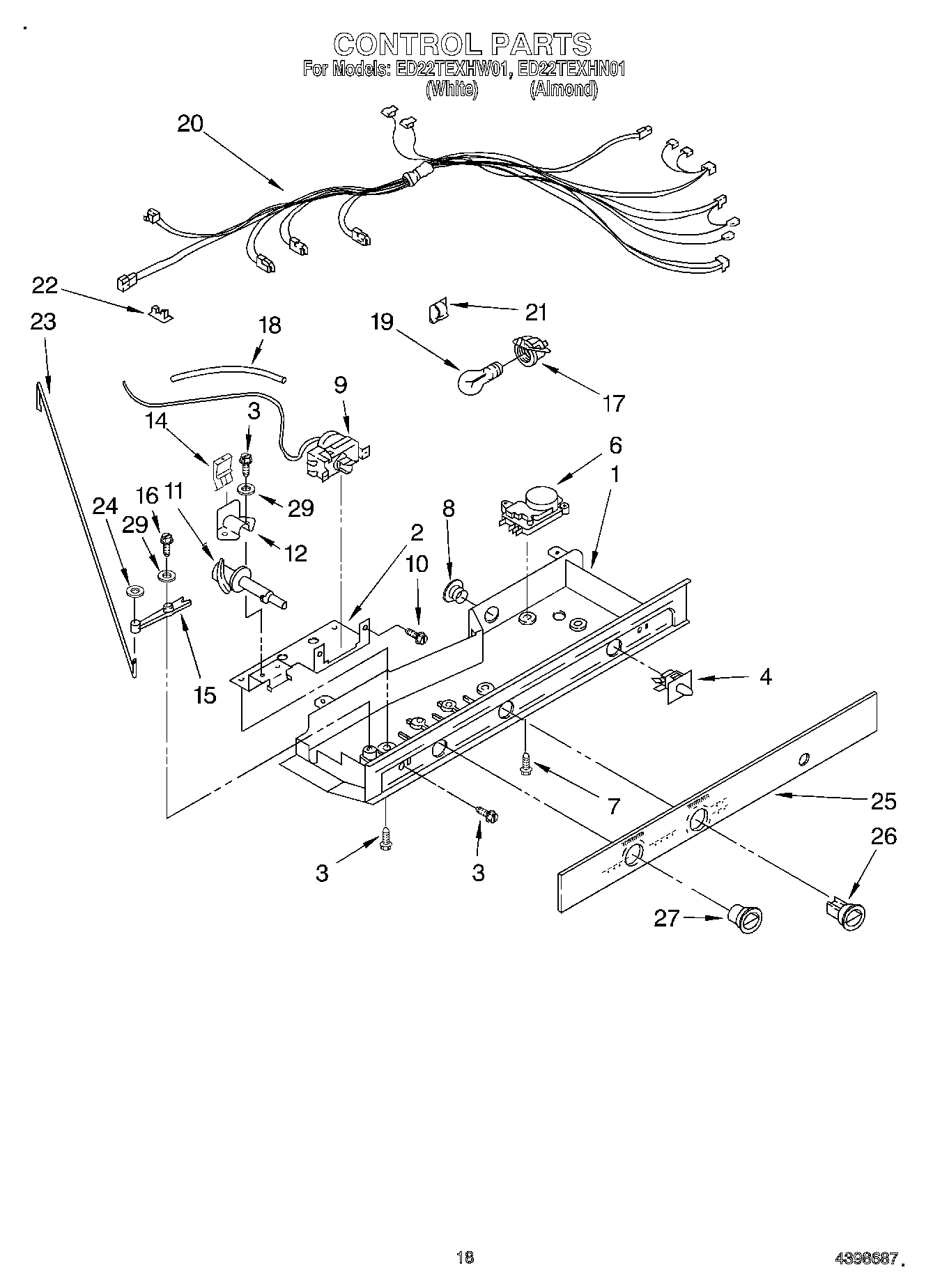

11 - CONTROL

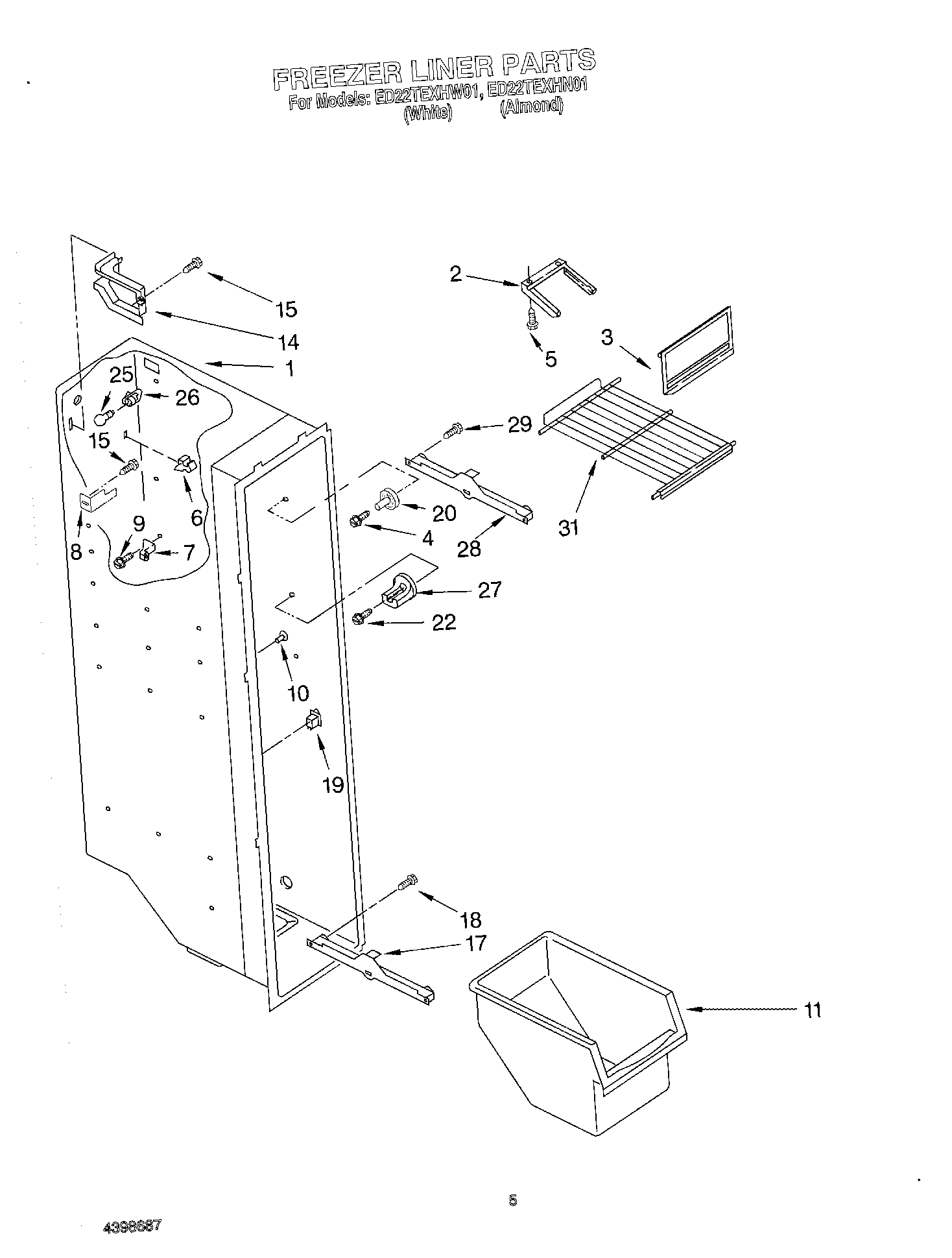

04 - FREEZER LINER
01 - CABINET, LITERATURE

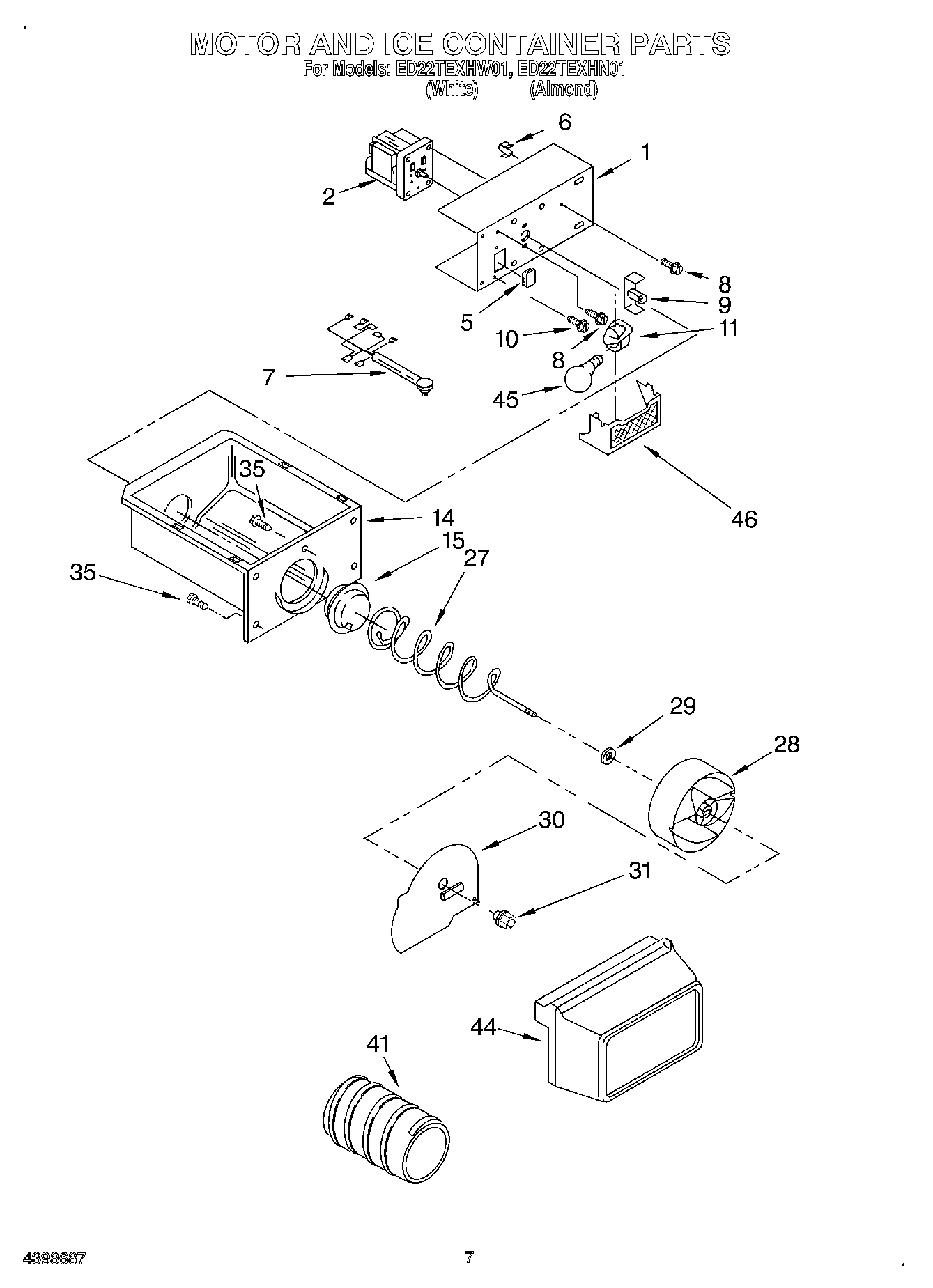

05 - MOTOR AND ICE CONTAINER

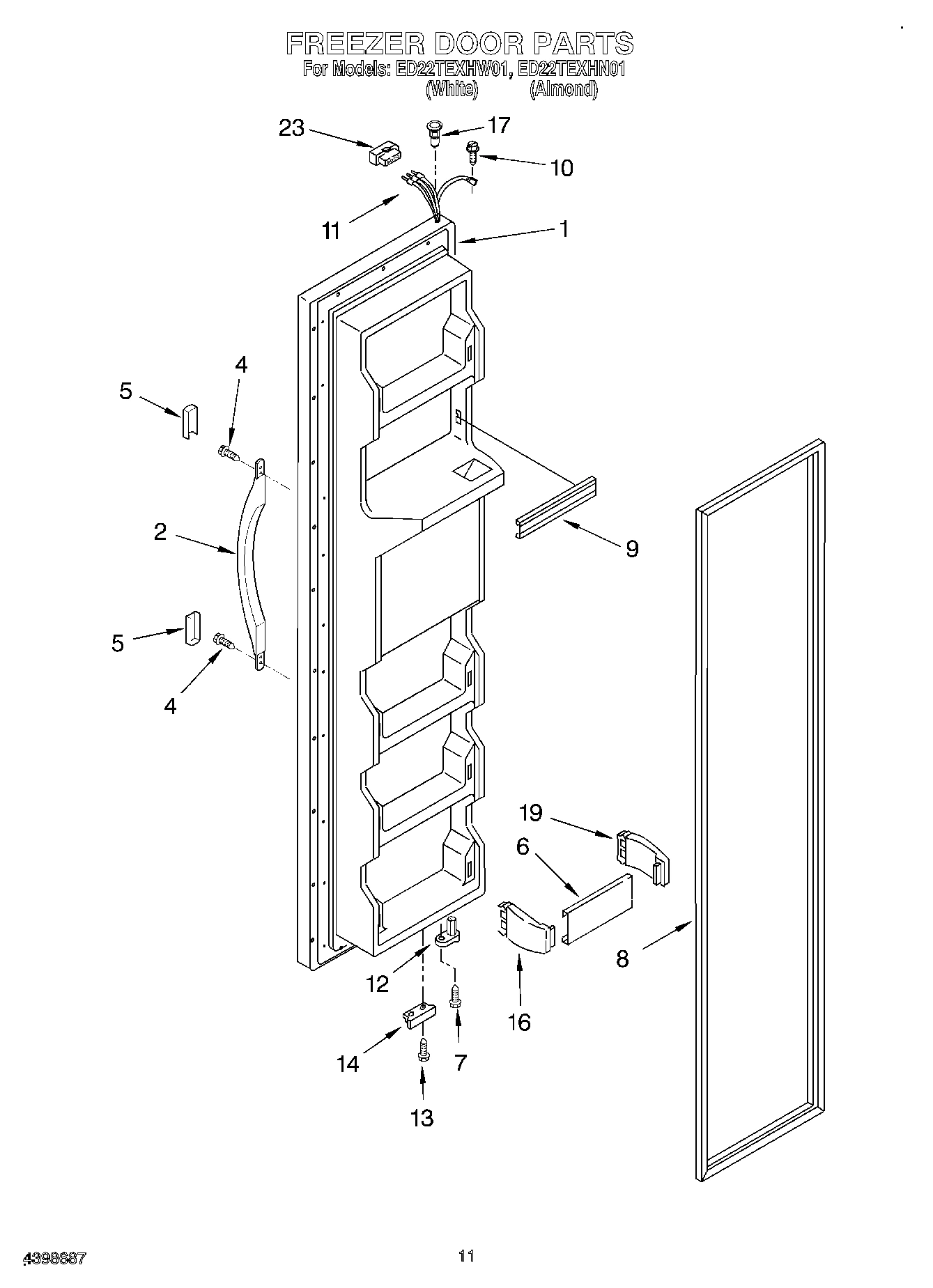

07 - FREEZER DOOR
Common parts from model Whirlpool ED22TEXHN01 SIDE BY SIDE REFRIGERATOR
LITERATURE PARTS WPL ARI27013A3 Contact Us For Availability
Service & Wiring Sheet WPL LIT2205747 Contact Us For Availability
Energy Label WPL LIT2206406 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27015A9 Contact Us For Availability
1
Use & Care Guide WPL LIT2205958 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2205696N Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2205696W Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Motor, Dispenser WPL 2188384 Contact Us For Availability
2
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
5
Plug, Bracket WPL 2195013 Contact Us For Availability
5
Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability
6
Trim, Door (4) WPL 2198483 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2186816 Contact Us For Availability
8
Bracket, Fill Tube WPL 2209674 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
10
Valve, Solenoid WPL 2206123 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Glass (3) WPL 2177986 Contact Us For Availability
10
Shim, Hinge Top WPL 2196048 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Screw WPL 489284 Contact Us For Availability
11
Wire Harness WPL 2198273 Contact Us For Availability
12
Hinge Cover (White) WPL 1129262 Contact Us For Availability
12
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Grille (Almond) WPL 2198469N Contact Us For Availability
15
Grille (White) WPL 2198469W Contact Us For Availability
16
Endcap (Left) WPL 2195917 Contact Us For Availability
17
Slide, Basket (Left Side) WPL 1115383 Contact Us For Availability
20
Control Box Harness WPL 2186802 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
26
Shield, Ice Door WPL 987121 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
27
Conveyor WPL 2181953 Contact Us For Availability
30
Floating Baffle WPL 2181722 Contact Us For Availability
31
Shelf (2) WPL 2174265 Contact Us For Availability
31
Nut, Bearing WPL 946195 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
44
Front Cover Ice Container WPL 2174351 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
