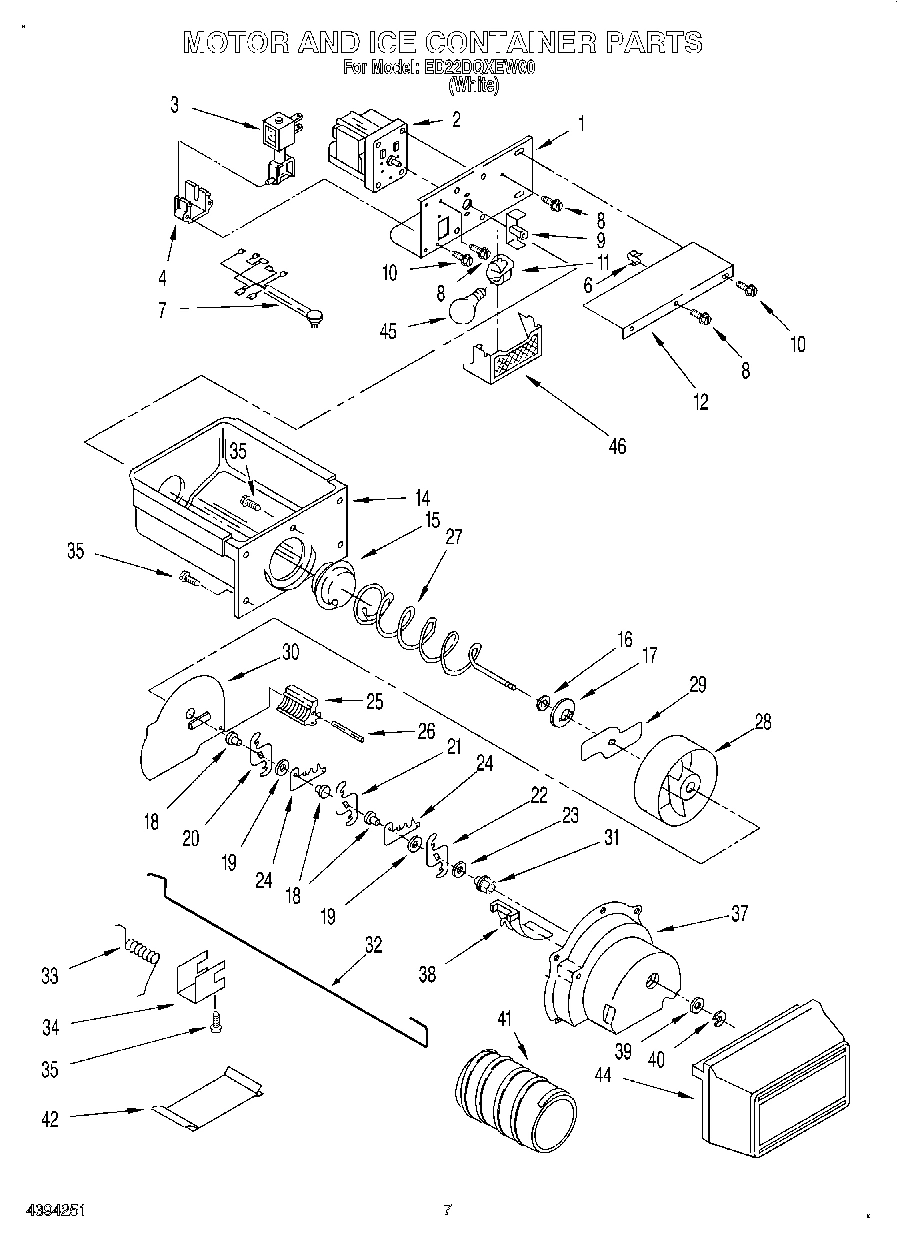

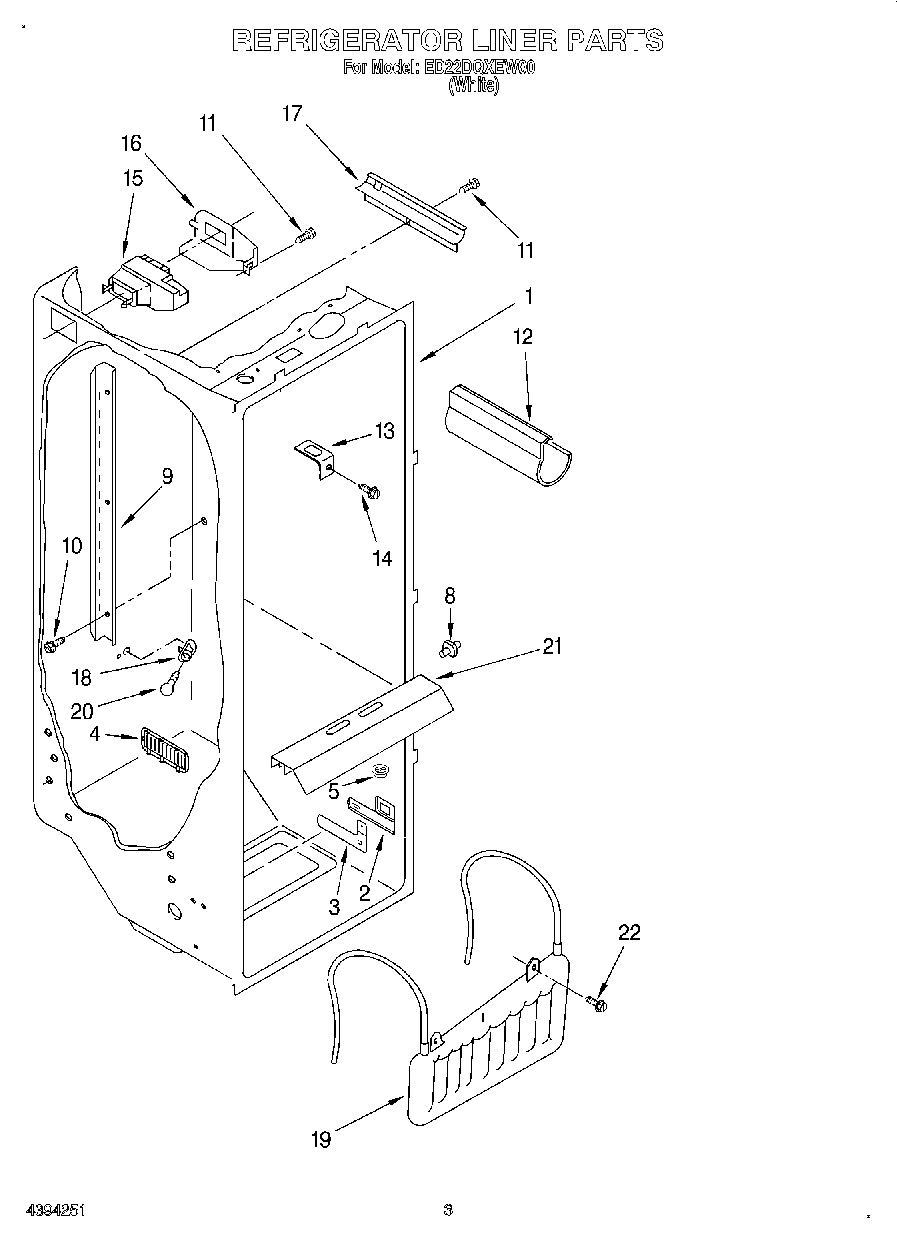

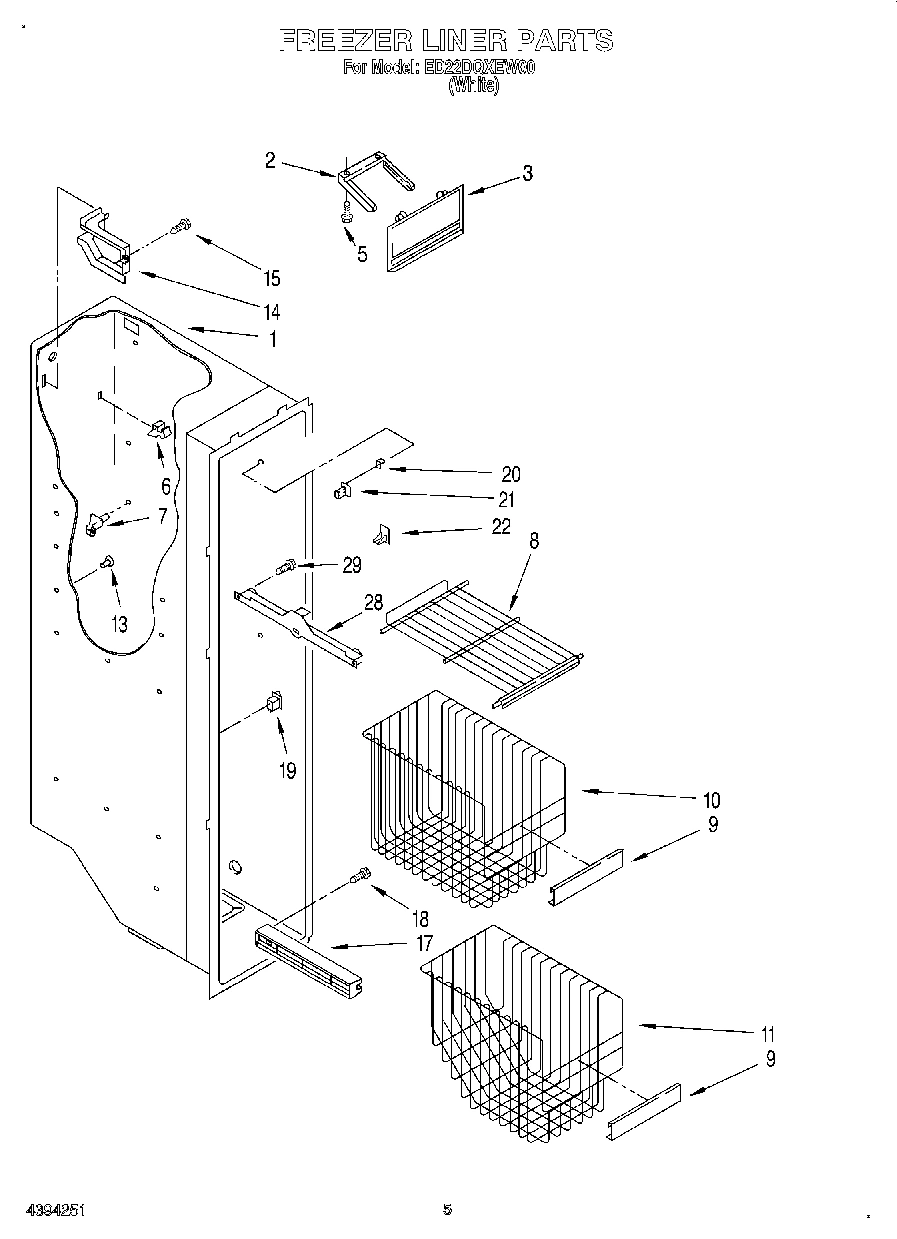

Model Whirlpool ED22DQXEW00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2180252 WPL LIT2180252 Contact Us For Availability

WPL LIT2182516 WPL LIT2182516 Contact Us For Availability

WPL LIT2189605 WPL LIT2189605 Contact Us For Availability

WPL LIT628370 WPL LIT628370 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

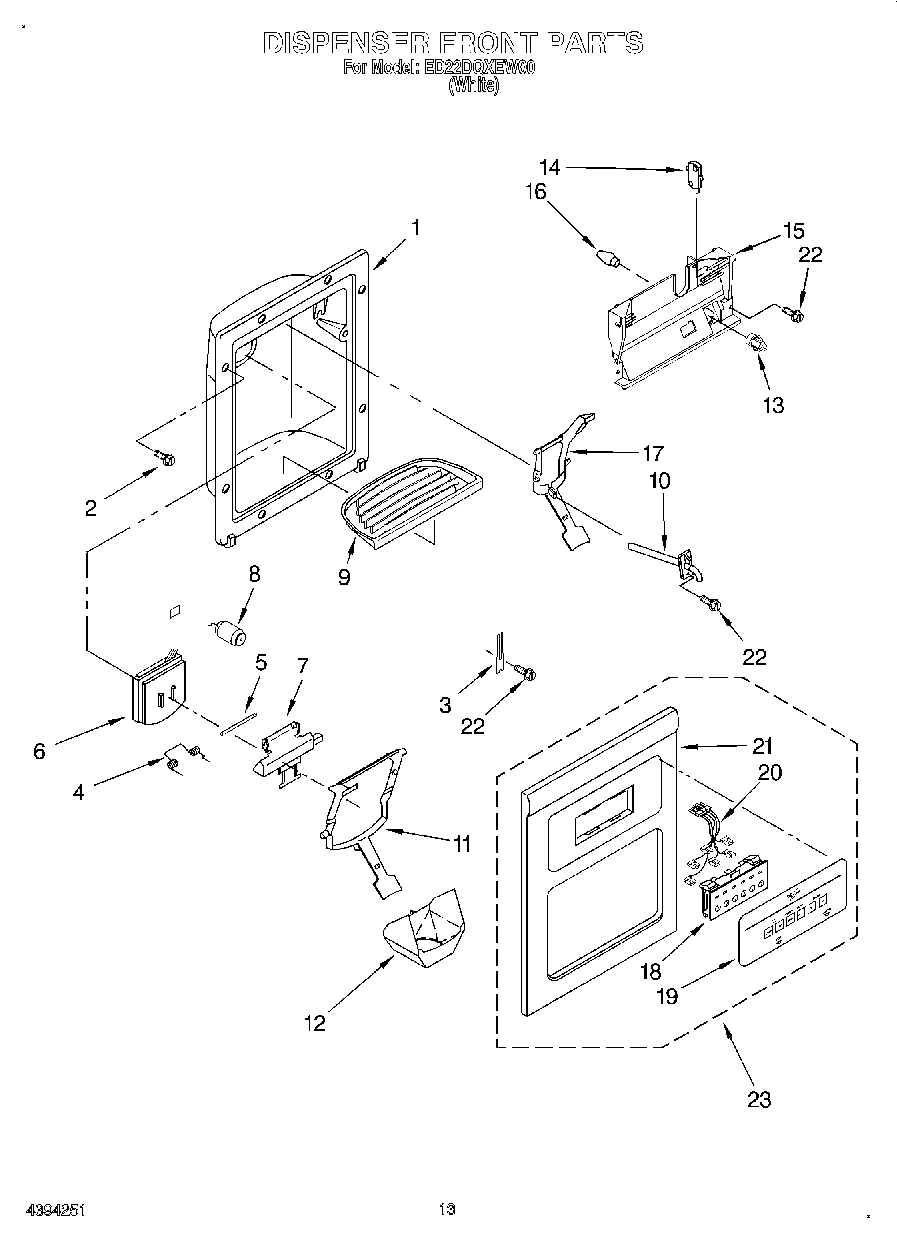

Housing, Dispenser (Not a Serviceable Part) WPL ARI26374A7 Contact Us For Availability

1

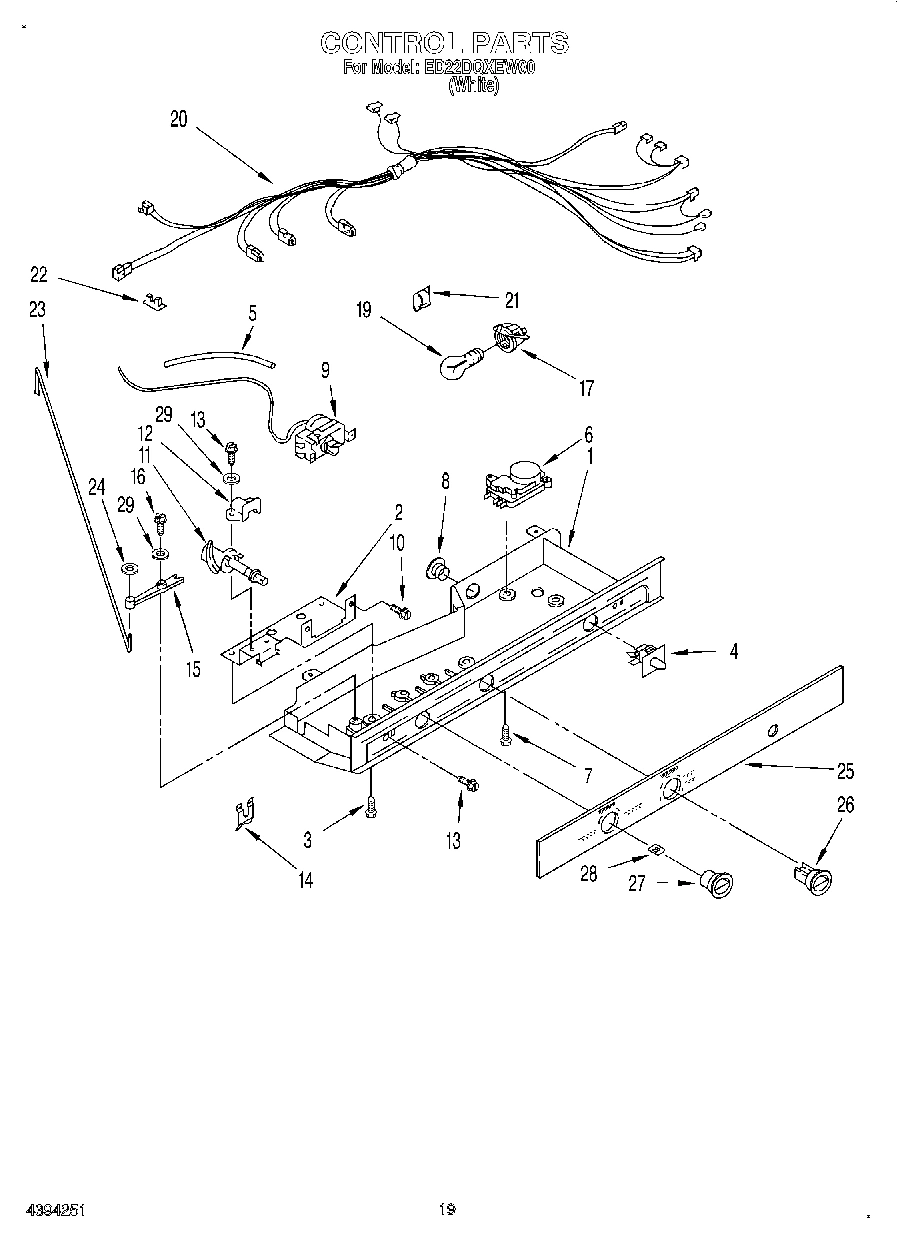

Control Box WPL 2169147 Contact Us For Availability

1

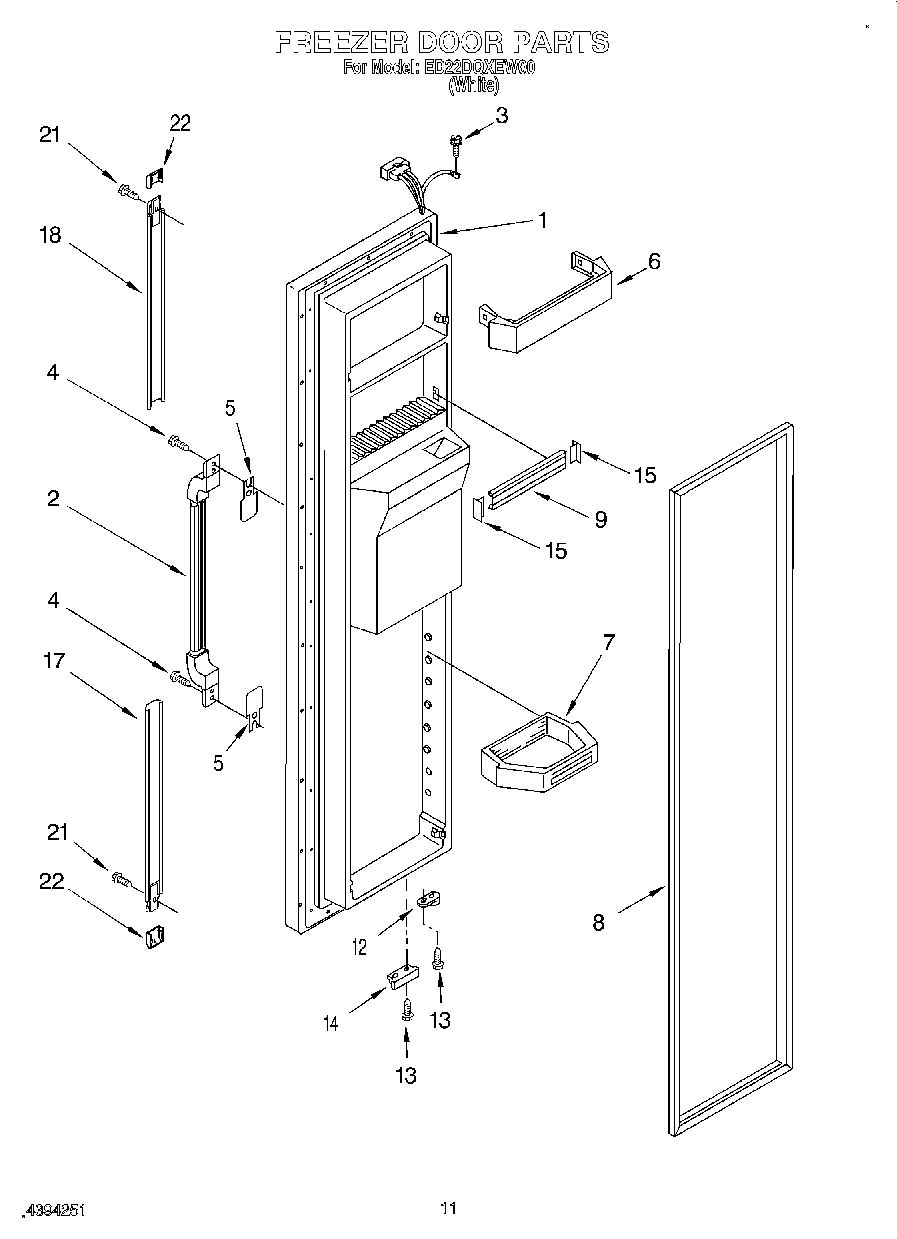

Freezer Door (Includes Item No.8 And Dispense WPL 2180249 Contact Us For Availability

2

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center WPL 2189789 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Shim, End Cap (2) WPL 2179399 Contact Us For Availability

6

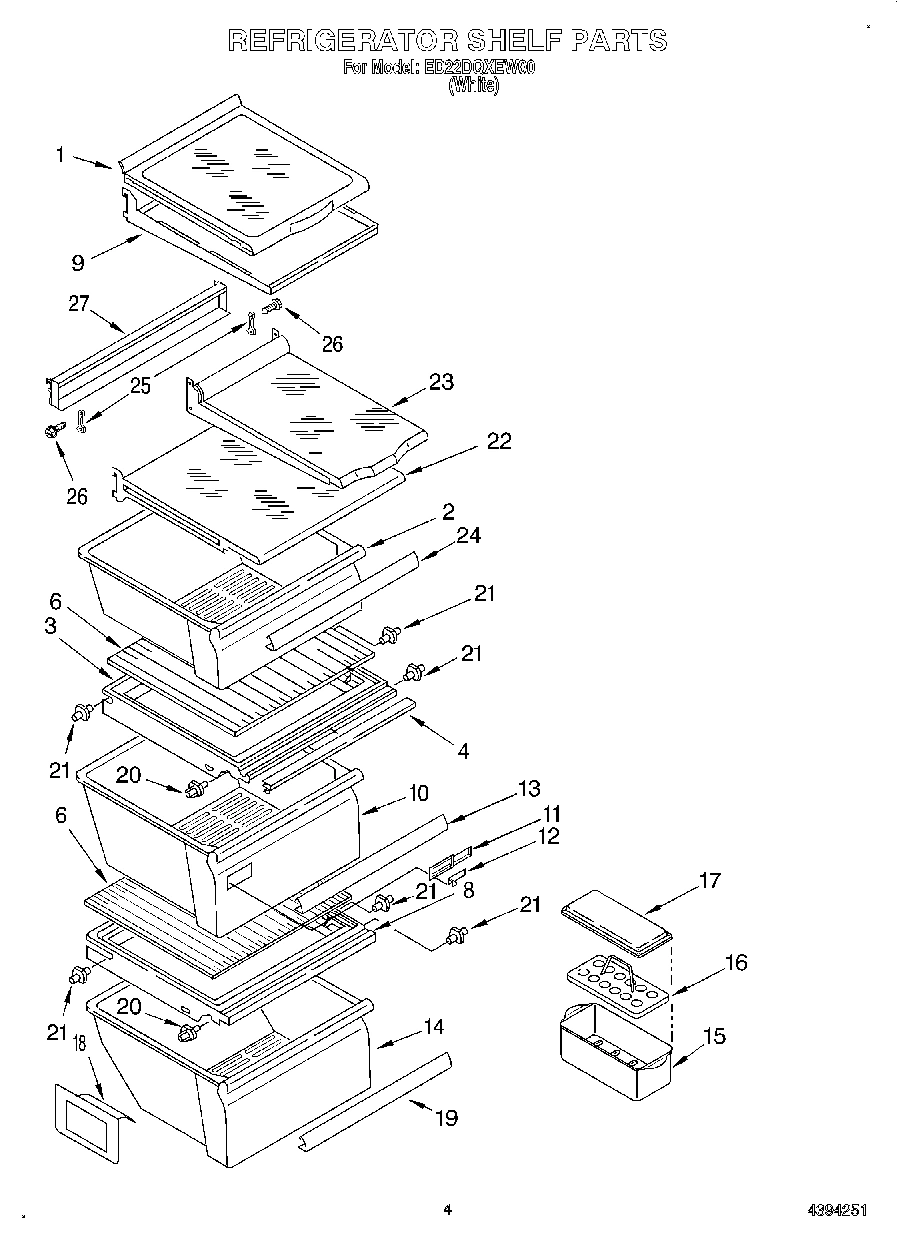

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2156021 Whirlpool Refrigerator Door Trim Backorder WPL WP2156021 $41.96

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Door, Ice WPL 2180205 Contact Us For Availability

6

Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability

7

Shelf Bin (2) WPL 2179578 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow WPL 2180241 Contact Us For Availability

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $107.35

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $88.11

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser WPL 2180256 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WPW10284487 Whirlpool Refrigerator Bracket Backorder WPL WPW10284487 $44.23

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Tube, Water Inlet WPL 2171943 Contact Us For Availability

Hinge Cover WPL 1129262 Contact Us For Availability

Grommet (4) WPL 2176134 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Bracket, Door Stop WPL 2155332 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Stop, Cone WPL 1118480 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Feeder Cone WPL 1119074 Contact Us For Availability

Extension, Bottom WPL 2174282 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Switch Assembly (Not Available, Order No.23) WPL ARI26375A5 Contact Us For Availability

Extension, Top WPL 2174276 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Plaque, Front Cover WPL 2180237 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

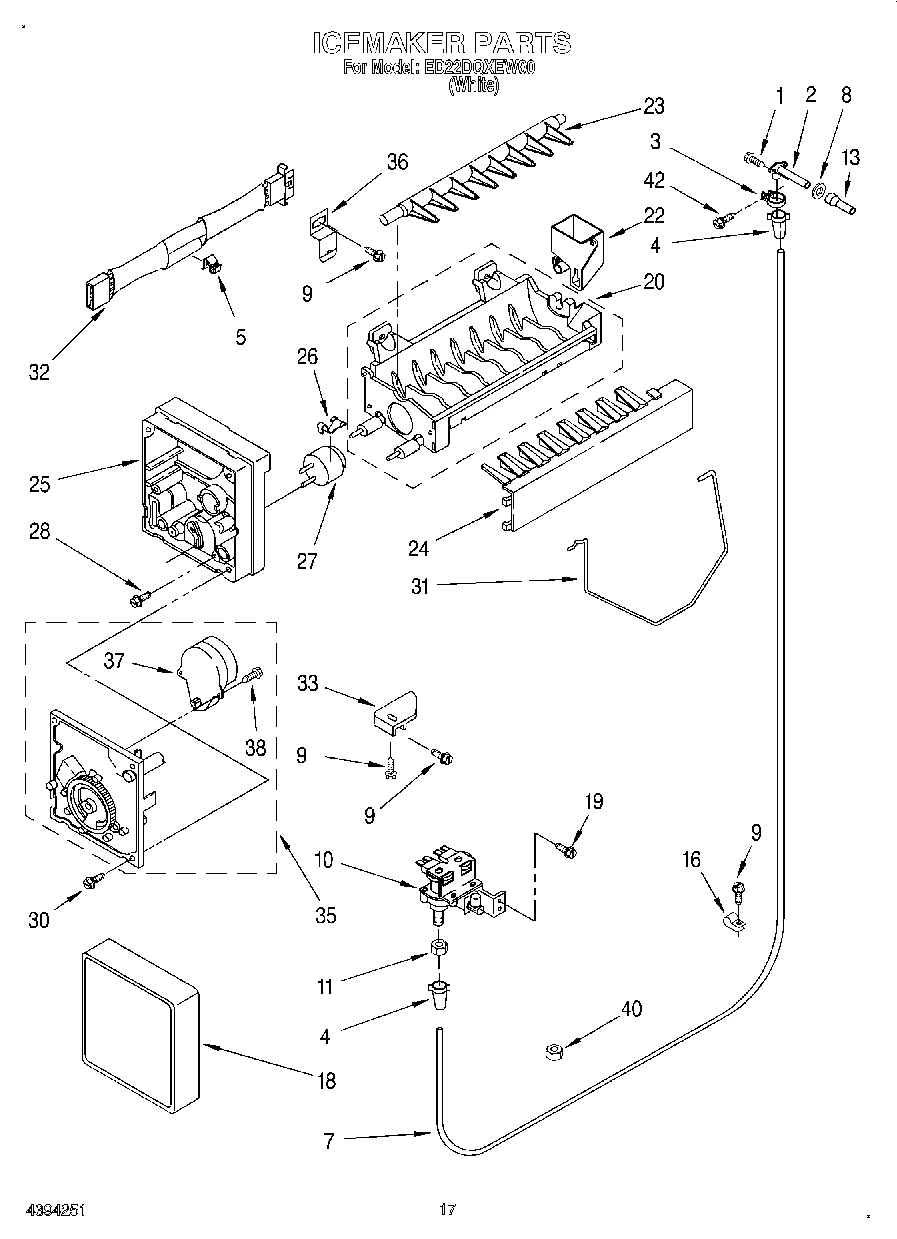

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Control Box Harness WPL 2149186 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

NLA:SCREW Backorder WPL WPW10141645 $3.70

Light Lens WPL 2174436 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI26376A8 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

CLIP, WIRING WPL 1115375 Contact Us For Availability

Cover, End Cap WPL 2174006 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Front Cover Assembly (Includes Items 18, 19, WPL 2180230 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

Escutcheon, Control Box WPL 2179361 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Cement Alumilastic) WPL 542369 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

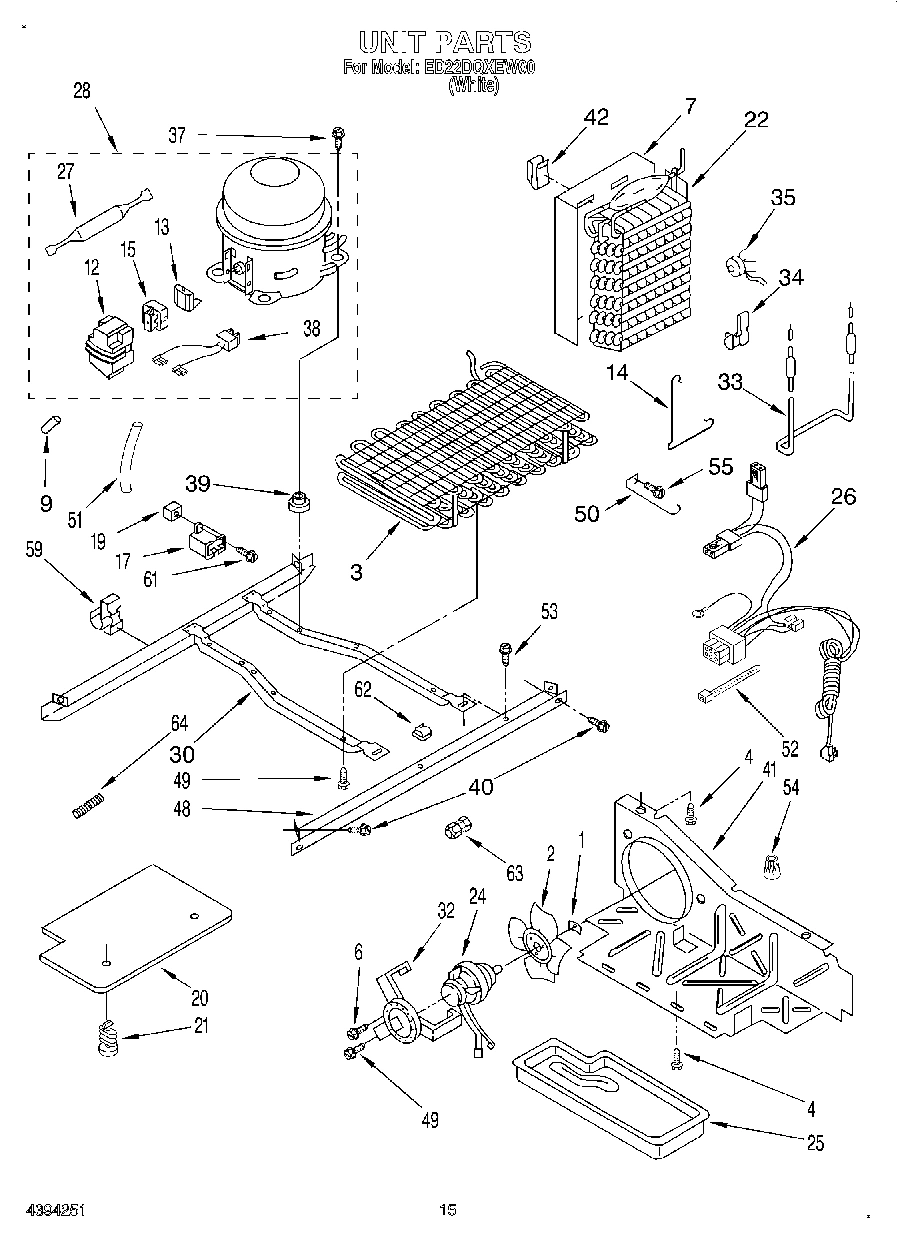

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

Knob, Retainer WPL 837444 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

32

Bracket, Fan Motor WPL 548695 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

Clip, Support (2) WPL 2155021 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat WPL 2155547 Contact Us For Availability

42

Housing Filler WPL 2152700 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

Wire Tie WPL 851095 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

59

Clip, Wire & Tube WPL 2155658 Contact Us For Availability

62

Clip, Tube (3) WPL 934011 Contact Us For Availability

63

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Tube, Spring WPL 983659 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
