Model GE CYE22UP2MJS1 Refrigerator – Common Parts & Diagrams

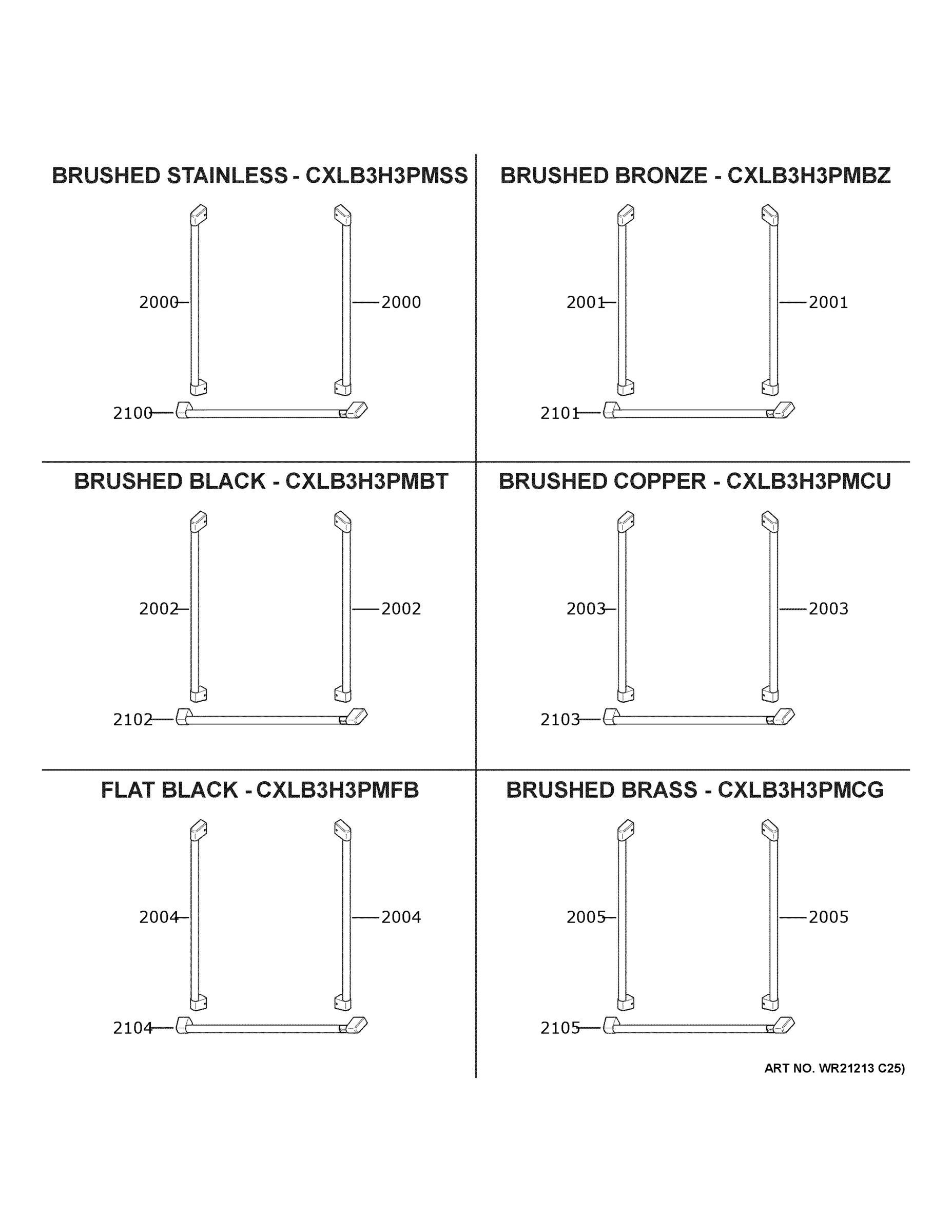

CAFE CUSTOMIZATION

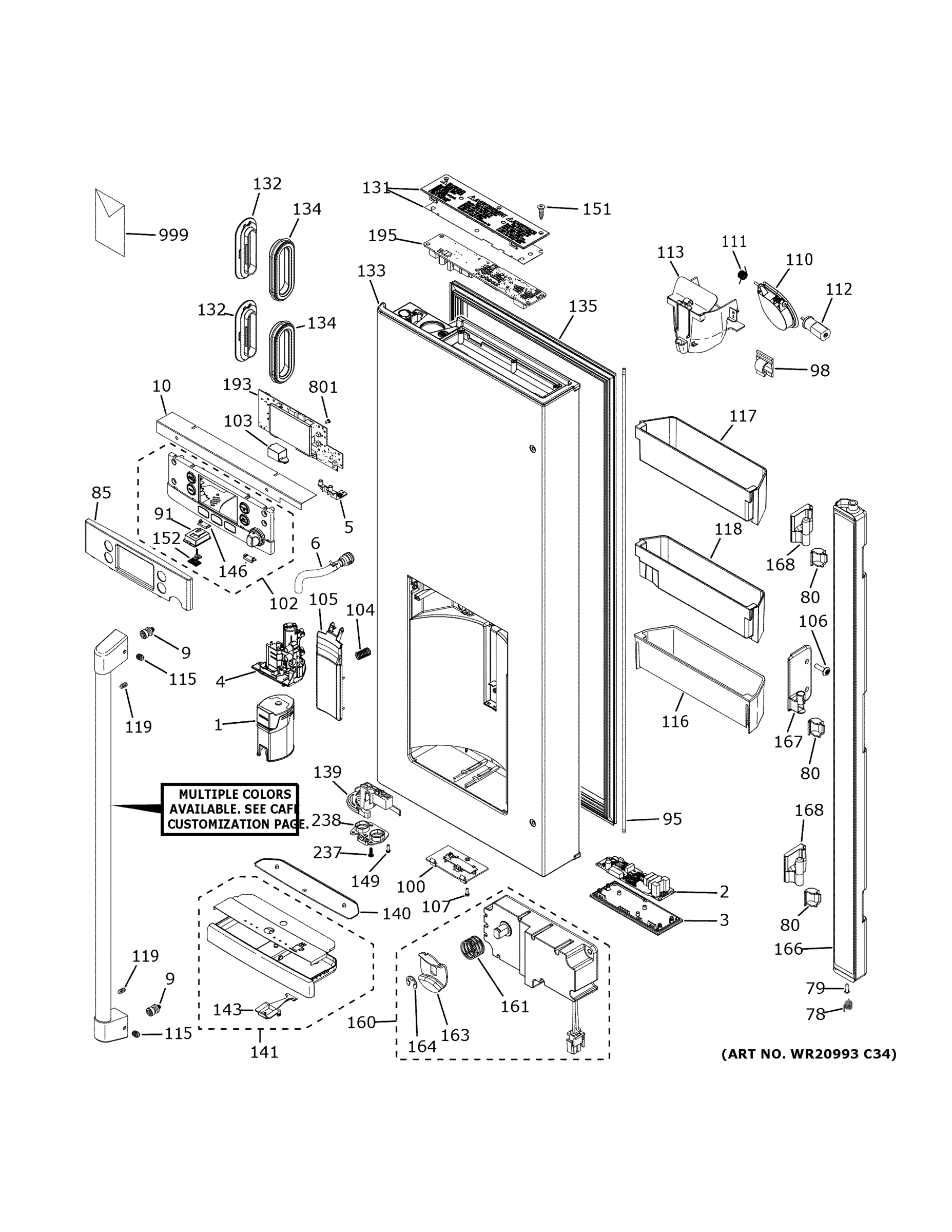

DISPENSER DOOR
FREEZER DOOR
FRESH FOOD DOOR - RH
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
BEVERAGE DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
LOKRING CONNECTORS
Common parts from model GE CYE22UP2MJS1 Refrigerator
1
SINGLE SERVE BREW MODULE GEN WR02X30247 Contact Us For Availability
2
PCB ASM FEATURE BOARD GEN WR55X26546 Contact Us For Availability
5
STANDOFF SPEAKER GEN WR02X25674 Contact Us For Availability
10
GASKET CAFE DISPLAY GEN WR14X10382 Contact Us For Availability
100
COVER LED FZ ASM GEN WR55X23636 Contact Us For Availability
102
DISPLAY ASM SS KCUP GEN WR17X27131 Contact Us For Availability
113
DOUBLE TUBE ICE FUNNEL GEN WR17X30650 Contact Us For Availability
119
SET SCREW GEN WR01X27135 Contact Us For Availability
128
WATER FILTER BYPASS PLUG GEN WR01X29059 Contact Us For Availability
131
PCB COVER ASM DGY GEN WR02X13741 Contact Us For Availability
132
COLLAR PORT GEN WR14X25124 Contact Us For Availability
133
REFRIGERATOR DOOR - LEFT HAND SINGLE SER GEN WR78X37436 Contact Us For Availability
135
FRESH FOOD DOOR GASKET DORIAN GRAY GEN WR14X29300 Contact Us For Availability
140
TRAY GUARD ASM GEN WR17X13174 Contact Us For Availability
141
DRIP TRAY SINGLE SERVE STAINLESS STEEL GEN WR17X30435 Contact Us For Availability
146
SHIELD LED LIGHT GEN WR02X13655 Contact Us For Availability
153
SENSOR TEMP FF GEN WR55X10025 Contact Us For Availability
161
SPRING CLUTCH AM GEN WR02X13645 Contact Us For Availability
163
CLUTCH COUPLING AM GEN WR02X13647 Contact Us For Availability
315
CAM VERT ADJUSTMENT GEN WR02X13627 Contact Us For Availability
473
TROUGH DRAIN FZ GEN WR17X13080 Contact Us For Availability
487
FREEZER FAN COVER GEN WR17X35246 Contact Us For Availability
507
SCREW SET DOOR FZ GEN WR01X11036 Contact Us For Availability
512
DIVIDER BASKET BOTTOM GEN WR02X13764 Contact Us For Availability
520
GLIDE SUPPORT LH & RH BIS GEN WR72X27074 Contact Us For Availability
580
SCR 10-18 FLT20 3/4 S GEN WR01X11013 Contact Us For Availability
607
TUBE SS FC TO HW TANK GEN WR01X24990 Contact Us For Availability
640
COILED COLD WATER TANK GEN WR17X27627 Contact Us For Availability
647
QUICK CLIP CONNECTOR 1/4 GEN WR01X11041 Contact Us For Availability
685
SCREW 8-18 AB HXW 1/2 S GEN WR02X29370 Contact Us For Availability
692
SCR 8-18 AB HXW 9/16 S GEN WR01X11012 Contact Us For Availability
694
CONNECTOR 5/16 STEM HT GEN WR02X24977 Contact Us For Availability
695
HOUSING TRAY VALVE TANK GEN WR13X25912 Contact Us For Availability
696
TUBE SS VLV TO VLV GEN WR01X24985 Contact Us For Availability
704
SCR 8-18 HI/LO HWX 3/4 GEN WR01X11061 Contact Us For Availability
709
FRESH FOOD FAN MOUNTING GASKET GEN WR02X30166 Contact Us For Availability
802
OVERLAY MEAT PAN ASM GEN WR04X23038 Contact Us For Availability
804
CAP CASE CORNER ASM DGY GEN WR02X13759 Contact Us For Availability
808
SCREW LEVELING ASM GEN WR01X11046 Contact Us For Availability
809
REFRIGERATOR VEGETABLE PAN BIS GEN WR32X32031 Contact Us For Availability
810
MEAT PAN SLIDE GEN WR72X29093 Contact Us For Availability
815
ADJUSTABLE TEMPERATURE DRAWER BIS GEN WR32X32028 Contact Us For Availability
818
DIVIDER MEAT PAN GEN WR17X13193 Contact Us For Availability
819
DELI PAN TOP REAR COVER GEN WR72X31329 Contact Us For Availability
831
TRACK SIDE FF GEN WR72X21071 Contact Us For Availability
832
TRACK CENTER FF GEN WR72X10429 Contact Us For Availability
833
REFRIGERATOR SHELF BIS GEN WR32X32029 Contact Us For Availability
834
REFRIGERATOR QUICK SPACE SHELF BIS GEN WR32X32035 Contact Us For Availability
835
SPACER TRACK GEN WR02X13679 Contact Us For Availability
886
ROLLER ASM GEN WR02X13658 Contact Us For Availability
888
DAMPER VEG PAN GEN WR17X24925 Contact Us For Availability
890
ART FRAME VP ASM GEN WR32X10910 Contact Us For Availability
899
BAR REINFORCEMENT GEN WR02X21803 Contact Us For Availability
900
VALVE WATER ISO ASM GEN WR57X27487 Contact Us For Availability
902
HINGE TOP PIN ASM RH GEN WR13X25910 Contact Us For Availability
905
MULLION STRIKER GEN WR01X31733 Contact Us For Availability
915
JUMPER COMPRESSOR DISCHARGE TUBE GEN WR84X34173 Contact Us For Availability
932
REFRIGERATOR CENTER HINGE RIGHT GEN WR13X32036 Contact Us For Availability
934
REFRIGERATOR CENTER HINGE LEFT GEN WR13X32039 Contact Us For Availability
946
WIFI AND HUMIDITY BOARD GEN WR55X34645 Contact Us For Availability
951
FRESH FOOD DOOR LIGHT SWITCH GEN WR23X29161 Contact Us For Availability
954
HARNESS SINGLE SPEED GEN WR55X26283 Contact Us For Availability
963
COVER FILTER RFID GEN WR02X23748 Contact Us For Availability
964
COVER WATER FILTER ASM GEN WR02X26526 Contact Us For Availability
965
GASKET DUCT FAN IM GEN WR14X10384 Contact Us For Availability
993
REFRIGERATOR DRAIN TUBE GEN WR02X28514 Contact Us For Availability
994
REFRIGERATOR DRAIN VACUUM BREAK VALVE GEN WR01X28515 Contact Us For Availability
995
CONVERTIBLE DRAWER BRACKET SCREW GEN WR02X31885 Contact Us For Availability
2000
REFRIGERATOR DOOR HANDLE CAFE GEN WR12X27968 Contact Us For Availability
2001
BRUSHED BRONZE FRESH FOOD DOOR HANDLE GEN WR12X31663 Contact Us For Availability
2100
BRUSHED STAINLESS FREEZER DOOR HANDLE W/ GEN WR12X30436 Contact Us For Availability
2101
BRUSHED BRONZE DOOR HANDLE W/ CAFE BAND GEN WR12X32006 Contact Us For Availability
7003
8MM X 8MM LOKRING GEN WR97X10021 Contact Us For Availability
7005
6MM X 4MM LOKRING GEN WR97X10033 Contact Us For Availability
7009
7MM X 5MM LOKRING GEN WR97X25268 Contact Us For Availability
× ![]()
