Model Hotpoint CSK30DRBGAA Refrigerator – Common Parts & Diagrams

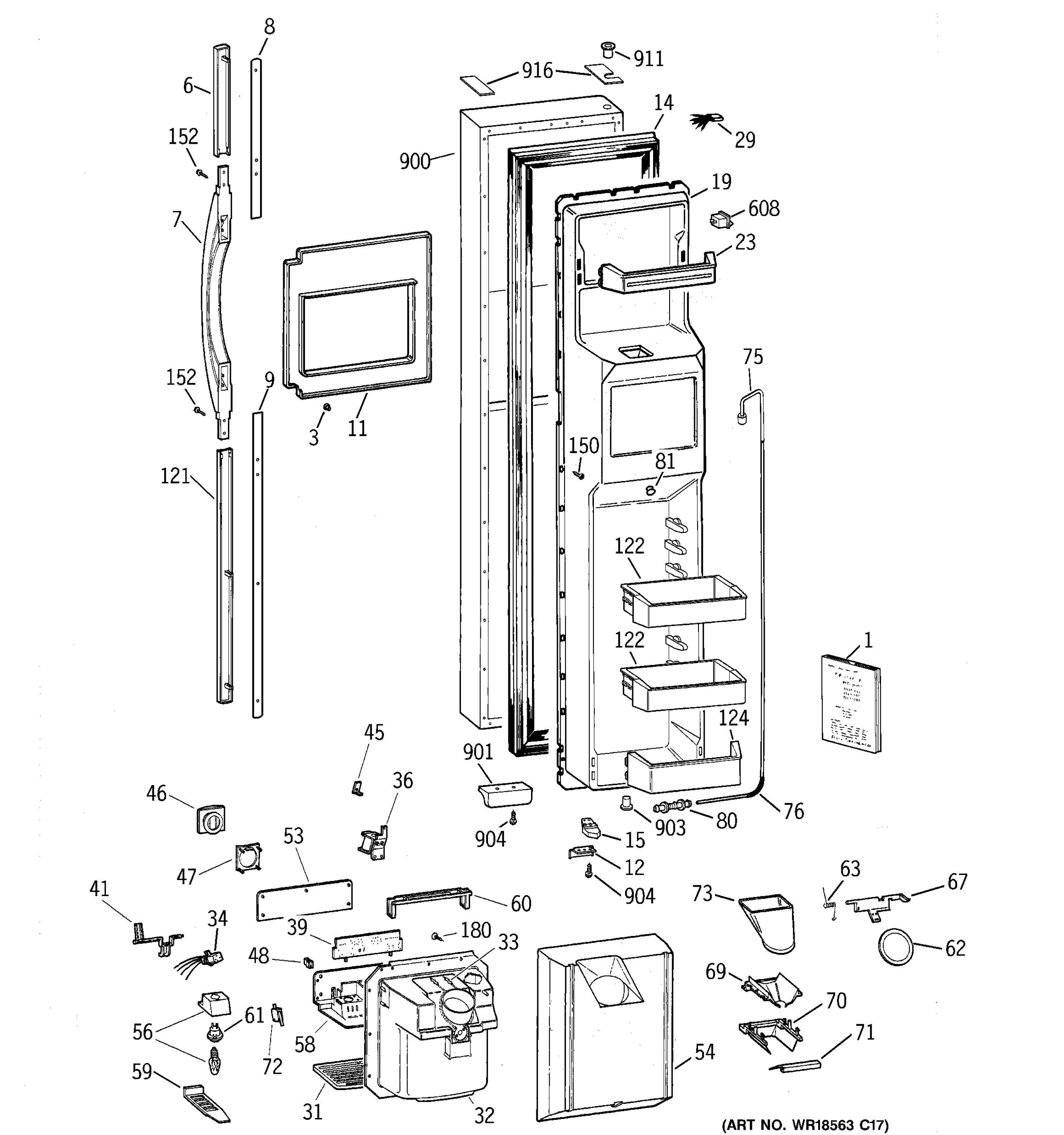

FREEZER DOOR

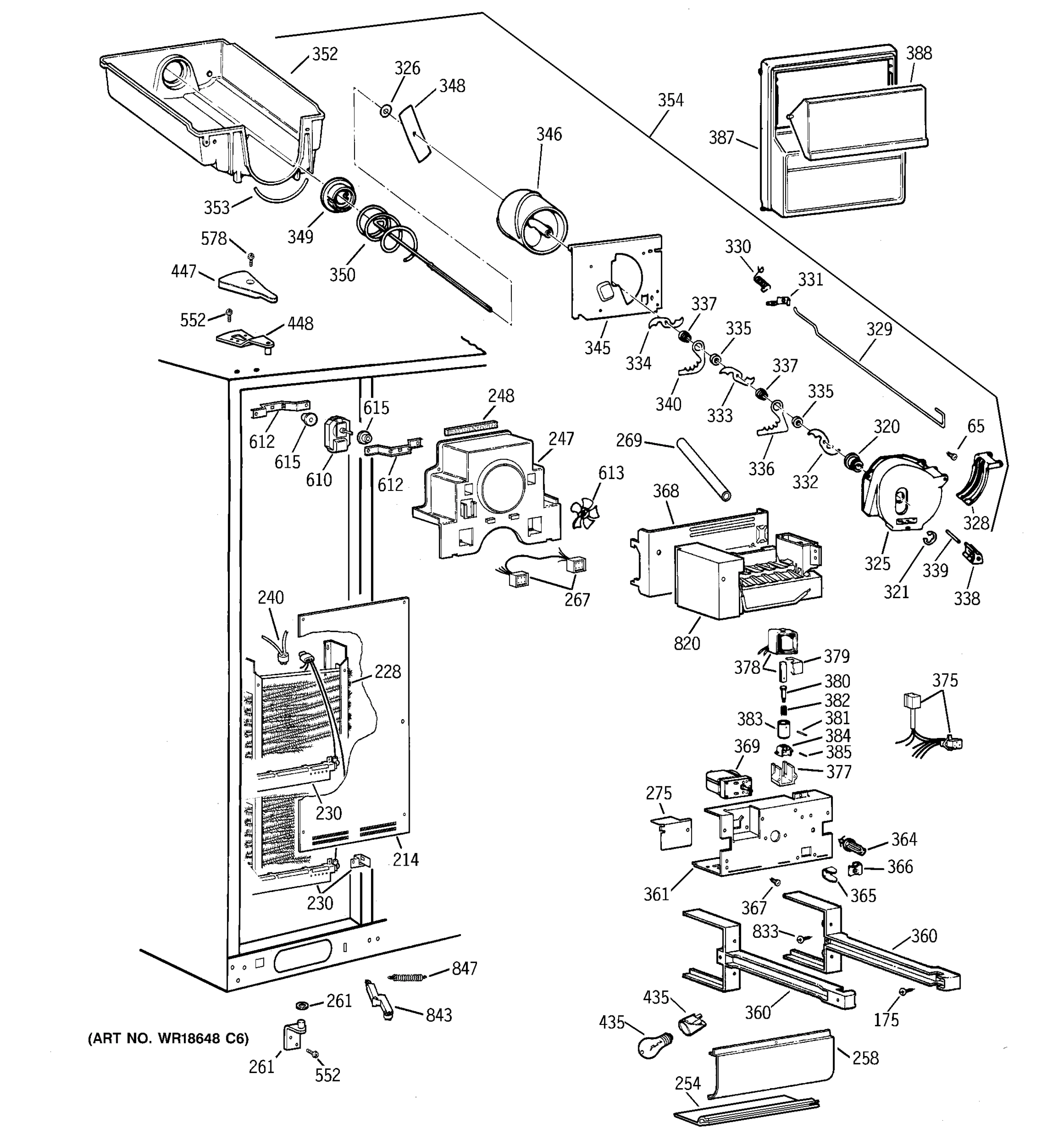

FREEZER SECTION

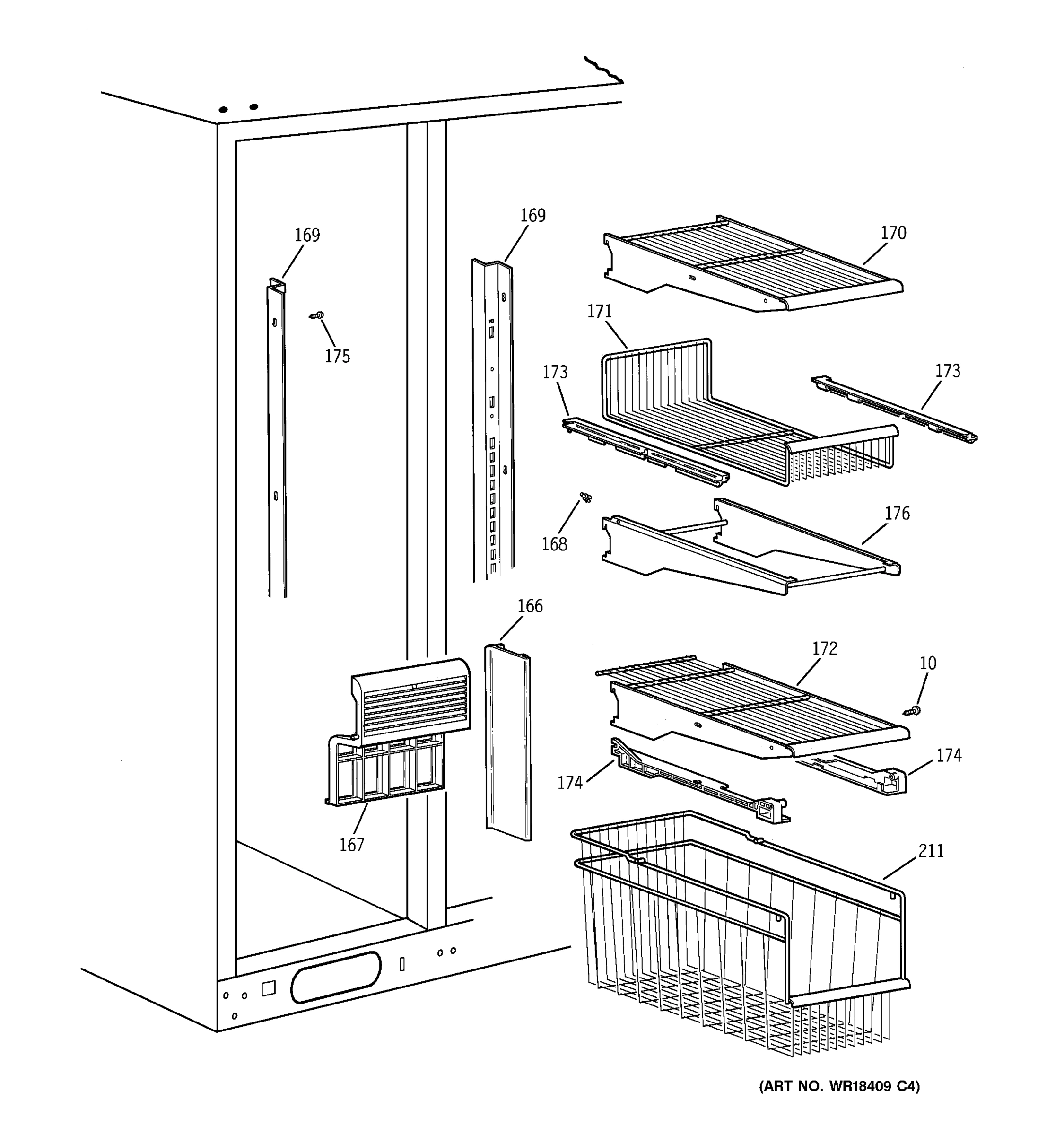

FREEZER SHELVES

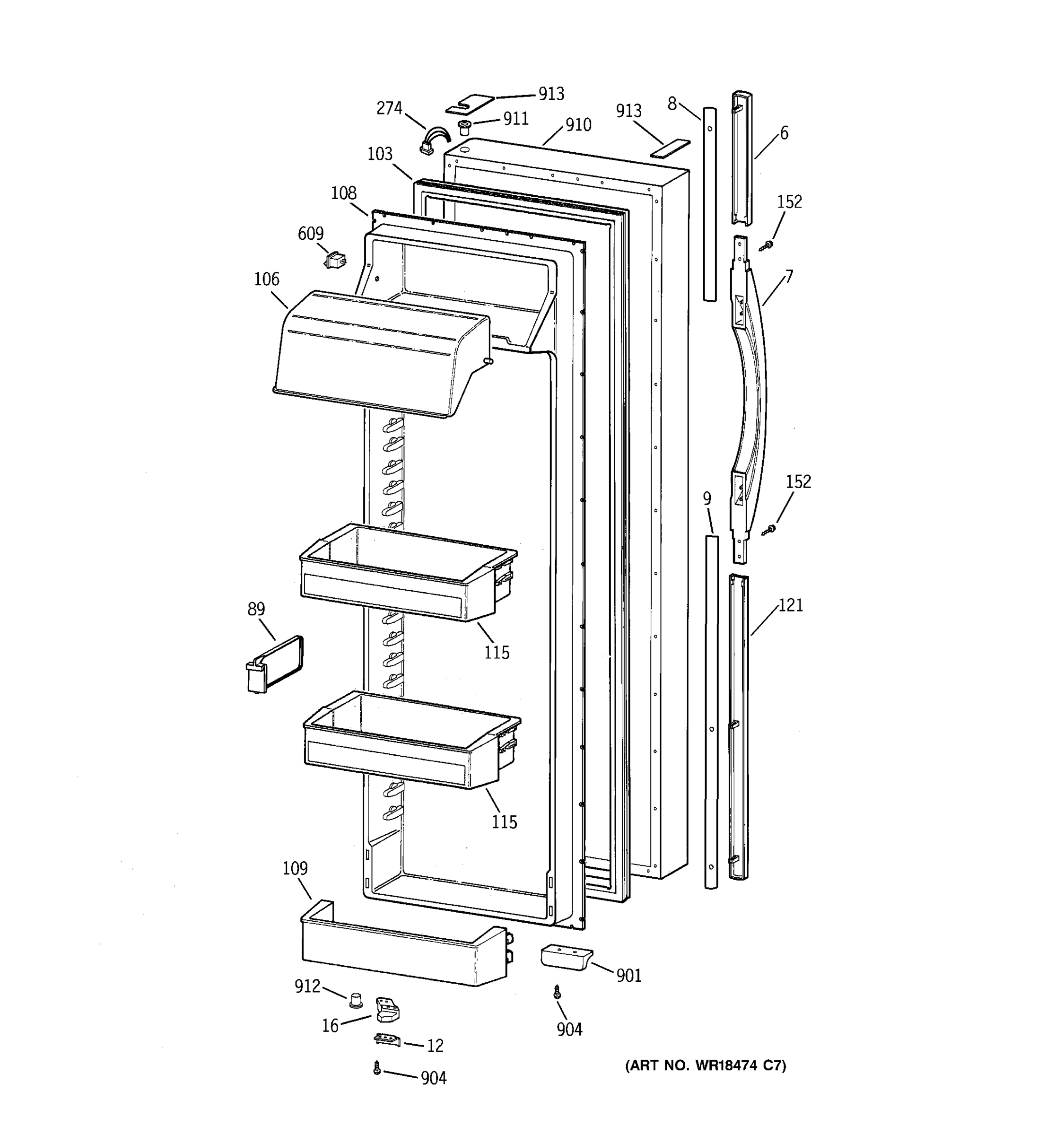

FRESH FOOD DOOR

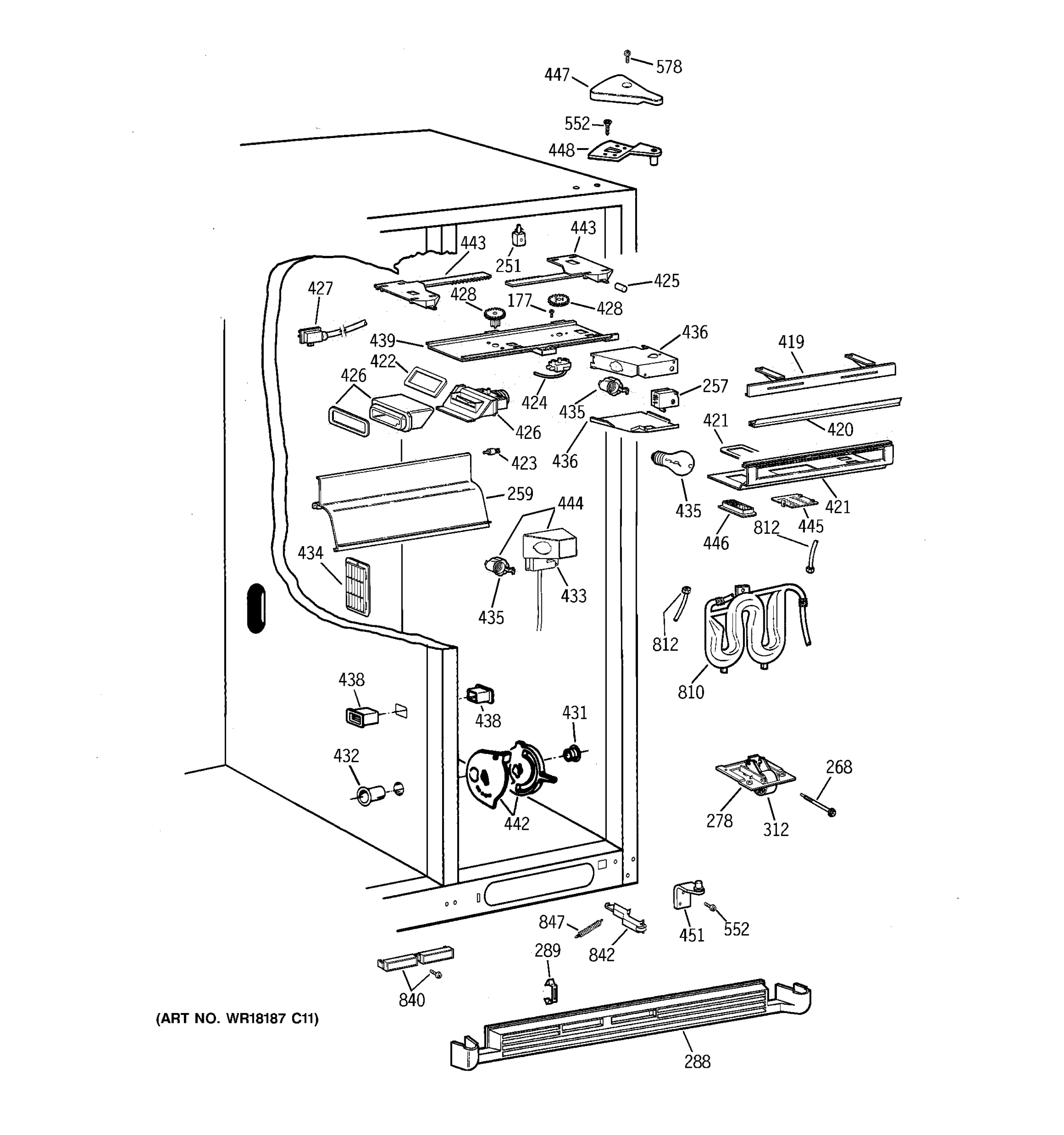

FRESH FOOD SECTION

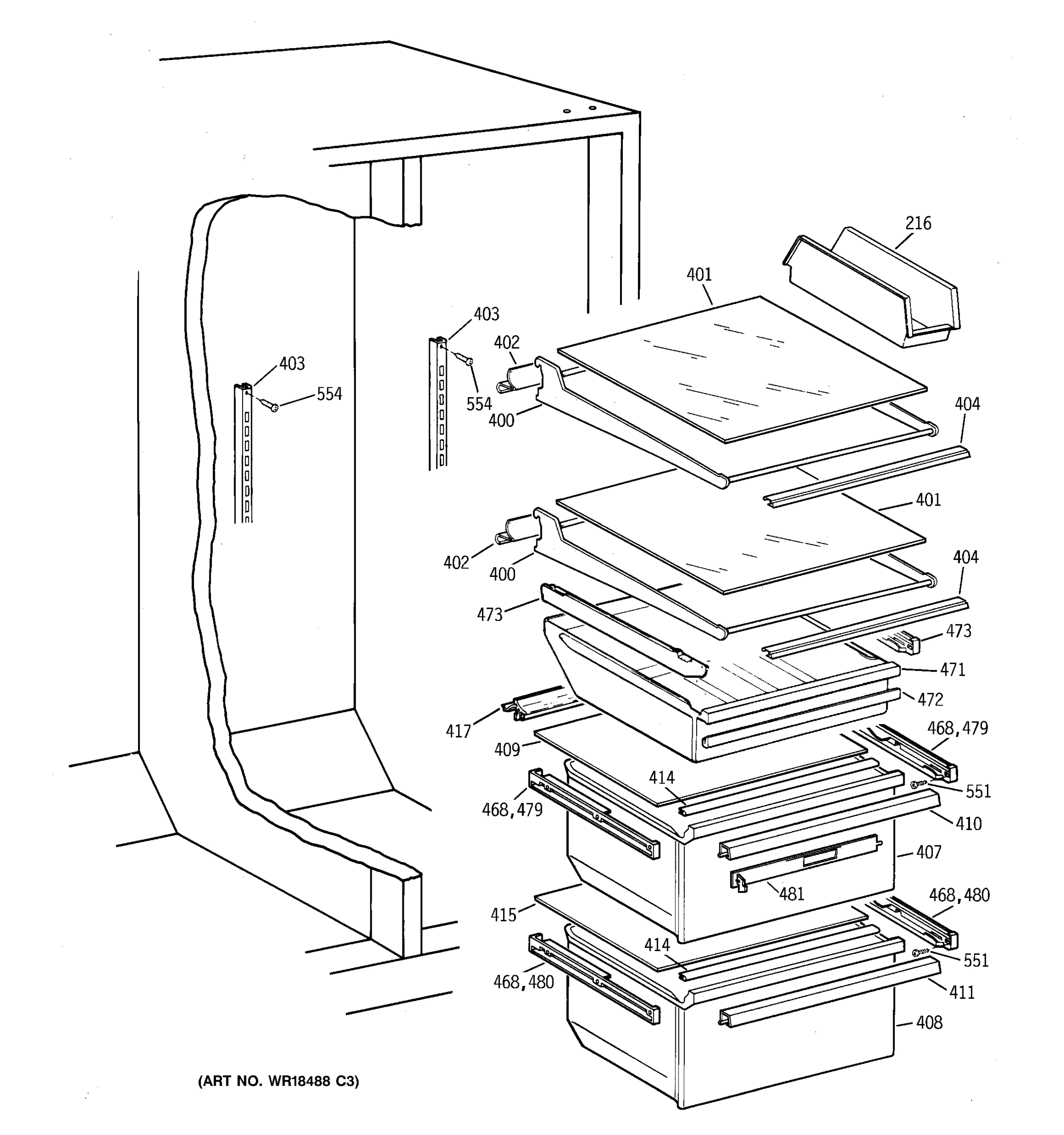

FRESH FOOD SHELVES

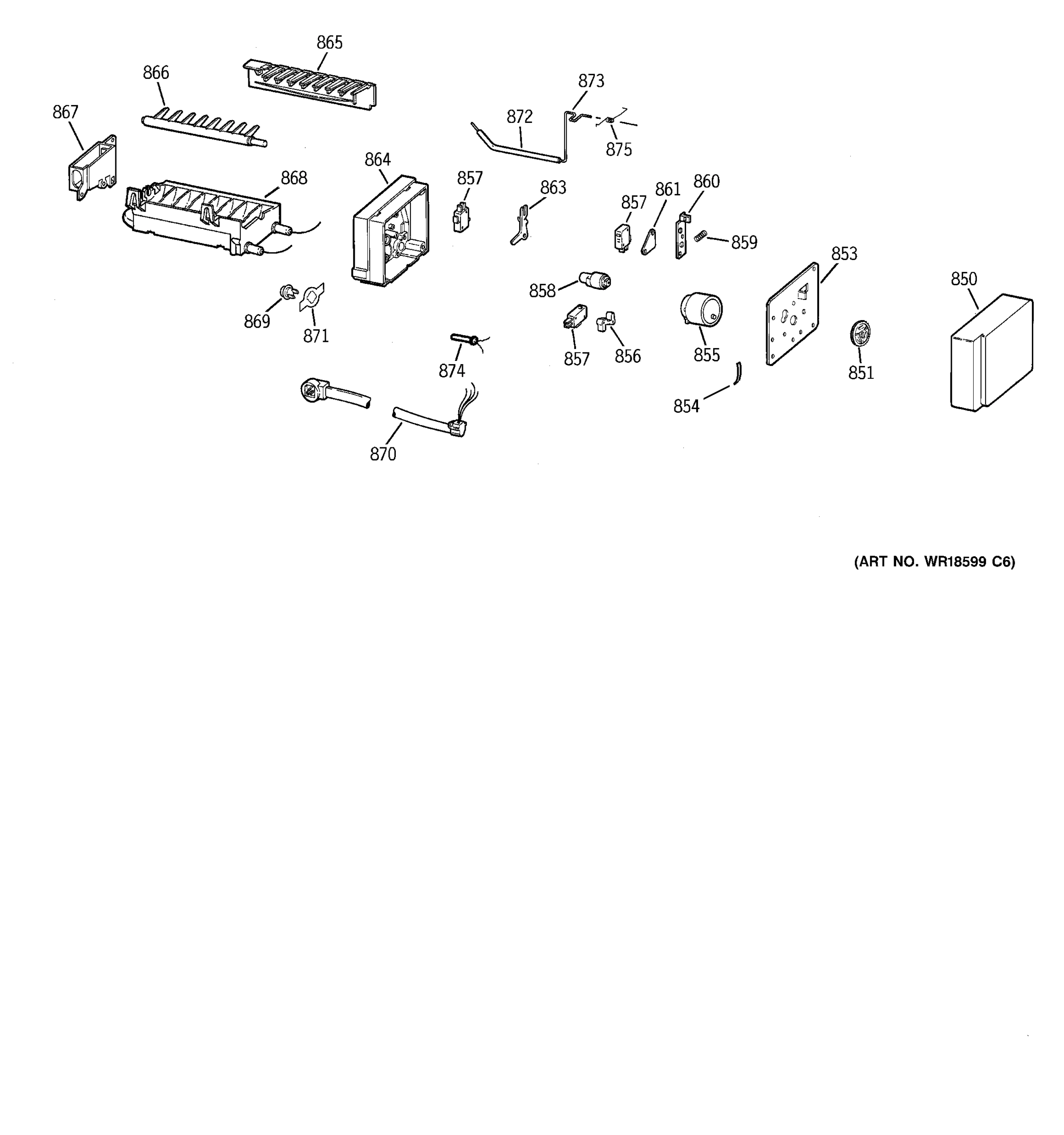

ICEMAKER WR30X0331

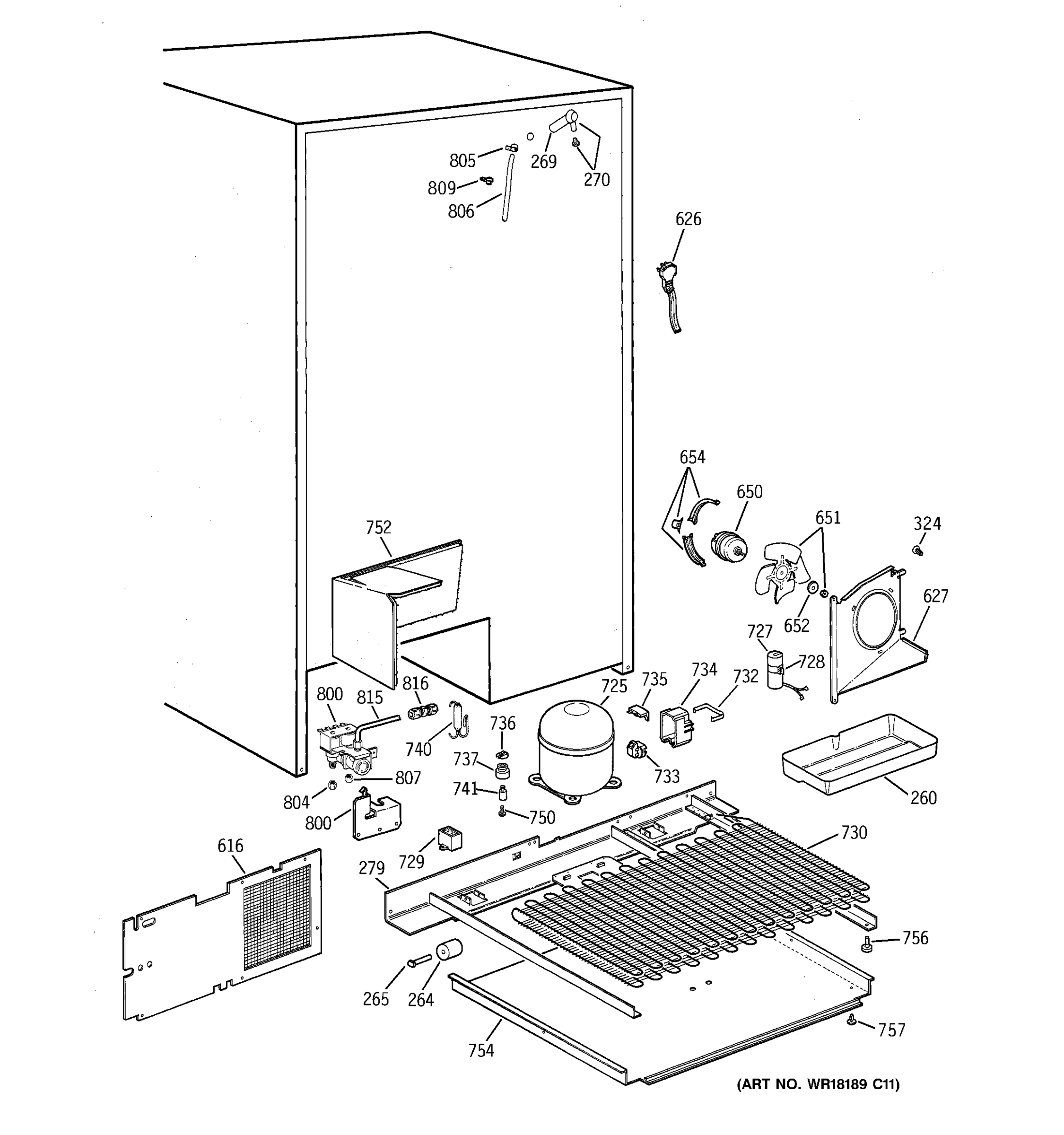

UNIT PARTS
Common parts from model Hotpoint CSK30DRBGAA Refrigerator
6
GEN WR12X10149 GEN WR12X10149 Contact Us For Availability
7
GEN WR12X10116 GEN WR12X10116 Contact Us For Availability
8
GEN WR12X10150 GEN WR12X10150 Contact Us For Availability
9
GEN WR12X10190 GEN WR12X10190 Contact Us For Availability
12
GEN WR02X10043 GEN WR02X10043 Contact Us For Availability
16
GEN WR02X9249 GEN WR02X9249 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8726 GEN WR02X8726 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X9154 GEN WR02X9154 Contact Us For Availability
53
GEN WR17X4286 GEN WR17X4286 Contact Us For Availability
54
GEN WR17X3980 GEN WR17X3980 Contact Us For Availability
56
GEN 10S6/10BB GEN 10S6/10BB Contact Us For Availability
56
GEN WR02X8686 GEN WR02X8686 Contact Us For Availability
58
GEN WR17X3462 GEN WR17X3462 Contact Us For Availability
59
GEN WR02X9132 GEN WR02X9132 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
SUPT. FUNNEL GUARD AD GEN WR02X8956 Contact Us For Availability
71
GEN WR17X10282 GEN WR17X10282 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
73
GEN WR17X3832 GEN WR17X3832 Contact Us For Availability
75
GEN WR17X3670 GEN WR17X3670 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
81
GEN WR01X2077 GEN WR01X2077 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
89
GEN WR02X9347 GEN WR02X9347 Contact Us For Availability
103
GEN WR24X0560 GEN WR24X0560 Contact Us For Availability
106
GEN WR22X0498 GEN WR22X0498 Contact Us For Availability
108
GEN WR77X0650 GEN WR77X0650 Contact Us For Availability
109
GEN WR71X10062 GEN WR71X10062 Contact Us For Availability
115
GEN WR71X10066 GEN WR71X10066 Contact Us For Availability
121
GEN WR12X10189 GEN WR12X10189 Contact Us For Availability
122
GEN WR71X10067 GEN WR71X10067 Contact Us For Availability
124
GEN WR71X10064 GEN WR71X10064 Contact Us For Availability
152
GEN WR01X10038 GEN WR01X10038 Contact Us For Availability
166
GEN WR17X3836 GEN WR17X3836 Contact Us For Availability
167
GEN WR17X10017 GEN WR17X10017 Contact Us For Availability
168
GEN WR01X2029 GEN WR01X2029 Contact Us For Availability
169
GEN WR72X10005 GEN WR72X10005 Contact Us For Availability
169
GEN WR72X10006 GEN WR72X10006 Contact Us For Availability
170
GEN WR71X2530 GEN WR71X2530 Contact Us For Availability
171
GEN WR71X2521 GEN WR71X2521 Contact Us For Availability
172
GEN WR71X10003 GEN WR71X10003 Contact Us For Availability
173
GEN WR72X0243 GEN WR72X0243 Contact Us For Availability
173
GEN WR72X0244 GEN WR72X0244 Contact Us For Availability
174
GEN WR72X10003 GEN WR72X10003 Contact Us For Availability
174
GEN WR72X10004 GEN WR72X10004 Contact Us For Availability
175
SCR 8-18 AB IHW 5/8 S GEN WR01X2023 Contact Us For Availability
176
GEN WR71X2523 GEN WR71X2523 Contact Us For Availability
177
GEN WR01X5034 GEN WR01X5034 Contact Us For Availability
211
GEN WR71X2522 GEN WR71X2522 Contact Us For Availability
214
GEN WR17X3835 GEN WR17X3835 Contact Us For Availability
216
GEN WR32X1575 GEN WR32X1575 Contact Us For Availability
228
LOW SIDE REPL ASM GEN WR85X0306 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
230
GEN WR51X10024 GEN WR51X10024 Contact Us For Availability
247
GEN WR17X10039 GEN WR17X10039 Contact Us For Availability
248
GEN WR14X0460 GEN WR14X0460 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
254
GEN WR17X4275 GEN WR17X4275 Contact Us For Availability
257
GEN WR09X0591 GEN WR09X0591 Contact Us For Availability
258
GEN WR17X10401 GEN WR17X10401 Contact Us For Availability
259
GEN WR17X3909 GEN WR17X3909 Contact Us For Availability
260
GEN WR32X10011 GEN WR32X10011 Contact Us For Availability
261
GEN WR01X2033 GEN WR01X2033 Contact Us For Availability
261
GEN WR13X0701 GEN WR13X0701 Contact Us For Availability
264
WHEEL MOBILITY REAR GEN WR02X8838 Contact Us For Availability
265
GEN WR01X2050 GEN WR01X2050 Contact Us For Availability
267
GEN WR23X0471 GEN WR23X0471 Contact Us For Availability
268
GEN WR01X2025 GEN WR01X2025 Contact Us For Availability
269
TUBE WATER FILL I/M GEN WR02X7927 Contact Us For Availability
274
GEN WR23X10041 GEN WR23X10041 Contact Us For Availability
275
GEN WR01X2018 GEN WR01X2018 Contact Us For Availability
278
MOBILITY ASM FRONT GEN WR02X9241 Contact Us For Availability
279
GEN WR17X10483 GEN WR17X10483 Contact Us For Availability
288
GEN WR74X10008 GEN WR74X10008 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
321
GEN WR01X1990 GEN WR01X1990 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
326
GEN WR01X1991 GEN WR01X1991 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
328
GEN WR02X9164 GEN WR02X9164 Contact Us For Availability
329
GEN WR17X3853 GEN WR17X3853 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X9165 GEN WR02X9165 Contact Us For Availability
332
GEN WR17X3740 GEN WR17X3740 Contact Us For Availability
333
GEN WR17X3741 GEN WR17X3741 Contact Us For Availability
334
GEN WR17X3742 GEN WR17X3742 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X3739 GEN WR17X3739 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
340
GEN WR17X3738 GEN WR17X3738 Contact Us For Availability
345
GEN WR17X3733 GEN WR17X3733 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X10068 GEN WR17X10068 Contact Us For Availability
352
GEN WR30X0313 GEN WR30X0313 Contact Us For Availability
354
GEN WR17X10067 GEN WR17X10067 Contact Us For Availability
360
GEN WR71X10154 GEN WR71X10154 Contact Us For Availability
361
GEN WR17X10402 GEN WR17X10402 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X10011 GEN WR02X10011 Contact Us For Availability
369
GEN WR60X0201 GEN WR60X0201 Contact Us For Availability
375
GEN WR23X10029 GEN WR23X10029 Contact Us For Availability
387
GEN WR17X10041 GEN WR17X10041 Contact Us For Availability
388
GEN WR17X3838 GEN WR17X3838 Contact Us For Availability
400
GEN WR71X2303 GEN WR71X2303 Contact Us For Availability
401
GEN WR32X1536 GEN WR32X1536 Contact Us For Availability
402
GEN WR38X2214 GEN WR38X2214 Contact Us For Availability
403
GEN WR72X0249 GEN WR72X0249 Contact Us For Availability
404
GEN WR38X2216 GEN WR38X2216 Contact Us For Availability
408
GEN WR32X10012 GEN WR32X10012 Contact Us For Availability
409
GEN WR32X1530 GEN WR32X1530 Contact Us For Availability
410
GEN WR17X4104 GEN WR17X4104 Contact Us For Availability
411
GEN WR17X4105 GEN WR17X4105 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
417
GEN WR14X0466 GEN WR14X0466 Contact Us For Availability
419
GEN WR17X4321 GEN WR17X4321 Contact Us For Availability
420
GEN WR38X1995 GEN WR38X1995 Contact Us For Availability
421
GEN WR14X0433 GEN WR14X0433 Contact Us For Availability
421
GEN WR17X10371 GEN WR17X10371 Contact Us For Availability
422
GEN WR14X0429 GEN WR14X0429 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR02X8914 GEN WR02X8914 Contact Us For Availability
424
GEN WR09X0600 GEN WR09X0600 Contact Us For Availability
425
GEN WR02X9439 GEN WR02X9439 Contact Us For Availability
426
GEN WR02X8831 GEN WR02X8831 Contact Us For Availability
426
GEN WR09X10005 GEN WR09X10005 Contact Us For Availability
426
GEN WR14X0462 GEN WR14X0462 Contact Us For Availability
427
GEN WR23X10023 GEN WR23X10023 Contact Us For Availability
428
GEN WR02X8828 GEN WR02X8828 Contact Us For Availability
428
GEN WR02X8829 GEN WR02X8829 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
GEN WR02X10026 GEN WR02X10026 Contact Us For Availability
434
GEN WR17X10262 GEN WR17X10262 Contact Us For Availability
436
GEN WR02X8819 GEN WR02X8819 Contact Us For Availability
436
GEN WR02X8820 GEN WR02X8820 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X10306 GEN WR17X10306 Contact Us For Availability
442
GEN WR17X10060 GEN WR17X10060 Contact Us For Availability
443
GEN WR17X3318 GEN WR17X3318 Contact Us For Availability
443
GEN WR17X3319 GEN WR17X3319 Contact Us For Availability
444
GEN WR23X10013 GEN WR23X10013 Contact Us For Availability
445
GEN WR17X4021 GEN WR17X4021 Contact Us For Availability
446
GEN WR17X10038 GEN WR17X10038 Contact Us For Availability
447
GEN WR02X9437 GEN WR02X9437 Contact Us For Availability
447
GEN WR02X9438 GEN WR02X9438 Contact Us For Availability
448
GEN WR13X10032 GEN WR13X10032 Contact Us For Availability
448
GEN WR13X10033 GEN WR13X10033 Contact Us For Availability
451
HINGE BTM ASM AD GEN WR13X10006 Contact Us For Availability
471
GEN WR32X1339 GEN WR32X1339 Contact Us For Availability
472
GEN WR38X2235 GEN WR38X2235 Contact Us For Availability
473
GEN WR72X0210 GEN WR72X0210 Contact Us For Availability
473
GEN WR72X0211 GEN WR72X0211 Contact Us For Availability
481
GEN WR01X2079 GEN WR01X2079 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
564
SCR 1/4 14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
609
GEN WR23X10016 GEN WR23X10016 Contact Us For Availability
610
GEN WR60X0269 GEN WR60X0269 Contact Us For Availability
612
GEN WR02X9319 GEN WR02X9319 Contact Us For Availability
613
GEN WR60X0255 GEN WR60X0255 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
616
GEN WR82X10008 GEN WR82X10008 Contact Us For Availability
626
GEN WR23X0487 GEN WR23X0487 Contact Us For Availability
627
GEN WR17X10189 GEN WR17X10189 Contact Us For Availability
650
GEN WR60X0267 GEN WR60X0267 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0234 GEN WR60X0234 Contact Us For Availability
652
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
654
GEN WR01X2019 GEN WR01X2019 Contact Us For Availability
654
GEN WR02X10027 GEN WR02X10027 Contact Us For Availability
680
GEN WR01X10123 GEN WR01X10123 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
725
GEN WR87X0509 GEN WR87X0509 Contact Us For Availability
727
GEN WR62X10006 GEN WR62X10006 Contact Us For Availability
728
GEN WR02X10024 GEN WR02X10024 Contact Us For Availability
729
GEN WR62X10005 GEN WR62X10005 Contact Us For Availability
730
GEN WR84X0206 GEN WR84X0206 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
733
GEN WR07X0273 GEN WR07X0273 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0195 GEN WR08X0195 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
752
GEN WR82X10028 GEN WR82X10028 Contact Us For Availability
754
GEN WR82X10058 GEN WR82X10058 Contact Us For Availability
756
GEN WR01X2021 GEN WR01X2021 Contact Us For Availability
757
GEN WR01X2035 GEN WR01X2035 Contact Us For Availability
800
GEN WR02X10158 GEN WR02X10158 Contact Us For Availability
806
GEN WR17X10045 GEN WR17X10045 Contact Us For Availability
807
INSERT 5/16 GEN WR02X4046 Contact Us For Availability
815
GEN WR57X10001 GEN WR57X10001 Contact Us For Availability
816
GEN WR57X10021 GEN WR57X10021 Contact Us For Availability
822
GEN WR01X2122 GEN WR01X2122 Contact Us For Availability
840
SCR 8-32 T PA 7/8 S GEN WR01X2024 Contact Us For Availability
840
GEN WR11X10002 GEN WR11X10002 Contact Us For Availability
842
GEN WR11X0176 GEN WR11X0176 Contact Us For Availability
843
GEN WR11X0177 GEN WR11X0177 Contact Us For Availability
850
GEN WR29X0193 GEN WR29X0193 Contact Us For Availability
853
GEN WR29X5163 GEN WR29X5163 Contact Us For Availability
855
GEN WR29X10003 GEN WR29X10003 Contact Us For Availability
856
GEN WR29X5118 GEN WR29X5118 Contact Us For Availability
857
GEN WR29X10007 GEN WR29X10007 Contact Us For Availability
861
INSULATOR GEN WR29X5117 Contact Us For Availability
864
GEN WR29X0115 GEN WR29X0115 Contact Us For Availability
867
GEN WR29X0208 GEN WR29X0208 Contact Us For Availability
868
GEN WR29X0204 GEN WR29X0204 Contact Us For Availability
870
GEN WR29X0192 GEN WR29X0192 Contact Us For Availability
872
SLEEVE VINYL GEN WR29X5128 Contact Us For Availability
875
GEN WR29X10009 GEN WR29X10009 Contact Us For Availability
900
GEN WR78X10183 GEN WR78X10183 Contact Us For Availability
901
GEN WR10X10004 GEN WR10X10004 Contact Us For Availability
903
GEN WR01X10155 GEN WR01X10155 Contact Us For Availability
910
GEN WR78X10182 GEN WR78X10182 Contact Us For Availability
911
GEN WR01X10154 GEN WR01X10154 Contact Us For Availability
912
GEN WR01X10156 GEN WR01X10156 Contact Us For Availability
913
CORNER COVER FF AD GEN WR01X2043 Contact Us For Availability
916
CORNER COVER FZ AD GEN WR01X2044 Contact Us For Availability
1458
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
1506
GEN WB17X5059 GEN WB17X5059 Contact Us For Availability
× ![]()
