Model GE CGB500P2M1S1 Gas Range Or Dual Fuel – Common Parts & Diagrams
CAFE CUSTOMIZATION

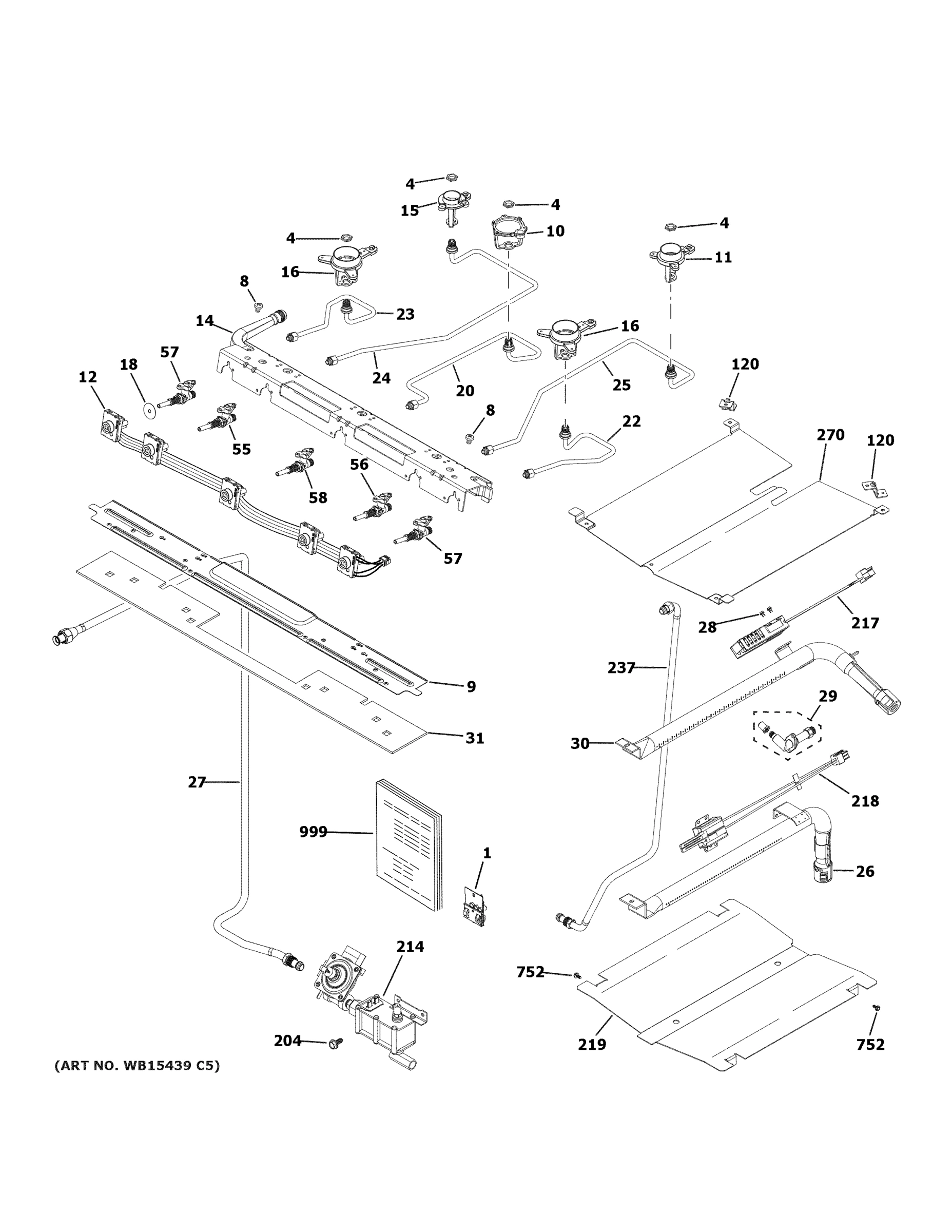

GAS & BURNER PARTS
CONTROL PANEL & COOKTOP
BODY PARTS
DOOR & DRAWER PARTS
CONVECTION FAN
Common parts from model GE CGB500P2M1S1 Gas Range Or Dual Fuel
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
8
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
10
CKT BRACKET SMALL GEN WB02K10360 Contact Us For Availability
11
INJET, MEDIUM V2 GEN WB02X24727 Contact Us For Availability
12
HARNESS SWITCH GEN WB18X31618 Contact Us For Availability
15
INJET, SMALL V2 GEN WB02X24728 Contact Us For Availability
16
INJET, XL V2 GEN WB02X24725 Contact Us For Availability
20
ORIFICE HOLDER CENTRAL GEN WB28X24762 Contact Us For Availability
22
ORIFICE HOLDER GEN WB28X25593 Contact Us For Availability
23
ORIFICE HOLDER RF GEN WB28X24761 Contact Us For Availability
24
ORIFICE HOLDER RR GEN WB28X24763 Contact Us For Availability
26
BURNER BAKE GEN WB16X28250 Contact Us For Availability
27
TUBE MANIFOLD SUPPLY GEN WB28X24772 Contact Us For Availability
29
ELBOW 90 ASM GEN WB28X28697 Contact Us For Availability
30
BURNER BROIL GEN WB16X28251 Contact Us For Availability
35
SPACER BASE FRONT GEN WB16X20448 Contact Us For Availability
43
SENSOR ASM GEN WB24X25557 Contact Us For Availability
55
VALVE BURNER 270 GEN WB21X25979 Contact Us For Availability
56
VALVE BURNER 270 GEN WB21X20470 Contact Us For Availability
57
VALVE BURNER 270 GEN WB21X20612 Contact Us For Availability
58
VALVE BURNER 270 GEN WB21X20471 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
100
END SUPPORT DD RH GEN WB07X29143 Contact Us For Availability
101
END SUPPORT DD LH GEN WB07X29144 Contact Us For Availability
107
COVER BACK LOWER GEN WB34X24746 Contact Us For Availability
110
IGNITION MODULE GEN WB13X24741 Contact Us For Availability
111
ELECTRODES & HARNESS H.V GEN WB18X26980 Contact Us For Availability
112
HINGE RANGE TOP GEN WB14K10003 Contact Us For Availability
113
GRATE ASM GEN WB31X28755 Contact Us For Availability
122
CKT SCREW GEN WB01X24735 Contact Us For Availability
136
GLASS & TOUCH BOARD ASM GEN WB27X31750 Contact Us For Availability
146
CLIP RANGETOP GEN WB02X26569 Contact Us For Availability
150
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
151
ASM. CAP, BURNER SMALL V2 GEN WB16X28654 Contact Us For Availability
153
CAP BURNER ASM (15K) GEN WB28K10222 Contact Us For Availability
155
BURNER, SMALL V2 GEN WB16X24721 Contact Us For Availability
157
BURNER, XL V2 GEN WB16X24722 Contact Us For Availability
158
OVAL BURNER ASM GEN WB16K10076 Contact Us For Availability
159
BURNER, MEDIUM V2 GEN WB16X24724 Contact Us For Availability
169
CLIP, IGNITER V2 GEN WB02X24976 Contact Us For Availability
175
HARNESS GROUND GEN WB18X24748 Contact Us For Availability
200
OVEN RACK GEN WB48X20249 Contact Us For Availability
203
LINE CORD GEN WB18X28855 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
209
PANEL SIDE GEN WB56X29670 Contact Us For Availability
222
DOOR HINGE RT GEN WB10X24777 Contact Us For Availability
223
DOOR HINGE LT GEN WB10X26464 Contact Us For Availability
233
PLUNGER SWITCH GEN WB24X27550 Contact Us For Availability
237
TUBE BURNER SUPPLY GEN WB28X24773 Contact Us For Availability
238
SPACER BASE REAR GEN WB16X20449 Contact Us For Availability
239
PANEL REAR BROIL GEN WB63K10203 Contact Us For Availability
243
SUPPORT BASE RT GEN WB63X20215 Contact Us For Availability
244
SUPPORT BASE LT GEN WB63X20216 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
259
DRAWER SLIDE ASSY LEFT GEN WB39K10021 Contact Us For Availability
259
DRAWER SLIDE ASSY RIGHT GEN WB39K10020 Contact Us For Availability
262
INSULATION OVEN BACK GEN WB35X28786 Contact Us For Availability
270
DEFLECTOR GEN WB34X28689 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB10X24780 Contact Us For Availability
289
LOWER HEAT SHIELD GEN WB34K10086 Contact Us For Availability
300
KIT DRAWER BODY ASM GEN WB49X26562 Contact Us For Availability
306
STAINLESS STEEL DRAWER PANEL GEN WB56X31644 Contact Us For Availability
311
BUMPER GEN WB02X24790 Contact Us For Availability
318
GASKET OVEN ASM GEN WB32X29539 Contact Us For Availability
338
CRYSTAL WINDOW GEN WB57K10174 Contact Us For Availability
343
PANEL SIDE FOIL GEN WB35X26892 Contact Us For Availability
344
BRACKET DRAWER GEN WB02X24742 Contact Us For Availability
360
GASKET DRAWER ASM GEN WB35X25645 Contact Us For Availability
659
CORD FIBER GLASS GEN WB35X21685 Contact Us For Availability
720
FAN COVER GEN WB34X28703 Contact Us For Availability
723
FAN INSULATION GEN WB35K10013 Contact Us For Availability
724
FAN SUPPORT GEN WB02K10034 Contact Us For Availability
725
COVER MOTOR GEN WB34K10097 Contact Us For Availability
726
FAN MOTOR CONVECT GEN WB26X28953 Contact Us For Availability
727
PROBE RECEPTACLE & HARNE GEN WB34K10121 Contact Us For Availability
729
NUT GEN WB02T10017 Contact Us For Availability
730
CONVECTION ELEMENT GEN WB44X10051 Contact Us For Availability
781
REVERSIBLE GRIDDLE GEN WB31X24998 Contact Us For Availability
788
COVER BACK GEN WB34X21575 Contact Us For Availability
998
FASTENER DOOR HANDLE GEN WR01X11007 Contact Us For Availability
1153
DC HARNESS GEN WB18X28690 Contact Us For Availability
1950
TRIM FRONT BOTTOM GEN WB01K10072 Contact Us For Availability
8000
BRUSHED STAINLESS RANGE HANDLE W/ CAF B GEN WB15X31679 Contact Us For Availability
9000
BRUSHED STAINLESS RANGE HANDLE GEN WB15X31680 Contact Us For Availability
× ![]()
