Model GE CDT888P3V2D1 Dishwasher – Common Parts & Diagrams
INSTALLATION PARTS
CAFE CUSTOMIZATION

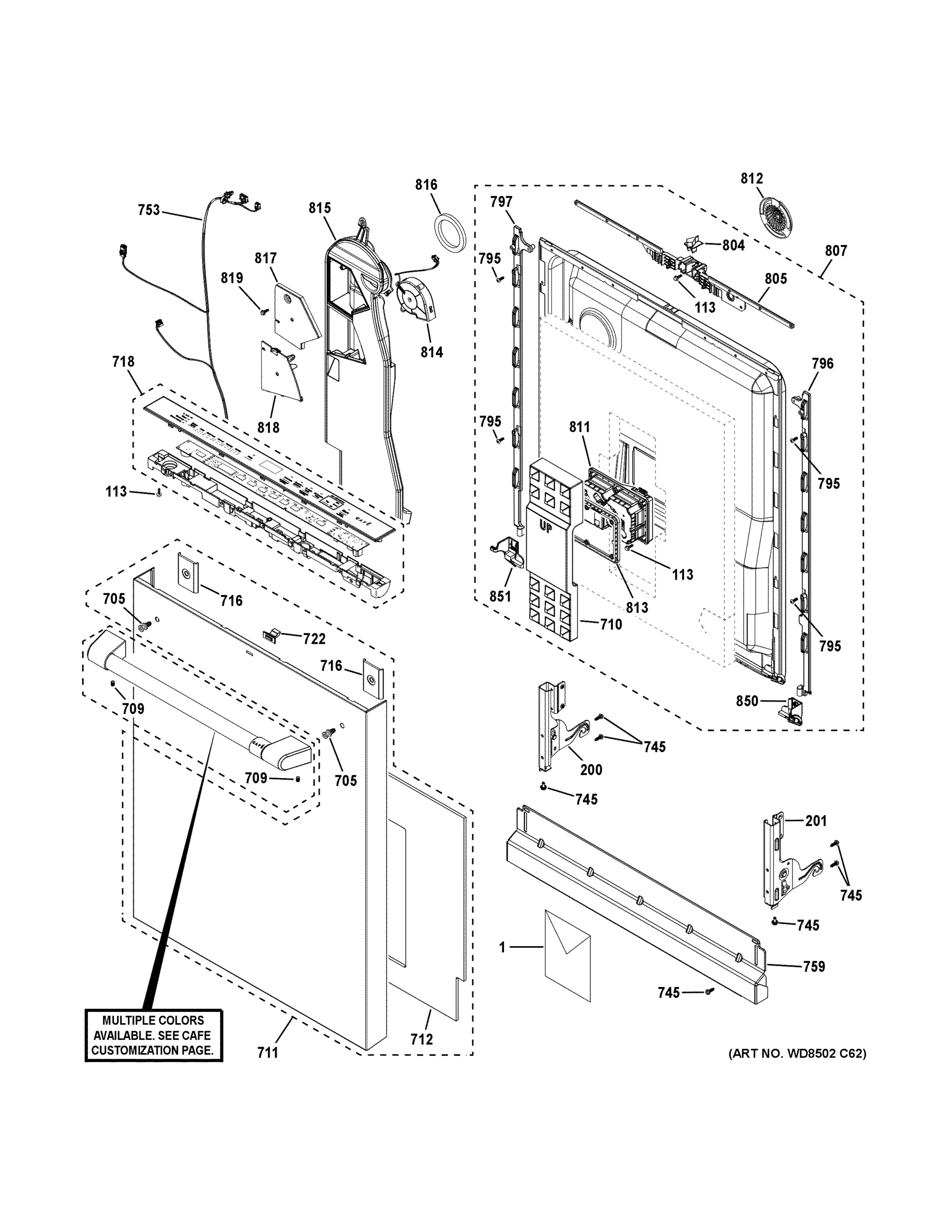

ESCUTCHEON & DOOR ASSEMBLY

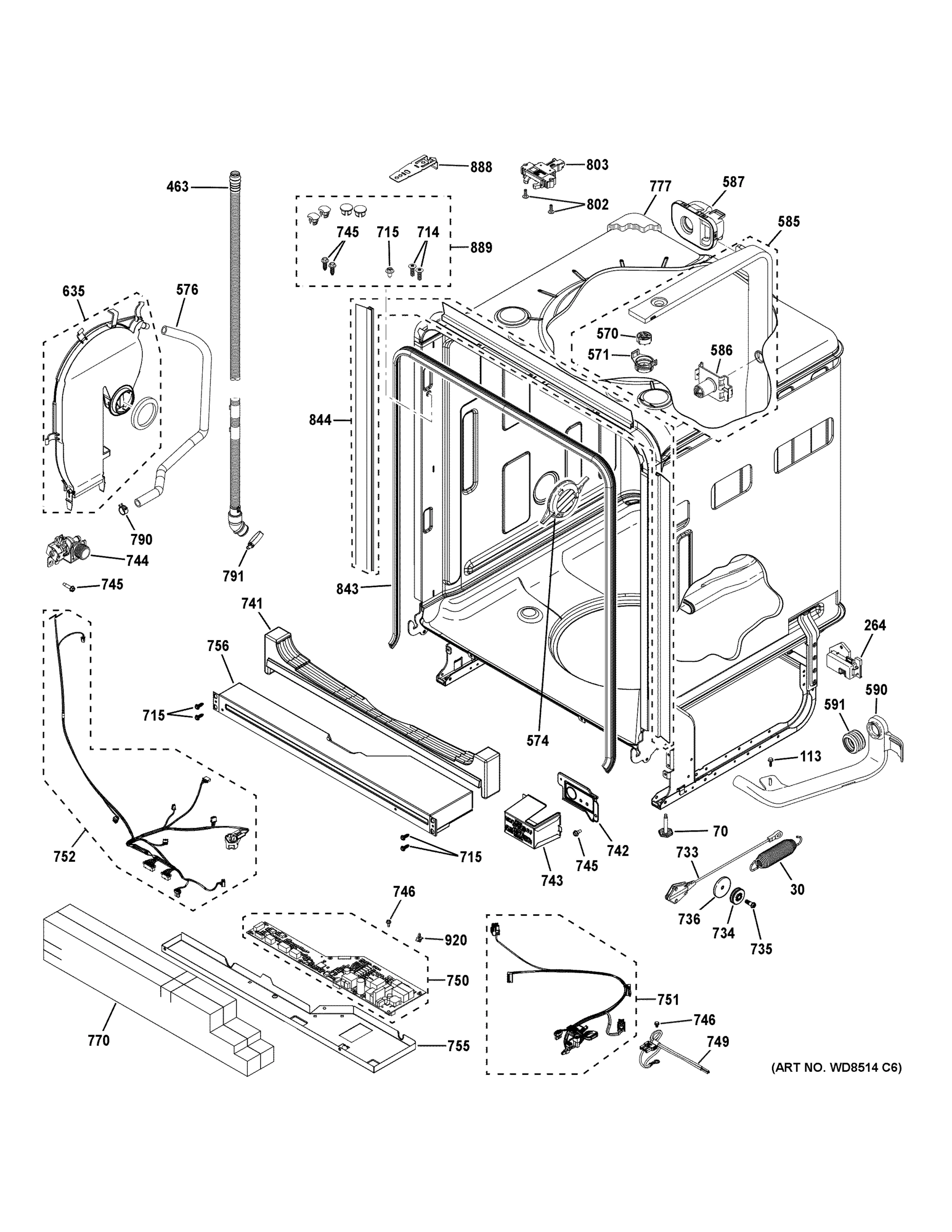

BODY PARTS (1)

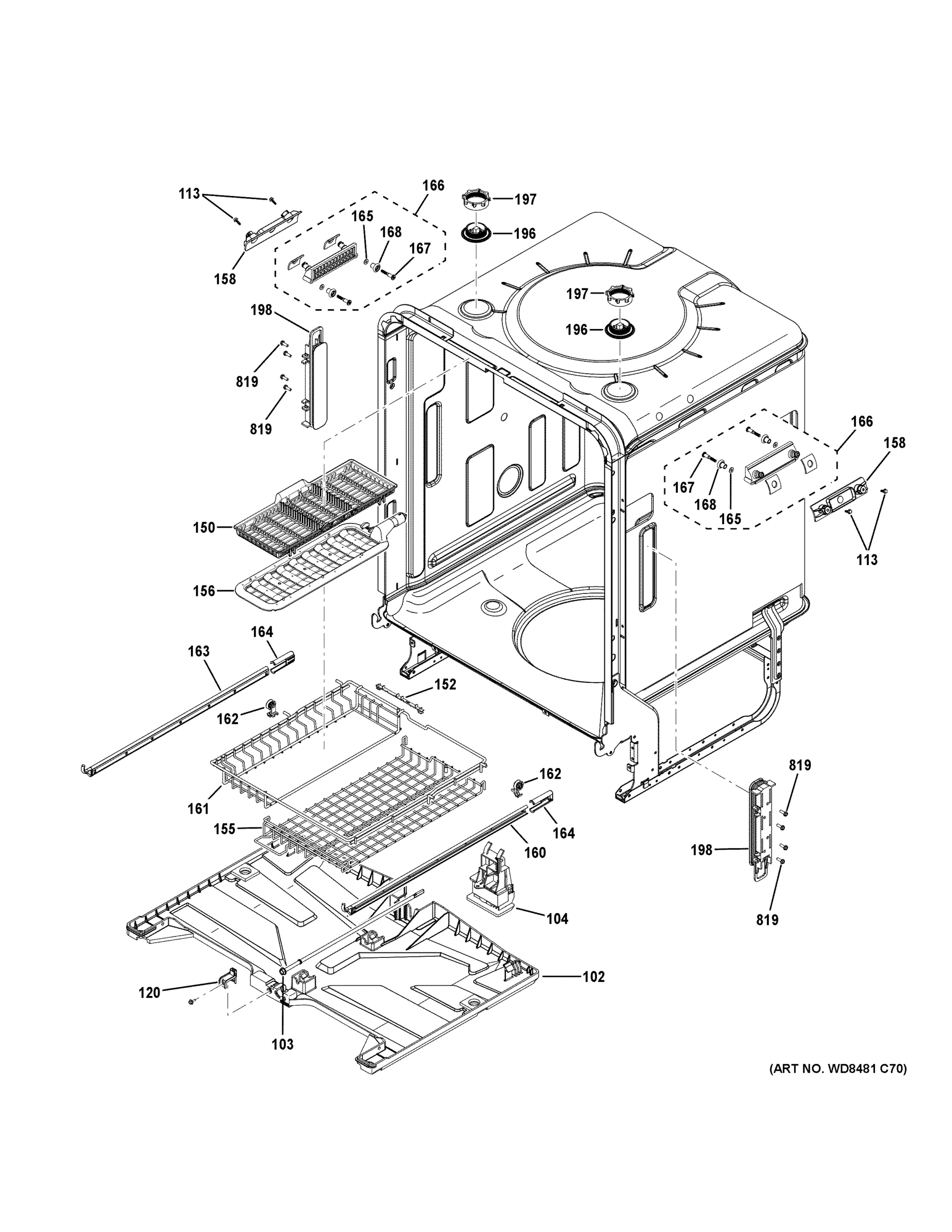

BODY PARTS (2)

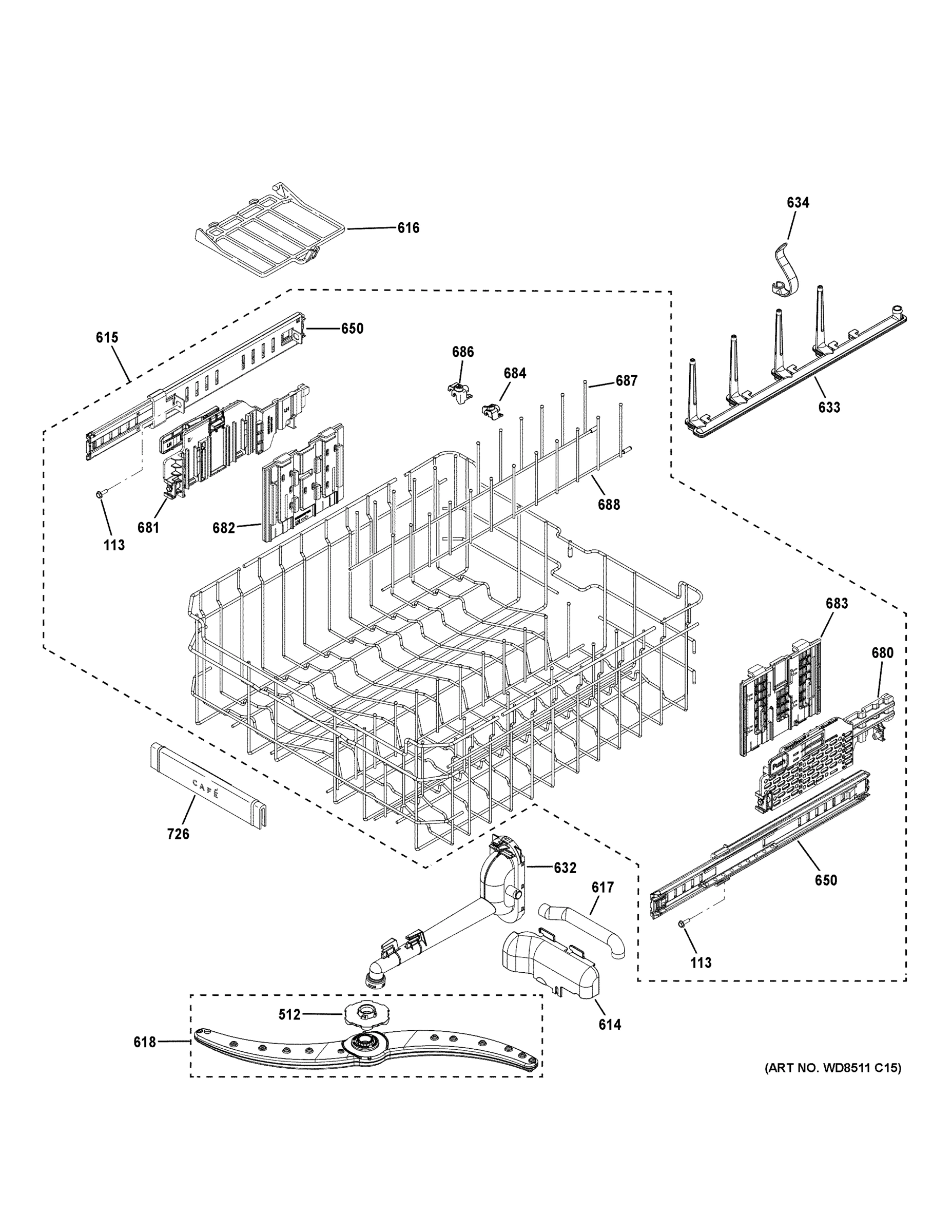

UPPER RACK ASSEMBLY

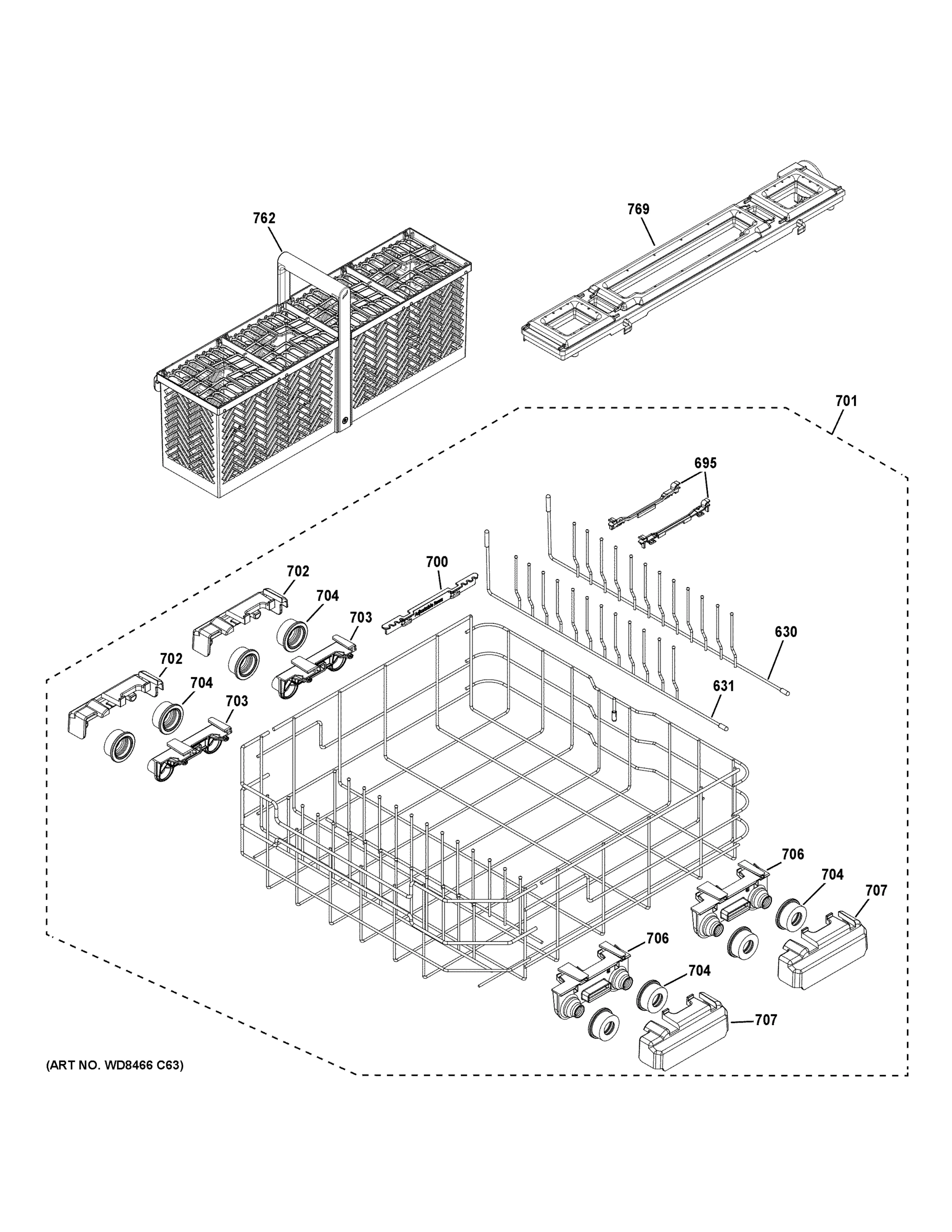

LOWER RACK ASSEMBLY

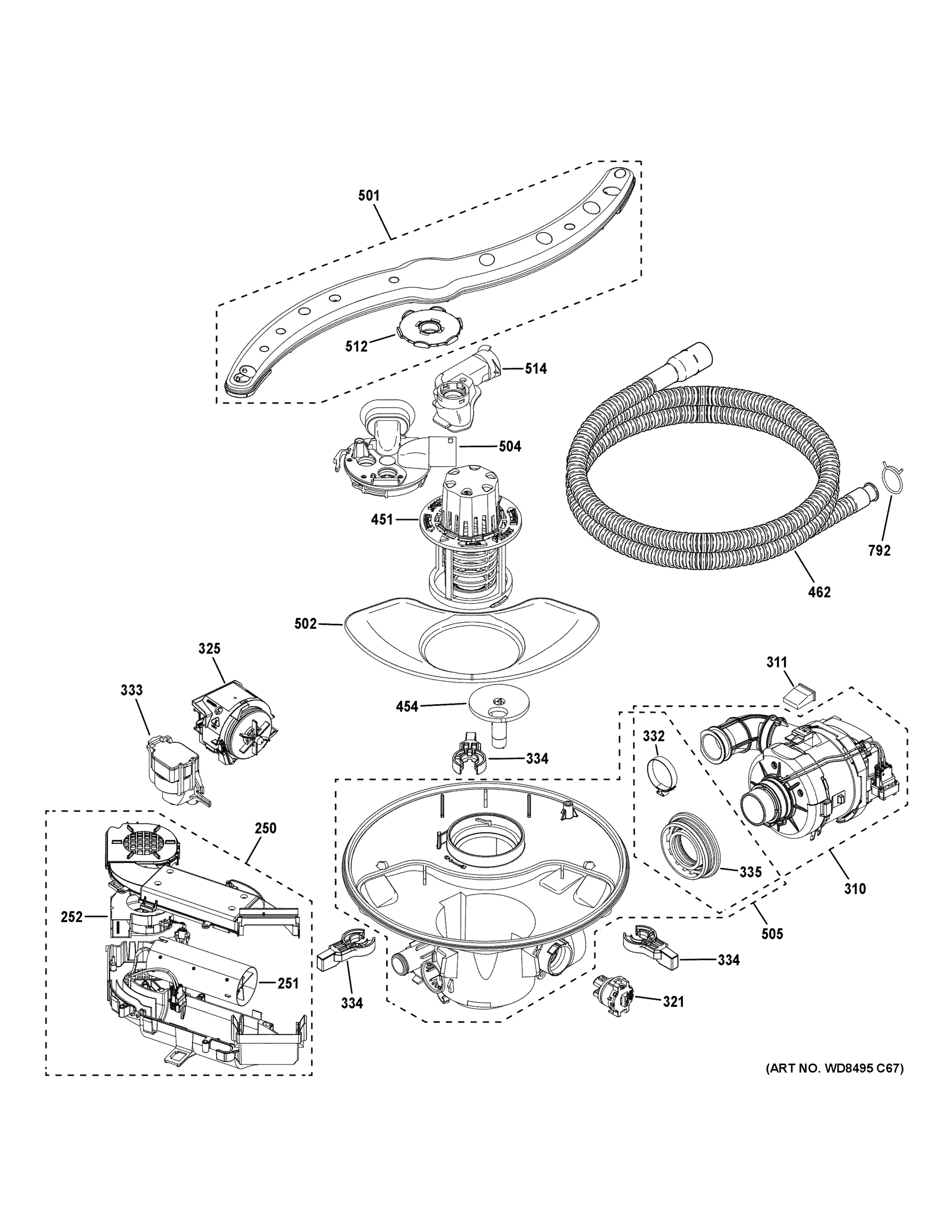

MOTOR, SUMP & FILTER ASSEMBLY
Common parts from model GE CDT888P3V2D1 Dishwasher
162
ROLLER AND BRACKET ASM GEN WD30X22347 Contact Us For Availability
163
RAIL AND END CAP ASM GEN WD27X22351 Contact Us For Availability
164
END CAP THIRD RACK REAR GEN WD02X22342 Contact Us For Availability
165
WASHER GEN WD3X767 Contact Us For Availability
196
TOP LED LIGHTS AND BOARD ASM GEN WD21X28180 Contact Us For Availability
198
SIDE LED LIGHTS AND BOARD GEN WD21X33178 Contact Us For Availability
200
DOOR HINGE ASSEMBLY LEFT GEN WD01X27721 Contact Us For Availability
201
DOOR HINGE ASSEMBLY RIGHT GEN WD01X27720 Contact Us For Availability
250
DRY BOOST HEATER AND BLOWER GEN WD05X32018 Contact Us For Availability
251
HEATER GEN WD05X32038 Contact Us For Availability
252
BLOWER ASM GEN WD19X32758 Contact Us For Availability
311
WASH PUMP ISOLATOR GEN WD01X25638 Contact Us For Availability
321
TURBIDITY SENSOR GEN WD21X29818 Contact Us For Availability
325
VARIABLE SPEED DRAIN PUMP ASM GEN WD19X25622 Contact Us For Availability
333
PRESSURE SENSOR ASM GEN WD21X25468 Contact Us For Availability
334
SUMP LATCH GEN WD01X28338 Contact Us For Availability
335
FLOATING SEAL ASM GEN WD08X27458 Contact Us For Availability
451
FINE FILTER AND BASKET ASM GEN WD12X25995 Contact Us For Availability
454
DIVERTER DISC AND MAGNET GEN WD19X33099 Contact Us For Availability
463
HIGH LOOP DRAIN HOSE GEN WD24X27778 Contact Us For Availability
501
LOWER SPRAY ARM GEN WD22X33502 Contact Us For Availability
502
COURSE FILTER SS GEN WD22X25421 Contact Us For Availability
504
FOUR PORT DIVERTER AND STEM GEN WD19X33098 Contact Us For Availability
512
SPRAY ARM HUB GEN WD12X34262 Contact Us For Availability
514
SPRAY ARM ADAPTER GEN WD12X34158 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
614
COVER BOTTLE BLASTER GEN WD24X20263 Contact Us For Availability
615
UPPER RACK GEN WD28X34318 Contact Us For Availability
616
CUP LIDS HOLDER GEN WD12X34264 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
618
MID SPRAY ARM GEN WD22X33500 Contact Us For Availability
630
FOLD DOWN TINE GEN WD28X34278 Contact Us For Availability
631
FOLD DOWN TINE GEN WD28X34279 Contact Us For Availability
632
MID CONDUIT BLASTER GEN WD12X34182 Contact Us For Availability
633
BOTTLE BLASTER GEN WD22X29899 Contact Us For Availability
634
BOTTLE WASHER CLIP GEN WD12X25301 Contact Us For Availability
650
UPPER RACK SLIDE GEN WD30X34183 Contact Us For Availability
682
BRACKET FIXED GEN WD12X20112 Contact Us For Availability
683
BRACKET FIXED GEN WD12X20113 Contact Us For Availability
684
FDT CLIP FLAT RACK GEN WD28X20311 Contact Us For Availability
686
FDT CLIP FLAT RACK GEN WD28X20310 Contact Us For Availability
687
FDT ASM UPPER COATED GEN WD28X20194 Contact Us For Availability
688
FDT ASM UPPER COATED GEN WD28X20193 Contact Us For Availability
700
INDEXER GEN WD28X20166 Contact Us For Availability
701
LOWER RACK GEN WD28X34999 Contact Us For Availability
704
ROLLER GEN WD12X26146 Contact Us For Availability
714
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
726
CAF RACK HANDLE GEN WD09X25338 Contact Us For Availability
734
PULLEY HINGE GEN WD16X20592 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
736
FRICTION WASHER GEN WD01X20593 Contact Us For Availability
741
SPACER TUB FRONT GEN WD01X23558 Contact Us For Availability
744
WATER VALVE ASM GEN WD15X27703 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
749
HARNESS ASM JUMPER GEN WD21X23559 Contact Us For Availability
762
SILVERWARE BASKET GEN WD28X34284 Contact Us For Availability
769
BLASTER SILVERWARE ASM GEN WD22X22928 Contact Us For Availability
770
INSULATION BAG GEN WD30X25631 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
791
CLAMP GEN WD01X24246 Contact Us For Availability
795
SCREW T15 8-16 PLASTITE GEN WD02X22628 Contact Us For Availability
796
ATTACH STRIP RH GEN WD01X22836 Contact Us For Availability
805
ATTACHMENT STRIP TOP GEN WD13X22837 Contact Us For Availability
819
SCREW 8-18 PL HXW 1/2 GEN WD01X27719 Contact Us For Availability
888
COUNTERTOP BRACKET GEN WD01X27759 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
× ![]()
