Model GE C2S985SET8SS Gas Range Or Dual Fuel – Common Parts & Diagrams

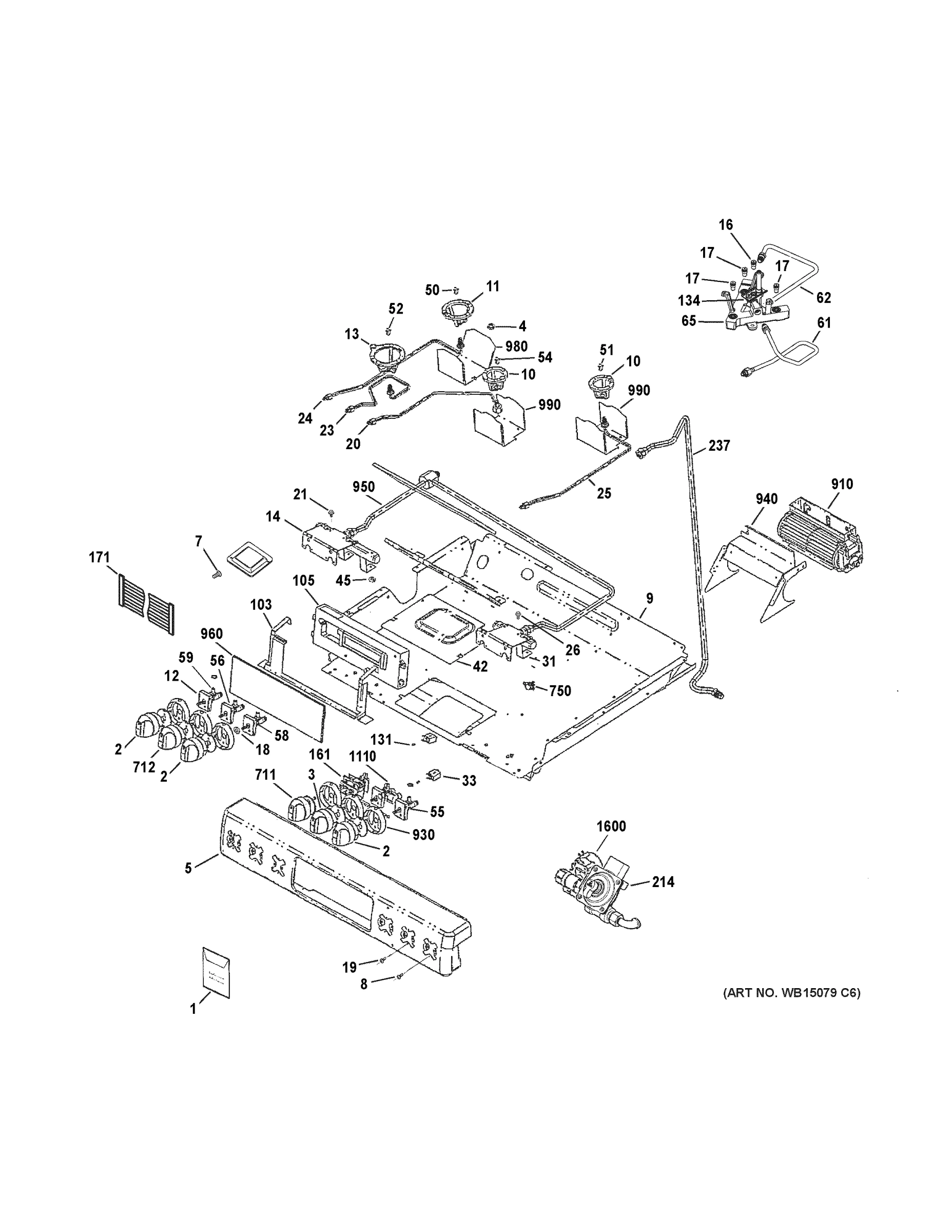

GAS & BURNER PARTS

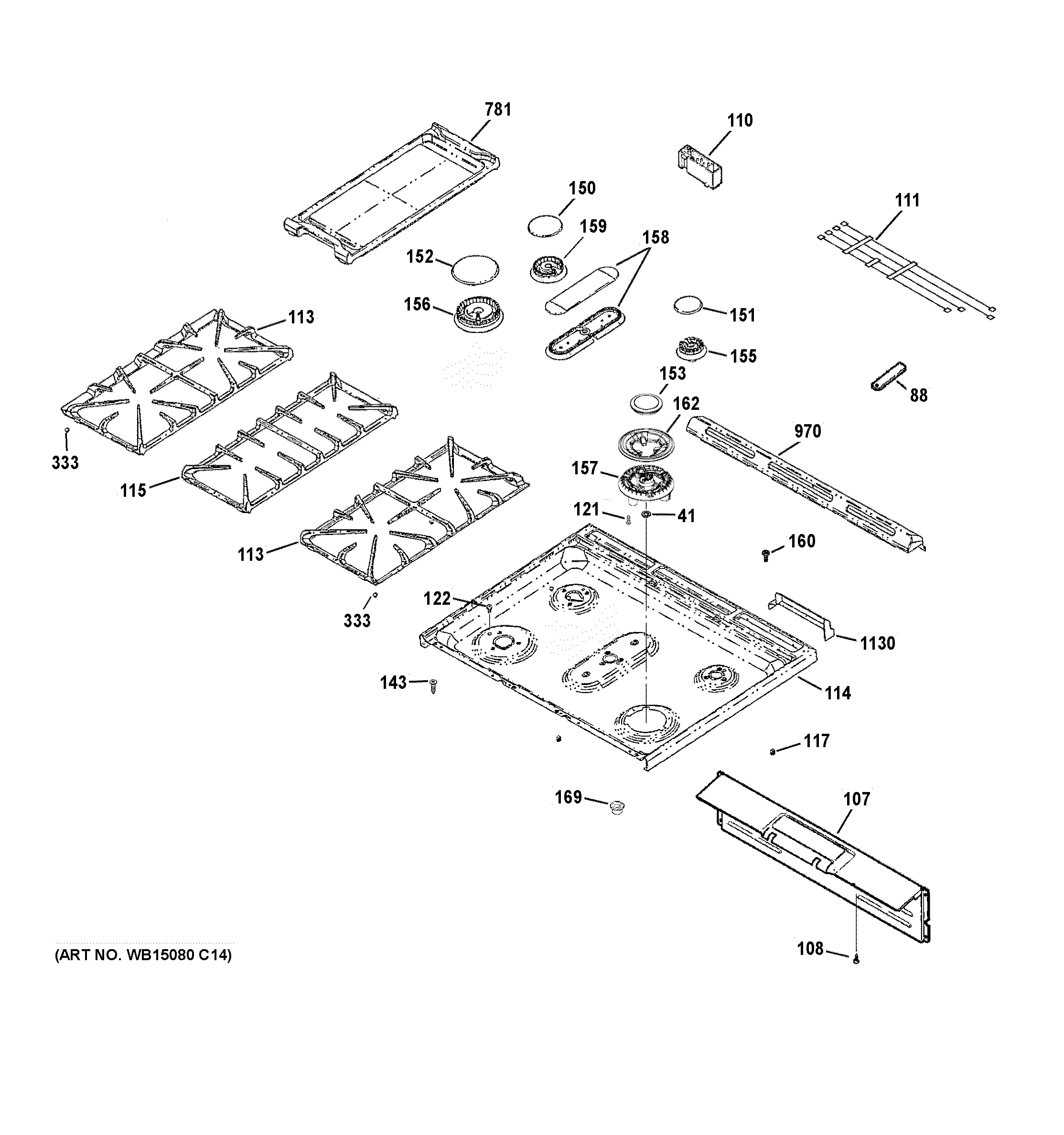

COOKTOP
BODY PARTS
DOOR & DRAWER PARTS
Common parts from model GE C2S985SET8SS Gas Range Or Dual Fuel
1
KIT CONVERSION LP GEN WB28K10799 Contact Us For Availability
1
CLEANER-SS GEN WB02T10111 Contact Us For Availability
2
KNOB ASSEMBLY GEN WB03X23083 Contact Us For Availability
3
KNOB ASSEMBLY GEN WB03X23081 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
7
SCR 8-18 1/4 GEN WB01K10102 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
10
CKT BRACKET SMALL GEN WB02K10360 Contact Us For Availability
11
CKT BRACKET MDM & LGE GEN WB02K10361 Contact Us For Availability
12
HARNESS SWITCHES GEN WB18K10077 Contact Us For Availability
13
BRACKET COOKTOP XL GEN WB02K10363 Contact Us For Availability
16
ORIFICE SPUD GEN WB28K10694 Contact Us For Availability
17
ORIFICE SPUD GEN WB28K10693 Contact Us For Availability
20
NG ORIFICE & TUBE CNTER GEN WB28K10871 Contact Us For Availability
23
FL ORIFICE HOLDER GEN WB28K10740 Contact Us For Availability
24
LR ORIFICE HOLDER GEN WB28K10475 Contact Us For Availability
25
RR ORIFICE HOLDER GEN WB28K10741 Contact Us For Availability
26
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25K10010 Contact Us For Availability
43
SENSOR-OVEN GEN WB23X5340 Contact Us For Availability
50
ORIFICE-LP 89MM GEN WB28K10023 Contact Us For Availability
51
ORIFICE SPUD GEN WB28K10834 Contact Us For Availability
52
ORIFICE SPUD LP GEN WB28K10842 Contact Us For Availability
54
ORIFICE SPUD LP 86L GEN WB28K10215 Contact Us For Availability
55
VALVE BURNER 270 GEN WB21K10096 Contact Us For Availability
56
VALVE BURNER 270 HI-CAP GEN WB21K10080 Contact Us For Availability
58
VALVE BURNER 270 GEN WB21K10097 Contact Us For Availability
59
VALVE BURNER 270 GEN WB21K10119 Contact Us For Availability
61
TUBE MAIN DUAL VALVE GEN WB28K10698 Contact Us For Availability
62
TUBE SIMMER DUAL VALVE GEN WB28K10699 Contact Us For Availability
65
INJECT TOP BURNER ASM GEN WB28K10785 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
105
CONTROL OVN (ERC3HP) GEN WB27K10422 Contact Us For Availability
113
SIDE GRATE CAST GEN WB31K10219 Contact Us For Availability
114
RANGETOP GEN WB62X25403 Contact Us For Availability
115
CENTER GRATE CAST GEN WB31K10218 Contact Us For Availability
122
CKT SCREW GEN WB01X24460 Contact Us For Availability
128
LAMP INSULATION GEN WB02K10349 Contact Us For Availability
131
LENS GEN WB25K10009 Contact Us For Availability
134
ELECTRODE TOP GEN WB13T10080 Contact Us For Availability
150
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
151
ASM BURNER CAP (5000) GEN WB29K10022 Contact Us For Availability
152
CAP BURNER ASM (15K) GEN WB28K10222 Contact Us For Availability
153
BURNER CAP CENTRAL GEN WB29K10045 Contact Us For Availability
155
SMALL BURNER V 5K GEN WB16K10070 Contact Us For Availability
156
VISION BURNER XL GEN WB16K10062 Contact Us For Availability
157
3R BURNER ASM GEN WB16K10079 Contact Us For Availability
158
OVAL BURNER ASM GEN WB16K10076 Contact Us For Availability
159
BURNER MEDIUM (9500) GEN WB16K10055 Contact Us For Availability
160
SCREW TRILOBULAR GEN WB01K10110 Contact Us For Availability
161
THERMOSTAT GEN WB20K10017 Contact Us For Availability
162
BURNER CAP OUTER GEN WB29K10044 Contact Us For Availability
169
VENTURI 15K LP GEN WB16K10083 Contact Us For Availability
171
HARNESS WIRE GLASS TOUCH GEN WB18T10386 Contact Us For Availability
200
OVEN RACK GEN WB48X21508 Contact Us For Availability
203
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
205
COVER MOTOR GEN WB34K10099 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
210
BOTTOM OVEN GEN WB35K10209 Contact Us For Availability
214
PRESSURE REGULATOR GEN WB19K10018 Contact Us For Availability
220
GROMMET GEN WB02K10294 Contact Us For Availability
221
HEATING ELEMENT TOP GEN WB44K10014 Contact Us For Availability
222
HINGE DOOR GEN WB10K10040 Contact Us For Availability
224
HINGE DOOR GEN WB10K10039 Contact Us For Availability
225
HEATING ELEMENT BOTTOM GEN WB44K10015 Contact Us For Availability
233
PLUNGER SWITCH GEN WB24K10068 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
264
SUPPORT CATALYST GEN WB35K10028 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB02K10342 Contact Us For Availability
291
SUPPORT BROIL GEN WB02K10028 Contact Us For Availability
306
COVER DRAWER GEN WB56X23071 Contact Us For Availability
318
GASKET OVEN ASM GEN WB32K10052 Contact Us For Availability
319
CRYSTAL WINDOW GEN WB57K10174 Contact Us For Availability
335
INSULATION GEN WB35K10222 Contact Us For Availability
351
PAN DRAWER GEN WB48K10033 Contact Us For Availability
352
RACK BAKING DRAWER GEN WB48K10010 Contact Us For Availability
359
BARRIER DOOR GEN WB07X20288 Contact Us For Availability
360
GASKET DRAWER ASM GEN WB04K10017 Contact Us For Availability
362
GASKET LOWER GEN WB04K10018 Contact Us For Availability
366
CATCH GEN WB02K10110 Contact Us For Availability
368
BUMPER, BLUE GEN WB02K10112 Contact Us For Availability
369
BUMPER GEN WB02K10343 Contact Us For Availability
400
FRAME WINDOW PACK ASM GEN WB34K10141 Contact Us For Availability
711
KNOB ASSEMBLY GEN WB03X23069 Contact Us For Availability
712
KNOB ASSEMBLY GEN WB03X23082 Contact Us For Availability
722
GEN WB34K10038 GEN WB34K10038 Contact Us For Availability
723
GEN WB35K10013 GEN WB35K10013 Contact Us For Availability
724
GEN WB02K10034 GEN WB02K10034 Contact Us For Availability
726
GEN WB26K10004 GEN WB26K10004 Contact Us For Availability
727
GEN WB34K10121 GEN WB34K10121 Contact Us For Availability
750
SWITCH LIMIT BIMETAL GEN WB24K10046 Contact Us For Availability
781
GRIDDLE GEN WB31K10220 Contact Us For Availability
800
SCR 8-18 AB IHW 3/8 SN GEN WB01K10042 Contact Us For Availability
910
BLOWER TANGENTIAL 60MM GEN WB26K10018 Contact Us For Availability
920
ENDCAP HANDLE GEN WB07K10426 Contact Us For Availability
930
SKIRT GEN WB04K10037 Contact Us For Availability
960
GLASS & TOUCH BOARD GEN WB27X26525 Contact Us For Availability
970
VENT TRIM GEN WB07X26086 Contact Us For Availability
1110
GEN WB21K10141 GEN WB21K10141 Contact Us For Availability
1120
GEN WB02K10178 GEN WB02K10178 Contact Us For Availability
1130
VENT MOTOR GEN WB02K10346 Contact Us For Availability
1330
GEN WB10X25602 GEN WB10X25602 Contact Us For Availability
1600
GEN WB19K10059 GEN WB19K10059 Contact Us For Availability
× ![]()
