Model Whirlpool AL4132VG0 WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3351736 WPL LIT3351736 Contact Us For Availability

WPL LIT3351847 WPL LIT3351847 Contact Us For Availability

WPL LIT3352124 WPL LIT3352124 Contact Us For Availability

WPL LIT3352144 WPL LIT3352144 Contact Us For Availability

WPL LIT3352149 WPL LIT3352149 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Clip, Harness WPL 62749 Contact Us For Availability

2

top (white) WPL 388486 Contact Us For Availability

2

Top (Almond) WPL 388487 Contact Us For Availability

2

Top (Golden Harvest) WPL 388490 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $107.25

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Tub Ring & Gasket WPL 387966 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3349278 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

7

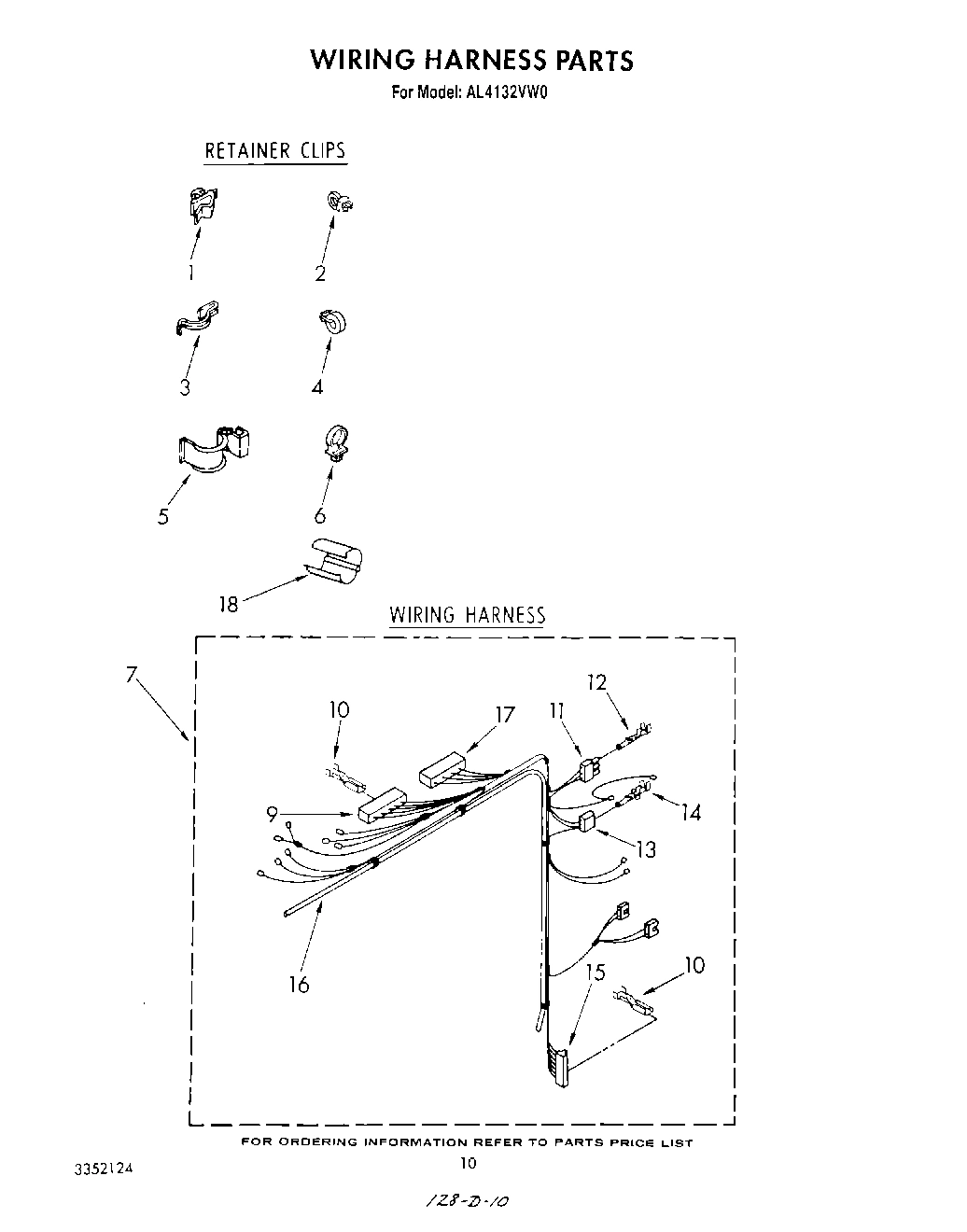

Wiring Harness & Pressure Switch Hose WPL 3352118 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Balance Ring WPL 387868 Contact Us For Availability

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Terminal, Female WPL 352088 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Actuator, Lid Switch WPL 357347 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Basket & Balance Ring WPL 387713 Contact Us For Availability

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

14

WP3355454 Whirlpool Clip Assembly In Stock WPL WP3355454 $3.70

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

15

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

15

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Tub WPL 63125 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Connector, Temp. Switch WPL 3347243 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Protector, Harness WPL 63523 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

Lid (White) WPL 388445 Contact Us For Availability

Lid (Almond) WPL 388446 Contact Us For Availability

Lid (Golden Harvest) WPL 388449 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Gear, Main Drive WPL 62528 Contact Us For Availability

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

23

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

23

Ring, Retaining WPL 95082 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $35.35

Washer Kit, Thrust WPL 285292 Contact Us For Availability

Spring Hinge, Lid WPL 3349948 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Plug, Button WPL 54690 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

40

Nut, Push-In (2) WPL 689559 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

56

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39
