Model Maytag ABB2224BRW01 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

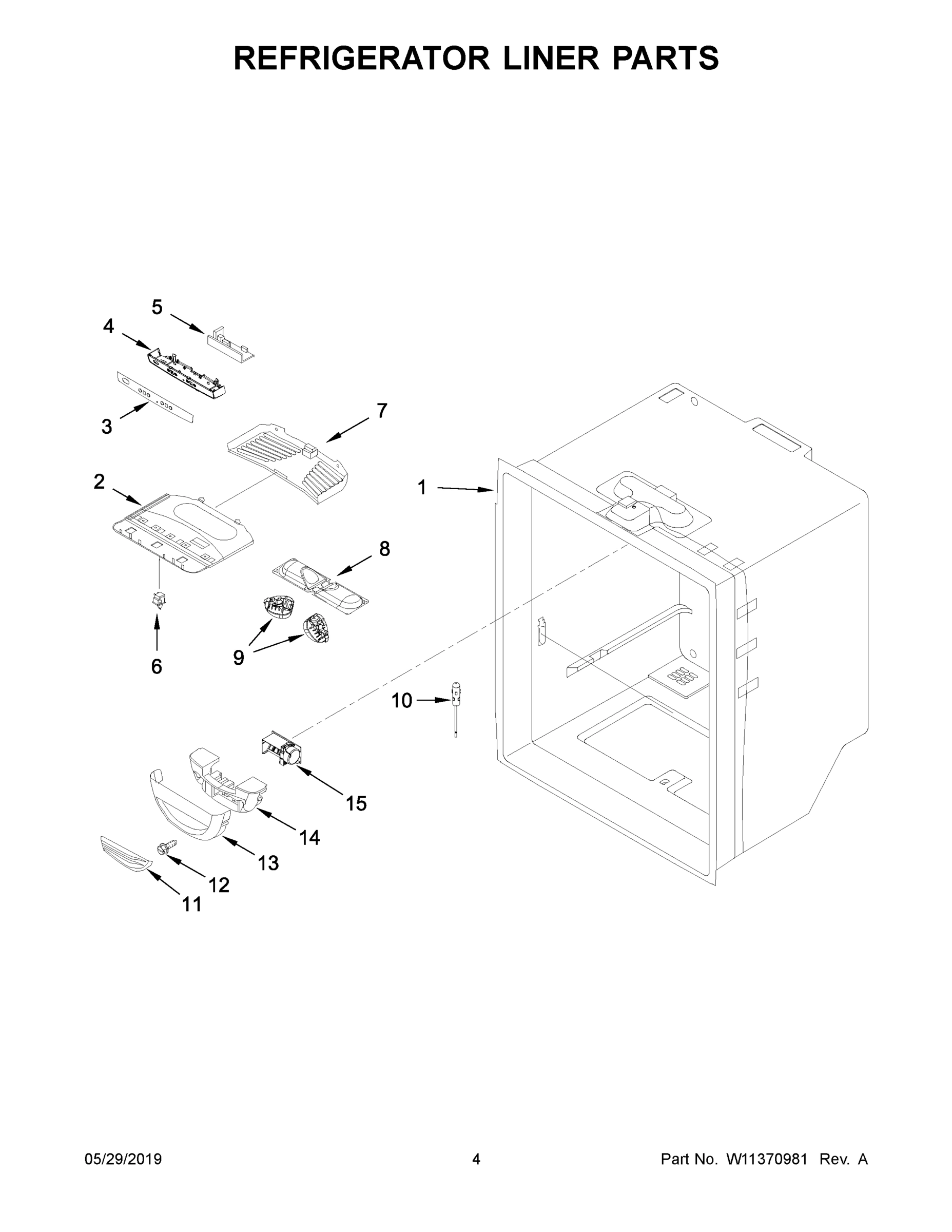

03 - REFRIGERATOR LINER PARTS

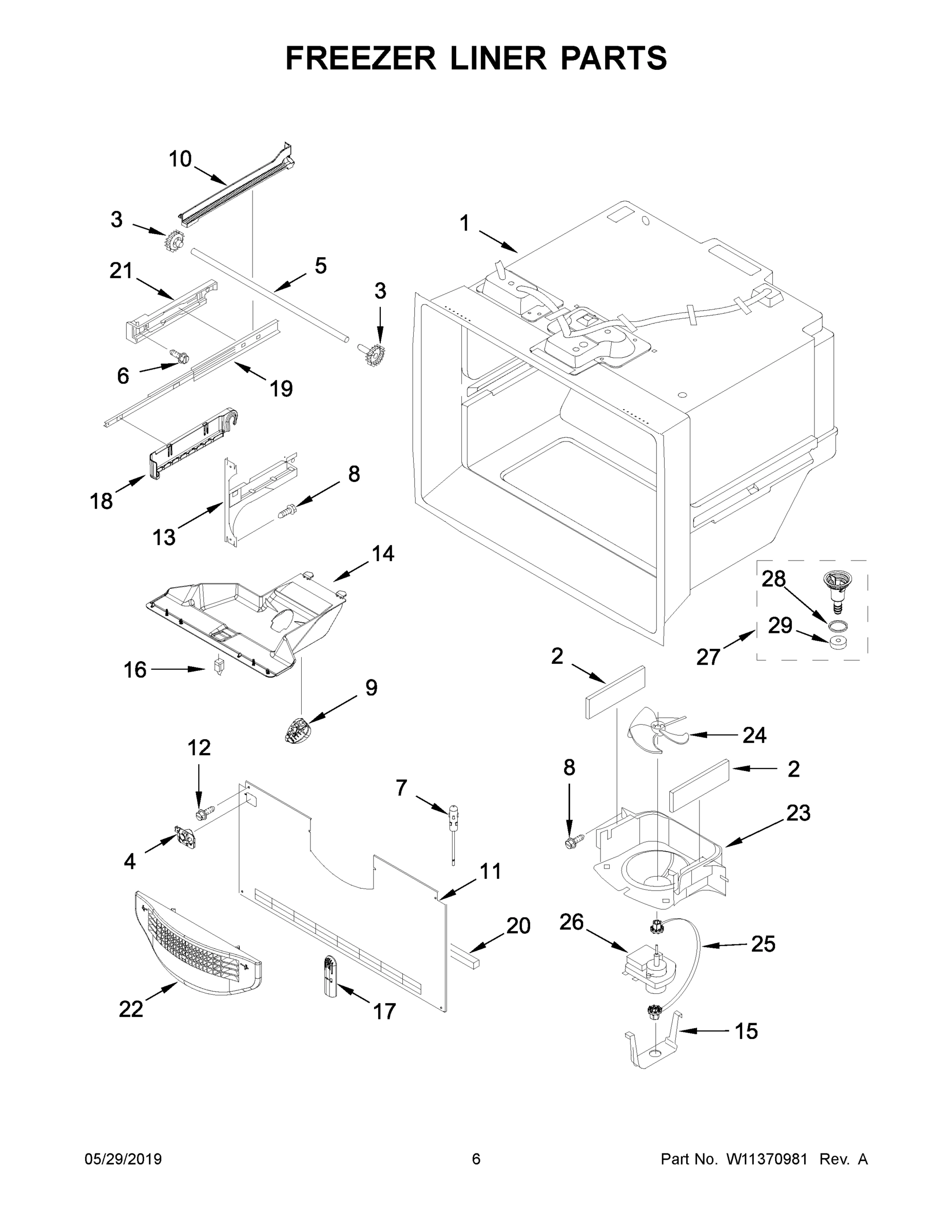

04 - FREEZER LINER PARTS

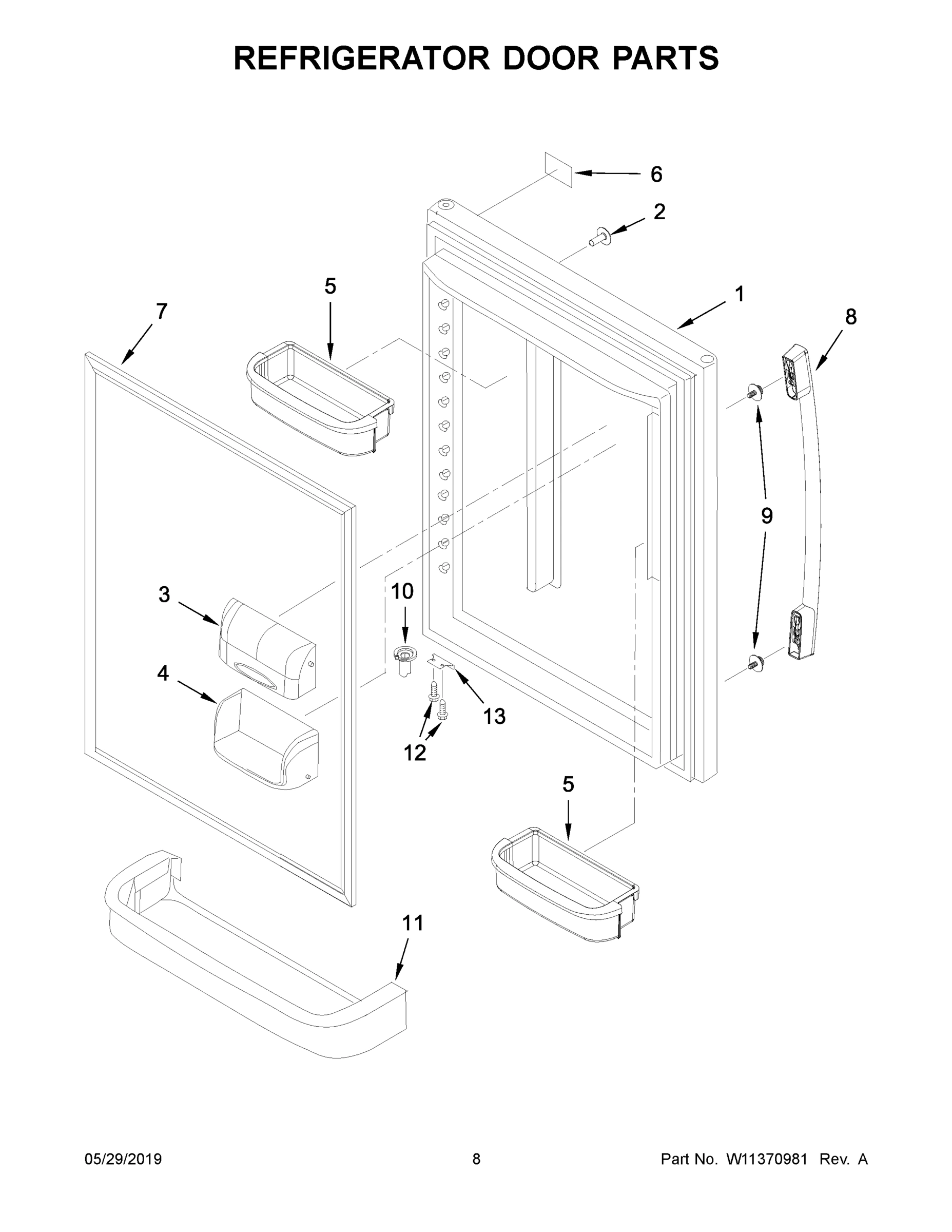

05 - REFRIGERATOR DOOR PARTS

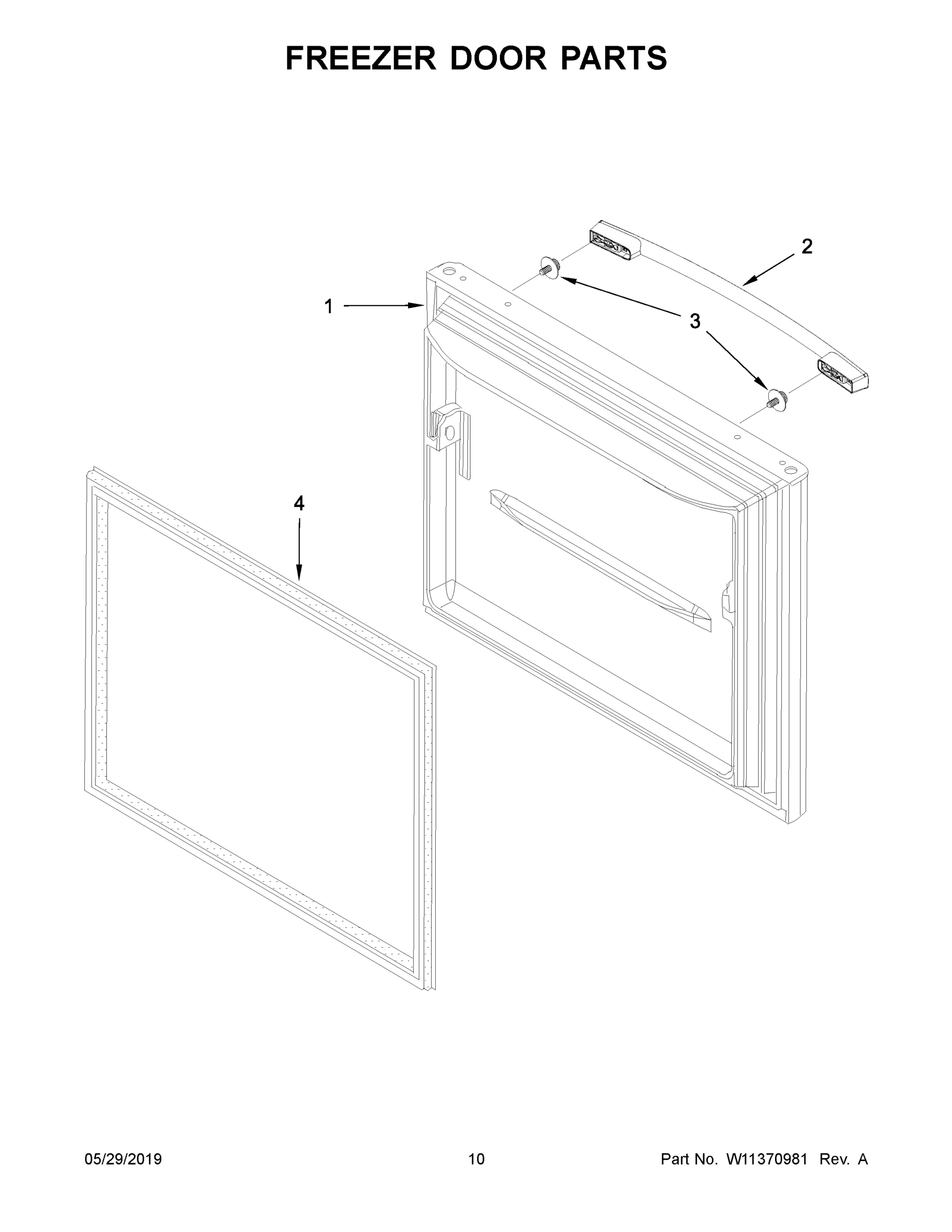

06 - FREEZER DOOR PARTS

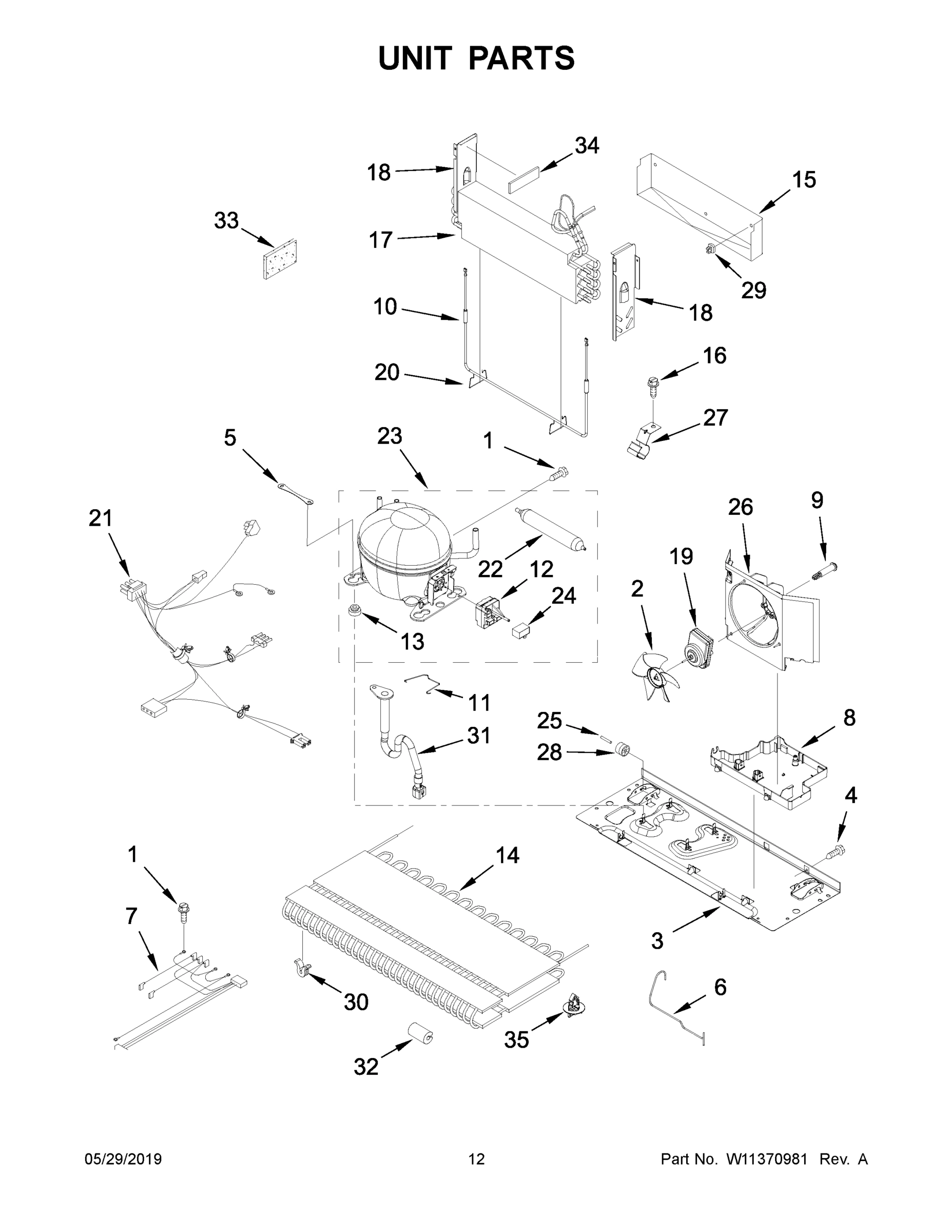

07 - UNIT PARTS

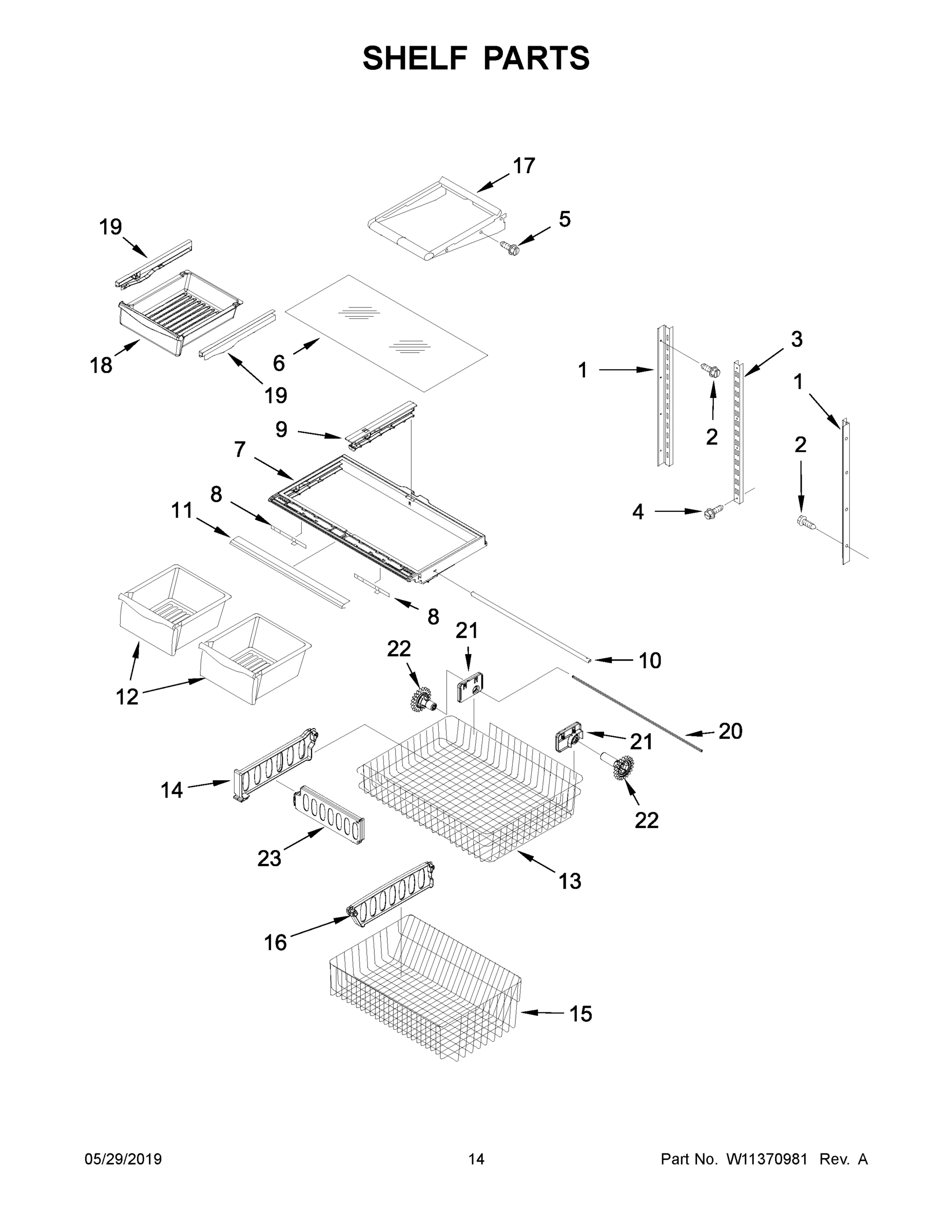

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag ABB2224BRW01 REFRIGERATOR, BOTTOM MOUNT
1
DOOR, REFRIGERATOR (WHITE) MAY 13109401W Contact Us For Availability
1
DOOR, FREEZER (WHITE) MAY 13109214W Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
LADDER, SIDE MAY W10251969 Contact Us For Availability
1A
DOOR, REFRIGERATOR (BLACK) MAY 13109401B Contact Us For Availability
1A
DOOR, FREEZER (BLACK) MAY 13109214B Contact Us For Availability
1B
DOOR, REFRIGERATOR (STAINLESS) MAY 13107554S Contact Us For Availability
1B
DOOR, FREEZER (STAINLESS) MAY 13109217S Contact Us For Availability
2
MODULE, LIGHT MAY W10464757 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2
PLUG, BUTTON (WHITE) MAY 12246607 Contact Us For Availability
2
MAY W11188495 MAY W11188495 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
SCREW MAY 12990513 Contact Us For Availability
2A
PLUG, BUTTON (BLACK) MAY 2218872 Contact Us For Availability
2A
HANDLE, DOOR (BLACK) MAY W10222985 Contact Us For Availability
2B
PLUG, BUTTON (GREY) MAY 12246610 Contact Us For Availability
2B
HANDLE, DOOR (STAINLESS) MAY W10223019 Contact Us For Availability
3
LABEL, FILL TUBE MAY 12249902 Contact Us For Availability
3
OVERLAY MAY W10593588 Contact Us For Availability
3
DOOR, DAIRY MAY 12804701SP Contact Us For Availability
3
SCREW MAY W10288153 Contact Us For Availability
3
BASEPAN MAY W10480110 Contact Us For Availability
3
LADDER, CENTER MAY W10273463 Contact Us For Availability
4
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464769 Contact Us For Availability
4
MAY W11261524 MAY W11261524 Contact Us For Availability
4
TRAY, DAIRY MAY 12369502SP Contact Us For Availability
4
GASKET, DOOR (WHITE) MAY W10443315 Contact Us For Availability
4
SCREW MAY W10215666 Contact Us For Availability
4A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
4A
GASKET, DOOR (BLACK) MAY W10436250 Contact Us For Availability
4B
GASKET, DOOR (GREY) MAY W10443316 Contact Us For Availability
5
PIN, CENTER HINGE MAY 10351006 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10503278 Contact Us For Availability
5
SHAFT, RACK MAY W10802331 Contact Us For Availability
5
BUCKET, MEDIUM MAY 12557204 Contact Us For Availability
5
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
5
SCREW MAY 12990302V Contact Us For Availability
6
SCREW MAY 12992602 Contact Us For Availability
6
SWITCH, LIGHT MAY W10847853 Contact Us For Availability
6
SCREW MAY 12990501 Contact Us For Availability
6
NAMEPLATE (STAINLESS) MAY 12528501 Contact Us For Availability
6
TUBE, DISCHARGE MAY W10233570 Contact Us For Availability
6
GLASS, CRISPER MAY 12204822 Contact Us For Availability
7
COVER, FILL TUBE MAY W11182229 Contact Us For Availability
7
COVER, LIGHT MAY W11132917 Contact Us For Availability
7
THERMISTOR MAY 12791409SP Contact Us For Availability
7
GASKET, DOOR (WHITE) MAY W10443313 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W11050969 Contact Us For Availability
7
FRAME, CRISPER MAY W10671241 Contact Us For Availability
7A
GASKET, DOOR (BLACK) MAY W10436248 Contact Us For Availability
7B
GASKET, DOOR (GREY) MAY W10443314 Contact Us For Availability
8
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
8
SCREW MAY 12990521 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
PAN, DRAIN MAY W10655367 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
9
MAY W11251749 MAY W11251749 Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
9
RAIL, CENTER CRISPER MAY W10671238 Contact Us For Availability
10
THERMISTOR MAY 12791403 Contact Us For Availability
10
RACK, SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
10
CLOSURE, DOOR (WHITE) MAY 12028505W Contact Us For Availability
10
HEATER, DEFROST MAY 12729128 Contact Us For Availability
10
BRACE, CRISPER COVER MAY 12227303WD Contact Us For Availability
10A
RACK, SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
10A
CLOSURE, DOOR (BLACK) MAY 12028505B Contact Us For Availability
10B
CLOSURE, DOOR (GREY) MAY 12028505AP Contact Us For Availability
11
SCREW MAY 12992403 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
COVER, EVAPORATOR MAY W10308415 Contact Us For Availability
11
RETAINER, DOOR MAY 12557905 Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
TRIM, CRISPER MAY W10231343 Contact Us For Availability
12
HINGE, CENTER (WHITE) MAY 12607103WD Contact Us For Availability
12
SCREW MAY 12990604 Contact Us For Availability
12
SCREW MAY 12990519 Contact Us For Availability
12
DEVICE, START MAY W10796752 Contact Us For Availability
12
PAN, CRISPER MAY 12530505N Contact Us For Availability
12A
HINGE, CENTER (BLACK) MAY 12607104ED Contact Us For Availability
12B
HINGE, CENTER (GREY) MAY 12607103AP Contact Us For Availability
13
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
BRACKET, DOOR (LEFT HAND) MAY W10330991 Contact Us For Availability
13
STOP, DOOR (WHITE) MAY 10447111 Contact Us For Availability
13
GROMMET MAY 10835903 Contact Us For Availability
13
BASKET, FREEZER (UPPER) MAY W11115252 Contact Us For Availability
13A
BRACKET, DOOR (RIGHT HAND) MAY W10330993 Contact Us For Availability
13A
STOP, DOOR (BLACK) MAY 10447112 Contact Us For Availability
13B
STOP, DOOR (GREY) MAY 10447114 Contact Us For Availability
14
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
14
INSULATION, DAMPER MAY 13012402 Contact Us For Availability
14
MODULE, LIGHT MAY W10277025 Contact Us For Availability
14
CONDENSER MAY W10346420 Contact Us For Availability
14
DIVIDER, BASKET (UPPER) MAY W10241046 Contact Us For Availability
14A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
14B
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
15
HINGE, TOP MAY 12566606ED Contact Us For Availability
15
DAMPER, CONTROL MAY W10594330 Contact Us For Availability
15
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
15
TRAY, DRIP MAY W10292802 Contact Us For Availability
15
BASKET, FREEZER (LOWER) MAY W11115780 Contact Us For Availability
16
INSULATION MAY 12820505 Contact Us For Availability
16
SWITCH, LIGHT MAY W10847849 Contact Us For Availability
16
SCREW MAY 12992101 Contact Us For Availability
16
DIVIDER, BASKET (LOWER) MAY W10146440 Contact Us For Availability
17
SCREW MAY W10709365 Contact Us For Availability
17
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
17
EVAPORATOR MAY W10669254 Contact Us For Availability
17
SHELF, STATIONARY MAY 12463509 Contact Us For Availability
18
COVER, HINGE (WHITE) MAY 12477601W Contact Us For Availability
18
CRADLE, BASKET (LEFT HAND) MAY W10280608 Contact Us For Availability
18
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
18
PAN, DELI MAY 12656404V Contact Us For Availability
18A
COVER, HINGE (BLACK) MAY 12477601B Contact Us For Availability
18A
CRADLE, BASKET (RIGHT HAND) MAY W10280613 Contact Us For Availability
18A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
18B
COVER, HINGE (GREY) MAY 12477601AP Contact Us For Availability
19
ASSEMBLY, GRILLE (WHITE) MAY W10534161 Contact Us For Availability
19
SLIDE, DOOR MAY W10120018 Contact Us For Availability
19
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
19
GLIDE, DELI (LEFT HAND) MAY 12656601V Contact Us For Availability
19A
ASSEMBLY, GRILLE (BLACK) MAY W10534162 Contact Us For Availability
19A
GLIDE, DELI (RIGHT HAND) MAY 12656602V Contact Us For Availability
19B
ASSEMBLY, GRILLE (GREY) MAY W10534160 Contact Us For Availability
20
GASKET, FOAM MAY A3189395 Contact Us For Availability
20
SHAFT, RACK MAY W10802339 Contact Us For Availability
21
COVER, WATER VALVE MAY W10217701 Contact Us For Availability
21
ADAPTER, SIDE (LEFT HAND) MAY W10284684 Contact Us For Availability
21
MAY W11218258 MAY W11218258 Contact Us For Availability
21
MOUNT, GEAR (LEFT HAND) MAY W10348259 Contact Us For Availability
21A
ADAPTER, SIDE (RIGHT HAND) MAY W10284685 Contact Us For Availability
21A
MOUNT, GEAR (RIGHT HAND) MAY W10348260 Contact Us For Availability
22
COVER, UNIT MAY W10210979 Contact Us For Availability
22
GRILLE, FREEZER AIR MAY 13024803 Contact Us For Availability
22
DRIER MAY W10177049 Contact Us For Availability
22
GEAR (LEFT HAND) MAY W10474716 Contact Us For Availability
22A
GEAR (RIGHT HAND) MAY W10474715 Contact Us For Availability
23
GASKET MAY B5759655 Contact Us For Availability
23
SHROUD, EVAPORATOR FAN MAY 13057901 Contact Us For Availability
23
COMPRESSOR MAY W10879296 Contact Us For Availability
23
DIVIDER, BASKET (UPPER) MAY W10311695 Contact Us For Availability
24
BLADE, FAN MAY 2169142 Contact Us For Availability
24
CAPACITOR MAY W10350564 Contact Us For Availability
25
GROMMET MAY W10121318 Contact Us For Availability
25
AXLE, ROLLER MAY 12477202 Contact Us For Availability
26
MOTOR, EVAPORATOR MAY W10128551 Contact Us For Availability
26
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
27
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
27
CLIP, DRIER MAY W10281329 Contact Us For Availability
28
SEAL MAY M0500703 Contact Us For Availability
28
ROLLER MAY 12477102 Contact Us For Availability
29
GASKET, DRAIN MAY B8381501 Contact Us For Availability
29
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
30
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
31
EXTENSION, DRAIN TUBE MAY W10622099 Contact Us For Availability
32
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
33
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
34
GASKET, FOAM MAY A3189397 Contact Us For Availability
35
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, REFRIGERATOR CONTROL (INCLUDES THERM MAY W10422363 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
MISCELLANEOUS, ICE MAY IC13B Contact Us For Availability
NI
MAY W10917540 MAY W10917540 Contact Us For Availability
× ![]()
