Model Whirlpool 8ED25DQXDN02 REFRIGERATOR – Common Parts & Diagrams
06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT

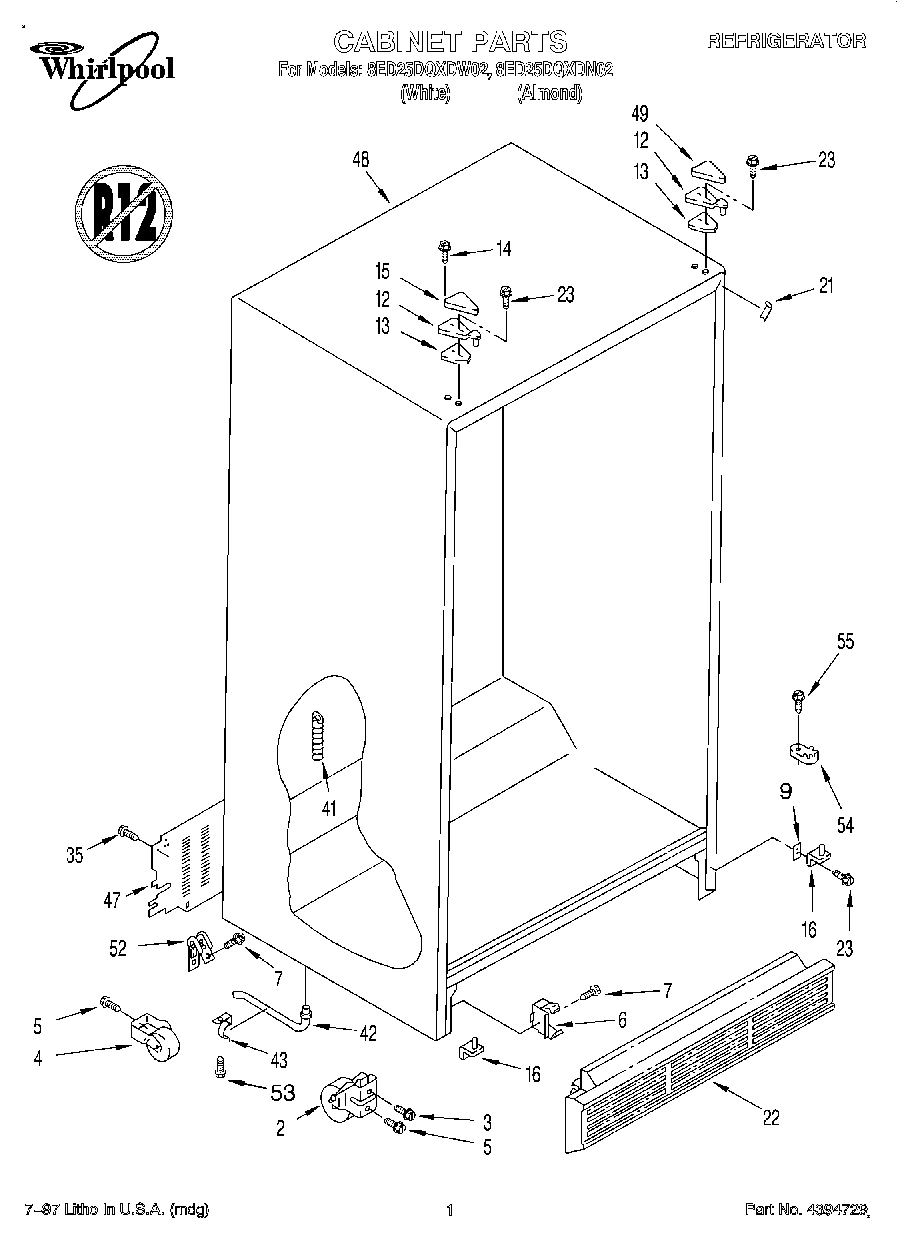

01 - CABINET
12 - ICEMAKER, LIT/OPTIONAL

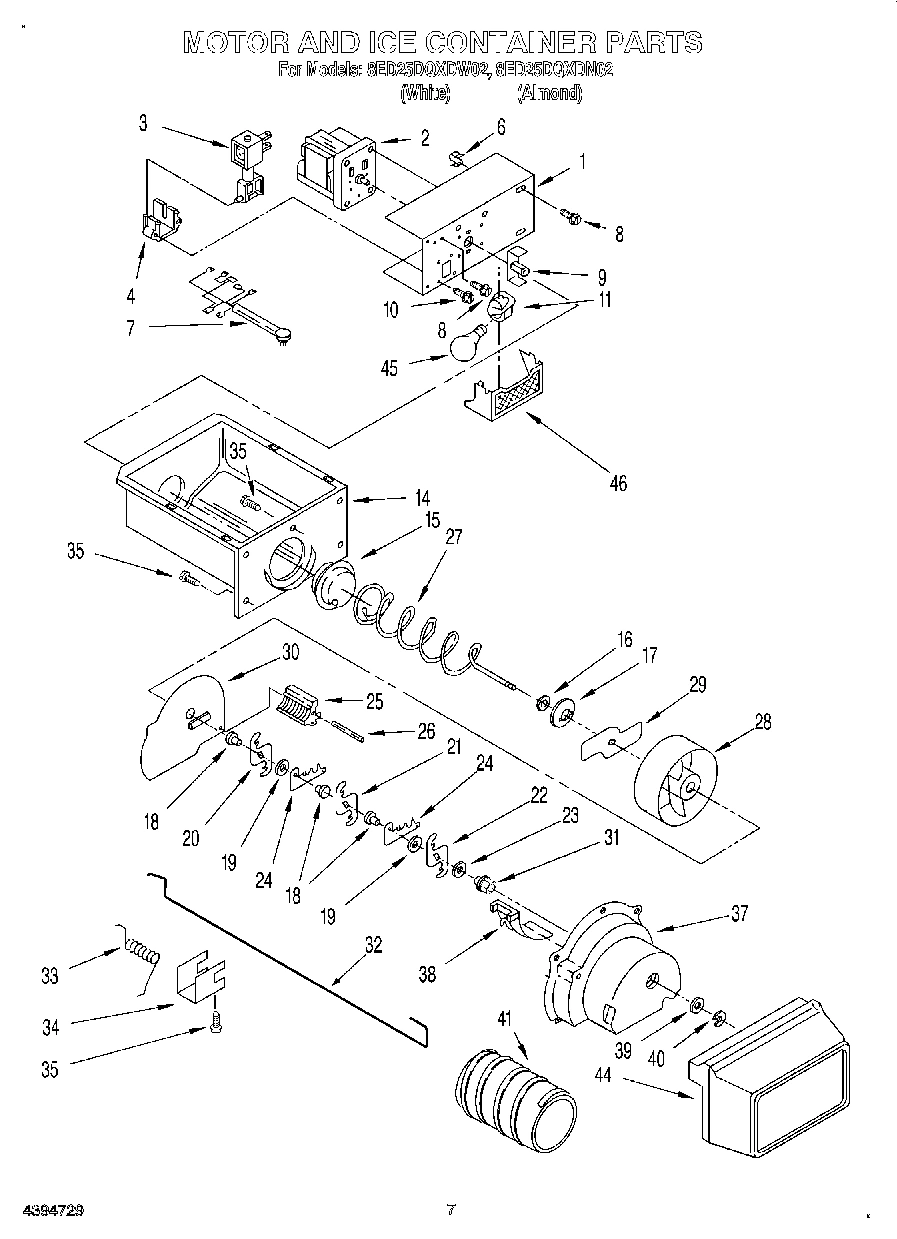

05 - MOTOR AND ICE CONTAINER

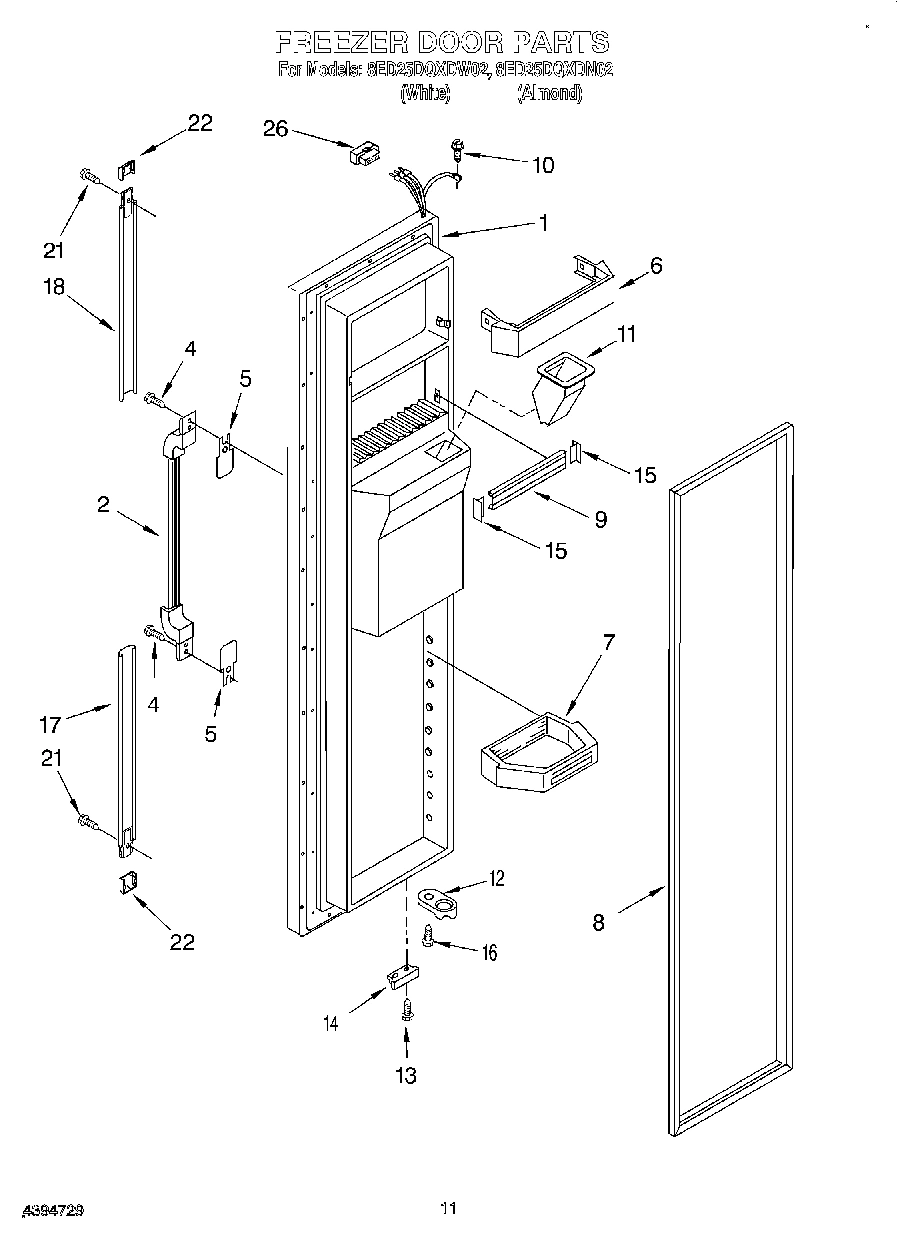

07 - FREEZER DOOR

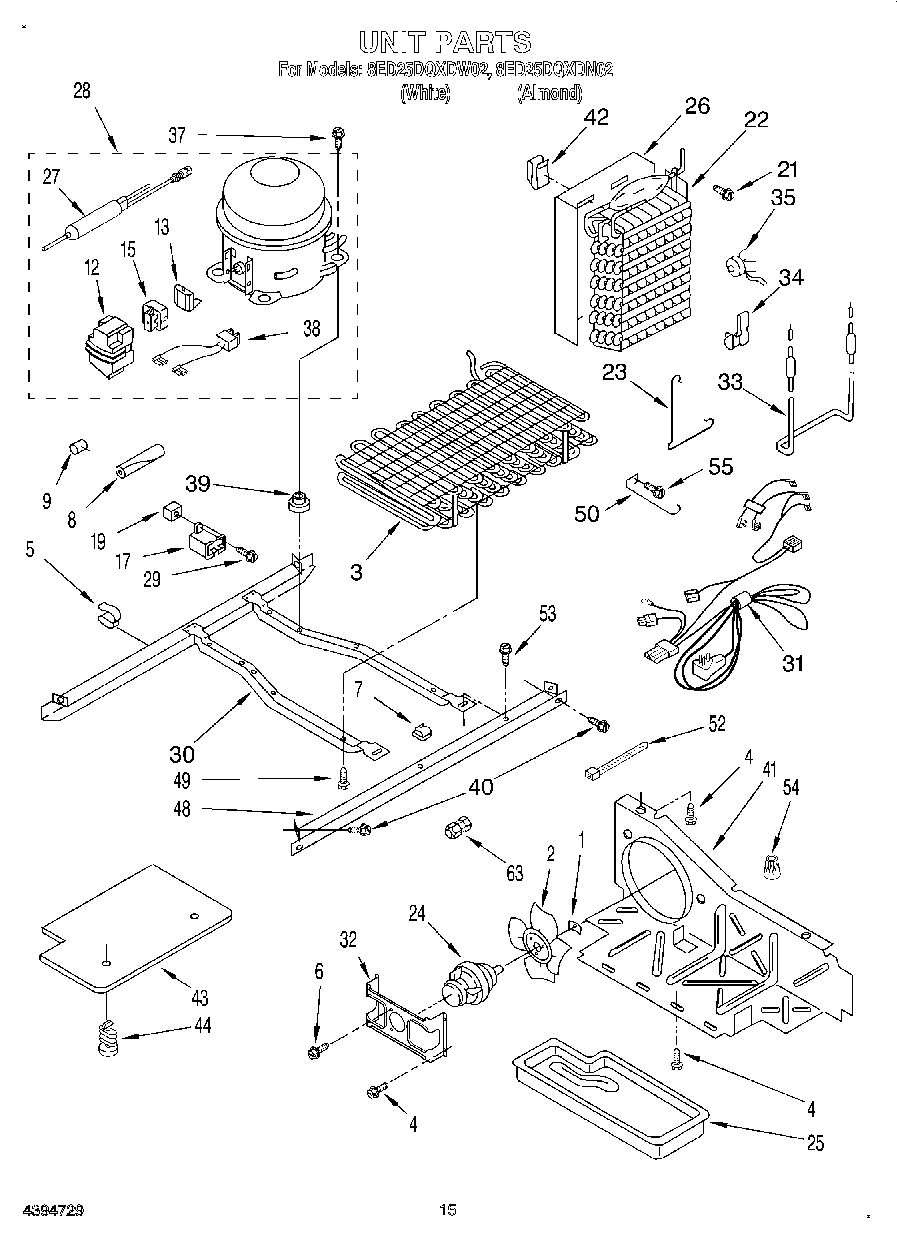

09 - UNIT

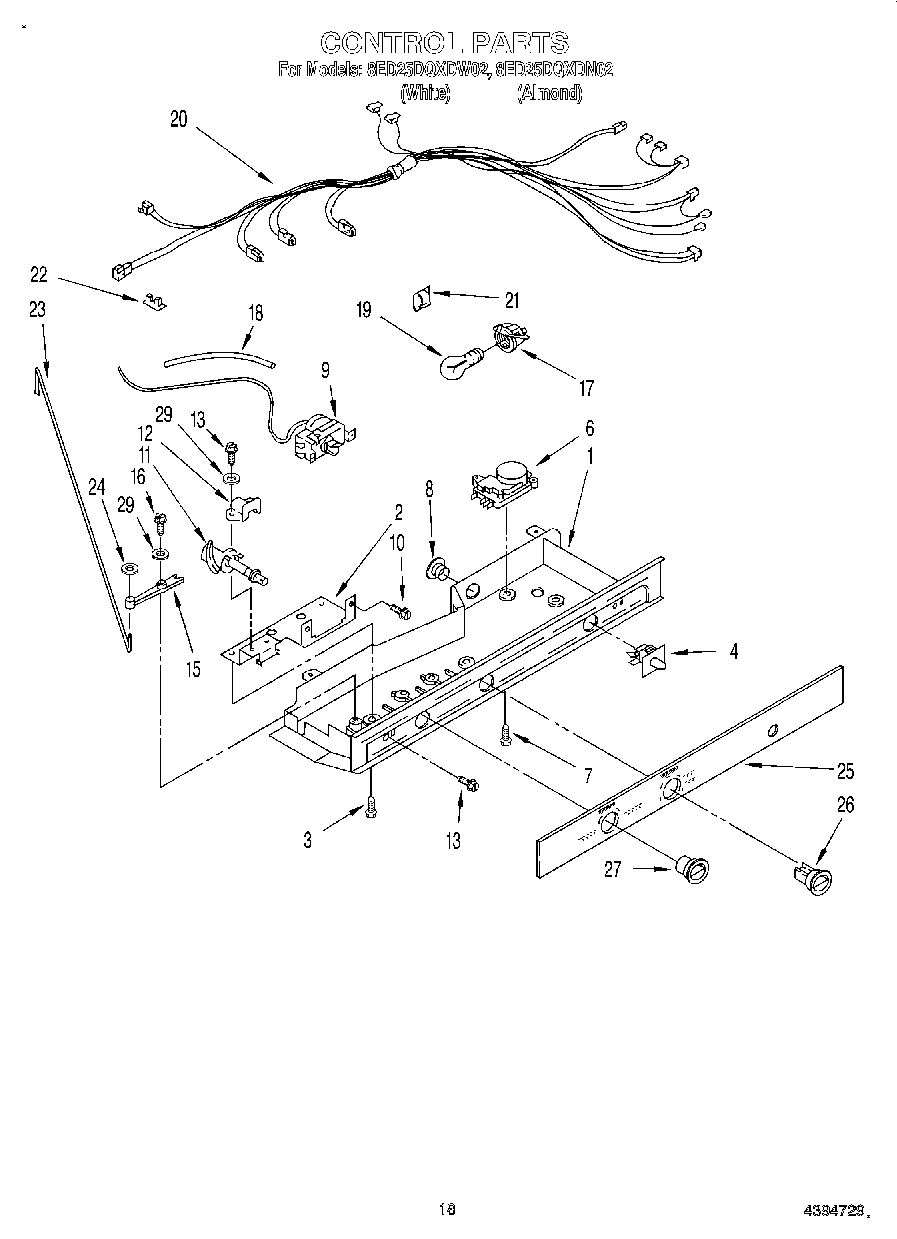

11 - CONTROL

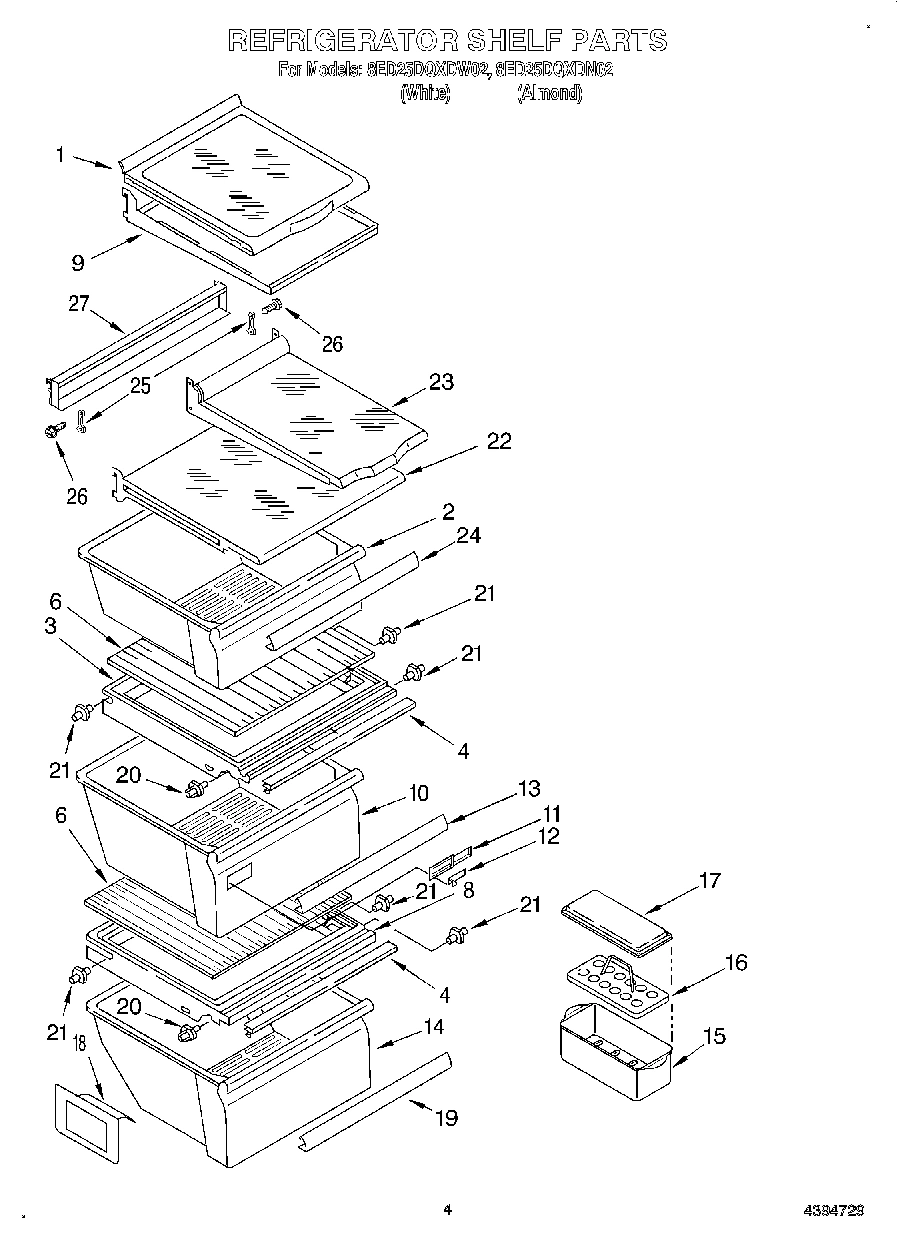

03 - REFRIGERATOR SHELF
10 - AIRFLOW

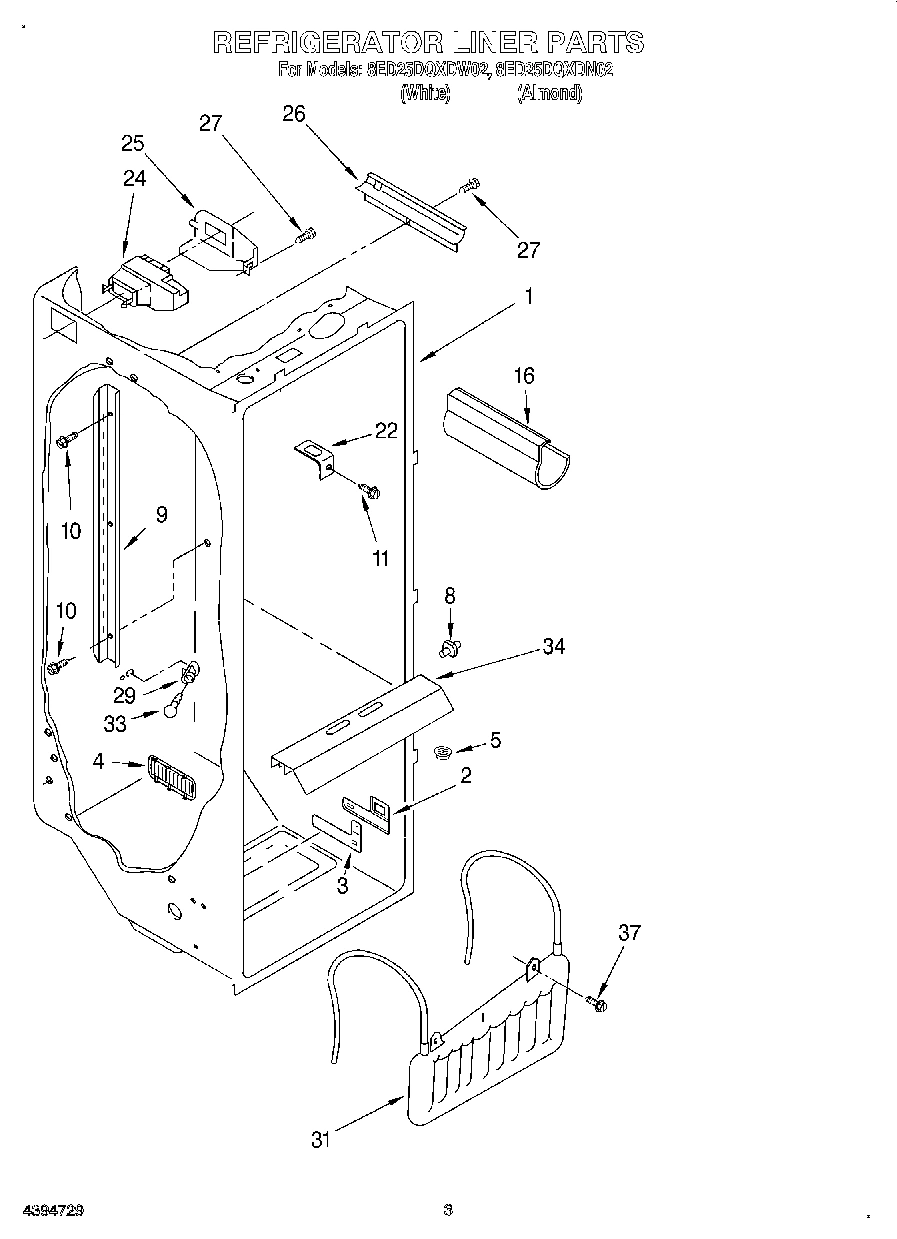

02 - REFRIGERATOR LINER

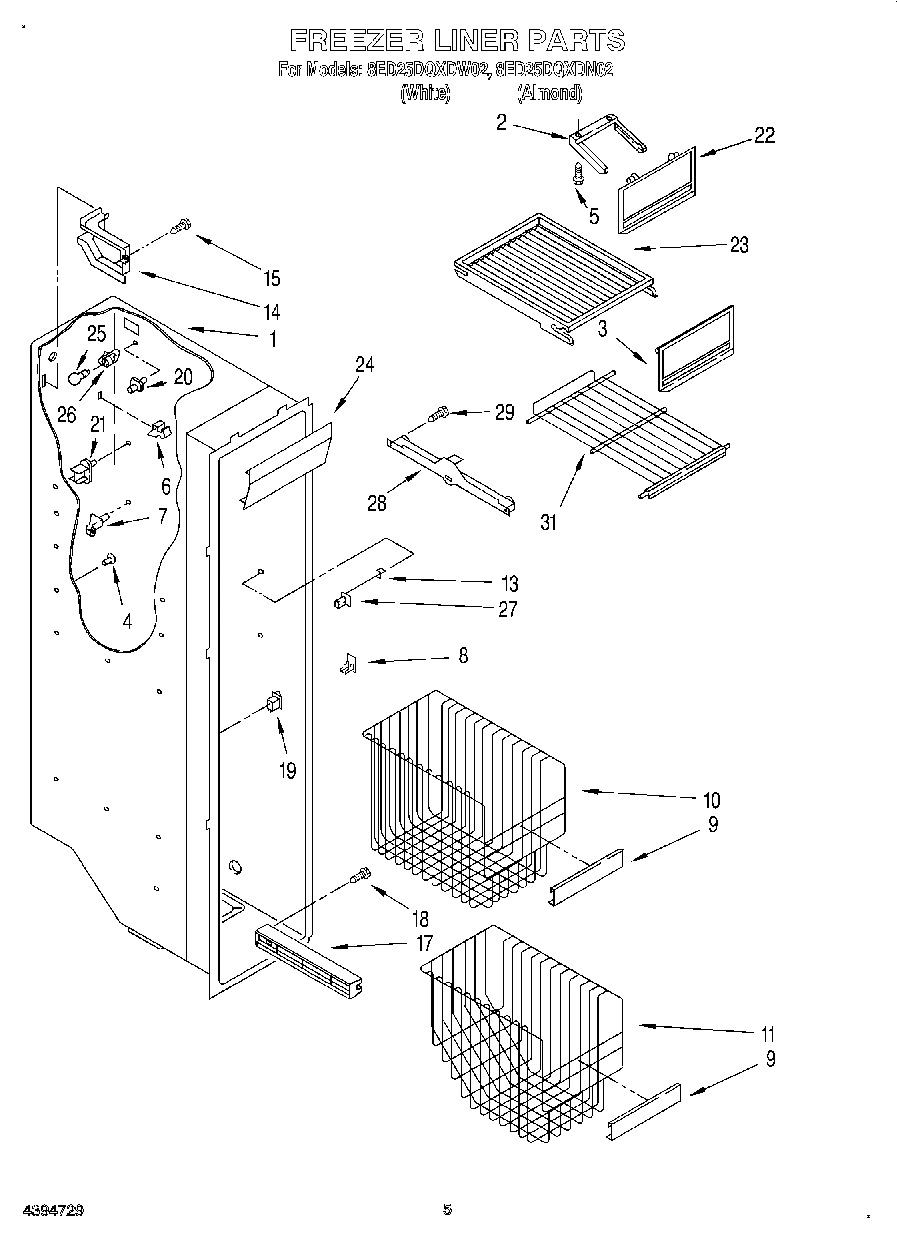

04 - FREEZER LINER
Common parts from model Whirlpool 8ED25DQXDN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194801N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194801W Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18226A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18227A2 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
2
Handle, Center (White) WPL 2194759W Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Ice Compartment WPL 2194090 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
7
Shelf Bin (2) WPL 2179576 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI18229A5 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop WPL 2195950 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
17
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
18
Extension, Top (Almond) WPL 2194765N Contact Us For Availability
18
Extension, Top (White) WPL 2194765W Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2189566 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
31
Unit, Harness WPL 2195102 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BUL WPL 799344 Contact Us For Availability
× ![]()
