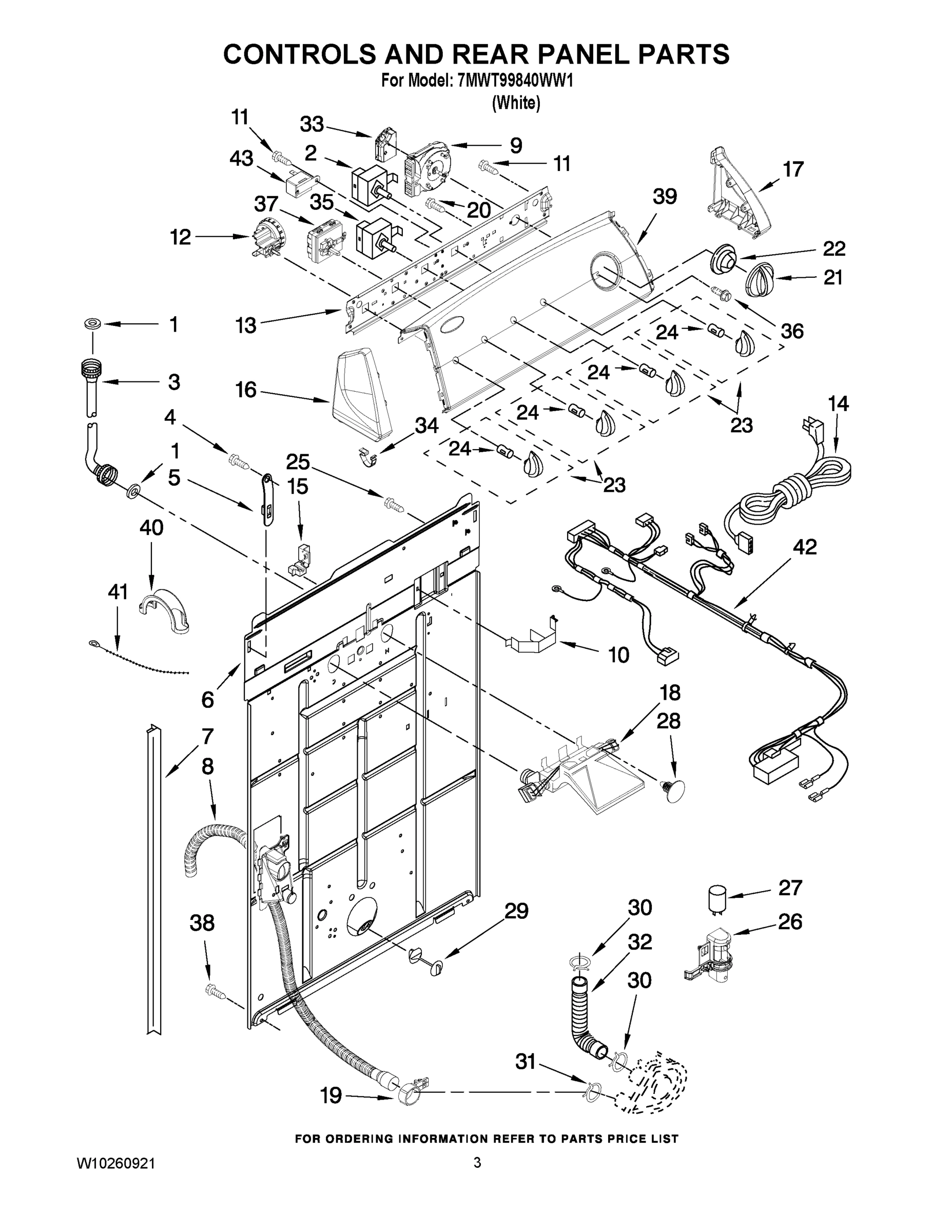

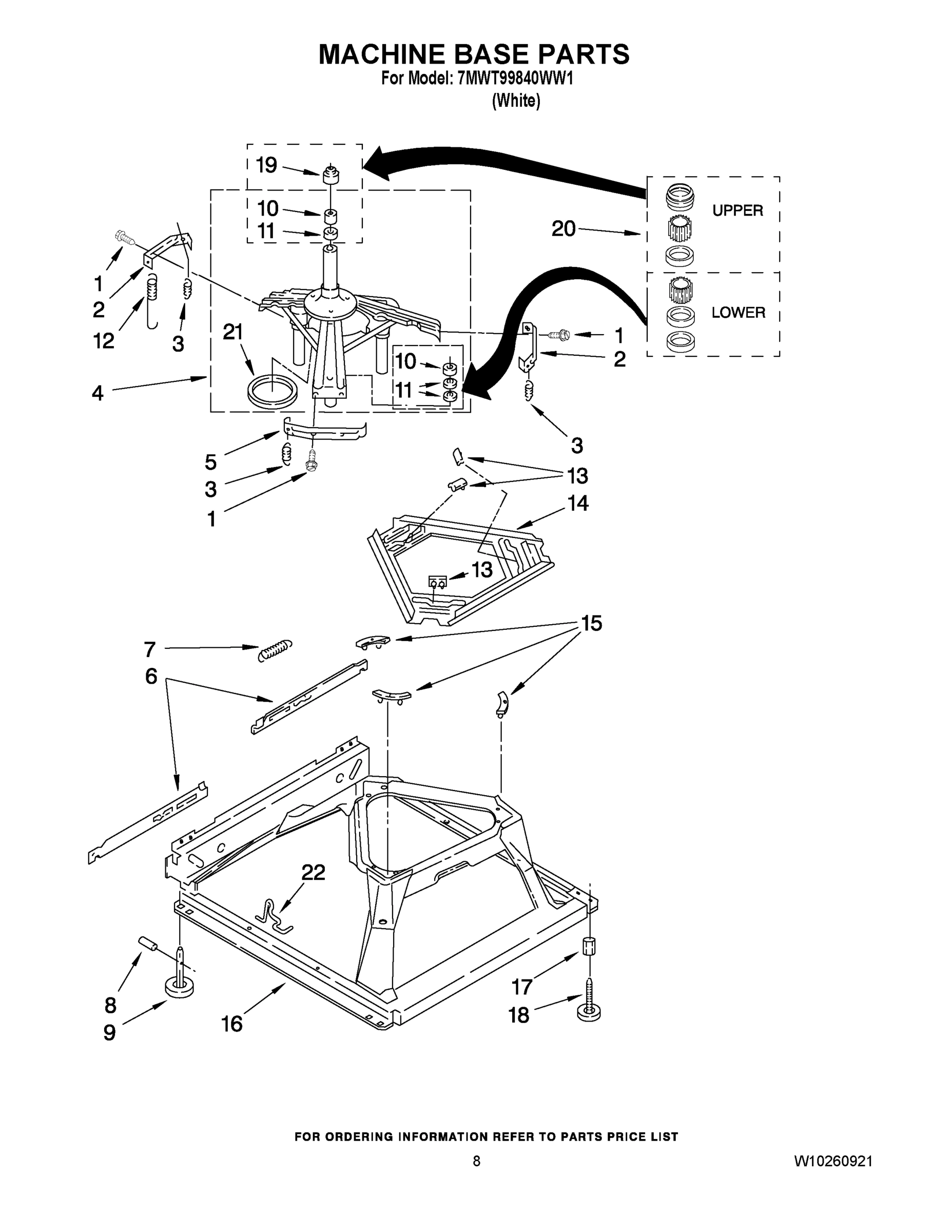

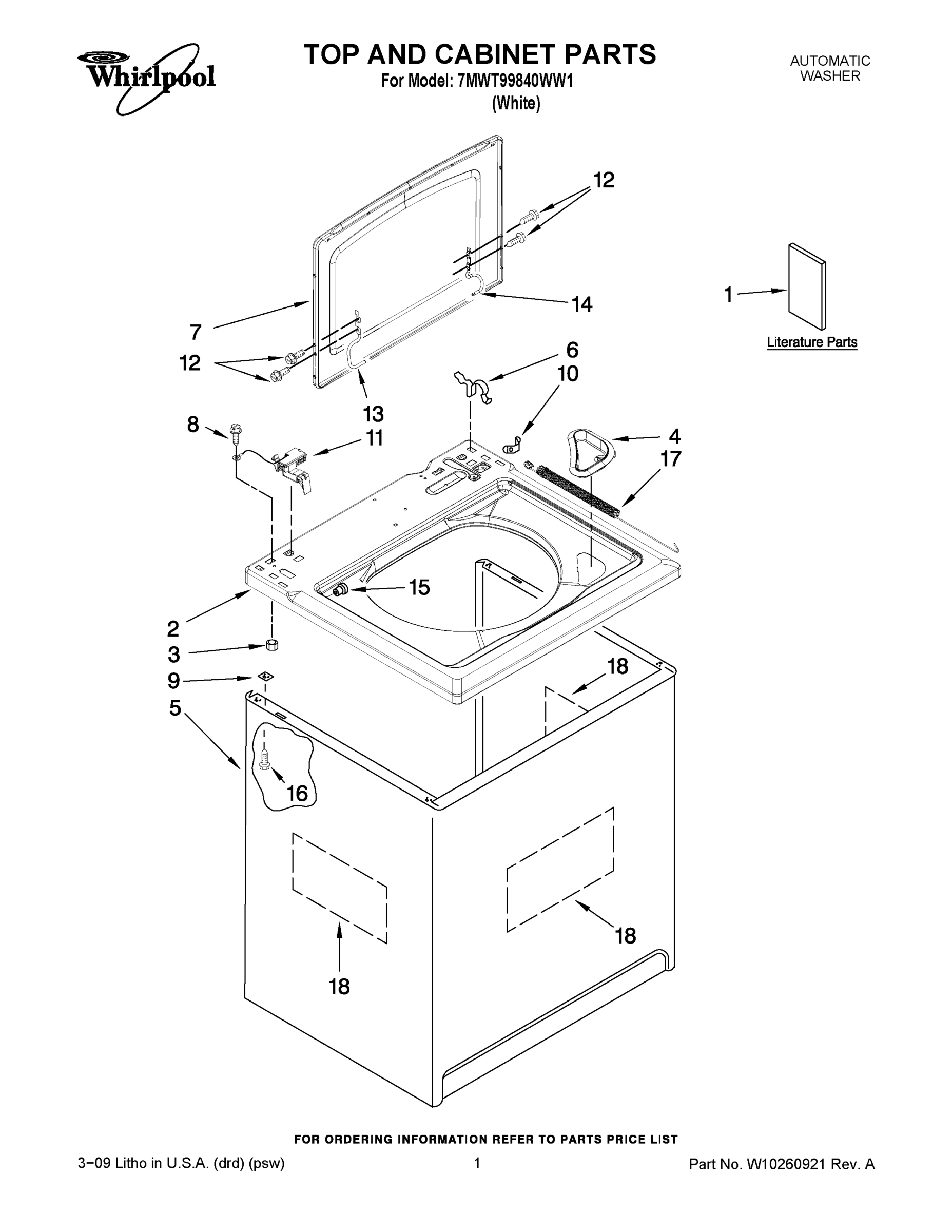

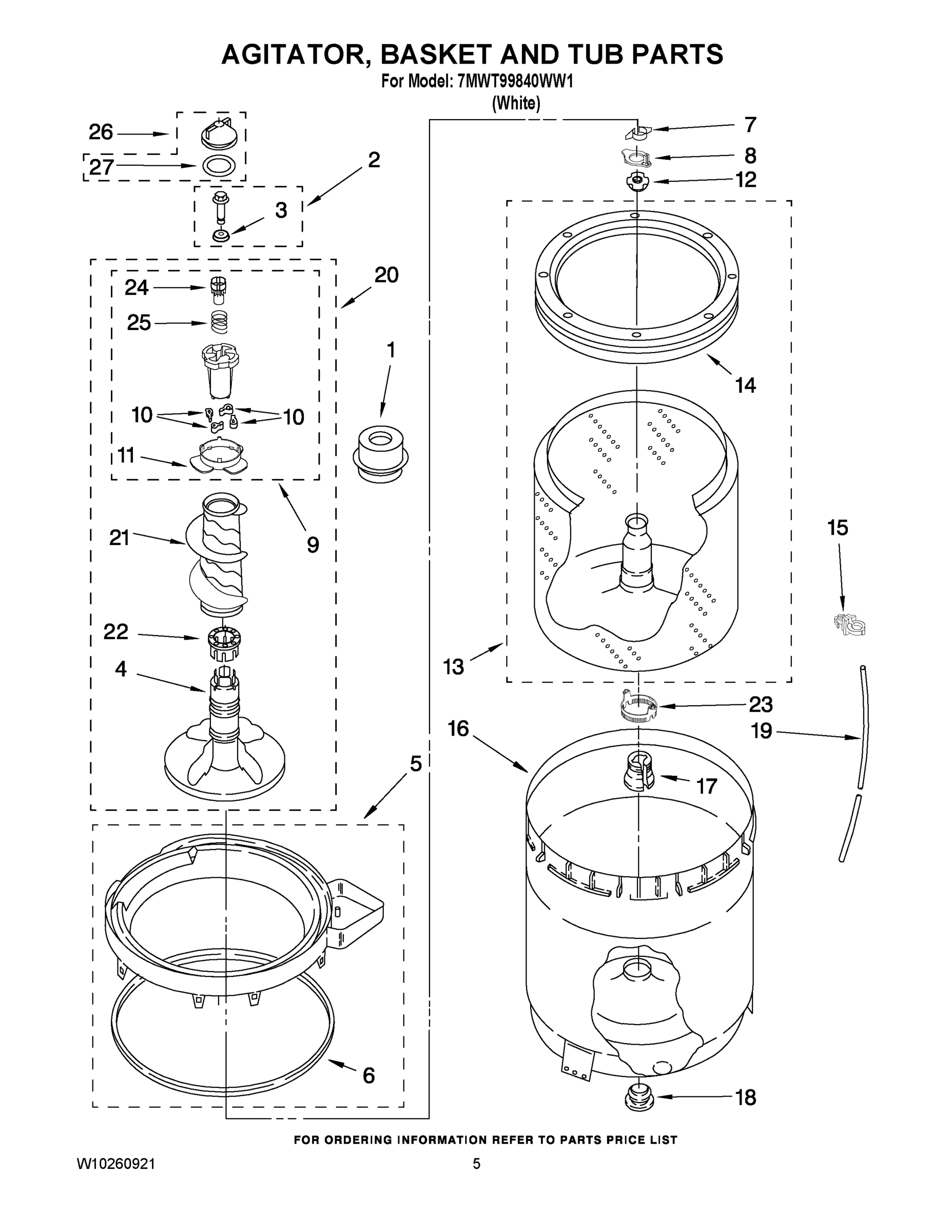

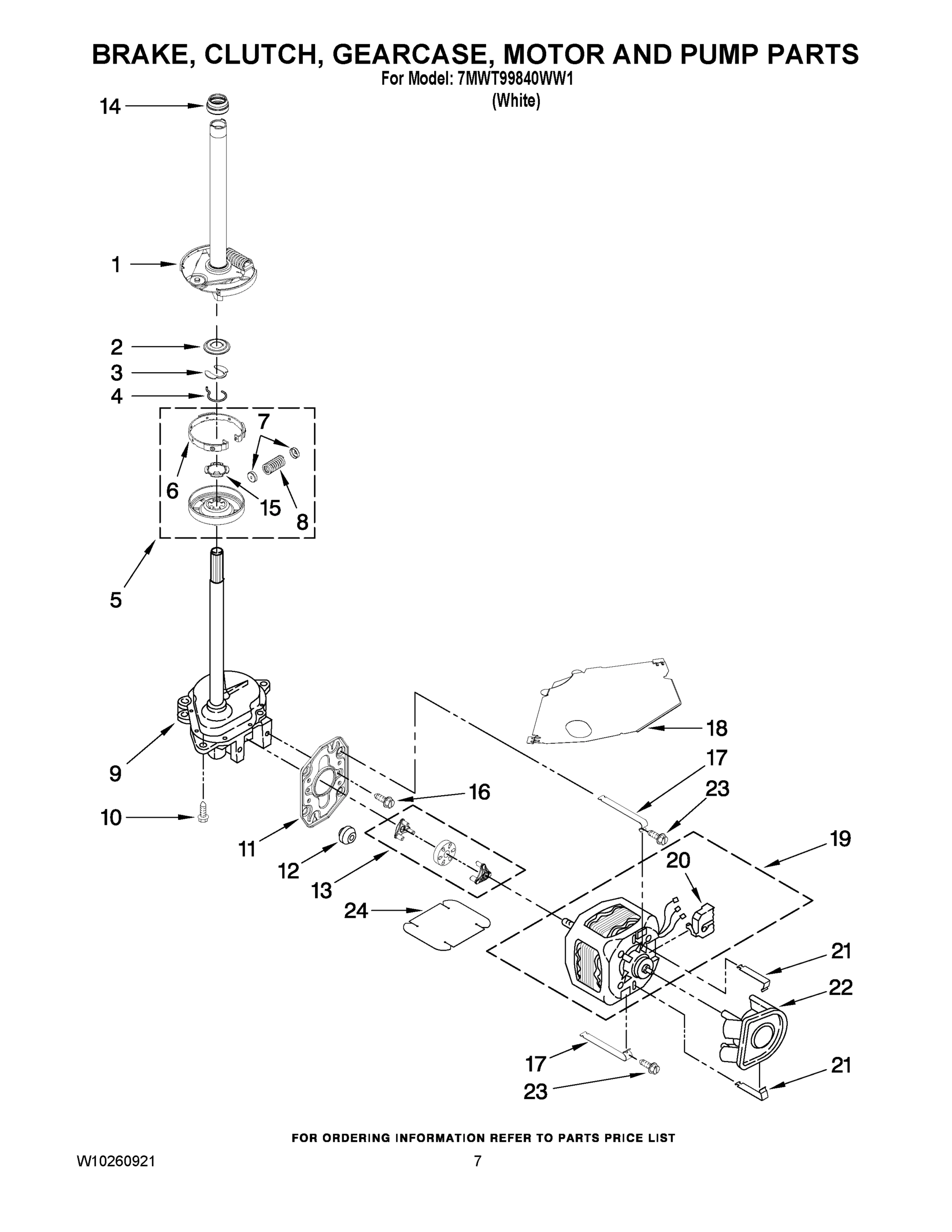

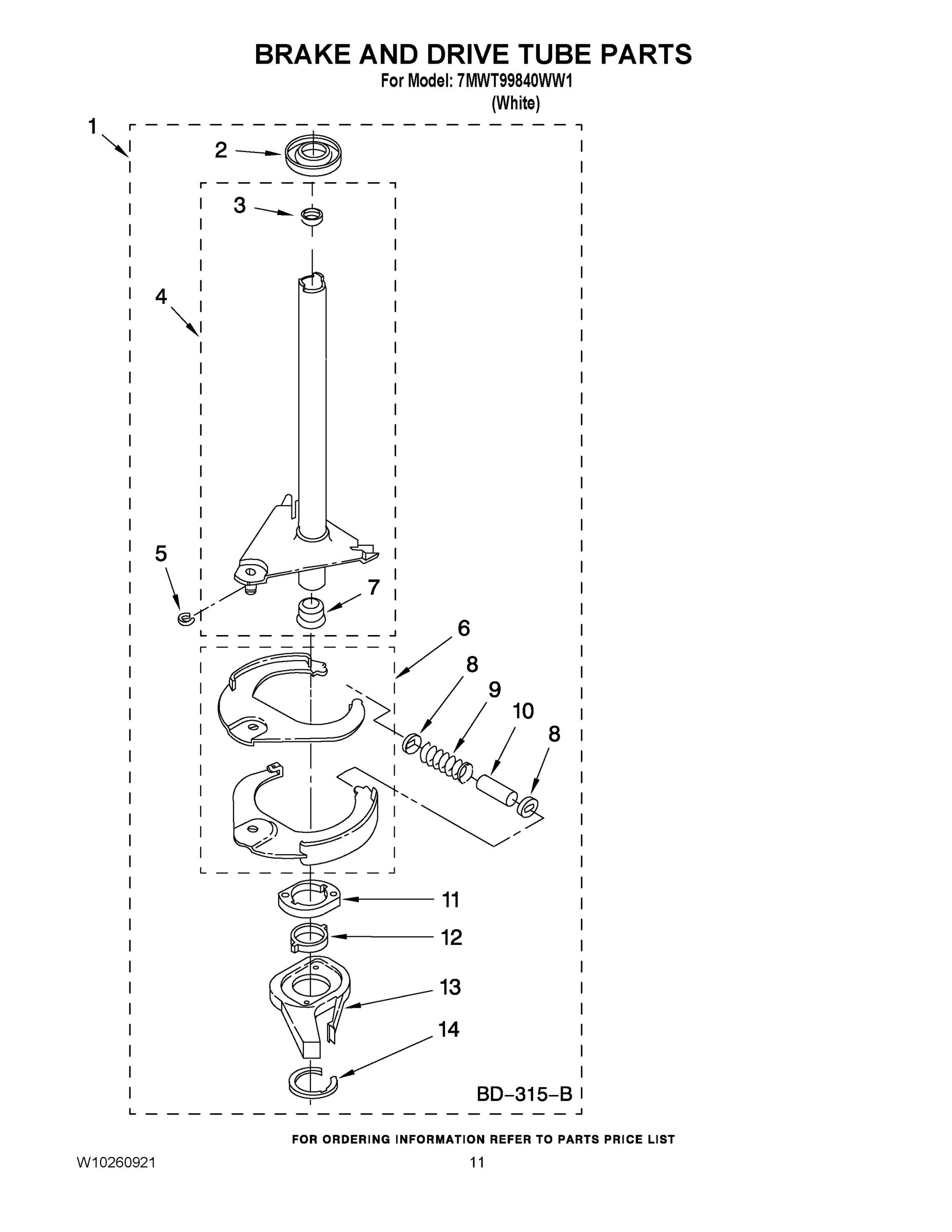

Model Whirlpool 7MWT99840WW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

4

WP8578209 Whirlpool Agitator In Stock WPL WP8578209 $83.91

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

4

WPW10192089 Whirlpool Washer Bleach Dispenser In Stock WPL WPW10192089 $3.70

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

8

WPW10189267 Whirlpool Drain Hose In Stock WPL WPW10189267 $30.95

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8537434 Whirlpool Agitator Cam Backorder WPL WP8537434 $45.64

9

WP8577787 Whirlpool Timer Assembly In Stock WPL WP8577787 $177.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Clip, Retainer WPL 3350828 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

11

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer In Stock WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

14

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $64.40

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.70

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $103.30

15

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $126.36

16

W10165554 Whirlpool Screw Backorder WPL W10165554 $9.59

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

W11096159 Whirlpool Sound ABS Assembly Backorder WPL W11096159 $9.63

18

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP8578210 Whirlpool Agitator In Stock WPL WP8578210 $95.75

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

BLOCK TAB, TERMINAL WPL 3949116 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8054468 Whirlpool Agitator Auger Backorder WPL WP8054468 $92.29

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Knob, Timer WPL W10034730 Contact Us For Availability

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP8055228 Whirlpool Washer In Stock WPL WP8055228 $9.70

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $28.33

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

23

Knob, Control WPL W10034380 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

WP8533540 Whirlpool Retainer Clip In Stock WPL WP8533540 $3.70

24

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

Clip, Capacitor WPL 8318046 Contact Us For Availability

27

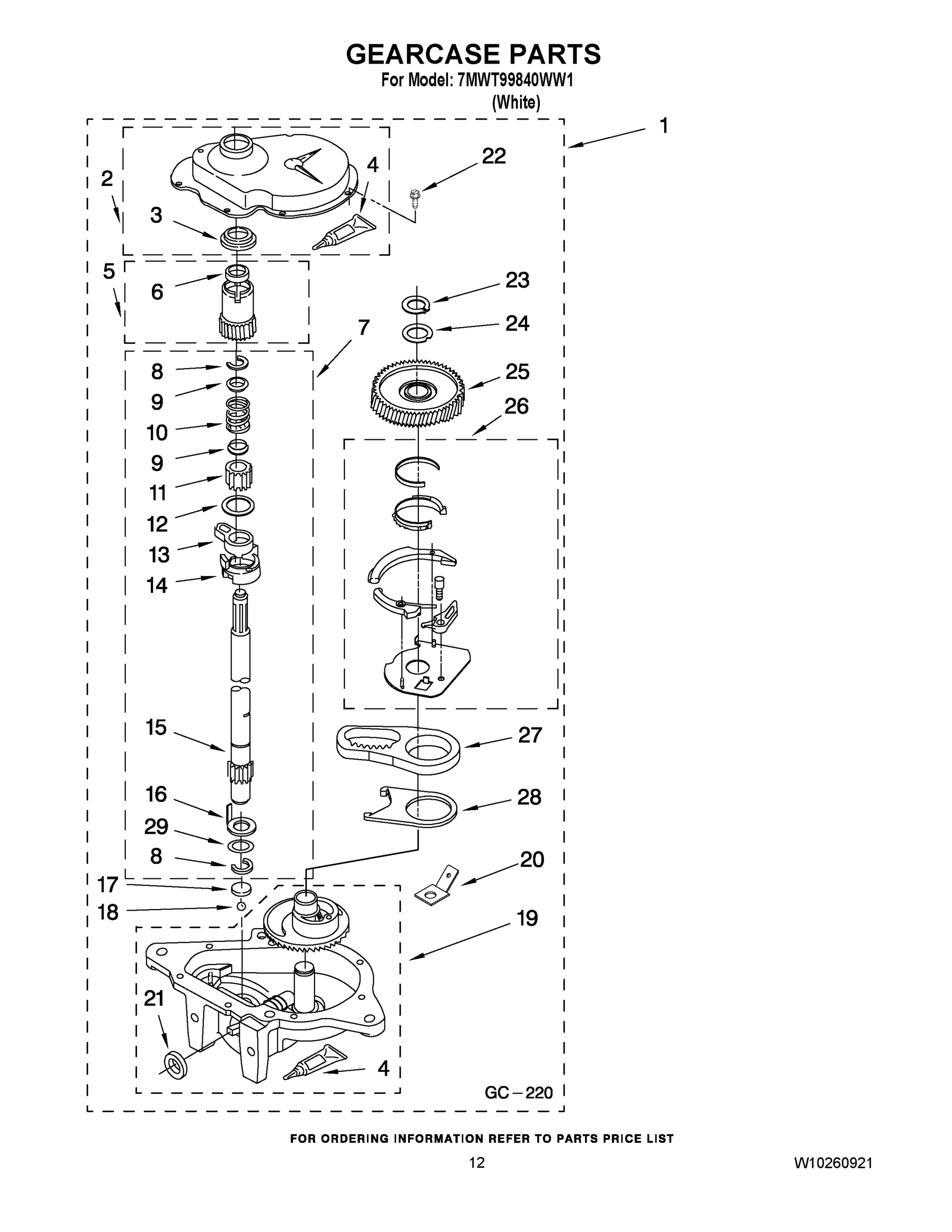

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

27

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

34

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $8.69

35

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $47.51

37

WPW10184148 Whirlpool Temperature Switch In Stock WPL WPW10184148 $60.94

40

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

42

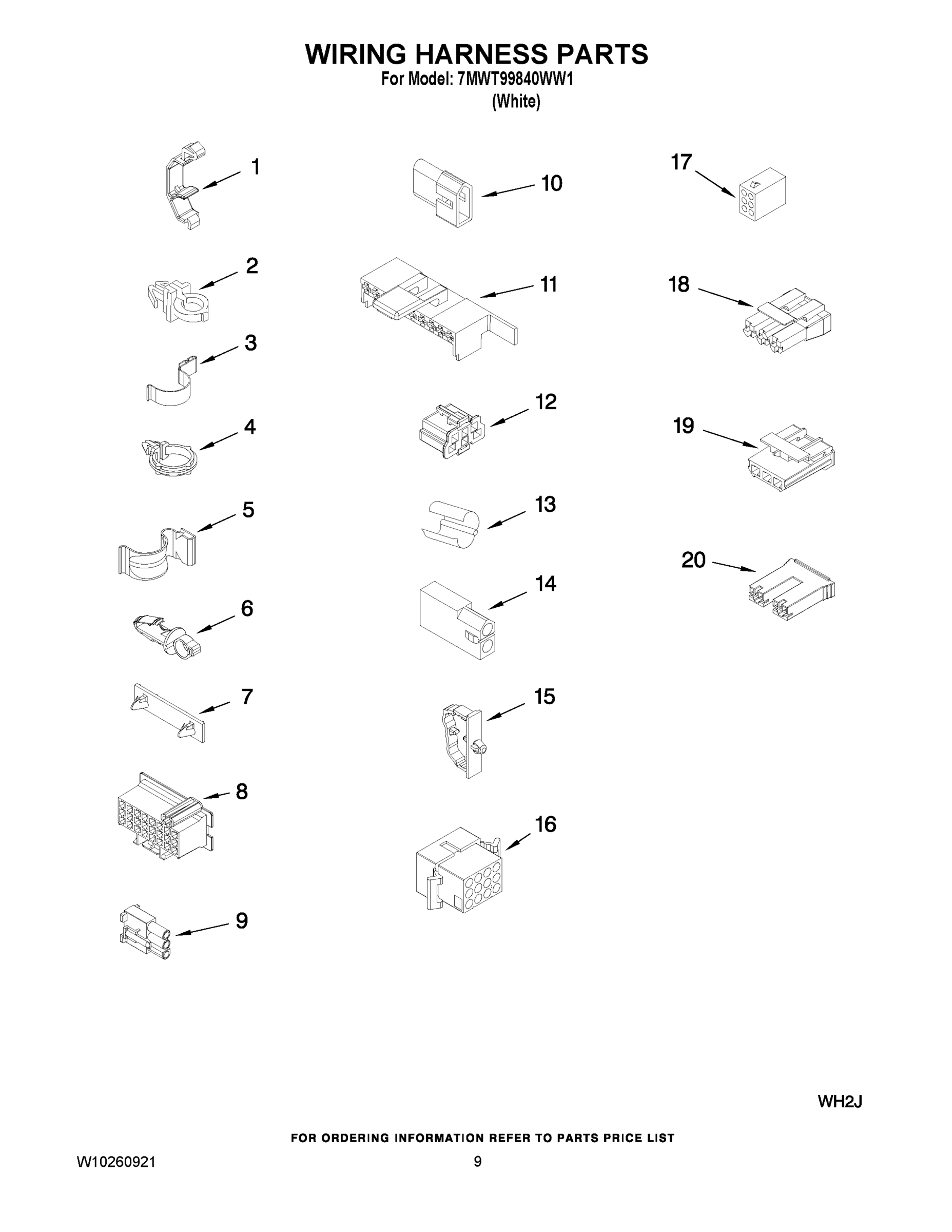

Harness, Wiring (For Detail See Pages 9 & 10) WPL W10248265 Contact Us For Availability

43

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

280129A Whirlpool Break Switch Backorder WPL 280129A $71.04

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

40922 Whirlpool Drain Hose Extension Kit In Stock WPL 40922 $23.33

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

Drain Hose Adapter Kit WPL 280130 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability
