Model Whirlpool 7GS2SHEXPQ01 REFRIGERATOR – Common Parts & Diagrams

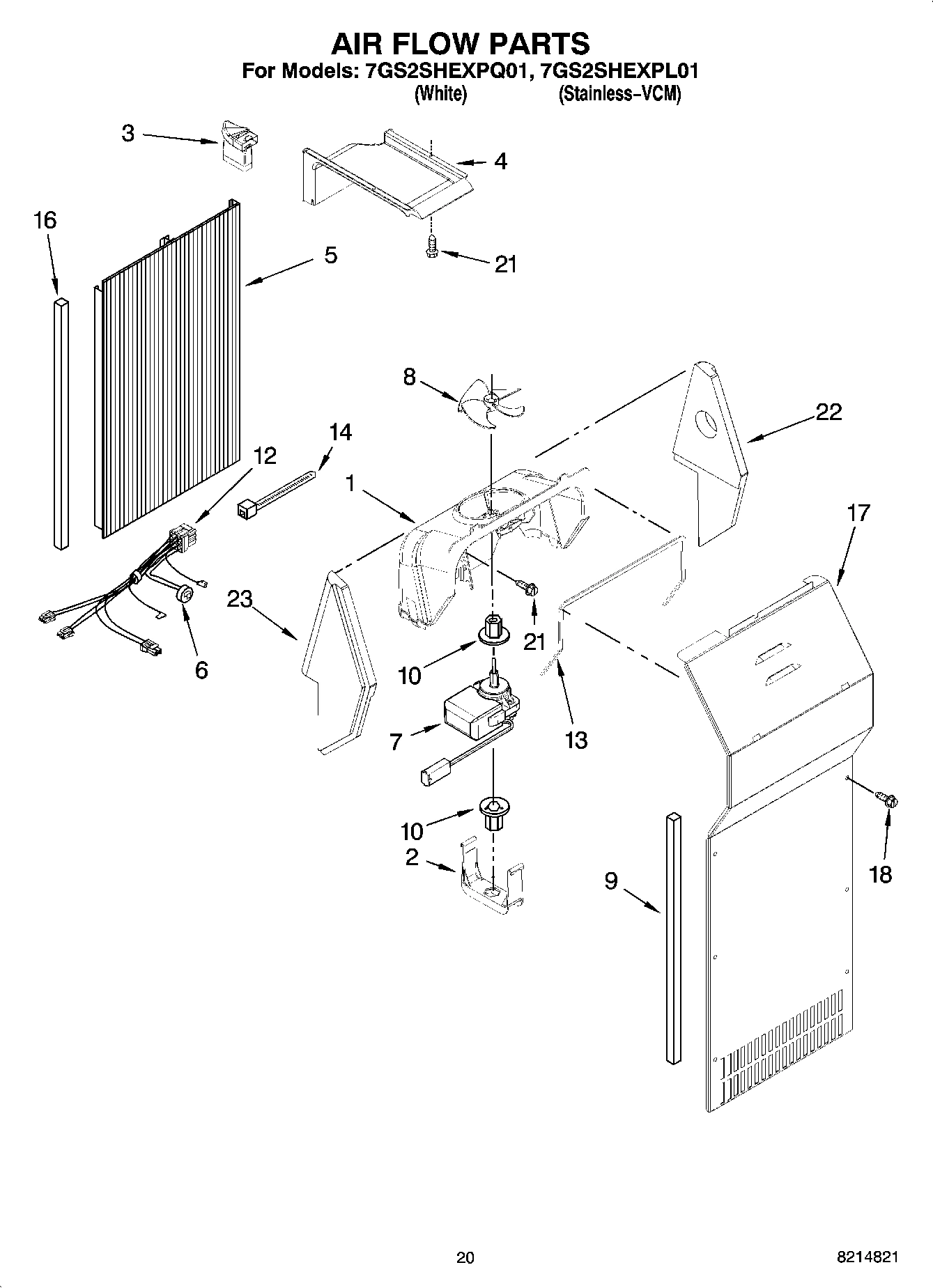

12 - AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)

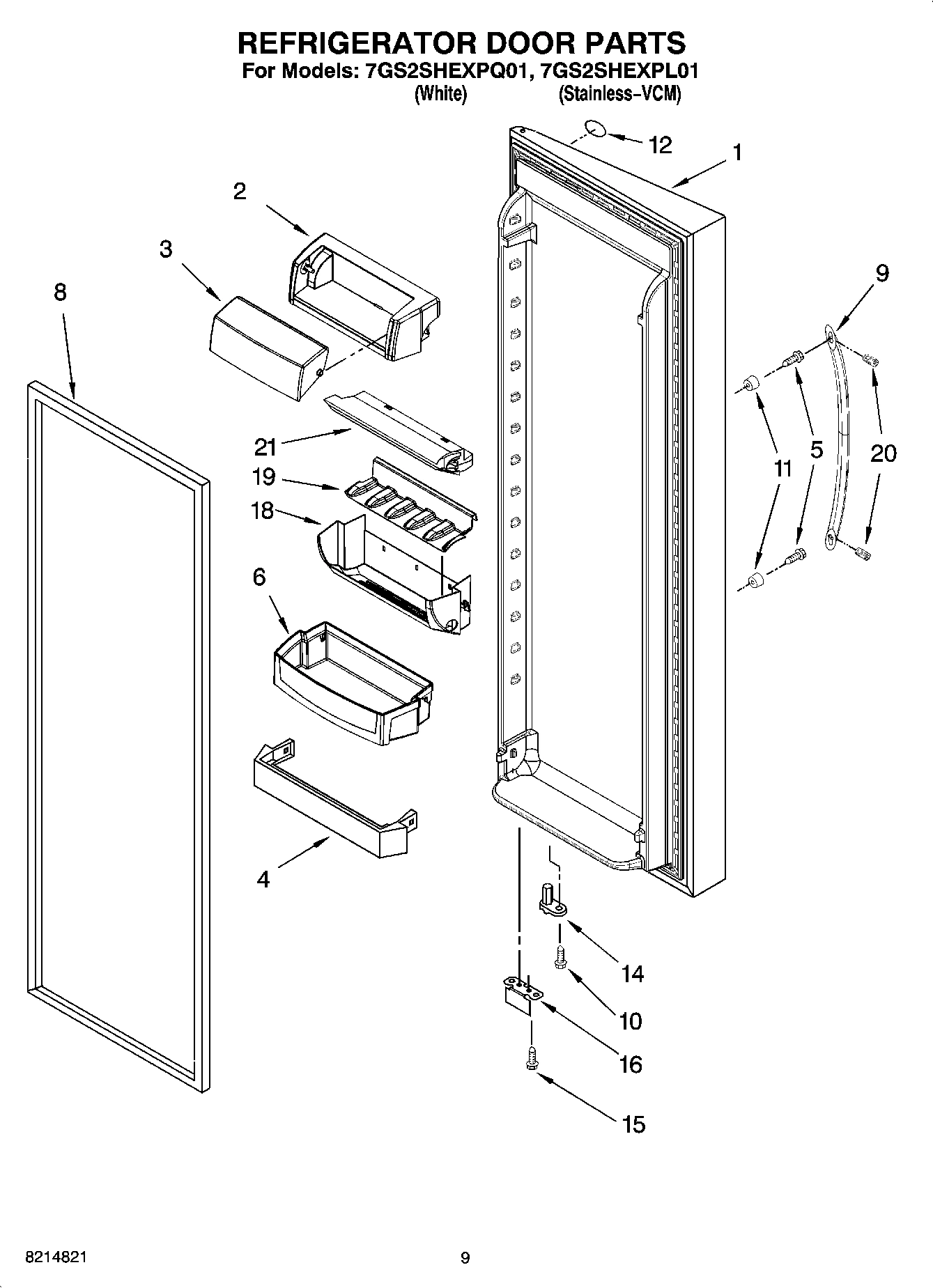

06 - REFRIGERATOR DOOR PARTS
07 - FREEZER DOOR PARTS
01 - CABINET PARTS
08 - DISPENSER FRONT PARTS
03 - REFRIGERATOR SHELF PARTS
10 - ICEMAKER PARTS
04 - FREEZER LINER PARTS
05 - MOTOR AND ICE CONTAINER PARTS
02 - REFRIGERATOR LINER PARTS
09 - UNIT PARTS
11 - CONTROL PARTS
Common parts from model Whirlpool 7GS2SHEXPQ01 REFRIGERATOR
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Graphite) WPL 8171357 Contact Us For Availability
Kit, Terminal Connector WPL 833938 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
1
Frame Assembly WPL 2223517 Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI17260A5 Contact Us For Availability
1
Ice Bin WPL 2212302 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI17259A3 Contact Us For Availability
1
Control Box WPL 2255222 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
Snack Bin Asm WPL 2223261 Contact Us For Availability
2
Shroud, Light WPL 2167012 Contact Us For Availability
2
Crusher Bin WPL 2255577 Contact Us For Availability
2
Shield WPL 2261773 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Dairy Door WPL 2255421 Contact Us For Availability
3
Cover, Crisper WPL 2223592 Contact Us For Availability
3
Auger WPL 2258224 Contact Us For Availability
4
Washer WPL 2258220 Contact Us For Availability
4
Louver WPL 2257741 Contact Us For Availability
4
Washer WPL 3400972 Contact Us For Availability
5
Foam, Shield WPL 2188928 Contact Us For Availability
6
Electronic Control WPL 2304103 Contact Us For Availability
6
Glass, Cover WPL 2223714 Contact Us For Availability
6
Cover, Crusher WPL 2255461 Contact Us For Availability
6
Door Control Asm WPL 2261601 Contact Us For Availability
7
Track, Basket-Dual (Right) WPL 2301291 Contact Us For Availability
7
Track, Basket-Dual (Left) WPL 2301292 Contact Us For Availability
7
Bracket, Dual Crisper WPL 2256035 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2304288 Contact Us For Availability
8
TUBE, SUCTION WPL 2205764 Contact Us For Availability
8
Hole Plug WPL 940014 Contact Us For Availability
9
Blade, Fixed WPL 2257020 Contact Us For Availability
9
Grille, Overflow (Black) WPL 2207048B Contact Us For Availability
9
Shelf, Slide Out WPL 2211743K Contact Us For Availability
9
Shelf Ladder WPL 2206270 Contact Us For Availability
10
Tube, Condenser to Heat Loop WPL 2261599 Contact Us For Availability
10
Basket, Tall WPL 2301192 Contact Us For Availability
10
Shield, Electrical WPL 2305538 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Slide, Humidity Control WPL 2223308 Contact Us For Availability
11
Relay (Service Only) WPL 2183454 Contact Us For Availability
11
Cam Assembly WPL 2255226 Contact Us For Availability
12
Roll Pin WPL 489229 Contact Us For Availability
12
Nameplate WPL 2220214 Contact Us For Availability
12
Knob, Humidity Control WPL 2223309 Contact Us For Availability
12
Basket Front WPL 2195904K Contact Us For Availability
12
Bearing Body WPL 2255413 Contact Us For Availability
13
Shelf Track (Right Side) WPL 2301289 Contact Us For Availability
13
Shelf Track (Left Side) WPL 2301290 Contact Us For Availability
13
Light Lens WPL 2255225 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Meat Pan Asm WPL 2223243 Contact Us For Availability
14
Shelf WPL 2212343K Contact Us For Availability
14
Ferrite Bead WPL 2308165 Contact Us For Availability
15
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
15
Basket, Slope WPL 2301193 Contact Us For Availability
15
Pivot Arm WPL 2255227 Contact Us For Availability
16
Screw WPL 627068 Contact Us For Availability
18
Deflector WPL 2179350 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Latch, Bin WPL 2255578 Contact Us For Availability
20
Control Box Harness WPL 2187965 Contact Us For Availability
21
Clip WPL 489396 Contact Us For Availability
21
Light Lens WPL 2209769 Contact Us For Availability
22
Shelf, Slide Out WPL 2255160 Contact Us For Availability
22
Screw WPL 488280 Contact Us For Availability
22
Shield, Heat WPL 2255666 Contact Us For Availability
23
Bracket, Insert WPL 2216997 Contact Us For Availability
23
Connecting Rod WPL 2255228 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
25
Clamp, Service Cord WPL 489348 Contact Us For Availability
25
Escutcheon, Control Box WPL 2255611 Contact Us For Availability
26
Harness, Unit WPL 2187740 Contact Us For Availability
26
Knob, RC WPL 2255232 Contact Us For Availability
27
Sleeve, Mechanism Display WPL 2252127 Contact Us For Availability
27
Knob, FC WPL 2255992 Contact Us For Availability
27
Cover, Icemaker WPL 2255589 Contact Us For Availability
28
Slide, Ice Maker WPL 2212321 Contact Us For Availability
28
Screw WPL 8533917 Contact Us For Availability
29
Electronic Control WPL 2304095 Contact Us For Availability
29
SPRING, WASHER WPL 489203 Contact Us For Availability
31
Control Box WPL 2255623 Contact Us For Availability
31
Enclosure, Motor WPL 2256154 Contact Us For Availability
31
Air Seal, Thermistor WPL 2261265 Contact Us For Availability
32
Dispenser, Motor WPL 2188860 Contact Us For Availability
33
Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability
33
Cover WPL 2212305 Contact Us For Availability
33
Nut, Hex WPL 3400971 Contact Us For Availability
36
Cover, Receiver WPL 2255558 Contact Us For Availability
36
Cover WPL 2255624 Contact Us For Availability
37
Motor (Not Serviceable, Order 35) WPL ARI17268A2 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
38
Clip, Retaining WPL 2255199 Contact Us For Availability
40
Screw WPL 489340 Contact Us For Availability
41
Light Lens WPL 2212376 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
45
Ladder (Left Side) WPL 2212315 Contact Us For Availability
45
Ladder (Right Side) WPL 2212316 Contact Us For Availability
46
Shield, Wiring WPL 2219878 Contact Us For Availability
48
Unit Mounting Rail WPL 2149718 Contact Us For Availability
49
Screw WPL 8281160 Contact Us For Availability
50
Guard, Fan WPL 2186496 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
63
Following WPL ARI17266A9 Contact Us For Availability
63
WPL ARI17267A5 WPL ARI17267A5 Contact Us For Availability
100
Ice Container (Complete) WPL 2258227 Contact Us For Availability
× ![]()
