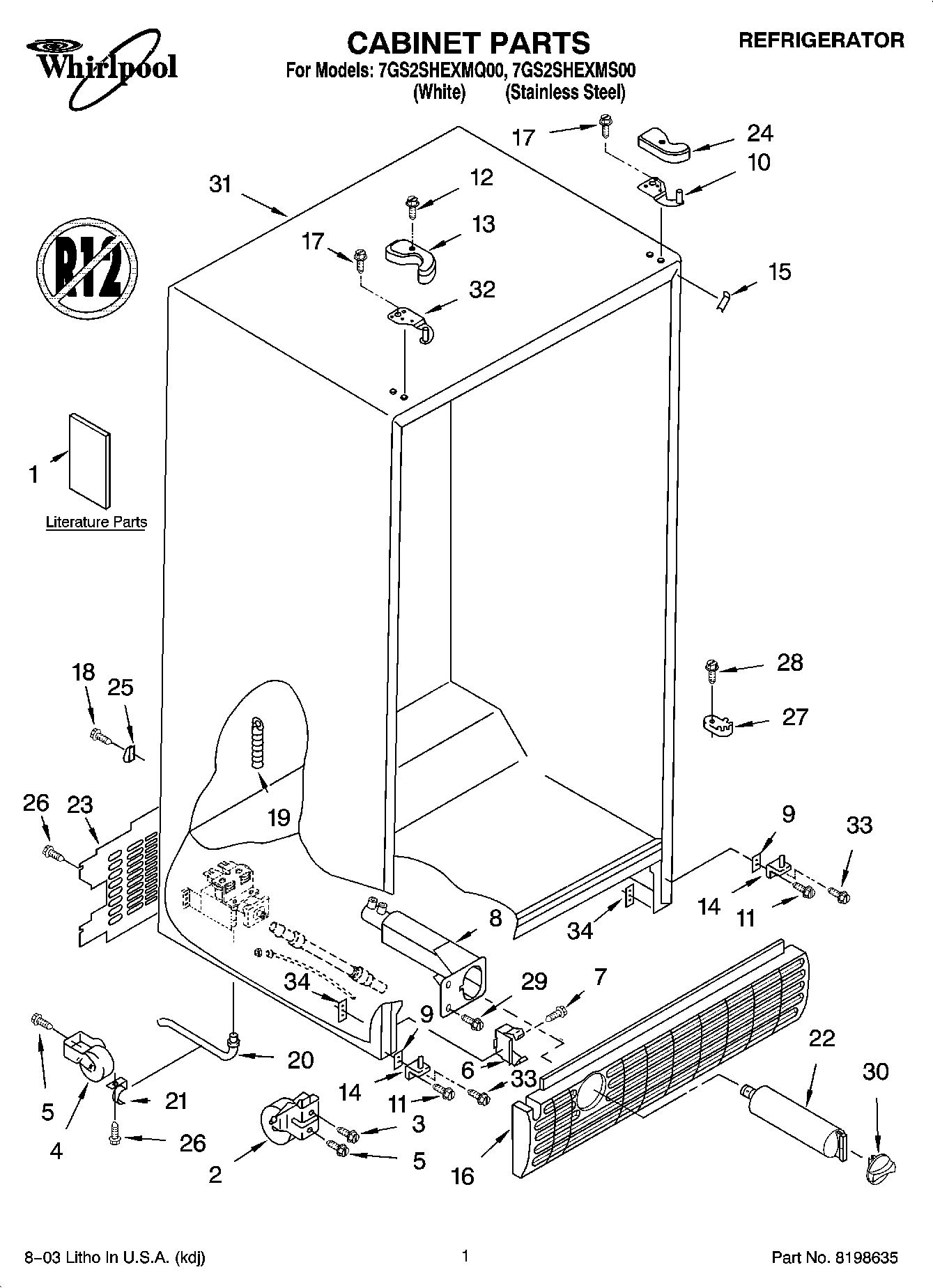

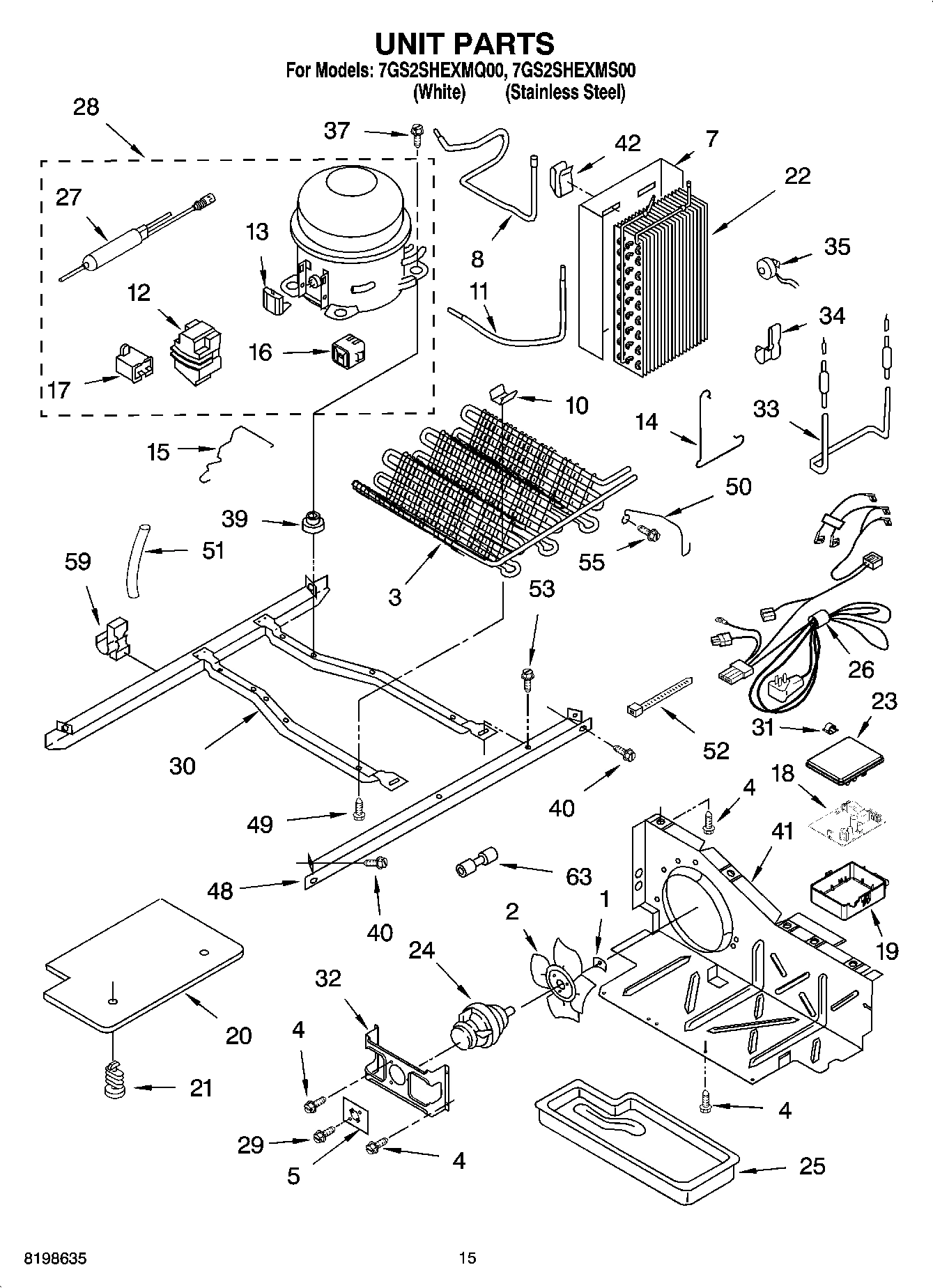

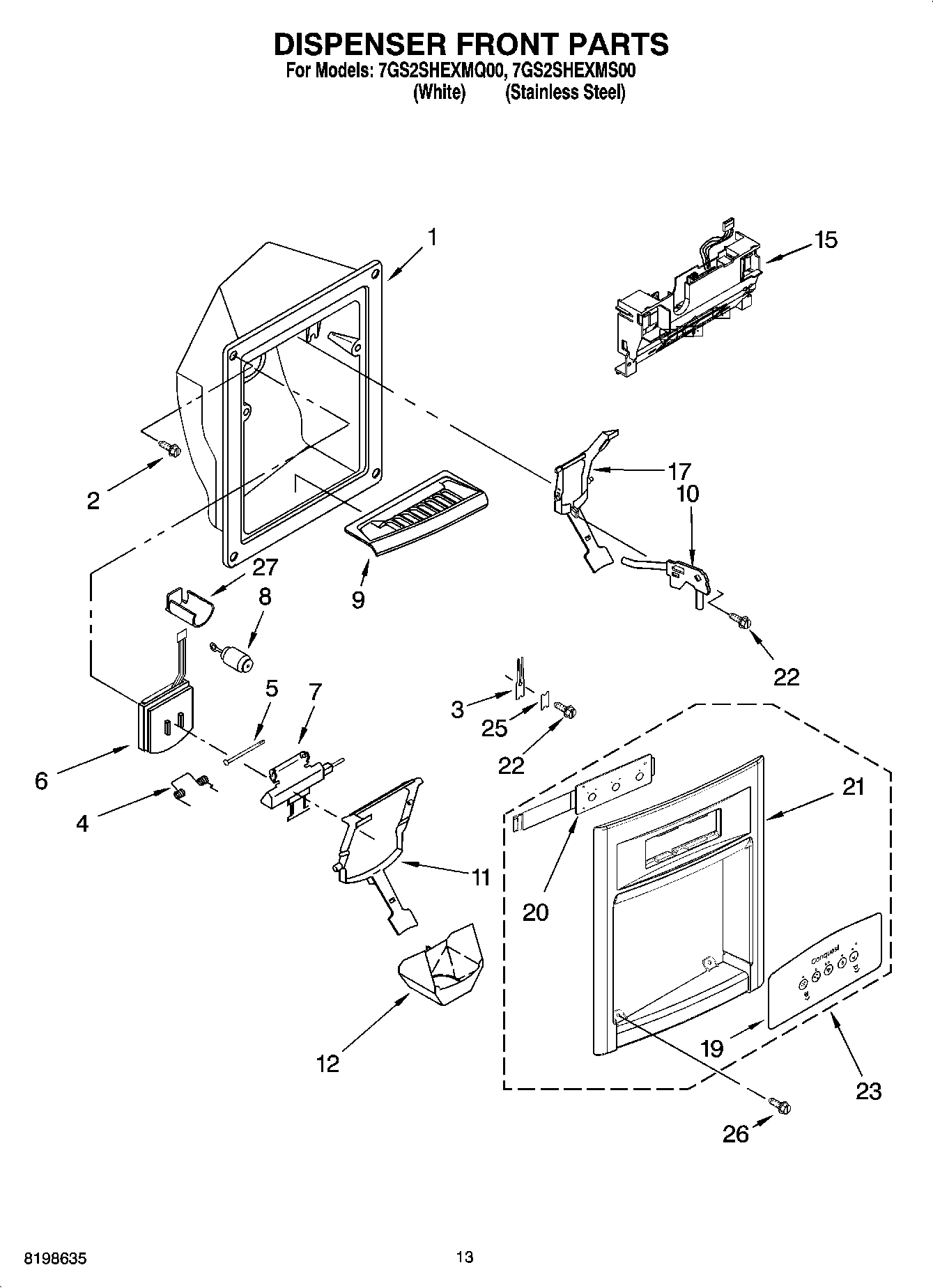

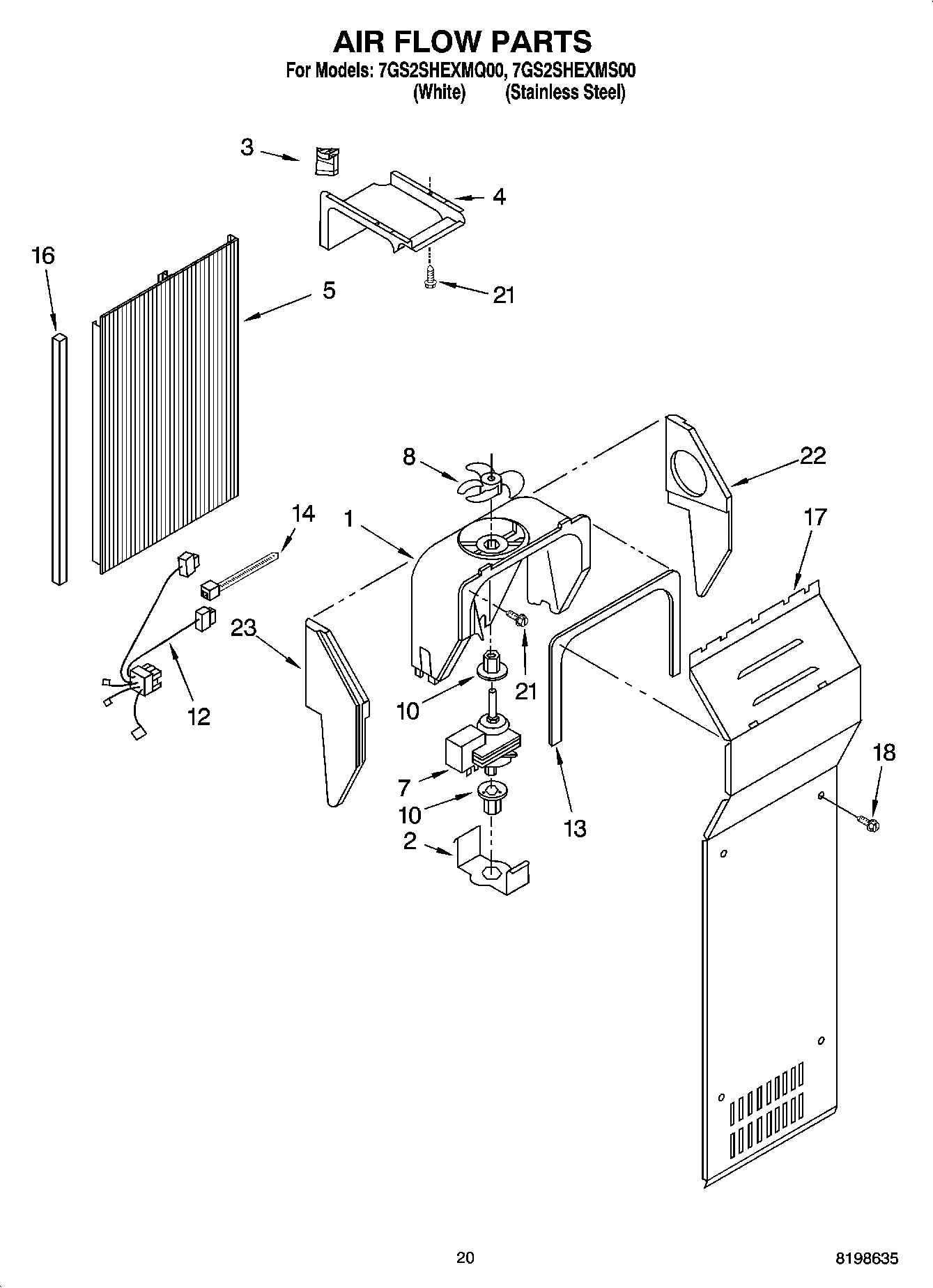

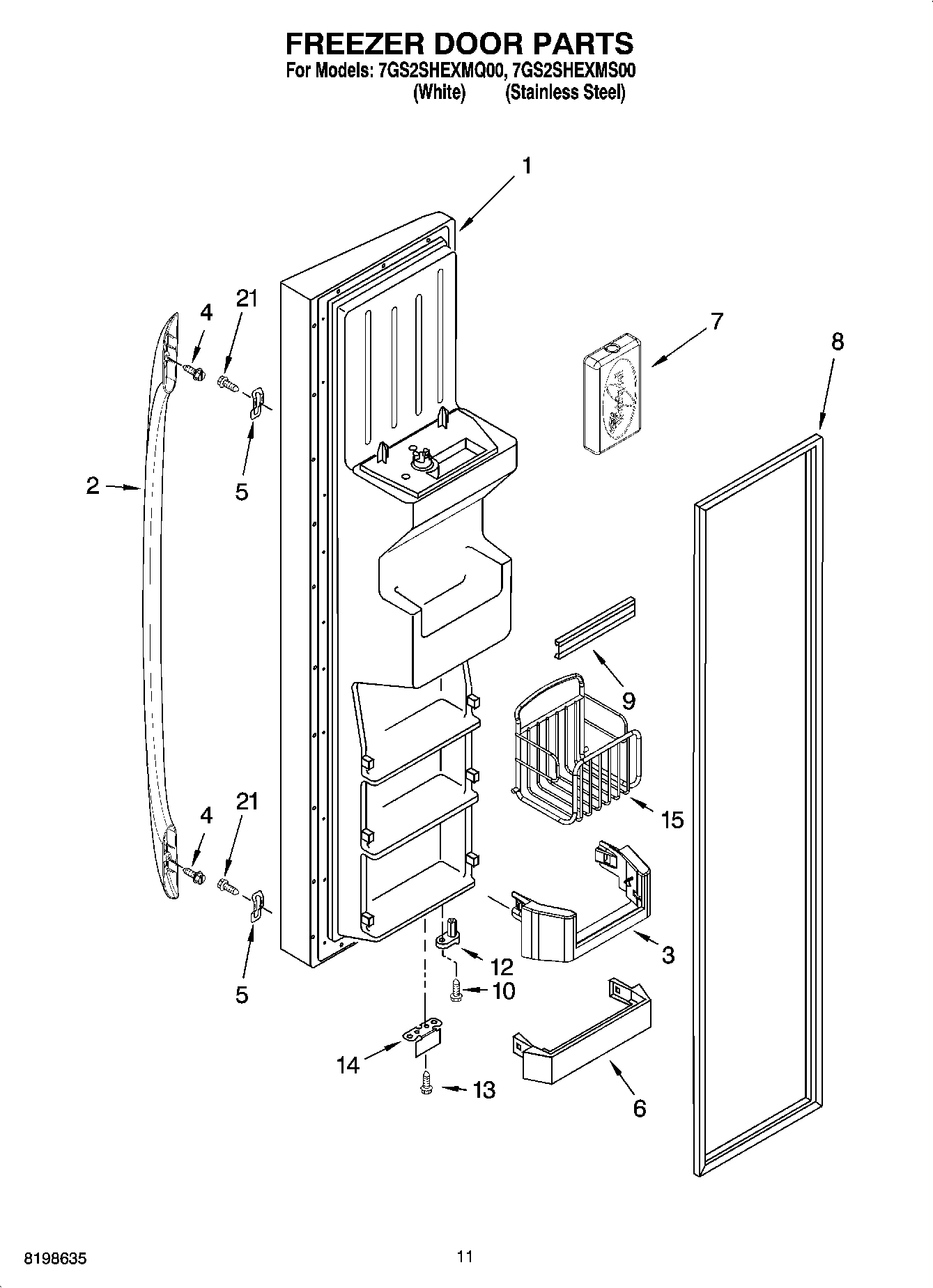

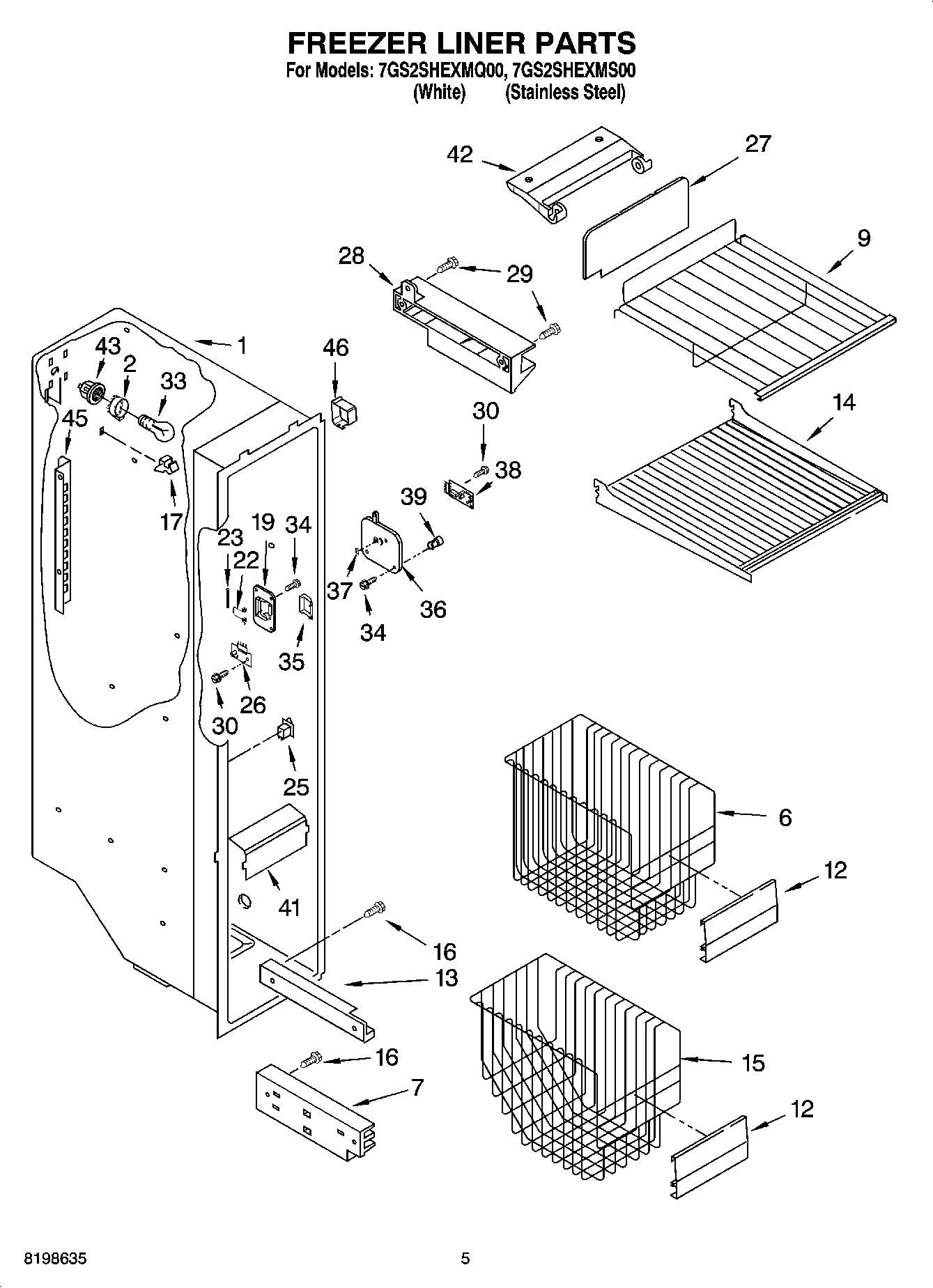

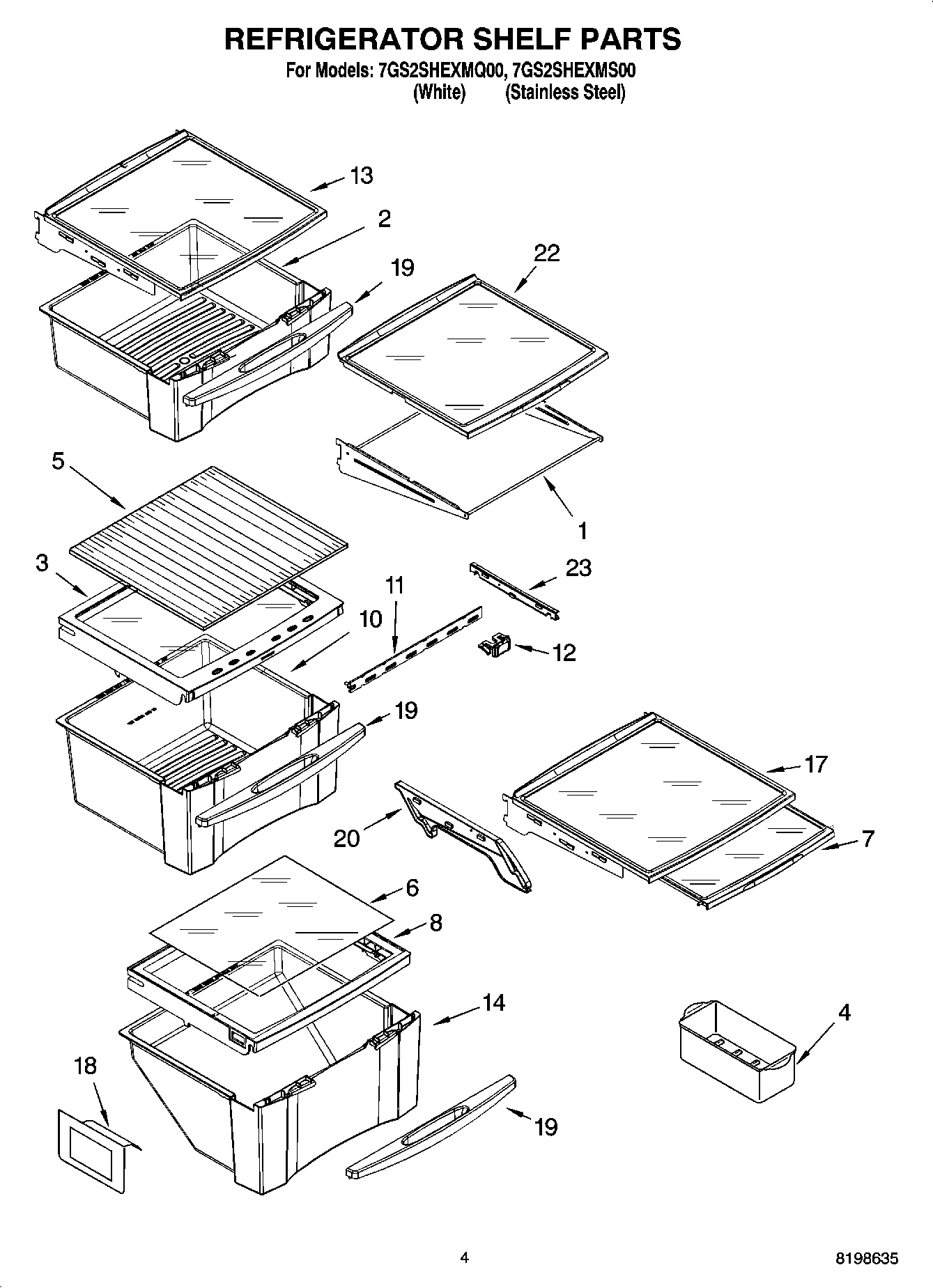

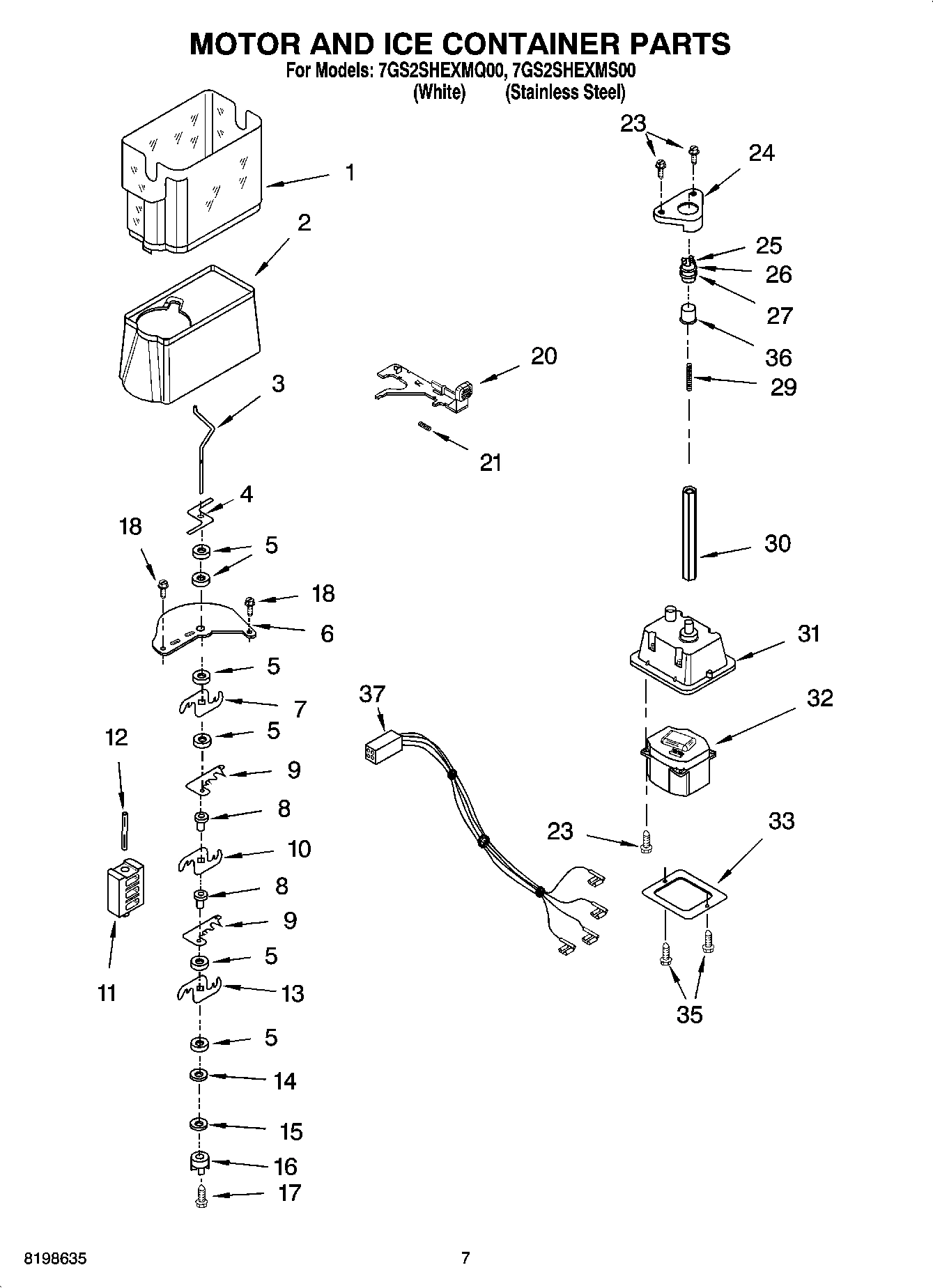

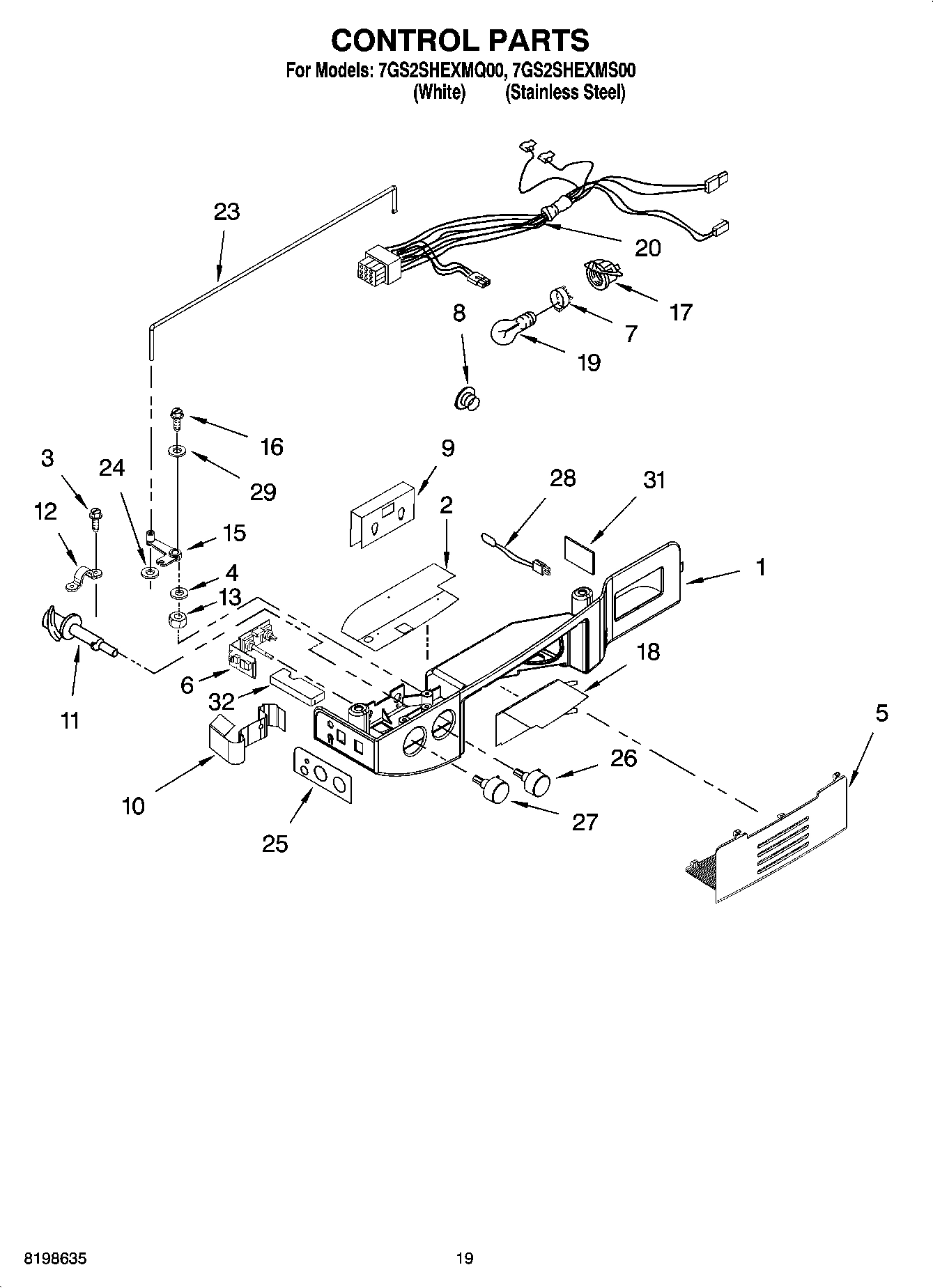

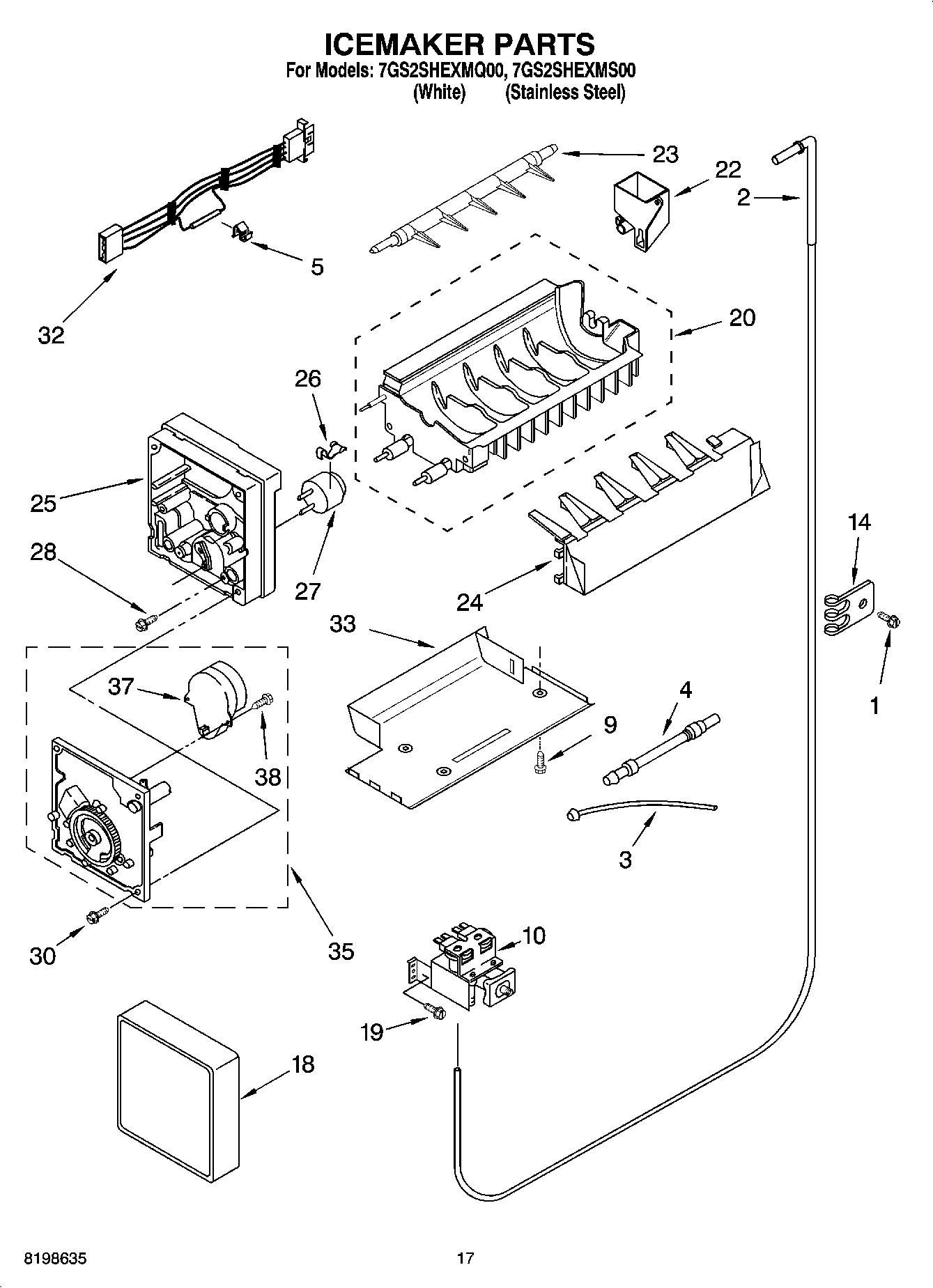

Model Whirlpool 7GS2SHEXMQ00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Brush Touch-up Kit (Graphite) WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

Ice Container Assembly WPL 2255576 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Kit, Evaporator Repair WPL 799833 Contact Us For Availability

Enamel, Graphite (1 Qt. Uncut WPL 8171358 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI141846A WPL ARI141846A Contact Us For Availability

WPL ARI141847A WPL ARI141847A Contact Us For Availability

WPL ARI141848A WPL ARI141848A Contact Us For Availability

WPL ARI141849A WPL ARI141849A Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Modular Icemaker Service Sheet WPL LIT2220407 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2255955 Contact Us For Availability

1

Literature Parts (Instruction Sheet, Door Rem WPL LIT2261039 Contact Us For Availability

1

LITERATURE PARTS (Energy Label) WPL LIT2261377 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2261383 Contact Us For Availability

1

Frame Assembly, Glass Sliding (2) WPL 2223517 Contact Us For Availability

1

Ice Bin WPL 2212302 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Dairy Door WPL 2255421 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Snack Bin Asm WPL 2223261 Contact Us For Availability

2

Crusher Bin WPL 2255577 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $41.91

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Cover, Crisper WPL 2223592 Contact Us For Availability

3

Auger WPL 2212342 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

SCREW WPL 8533920 Contact Us For Availability

4

BLade, Stirring WPL 2212382 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Glass, Cover WPL 2223591 Contact Us For Availability

5

Air Duct Freezer WPL 2212313 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Glass, Cover WPL 2223714 Contact Us For Availability

6

Cover, Crusher WPL 2255461 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Shelf, Drop Down WPL 2223426 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

8

WP2223242 Whirlpool Refrigerator Cover In Stock WPL WP2223242 $209.82

9

Grille, Overflow (Black) WPL 2207048B Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $92.53

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $152.60

Shield, Electrical (Internal) WPL 2261231 Contact Us For Availability

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $30.25

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.16

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Cam Assembly WPL 2255226 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Bearing Body WPL 2255413 Contact Us For Availability

Knob, Humidity Control WPL 2223309 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

Nut, Hex WPL 3400971 Contact Us For Availability

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Meat Pan Asm WPL 2223243 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Pivot Arm WPL 2255227 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $58.14

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Shelf Assembly, Drop Down (Includes 7 & 20) WPL 2223637 Contact Us For Availability

Cover, Evaporator WPL 2212314 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Shield, Heat WPL 2255666 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Control Box WPL 2255623 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $98.08

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2255235 Contact Us For Availability

Track, Shelf (Right Side) WPL 2223427 Contact Us For Availability

Track, Shelf (Left Side) WPL 2223428 Contact Us For Availability

Latch, Bin WPL 2255578 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Nameplate WPL 2220214 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Shelf, Slide Out WPL 2255160 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Connecting Rod WPL 2255228 Contact Us For Availability

Cover, Unit WPL 2188737 Contact Us For Availability

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $40.37

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Escutcheon, Control Box WPL 2255611 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Knob, RC WPL 2255232 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Sleeve, Mechanism Display WPL 2252127 Contact Us For Availability

Knob, FC WPL 2255992 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

31

Cabinet (Not A Serviceable Part) WPL ARI141836A Contact Us For Availability

31

Bracket, Motor WPL 2256154 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $49.52

Foam, Shield WPL 2261329 Contact Us For Availability

33

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

33

Cover WPL 2212305 Contact Us For Availability

34

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $85.90
