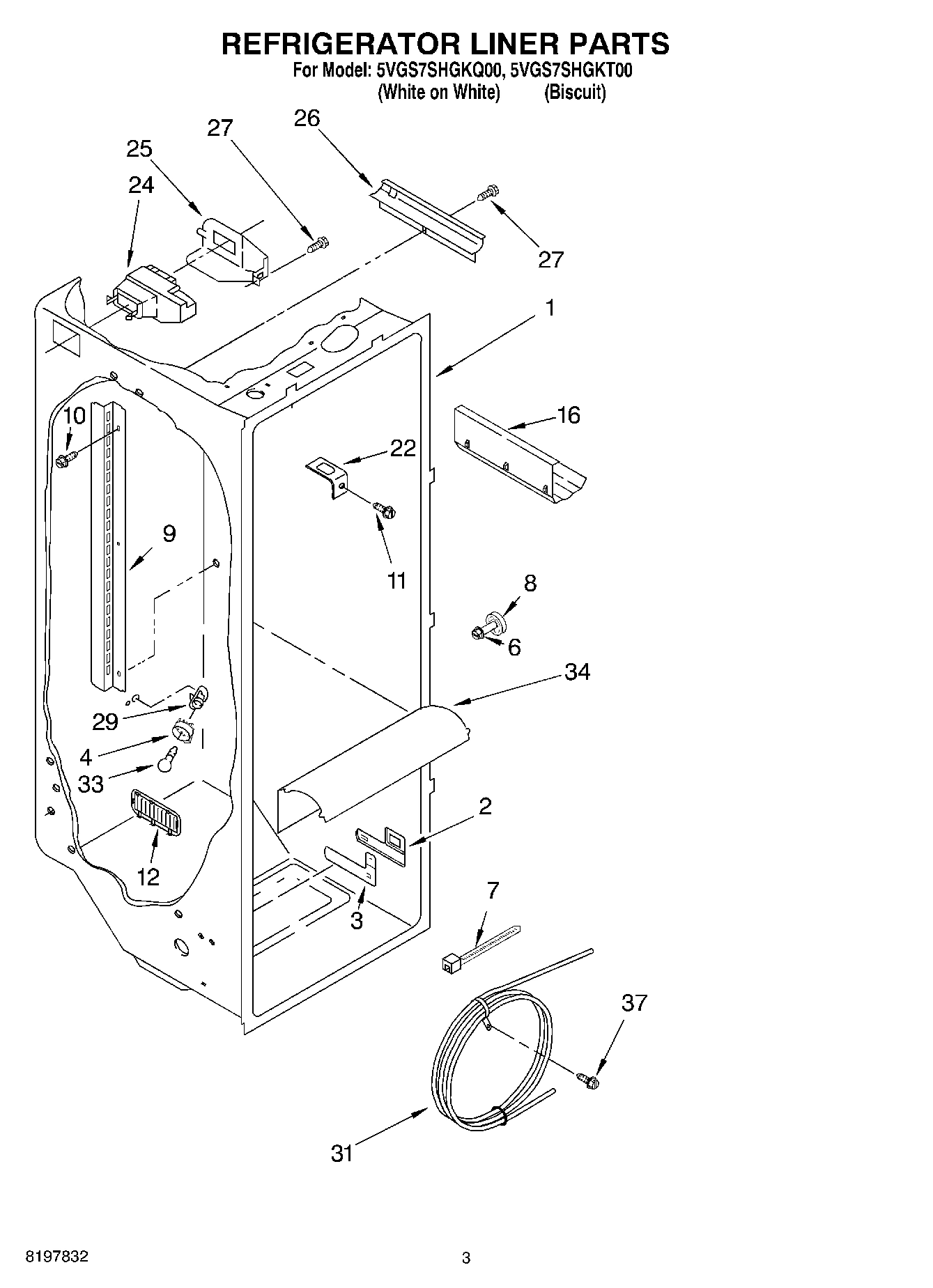

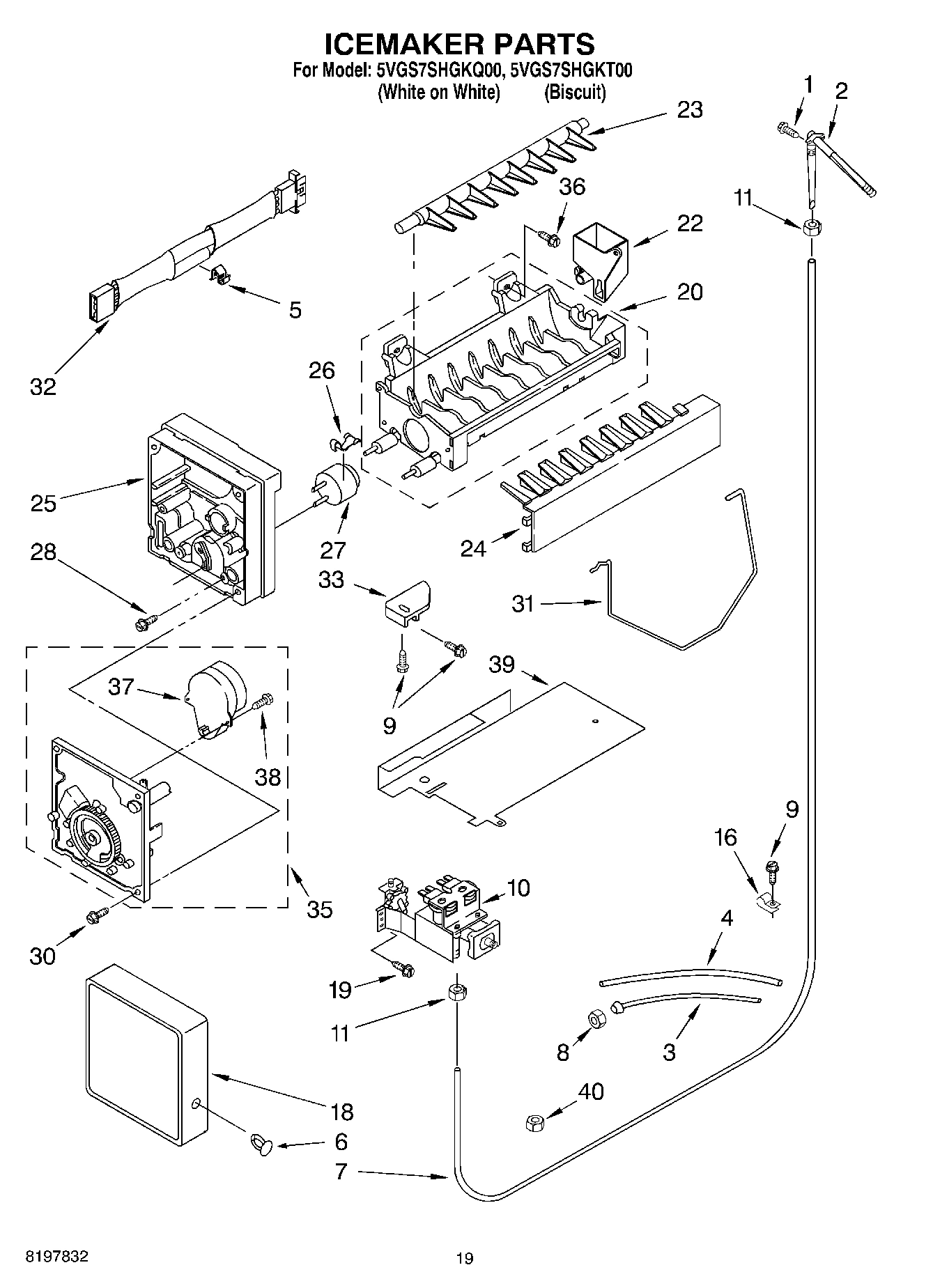

Model Whirlpool 5VGS7SHGKT00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2211657 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet Wiri WPL LIT2214768 Contact Us For Availability

1

Shelf, Flip-Up WPL 2204485 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

Gasket, Cover (Front) WPL 2174442 Contact Us For Availability

4

Housing Dispenser (Not A Servicable Item) WPL ARI15653A6 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Thermostat (FC) WPL 2187158 Contact Us For Availability

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $101.56

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

6

Spacer, Switch (2) WPL 625834 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

7

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

7

Fan Motor WPL 2187151 Contact Us For Availability

8

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Stud, Rear WPL 2196207 Contact Us For Availability

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

8

Switch Assembly (Not Available Order No.40) WPL ARI15654A8 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

9

WP2209606 Whirlpool Gasket Assembly Backorder WPL WP2209606 $26.21

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $165.08

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Jewelry, Handle WPL 2207010G Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Divider, Bin WPL 2195496 Contact Us For Availability

Mechanism Delay WPL 2205686 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2206505 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

Trim, Door-Top (Biscuit) WPL 2217187T Contact Us For Availability

Trim, Door-Top (White) WPL 2217187W Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2209607 Whirlpool Gasket Assembly Backorder WPL WP2209607 $26.21

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Bracket, Door Stop WPL 2200082 Contact Us For Availability

17

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

17

Butter, Dish WPL 2165792 Contact Us For Availability

17

Cover, Evaporator WPL 2203841 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

Trim, Door-Bottom (Biscuit) WPL 2217186T Contact Us For Availability

Trim, Door-Bottom (White) WPL 2217186W Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

19

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

20

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

20

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

20

Control Box Harness WPL 2206516 Contact Us For Availability

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $46.67

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Biscuit) WPL 2198468T Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Frame, Shelf WPL 2195975 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2203562W Whirlpool Refrigerator Dispenser A Backorder WPL WP2203562W $38.10

Lever Assembly, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Escutcheon, Control Box WPL 2206075 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

Light Bar (FC) WPL 2179921 Contact Us For Availability

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Window WPL 2172941 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

29

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

Retainer WPL 2200097 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

30

P.C. Board Filter Indicator WPL 2205787 Contact Us For Availability

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

31

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

32

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Bulb, Light WPL 989331 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $34.13

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

Lever Assembly, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

Overlay, Front Cover (Not Available Order No. WPL ARI15655A5 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Service Cord WPL 2205329 Contact Us For Availability

Front Cover, Housing (Includes Item) 8, 14 & WPL 2207084T Contact Us For Availability

Front Cover, Housing (Includes Item) 8, 14 & WPL 2207084W Contact Us For Availability

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

47

Cover, Unit WPL 2214571 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI15650A2 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

49

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
