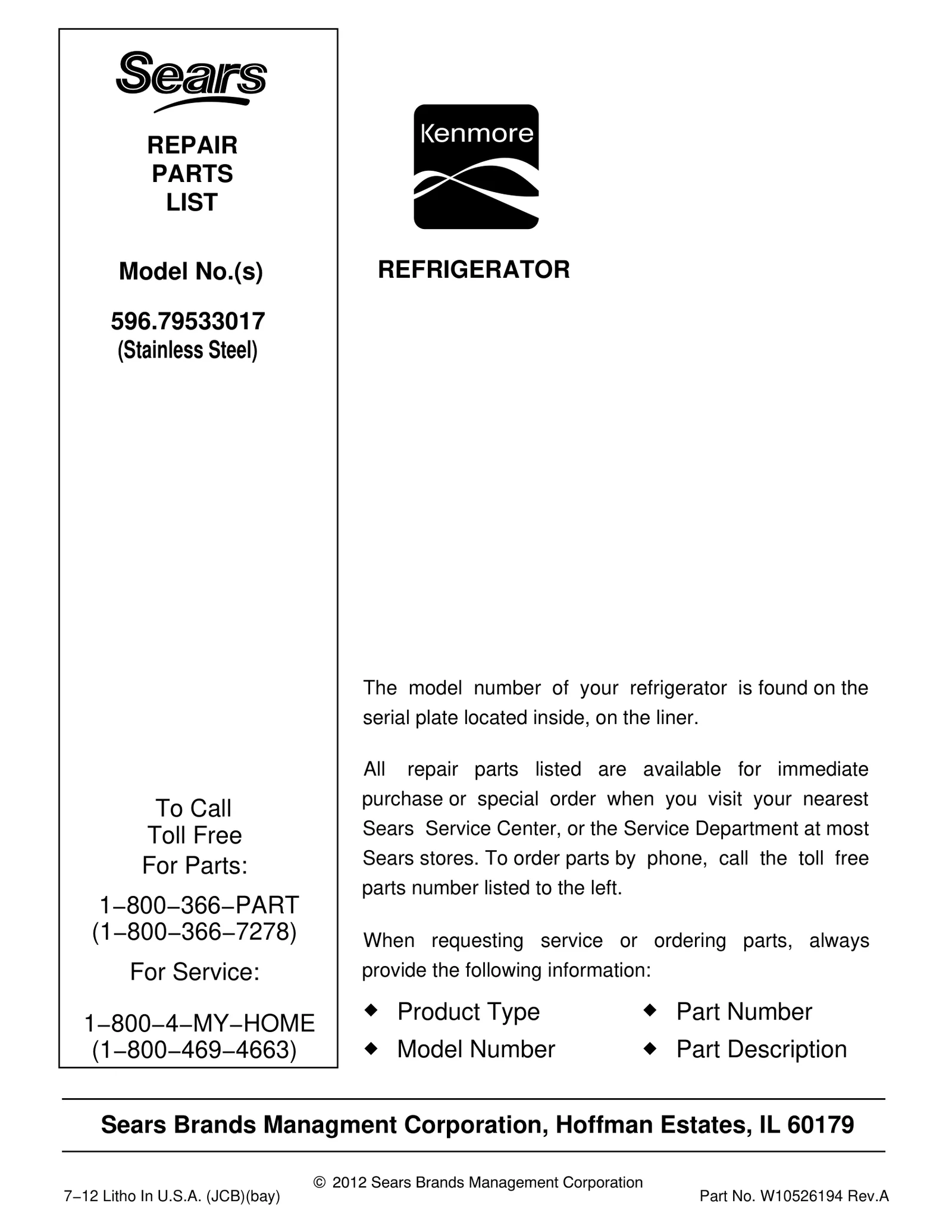

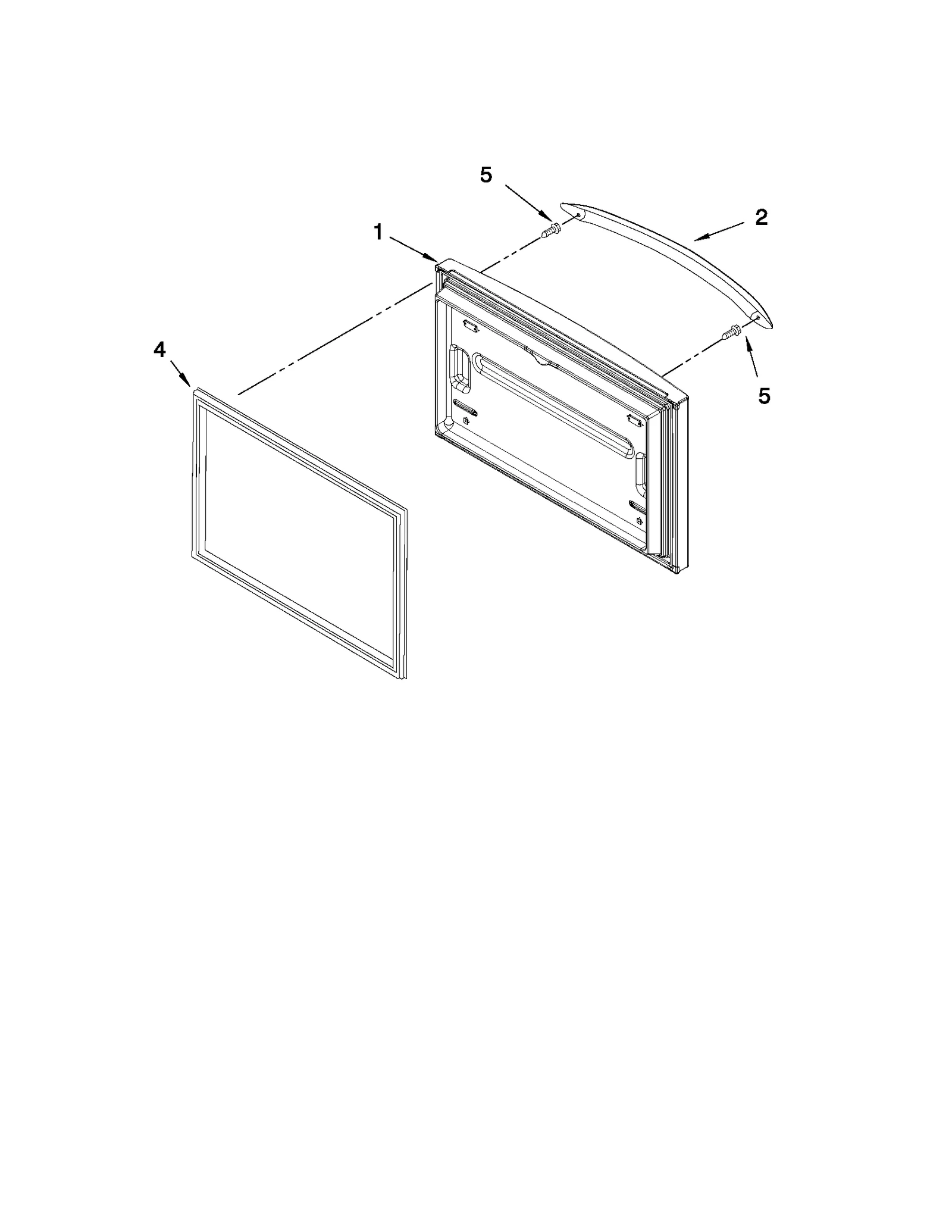

Model Whirlpool 596.79533017 Refrigerator (Kenmore 59679533017) – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.12

1

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $143.93

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $102.80

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

2

W10464764 Whirlpool Refrigerator Housing Backorder WPL W10464764 $43.90

2

W10856123 Whirlpool Refrigerator Gasket In Stock WPL W10856123 $3.76

2

W11559683 Whirlpool Ice Level Arm In Stock WPL W11559683 $28.44

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $40.08

2

Handle — Stainless Steel WPL W10169584N Contact Us For Availability

3

W10410073 Whirlpool Fill Cup Assembly Backorder WPL W10410073 $29.22

3

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $8.28

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $44.73

3

Refrigerator Overlay WPL W10317041 Contact Us For Availability

3A

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $8.28

4

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.00

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.81

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $14.12

4

W10443320 Whirlpool Gray Outer Gasket In Stock WPL W10443320 $80.39

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $94.28

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.49

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $36.98

5

WPW10428901-includeCORE Whirlpool WPW10428901 Backorder WPL WPW10428901-includeCORE $204.42

5

WPW10661886 Whirlpool Refrigerator Door Handl In Stock WPL WPW10661886 $4.59

5

Bucket, Ref. (1) WPL W10289496 Contact Us For Availability

6

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $4.65

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $48.86

7

W10292242 Whirlpool Refrigerator Wire Harness Backorder WPL W10292242 $106.85

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.65

8

W10443023 Whirlpool Refrigerator Housing Backorder WPL W10443023 $42.78

8

W10830162 Whirlpool Refrigerator Right Hand D In Stock WPL W10830162 $135.30

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $47.43

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.10

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.94

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $59.06

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $86.54

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.94

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $64.29

11

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.75

11

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $37.11

12

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.55

12

WPW10371193 Whirlpool Refrigerator Door Bin Backorder WPL WPW10371193 $48.17

12

WPW10420083 Whirlpool Refrigerator Water Inle In Stock WPL WPW10420083 $96.73

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $42.80

13

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.76

13

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $60.57

13A

WPW10330995 Whirlpool Refrigerator Bracket Backorder WPL WPW10330995 $116.64

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $49.25

W11750607 Whirlpool Insulation Backorder WPL W11750607 $20.70

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $122.61

WPW10277025 Whirlpool Refrigerator Housing In Stock WPL WPW10277025 $59.16

15

WPW10458985 Whirlpool Wire Harness Backorder WPL WPW10458985 $45.44

15

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $103.89

15

Refrigerator Evaporator Fan Motor Clip WPL 13058002 Contact Us For Availability

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $16.01

16

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $31.36

16

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $32.59

16A

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $19.08

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.76

17

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

W10377174 Whirlpool Refrigerator Front Cover Backorder WPL W10377174 $31.95

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $27.51

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.23

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $48.77

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $39.73

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $164.76

18A

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $39.73

19

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $80.68

19

WPW10281342 Whirlpool Refrigerator Motor Modu Backorder WPL WPW10281342 $122.94

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.75

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.27

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.24

WPW10329866 Whirlpool Frame In Stock WPL WPW10329866 $93.87

21

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $38.35

21

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.69

21

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $14.66

21A

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $38.78

21A

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $14.75

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.57

W11256565 Whirlpool Refrigerator Evaporator In Stock WPL W11256565 $160.95

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $31.21

Gripper, Medium WPL W10450022 Contact Us For Availability

23

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.67

23

WPW10167023 Whirlpool Refrigerator Shroud In Stock WPL WPW10167023 $38.60

23

Gripper, Gallon WPL W10450024 Contact Us For Availability

23A

Refrigerator Support Evaporator WPL 12225602 Contact Us For Availability

24

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $40.18

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $53.87

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.88

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $30.88

25

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.75

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

26

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.27

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $40.79

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $31.32

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.92

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.80

29

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $60.93

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.76

30

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $32.59

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $86.90

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $117.78

W11556315 Whirlpool Shroud In Stock WPL W11556315 $31.45

W11714300 Whirlpool Insulation Backorder WPL W11714300 $23.05

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.76

32

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.23

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.79

33

Insulation, Sound WPL 12820505 Contact Us For Availability

34

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.76

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.94

36

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.55

37

WPW10317076-includeCORE Whirlpool WPW10317076 Backorder WPL WPW10317076-includeCORE $296.74

37

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $12.24

38

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $32.59

39

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.24

40

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $44.29

40

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $31.36

41

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $11.05

42

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $34.37

42A

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $34.37

43

WPW10474715 Whirlpool Refrigerator Gear In Stock WPL WPW10474715 $11.14

43A

WPW10474716 Whirlpool Refrigerator Gear In Stock WPL WPW10474716 $11.05

44

W11206718 Whirlpool Refrigerator Front Panel Backorder WPL W11206718 $125.22

46

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.39

47

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.81

100

W10884390 Whirlpool Refrigerator Ice Maker As In Stock WPL W10884390 $93.07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $36.55

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.30

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $60.54

Refrigerator Service Valve WPL 978029 Contact Us For Availability

OPT-1

285006 Whirlpool Spray In Stock WPL 285006 $45.11

OPT-2

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.33

OPT-3

Enamel, Black WPL 799340 Contact Us For Availability

OPT-4

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.75

OPT-5

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-7

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $108.62

OPT-9

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-10

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

OPT-11

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

OPT-12

Cleaner, WPL 20000008 Contact Us For Availability

OPT-13

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.96

OPT-14

Cement, WPL 542639 Contact Us For Availability

OPT-15

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.65

OPT-16

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-17

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

OPT-18

Torx Key WPL 1117510 Contact Us For Availability
