Model Whirlpool 596.76063700 Refrigerator – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.12

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $32.59

1

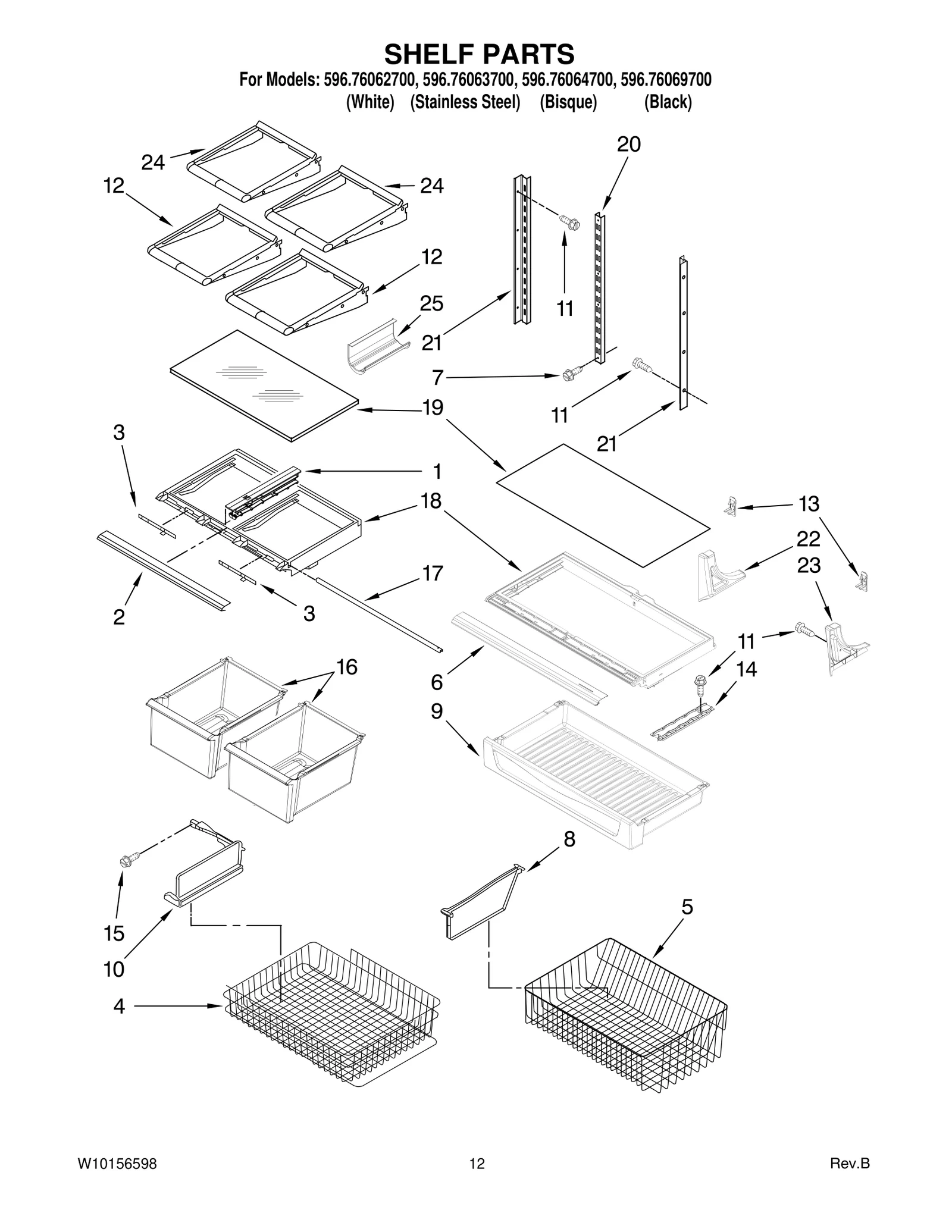

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $44.55

1

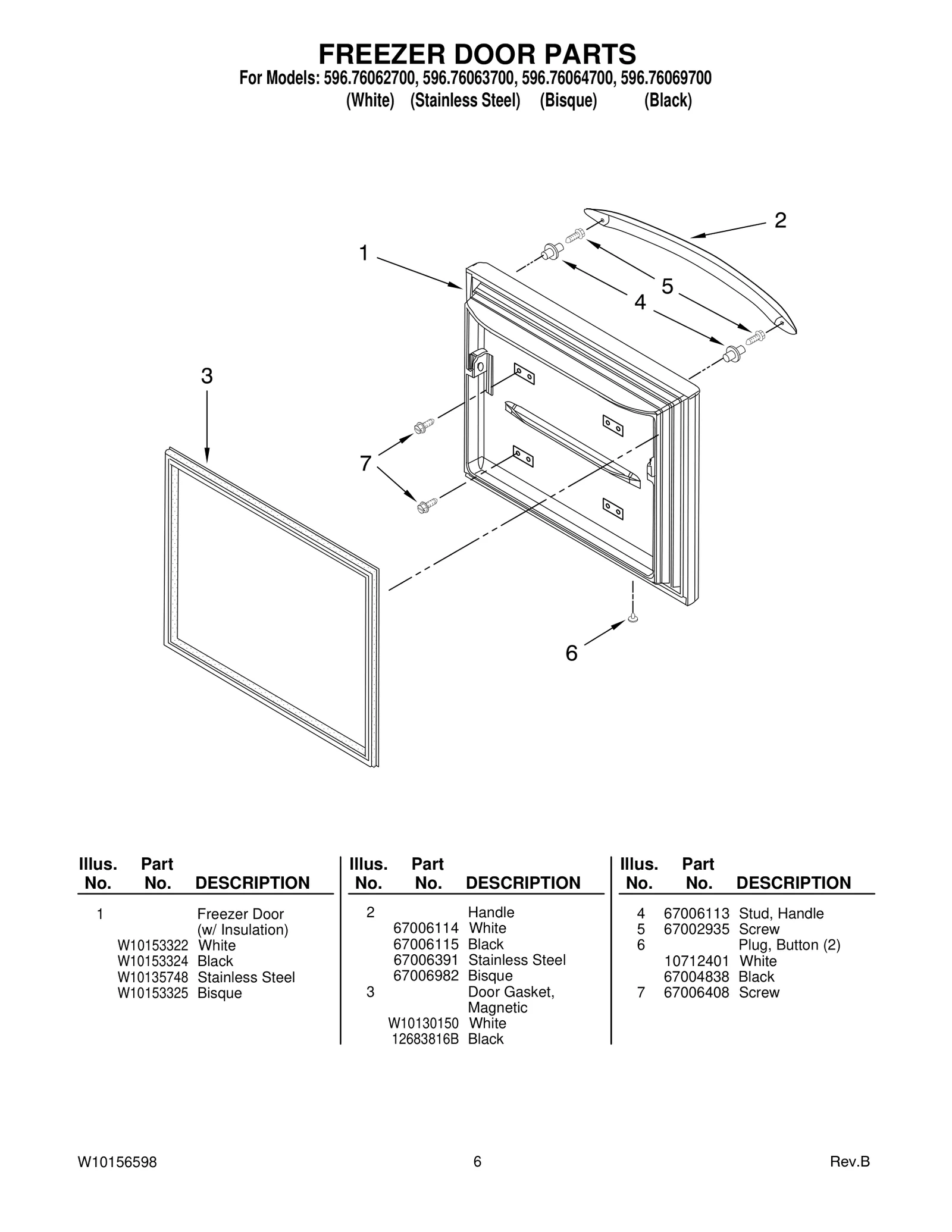

Freezer Door — White WPL W10153322 Contact Us For Availability

1

Freezer Door — Black WPL W10153324 Contact Us For Availability

1

Freezer Door — Stainless Steel WPL W10135748 Contact Us For Availability

1

Freezer Door — Bisque WPL W10153325 Contact Us For Availability

1

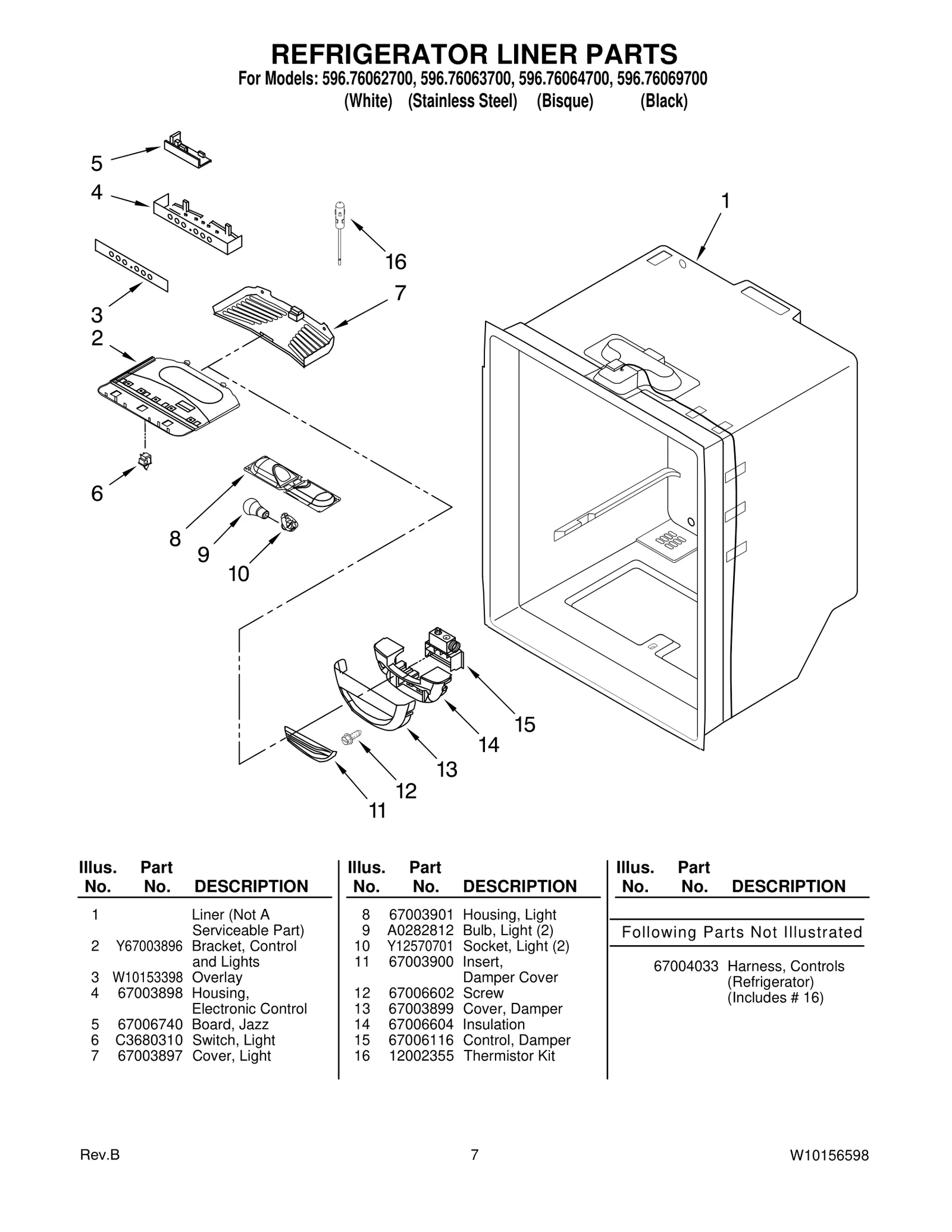

Liner (Not A Serviceable Part) WPL N/S Contact Us For Availability

1

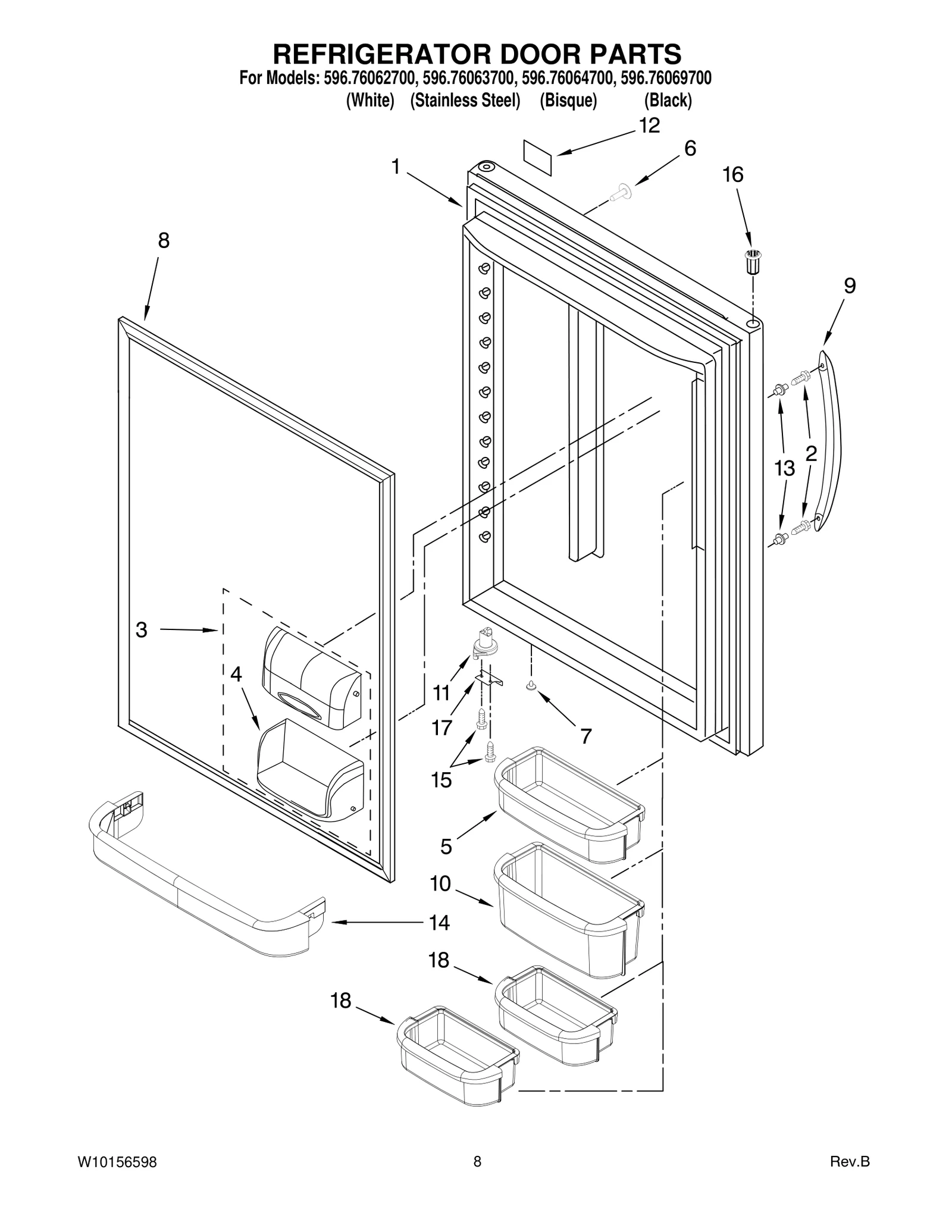

Refrigerator Door — Bisque WPL W10153400 Contact Us For Availability

1

Refrigerator Door — Black WPL W10153402 Contact Us For Availability

1

Refrigerator Door — Stainless Steel WPL W10153401 Contact Us For Availability

2

13004701W Whirlpool Refrigerator Handle Backorder WPL 13004701W $112.04

2

67006982 Whirlpool Refrigerator Handle Assemb Backorder WPL 67006982 $110.33

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $32.52

2

W11690159 Whirlpool Handle Backorder WPL W11690159 $97.48

2

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.68

2

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.51

2

Bracket, Control and Lights WPL Y67003896 Contact Us For Availability

2

Trim, Crisper WPL W10153407 Contact Us For Availability

3

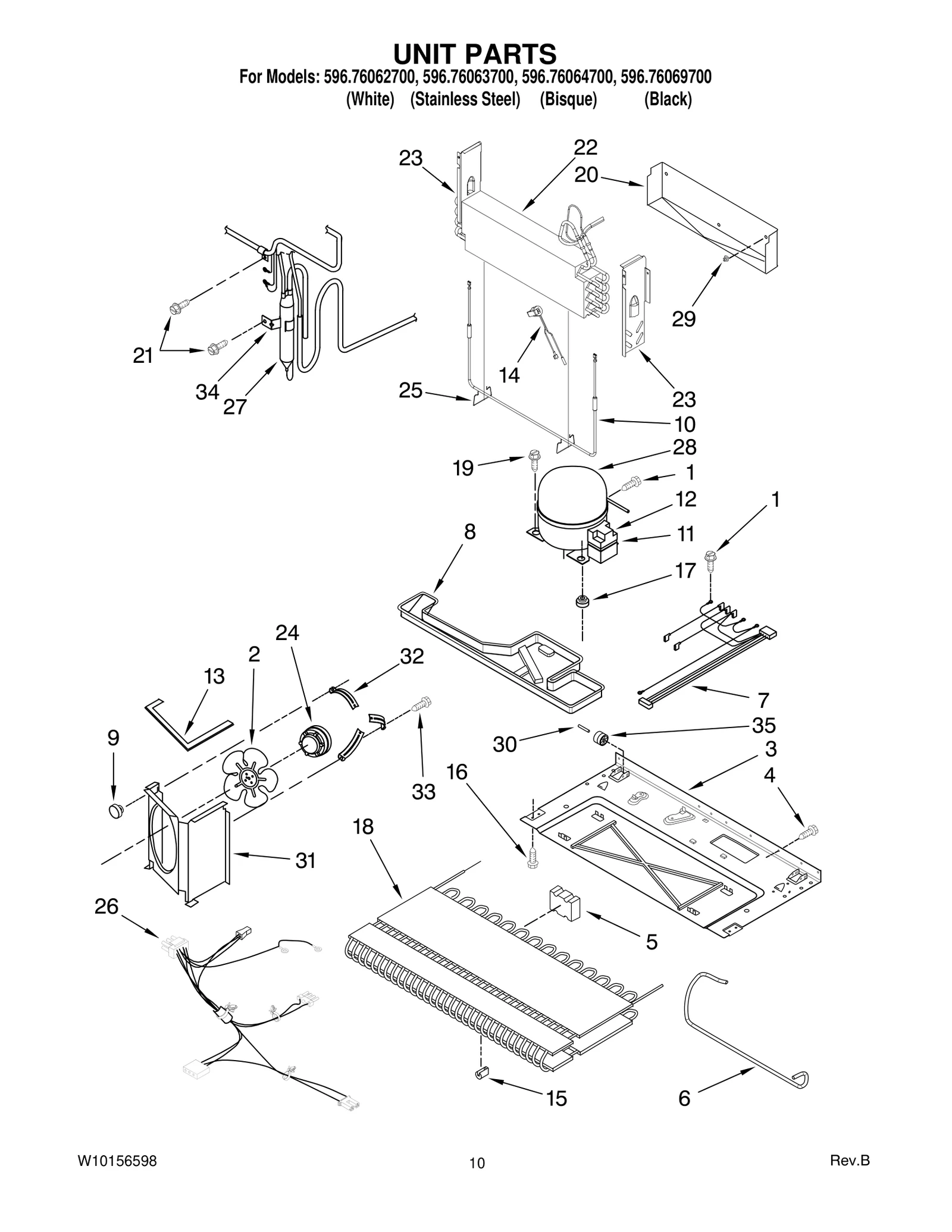

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $60.04

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.69

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.76

3

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $224.68

3

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $134.83

3

Overlay WPL W10153398 Contact Us For Availability

3

Basepan WPL 67006914 Contact Us For Availability

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $52.77

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.55

4

WPW10464769 Whirlpool Refrigerator Housing In Stock WPL WPW10464769 $41.85

4

Basket, Freezer WPL 67004985 Contact Us For Availability

5

W10503182 Whirlpool Refrigerator Freezer Bask Backorder WPL W10503182 $136.42

5

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $63.33

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $37.91

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $143.88

5

Block, Condenser WPL 67005491 Contact Us For Availability

6

W10656984 Whirlpool Refrigerator Shelf Trim Backorder WPL W10656984 $31.47

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.01

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.76

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.76

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $35.58

6

Discharge Tube WPL 67004203 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.00

7

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.75

7

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.80

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.94

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $41.07

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.68

7

Plug, Button — White WPL 10712401 Contact Us For Availability

7

Harness, Evap. Heater WPL 12870501 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $48.99

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.76

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $133.00

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $138.21

8

Drain Pan WPL 67004713 Contact Us For Availability

8

Divider, Basket WPL 67006644 Contact Us For Availability

9

W10328331 Whirlpool Refrigerator Utility Pan Backorder WPL W10328331 $81.92

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.94

9

Door Handle — White WPL 67006587 Contact Us For Availability

9

Door Handle — Black WPL 67006585 Contact Us For Availability

9

Door Handle — Stainless Steel WPL 67006541 Contact Us For Availability

9

Door Handle — Bisque WPL 67006586 Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

9

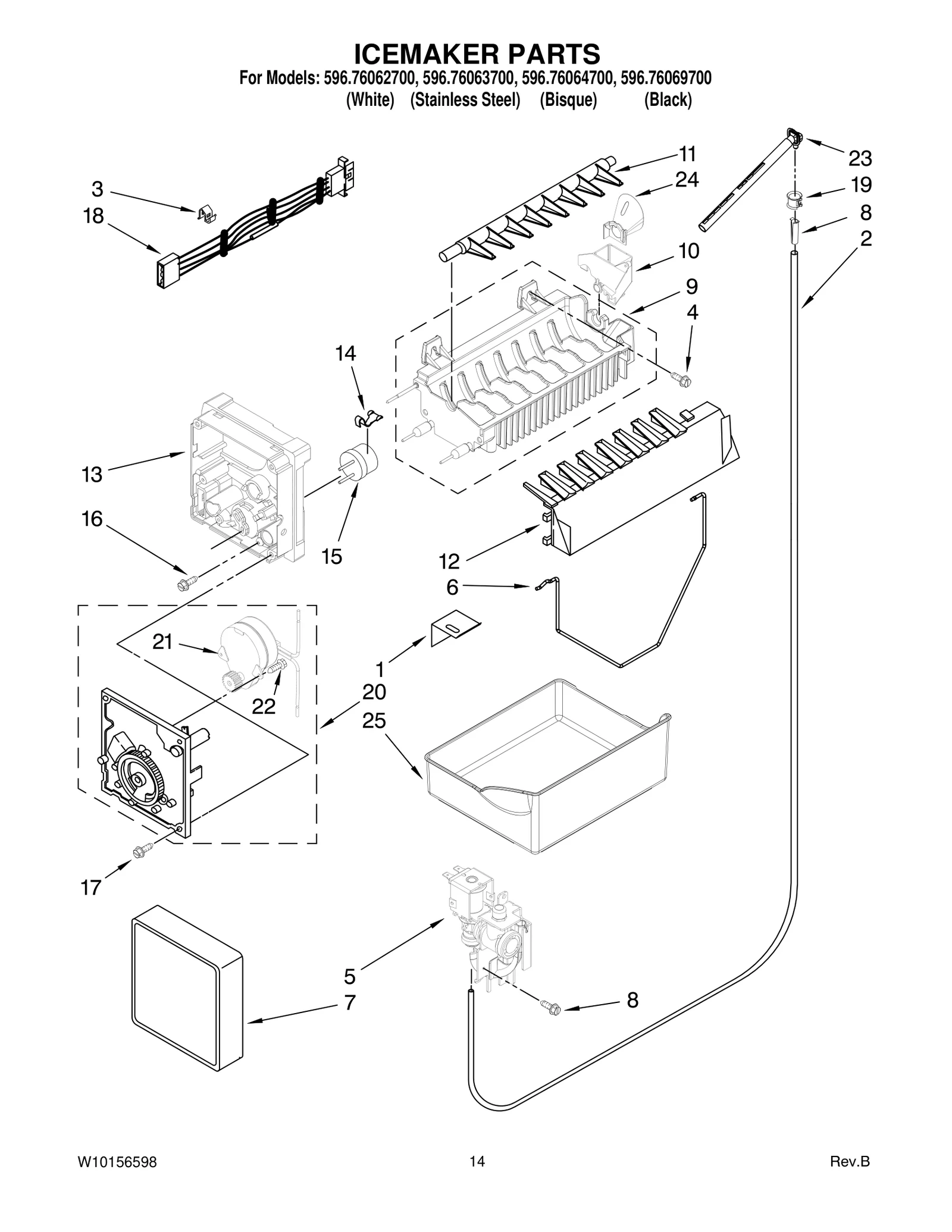

Mold & Heater Assembly (Also order 542638) WPL 6282280 Contact Us For Availability

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.94

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.38

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $4.65

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $80.57

Bucket, Tall WPL 67004003 Contact Us For Availability

Divider, Basket WPL 67004127 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $3.76

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.55

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.59

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.76

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $31.47

Clip, Capacitor WPL 67007052 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $133.70

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $30.32

Nameplate WPL 13056601 Contact Us For Availability

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $42.80

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.98

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $4.61

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.08

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.80

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $59.78

W11750607 Whirlpool Insulation Backorder WPL W11750607 $20.70

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.67

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.55

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $36.31

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.94

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $47.43

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.76

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.55

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $70.87

Screw WPL 67006608 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.94

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.75

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $70.87

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $52.97

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.76

Screw WPL 67006573 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $31.34

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.15

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $38.99

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.76

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.76

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10351081 Whirlpool Refrigerator Cantilever Backorder WPL WPW10351081 $49.81

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $72.14

Condenser WPL 67006133 Contact Us For Availability

19

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.28

19

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $128.26

19

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.67

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $62.65

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.93

Ladder, Center WPL 67001072 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $53.67

WPW10450021 Whirlpool Refrigerator Mat Backorder WPL WPW10450021 $34.84

Cover, Unit WPL 67006101 Contact Us For Availability

Ladder, Side (2) WPL 67001302 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.63

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.76

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $31.21

Evaporator WPL 12002051 Contact Us For Availability

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.76

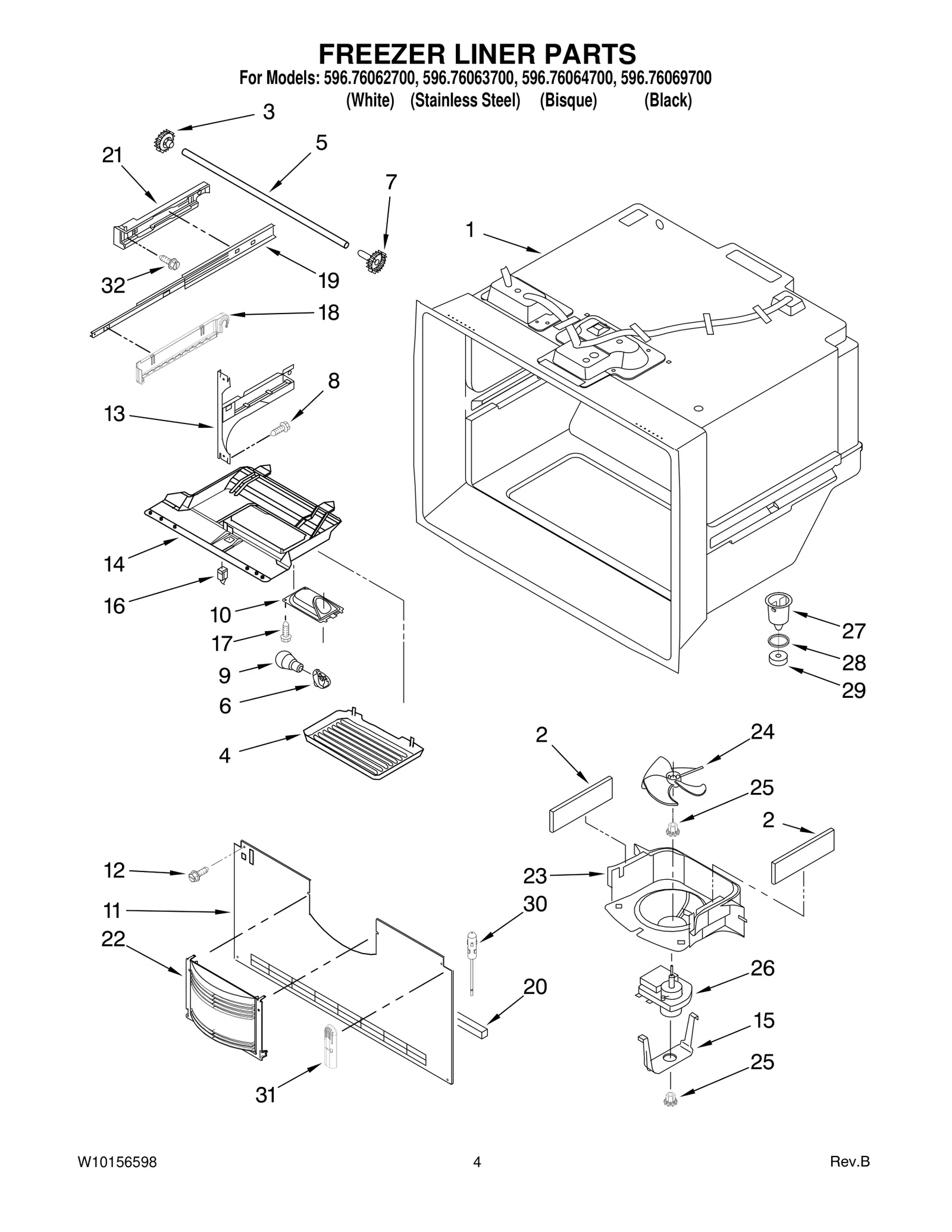

Shroud, Evap.Fan WPL 67002777 Contact Us For Availability

Dam — Right Side WPL 67001084 Contact Us For Availability

Dam — Left Side WPL 67001083 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.81

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.88

Motor, Fan WPL 67004432 Contact Us For Availability

Shelf, Glide out (2) WPL W10156630 Contact Us For Availability

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $92.90

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.76

Bottle, Rack WPL 10448903 Contact Us For Availability

26

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.94

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $40.79

26

Harness, Unit WPL 67005251 Contact Us For Availability

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $31.32

27

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $73.07

28

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $337.22

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.80

29

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $47.34

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.76

29

Clip, Evaporator WPL 10623002 Contact Us For Availability

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $27.30

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.76

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.76

31

Shroud WPL W10153406 Contact Us For Availability

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.79

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $33.28

32

Harness, Lights WPL 67006095 Contact Us For Availability

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.55

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.67

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $36.55

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.94

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.30

Valve, Access WPL 978029 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

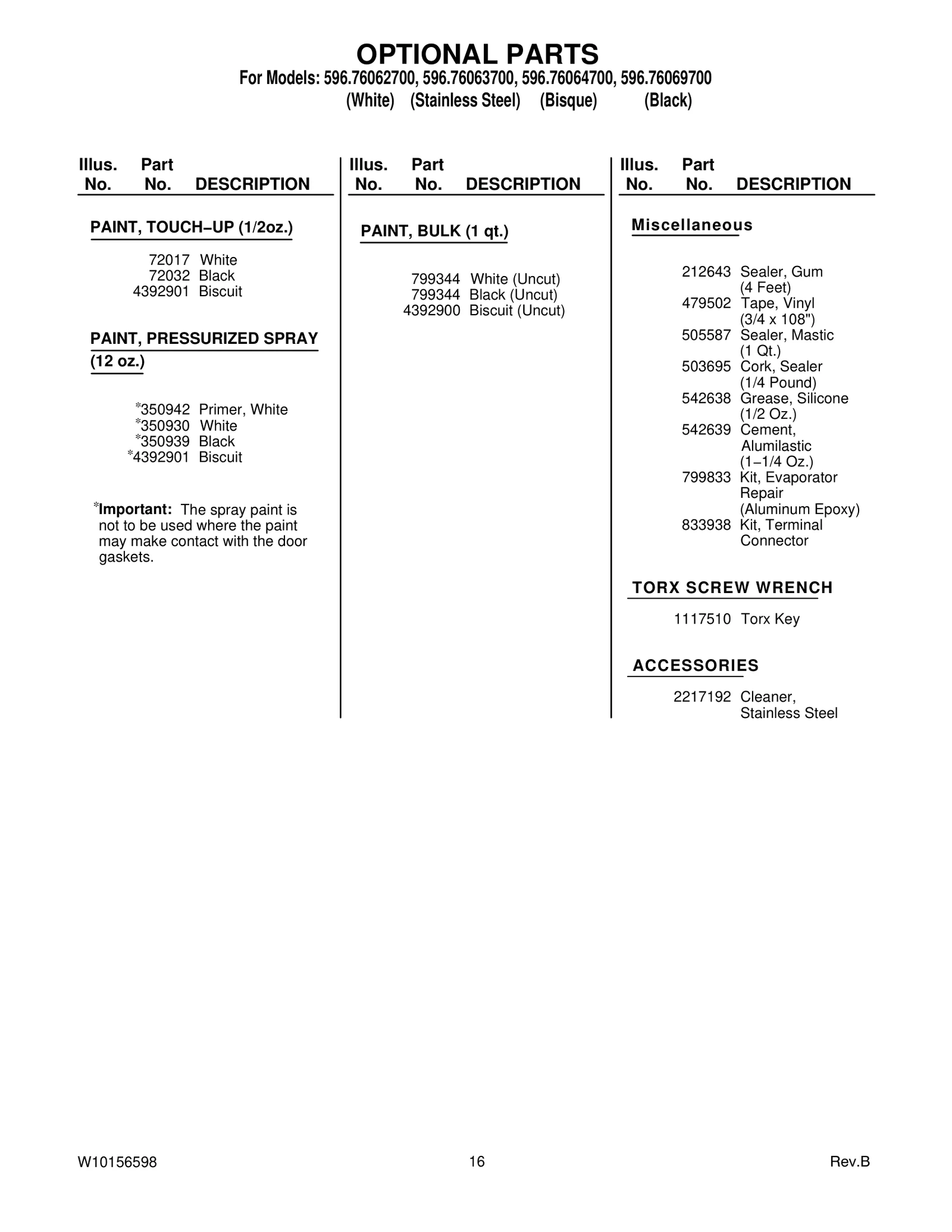

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

OPT-2

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.33

OPT-4

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

OPT-5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

OPT-6

285006 Whirlpool Spray In Stock WPL 285006 $45.11

OPT-7

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $44.64

OPT-9

Black (Uncut) WPL 799344 Contact Us For Availability

OPT-10

Biscuit (Uncut) WPL 4392900 Contact Us For Availability

OPT-11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.75

OPT-12

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-13

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

OPT-14

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

OPT-15

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.96

OPT-16

Cement, WPL 542639 Contact Us For Availability

OPT-17

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-18

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

OPT-19

Torx Key WPL 1117510 Contact Us For Availability

OPT-20

Cleaner, WPL 2217192 Contact Us For Availability
