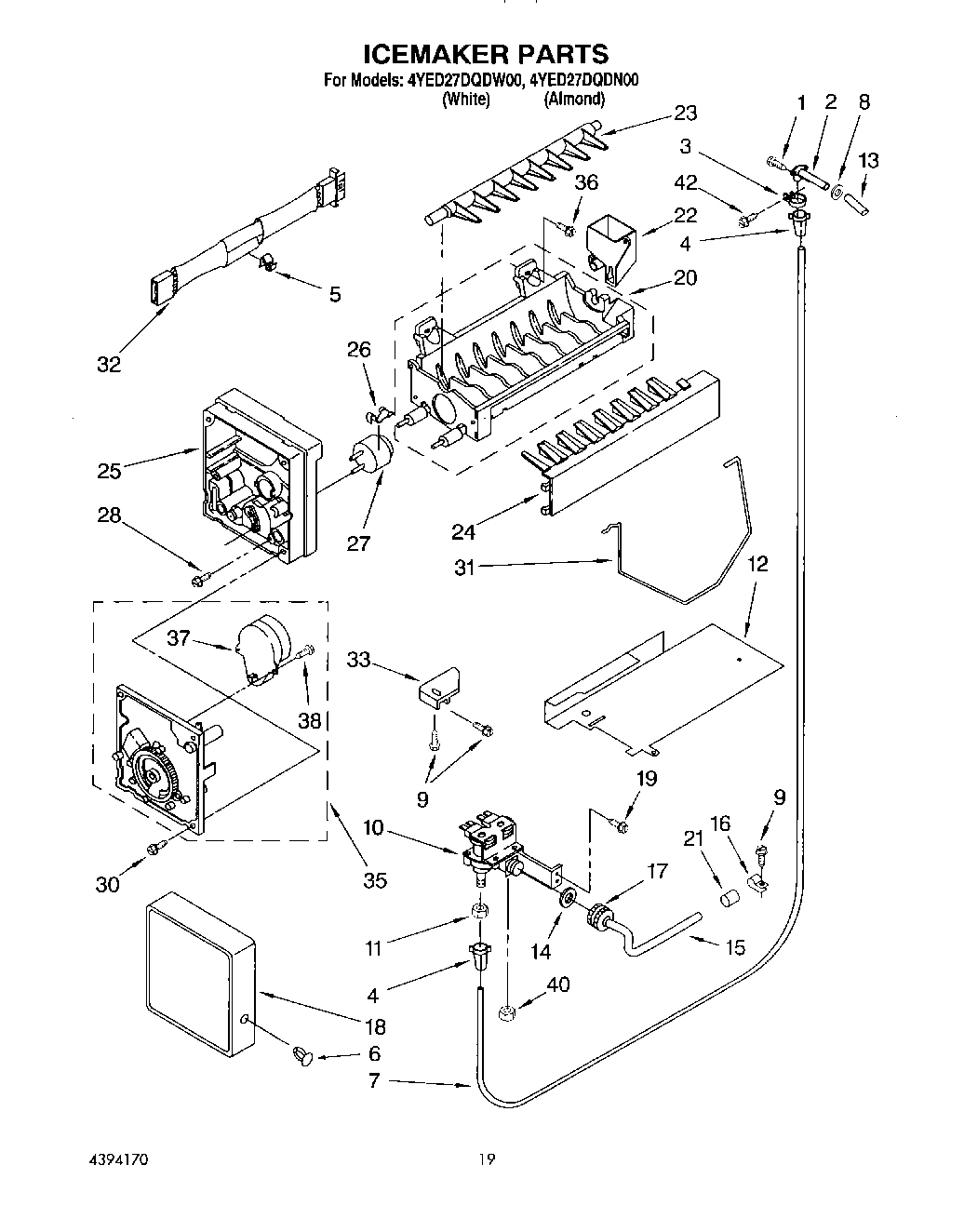

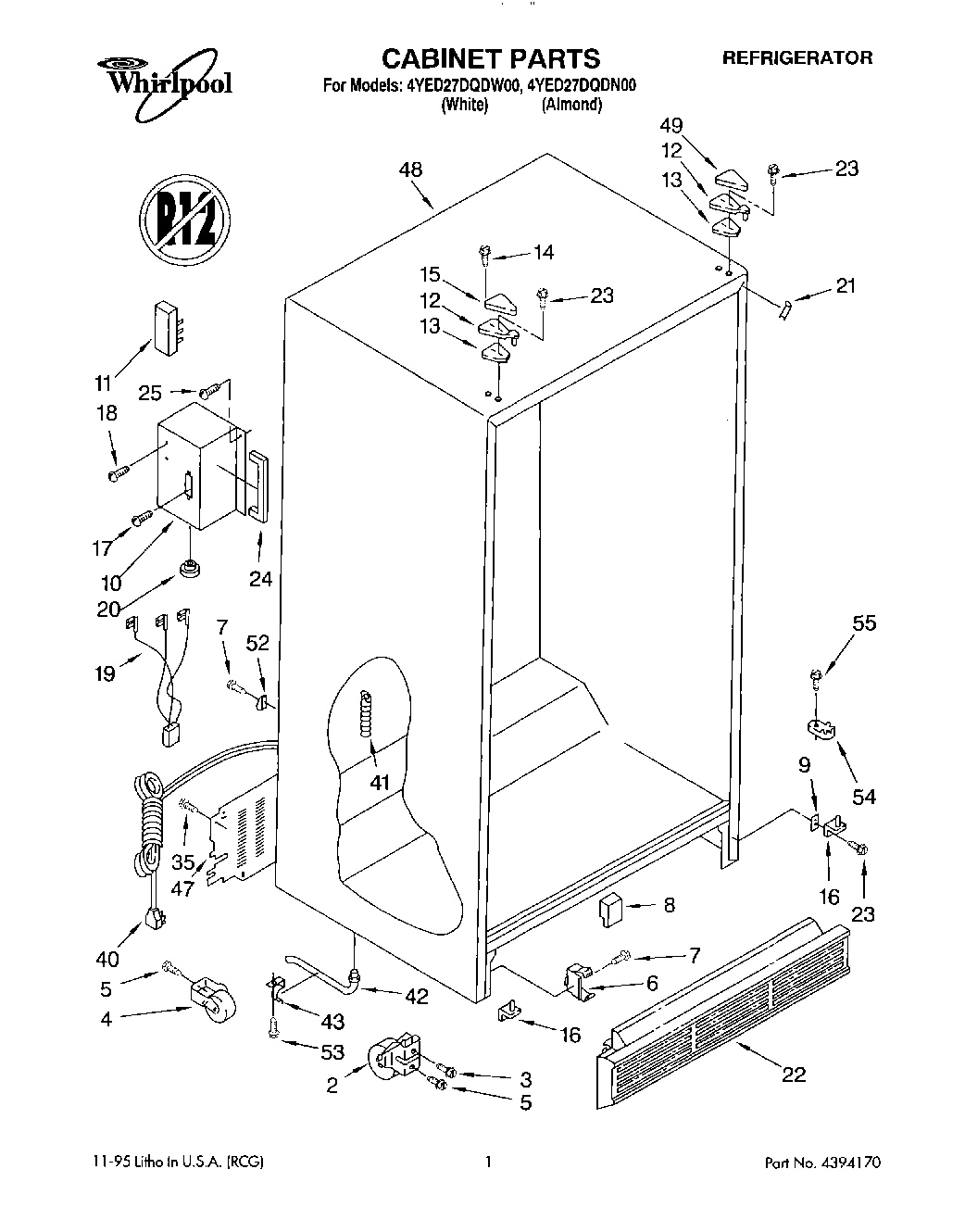

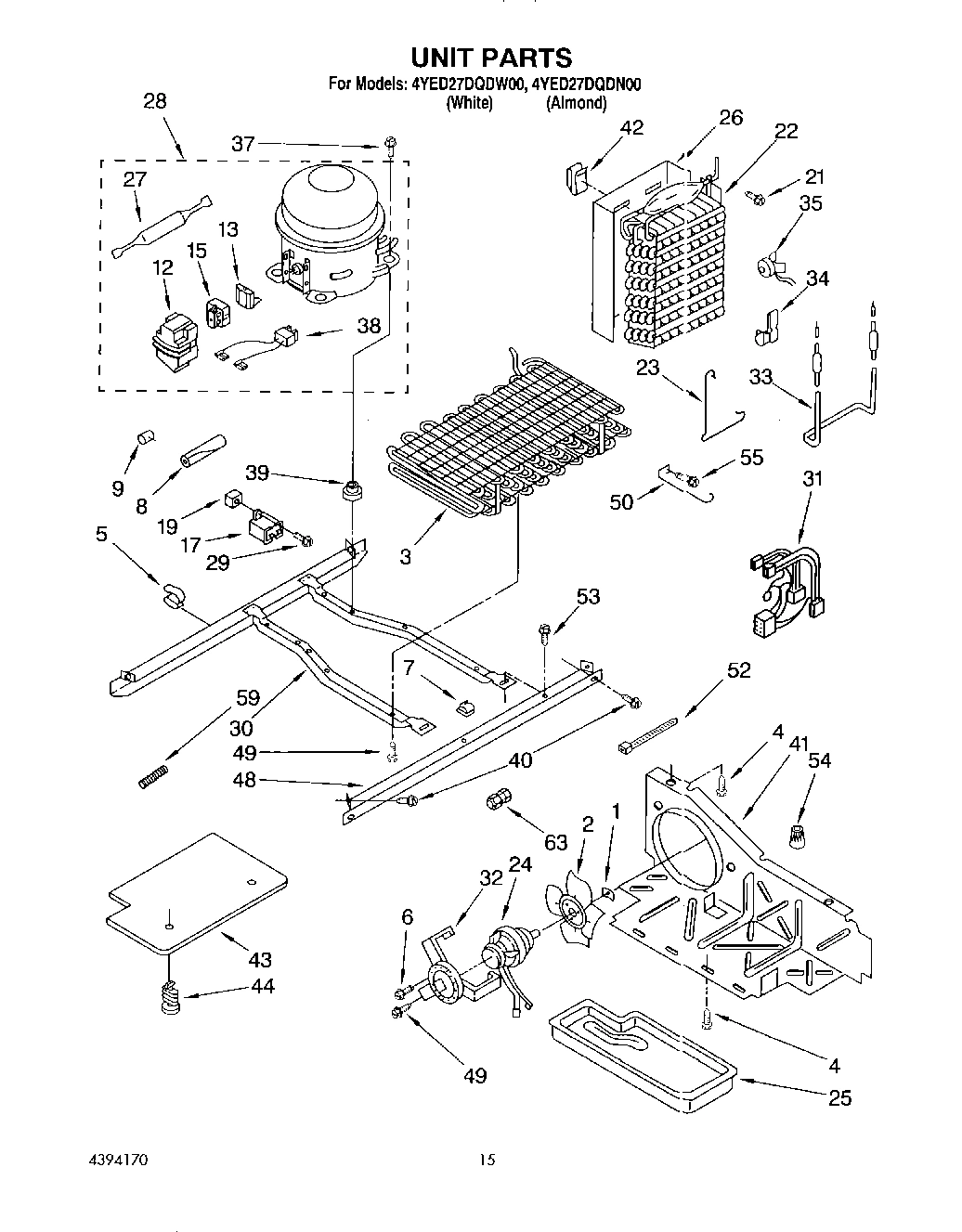

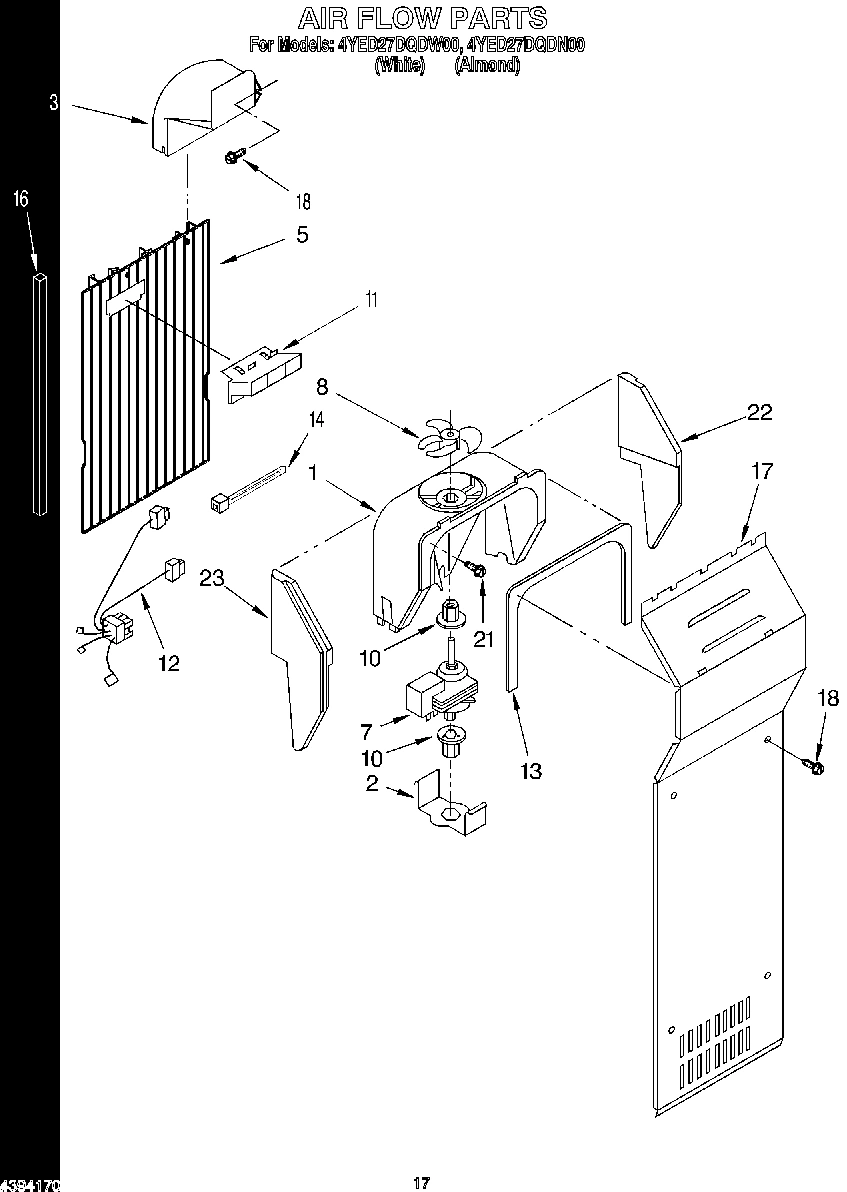

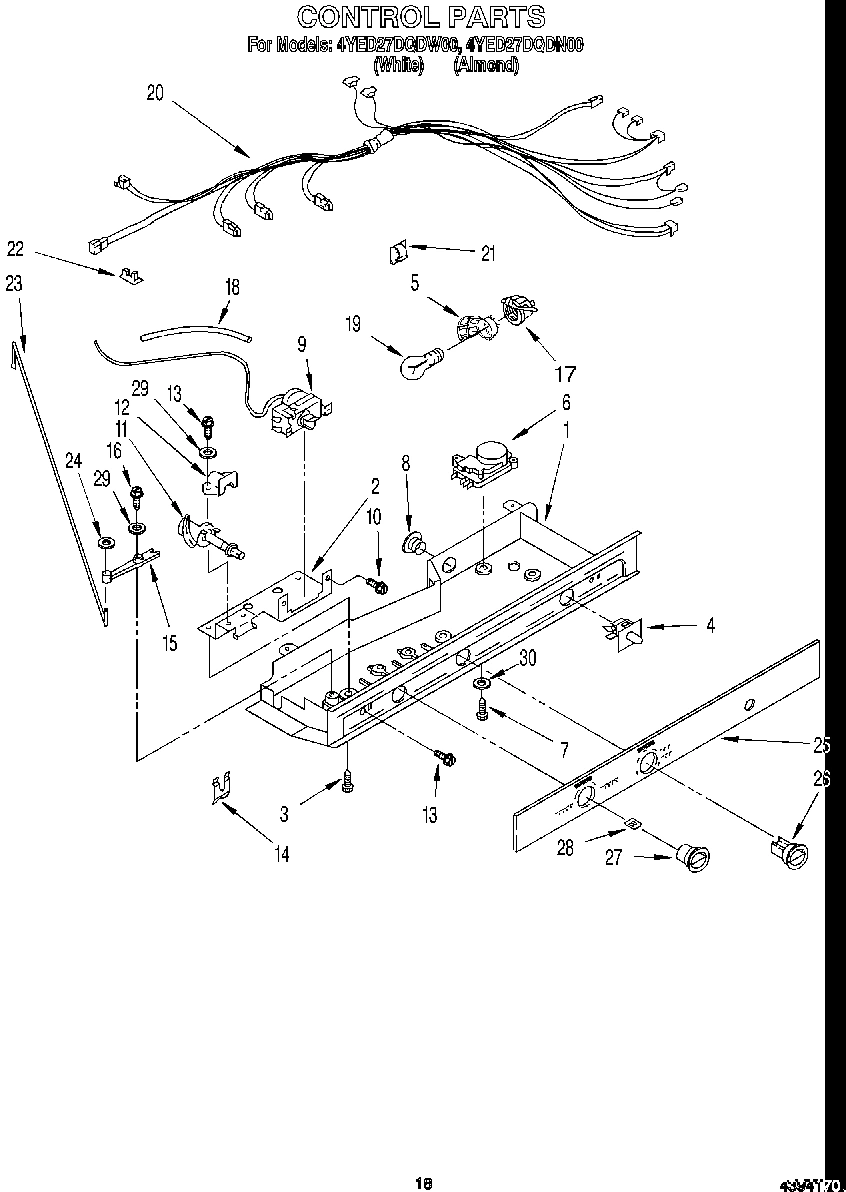

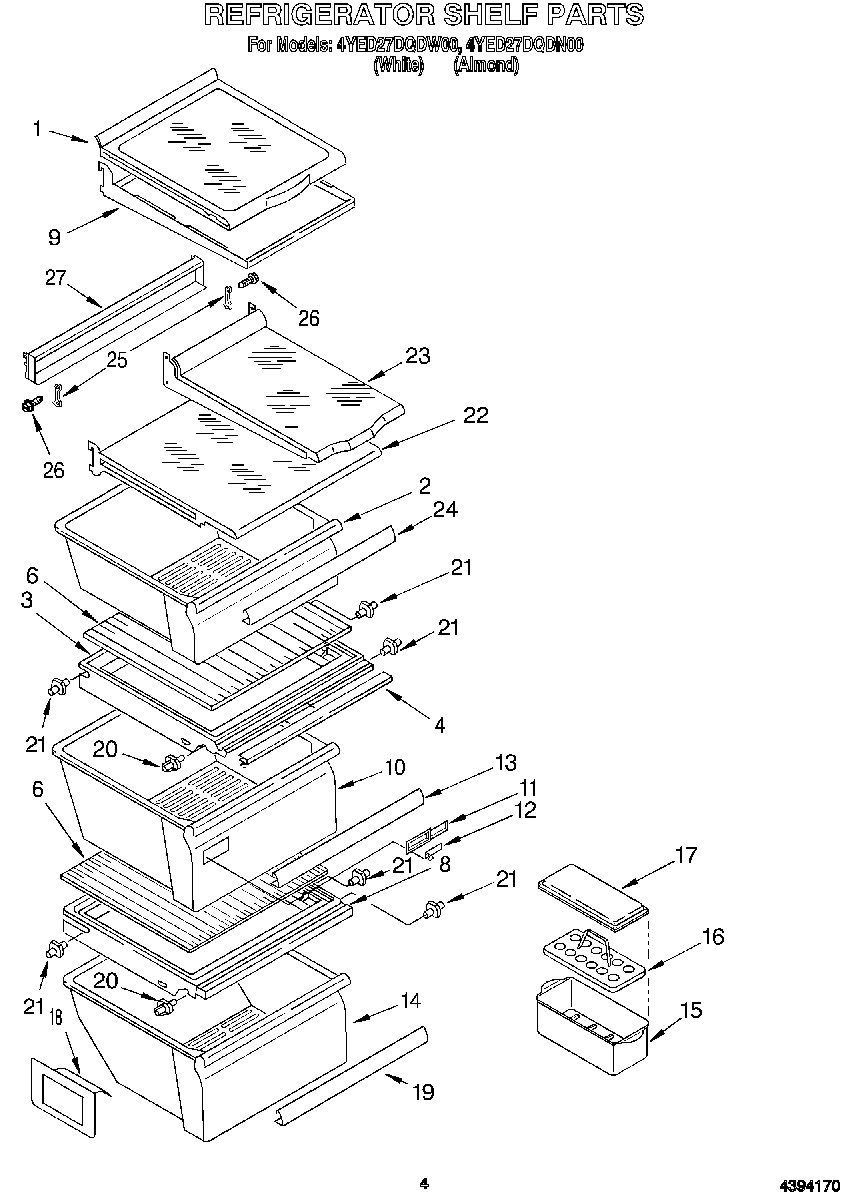

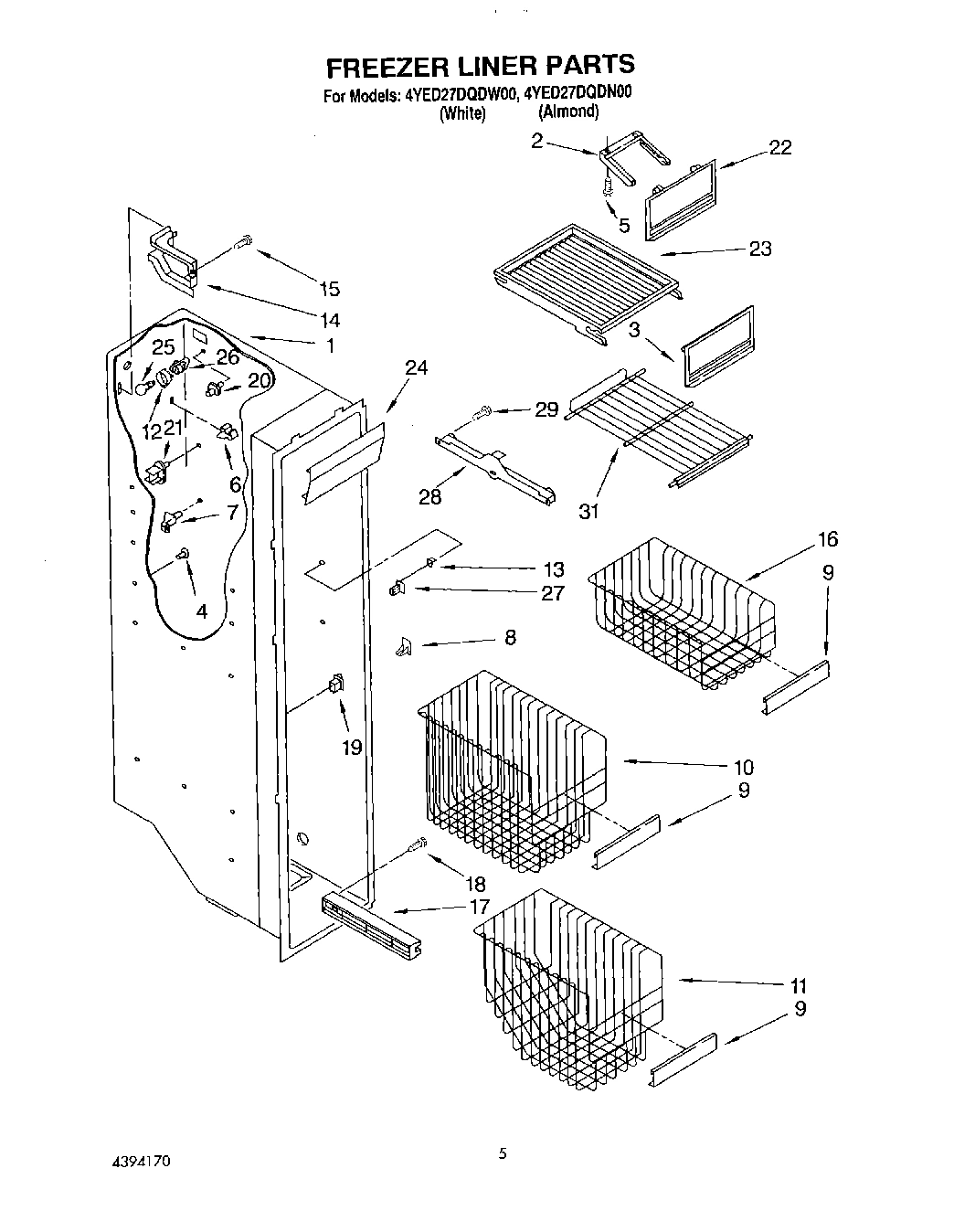

Model Whirlpool 4YED27DQDN00 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2170416 WPL LIT2170416 Contact Us For Availability

WPL LIT2176801 WPL LIT2176801 Contact Us For Availability

WPL LIT628371 WPL LIT628371 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $165.08

1

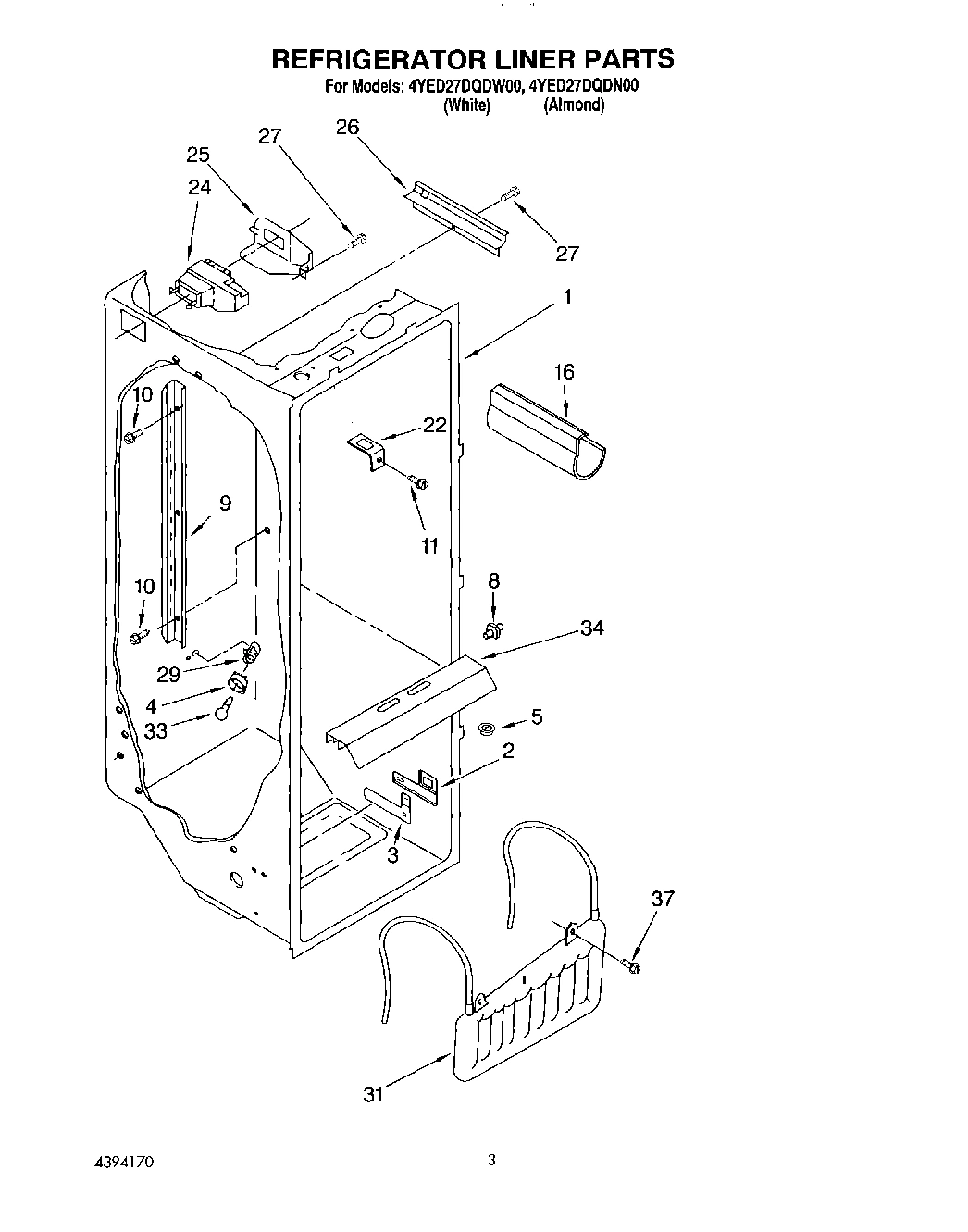

Liner (Not A Serviceable Part) WPL ARI14852A2 Contact Us For Availability

1

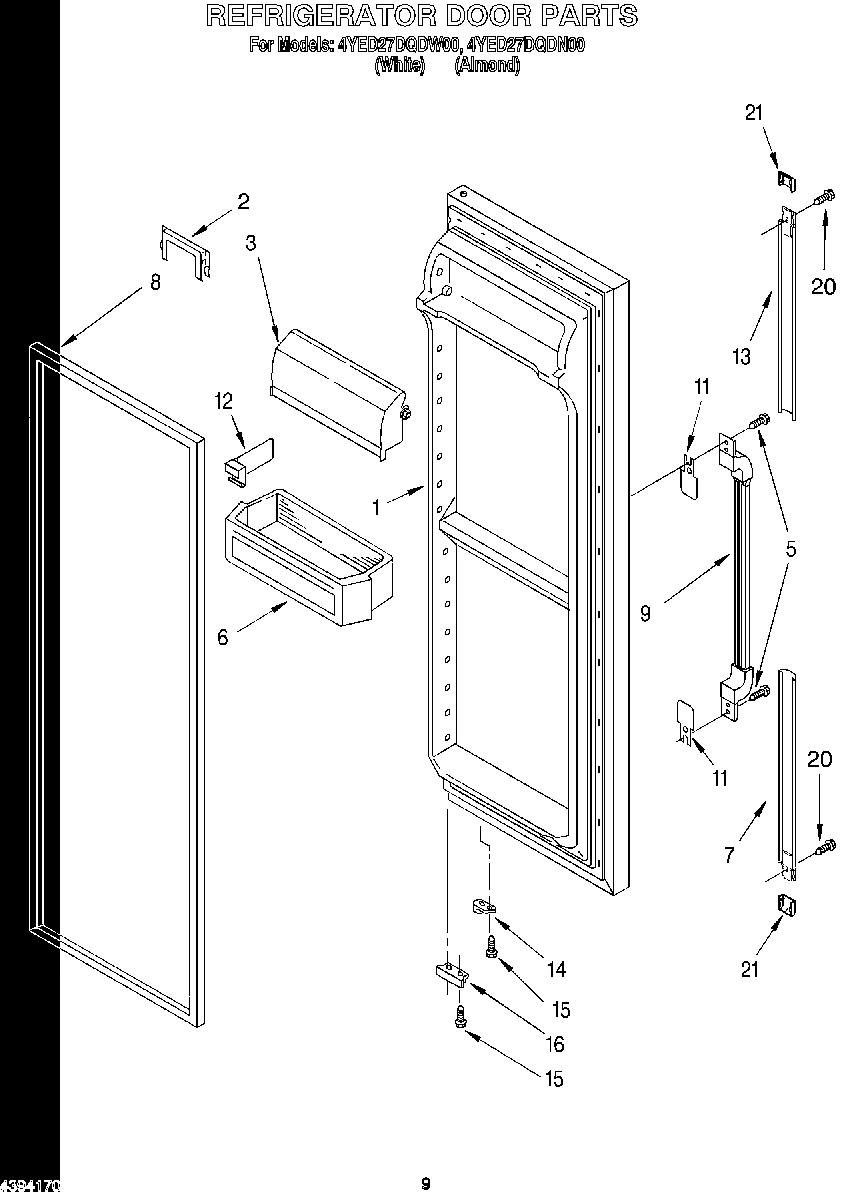

Refrigerator Door (Includes Item No.8) (Almon WPL 2171597 Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (White WPL 2177112 Contact Us For Availability

1

Shroud, Bracket WPL 2166858 Contact Us For Availability

2

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 2182763 Contact Us For Availability

2

Retainer, Bottle WPL 2173643 Contact Us For Availability

2

Guard, Switch WPL 2175226 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Guard, Switch WPL 2175227 Contact Us For Availability

3

Condenser Assembly WPL 2164504 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

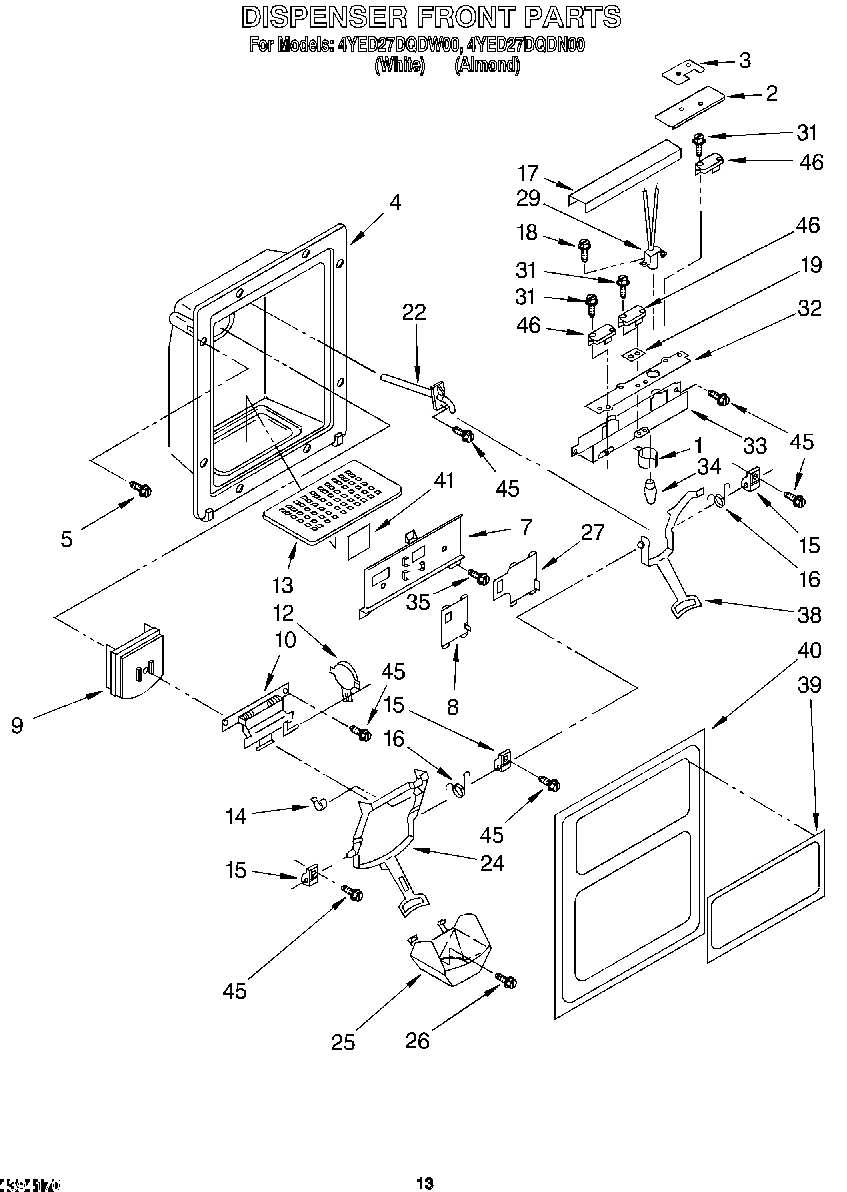

Housing, Dispenser (Not a Serviceable Part) WPL ARI14854A9 Contact Us For Availability

4

Gasket, Cover (Front) WPL 2174442 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire WPL 2155658 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2203872 Whirlpool Refrigerator Cantilever B Backorder WPL WP2203872 $45.99

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

7

Extension, Bottom (White) WPL 2174282 Contact Us For Availability

7

Extension, Bottom (Almond) WPL 2174283 Contact Us For Availability

7

Frame, Slides (White) WPL 2152717 Contact Us For Availability

7

Frame, Slides (Almond) WPL 2152718 Contact Us For Availability

7

Clip, Tube (3) WPL 934011 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability

8

Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability

8

Insert, Air Baffle WPL 2176796 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

9

Handle, Center (White) WPL 2189789 Contact Us For Availability

9

Handle, Center (Almond) WPL 2189790 Contact Us For Availability

9

Frame, Shelf (2) WPL 2174042 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Valve, Solenoid WPL 2167100 Contact Us For Availability

Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability

Enclosure, Terminal Block WPL 2158579 Contact Us For Availability

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Shim WPL 2179399 Contact Us For Availability

Terminal Block WPL 1129346 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $69.97

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $80.45

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Divider, Bin WPL 2171284 Contact Us For Availability

2176790 Whirlpool Refrigerator Overload Backorder WPL 2176790 $43.44

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

Tube, Water Inlet WPL 2171943 Contact Us For Availability

Extension, Top (White) WPL 2174279 Contact Us For Availability

Extension, Top (Almond) WPL 2174280 Contact Us For Availability

Grille, Overflow (White) WPL 1126120 Contact Us For Availability

Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability

Shim, Hinge Top WPL 2171868 Contact Us For Availability

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Washer WPL 628337 Contact Us For Availability

Clip, Bearing (2) WPL 987917 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2262184 Whirlpool Refrigerator Start Relay Backorder WPL WP2262184 $41.23

Pivot Arm WPL 1110559 Contact Us For Availability

Tube, Inlet Valve WPL 627860 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

Spring, Lever (2) WPL 983696 Contact Us For Availability

Clamp WPL 510716 Contact Us For Availability

Bracket, Door Stop WPL 2155331 Contact Us For Availability

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $48.06

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Cover, Evaporator WPL 2155612 Contact Us For Availability

Nut WPL 537588 Contact Us For Availability

Shield, Wiring WPL 2147165 Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Screw WPL 489346 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

Spacer, Switch WPL 625834 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability

20

4388539 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388539 $9.30

20

WPW10122523 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122523 $85.43

20

Bushing WPL 1129449 Contact Us For Availability

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

Cover, Endcap (White) WPL 2174006 Contact Us For Availability

Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Evaporator WPL 2164519 Contact Us For Availability

Grille (White) WPL 2155486 Contact Us For Availability

Grille (Almond) WPL 2155487 Contact Us For Availability

Shelf, Snack Bin WPL 2174045 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Clamp WPL 2161324 Contact Us For Availability

Shelf, Slide (Side To Side) WPL 2174392 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $132.02

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability

Gasket WPL 2167227 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

Guide, Ice (White) WPL 1124730 Contact Us For Availability

Guide, Ice (Almond) WPL 1126026 Contact Us For Availability

Tray, Evaporator WPL 1110674 Contact Us For Availability

Hook, Shelf WPL 2169608 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Screw WPL 488892 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

Screw WPL 489419 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Cement Alumilastic) WPL 542369 Contact Us For Availability

Slide, Light Switch (White) WPL 2152726 Contact Us For Availability

Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability

Track, Shelf WPL 2174422 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309997 Whirlpool Refrigerator Compressor In Stock WPL W10309997 $419.58

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

Lamp Holder WPL 2166862 Contact Us For Availability

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Screw WPL 488361 Contact Us For Availability

Unit, Harness WPL 2167065 Contact Us For Availability

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

Insulator, Control Bracket WPL 2147164 Contact Us For Availability

Fan, Motor Bracket WPL 548695 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

WPW10123653 Whirlpool Refrigerator Heater Backorder WPL WPW10123653 $65.27

Bracket, Control WPL 2147163 Contact Us For Availability

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

Light Lens WPL 2174436 Contact Us For Availability

Bulb, Light WPL 989331 Contact Us For Availability

Clip WPL 2161330 Contact Us For Availability

35

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

W10190933 Whirlpool Refrigerator Motor Assemb Backorder WPL W10190933 $191.63

37

Screw (2) WPL 488280 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability

Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

Plaque, Front Cover (White) WPL 2175024 Contact Us For Availability

Plaque, Front Cover (Almond) WPL 2175126 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Nut, Compression WPL 1129179 Contact Us For Availability

Front Cover, Housing (Includes Item 39) (Whit WPL 2175127 Contact Us For Availability

Front Cover, Housing (Includes Item 39) (Almo WPL 2175128 Contact Us For Availability

Service Cord WPL 1129332 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

41

Heat Shield, Frame WPL 2147172 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

Unit Cover, Bottom WPL 2161363 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

46

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

47

Cover, Unit WPL 2189570 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

48

Cabinet (Not A Serviceable Part) WPL ARI14851A2 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 1110663 Contact Us For Availability

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

52

Strap WPL 851095 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

54

Wire Connector WPL 227991 Contact Us For Availability

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

59

Spring-Tube WPL 983659 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
