Model Whirlpool 4KSRS27QDW01 REFRIGERATOR – Common Parts & Diagrams

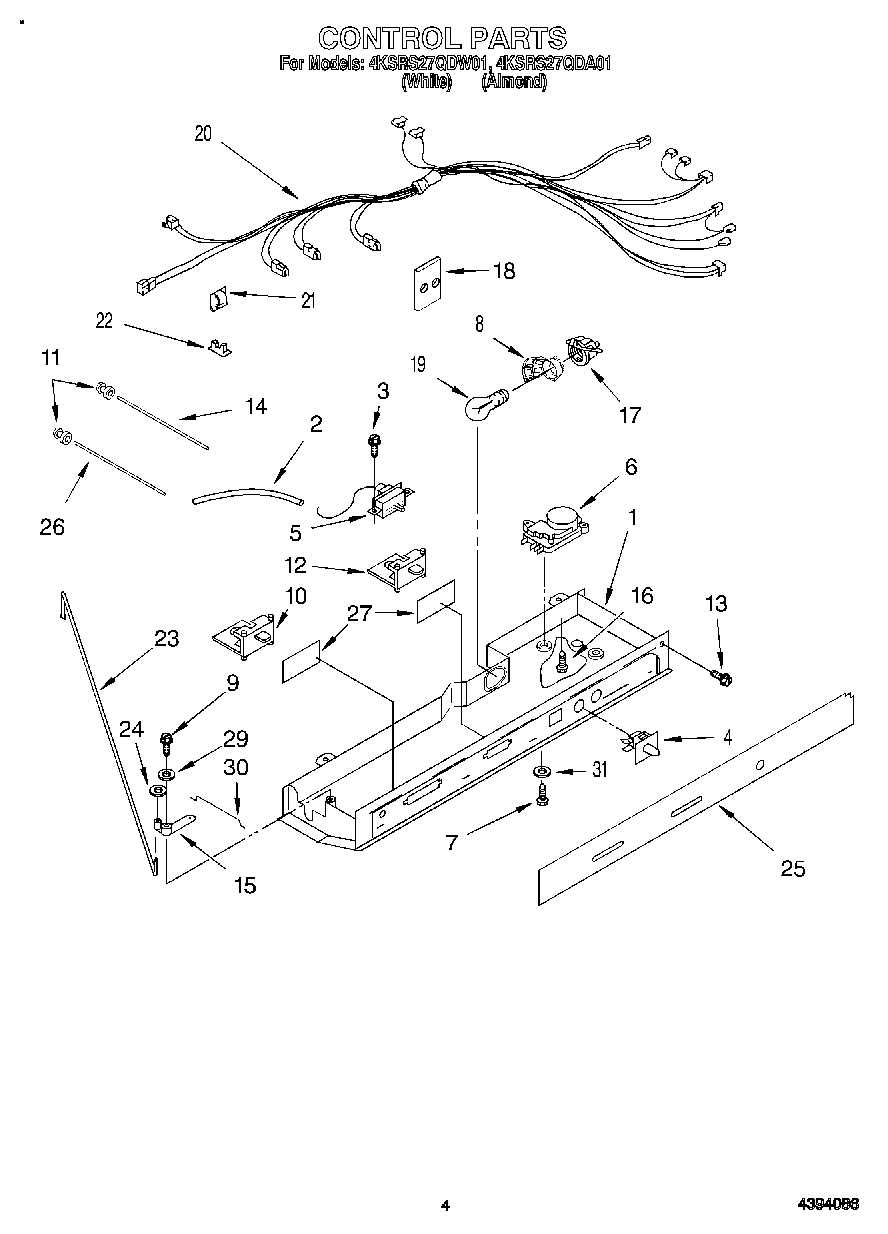

03 - CONTROL

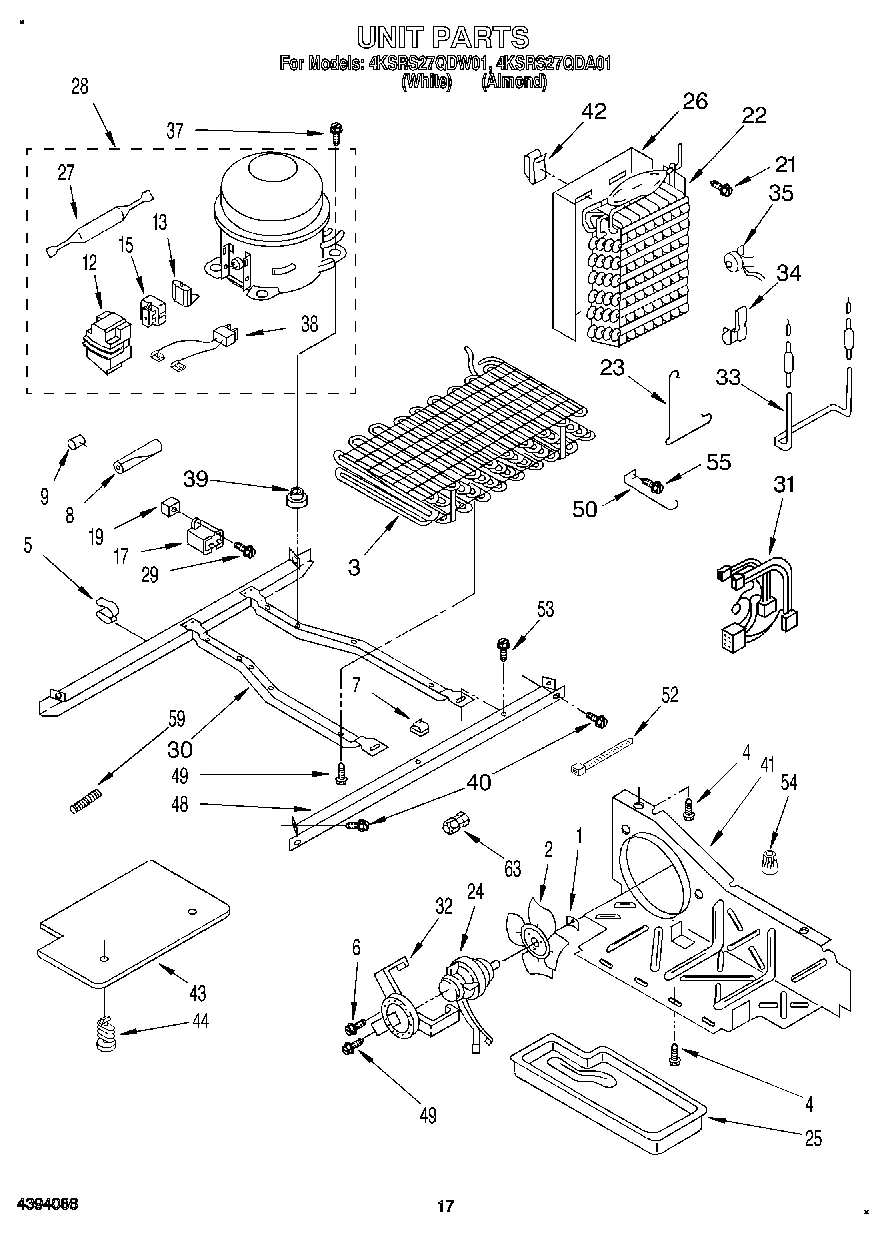

10 - UNIT
02 - REFRIGERATOR LINER
09 - DISPENSER FRONT
11 - ICEMAKER
04 - REFRIGERATOR SHELF
05 - FREEZER LINER
08 - FREEZER DOOR
06 - MOTOR AND ICE CONTAINER
07 - REFRIGERATOR DOOR
01 - CABINET
12 - AIR FLOW, LIT/OPTIONAL
Common parts from model Whirlpool 4KSRS27QDW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175118 WPL LIT2175118 Contact Us For Availability
WPL LIT2176801 WPL LIT2176801 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Control Box WPL 2181737 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2174023 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14404A8 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179952 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179953 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2177184 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2177185 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14402A3 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Hole Plug WPL 940014 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap, Handle WPL 2173826 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2175079 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
10
Retainer, Insert WPL 2173824 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2176138 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Chute, Ice WPL 2156145 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Tube Clamp WPL 510716 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Tube, Inlet WPL 627860 Contact Us For Availability
15
Bracket, Door Stop WPL 2155331 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Washer WPL 628337 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19 & 22) WPL 2175067 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Shelf Bin (4) WPL 2171062 Contact Us For Availability
19
Black Acrylic Panel Kit WPL 4210348 Contact Us For Availability
19
Almond Acrylic Panel Kit WPL 4211147 Contact Us For Availability
19
White Acrylic Panel Kit WPL 4211148 Contact Us For Availability
19
Trim Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Woodgrain Handle Inserts WPL 4318340 Contact Us For Availability
19
Black Grille Kit WPL 4318417 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
Front, Basket WPL 2175095 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
Enamel, Almon WPL 978883 Contact Us For Availability
24
Front, Basket WPL 2175094 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Wire Assembly, Terminal Box WPL 2165297 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Cover WPL 2169935 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
26
Screw WPL 488474 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
29
Lens, Light WPL 2171705 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (White) WPL 2175025 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2175161 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 2175159 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 2175160 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
47
Cover, Unit WPL 2171942 Contact Us For Availability
49
Hinge Cover (White) WPL 1119787 Contact Us For Availability
49
Hinge Cover (Almond) WPL 1119789 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
