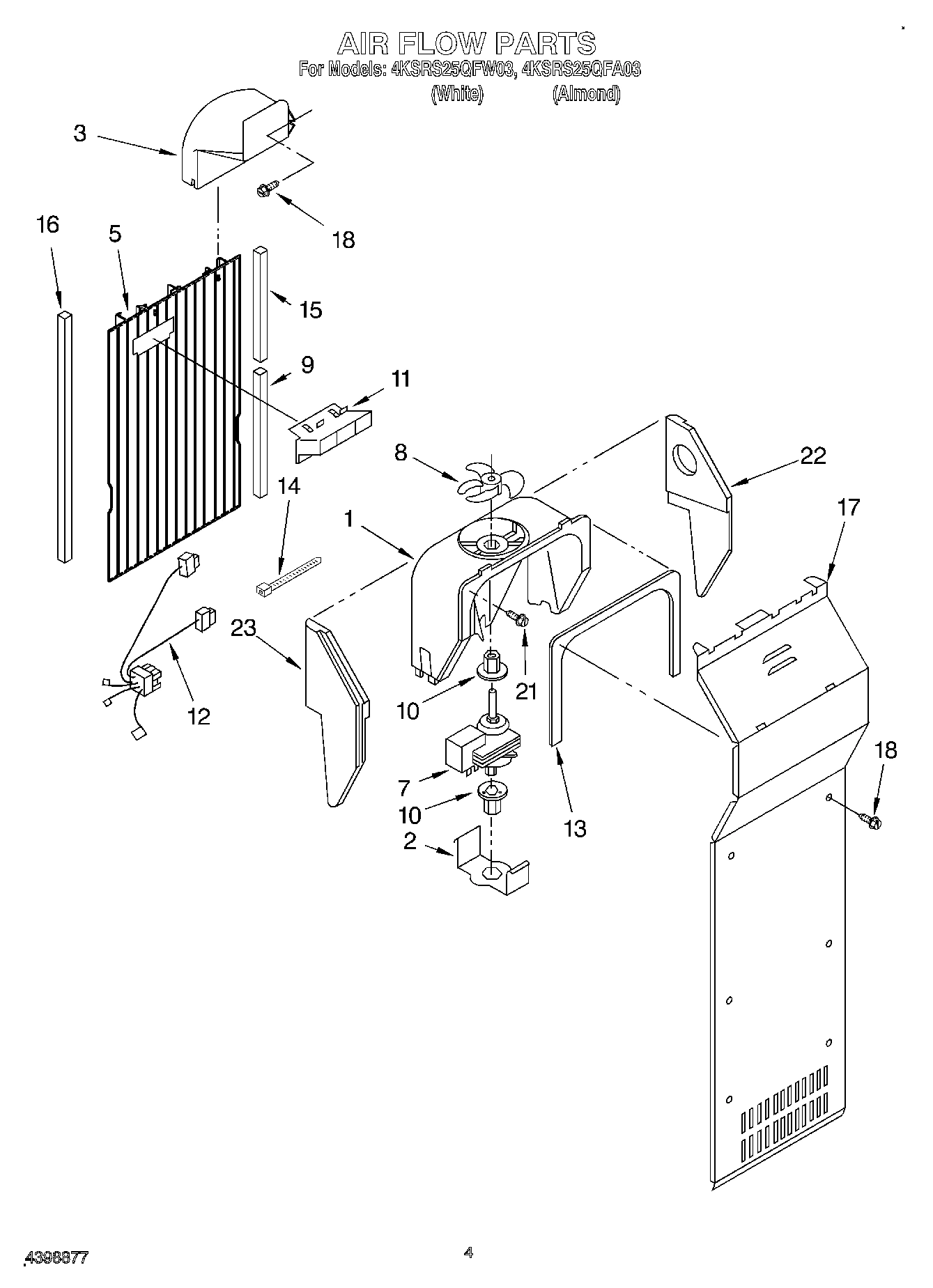

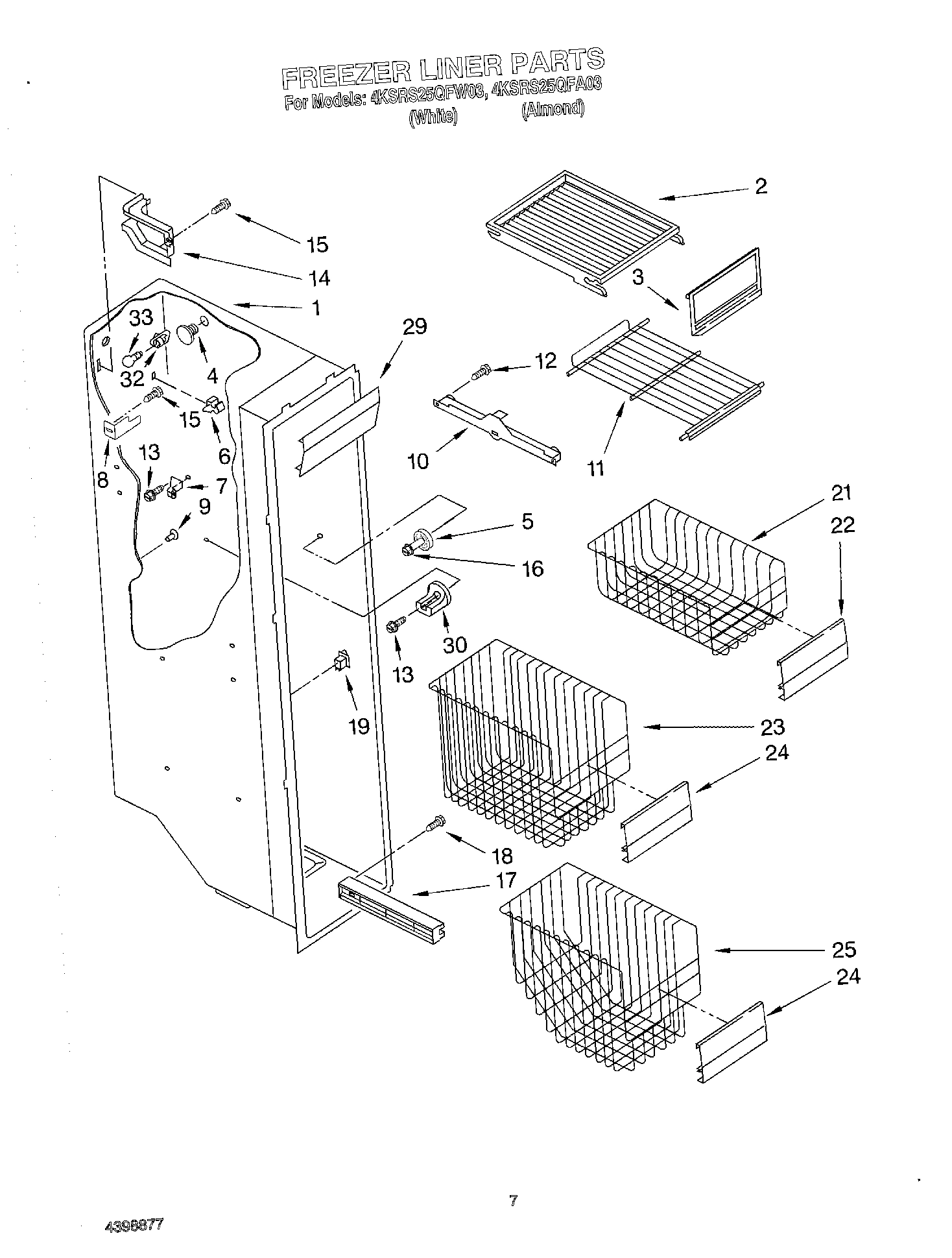

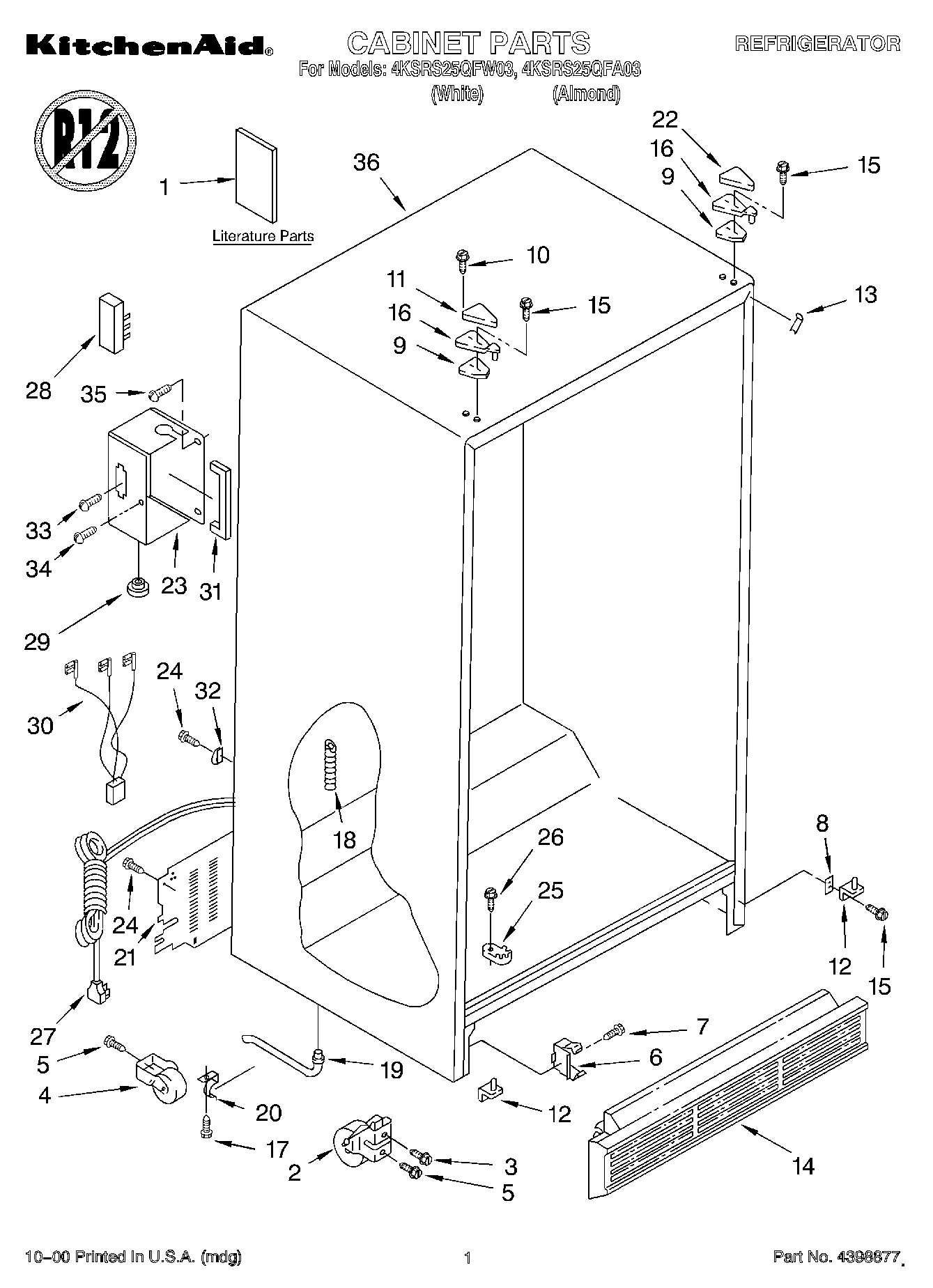

Model Whirlpool 4KSRS25QFW03 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI14356A8 Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability

1

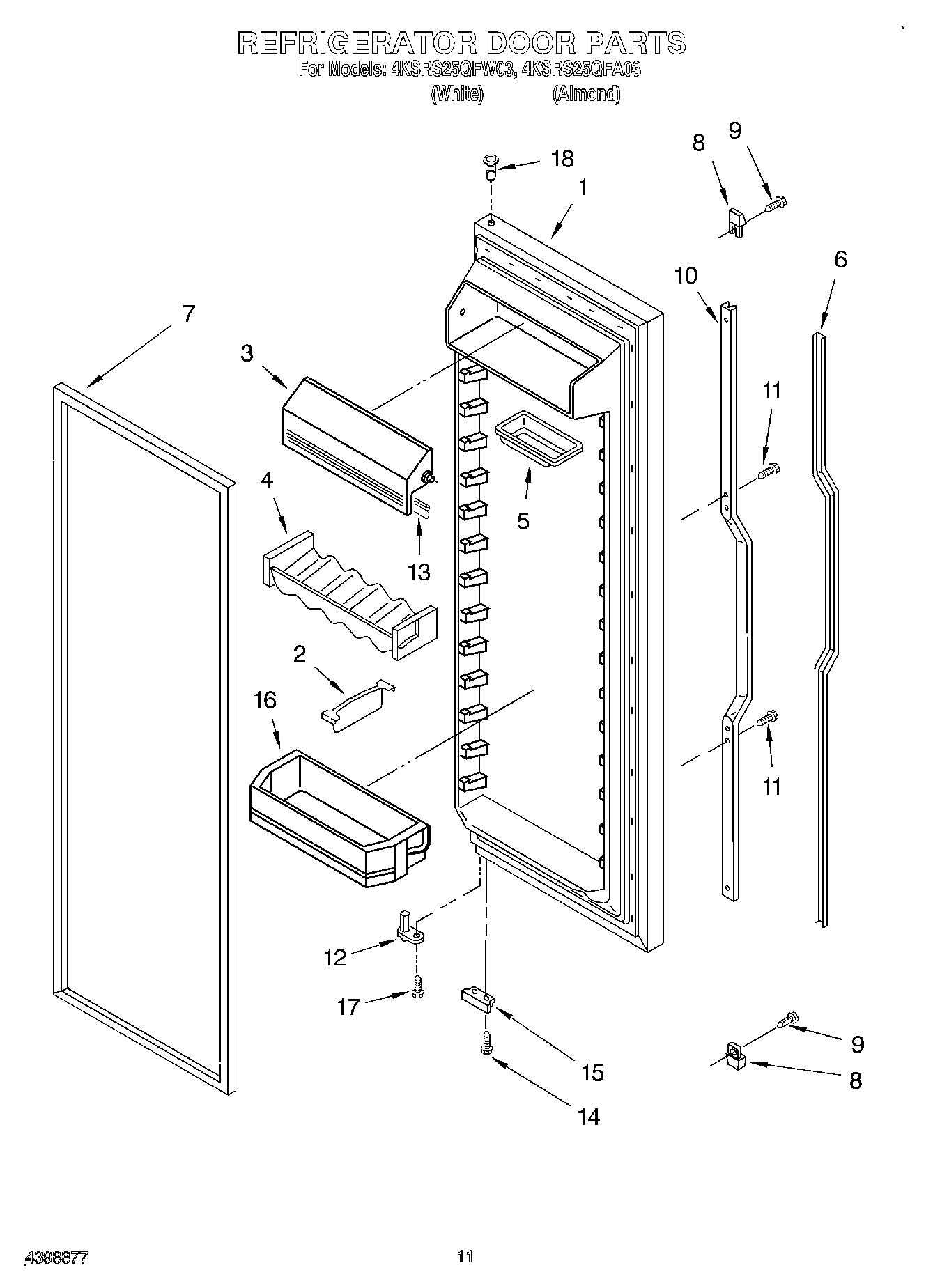

Refrigerator Door (Includes No.7) (Almond) WPL 2194233N Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI14358A7 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Motor, Dispenser WPL 2188386 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Load, Lock (4) WPL 2195497 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $114.51

3

WPW10129867 Whirlpool Refrigerator Solenoid Backorder WPL WPW10129867 $82.75

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.14

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $27.52

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

1129563 Whirlpool Shield Backorder WPL 1129563 $27.52

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability

6

Insert, Handle (White) WPL 2173825 Contact Us For Availability

6

Insert, Handle (Almond) WPL 2173828 Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $122.49

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

7

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

7

Carriage WPL 2168792 Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

Glass, Cover WPL 2174148 Contact Us For Availability

8

End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability

8

End Cap, Handle (White) WPL 2194778W Contact Us For Availability

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206273 Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Glass, Cover WPL 2189526 Contact Us For Availability

Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability

Retainer, Insert (White) WPL 2194777W Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

Lever, Ice Dispenser (Almond) WPL 2180260 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Gasket, (Rear) WPL 2174274 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

NLA:SCREW Backorder WPL WPW10141645 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

Light Bar (RC) WPL 2179920 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

15

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $133.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

Shelf Bin (4) WPL 2171063 Contact Us For Availability

Bulb, Light WPL 989331 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $36.47

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

Plaque, Front Cover (Almond) WPL 2195142N Contact Us For Availability

Plaque, Front Cover (White) WPL 2195142W Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $30.25

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

Control Box Harness WPL 2206509 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI14359A8 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

CLIP, WIRING WPL 1115375 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2195140N Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2195140W Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WPW10129864 Whirlpool Refrigerator Diffuser Backorder WPL WPW10129864 $184.11

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

Escutcheon, Control Box WPL 2161486 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

Light Bar (FC) WPL 2179921 Contact Us For Availability

Roller, Front (2) WPL 2179486 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $183.83

KIT, FOA WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Roller, Rear (2) WPL 2179487 Contact Us For Availability

28

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

Round Pan WPL 2168793 Contact Us For Availability

29

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

29

Divider, 1/2 WPL 2174363 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

Stud, Rear WPL 2196207 Contact Us For Availability

30

Divider, 1/4 WPL 2174364 Contact Us For Availability

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

32

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

34

Light Lens WPL 2206269 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

37

Screw (2) WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
