Model Whirlpool 4KSRS25QFA00 REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR SHELF
06 - MOTOR AND ICE CONTAINER
10 - UNIT
07 - REFRIGERATOR DOOR
09 - DISPENSER FRONT

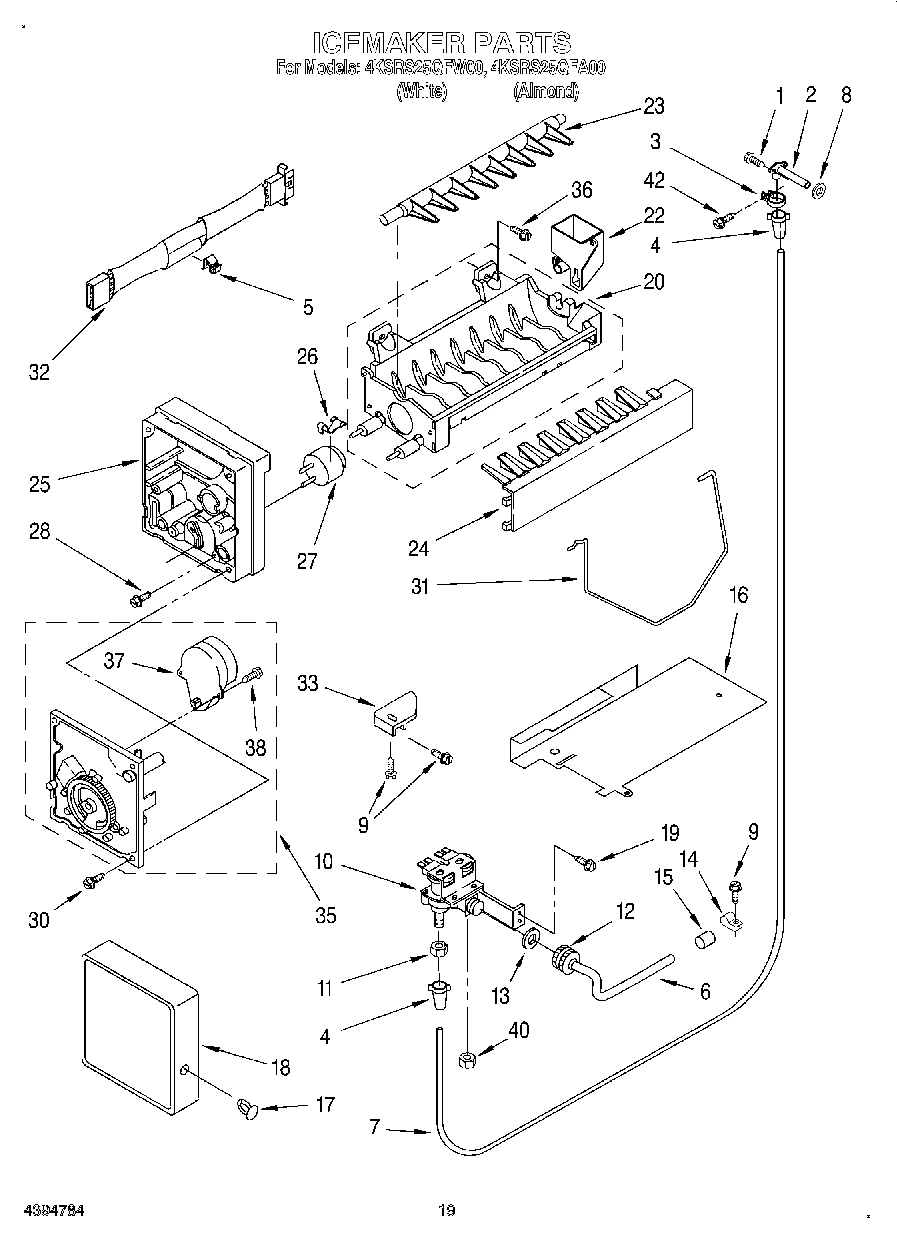

11 - ICE MAKER

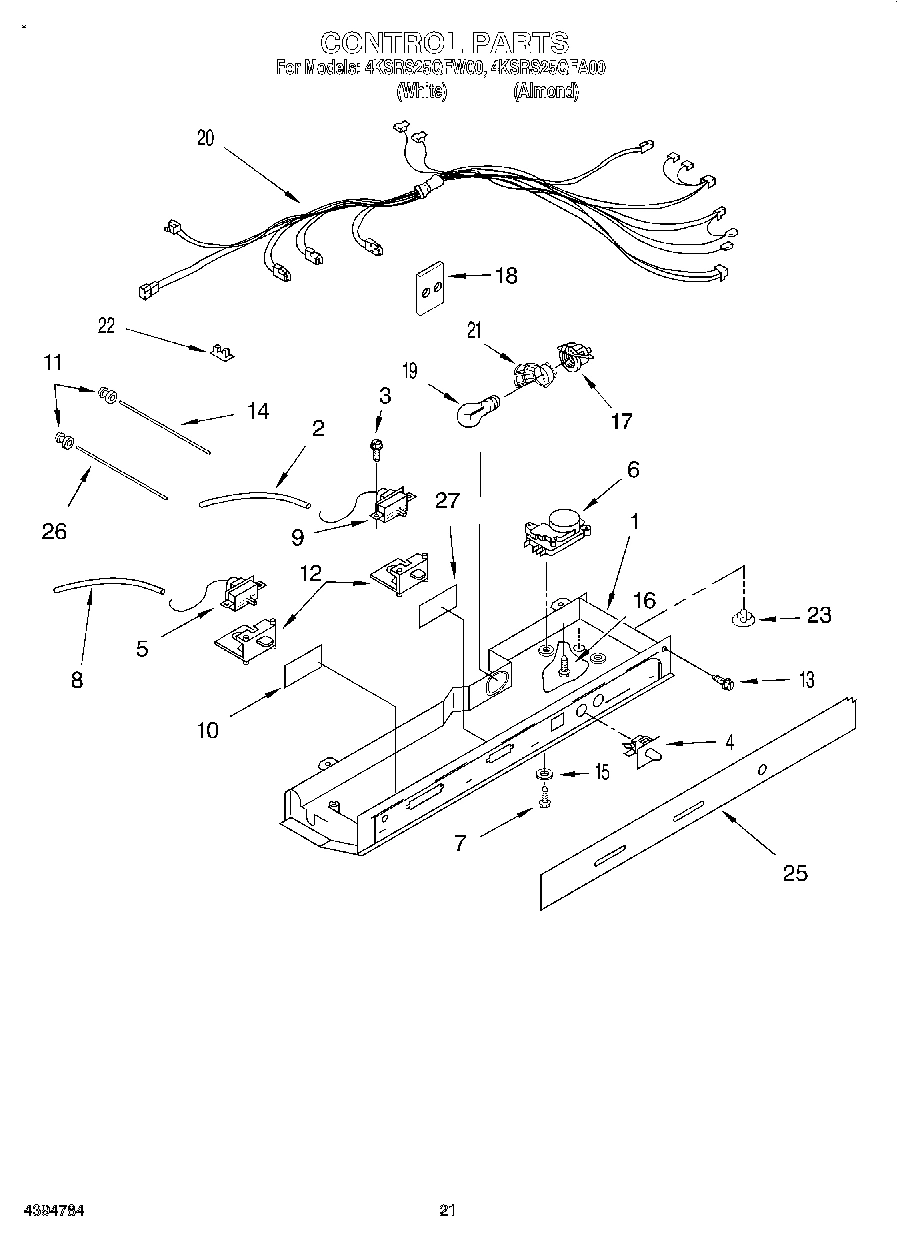

12 - CONTROL, LIT/OPTIONAL

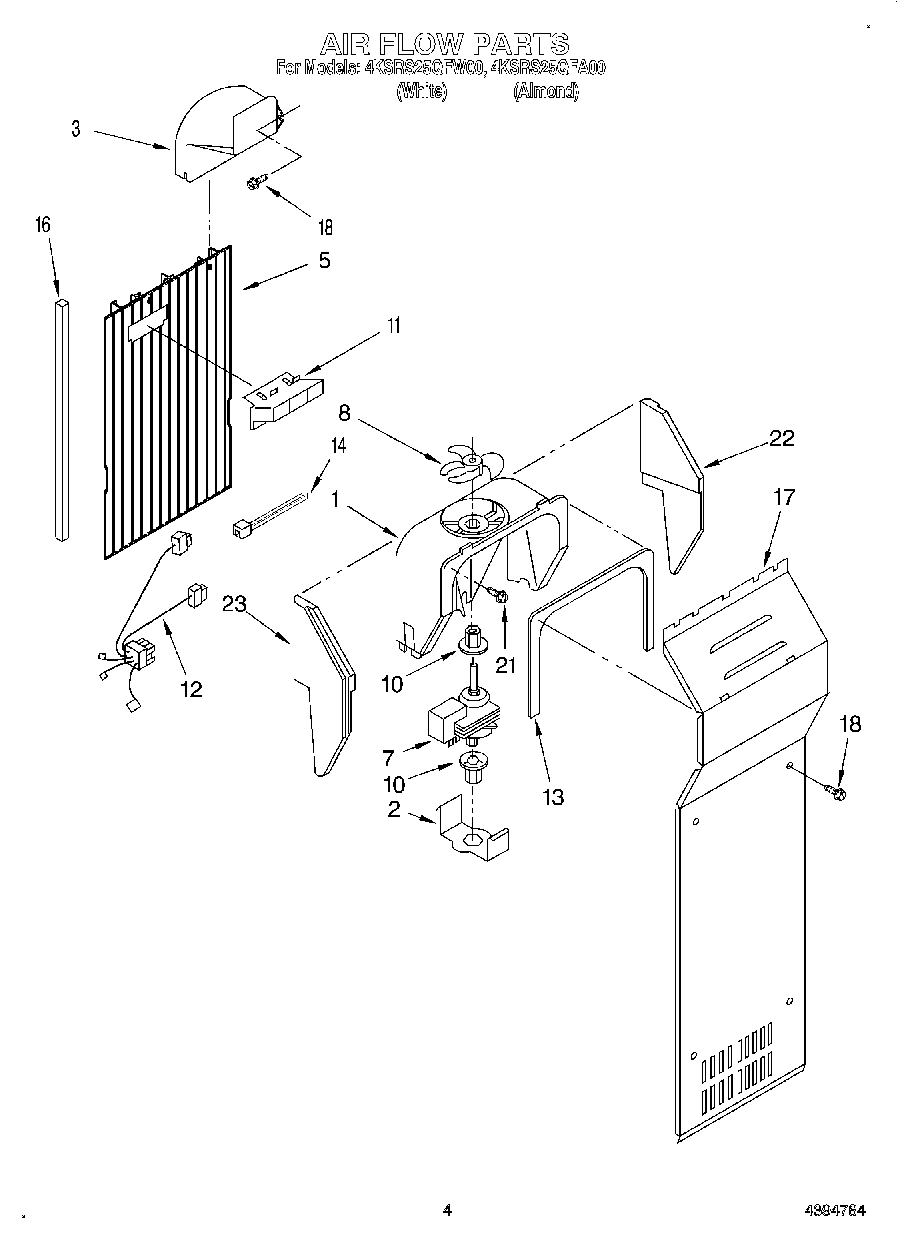

03 - AIR FLOW
05 - FREEZER LINER

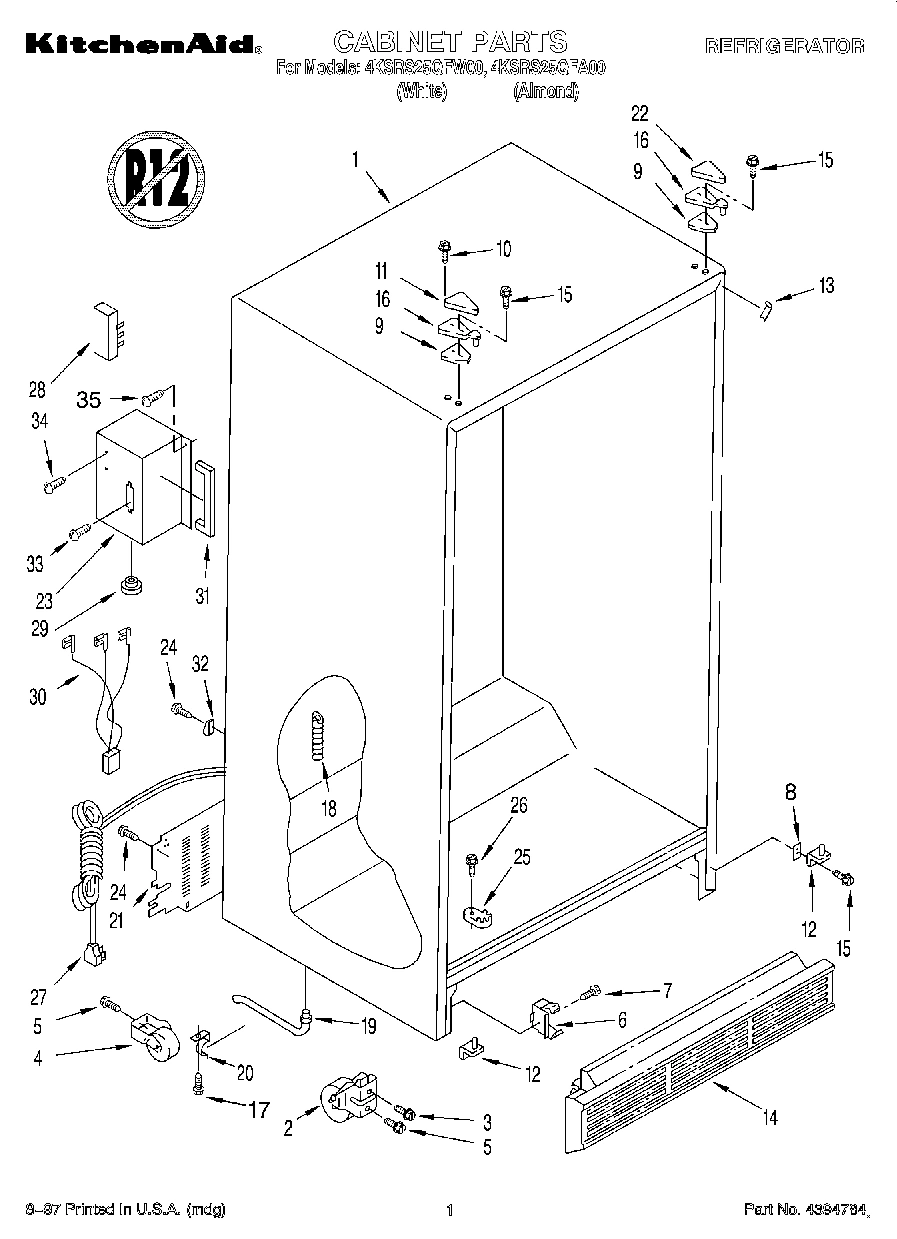

01 - CABINET

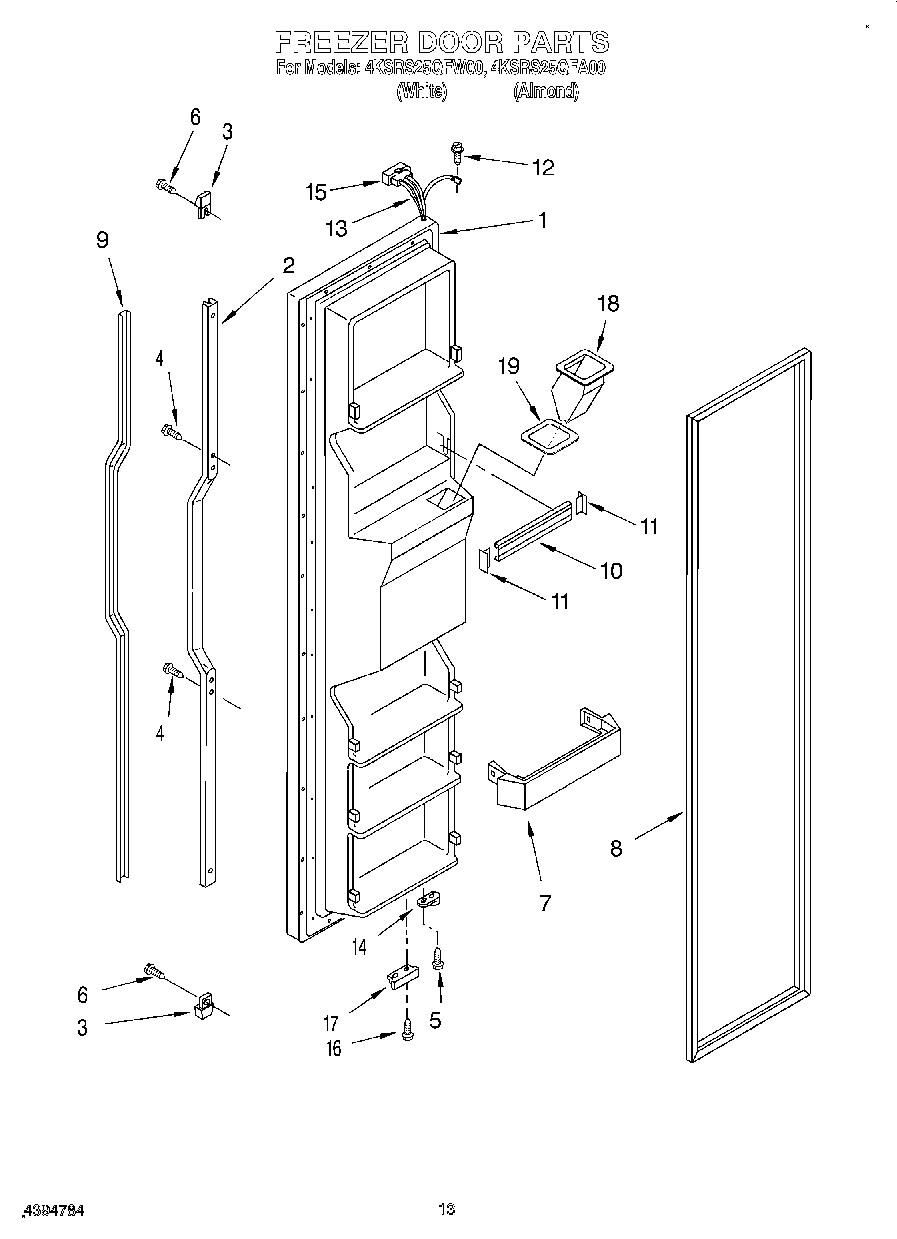

08 - FREEZER DOOR
02 - REFRIGERATOR LINER
Common parts from model Whirlpool 4KSRS25QFA00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195135 WPL LIT2195135 Contact Us For Availability
WPL LIT2198139 WPL LIT2198139 Contact Us For Availability
WPL LIT2198374 WPL LIT2198374 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14328A8 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14326A8 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2195145N Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2195145W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14327A3 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
2
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
End Cap (2) (Almond) WPL 2194778N Contact Us For Availability
3
End Cap (2) (White) WPL 2194778W Contact Us For Availability
4
Hole Plug WPL 940014 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Grille (White) WPL 2155486 Contact Us For Availability
14
Grille (Almond) WPL 2155487 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
17
Bracket, Door Stop WPL 2195950 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Chute, Ice WPL 2180204 Contact Us For Availability
19
Seal, Housing WPL 2198249 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
21
Cover, Unit WPL 2189570 Contact Us For Availability
22
Hinge Cover (White) WPL 1119787 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
22
Hinge Cover (Almond) WPL 1119789 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Hole Plug WPL 2166844 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
23
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
27
Service Cord WPL 1129332 Contact Us For Availability
28
Terminal Block WPL 1129346 Contact Us For Availability
29
Lens, Light WPL 2171705 Contact Us For Availability
29
Bushing WPL 1129449 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Wiring Assembly WPL 2165297 Contact Us For Availability
31
Gasket WPL 2167227 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
