Model Whirlpool 4ED25DQXDW02 REFRIGERATOR – Common Parts & Diagrams

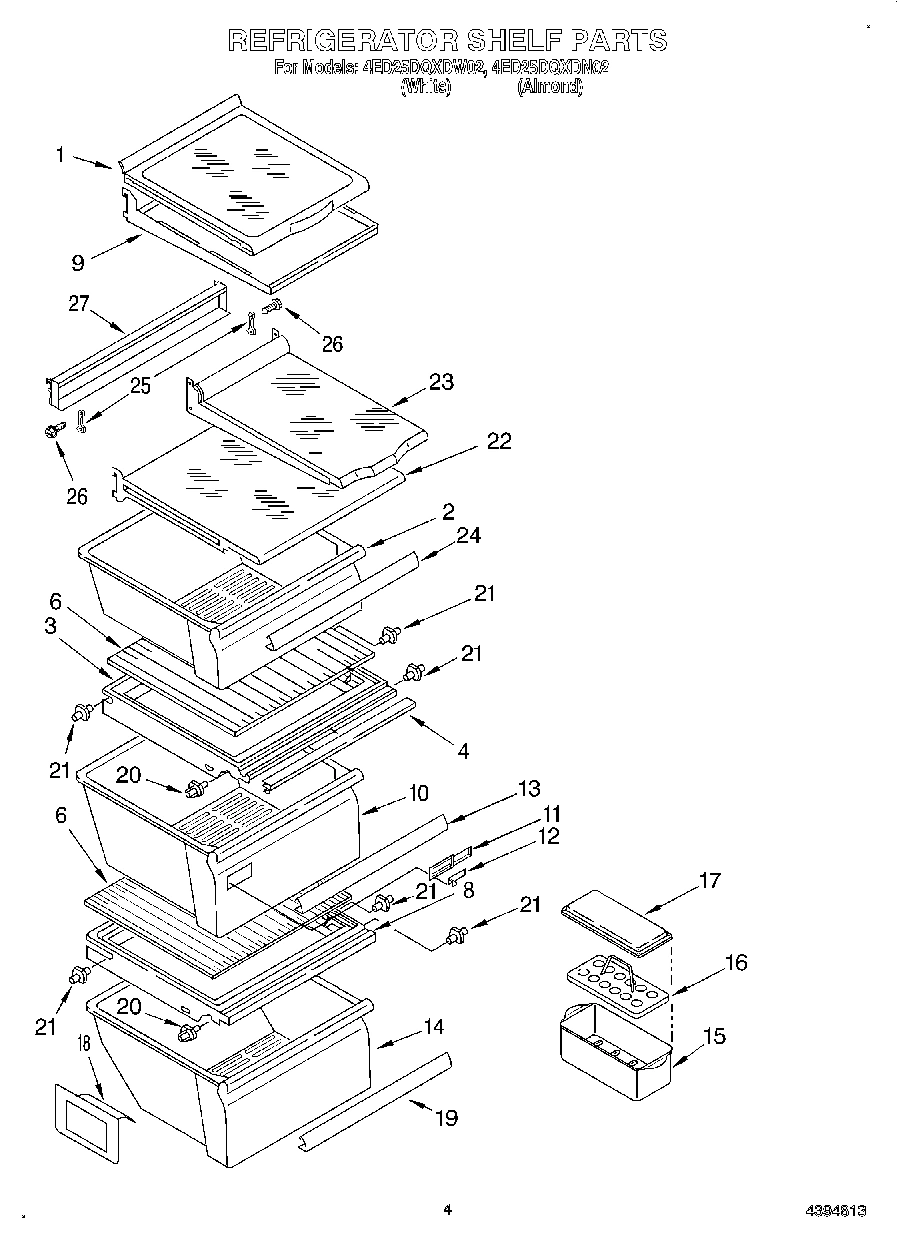

03 - REFRIGERATOR SHELF
10 - AIR FLOW

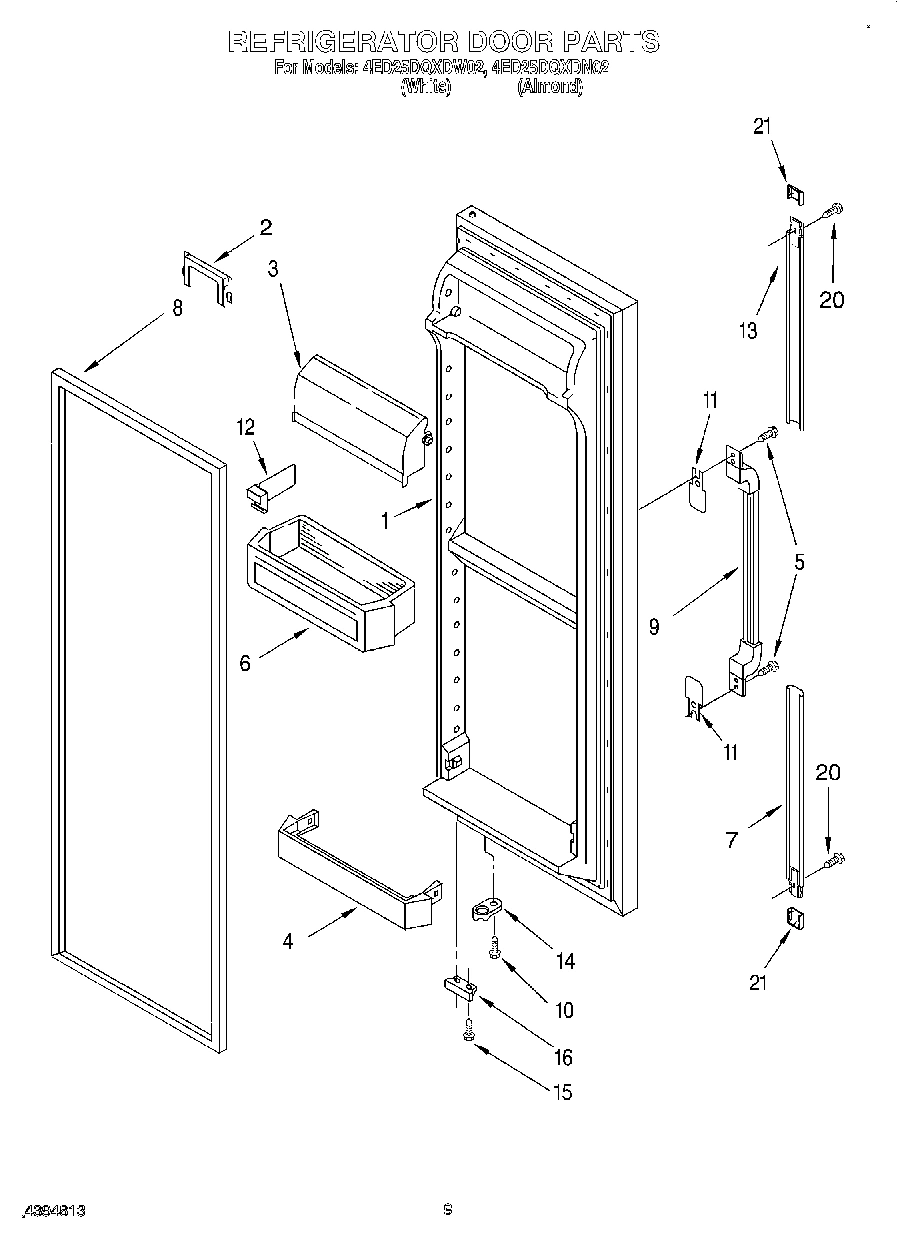

06 - REFRIGERATOR DOOR

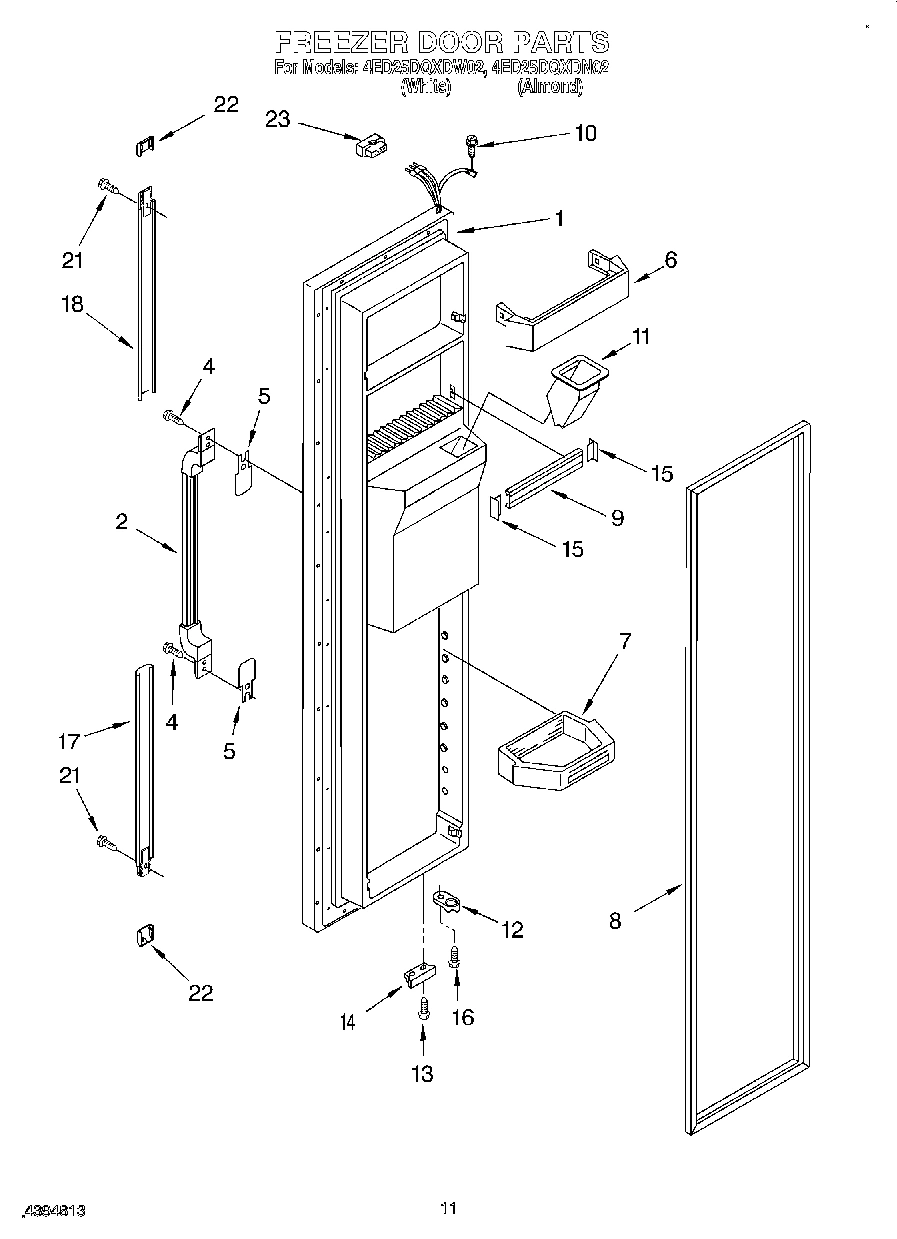

07 - FREEZER DOOR

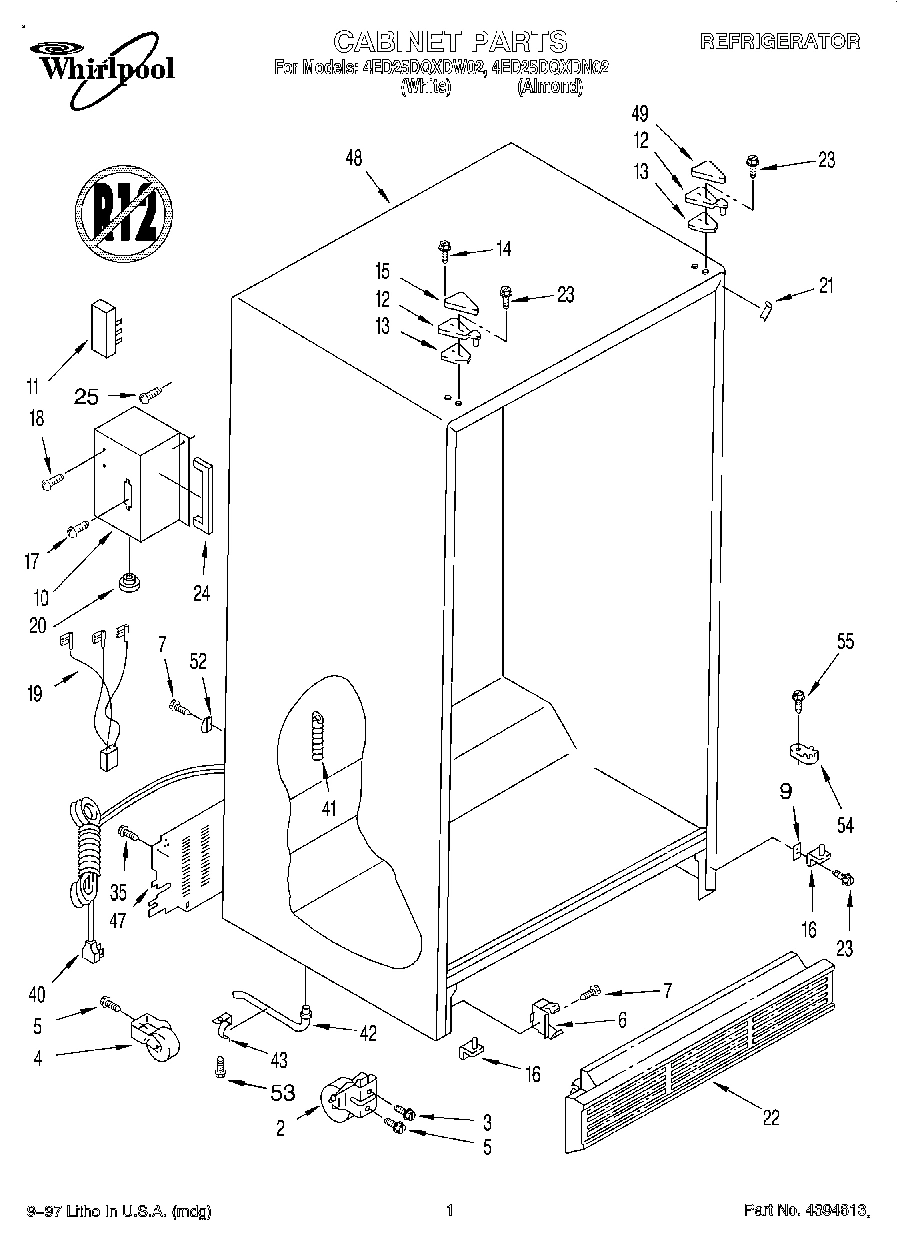

01 - CABINET

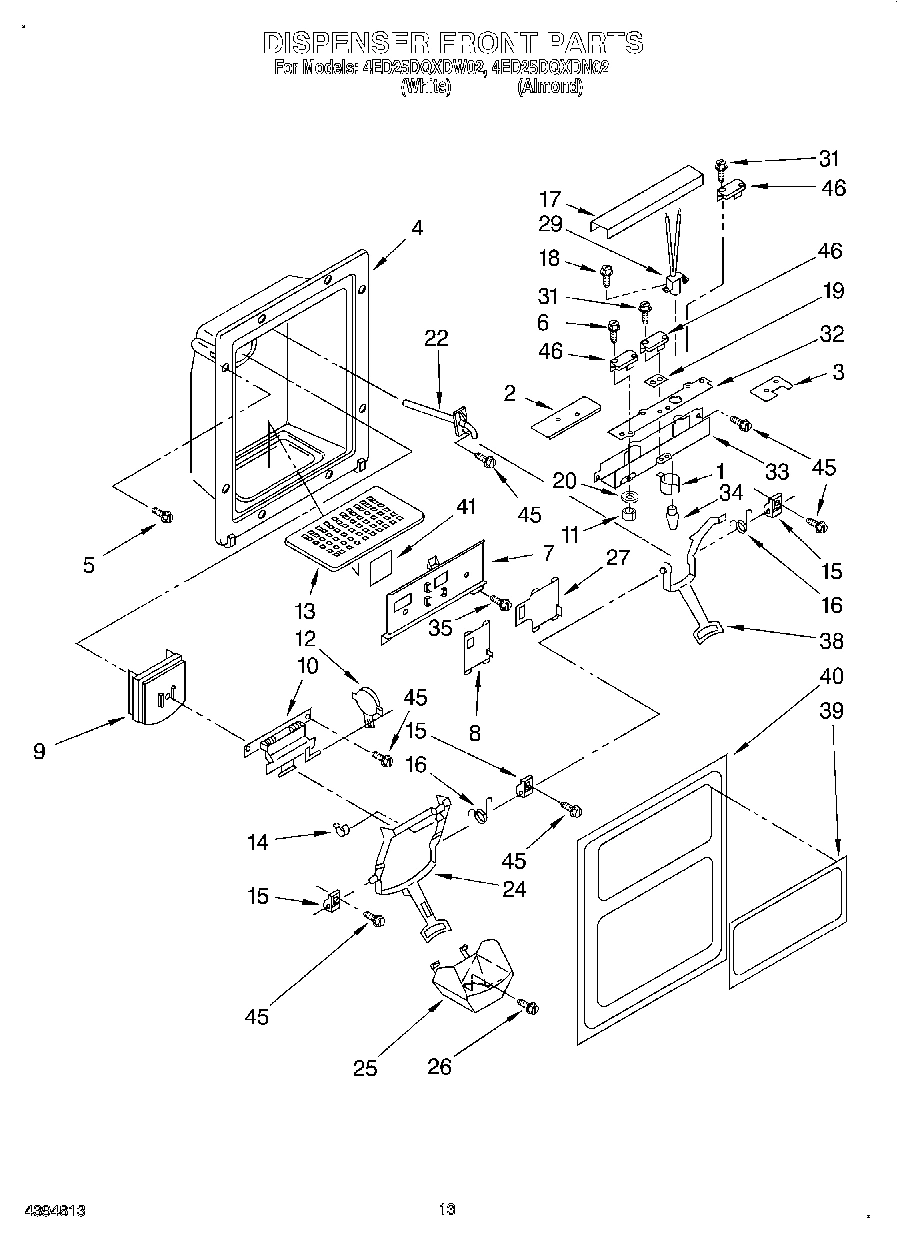

08 - DISPENSER FRONT

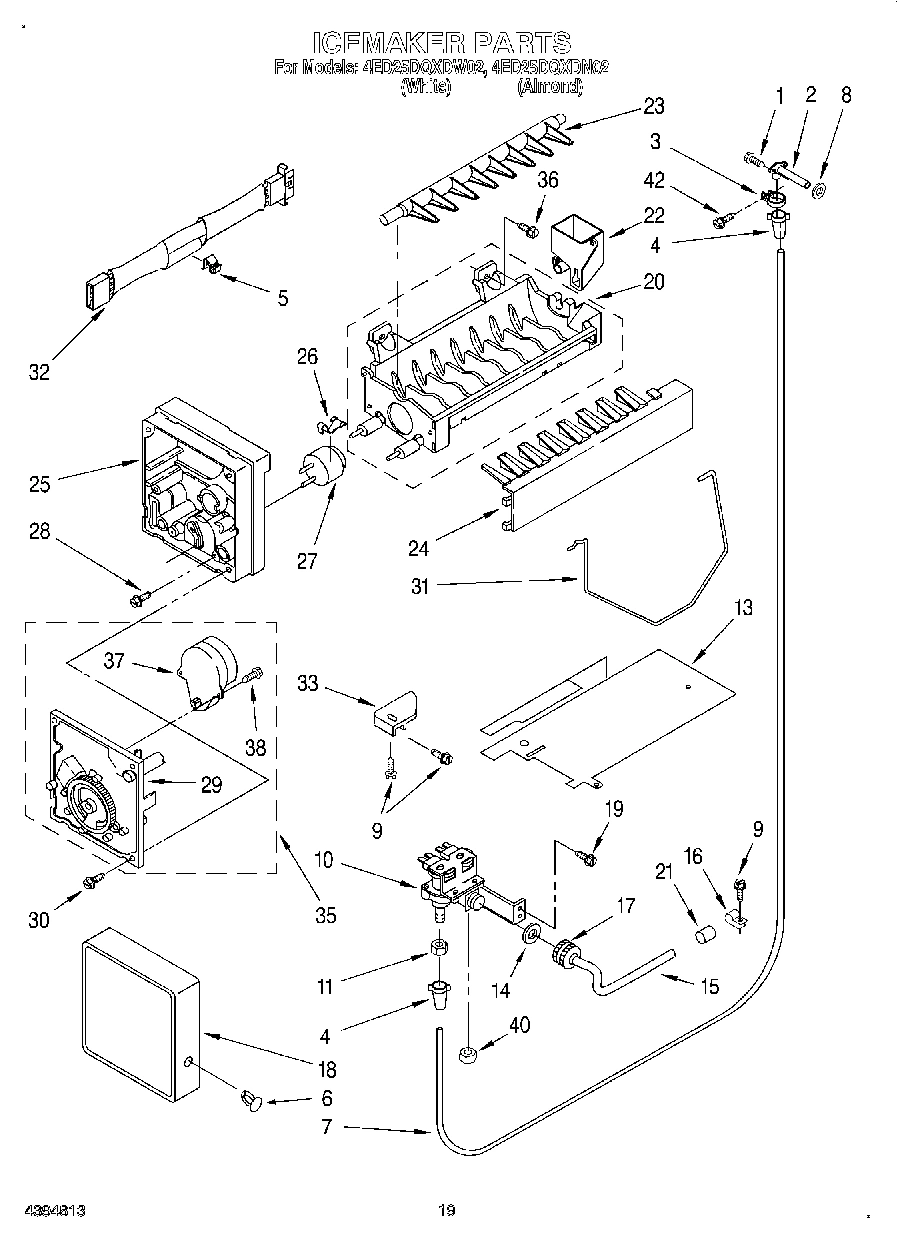

12 - ICE MAKER, LIT/OPTIONAL

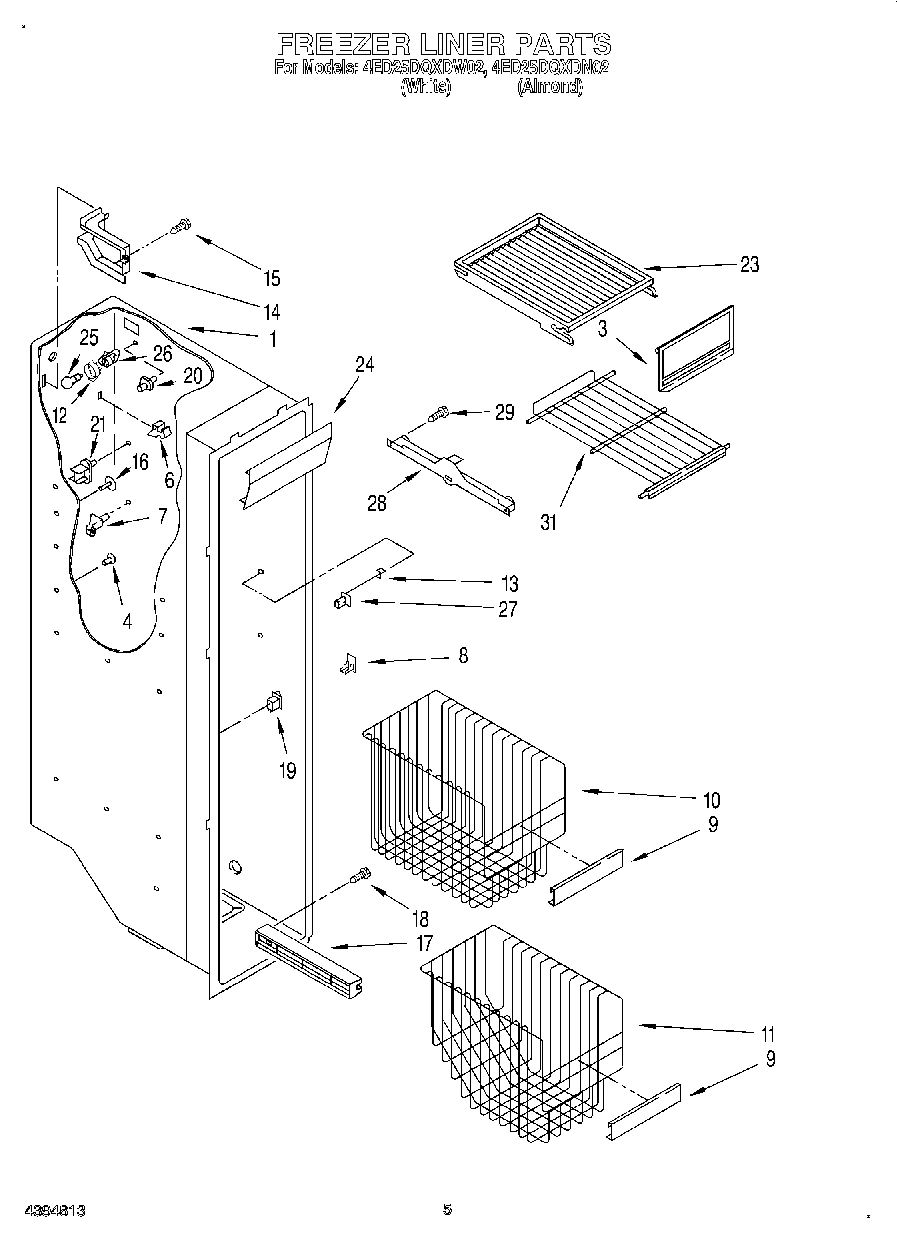

04 - FREEZER LINER

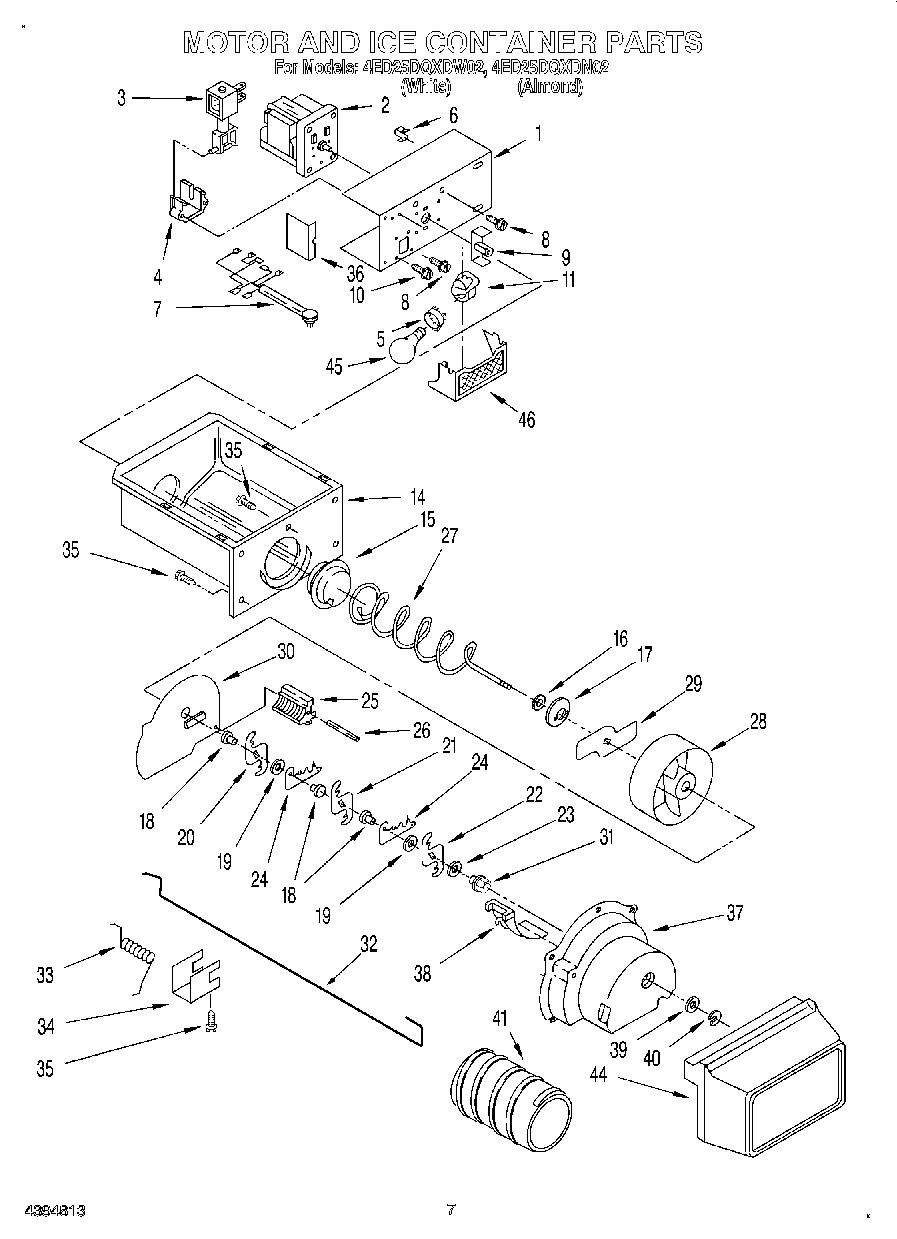

05 - MOTOR AND ICE CONTAINER

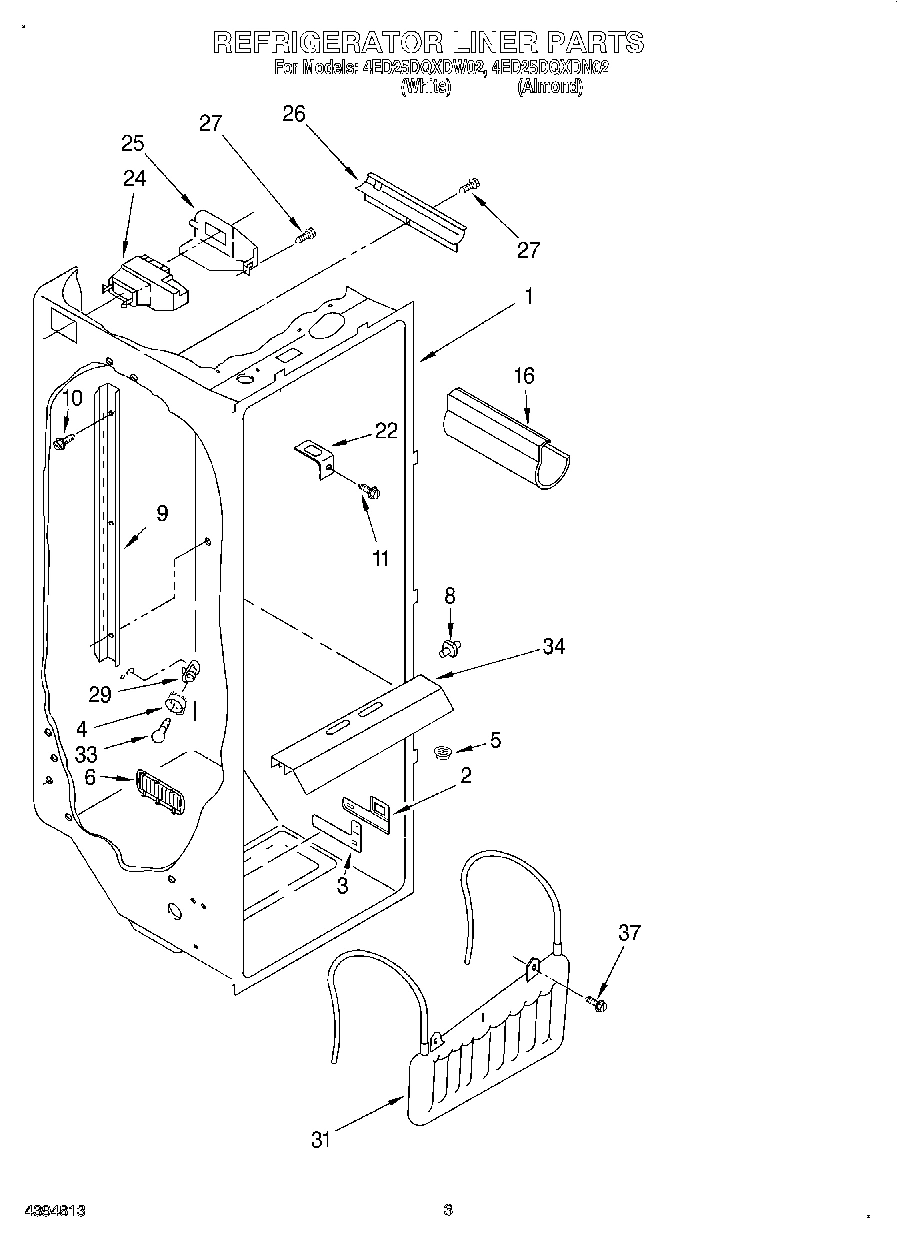

02 - REFRIGERATOR LINER

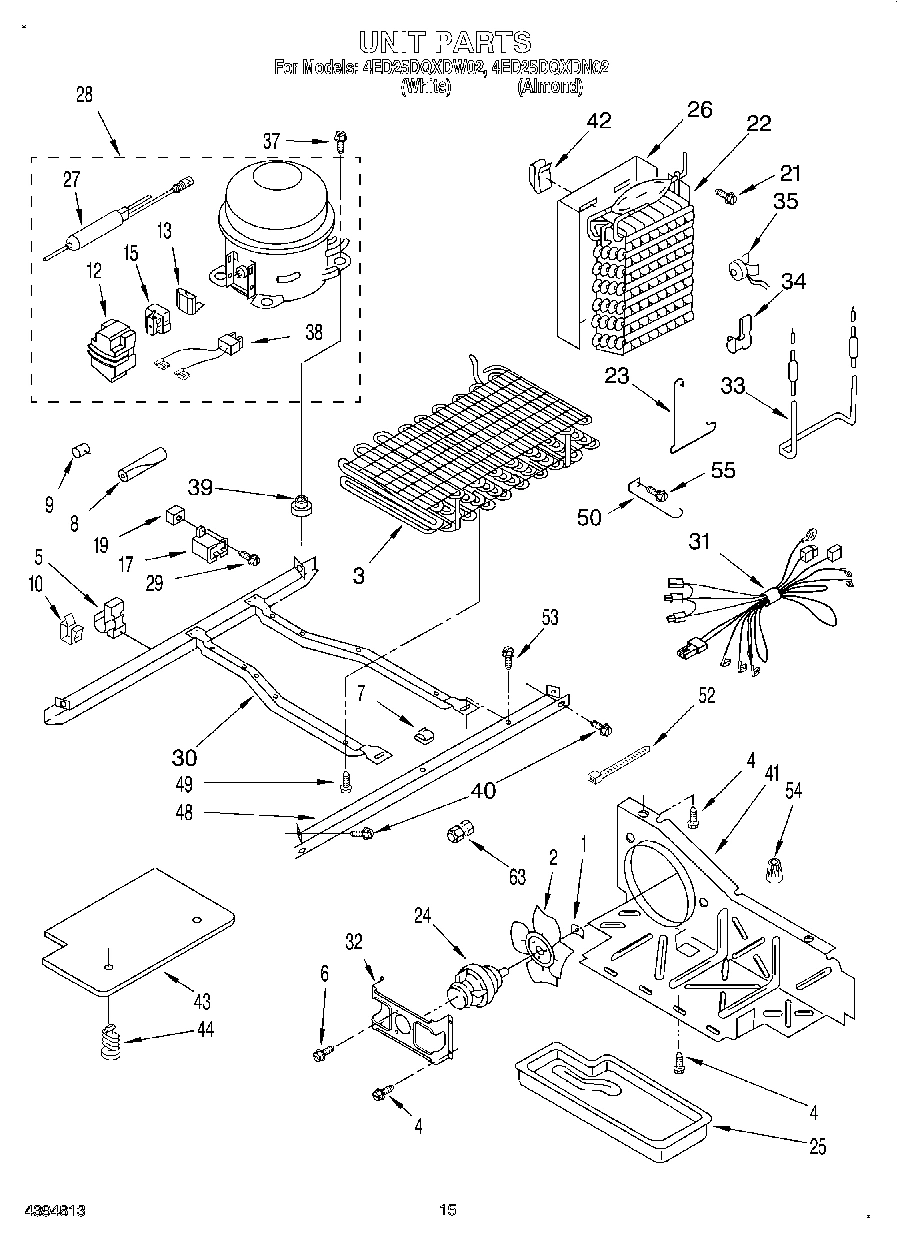

09 - UNIT

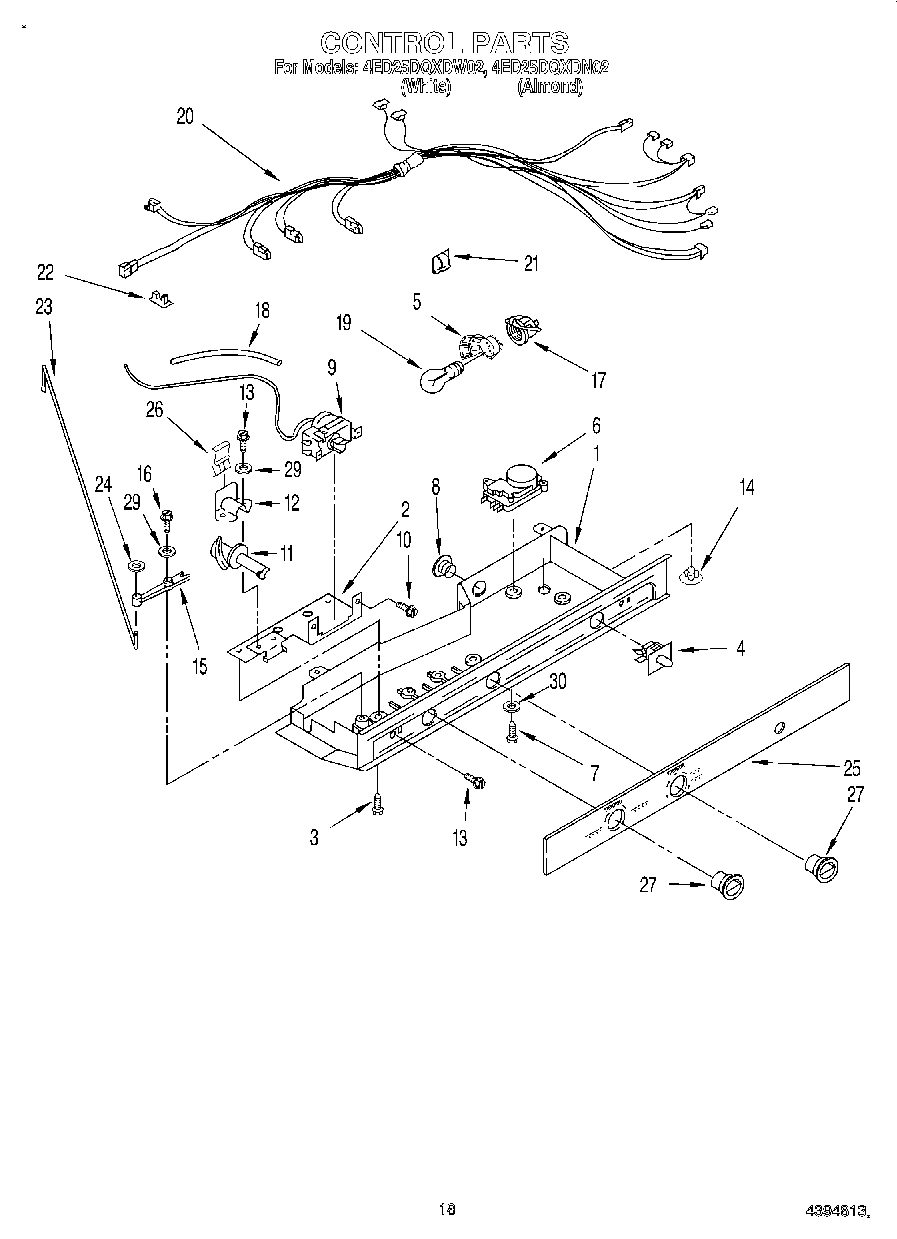

11 - CONTROL
Common parts from model Whirlpool 4ED25DQXDW02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2182955 WPL LIT2182955 Contact Us For Availability
WPL LIT2198380 WPL LIT2198380 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13466A1 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13465A1 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Louver WPL 2182147 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2176651 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Hole Plug WPL 2166844 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop WPL 2195950 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, WPL 2179361 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
30
Washer WPL 486632 Contact Us For Availability
31
Unit, Harness WPL 2195108 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
WPL 799344 WPL 799344 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
Ename WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
