Model Whirlpool 3XARG488GF00 REFRIGERATOR – Common Parts & Diagrams

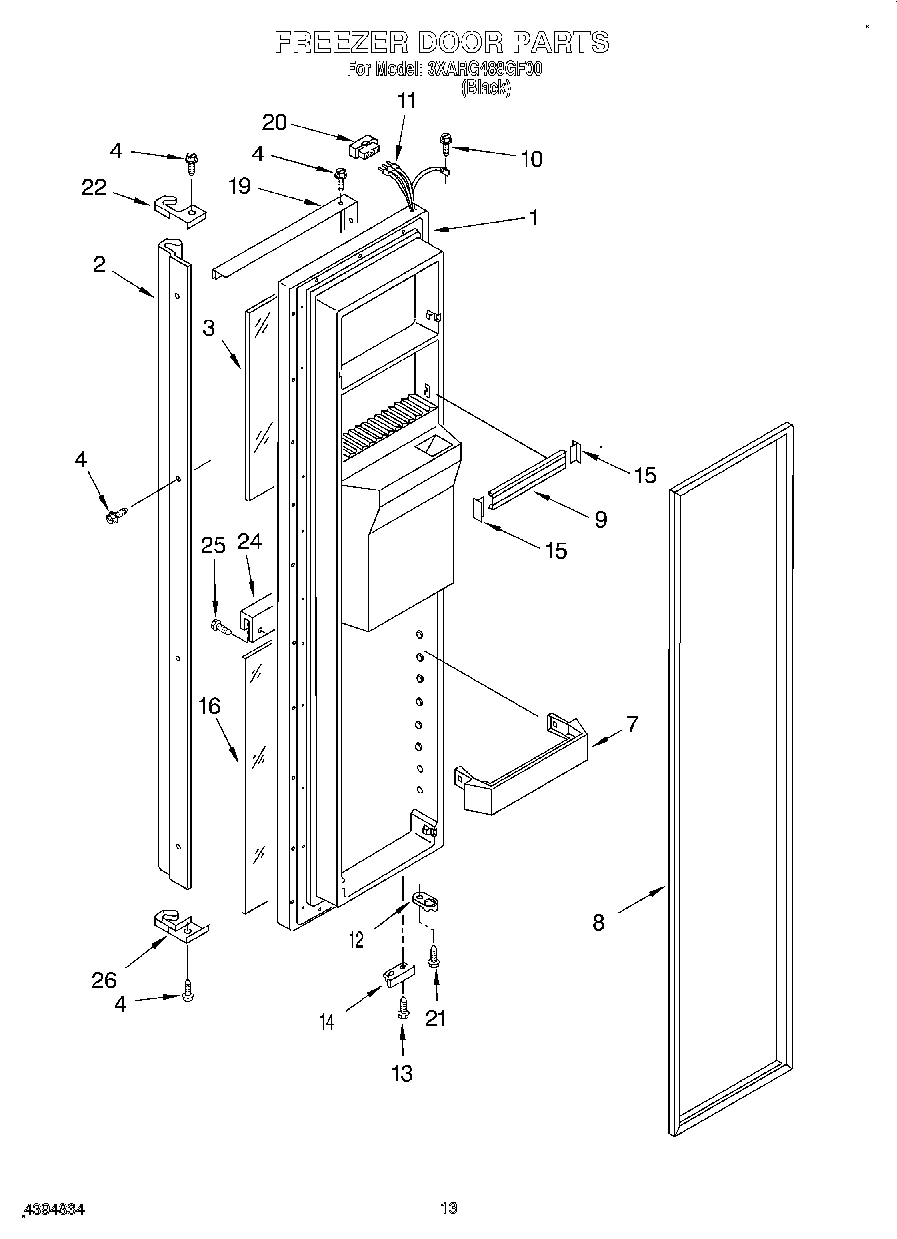

08 - FREEZER DOOR

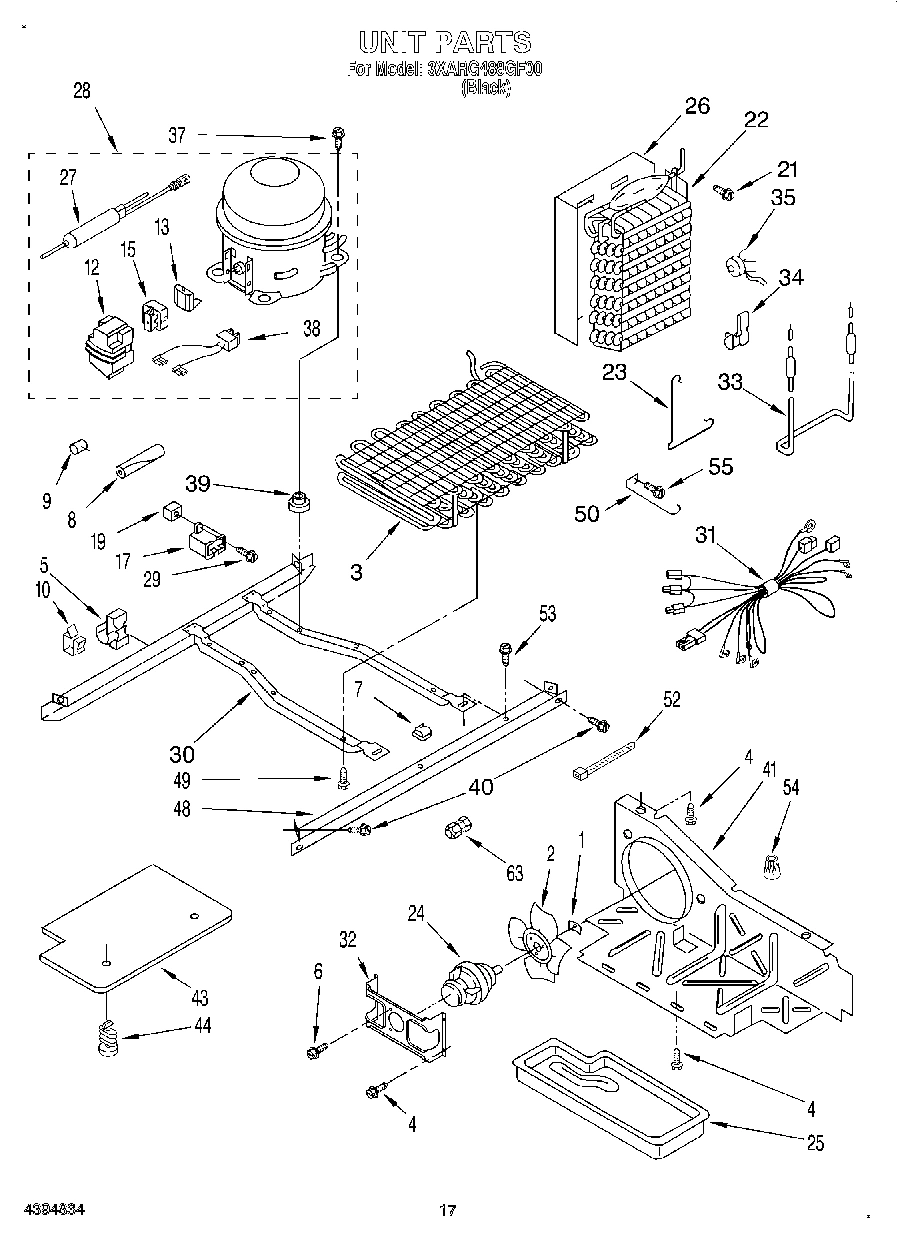

10 - UNIT
12 - AIR FLOW, LIT/OPTIONAL

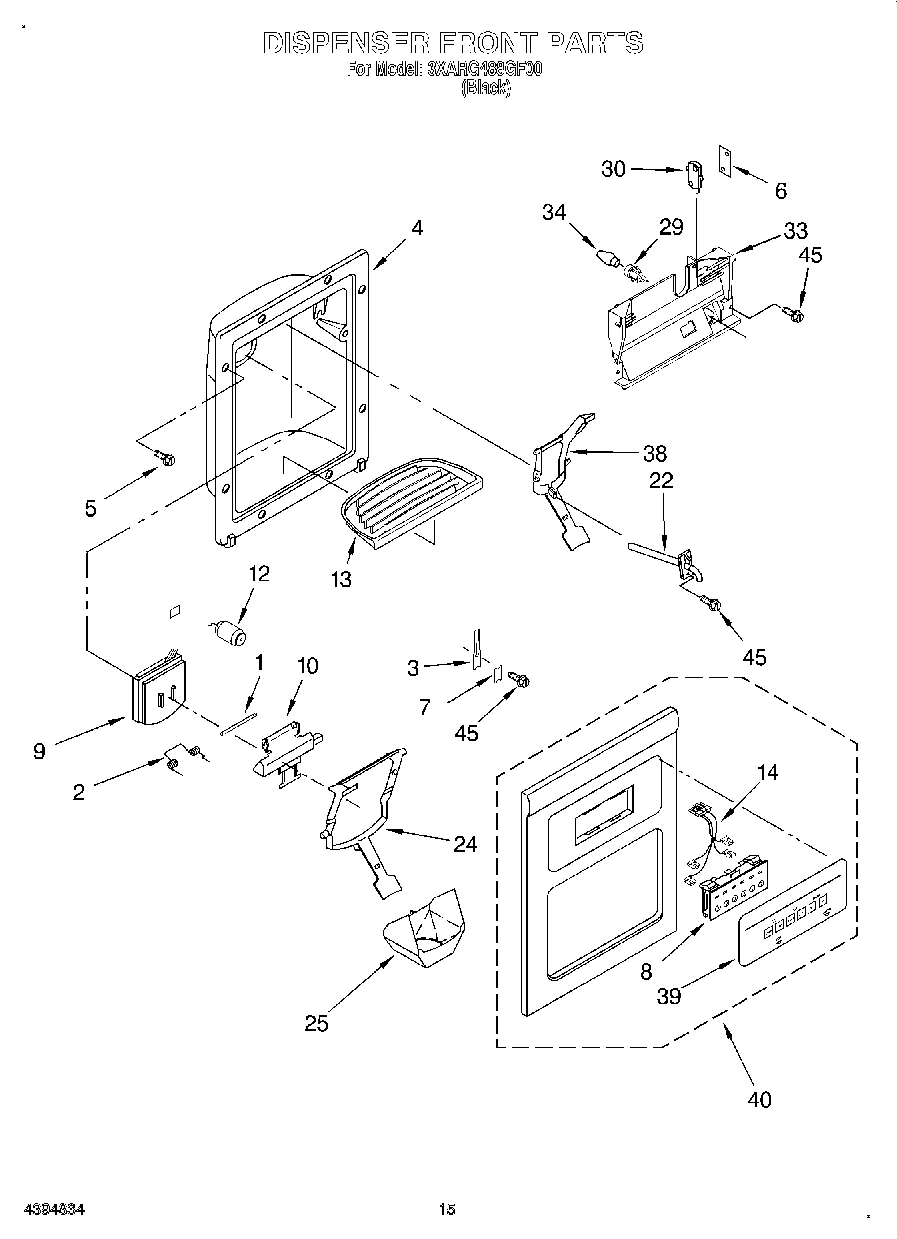

09 - DISPENSER FRONT

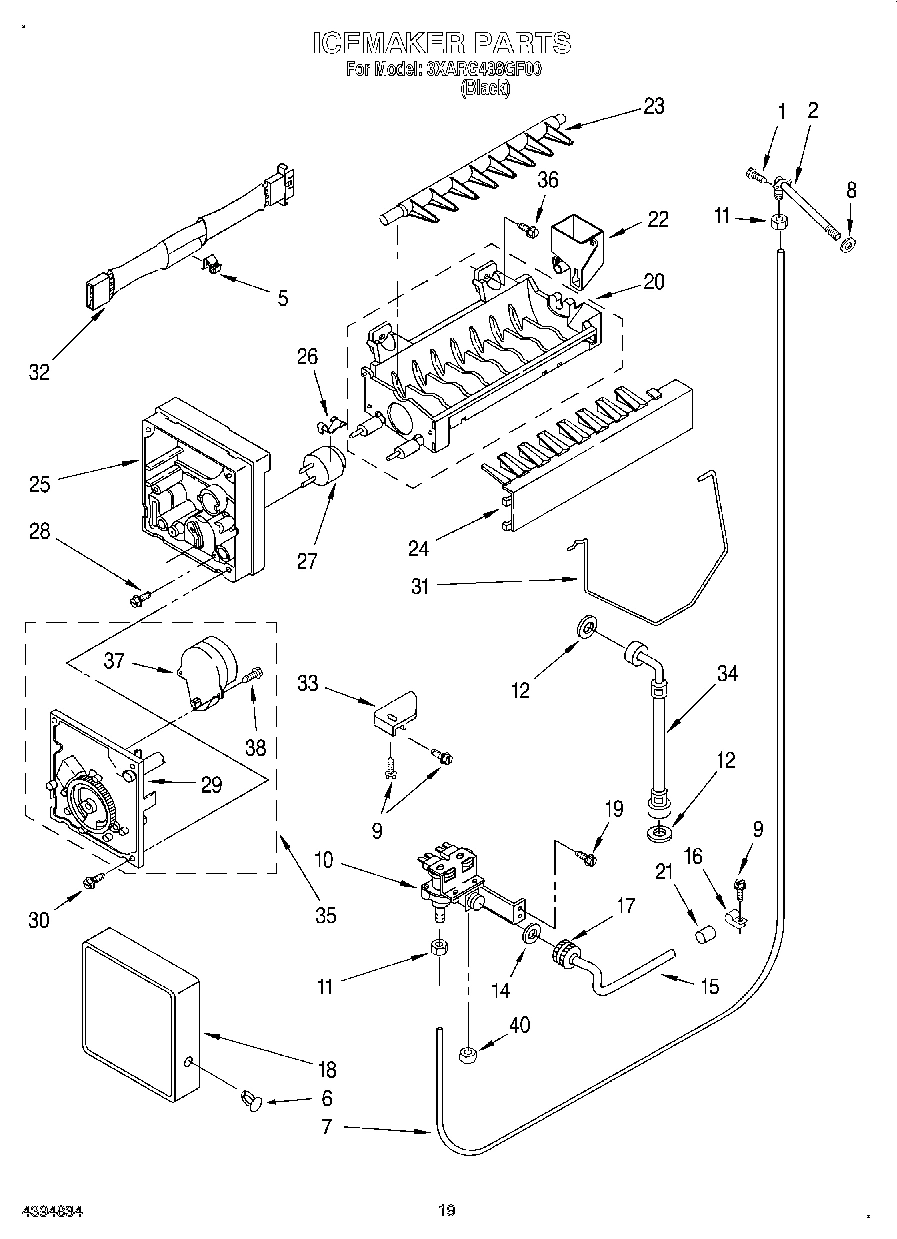

11 - ICEMAKER

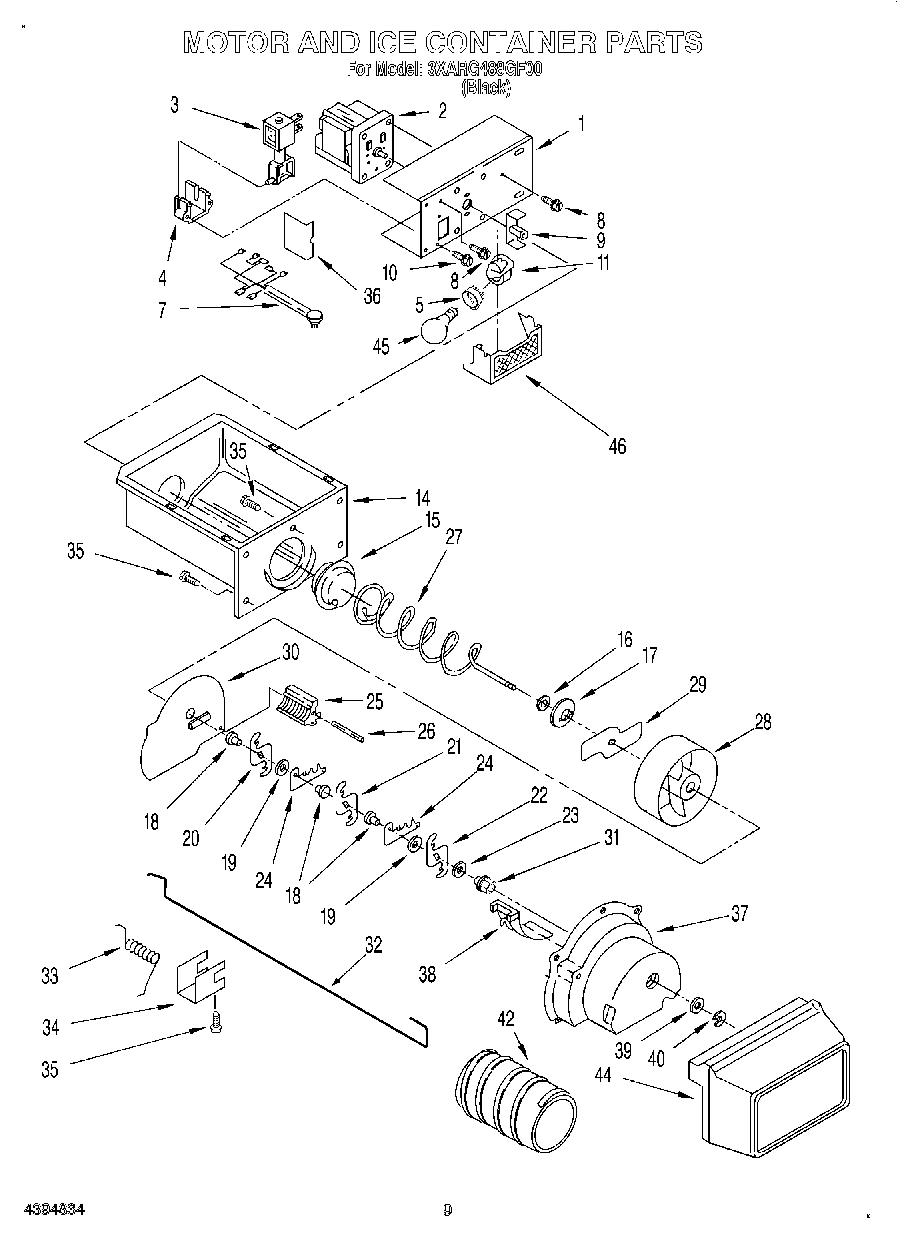

06 - MOTOR AND ICE CONTAINER

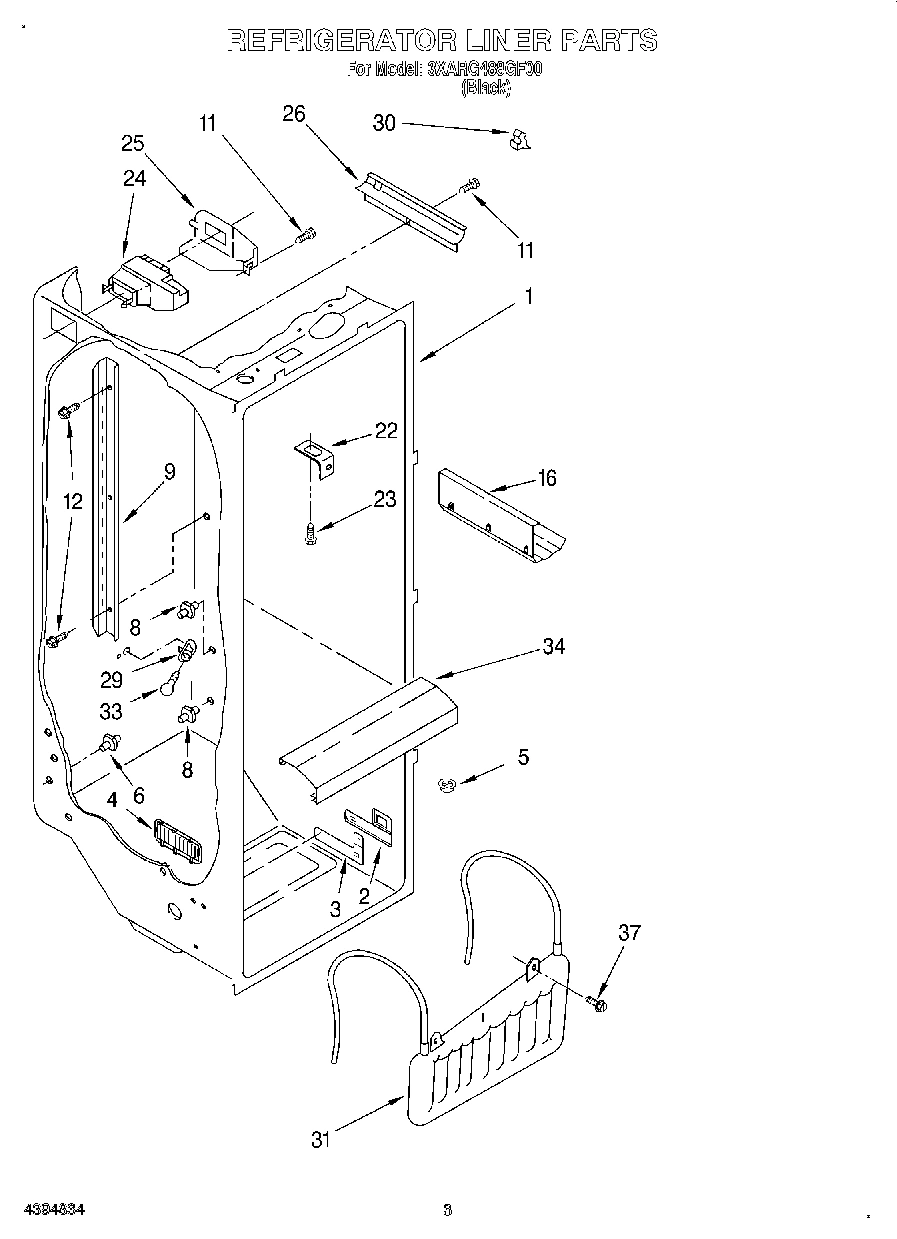

02 - REFRIGERATOR LINER

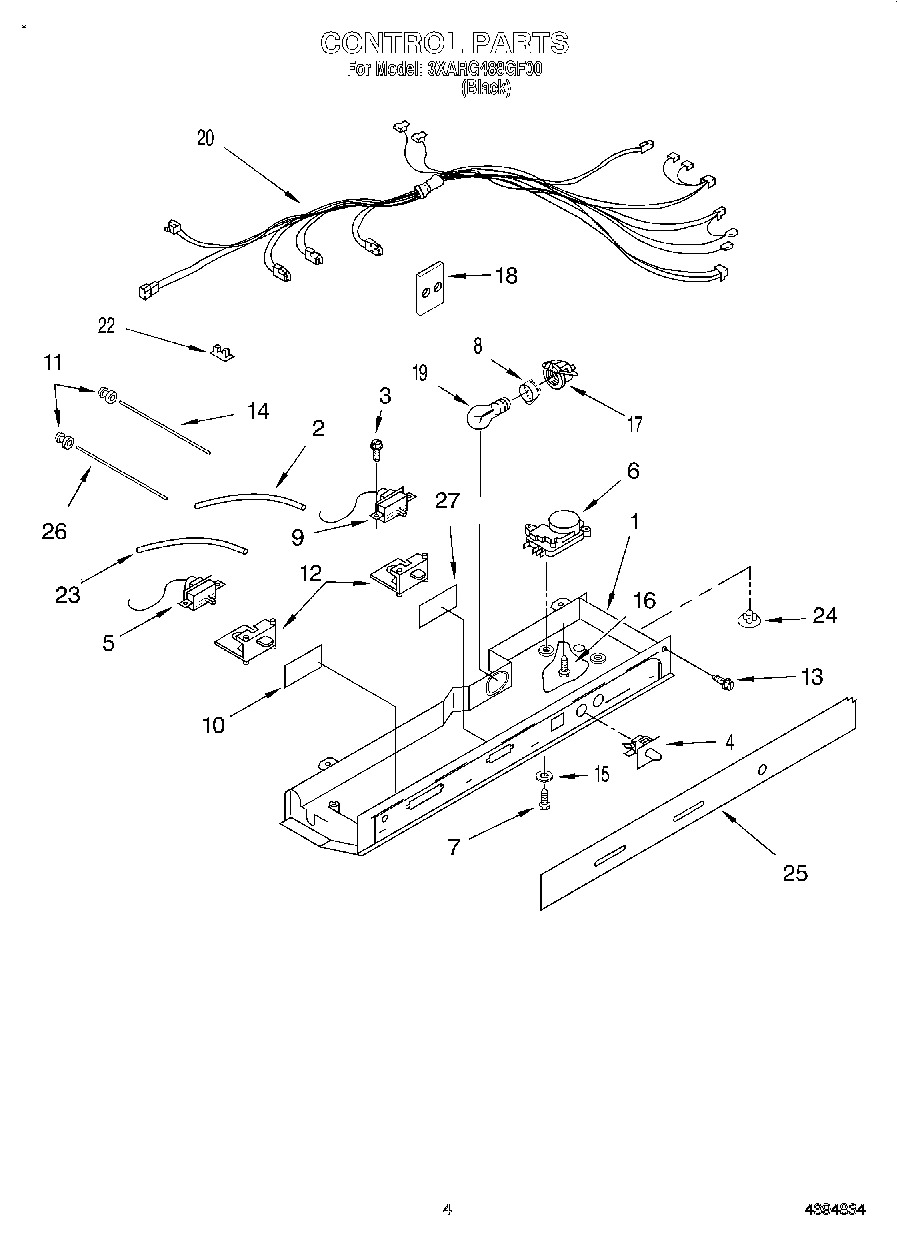

03 - CONTROL

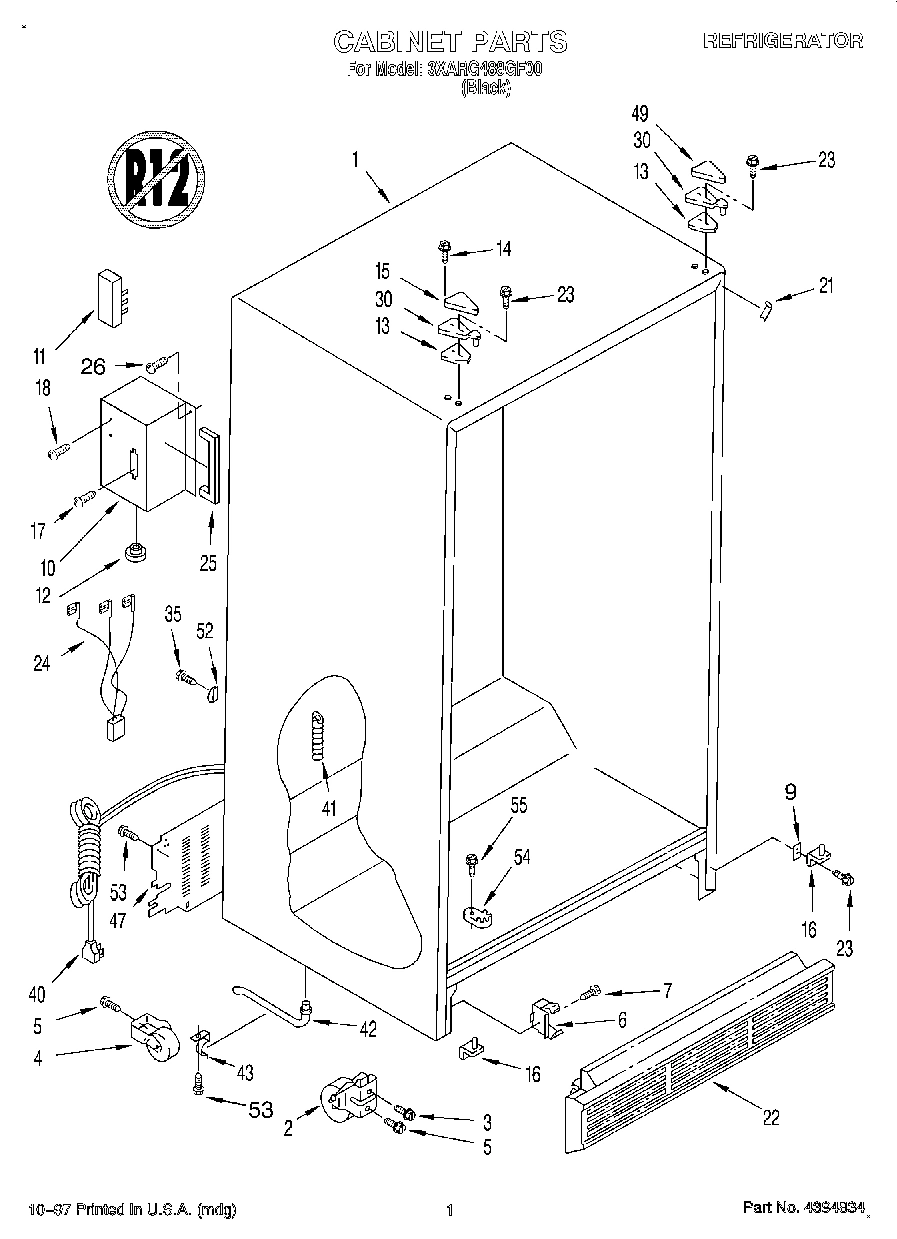

01 - CABINET

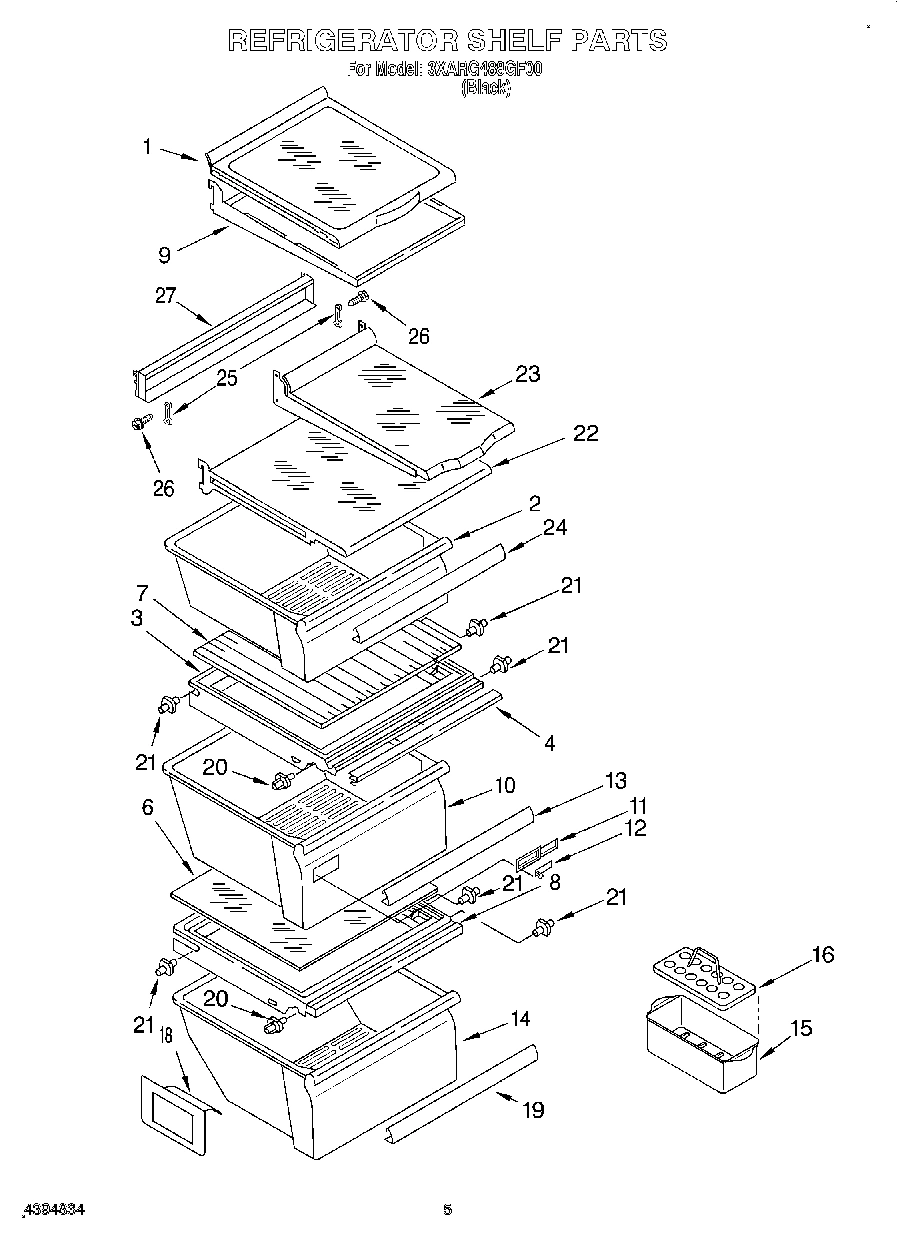

04 - REFRIGERATOR SHELF
05 - FREEZER LINER

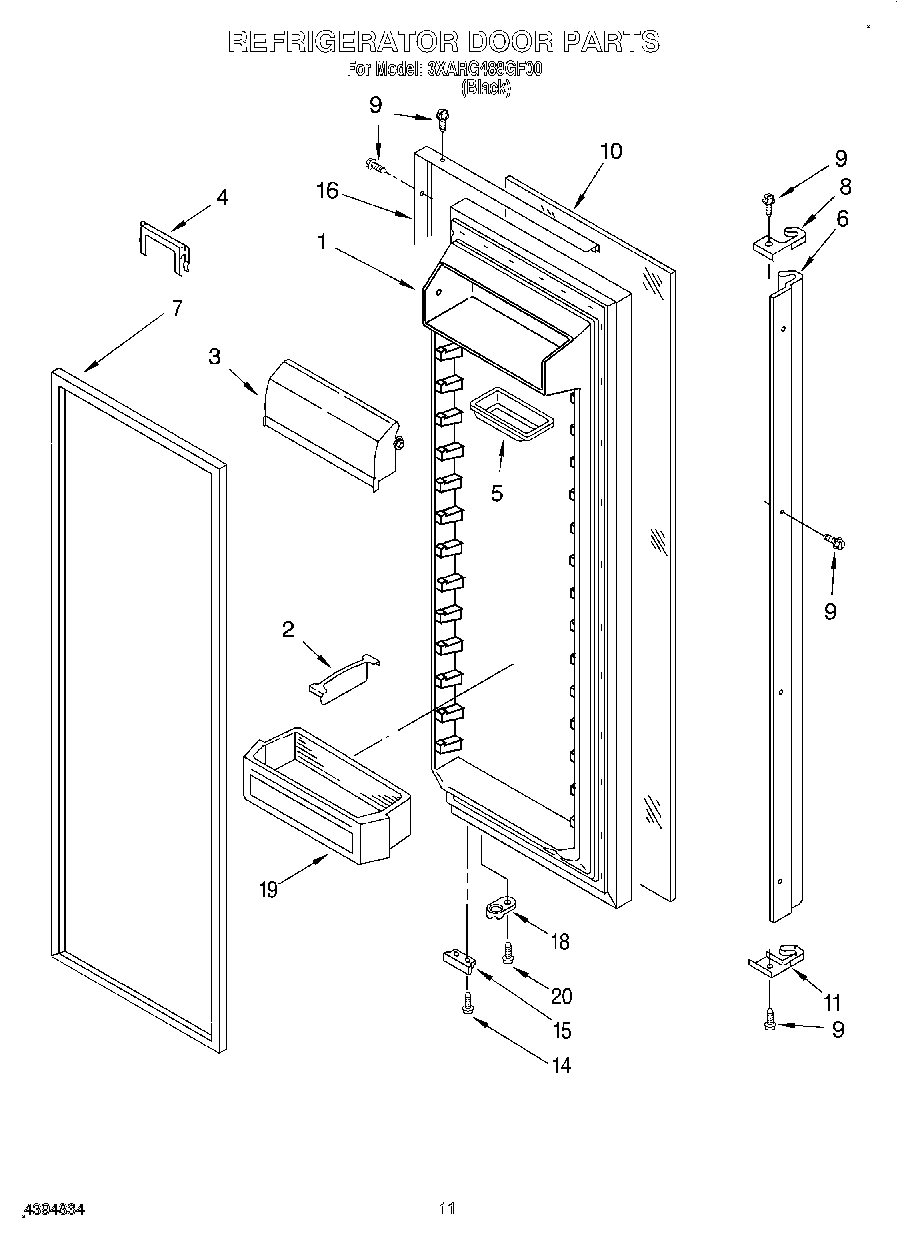

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool 3XARG488GF00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12785A6 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12784A5 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12786A1 Contact Us For Availability
1
Refrigerator Door (Includes No.7) WPL 2197937B Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
2
Load, Lock (3) WPL 2195496 Contact Us For Availability
3
Slide Meat WPL 2182757 Contact Us For Availability
4
Louver Pan Control WPL 2182147 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Retainer, Bottle WPL 2173643 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Spacer, Switch (2) WPL 625834 Contact Us For Availability
6
Handle WPL 2194948 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap WPL 2198101 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Screw WPL 489481 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Black Glass WPL 1126015 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
End Cap WPL 2198099 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
13
Shim, Hinge Top WPL 2196049 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Meat Pan WPL 2194907 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
15
Hinge Cover WPL 2171947 Contact Us For Availability
15
Bracket, Door Stop WPL 2155331 Contact Us For Availability
16
Trim, Door WPL 2194951 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
19
Shelf Bin (4) WPL 2179608 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Filler, Wrapper WPL 1127272 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Shelf, Snack Bin WPL 2194734 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2194742 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
24
Hole Plug WPL 2166844 Contact Us For Availability
24
Wire Assembly, Terminal Box WPL 2165297 Contact Us For Availability
24
Front, Basket WPL 2195905 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
29
Lens, Light WPL 2171705 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
