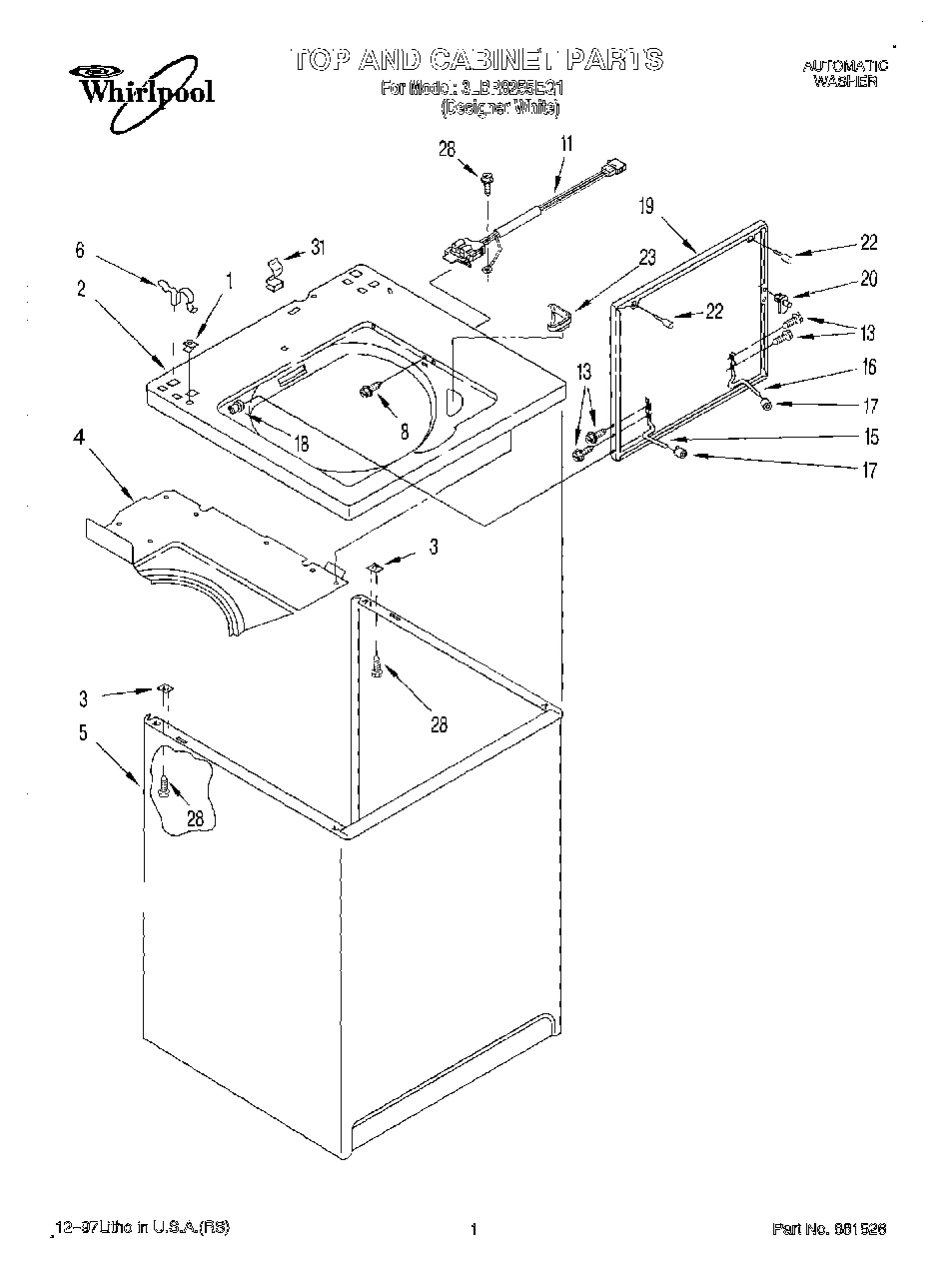

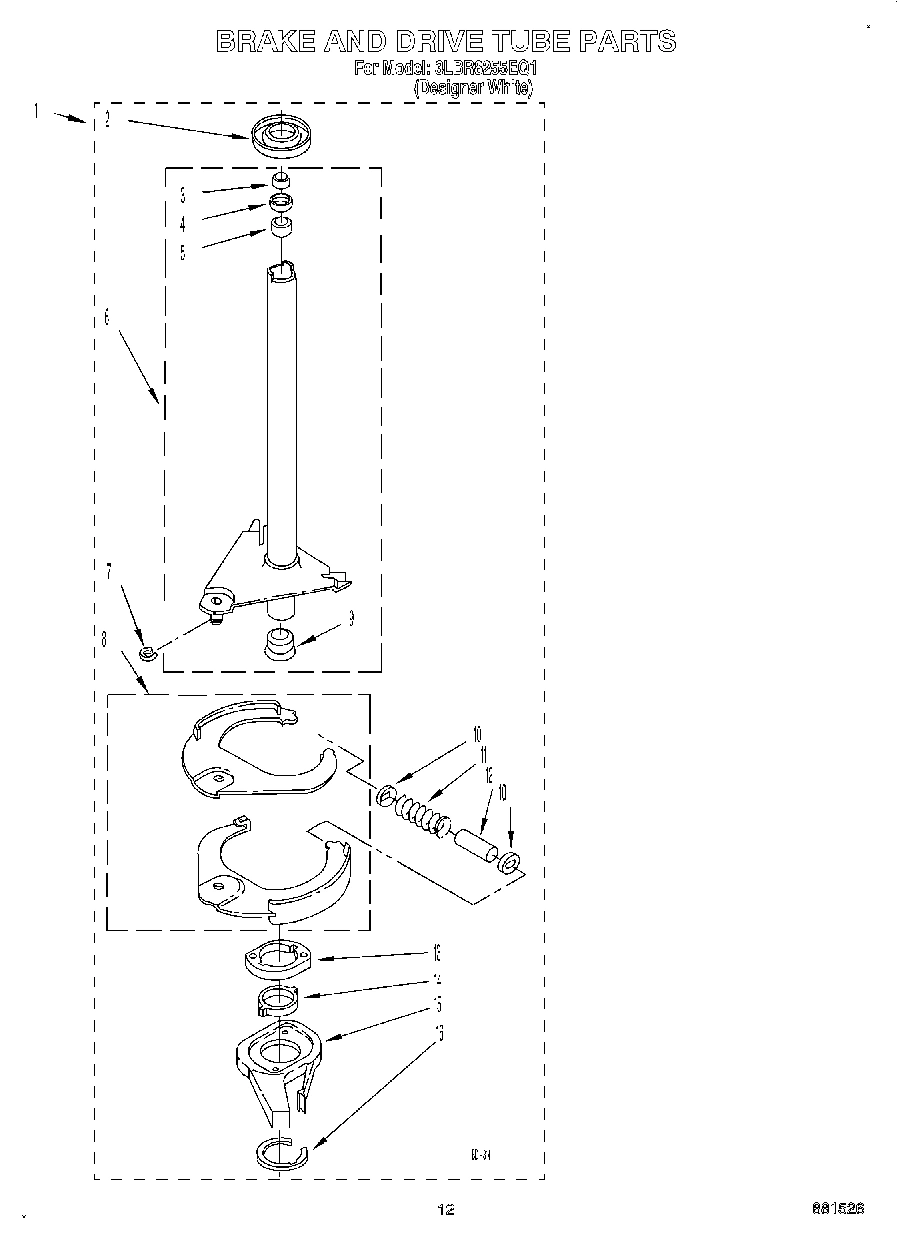

Model Whirlpool 3LBR8255EQ1 WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

3363920A Whirlpool Adapter Assembly Backorder WPL 3363920A $2.73

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $81.67

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $70.46

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Panel, Rear WPL 3952378 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 3348725 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Timer, Control (50 Hz.) (Motor Not A Service WPL 3950560 Contact Us For Availability

10

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Spring, Agitator WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10335056 Whirlpool Washer Water Level Pressu In Stock WPL W10335056 $45.48

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

13

Bracket, Control WPL 3948814 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 3950970 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 387710 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Cap, End (L.H.) WPL 3950975 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $159.17

19

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

19

3363395 Whirlpool Gearcase Backorder WPL 3363395 $242.05

19

Motor, Main Drive WPL 3950297 Contact Us For Availability

20

Hose, Pump To Drain WPL 3359816 Contact Us For Availability

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Hose, Bleach WPL 3948705 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $35.35

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

WPW10233584 Whirlpool Spin Gear Backorder WPL WPW10233584 $88.89

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

27

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

28

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $40.86

29

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

Clamp, Capacitor WPL 3949496 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

34

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

35

Switch, Water Temperature WPL 3950347 Contact Us For Availability

36

W10915367 Whirlpool Screw Assembly Backorder WPL W10915367 $2.95

39

Panel, Console WPL 3950964 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $31.53

45

WP3957841 Whirlpool Dial Backorder WPL WP3957841 $27.12

47

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $32.48

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

Cap, End (R.H.) WPL 3950974 Contact Us For Availability

55

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

61

Harness, Wiring (For Detail see Page 6.) Also WPL 3952365 Contact Us For Availability

62

Shield, Inlet WPL 3950571 Contact Us For Availability
