Model GE 363.58897894 Refrigerator (Kenmore 36358897894) – Common Parts & Diagrams
DISPENSER

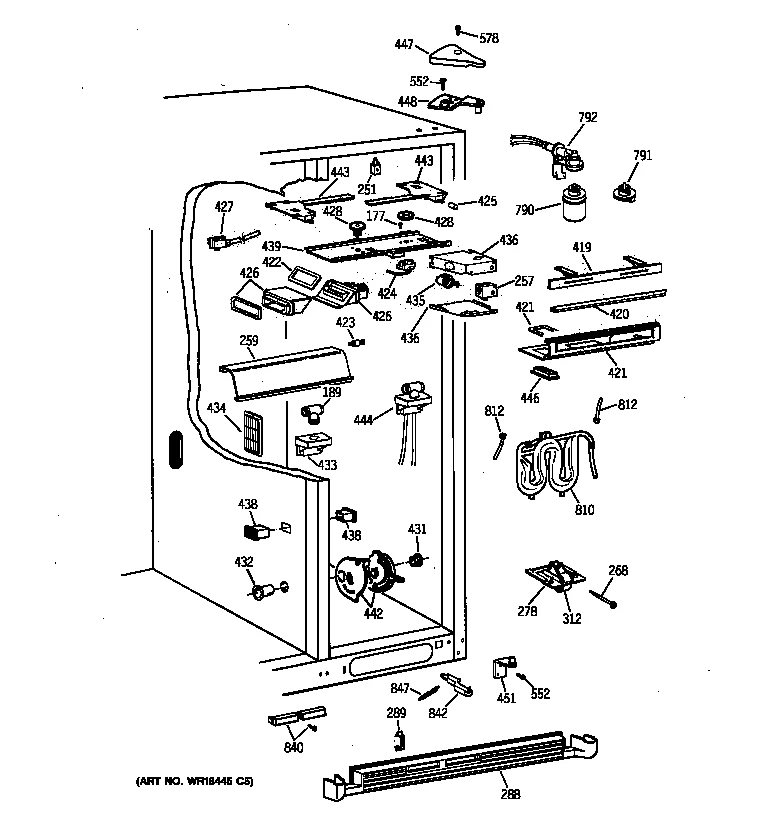

FRESH FOOD SECTION
FRESH FOOD SECTION

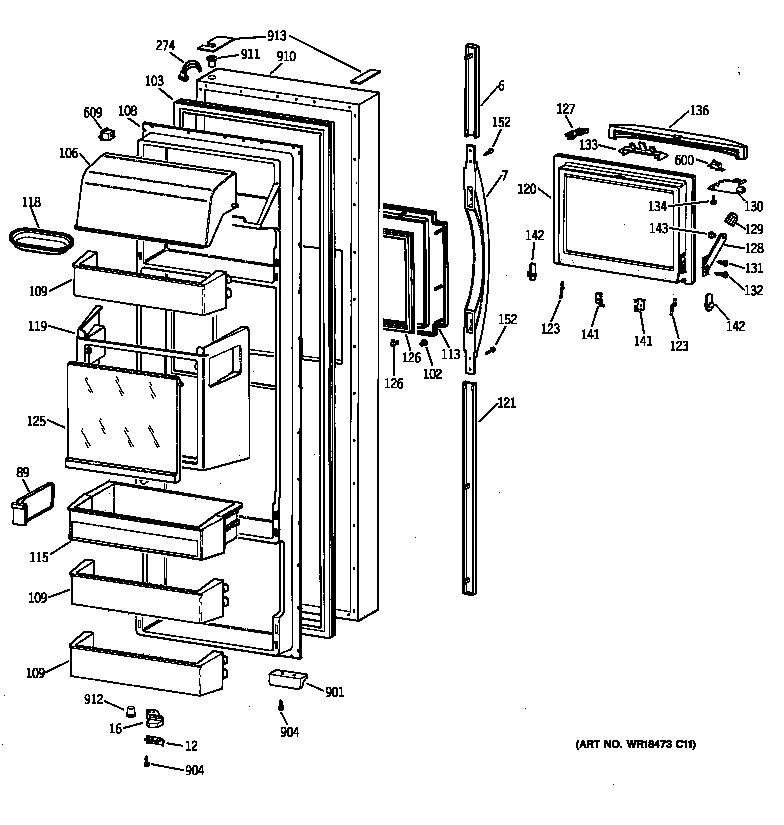

FRESH FOOD DOOR

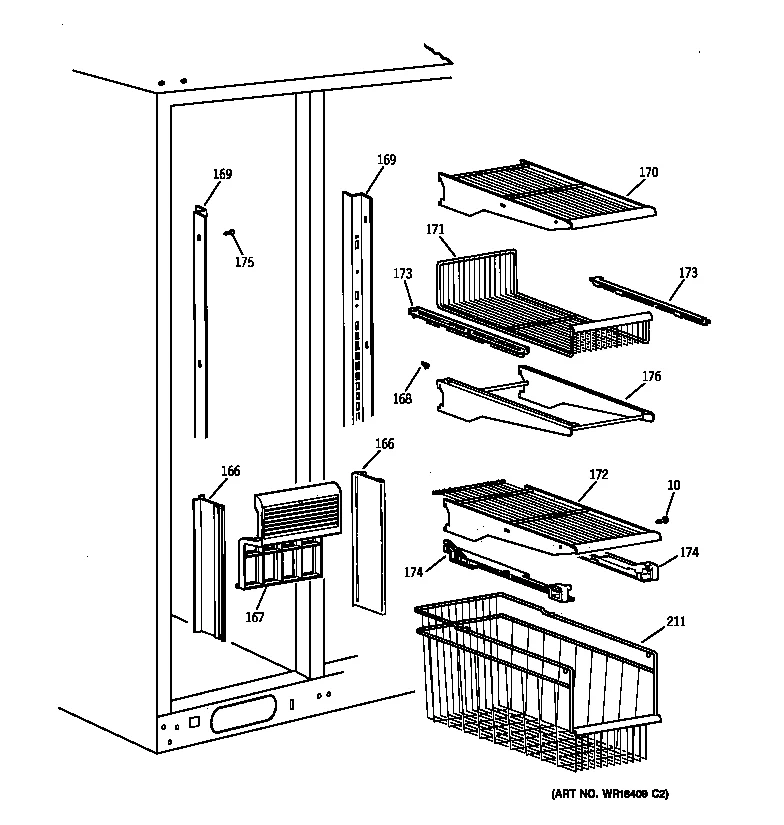

FREEZER SHELVES
All Parts

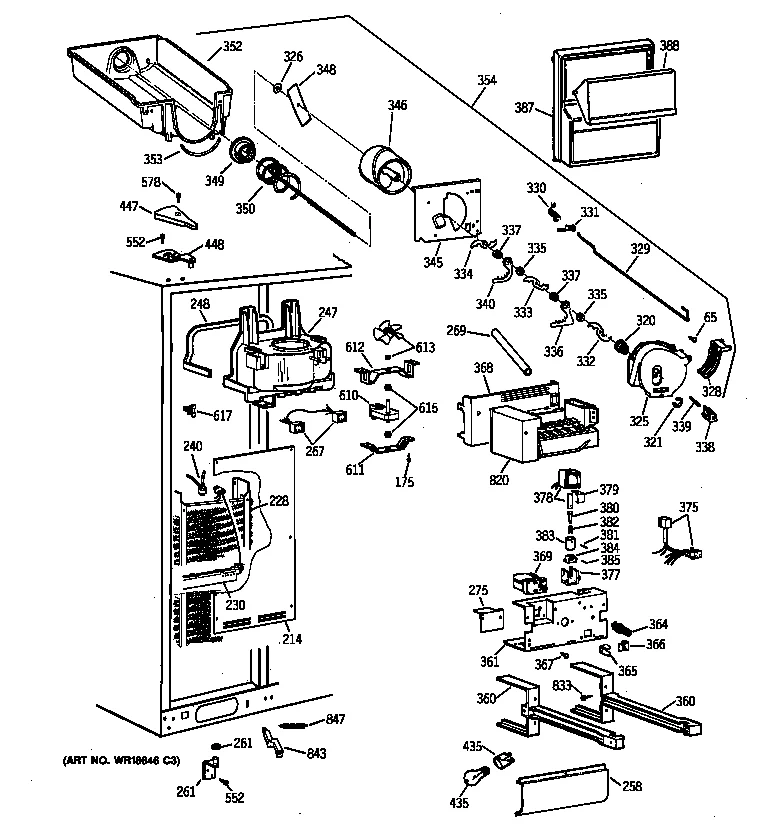

FREEZER SECTION

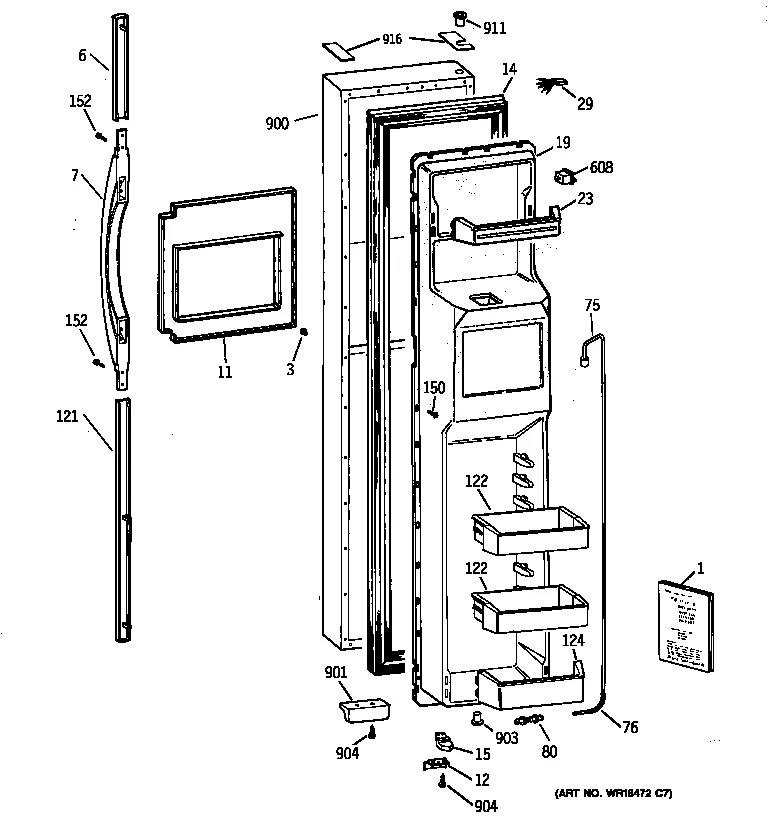

FREEZER DOOR
UNIT PARTS

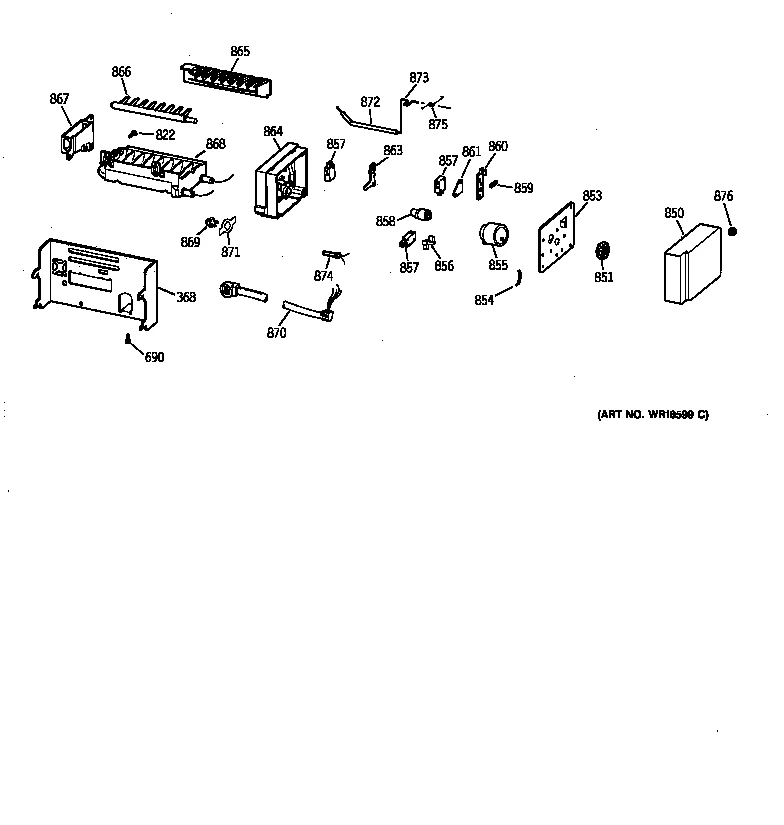

ICEMAKER WR30X0328
Common parts from model GE 363.58897894 Refrigerator (Kenmore 36358897894)
1A
Refrigerator Block GEN WB17X5059 Contact Us For Availability
1E
Refrigerator Mini Wiring Manual GEN 31-51282 Contact Us For Availability
1F
Refrigerator Owner's Guide GEN SR619 Contact Us For Availability
3
Refrigerator Fastener GEN WR2X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10051 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10052 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10055 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
10
Scr 8-18 GEN WR1X10065 Contact Us For Availability
11
Al Disp Trim GEN WR38X10060 Contact Us For Availability
11
Refrigerator Dispenser Trim GEN WR38X10064 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10065 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9244 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (Black) GEN WR24X561 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (White) GEN WR24X559 Contact Us For Availability
15
Cam Closu GEN WR2X9235 Contact Us For Availability
15
Cam Closu GEN WR2X9247 Contact Us For Availability
15
Cam Closu GEN WR2X9250 Contact Us For Availability
16
Refrigerator Freezer Door Closer Cam GEN WR2X9246 Contact Us For Availability
16
Cam Closu GEN WR2X9234 Contact Us For Availability
16
Refrigerator Door Closer Cam GEN WR2X9249 Contact Us For Availability
19
Inner Door GEN WR77X10001 Contact Us For Availability
23
Refrigerator Module GEN WR71X2619 Contact Us For Availability
29
Harness Dr H GEN WR23X10084 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Dispenser Actuator Pad GEN WR2X8702 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
75
Refrigerator Dispenser Fitting and Water Tube GEN WR17X3670 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
89
Snugger M GEN WR2X9444 Contact Us For Availability
102
Fast Tubu GEN WR2X8162 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X562 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X560 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X524 Contact Us For Availability
108
Refrigerator Door GEN WR77X10002 Contact Us For Availability
109
Refrigerator Module Assembly GEN WR71X10055 Contact Us For Availability
113
Refrigerator Door Trim GEN WR38X10072 Contact Us For Availability
113
Trim Cmk Dr GEN WR38X10073 Contact Us For Availability
113
Refrigerator Door Trim GEN WR38X10074 Contact Us For Availability
115
Refrigerator Module Assembly GEN WR71X10057 Contact Us For Availability
118
Butter Glass Dish GEN WR19X37 Contact Us For Availability
119
Refrigerator Access Cover GEN WR17X10051 Contact Us For Availability
120
Door Cmk Ad GEN WR17X10055 Contact Us For Availability
120
Refrigerator Door Foam Assembly GEN WR17X10056 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10062 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10063 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10064 Contact Us For Availability
122
Refrigerator Module Assembly GEN WR71X10058 Contact Us For Availability
123A
Spring Rh GEN WR2X10039 Contact Us For Availability
123B
Spring Lh GEN WR2X10038 Contact Us For Availability
124
Refrigerator Module Assembly GEN WR71X10056 Contact Us For Availability
125
Refrigerator Access Door GEN WR17X10052 Contact Us For Availability
126A
Refrigerator Fastener GEN WR2X10040 Contact Us For Availability
126B
Refrigerator Convenience Door Gasket GEN WR24X10002 Contact Us For Availability
127
Latch Cmk GEN WR2X10034 Contact Us For Availability
129
Refrigerator Hinge Cap GEN WR2X10035 Contact Us For Availability
130
Refrigerator Switch Bracket GEN WR2X10032 Contact Us For Availability
131
Refrigerator Screw GEN WR1X1707 Contact Us For Availability
132
Hinge Stop GEN WR2X10037 Contact Us For Availability
133
Trigr Cmk GEN WR2X10033 Contact Us For Availability
134
Refrigerator Screw GEN WR1X10019 Contact Us For Availability
136
Hdle Dr Wh GEN WR12X10015 Contact Us For Availability
136
Handle Cmk D GEN WR12X10016 Contact Us For Availability
136
Handle Cmk D GEN WR12X10017 Contact Us For Availability
141A
Refrigerator Retainer Bracket GEN WR1X10018 Contact Us For Availability
141B
Refrigerator Retainer Bracket GEN WR1X10017 Contact Us For Availability
142
Bushing W GEN WR2X10036 Contact Us For Availability
142
Bushing C GEN WR2X10044 Contact Us For Availability
142
Bushing C GEN WR2X10045 Contact Us For Availability
143
Hinge Stud GEN WR2X10041 Contact Us For Availability
152
Scr 8-18 GEN WR1X10038 Contact Us For Availability
166
Extrusion Cover GEN WR17X3836 Contact Us For Availability
167
Refrigerator Drain Pan Trough Cover (White) GEN WR17X10017 Contact Us For Availability
168
Refrigerator Clip GEN WR1X2029 Contact Us For Availability
169A
Refrigerator Cantilever Shelf Mounting Rail, GEN WR72X10006 Contact Us For Availability
169B
Track Cant S GEN WR72X10005 Contact Us For Availability
170
Refrigerator Freezer Wire Shelf GEN WR71X2530 Contact Us For Availability
171
Dishwasher Silverware Basket GEN WR71X2521 Contact Us For Availability
172
Refrigerator Freezer Wire Shelf GEN WR71X10003 Contact Us For Availability
173A
Refrigerator Slide Basket GEN WR72X243 Contact Us For Availability
173B
Refrigerator Slide Basket GEN WR72X244 Contact Us For Availability
174A
Refrigerator Freezer Slide Bin GEN WR72X10004 Contact Us For Availability
174B
Refrigerator Freezer Slide Bin GEN WR72X10003 Contact Us For Availability
175A
Refrigerator Screw GEN WR1X2023 Contact Us For Availability
175A
Washer, 12-pack GEN WR1X223 Contact Us For Availability
175B
Scr 8-18 GEN WR1X10035 Contact Us For Availability
176
Cant Bskt Fz GEN WR71X2523 Contact Us For Availability
211
Refrigerator Freezer Slide Bin GEN WR71X2522 Contact Us For Availability
214
Refrigerator Evaporator Cover GEN WR17X10217 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
228
Refrigerator Evaporator Assembly GEN WR85X306 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10429 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Freezer Light Cover GEN WR17X10401 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
260
Pan Water Diode GEN WR32X10011 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X759 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X758 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X762 Contact Us For Availability
261
Refrigerator Freezer Door Hinge Thrust Washer GEN WR1X2033 Contact Us For Availability
264
Refrigerator Roller GEN WR2X8838 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR1X2050 Contact Us For Availability
267
Low Harness GEN WR23X10058 Contact Us For Availability
269
Refrigerator Water Tubing GEN WR2X7927 Contact Us For Availability
274
Harness Ff L GEN WR23X10038 Contact Us For Availability
275
Cvr Im Pl GEN WR1X2018 Contact Us For Availability
279
Rail Mtg Asm GEN WR17X10400 Contact Us For Availability
289
Grille Clip GEN WR2X7646 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328B
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
329
Actuator Wire GEN WR17X3853 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
331
Refrigerator Dispenser Pan Retainer GEN WR2X4251 Contact Us For Availability
335
Spacer GEN WR2X4139 Contact Us For Availability
336
Refrigerator Blade GEN WR17X1009 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
339
Refrigerator Ice Dispenser Cube Diverter Pin GEN WR2X4141 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
348
Blade Indisp GEN WR2X7351 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
350
Refrigerator Dispenser Auger GEN WR17X4314 Contact Us For Availability
352
Refrigerator Ice Bucket GEN WR30X313 Contact Us For Availability
354
Refrigerator Ice Container Assembly GEN WR17X10331 Contact Us For Availability
360
Ice Support GEN WR71X10154 Contact Us For Availability
361
Refrigerator Motor Cover GEN WR17X10431 Contact Us For Availability
364
Refrigerator Dispenser Bucket Support Stud GEN WR2X7310 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
368
Refrigerator Bracket Ice Maker GEN WR2X10011 Contact Us For Availability
375
Refrigerator Wire Harness GEN WR23X463 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10041 Contact Us For Availability
388
Dr Ice Stor GEN WR17X3838 Contact Us For Availability
423
Refrigerator Shelf Support GEN WR2X6347 Contact Us For Availability
426B
Foam Nozzle GEN WR2X8831 Contact Us For Availability
426C
Refrigerator Foam Gasket GEN WR14X462 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
447A
Refrigerator Hinge Cover GEN WR2X9434 Contact Us For Availability
447A
Refrigerator Hinge Cover GEN WR2X9436 Contact Us For Availability
447A
Refrigerator Hinge Cover GEN WR2X9438 Contact Us For Availability
447B
Refrigerator Hinge Cover GEN WR2X9433 Contact Us For Availability
447B
Refrigerator Hinge Cover GEN WR2X9435 Contact Us For Availability
447B
Refrigerator Hinge Cover GEN WR2X9437 Contact Us For Availability
448A
Refrigerator Hinge GEN WR13X10035 Contact Us For Availability
448B
Refrigerator Hinge GEN WR13X10034 Contact Us For Availability
473A
Refrigerator Snack Pan Slide Rail, Right GEN WR72X210 No Longer Available
473B
Refrigerator Snack Drawer Slide Rail, Left GEN WR72X211 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
609
Sw Light Ff GEN WR23X426 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
613A
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10050 Contact Us For Availability
627
Housing Condenser GEN WR17X10189 Contact Us For Availability
651A
Refrigerator Nut GEN WR1X1515 Contact Us For Availability
651B
Refrigerator Condenser Fan GEN WR60X234 Contact Us For Availability
652
Refrigerator Fan Motor Washer GEN WR1X1714 Contact Us For Availability
654A
Condenser Grommet GEN WR1X2019 Contact Us For Availability
654B
Leg Condenser GEN WR2X9240 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X213 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
733
Refrigerator Compressor Start Relay GEN WR7X277 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR8X10006 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Refrigerator Grommet GEN WR2X10099 Contact Us For Availability
752
Refrigerator Insulation GEN WR82X10028 Contact Us For Availability
754
Refrigerator Floor GEN WR82X10054 Contact Us For Availability
756
Refrigerator Pad GEN WR1X2021 Contact Us For Availability
757
Fastenr P GEN WR1X2035 Contact Us For Availability
775
Refrigerator Water Cover GEN WR2X10047 Contact Us For Availability
776
Tub Clamp GEN WR2X10048 Contact Us For Availability
777
Bracket W GEN WR2X10251 Contact Us For Availability
806
Refrigerator Tube GEN WR2X10252 Contact Us For Availability
822
Refrigerator Screw GEN WR1X2122 Contact Us For Availability
840
Refrigerator Screw GEN WR1X2024 Contact Us For Availability
842
Lever Asm Wh GEN WR11X169 Contact Us For Availability
842
Lever Asm Bk GEN WR11X172 Contact Us For Availability
842
Refrigerator Door Closer Lever GEN WR11X176 Contact Us For Availability
843
Lever Asm Wh GEN WR11X170 Contact Us For Availability
843
Lever Asm Bk GEN WR11X173 Contact Us For Availability
843
Lever Asm Ad GEN WR11X177 Contact Us For Availability
850
Refrigerator Cover GEN WR29X193 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
864B
E Ring Pkg GEN WR29X115 Contact Us For Availability
867
Refrigerator Ice Maker Fill Cup GEN WR29X208 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
876
Refrigerator Button Plug GEN WR2X8483 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10131 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10133 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10135 Contact Us For Availability
901
162d8262g010 GEN WR10X125 Contact Us For Availability
901
162d8262g012 GEN WR10X126 Contact Us For Availability
901
162d8262g005 GEN WR10X127 Contact Us For Availability
903
Thimble D GEN WR1X2030 Contact Us For Availability
903
Thimble D GEN WR1X2039 Contact Us For Availability
903
Thimble D GEN WR1X2045 Contact Us For Availability
904
Refrigerator Screw GEN WR1X2134 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10136 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10137 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10138 Contact Us For Availability
911
Thimble D GEN WR1X2032 Contact Us For Availability
911
Refrigerator Door Hinge Bushing (Black) GEN WR1X2041 Contact Us For Availability
911
Thimble D GEN WR1X2047 Contact Us For Availability
912
Thmbl Dr GEN WR1X2131 Contact Us For Availability
912
Refrigerator Door Bottom Bushing (Black) GEN WR1X2132 Contact Us For Availability
912
Thmbl Dr GEN WR1X2133 Contact Us For Availability
913
Cover Cor GEN WR1X2143 Contact Us For Availability
913
Corner Cover GEN WR1X2147 Contact Us For Availability
913
Corner Cover GEN WR1X2150 Contact Us For Availability
916
Corner Cover GEN WR1X2144 Contact Us For Availability
916
Corner Cover GEN WR1X2149 Contact Us For Availability
916
Corner Cover GEN WR1X2152 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
NI
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
NI
Refrigerator Screw GEN WH2X940 Contact Us For Availability
NI
HOUSING TERMINAL GEN WD1X1440 Contact Us For Availability
NI
Refrigerator Clip GEN WH2X896 Contact Us For Availability
NI
Refrigerator Foam Tape GEN WR14X264 Contact Us For Availability
NI
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
NI
Refrigerator Fastener GEN WR1X1825 Contact Us For Availability
× ![]()
Login and Registration Form
