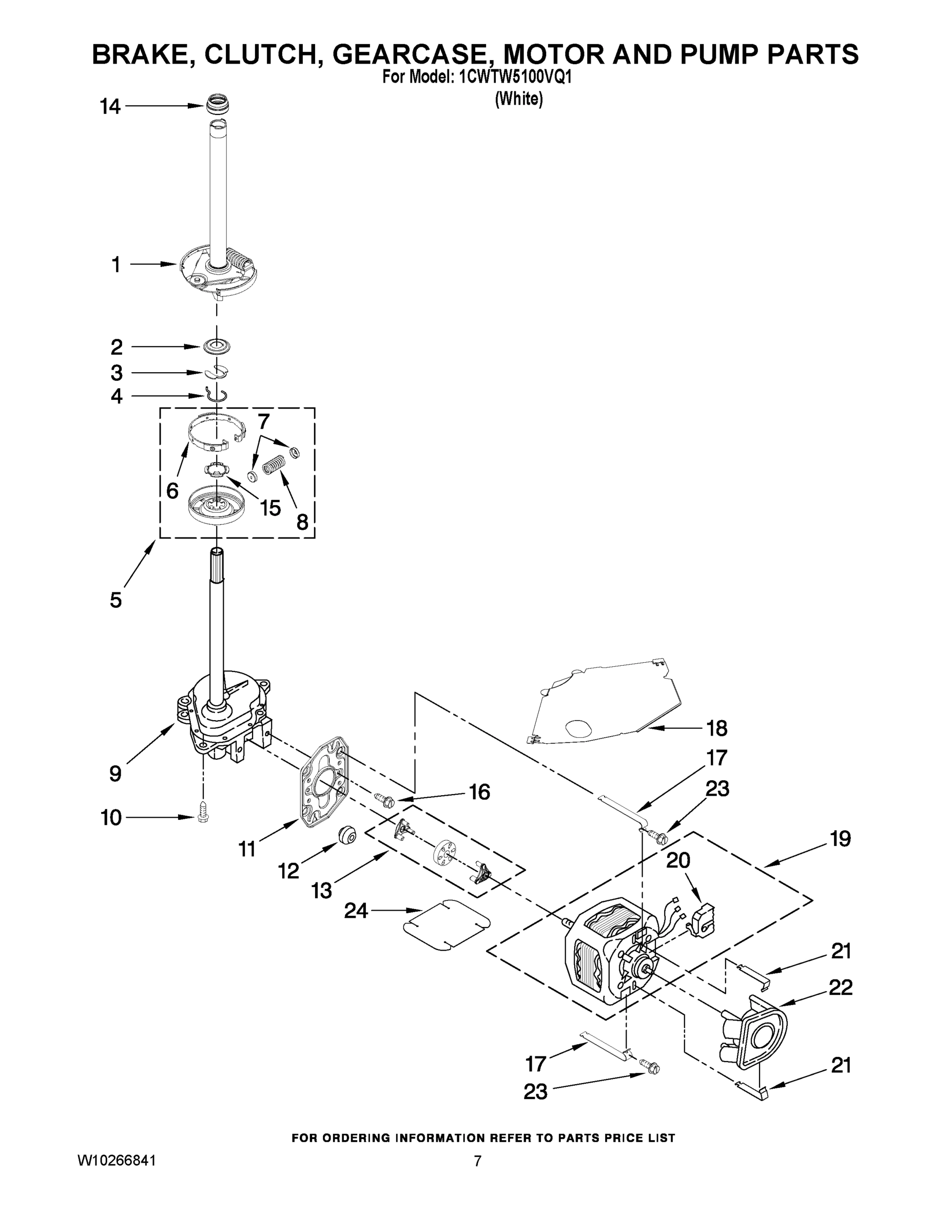

Model Whirlpool 1CWTW5100VQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

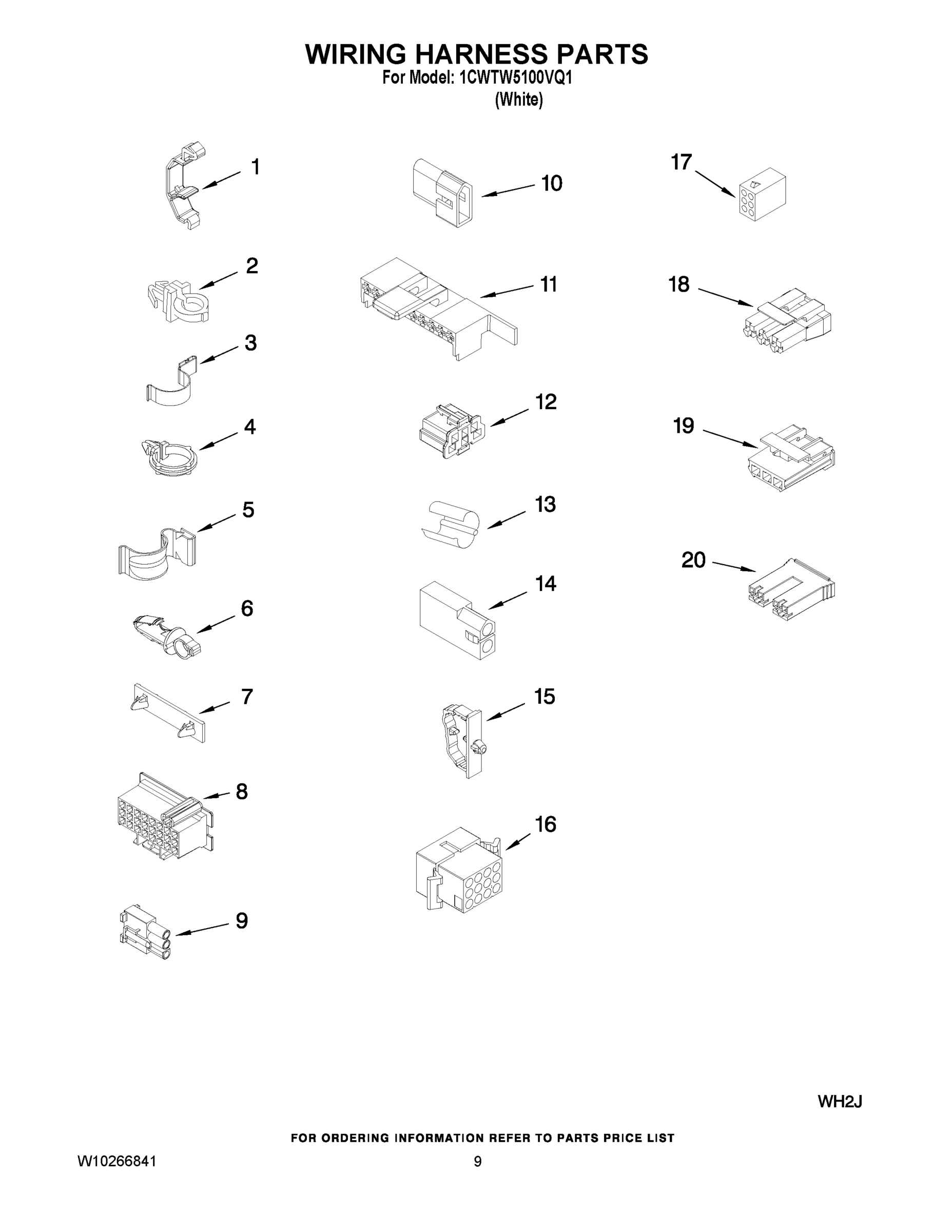

Harness, Wiring (For Detail See Pages 9 & 10) WPL W10211259 Contact Us For Availability

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10189267 Whirlpool Drain Hose In Stock WPL WPW10189267 $30.95

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $16.93

9

WPW10199989 Whirlpool Timer In Stock WPL WPW10199989 $143.95

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $64.40

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

11

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

13

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

14

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.70

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

16

W10165554 Whirlpool Screw Backorder WPL W10165554 $9.59

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

17

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

18

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

18

WPW10140917 Whirlpool Valve In Stock WPL WPW10140917 $109.63

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $85.90

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

Knob, Timer WPL 8566022 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $28.33

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

23

Knob, Control WPL 8565944 Contact Us For Availability

24

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

25

Clip, Capacitor WPL 8318046 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

27

WP8578337 Whirlpool Water Temperature Switch In Stock WPL WP8578337 $48.31

29

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

37

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

285448A Whirlpool Washer In Stock WPL 285448A $2.73

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $19.37

8212545RP Whirlpool Washer Commercial Grade 5 In Stock WPL 8212545RP $20.59

8212546RP Whirlpool Washer 4' Black Rubber Fi In Stock WPL 8212546RP $10.98

8212638RP Whirlpool Fill Hose Assembly, 2 Pac In Stock WPL 8212638RP $29.74

8212641RP Whirlpool Washer Hose Kit Black EPD In Stock WPL 8212641RP $13.27

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

Drain Hose Adapter Kit WPL 280130 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability
