Model Whirlpool 110.C85088400 Electric Dryer – Common Parts &amp; Diagrams

1

Plug Strip WPL 8563855 Contact Us For Availability

1

Installation Instructions WPL 8563589 Contact Us For Availability

1

Parts List WPL 8563590 Contact Us For Availability

1

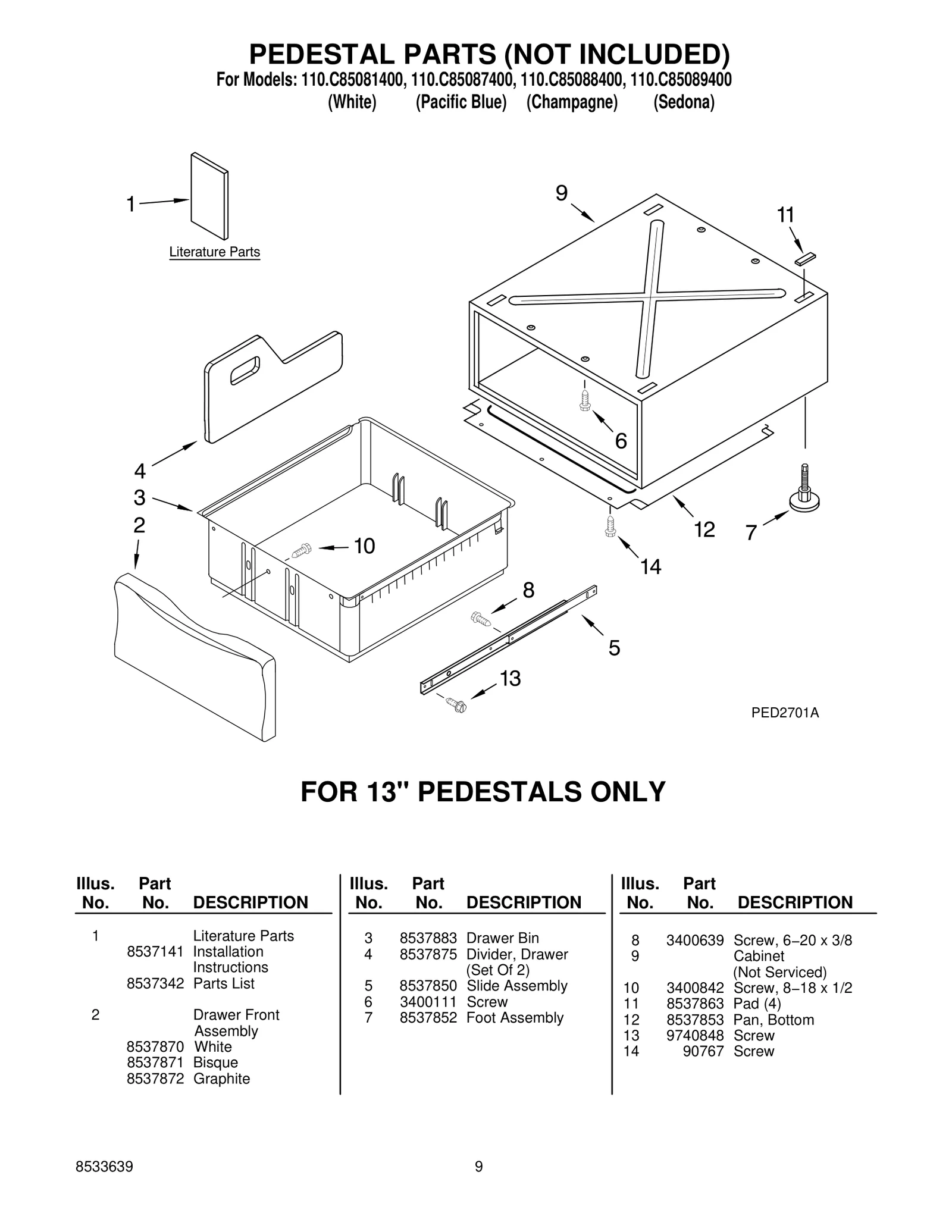

Installation Instructions WPL 8537141 Contact Us For Availability

1

Parts List WPL 8537342 Contact Us For Availability

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

2

Door Hinge Assembly WPL 8565927 Contact Us For Availability

2

Drawer Front Assembly — White WPL 8559543 Contact Us For Availability

2

Drawer Front Assembly — Bisque WPL 8563542 Contact Us For Availability

2

Drawer Front Assembly — Graphite WPL 8563543 Contact Us For Availability

2

Drawer Front Assembly — Spa Blue WPL 8563544 Contact Us For Availability

2

Drawer Front Assembly — Champagne WPL 8563545 Contact Us For Availability

2

Drawer Front Assembly — Sedona WPL 8563546 Contact Us For Availability

2

Drawer Front Assembly — White WPL 8537870 Contact Us For Availability

2

Drawer Front Assembly — Bisque WPL 8537871 Contact Us For Availability

2

Drawer Front Assembly — Graphite WPL 8537872 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $82.70

3

Cover, Door Hinge — Spa Blue WPL 8558784 Contact Us For Availability

3

Cover, Door Hinge — Autumn Pearl WPL 8558782 Contact Us For Availability

3

Cover, Door Hinge — White WPL 8546187 Contact Us For Availability

3

Drawer Bin WPL 8537883 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $48.71

4

Screw, 8−18 x 5/8 WPL 9742177 Contact Us For Availability

4

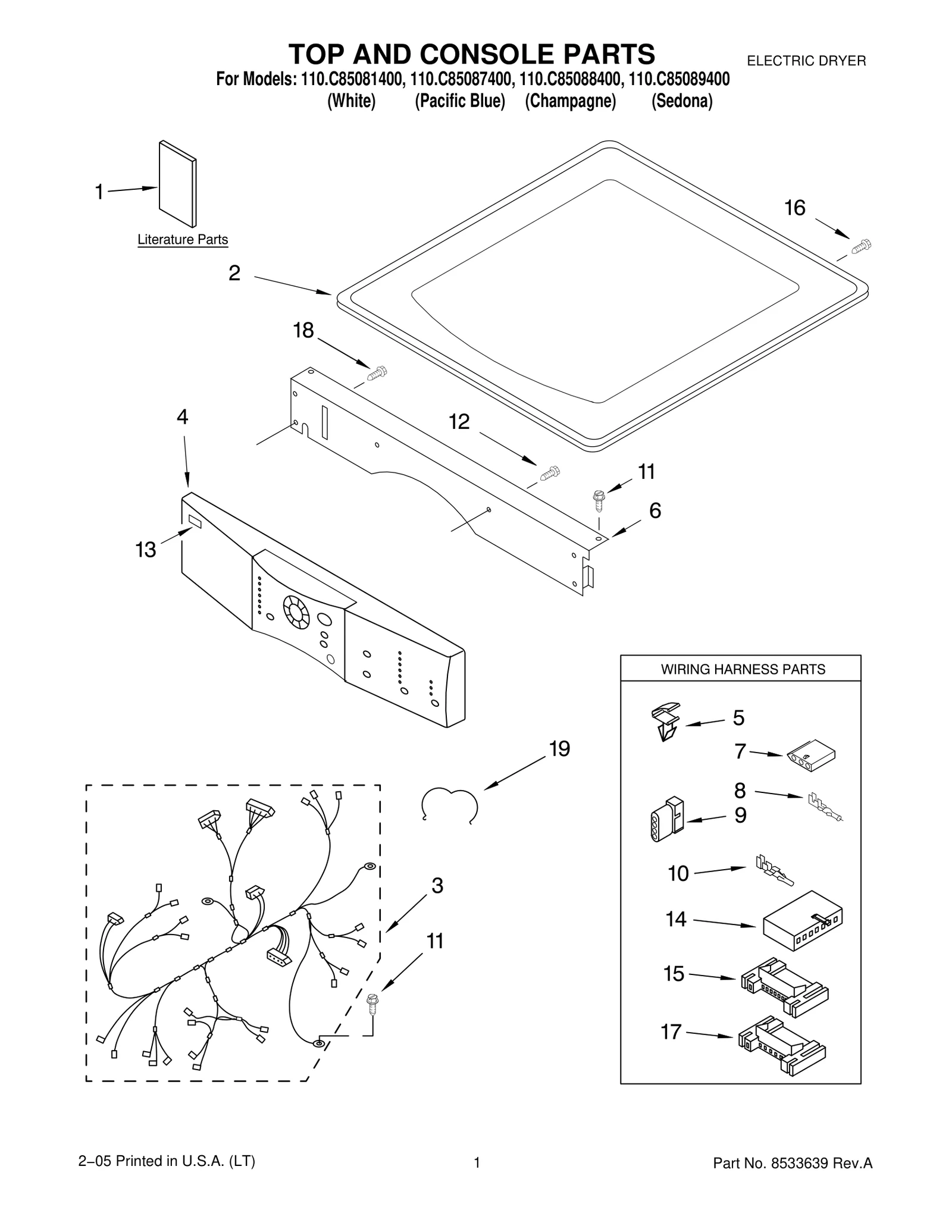

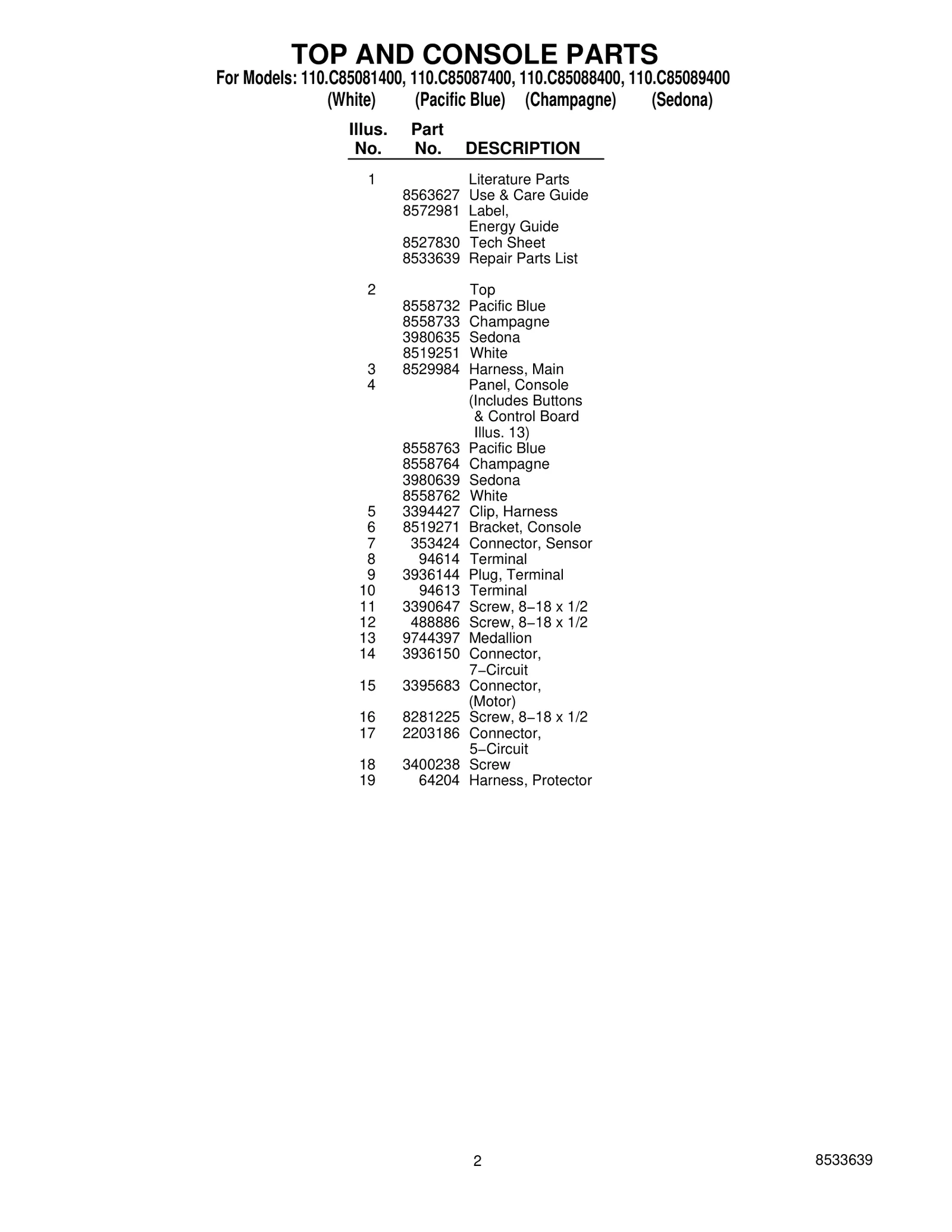

Panel, Console (Includes Buttons & Control Bo WPL 8558764 Contact Us For Availability

4

Panel, Console (Includes Buttons & Control Bo WPL 3980639 Contact Us For Availability

4

Divider, Drawer WPL 8559547 Contact Us For Availability

4

Divider, Drawer WPL 8537875 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $141.23

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $38.05

5

Screw, 10−32 x 3/8 WPL 342043 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $2.51

7

W10819774 Whirlpool Dryer Door Handle Assembl Backorder WPL W10819774 $51.83

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $7.06

7

Connector, Sensor WPL 353424 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

Screw, 1/4−20 x 1/2 WPL 3400224 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Plug, Door Handle (2) WPL 8519374 Contact Us For Availability

9

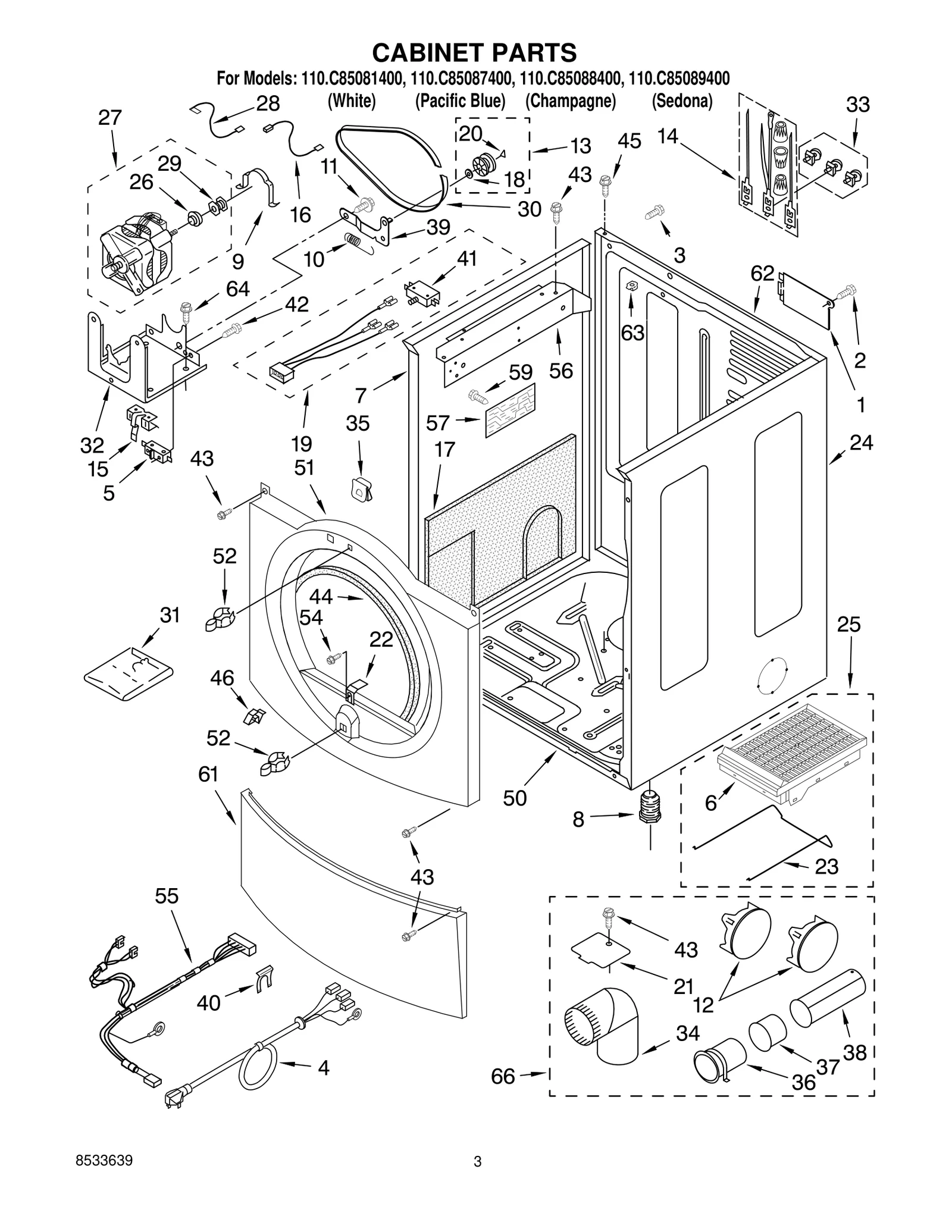

Cabinet WPL N/S Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly Backorder WPL W11226088 $11.86

10

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

10

Door Assembly (Includes WPL 8557500 Contact Us For Availability

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

Pad (4) WPL 8537863 Contact Us For Availability

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

Door, Outer — White WPL 8546186 Contact Us For Availability

Door, Outer — & 89400) WPL 88400 Contact Us For Availability

Door, Outer — Spa Blue WPL 8558788 Contact Us For Availability

Door, Outer — Autumn Pearl WPL 8558786 Contact Us For Availability

Pan, Bottom WPL 8537853 Contact Us For Availability

13

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

13

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

13

Window WPL 8533640 Contact Us For Availability

14

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

14

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $37.64

14

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $35.69

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

Faceplate — White WPL 8563573 Contact Us For Availability

Faceplate — Bisque WPL 8563574 Contact Us For Availability

Faceplate — Graphite WPL 8563575 Contact Us For Availability

Faceplate — Spa Blue WPL 8563576 Contact Us For Availability

Faceplate — Champagne WPL 8563577 Contact Us For Availability

Faceplate — Sedona WPL 8563578 Contact Us For Availability

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Nut, 3/8−16 (L.H.) WPL 3387709 Contact Us For Availability

16

Medallion WPL 9744397 Contact Us For Availability

17

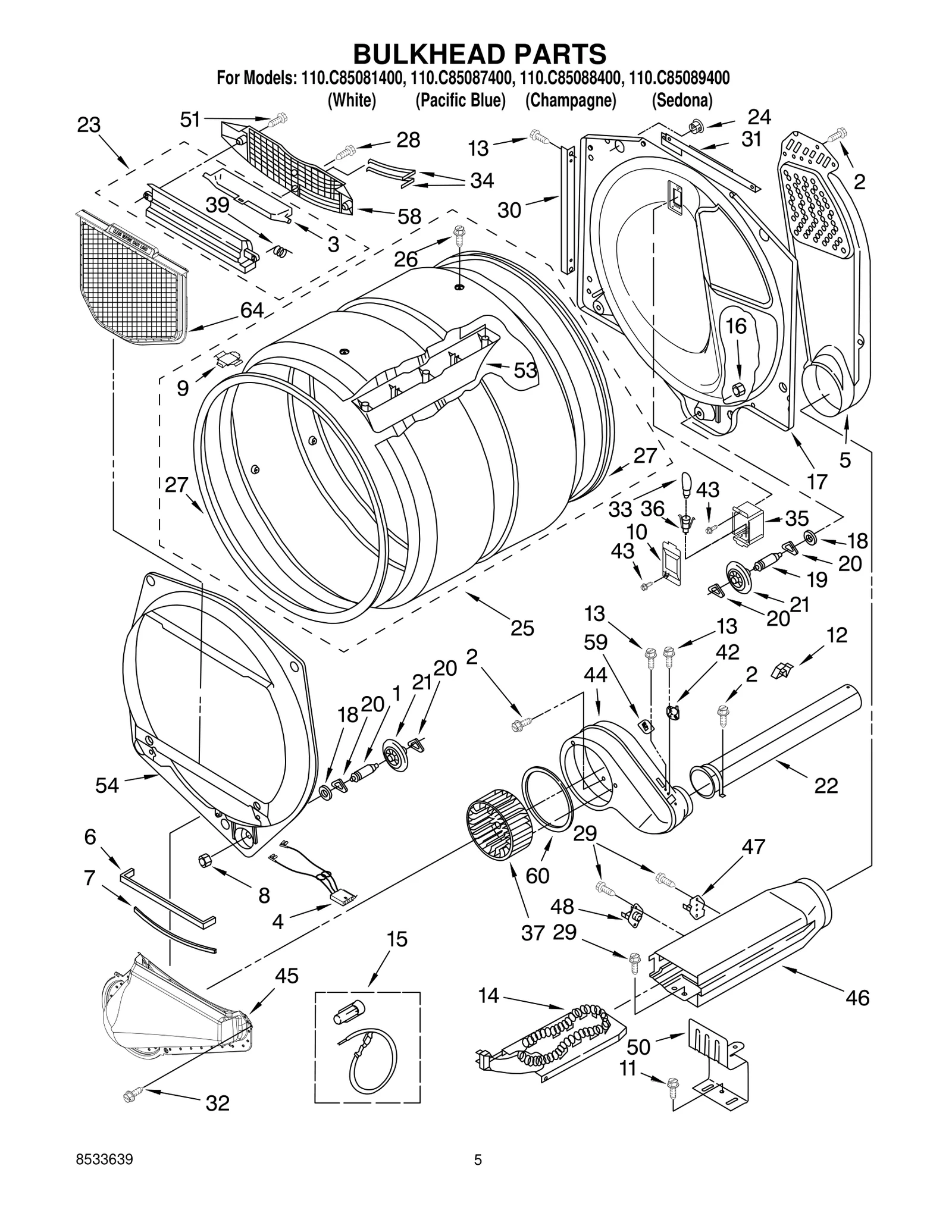

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $103.64

17

Shelf, U Asy. WPL 8559423 Contact Us For Availability

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

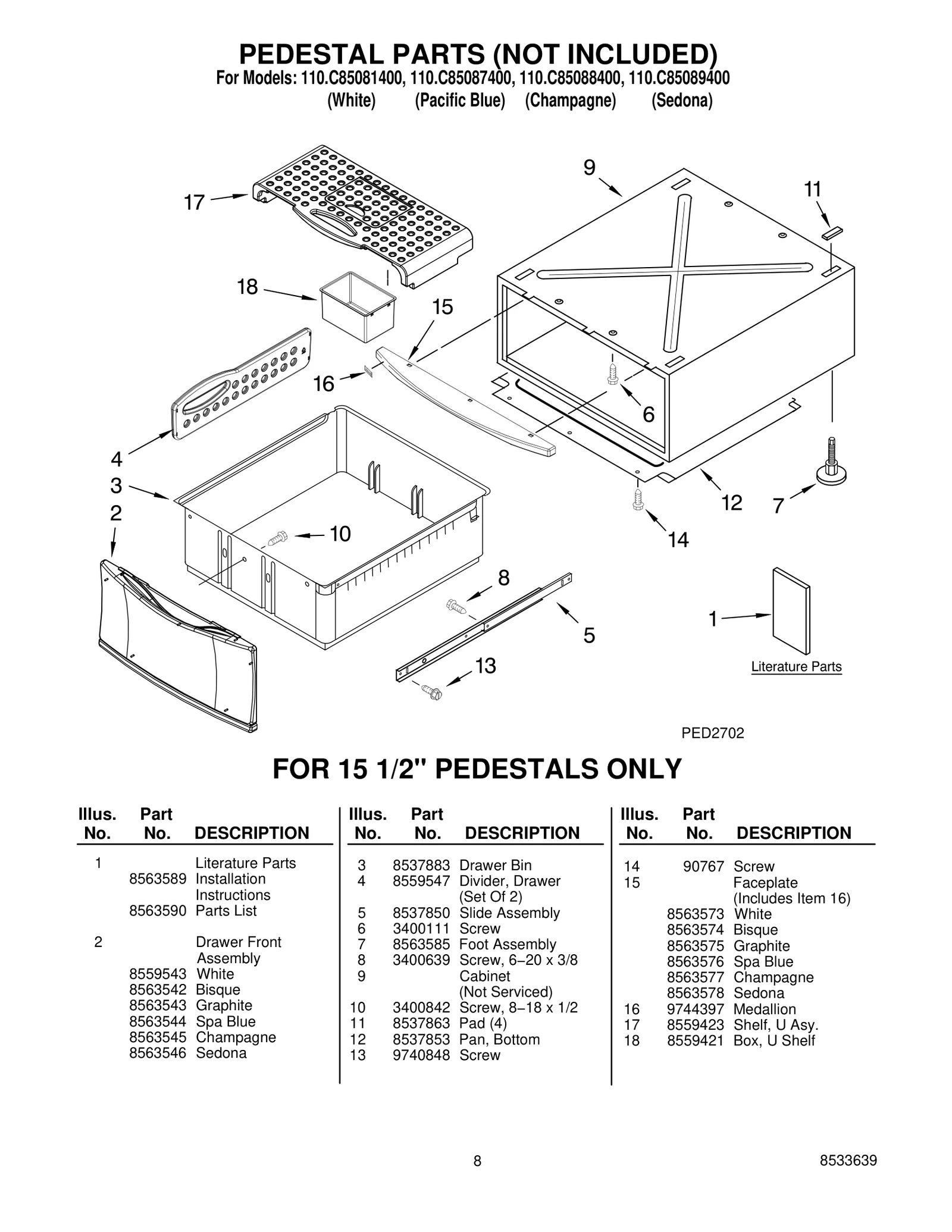

Box, U Shelf PED2702 FOR 15 1/2" PEDESTALS ON WPL 8559421 Contact Us For Availability

19

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $59.73

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $24.12

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $8.34

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $52.61

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $23.71

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

8529007 Whirlpool Plug Backorder WPL 8529007 $29.17

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $56.87

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $26.94

28

3398948 Whirlpool Wire Backorder WPL 3398948 $42.36

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

31

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $26.26

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $69.12

32

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $49.90

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.31

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $74.50

35

Clip, S−Type (3) WPL 62825 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $31.26

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.34

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $15.29

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $38.05

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $78.74

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $77.20

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $28.99

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $67.04

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

55

Harness, Digital Interface WPL 8299925 Contact Us For Availability

57

Control Board WPL 8546219 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

OPT-1

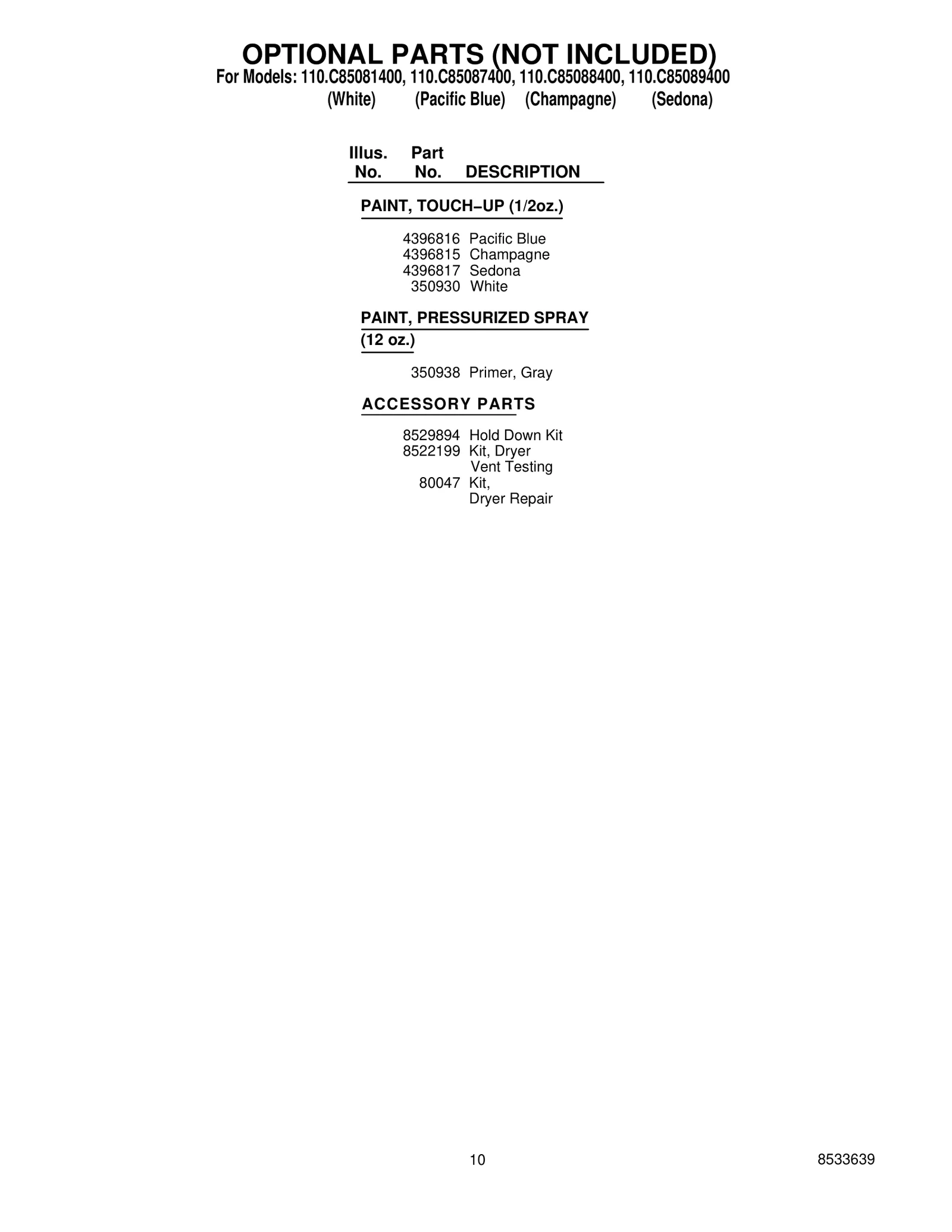

4396816 Whirlpool Touch-Up Backorder WPL 4396816 $4.90

OPT-2

Champagne WPL 4396815 Contact Us For Availability

OPT-3

Sedona WPL 4396817 Contact Us For Availability

OPT-4

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-5

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

OPT-6

Hold Down Kit WPL 8529894 Contact Us For Availability

OPT-7

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $5.03

OPT-8

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $22.00
