Model Whirlpool 110.91550100 Washer (Kenmore 11091550100) – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $38.23

1

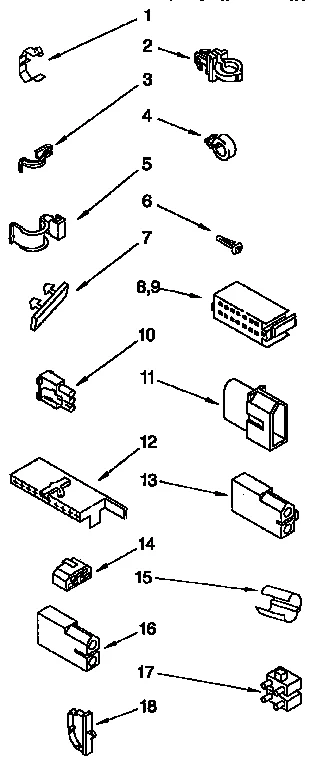

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Top (White) WPL 63370 Contact Us For Availability

2

Harness Clip WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.94

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Plug WPL 3352284 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

Support WPL 389350 Contact Us For Availability

5

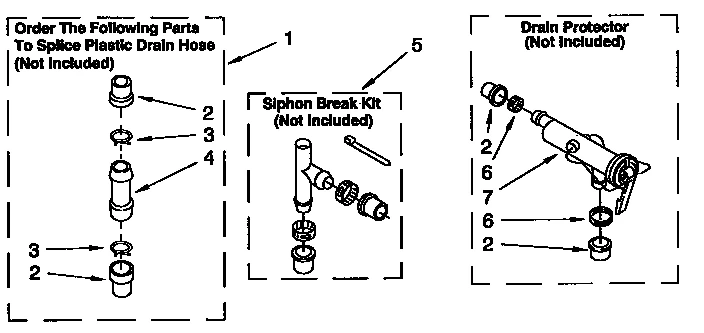

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

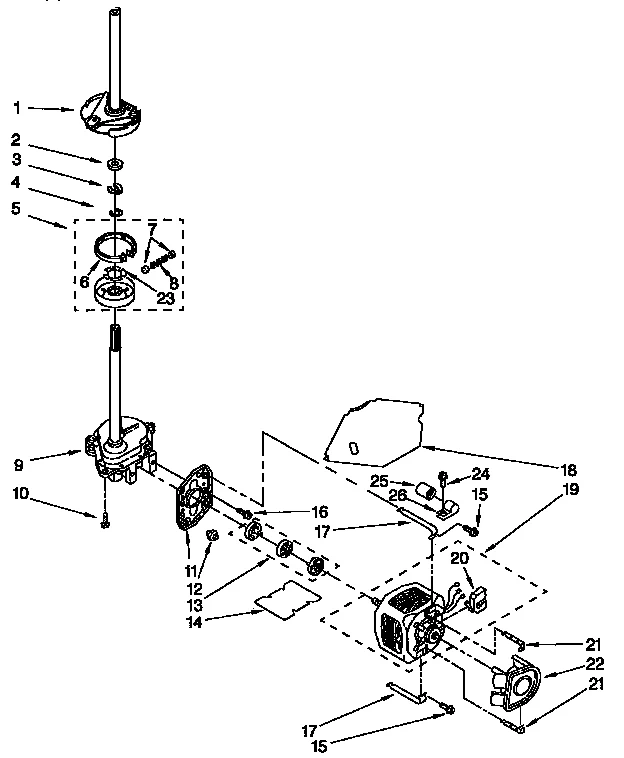

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $21.58

5

Hinge Panel WPL 387402 Contact Us For Availability

5

Bracket WPL 64065 Contact Us For Availability

5

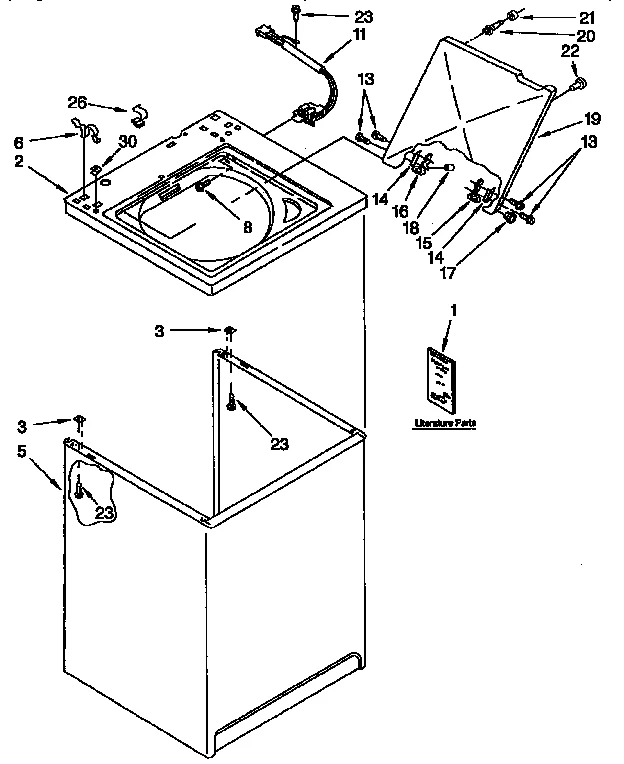

Cabinet (White) WPL 63128 Contact Us For Availability

5

Spacer WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $141.72

6

Harness Clip WPL 3390496 Contact Us For Availability

6

Link WPL 3348725 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

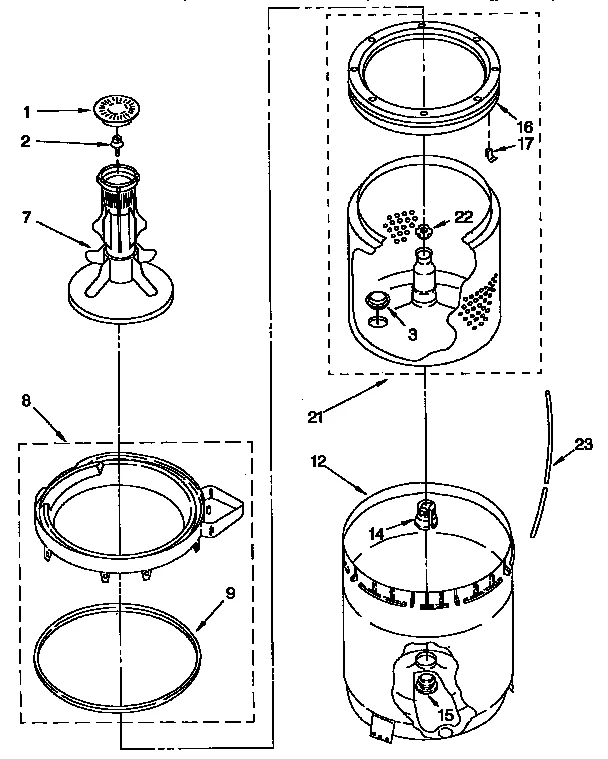

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $61.38

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $83.51

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Washer Tub Ring WPL 3360611 Contact Us For Availability

8

Block (White) WPL 352090 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $32.06

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $23.68

WP62611 Whirlpool Plate In Stock WPL WP62611 $41.49

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

Washer Terminal Connector WPL 353424 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Washer Outer Tub WPL 63125 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Connector WPL 3348075 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Basket WPL 3347234 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Receptacle WPL 717252 Contact Us For Availability

Balance Ring WPL 387868 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.84

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Connector WPL 387566 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Harness Clip WPL 3352944 Contact Us For Availability

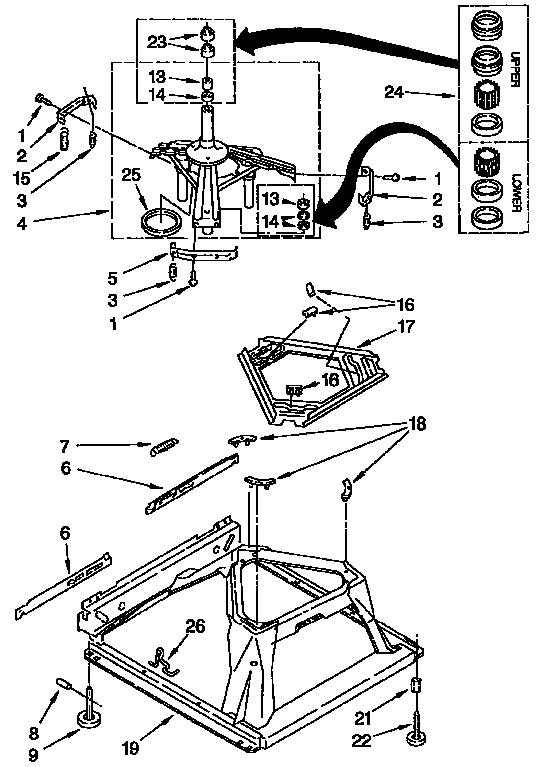

285459 Whirlpool Washer Base Backorder WPL 285459 $214.53

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

End Cap Clip WPL 689559 Contact Us For Availability

Lid W WPL 3353444 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

20

Switch WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Basket WPL 387713 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.68

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Clip WPL 3355454 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $31.93

24

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

59

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Paint (White) WPL 799344 Contact Us For Availability
