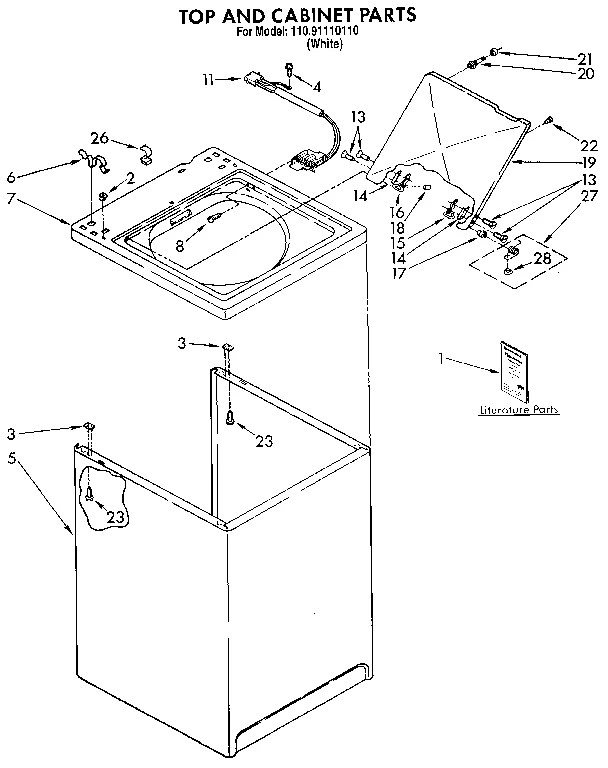

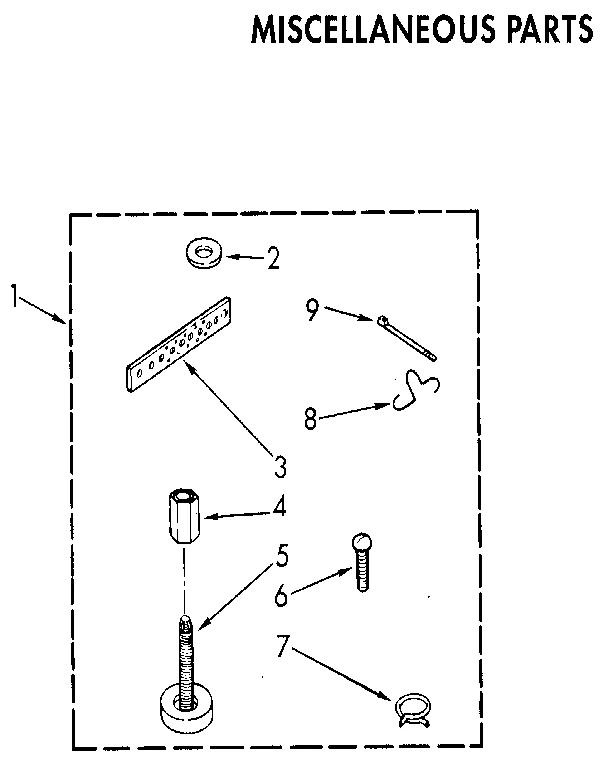

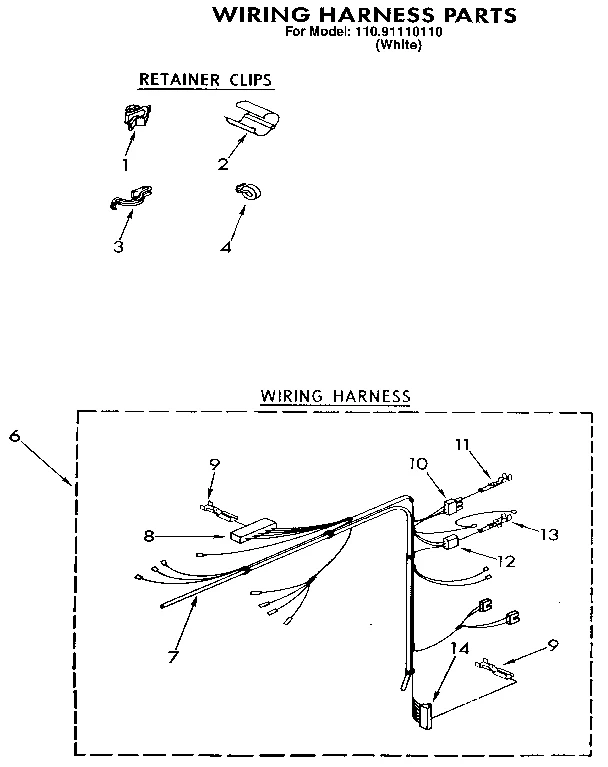

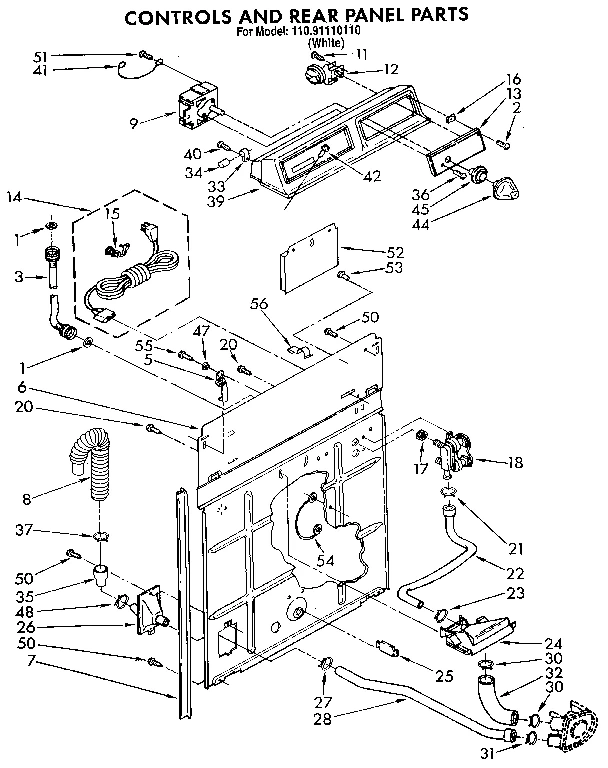

Model Whirlpool 110.91110110 Washer (Kenmore 11091110110) – Common Parts &amp; Diagrams

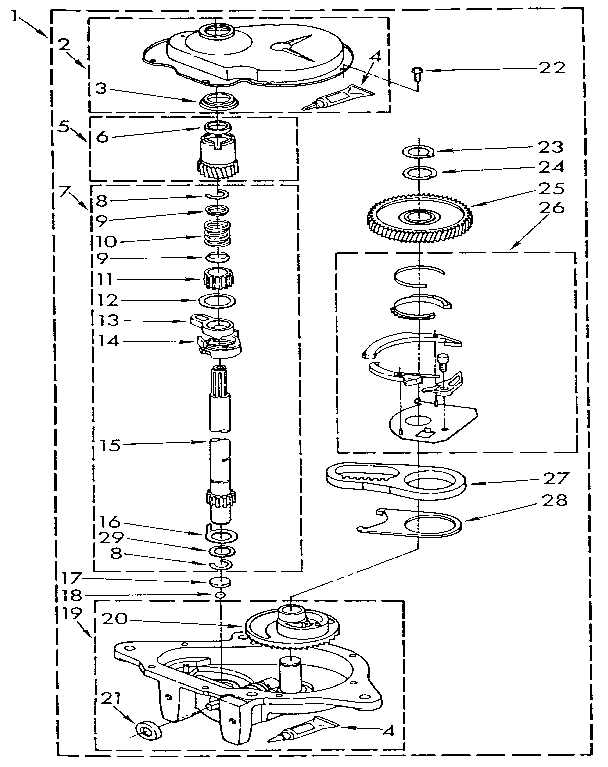

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

(338471) (ALT.) WPL N/P Contact Us For Availability

1A

Laundry Guide WPL LIT3349103 Contact Us For Availability

1B

Installation Instructions WPL LIT3350299 Contact Us For Availability

1C

Technical Sheet WPL LIT3351282 Contact Us For Availability

1D

Energy Guide WPL LIT3352331 Contact Us For Availability

1E

Operating Instructions WPL LIT3351644 Contact Us For Availability

1F

Wiring Diagram WPL LIT3351738 Contact Us For Availability

1G

Parts List WPL LIT3355517 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

4

Support WPL 389350 Contact Us For Availability

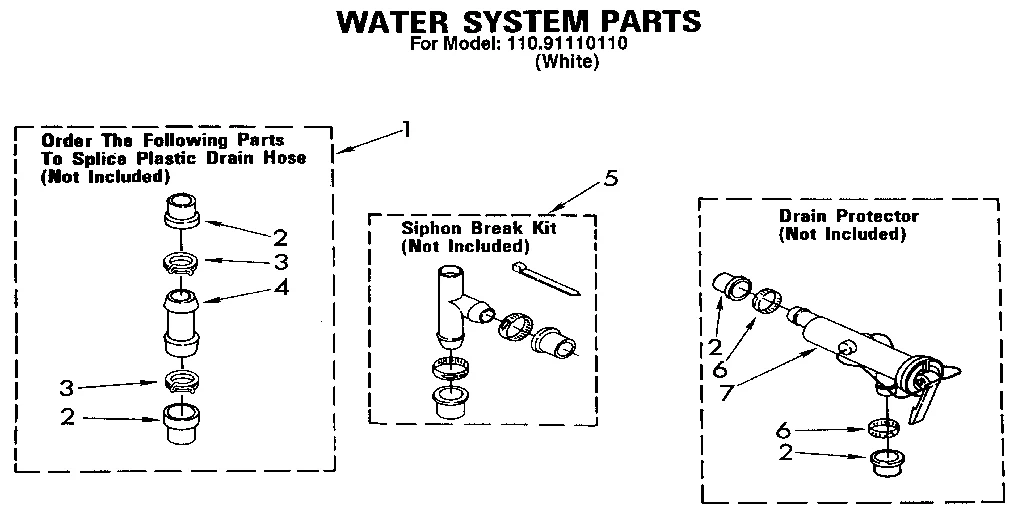

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Hinge Panel WPL 387402 Contact Us For Availability

5

Bracket WPL 64065 Contact Us For Availability

5A

Cabinet (White) WPL 63128 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link WPL 3348725 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Top (White) WPL 63370 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Retaining Ring WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Terminal WPL 352088 Contact Us For Availability

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Spring WPL 62676 Contact Us For Availability

11

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $23.68

11

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.55

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Washer Terminal Connector WPL 353424 Contact Us For Availability

Washer Water-Level Pressure Switch WPL 387380 Contact Us For Availability

13

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

14

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Washer Outer Tub WPL 63125 Contact Us For Availability

Shaft WPL 389231 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

16

Washer WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.84

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

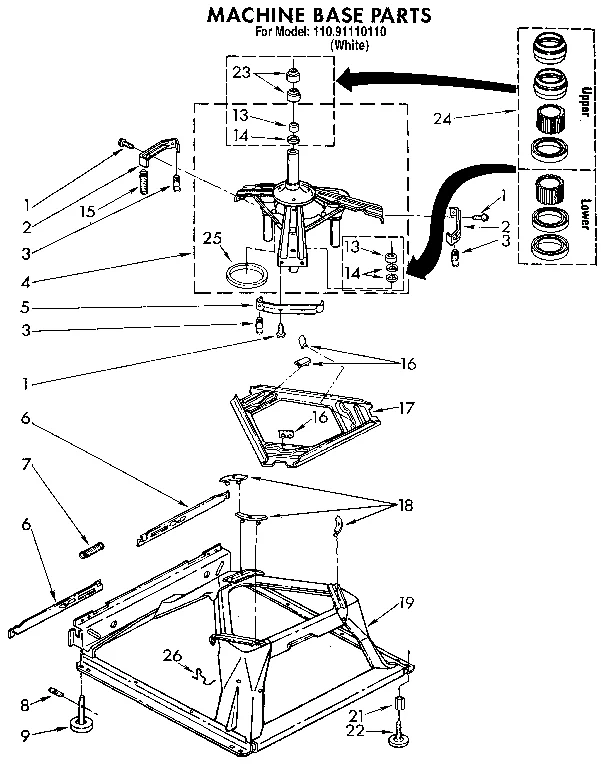

19

285459 Whirlpool Washer Base Backorder WPL 285459 $214.53

19

Gear Case WPL 389229 Contact Us For Availability

19A

Lid (White) WPL 63070 Contact Us For Availability

20

Gear WPL 62528 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

21

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.68

22

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

Ring WPL 95082 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $31.93

24

Washer Kit WPL 285292 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

27

Hinge Spring WPL 3349948 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $36.98

28

Plug WPL 54690 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.40

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

35

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

36

Screw WPL 358950 Contact Us For Availability

37

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

39

Escutcheon WPL 63310 Contact Us For Availability

40

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

41

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $32.06

42

Screw WPL 358225 Contact Us For Availability

44

Knob WPL 355643 Contact Us For Availability

45

Pointer WPL 63474 Contact Us For Availability

47

End Cap Clip WPL 689559 Contact Us For Availability

51

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

52

Rack WPL 3352312 Contact Us For Availability

53

Fastener WPL 3389802 Contact Us For Availability

54

Ground Wire WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Paint (White) WPL 799344 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Spray (Toast) WPL 285365 Contact Us For Availability

Spray (Platinum) WPL 285366 Contact Us For Availability

Paint To WPL 285367 Contact Us For Availability

Paint Pl WPL 285368 Contact Us For Availability

Shipig Blk WPL 3348675 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72112 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
