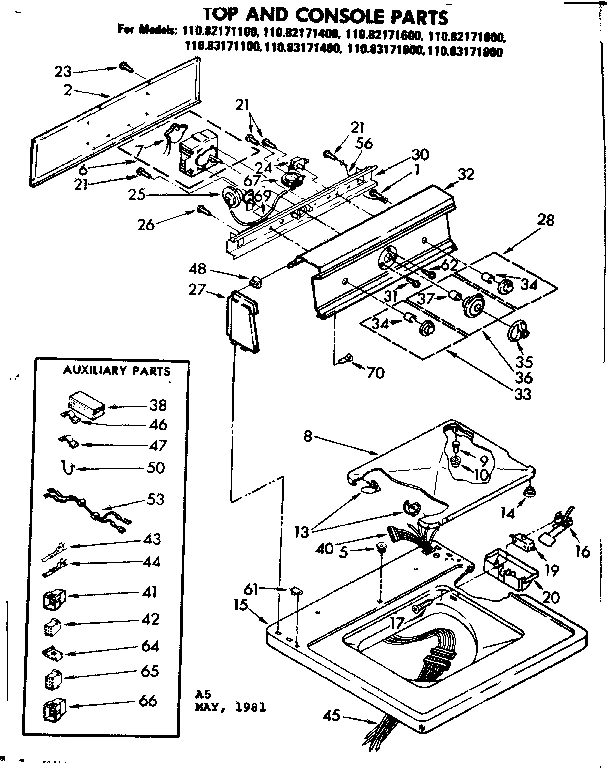

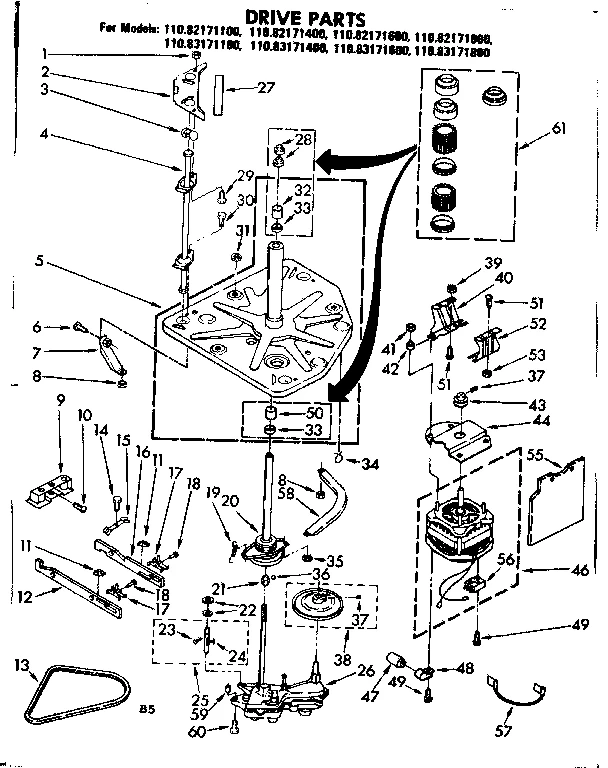

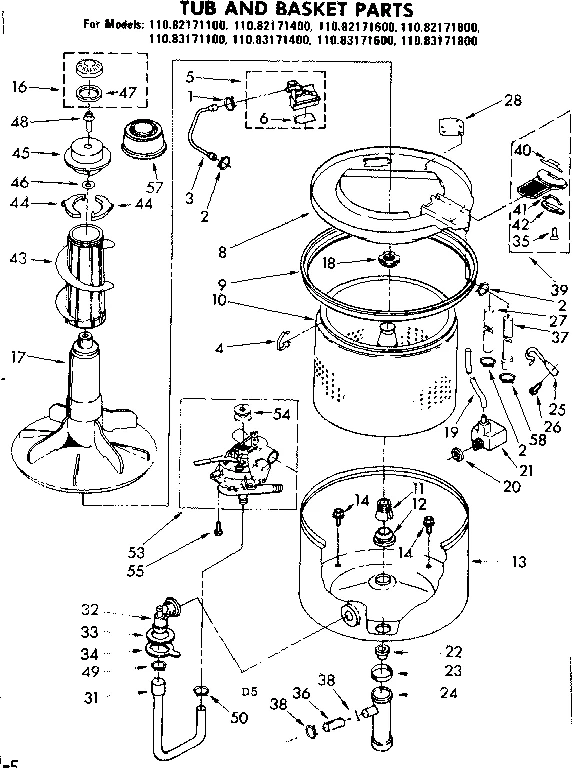

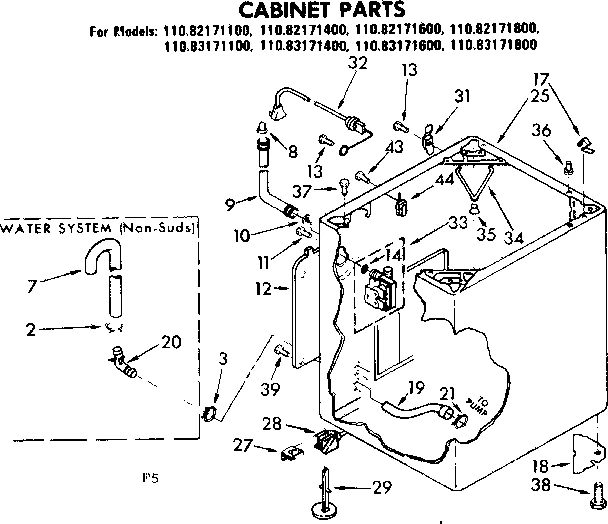

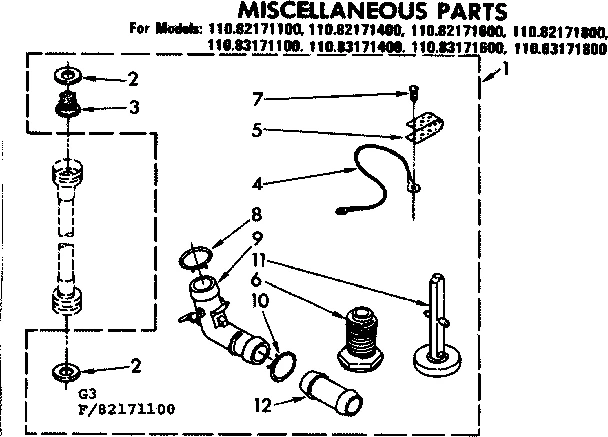

Model Whirlpool 110.83171800 Electric Washer (Kenmore 11083171800) – Common Parts &amp; Diagrams

1

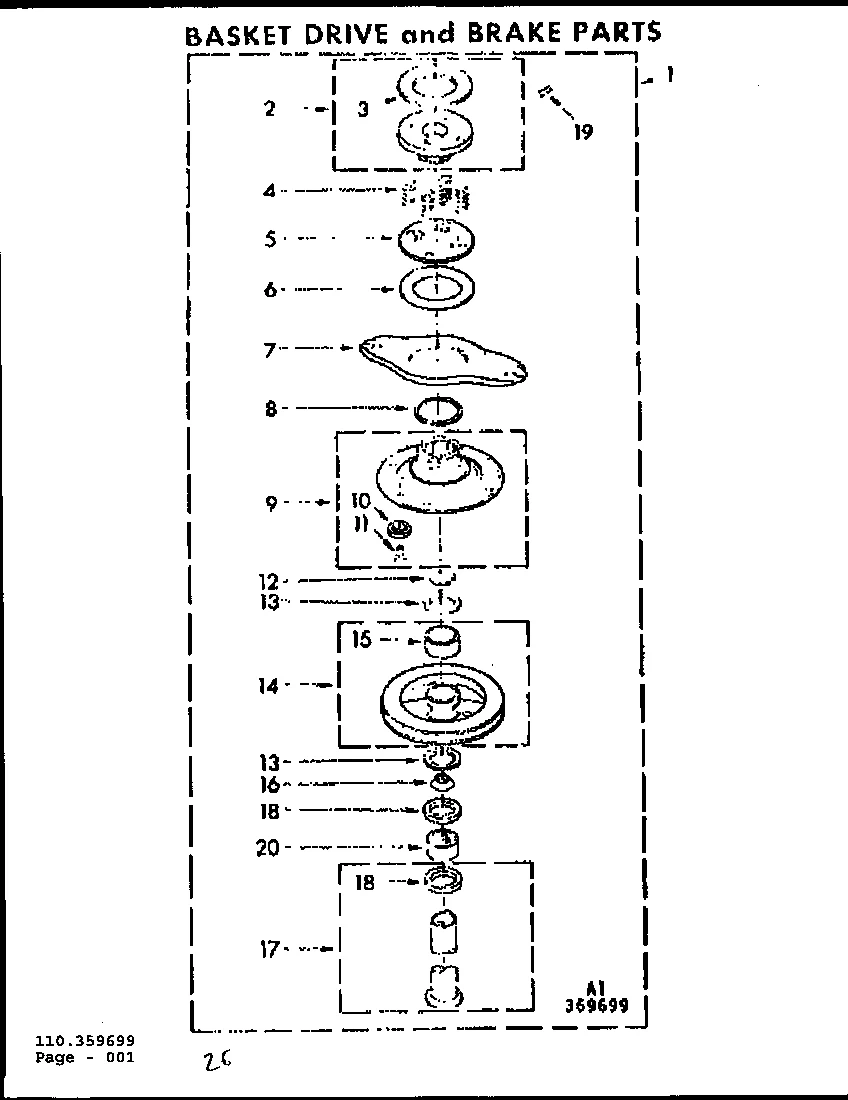

Drive Basket WPL 359699 Contact Us For Availability

1

Discharge Hose WPL 91273 Contact Us For Availability

1

Parts Kit WPL 375962 Contact Us For Availability

1A

Parts Kit WPL 375964 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

2

Strainer WPL 352833 Contact Us For Availability

2

Washer Gear Case Brake Line and Guide WPL 350522 Contact Us For Availability

2

Panel WPL 359374 Contact Us For Availability

3

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.64

3

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

3

Lining WPL 354550 Contact Us For Availability

3

Hose WPL 356349 Contact Us For Availability

4

Washer Tub Cover Clamp WPL 359689 No Longer Available

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $30.51

4

Brake Spring WPL 354275 Contact Us For Availability

4

Ground Wire WPL 364089 Contact Us For Availability

5

98460 Whirlpool Nut Backorder WPL 98460 $9.59

5

Drum WPL 97664 Contact Us For Availability

5

Ground Strap WPL 22965 Contact Us For Availability

5

Inlet WPL 366072 Contact Us For Availability

6

Lining WPL 354244 Contact Us For Availability

6

Timer WPL 373933 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

6A

Timer WPL 373997 Contact Us For Availability

6B

Washer Timer WPL 373935 Contact Us For Availability

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $27.03

7

Screw WPL 190575 Contact Us For Availability

7

Brake Yoke WPL 92903 Contact Us For Availability

7

Screw WPL 132848 Contact Us For Availability

7

Washer Motor WPL 362681 Contact Us For Availability

7A

Motor WPL 365941 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

8

Ring WPL 16049 Contact Us For Availability

8

Ring WPL 381984 Contact Us For Availability

8A

Lid (White) WPL 379001 Contact Us For Availability

8B

Lid (Almond) WPL 379002 Contact Us For Availability

8C

Lid WPL 379004 Contact Us For Availability

8D

Lid WPL 379005 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

9

Washer Drain Hose Connector WPL 95440 Contact Us For Availability

9

Hose WPL 97786 Contact Us For Availability

9

Plate WPL 357155 Contact Us For Availability

9

Strike WPL 357141 Contact Us For Availability

9

Seal WPL 355850 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

Lining WPL 354243 Contact Us For Availability

Basket WPL 359705 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Rivet WPL 359089 Contact Us For Availability

Eyelet WPL 98281 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Pin WPL 90228 Contact Us For Availability

Panel WPL 85279 Contact Us For Availability

12A

Panel WPL 357335 Contact Us For Availability

WP95405 Whirlpool Belt In Stock WPL WP95405 $10.68

Solenoid WPL 86798 Contact Us For Availability

Washer WPL 353320 Contact Us For Availability

Hinge WPL 359855 Contact Us For Availability

Tub WPL 359915 Contact Us For Availability

13A

Hinge WPL 359854 Contact Us For Availability

13A

Tub WPL 359671 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.76

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Bolt WPL 98001 Contact Us For Availability

Pulley WPL 359697 Contact Us For Availability

Screw WPL 370571 Contact Us For Availability

15

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

15

Valve WPL 359634 Contact Us For Availability

15

Bearing WPL 16033 Contact Us For Availability

15A

Top (White) WPL 383221 Contact Us For Availability

15B

Top (Almond) WPL 383222 Contact Us For Availability

15C

Top WPL 383224 Contact Us For Availability

15D

Top WPL 383225 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

Actuator WPL 370959 Contact Us For Availability

Bar Cam WPL 18642 Contact Us For Availability

Washer Agitator Cap WPL 358348 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

Plunger WPL 84866 Contact Us For Availability

Clamp WPL 272857 Contact Us For Availability

Tube WPL 357965 Contact Us For Availability

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

Agitator WPL 359070 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

Rivet WPL 354959 Contact Us For Availability

Bracket WPL 357191 Contact Us For Availability

Gusset WPL 356459 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

Spring WPL 17261 Contact Us For Availability

Screw WPL 356057 Contact Us For Availability

Hose WPL 358560 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

19B

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

20

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

20

Washer Seal WPL 351830 Contact Us For Availability

20

Spacer WPL 356937 Contact Us For Availability

21

Bearing WPL 358586 Contact Us For Availability

21

Diagram WPL 358317 Contact Us For Availability

21

Air Dome WPL 360804 Contact Us For Availability

22

Retainer Clip WPL 96262 Contact Us For Availability

22

Washer Outer Tub Grommet WPL 93553 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Pin WPL 90532 Contact Us For Availability

Strap WPL 358343 Contact Us For Availability

Clamp WPL 9421321 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Roller WPL 92119 Contact Us For Availability

Switch WPL 358934 Contact Us For Availability

Manifold WPL 84091 Contact Us For Availability

Shaft WPL 359460 Contact Us For Availability

Shield WPL 359096 Contact Us For Availability

Switch WPL 359909 Contact Us For Availability

Bracket WPL 358339 Contact Us For Availability

25A

Cabinet (White) WPL 379111 Contact Us For Availability

25B

Cabinet (Almond) WPL 379112 Contact Us For Availability

25C

Cabinet WPL 379114 Contact Us For Availability

25D

Cabinet WPL 379115 Contact Us For Availability

26

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

26

Gear Case WPL 362901 Contact Us For Availability

26

Screw WPL 355326 Contact Us For Availability

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

Pad WPL 352434 Contact Us For Availability

Cap (Chestnut) WPL 372127 Contact Us For Availability

Hose WPL 357343 Contact Us For Availability

27A

Cap (Chestnut) WPL 372134 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Link WPL 359059 Contact Us For Availability

Knob WPL 382823 Contact Us For Availability

Washer Snubber Plate WPL 355852 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

Bolt WPL 126358 Contact Us For Availability

29A

Carriage Bolt WPL 126211 Contact Us For Availability

29B

Bolt WPL 353770 Contact Us For Availability

30

Screw WPL 98048 Contact Us For Availability

30

Bracket WPL 381473 Contact Us For Availability

Gasket WPL 17235 Contact Us For Availability

Hinge WPL 92657 Contact Us For Availability

Screw, Nibbed WPL 339607 Contact Us For Availability

Hose WPL 92272 Contact Us For Availability

31A

Hinge WPL 18775 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Power Cord WPL 92667 Contact Us For Availability

Panel WPL 382462 Contact Us For Availability

Funnel WPL 92555 Contact Us For Availability

32A

Panel WPL 382463 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Washer Water Inlet Valve Assembly WPL 358277 Contact Us For Availability

Washer Control Knob WPL 382825 Contact Us For Availability

Gasket WPL 50909 Contact Us For Availability

33A

Valve WPL 358971 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

Spring WPL 357977 Contact Us For Availability

Compression Ring WPL 90015 Contact Us For Availability

Lock Nut WPL 50926 Contact Us For Availability

Washer Snubber Pad WPL 358336 Contact Us For Availability

Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability

Washer Timer Knob WPL 359507 Contact Us For Availability

Screw WPL 176360 Contact Us For Availability

Ball WPL 358585 Contact Us For Availability

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

Pointer WPL 359505 Contact Us For Availability

Hose WPL 92231 Contact Us For Availability

37

Screw WPL 355345 Contact Us For Availability

37

Clip WPL 354555 Contact Us For Availability

37

Hose WPL 357344 Contact Us For Availability

38

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Washer Transmission Pulley WPL 360840 Contact Us For Availability

38A

Block (White) WPL 352090 Contact Us For Availability

39

Filter WPL 358917 Contact Us For Availability

40

Bracket WPL 85286 Contact Us For Availability

40

Harness WPL 359930 Contact Us For Availability

40

Latch WPL 358915 Contact Us For Availability

40A

Harness WPL 359931 Contact Us For Availability

41

Nut WPL 98023 Contact Us For Availability

41

Connector WPL 94612 Contact Us For Availability

41

Bar Spring WPL 94403 Contact Us For Availability

42

Grommet, Motor Bracket WPL 19138 Contact Us For Availability

42

Plug WPL 94611 Contact Us For Availability

42

Retainer WPL 358916 Contact Us For Availability

43

Motor Pulley WPL 92216 Contact Us For Availability

43

Screw WPL 98853 Contact Us For Availability

43

Agitator Auger WPL 358690 Contact Us For Availability

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Washer Agitator Dog WPL 358692 Contact Us For Availability

Shield WPL 356217 Contact Us For Availability

Relay WPL 365956 Contact Us For Availability

45

Harness WPL 358711 Contact Us For Availability

45

Cam WPL 358691 Contact Us For Availability

46

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

46

Appliance O-Ring WPL 357574 Contact Us For Availability

46

Motor WPL 357822 Contact Us For Availability

46A

Drive Motor WPL 370653 Contact Us For Availability

47

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

47

WP358912 Whirlpool Gasket Backorder WPL WP358912 $3.70

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

48

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

48

End Cap Clip WPL 689559 Contact Us For Availability

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

49

Clamp WPL 353096 Contact Us For Availability

50

Bearing WPL 354195 Contact Us For Availability

50

Clip WPL 357469 Contact Us For Availability

51

Bolt WPL 98537 Contact Us For Availability

52

Bracket WPL 93549 Contact Us For Availability

53

Nut WPL 95721 Contact Us For Availability

53

Harness WPL 359587 Contact Us For Availability

53

Pump WPL 357729 Contact Us For Availability

53A

Pump (Black) WPL 362175 Contact Us For Availability

54

Pump Pulley WPL 16113 Contact Us For Availability

55

386011 Whirlpool Screw Backorder WPL 386011 $29.41

55

Shield WPL 359719 Contact Us For Availability

56

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $32.06

56

Motor Switch WPL 362738 Contact Us For Availability

56A

Switch WPL 359642 Contact Us For Availability

57

Wire WPL 370950 Contact Us For Availability

57

Washer Fabric Softener Dispenser WPL 359163 Contact Us For Availability

58

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

58

Brace WPL 351500 Contact Us For Availability

58A

Brace WPL 351499 Contact Us For Availability

59

Spacer WPL 16062 Contact Us For Availability

60

Hex Screw WPL 90877 Contact Us For Availability

61

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

61

Washer Center Post Bearing Kit WPL 285134 Contact Us For Availability

62

Screw WPL 359504 Contact Us For Availability

64

Ring WPL 357695 Contact Us For Availability

65

Plug WPL 94696 Contact Us For Availability

66

Cap WPL 94697 Contact Us For Availability

67

Switch WPL 359712 Contact Us For Availability

70

Screw WPL 358225 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Washer Agitator Grease WPL 350849 Contact Us For Availability

Paint (White) WPL 799344 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Guide WPL LIT358052 Contact Us For Availability

Installation Instructions WPL LIT374209 Contact Us For Availability

Installation Instructions WPL LIT375090 Contact Us For Availability

Label WPL LIT375226 Contact Us For Availability

Energy Guide WPL LIT382204 Contact Us For Availability

Energy Guide WPL LIT382205 Contact Us For Availability

Operating Instructions WPL LIT382308 Contact Us For Availability

Parts List WPL LIT382485 Contact Us For Availability

Checklist WPL LIT382575 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
