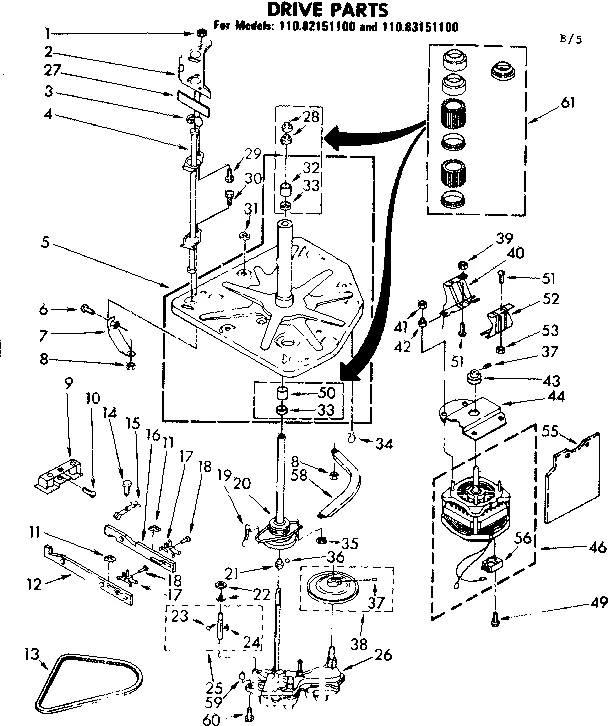

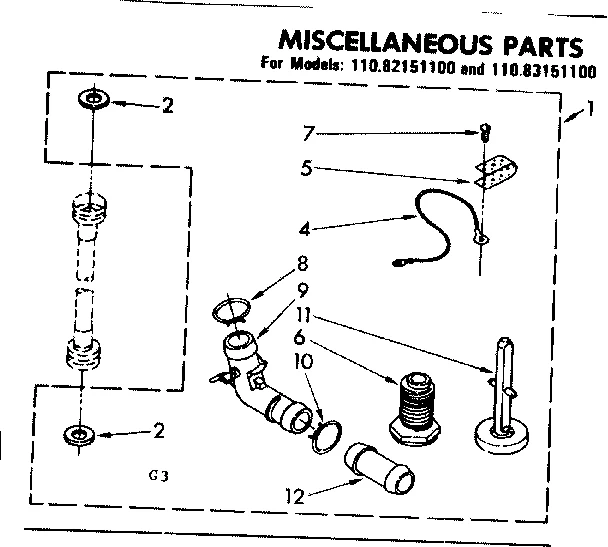

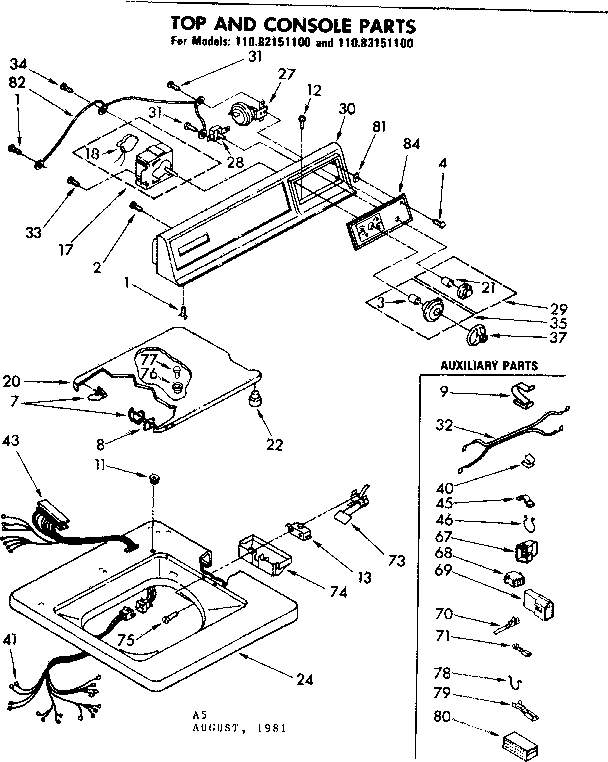

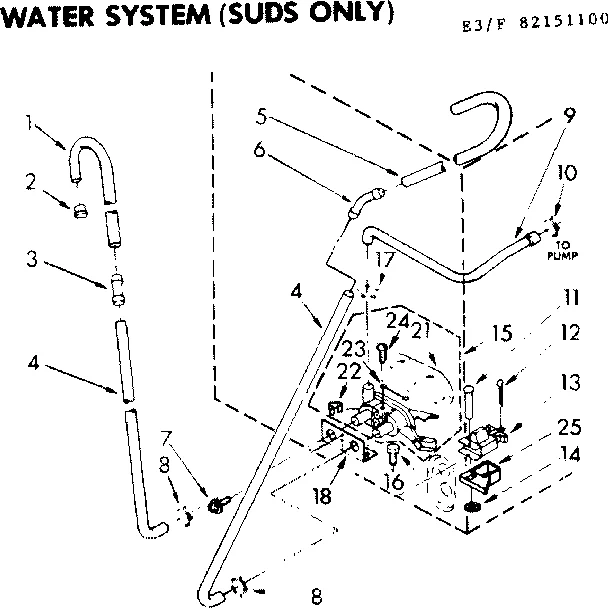

Model Whirlpool 110.83151100 Electric Washer (Kenmore 11083151100) – Common Parts &amp; Diagrams

1

Parts Kit WPL 375962 Contact Us For Availability

1

Discharge Hose WPL 91273 Contact Us For Availability

1A

Parts Kit WPL 375964 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

2

Cover WPL 352143 Contact Us For Availability

2

Screw WPL 355326 Contact Us For Availability

2

Strainer WPL 352833 Contact Us For Availability

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Ball WPL 91073 Contact Us For Availability

3

Clip WPL 354555 Contact Us For Availability

3

Hose WPL 356349 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $30.51

4

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

4

Spring WPL 96266 Contact Us For Availability

4

Rod WPL 359678 Contact Us For Availability

4

Ground Wire WPL 364089 Contact Us For Availability

5

Base Plate WPL 359721 Contact Us For Availability

5

Ground Strap WPL 22965 Contact Us For Availability

5

Inlet WPL 366072 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

6

Washer Drain Hose Connector WPL 95440 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

7

Washer Tub Cover Clamp WPL 359689 No Longer Available

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $27.03

7

Brace WPL 353301 Contact Us For Availability

7

Hinge WPL 359855 Contact Us For Availability

7

Screw WPL 132848 Contact Us For Availability

7

Screw WPL 190575 Contact Us For Availability

7A

Hinge WPL 359854 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

8

Nut WPL 96101 Contact Us For Availability

8

Bearing WPL 381164 Contact Us For Availability

8

Ring WPL 381971 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

9

Wig Way Ay WPL 365998 Contact Us For Availability

9

Clip WPL 351482 Contact Us For Availability

9

Seal WPL 355850 Contact Us For Availability

9

Hose WPL 97786 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

Tap End Scr WPL 16135 Contact Us For Availability

Basket WPL 359705 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Cam Bar Guide WPL 95462 Contact Us For Availability

Snap-in Nut WPL 98219 Contact Us For Availability

Rivet WPL 359089 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

Lever WPL 355538 Contact Us For Availability

Cam Bar WPL 354838 Contact Us For Availability

Panel WPL 85279 Contact Us For Availability

Pin WPL 90228 Contact Us For Availability

12A

Panel WPL 357335 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP95405 Whirlpool Belt In Stock WPL WP95405 $10.68

Rod WPL 96264 Contact Us For Availability

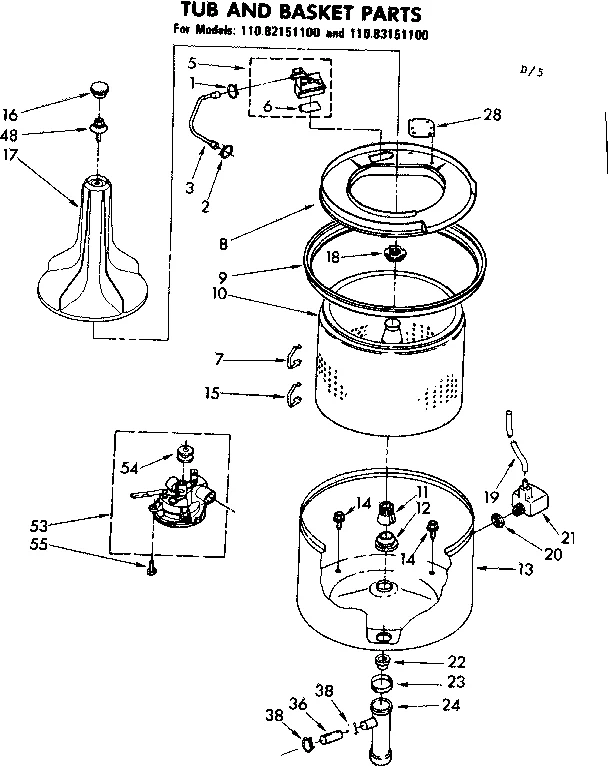

Tub WPL 359915 Contact Us For Availability

Solenoid WPL 86798 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.76

Bearng Blck WPL 87290 Contact Us For Availability

Bolt WPL 98001 Contact Us For Availability

Screw WPL 370571 Contact Us For Availability

Washer Tub Ring Clip WPL 359690 No Longer Available

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

Wick Oil WPL 96265 Contact Us For Availability

Valve WPL 359634 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

Bar Cam WPL 18642 Contact Us For Availability

Cap WPL 359959 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

Washer Timer WPL 381860 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Agitator WPL 359733 Contact Us For Availability

Clamp WPL 272857 Contact Us For Availability

17A

Washer Timer WPL 373935 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

Rivet WPL 354959 Contact Us For Availability

Washer Motor WPL 362681 Contact Us For Availability

Gusset WPL 356459 Contact Us For Availability

Bracket WPL 357191 Contact Us For Availability

18A

Motor WPL 365941 Contact Us For Availability

19

Spring WPL 17261 Contact Us For Availability

19

(338471) (ALT.) WPL N/P Contact Us For Availability

19

Hose WPL 358560 Contact Us For Availability

19A

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

20

Washer Seal WPL 351830 Contact Us For Availability

20

Drive Basket WPL 359699 Contact Us For Availability

20

Lid (White) WPL 381159 Contact Us For Availability

Bearing WPL 358586 Contact Us For Availability

Compression Ring WPL 90015 Contact Us For Availability

Air Dome WPL 360804 Contact Us For Availability

Diagram WPL 358317 Contact Us For Availability

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

22

Washer Outer Tub Grommet WPL 93553 Contact Us For Availability

22

Retainer Clip WPL 96262 Contact Us For Availability

23

Pin WPL 90532 Contact Us For Availability

23

Clamp WPL 9421321 Contact Us For Availability

23

Strap WPL 358343 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Roller WPL 92119 Contact Us For Availability

Top (White) WPL 381401 Contact Us For Availability

Manifold WPL 84091 Contact Us For Availability

25

Shaft WPL 359460 Contact Us For Availability

25

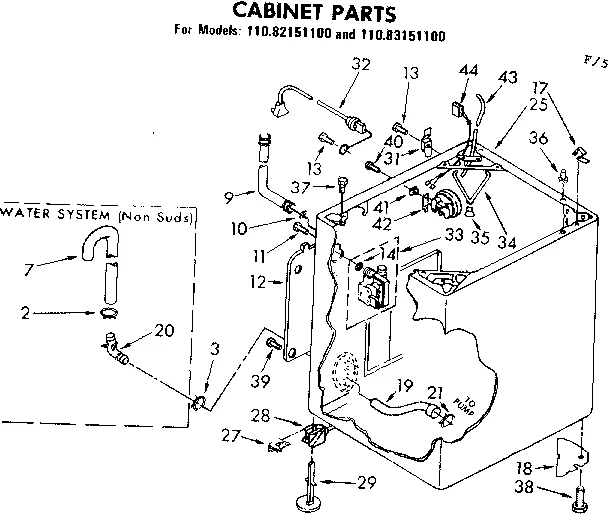

Cabinet (White) WPL 379111 Contact Us For Availability

25

Shield WPL 359096 Contact Us For Availability

26

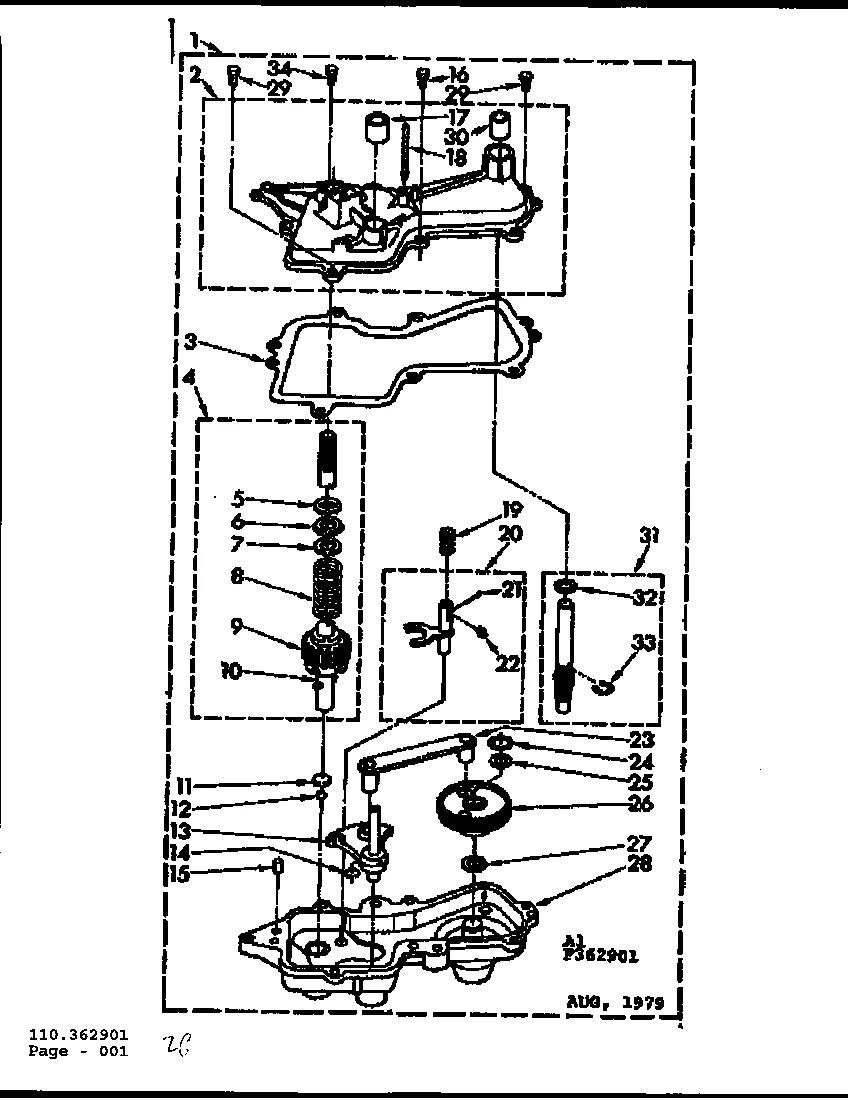

Gear Case WPL 362901 Contact Us For Availability

27

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

27

Pad WPL 352434 Contact Us For Availability

27

Switch WPL 383555 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Switch WPL 359348 Contact Us For Availability

Link WPL 359059 Contact Us For Availability

Washer Snubber Plate WPL 355852 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

Bolt WPL 126358 Contact Us For Availability

29

Knob WPL 382827 Contact Us For Availability

29B

Bolt WPL 353770 Contact Us For Availability

30

Screw WPL 98048 Contact Us For Availability

30

Escutcheon WPL 383636 Contact Us For Availability

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

Drive Pinion WPL 84467 Contact Us For Availability

Gasket WPL 17235 Contact Us For Availability

Hinge WPL 92657 Contact Us For Availability

31A

Hinge WPL 18775 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Washer WPL 16024 Contact Us For Availability

Harness WPL 359587 Contact Us For Availability

Power Cord WPL 92667 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Washer Water Inlet Valve Assembly WPL 358277 Contact Us For Availability

Ring WPL 90094 Contact Us For Availability

Screw WPL 358950 Contact Us For Availability

33A

Valve WPL 358971 Contact Us For Availability

34

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

34

Screw WPL 355613 Contact Us For Availability

34

Spring WPL 357977 Contact Us For Availability

35

Washer Snubber Pad WPL 358336 Contact Us For Availability

35

Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability

35

Pointer WPL 366259 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

36

Hose WPL 92231 Contact Us For Availability

37

Screw WPL 355345 Contact Us For Availability

37

Knob WPL 355643 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Washer Transmission Pulley WPL 360840 Contact Us For Availability

40

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

40

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

40

Bracket WPL 85286 Contact Us For Availability

41

Nut WPL 98023 Contact Us For Availability

41

Harness WPL 359508 Contact Us For Availability

41

Spring Nut WPL 90800 Contact Us For Availability

42

Grommet, Motor Bracket WPL 19138 Contact Us For Availability

42

Switch WPL 359712 Contact Us For Availability

43

Motor Pulley WPL 92216 Contact Us For Availability

43

Harness WPL 359356 Contact Us For Availability

43A

Harness WPL 359961 Contact Us For Availability

44

Shield WPL 356217 Contact Us For Availability

44

Harness WPL 359962 Contact Us For Availability

45

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

46

Motor WPL 359483 Contact Us For Availability

46

Clip WPL 357469 Contact Us For Availability

46A

Motor WPL 359482 Contact Us For Availability

48

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

50

Bearing WPL 354195 Contact Us For Availability

51

Bolt WPL 98537 Contact Us For Availability

52

Bracket WPL 93549 Contact Us For Availability

53

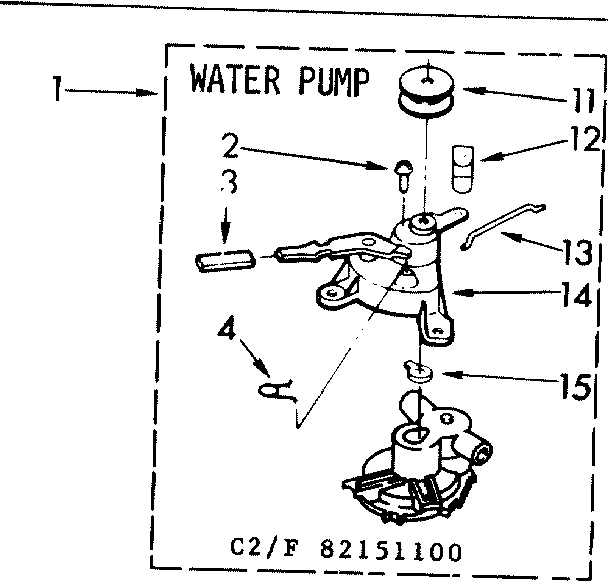

350365 Whirlpool Dryer Washer Water Pump, 2-P Backorder WPL 350365 $84.71

53

Nut WPL 95721 Contact Us For Availability

54

Pulley WPL 359630 Contact Us For Availability

55

386011 Whirlpool Screw Backorder WPL 386011 $29.41

55

Shield WPL 359719 Contact Us For Availability

56

Motor Switch WPL 362738 Contact Us For Availability

56A

Switch WPL 359642 Contact Us For Availability

58

Brace WPL 351500 Contact Us For Availability

58A

Brace WPL 351499 Contact Us For Availability

59

Spacer WPL 16062 Contact Us For Availability

60

Hex Screw WPL 90877 Contact Us For Availability

61

Washer Center Post Bearing Kit WPL 285134 Contact Us For Availability

67

Connector WPL 94612 Contact Us For Availability

68

Plug WPL 94611 Contact Us For Availability

69

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

71

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

73

Actuator WPL 370959 Contact Us For Availability

74

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

75

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

76

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

77

Strike WPL 357141 Contact Us For Availability

78

16515 Whirlpool Clip Backorder WPL 16515 $11.62

79

Terminal WPL 352088 Contact Us For Availability

80

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

80A

Block (White) WPL 352090 Contact Us For Availability

81

Clip WPL 98084 Contact Us For Availability

82

Wiring Harness WPL 365968 Contact Us For Availability

84

Bezel WPL 383074 Contact Us For Availability

84A

Bezel WPL 383075 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

Paint (White) WPL 799344 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Guide WPL LIT358052 Contact Us For Availability

Label WPL LIT379387 Contact Us For Availability

Checklist WPL LIT382585 Contact Us For Availability

Energy Guide WPL LIT383233 Contact Us For Availability

Energy Guide WPL LIT383234 Contact Us For Availability

Installation Instructions WPL LIT383541 Contact Us For Availability

Installation Instructions WPL LIT383542 Contact Us For Availability

Installation Instructions WPL LIT383546 Contact Us For Availability

Parts List WPL LIT383562 Contact Us For Availability

Operating Instructions WPL LIT383587 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
