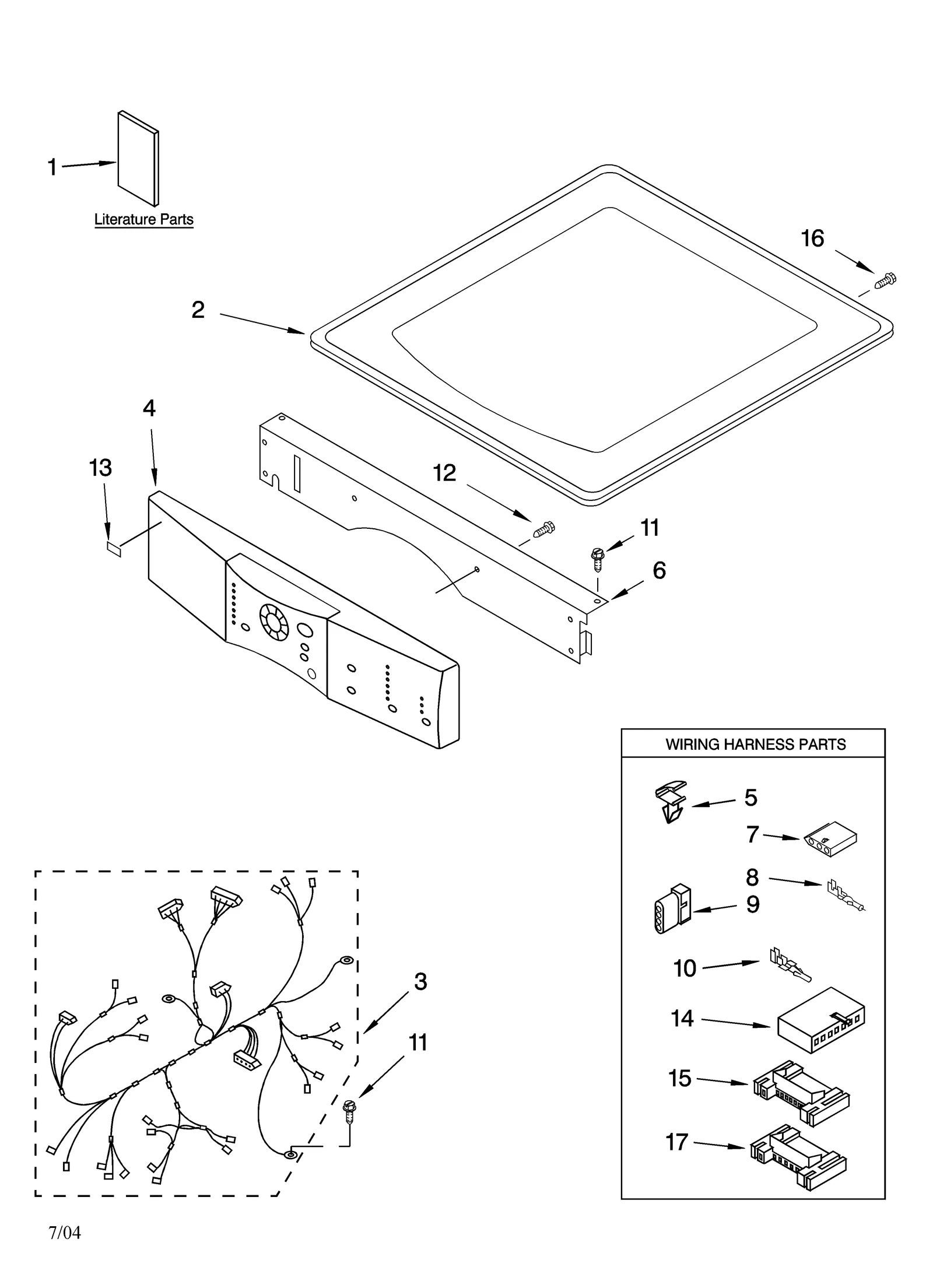

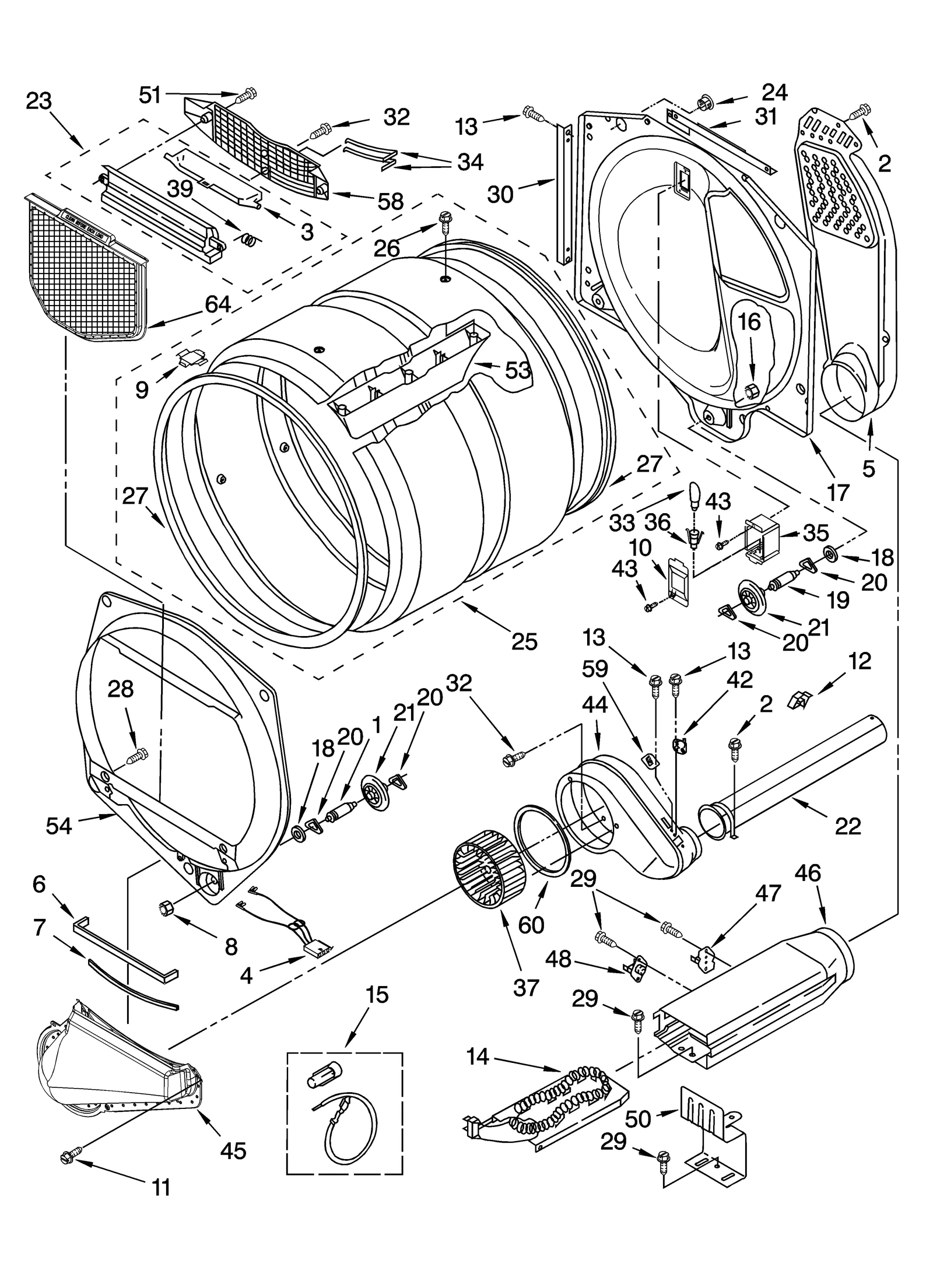

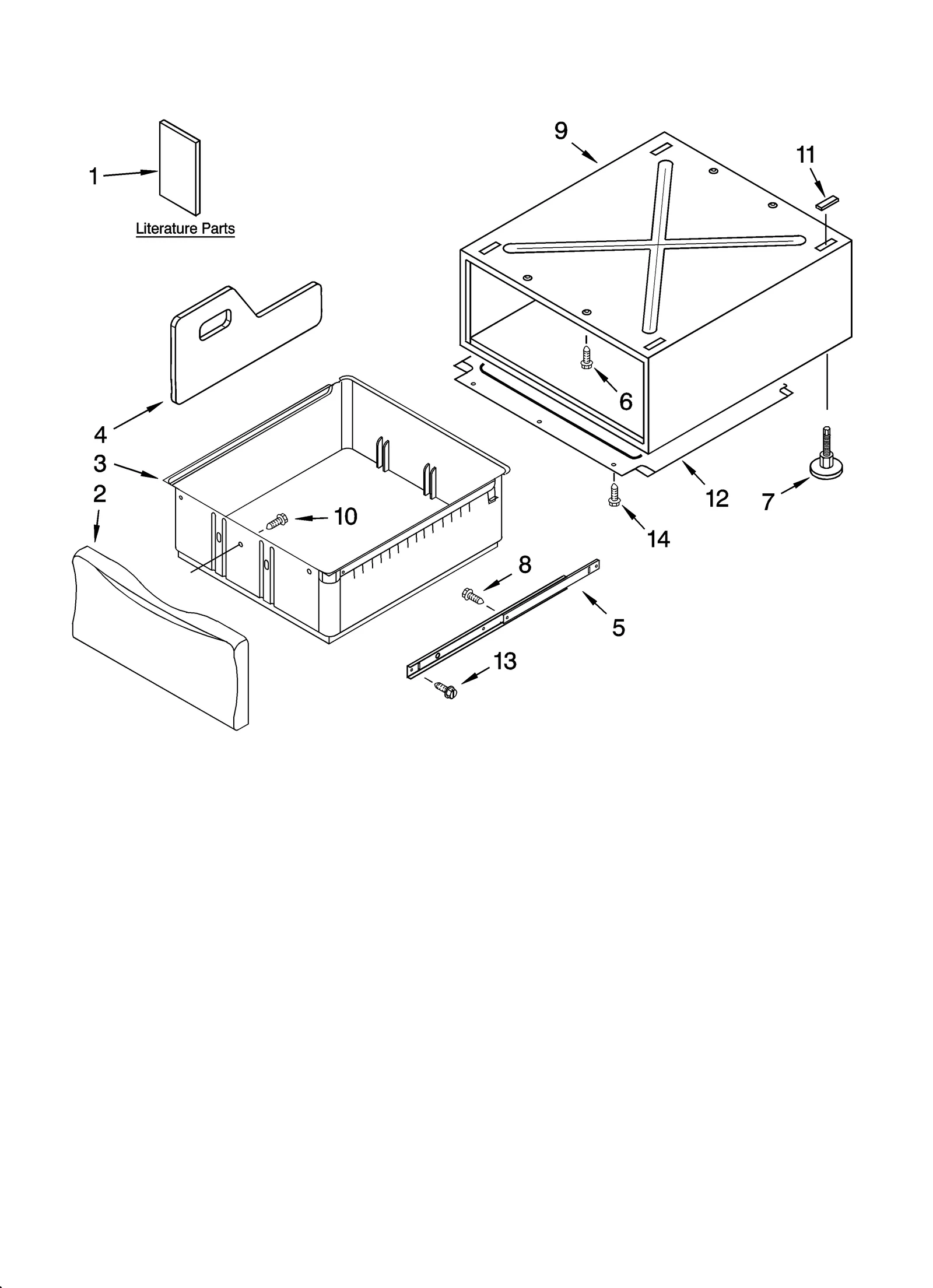

Model Whirlpool 110.82824103 Dryer (Kenmore 11082824103) – Common Parts &amp; Diagrams

1

Installation Instructions WPL LIT8537141 Contact Us For Availability

1A

Parts List WPL LIT8537342 Contact Us For Availability

1B

Front (White) WPL 8537870 Contact Us For Availability

1C

Front WPL 8537871 Contact Us For Availability

1D

Front (Graphite) WPL 8537872 Contact Us For Availability

1E

Front WPL 8537908 Contact Us For Availability

1F

Front WPL 8537931 Contact Us For Availability

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

3

W11222846 Whirlpool Door Backorder WPL W11222846 $82.70

3

Dryer Cover WPL 8519482 Contact Us For Availability

3

Drawer WPL 8537883 Contact Us For Availability

3A

Drawer WPL 8537934 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $48.71

4

Dryer Control Panel Assembly WPL 8529879 Contact Us For Availability

4

Dryer Screw WPL 9742177 Contact Us For Availability

4

Divider WPL 8537875 Contact Us For Availability

4A

Dryer Control Panel Assembly WPL 8529880 Contact Us For Availability

4A

DIVIDER DRAWER WPL 8537935 Contact Us For Availability

4B

Dryer Control Panel WPL 8529881 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $141.23

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $38.05

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $2.51

6

Dryer Door Handle Pad WPL 8519336 Contact Us For Availability

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $7.06

7

Washer Terminal Connector WPL 353424 Contact Us For Availability

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8A

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

(338471) (ALT.) WPL N/P Contact Us For Availability

9A

Dryer Door Handle Screw Hole Plug (Black) WPL 8519374 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly Backorder WPL W11226088 $11.86

10

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

11

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.51

11

Laundry Appliance Pedestal Cushion WPL 8537863 Contact Us For Availability

12

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

12

Pan WPL 8537853 Contact Us For Availability

12A

Dryer Door Outer Frame (Black) WPL 8519327 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

Dryer Door Outer Window WPL 8545878 Contact Us For Availability

Medallion WPL 9744397 Contact Us For Availability

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $37.64

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

Dryer 7-Circuit Wire Harness Connector WPL 3936150 Contact Us For Availability

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

15

3395683 Whirlpool Connector Backorder WPL 3395683 $35.69

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability

16

Screw WPL 8281225 Contact Us For Availability

16

Hex Nut WPL 3387709 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $103.64

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

19

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $59.73

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $24.12

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $8.34

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $52.61

22

Ramp WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $23.71

23

Support WPL 8521961 Contact Us For Availability

24

8529007 Whirlpool Plug Backorder WPL 8529007 $29.17

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $56.87

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $26.94

28

3398948 Whirlpool Wire Backorder WPL 3398948 $42.36

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

Bracket WPL 8519221 Contact Us For Availability

31

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $26.26

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $69.12

32

3400826 Whirlpool Screw Backorder WPL 3400826 $5.38

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $49.90

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.31

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $74.50

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $31.26

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.34

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $15.29

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $38.05

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $78.74

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $77.20

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $28.99

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $67.04

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

53

Drum Baffle WPL 697693 Contact Us For Availability

54

Bulkhead WPL 8519245 Contact Us For Availability

55

Dryer Wire Harness WPL 8299925 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $22.00

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

Appliance Touch-Up Paint, 0.6-oz (Graphite) WPL 80051 Contact Us For Availability

Paint (White) WPL 799344 Contact Us For Availability

Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability

Paint (Graphite) WPL 8171358 Contact Us For Availability

Hold-Down Kit WPL 8529894 Contact Us For Availability
