Model Whirlpool 110.82477140 Washer (Kenmore 11082477140) – Common Parts &amp; Diagrams

1

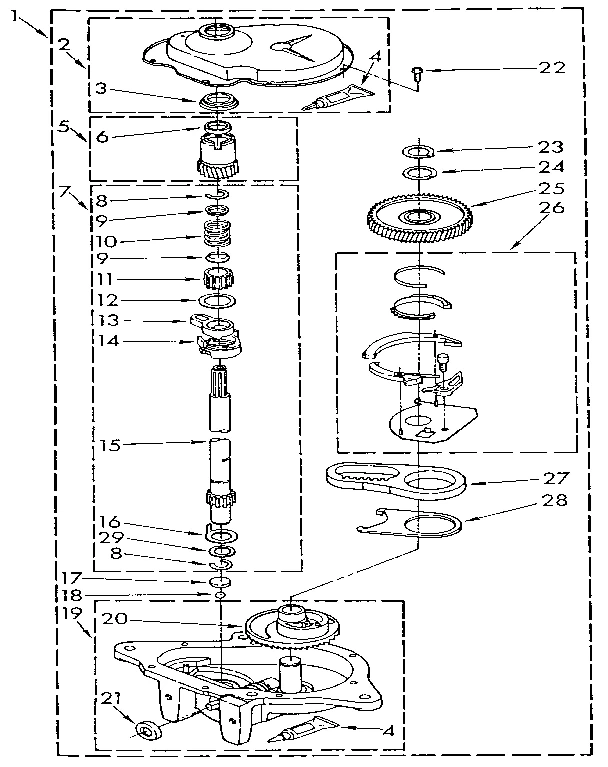

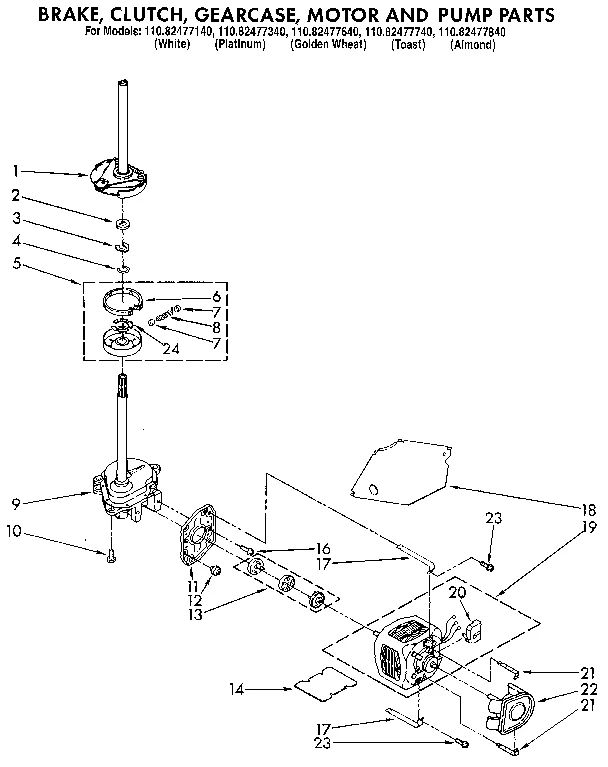

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

1

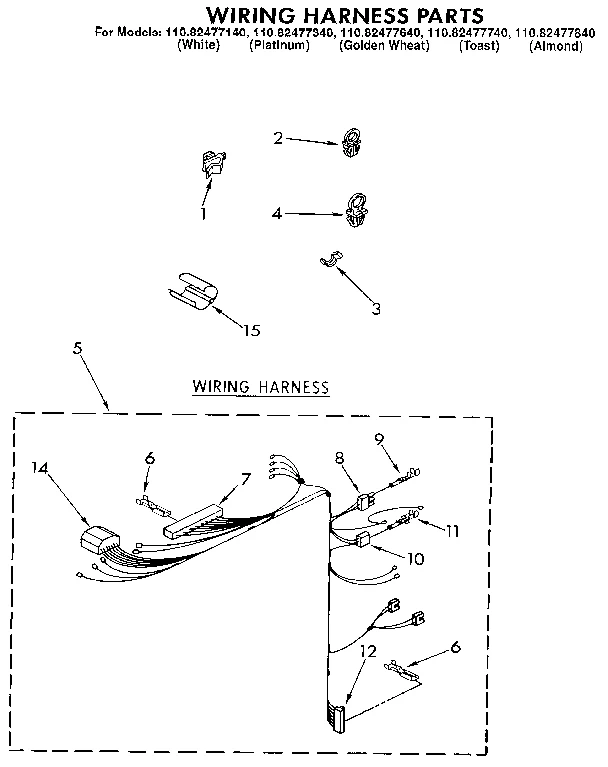

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

(338471) (ALT.) WPL N/P Contact Us For Availability

1A

Laundry Guide WPL LIT3349103 Contact Us For Availability

1B

Installation Instructions WPL LIT3352826 Contact Us For Availability

1C

Operating Instructions WPL LIT3351624 Contact Us For Availability

1D

Installation Instructions WPL LIT3352828 Contact Us For Availability

1E

Wiring Diagram WPL LIT3351742 Contact Us For Availability

1F

Technical Sheet WPL LIT3351284 Contact Us For Availability

1G

Energy Guide WPL LIT3356063 Contact Us For Availability

1H

Parts List WPL LIT3355533 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

285321 Whirlpool Sleeve Backorder WPL 285321 $29.77

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Clip WPL 62749 Contact Us For Availability

2A

Top W WPL 388918 Contact Us For Availability

2B

Top Ng WPL 388922 Contact Us For Availability

2C

Top Al WPL 388919 Contact Us For Availability

2D

Top To WPL 388920 Contact Us For Availability

2E

Top Pl WPL 388921 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $34.33

4

Appliance O-Ring WPL 357574 Contact Us For Availability

4

Harness Clip WPL 3349278 Contact Us For Availability

5

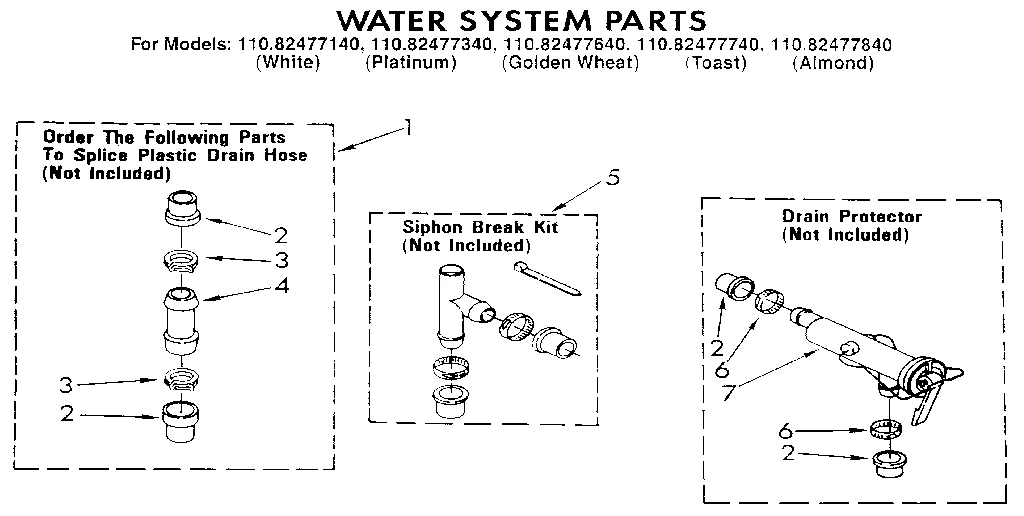

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $21.58

5

Bracket WPL 64065 Contact Us For Availability

5

Wire Harness WPL 3349754 Contact Us For Availability

5A

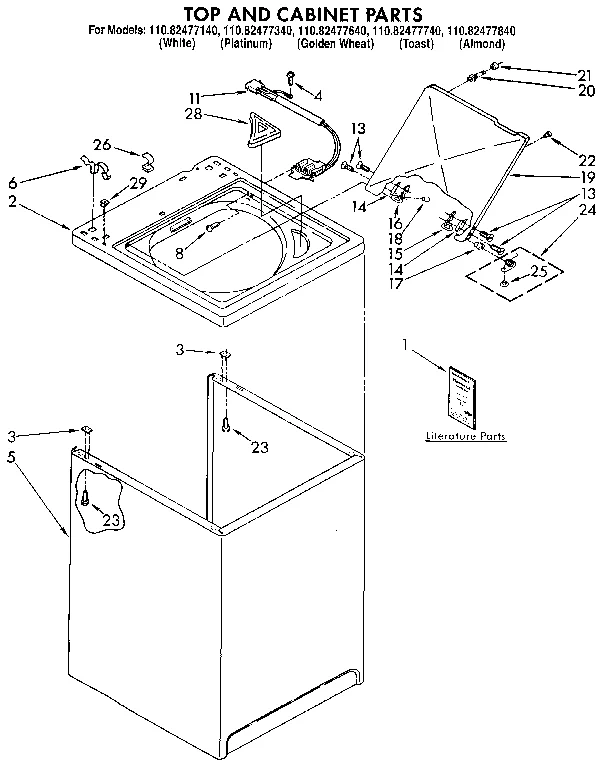

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5B

Natural Gas Cabinet WPL 63428 Contact Us For Availability

5C

Cabnt Al WPL 63425 Contact Us For Availability

5D

Cabnt To WPL 63426 Contact Us For Availability

5E

Cabnt Pl WPL 63427 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Terminal WPL 352088 Contact Us For Availability

7

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

7

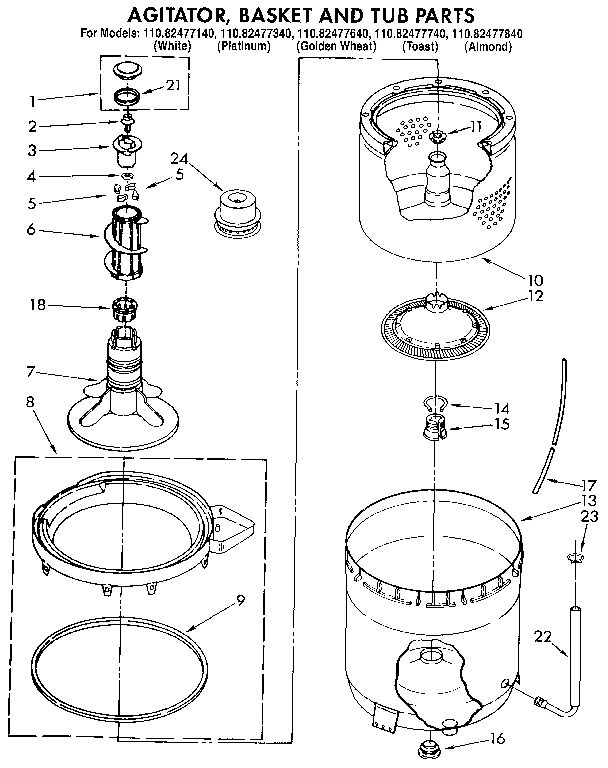

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $81.90

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

Washer Drain Protector WPL 367031 Contact Us For Availability

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

8

Retaining Ring WPL 90369 Contact Us For Availability

8

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

10

Hinge Panel WPL 387402 Contact Us For Availability

10

Screw WPL 62735 Contact Us For Availability

10

Spring WPL 62676 Contact Us For Availability

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $23.68

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

WP388257 Whirlpool Trim Ring Backorder WPL WP388257 $3.70

WP62611 Whirlpool Plate In Stock WPL WP62611 $41.49

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Washer Timer Dial WPL 387997 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

End Cap Clip WPL 689559 Contact Us For Availability

Connector WPL 3347243 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

Shaft WPL 389231 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Washer WPL 62618 Contact Us For Availability

17

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

17

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

WP661549 Whirlpool Timer Assembly Backorder WPL WP661549 $228.71

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

19

Gear Case WPL 389229 Contact Us For Availability

19A

Lid (White) WPL 63070 Contact Us For Availability

19B

Lid WPL 63074 Contact Us For Availability

19C

Lid (Almond) WPL 63071 Contact Us For Availability

19D

Lid WPL 385436 Contact Us For Availability

19E

Platinum (Platinum) WPL 385437 Contact Us For Availability

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

Switch WPL 62850 Contact Us For Availability

Gear WPL 62528 Contact Us For Availability

Strike WPL 357141 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

WP358912 Whirlpool Gasket Backorder WPL WP358912 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Washer Tub Fill Nozzle Hose WPL 387863 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Ring WPL 95082 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $13.73

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.76

Clip WPL 3355454 Contact Us For Availability

Washer Kit WPL 285292 Contact Us For Availability

Hinge Spring WPL 3349948 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

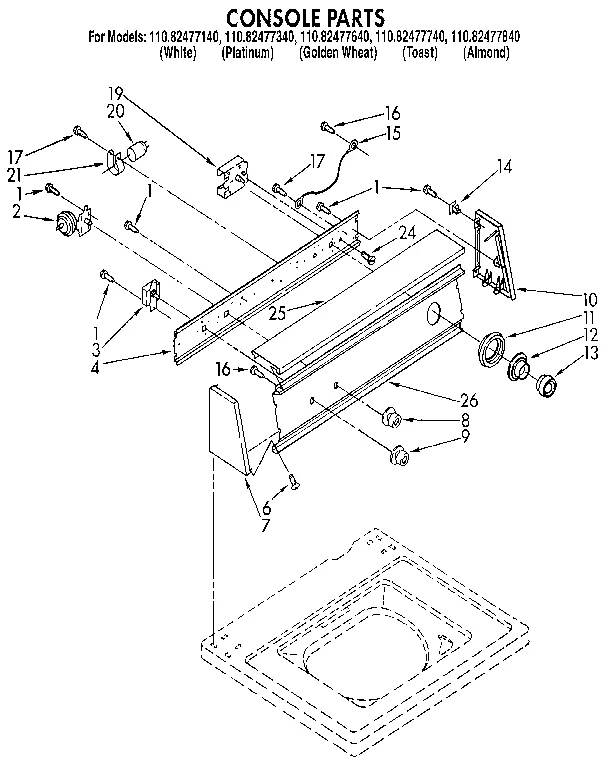

Control Panel WPL 3349268 Contact Us For Availability

25

Plug WPL 54690 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

26

Control Panel WPL 388242 Contact Us For Availability

28C

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.20

29

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

33

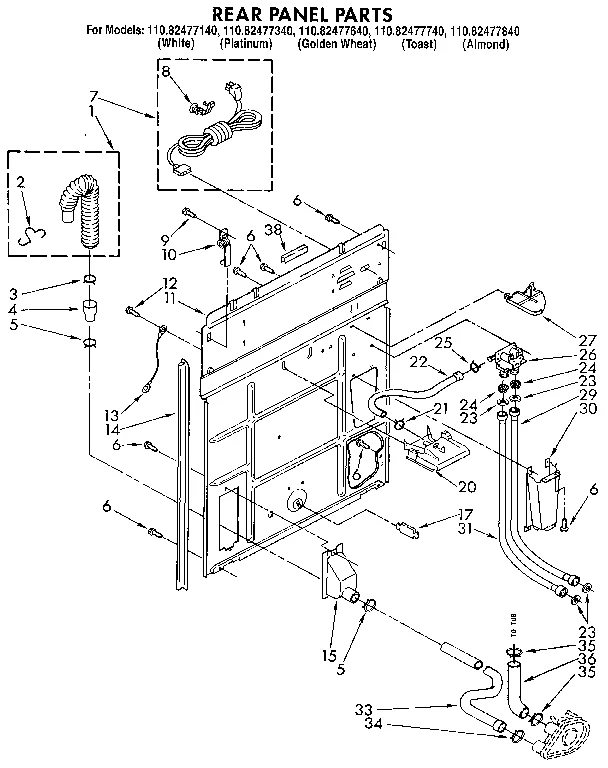

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $36.98

35

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Paint (White) WPL 799344 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Spray (Toast) WPL 285365 Contact Us For Availability

Spray (Platinum) WPL 285366 Contact Us For Availability

Paint To WPL 285367 Contact Us For Availability

Paint Pl WPL 285368 Contact Us For Availability

Shipig Blk WPL 3348675 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72112 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
