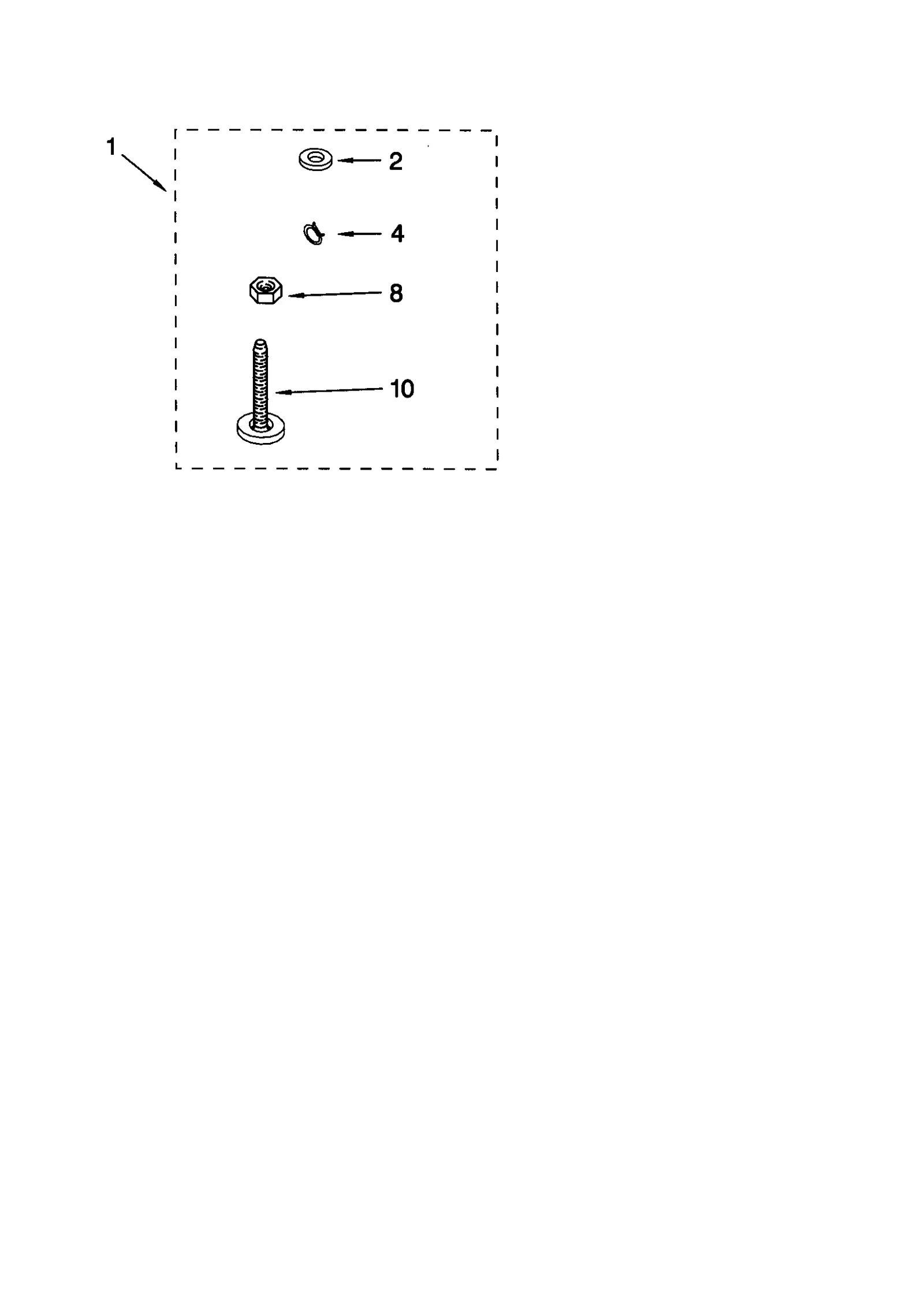

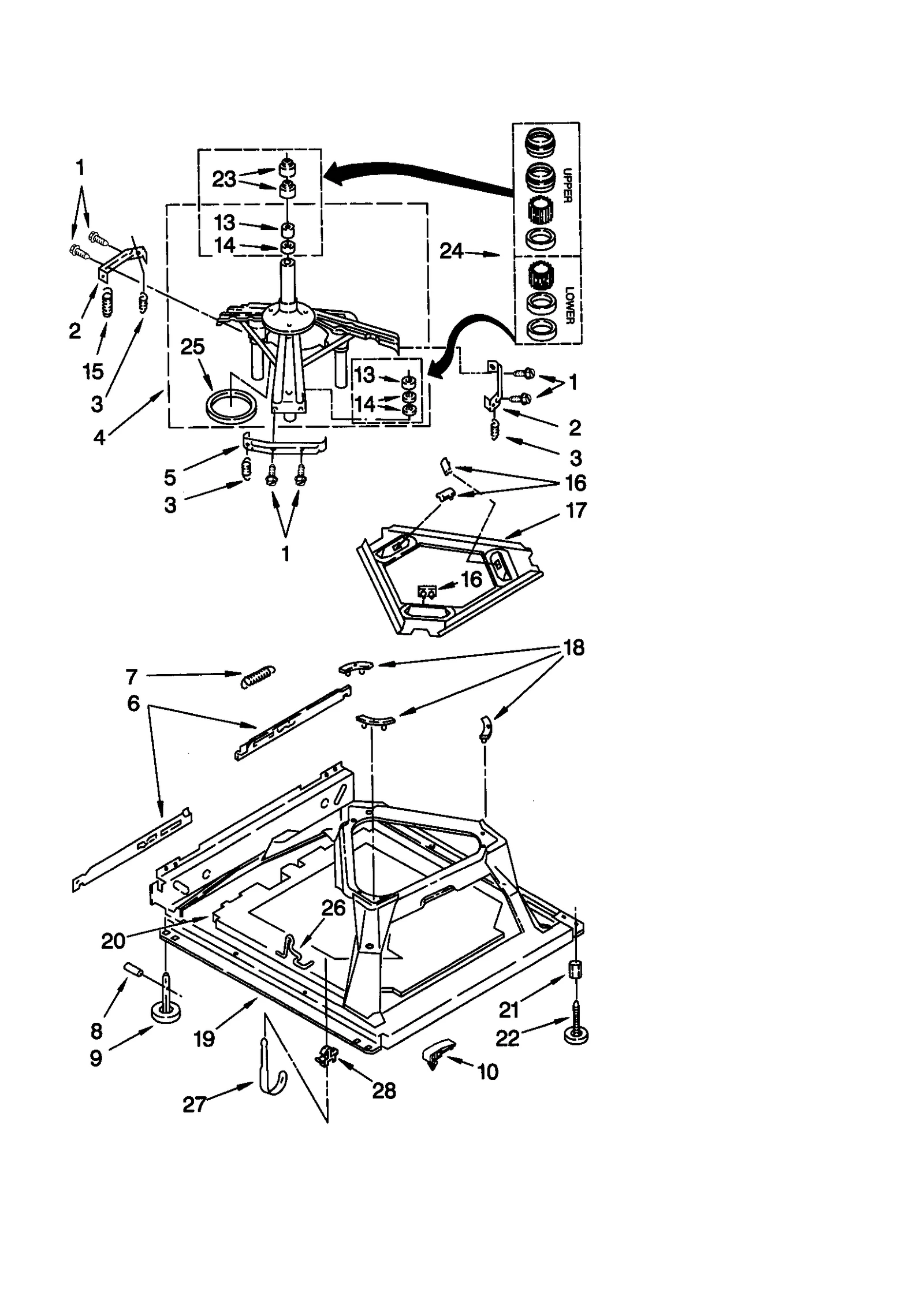

Model Whirlpool 110.20092991 Washer (Kenmore 11020092991) – Common Parts &amp; Diagrams

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

1

WP96743 Whirlpool Hose In Stock WPL WP96743 $27.03

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Parts-mics WPL 3953140 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

1B

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

2

285321 Whirlpool Sleeve Backorder WPL 285321 $29.77

2

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

Sch Wtr Leve WPL 8054764 Contact Us For Availability

2

Bracket, Spring Outer WPL 8282552 Contact Us For Availability

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

Clip WPL 8283263 Contact Us For Availability

3

Shield WPL 8282565 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

Washer Retainer Clip WPL 8282566 Contact Us For Availability

4

Bracket WPL 8055055 Contact Us For Availability

4

Support WPL 3362087 Contact Us For Availability

5

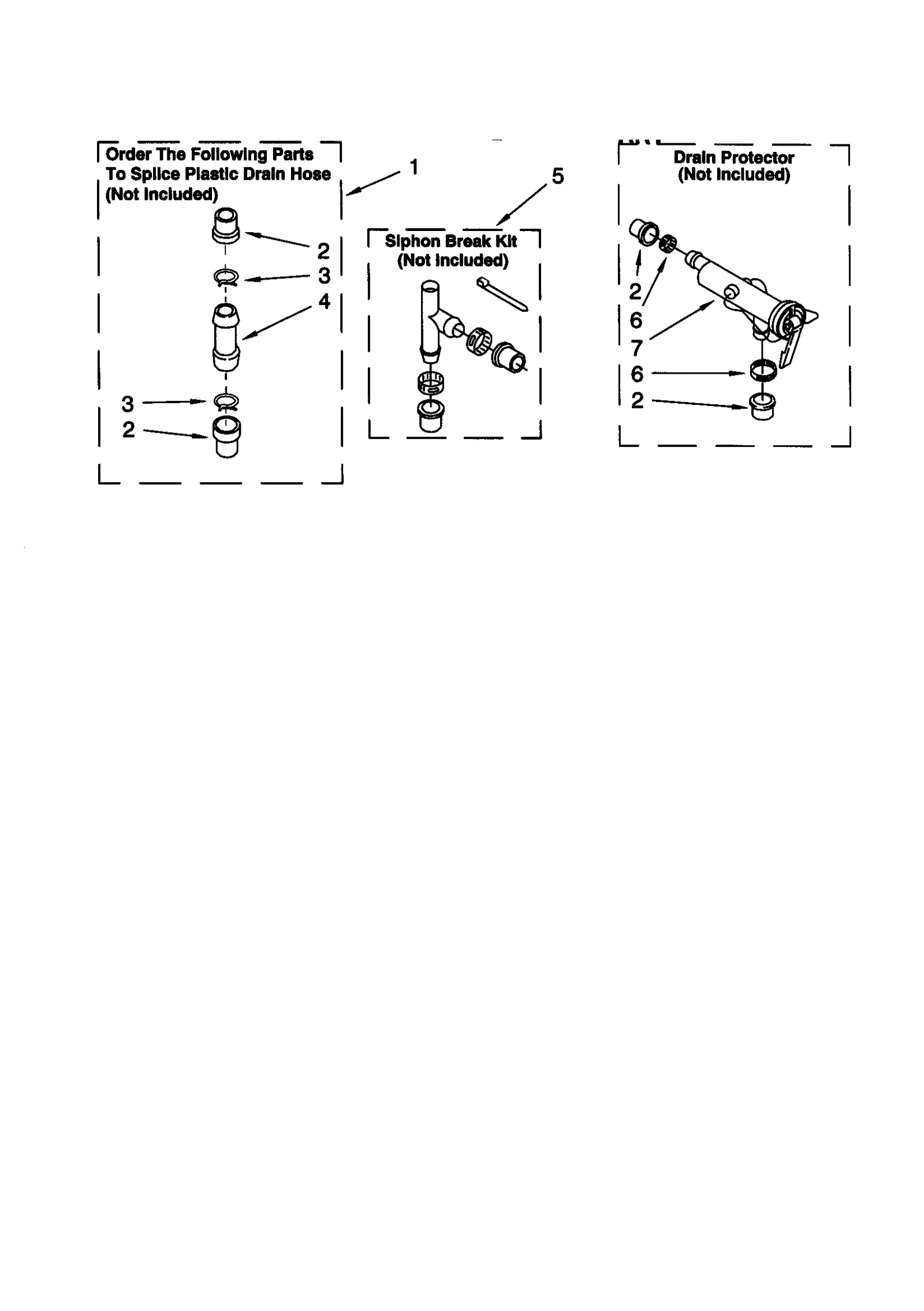

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

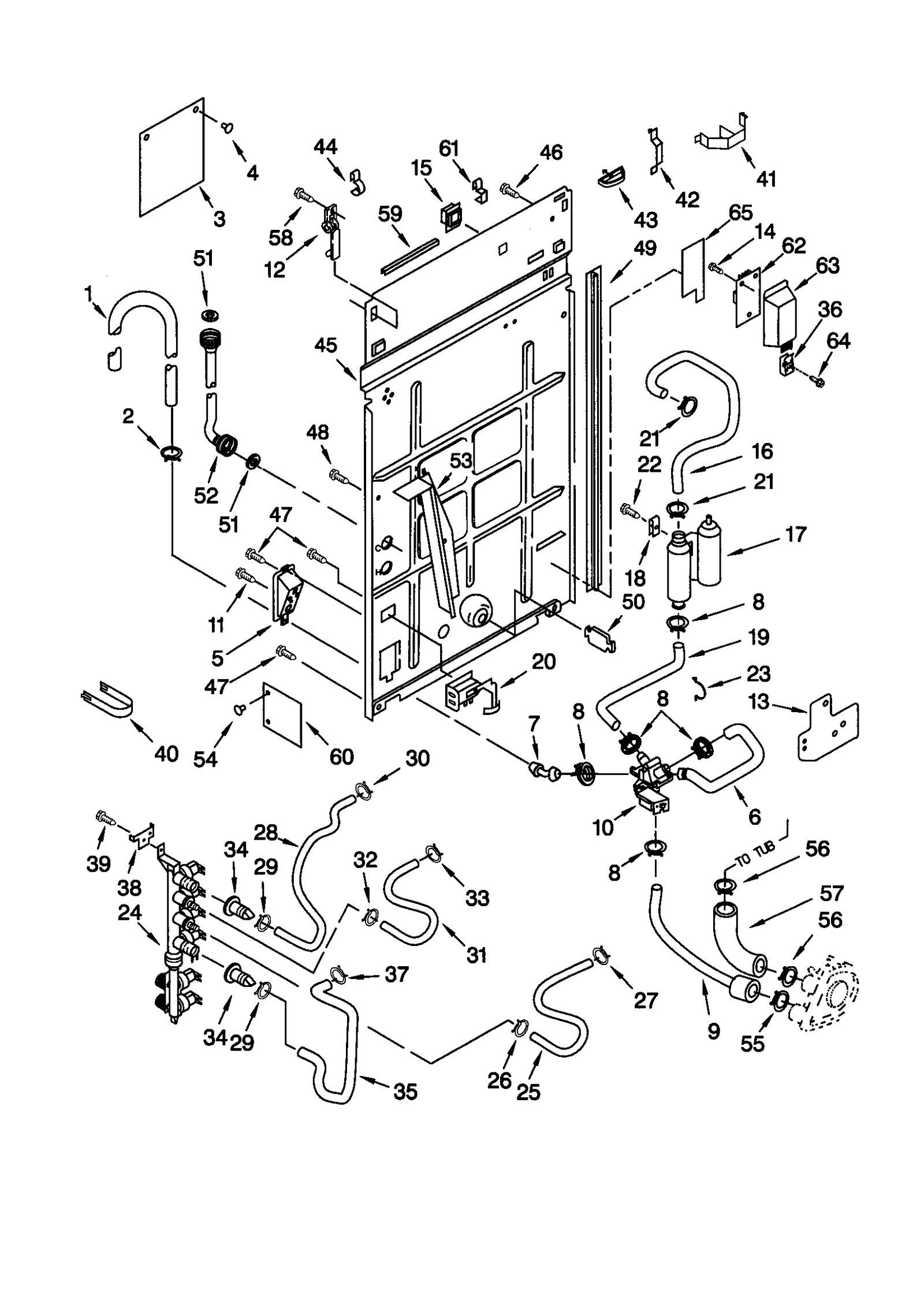

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Control Board WPL 8054651 Contact Us For Availability

5

Bracket WPL 3976335 Contact Us For Availability

5

Bracket WPL 8282550 Contact Us For Availability

5B

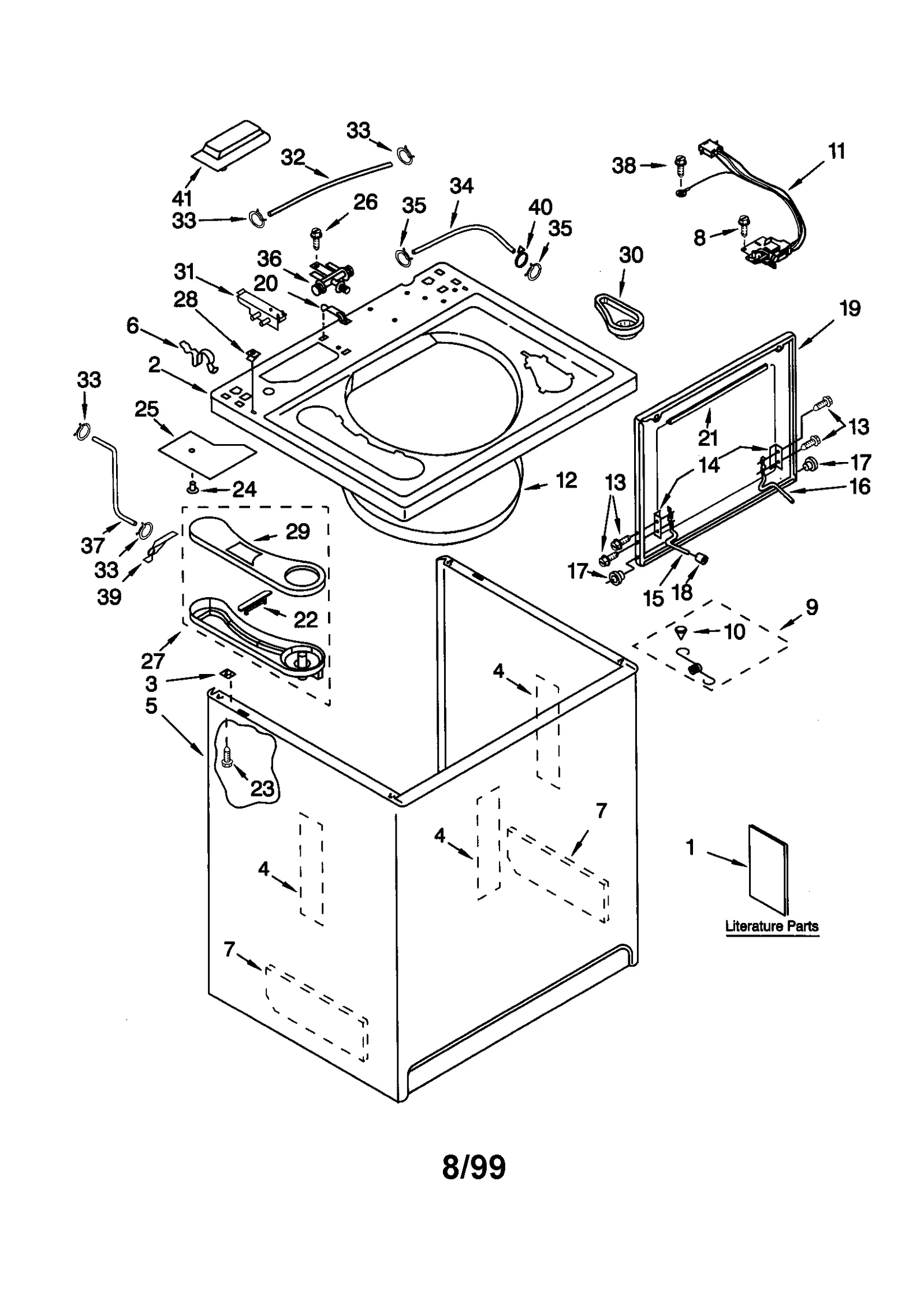

Cabinet WPL 8280606 Contact Us For Availability

6

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

6

Twoway Valve Hose WPL 3358564 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

Washer Drain Hose Connector WPL 95440 Contact Us For Availability

7

Sound Absorber WPL 8054736 Contact Us For Availability

7

Washer Drain Protector WPL 367031 Contact Us For Availability

7A

End Cap WPL 3949283 Contact Us For Availability

7B

End Cap WPL 3949281 Contact Us For Availability

8

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Lid Switch Screw WPL 3400611 Contact Us For Availability

8A

Trim WPL 3953668 Contact Us For Availability

8B

Trim WPL 3951014 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

Pump Hose WPL 3358562 Contact Us For Availability

9

Washer Tub Ring Seal WPL 8054355 Contact Us For Availability

9

Sprng-hnge WPL 8283549 Contact Us For Availability

9

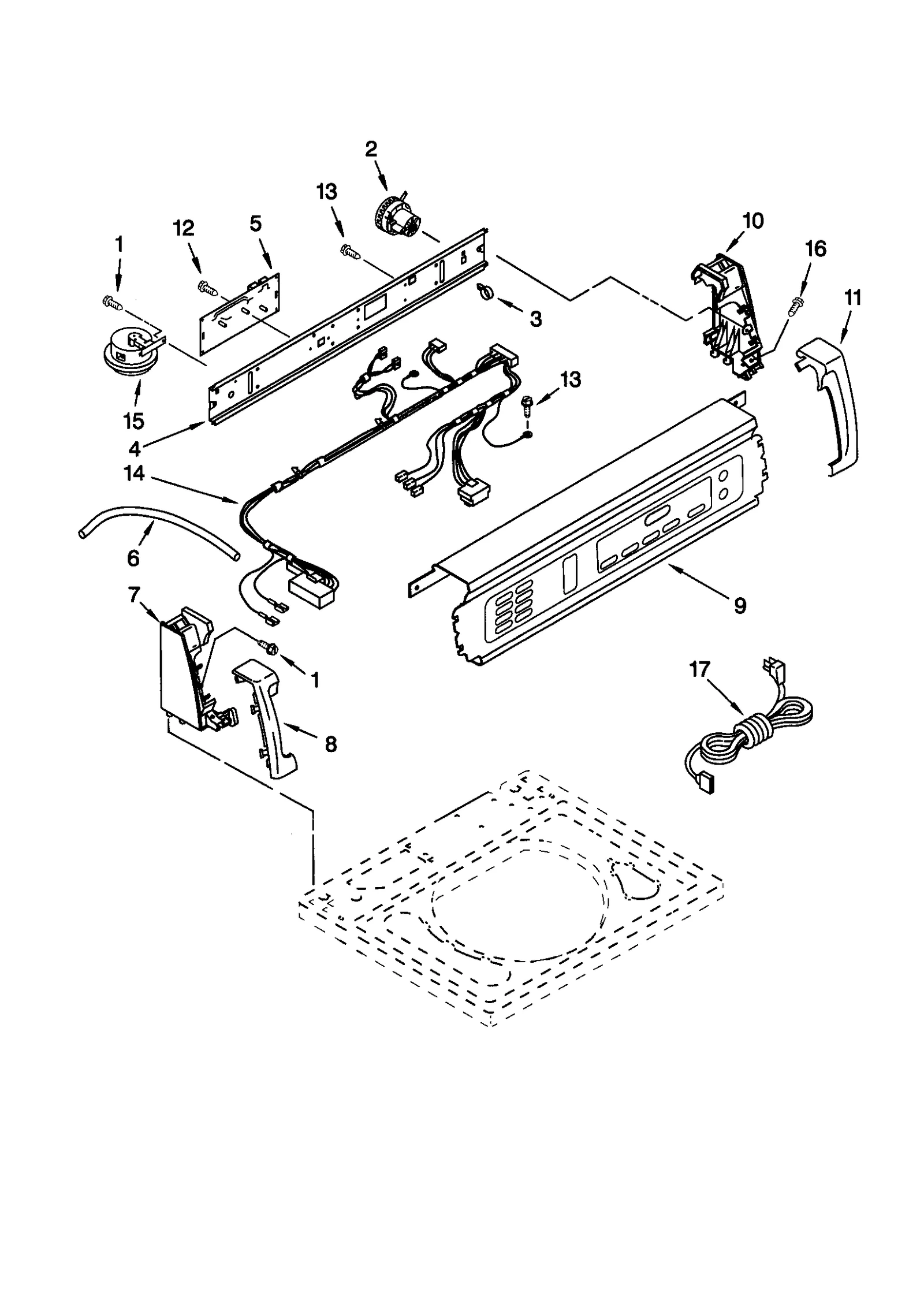

Washer Control Panel Assembly WPL 8282528 Contact Us For Availability

9A

Control Panel WPL 8282530 Contact Us For Availability

9B

Control Panel WPL 8282529 Contact Us For Availability

279954 Whirlpool Endcap Kit (Left/Right) Backorder WPL 279954 $73.56

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Washer Inlet Valve WPL 3358559 Contact Us For Availability

Plug WPL 54690 Contact Us For Availability

Clip WPL 3976276 Contact Us For Availability

10A

End Cap WPL 3949277 Contact Us For Availability

10B

End Cap WPL 3949275 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $80.37

Washer Terminal Connector WPL 353424 Contact Us For Availability

Screw WPL 3352299 Contact Us For Availability

11A

Trim WPL 3953667 Contact Us For Availability

11B

Trim WPL 3951010 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP8271956 Whirlpool Shield Backorder WPL WP8271956 $64.67

Hinge Panel WPL 387402 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Washer Outer Tub WPL 8055061 Contact Us For Availability

Shield Valve WPL 3948552 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP8054468 Whirlpool Agitator Auger Backorder WPL WP8054468 $102.72

Wire Harness WPL 3954044 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Hinge Washer WPL 8055257 Contact Us For Availability

Transducer WPL 8271913 Contact Us For Availability

Relief Stirrer WPL 3949468 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

Hinge Washer WPL 8055256 Contact Us For Availability

Hose WPL 8055233 Contact Us For Availability

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $62.61

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

Pressure Dome WPL 8055132 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

Clip WPL 98084 Contact Us For Availability

WP8055228 Whirlpool Washer In Stock WPL WP8055228 $9.70

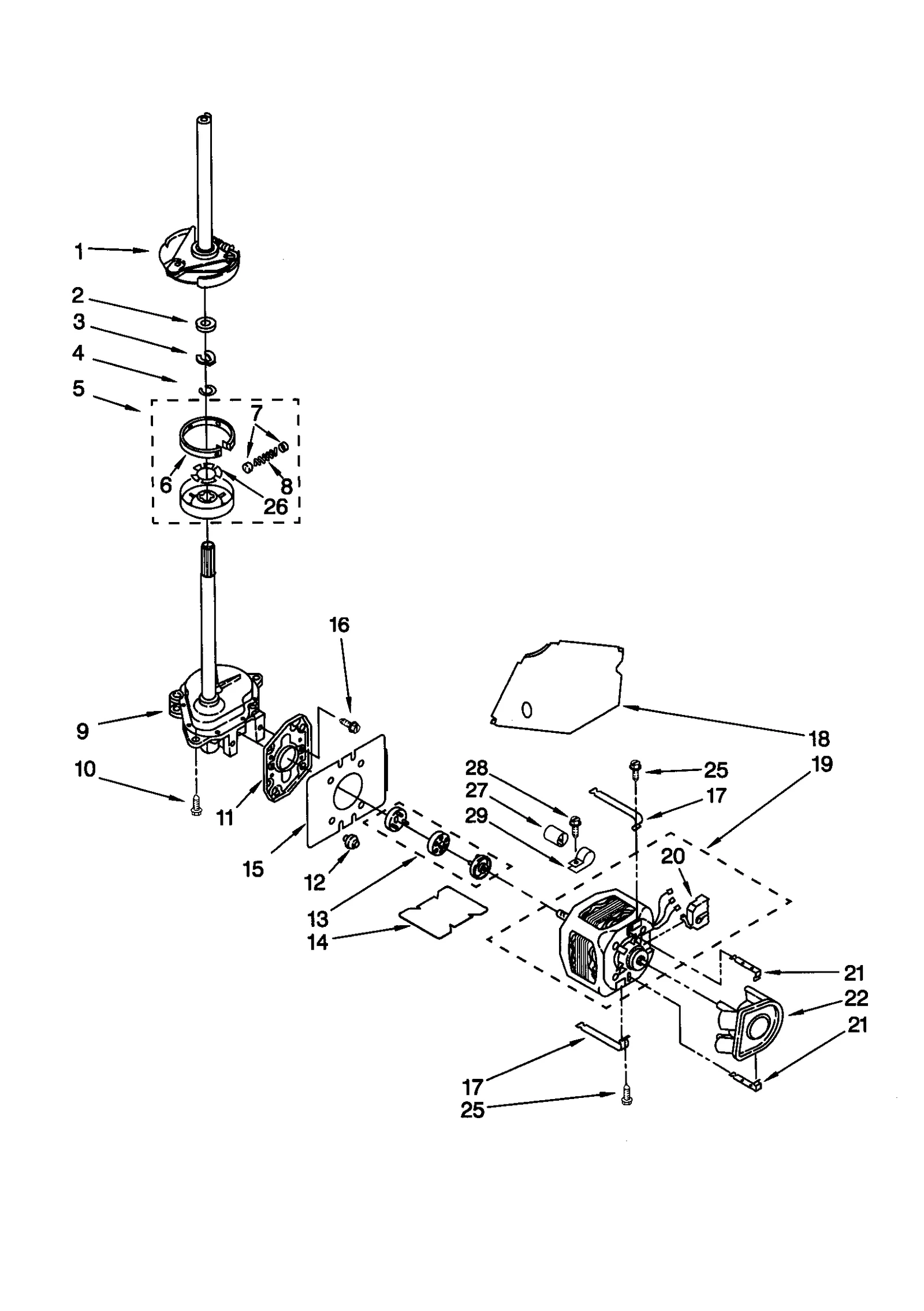

Washer Drive Motor WPL 8299649 Contact Us For Availability

Lid WPL 8054877 Contact Us For Availability

Hose WPL 8054709 Contact Us For Availability

Base WPL 3946512 Contact Us For Availability

19A

Lid WPL 8054879 Contact Us For Availability

19B

Lid WPL 8054878 Contact Us For Availability

20

Switch-bal WPL 8283252 Contact Us For Availability

20

Clip WPL 357144 Contact Us For Availability

20

Sound Absorber WPL 8283230 Contact Us For Availability

3363365 Whirlpool Clamp Backorder WPL 3363365 $4.76

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

Washer Lid Seal WPL 8054939 Contact Us For Availability

21A

Washer Lid Seal WPL 8283532 Contact Us For Availability

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

Insert WPL 8272148 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

Retainer WPL 8054659 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

Washer Inlet Valve WPL 8271904 Contact Us For Availability

24

Rivet WPL 8280537 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Washer Recirculation Pump Hose WPL 8271982 Contact Us For Availability

25

Shield WPL 8272149 Contact Us For Availability

25A

Washer Bleach Dispenser Hose WPL 8526794 Contact Us For Availability

26

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8055237 Whirlpool Dispenser Backorder WPL WP8055237 $29.74

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Connector WPL 3360056 Contact Us For Availability

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

28

Washer Bleach Dispenser Hose WPL 8271984 Contact Us For Availability

28

Clip WPL 3350282 Contact Us For Availability

29

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

29

Washer Cover WPL 8272009 Contact Us For Availability

30

WP3946995 Whirlpool Retainer Backorder WPL WP3946995 $19.42

30

Washer Dispenser Assembly WPL 8055238 Contact Us For Availability

31

Washer Softener Dispenser Inlet Hose WPL 8271983 Contact Us For Availability

31

Connector WPL 8055243 Contact Us For Availability

32

Hose WPL 8055266 Contact Us For Availability

34

Washer Valve WPL 8055306 Contact Us For Availability

34

Hose WPL 8055267 Contact Us For Availability

35

Washer Tub Fill Hose WPL 8271981 Contact Us For Availability

36

WP3400915 Whirlpool Nut Backorder WPL WP3400915 $2.98

36

Connector WPL 8272010 Contact Us For Availability

37

WP8283537 Whirlpool Hose Assembly Backorder WPL WP8283537 $12.15

38

Bracket WPL 8271909 Contact Us For Availability

39

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

39

Clip WPL 8271943 Contact Us For Availability

40

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

40

Clip WPL 8272128 Contact Us For Availability

41

Cover WPL 8055247 Contact Us For Availability

41

Retainer WPL 8055003 Contact Us For Availability

42

Retainer WPL 8054658 Contact Us For Availability

43

Harness Clip WPL 3352944 Contact Us For Availability

44

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

45

Rear Panel WPL 8299633 Contact Us For Availability

46

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

47

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

48

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

49

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

50

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

51

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

52

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

53

Shield Valve WPL 8280536 Contact Us For Availability

54

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

56

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

57

Hose WPL 8055063 Contact Us For Availability

59

Protector WPL 303294 Contact Us For Availability

60

Shield WPL 8272150 Contact Us For Availability

61

Clip WPL 8282518 Contact Us For Availability

62

Microcomputer WPL 8299619 Contact Us For Availability

63

Cover WPL 8299620 Contact Us For Availability

64

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

65

Gasket WPL 8299758 Contact Us For Availability
