Model Whirlpool 106.53792200 Refrigerator (Kenmore 10653792200) – Common Parts &amp; Diagrams

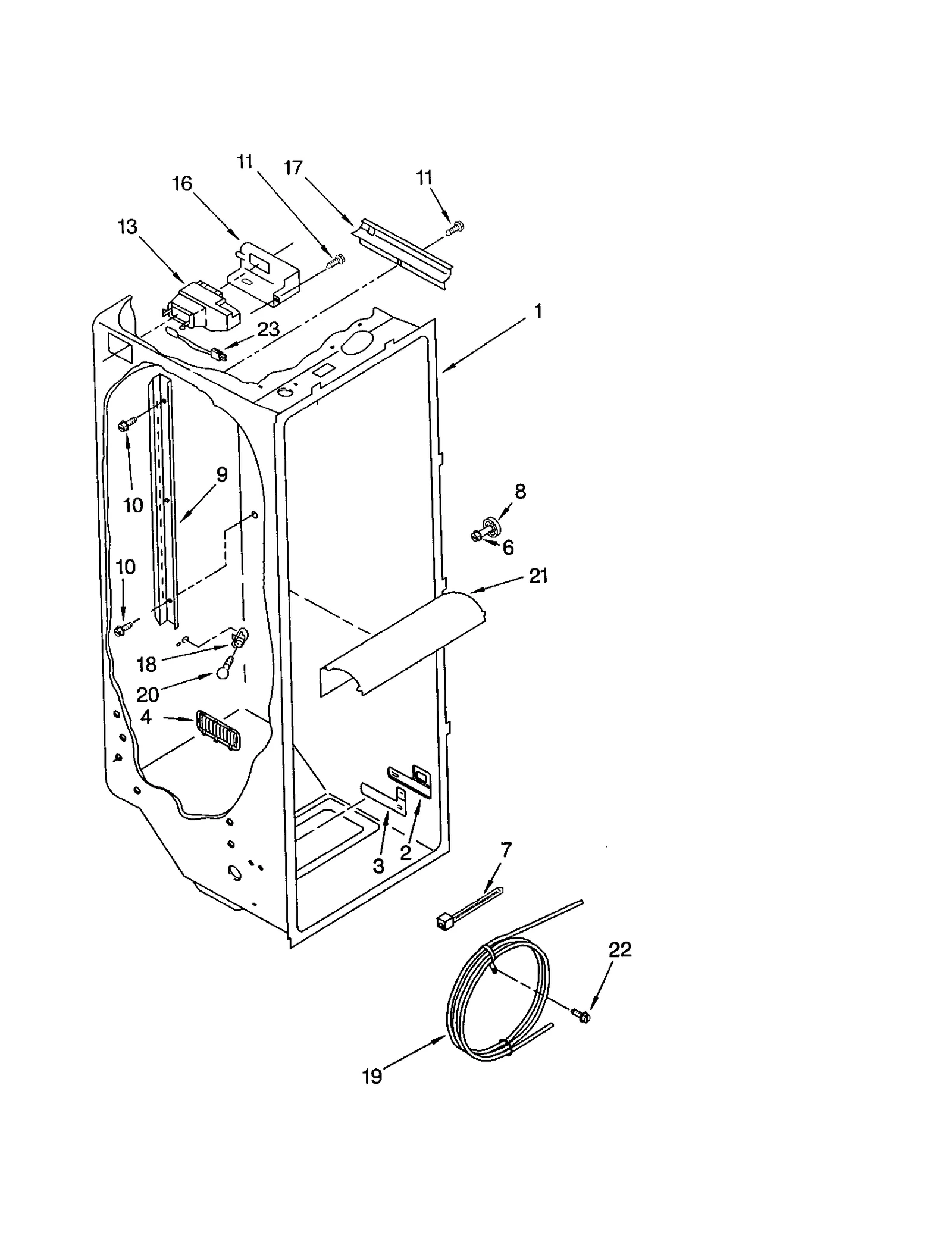

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

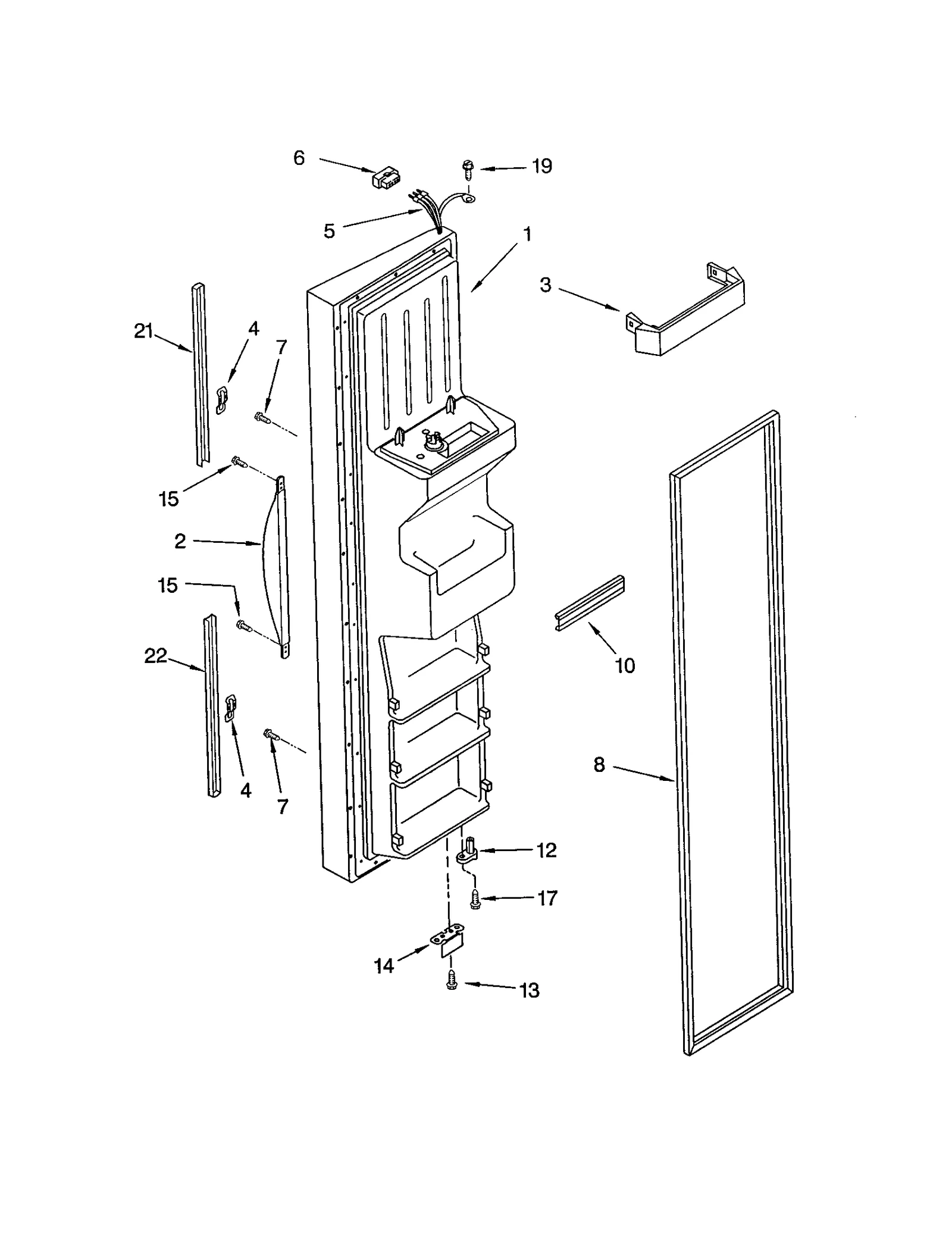

Freezer Door Assembly (White) WPL 2220580W Contact Us For Availability

1

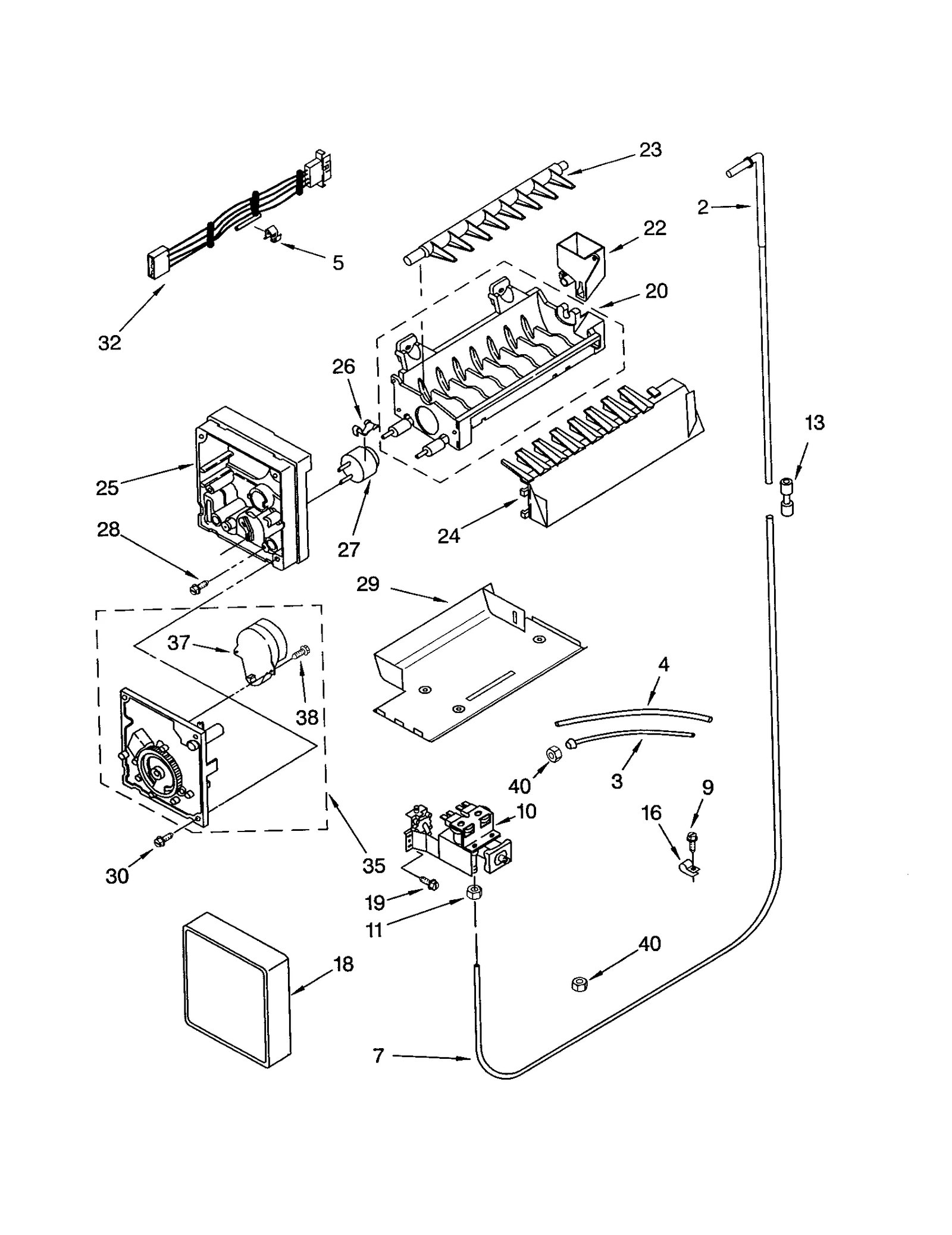

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1A

Freezer Door Assembly (Bisque) WPL 2220580T Contact Us For Availability

1B

Freezer Door Assembly (Black) WPL 2220580B Contact Us For Availability

1C

Refrigerator Door Panel WPL 2220580SJ Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $51.10

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

2

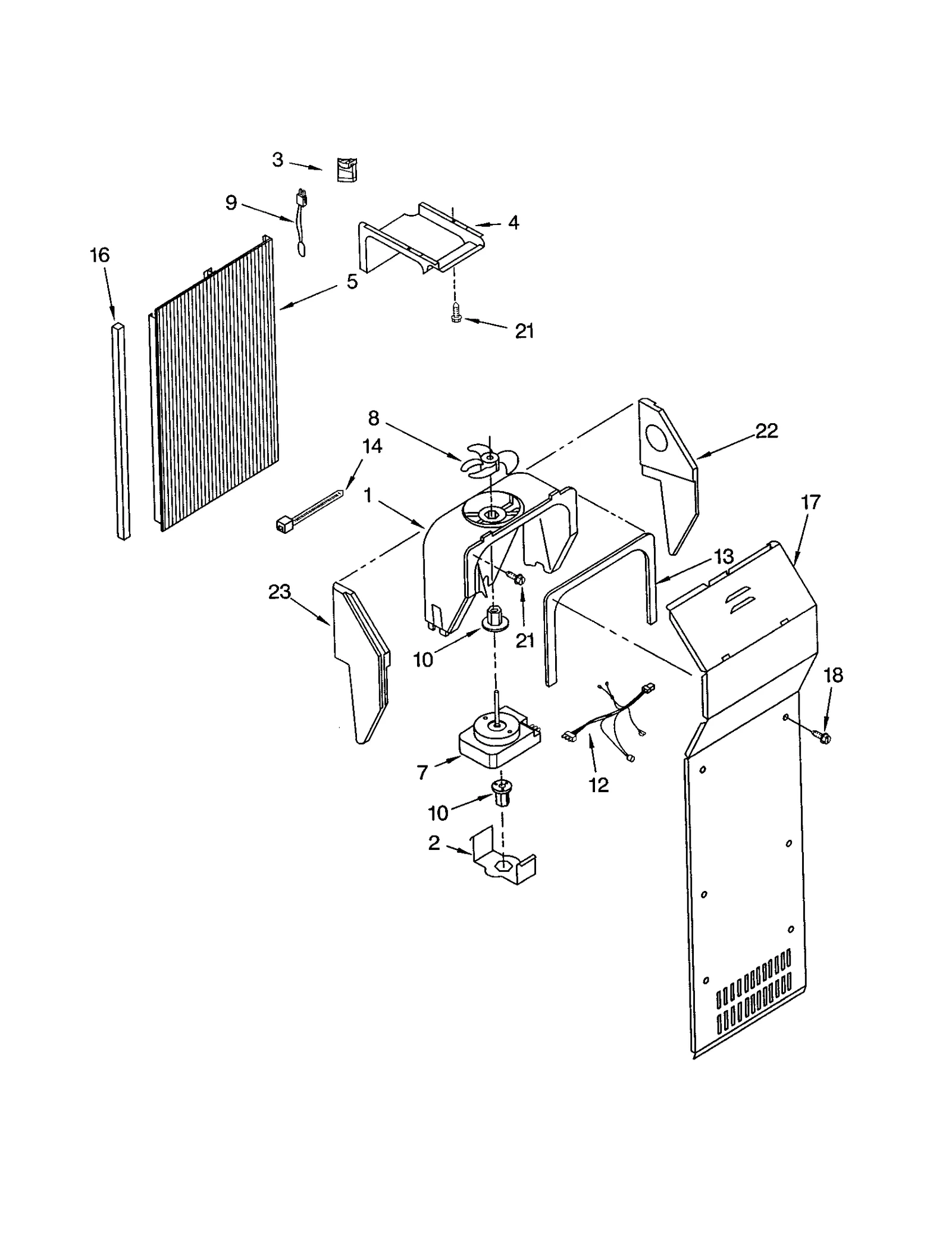

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2A

Refrigerator Door Handle (Bisque) WPL 2206934T Contact Us For Availability

2C

Refrigerator Door Handle (Graphite) WPL 2206934J Contact Us For Availability

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

3

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $35.54

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $26.85

4

Refrigerator Door Trim Clip WPL 2206905 Contact Us For Availability

4

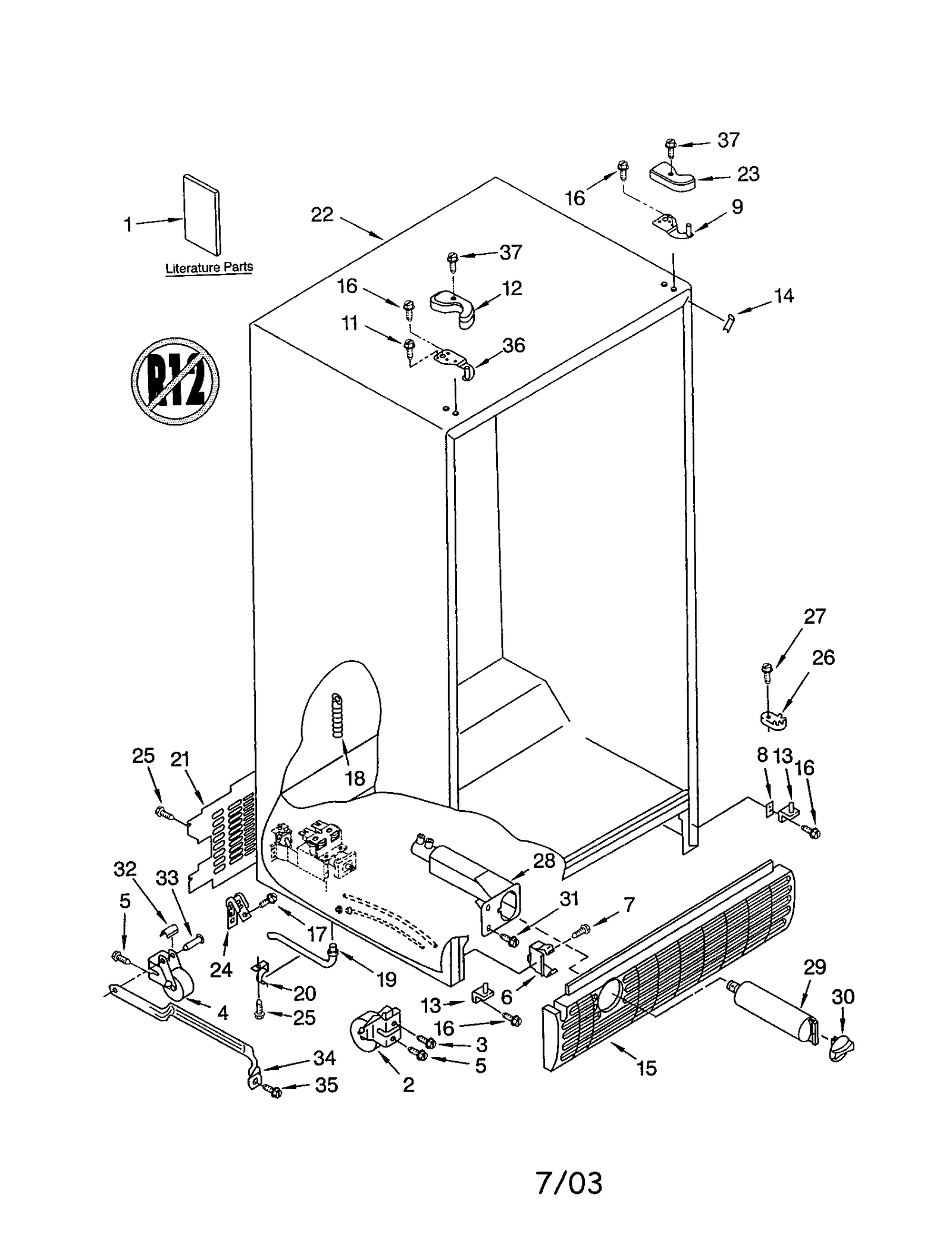

Cabinet Louver WPL 2182147 Contact Us For Availability

4A

Refrigerator Door Trim Clip, Upper WPL 2206904 Contact Us For Availability

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $58.44

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

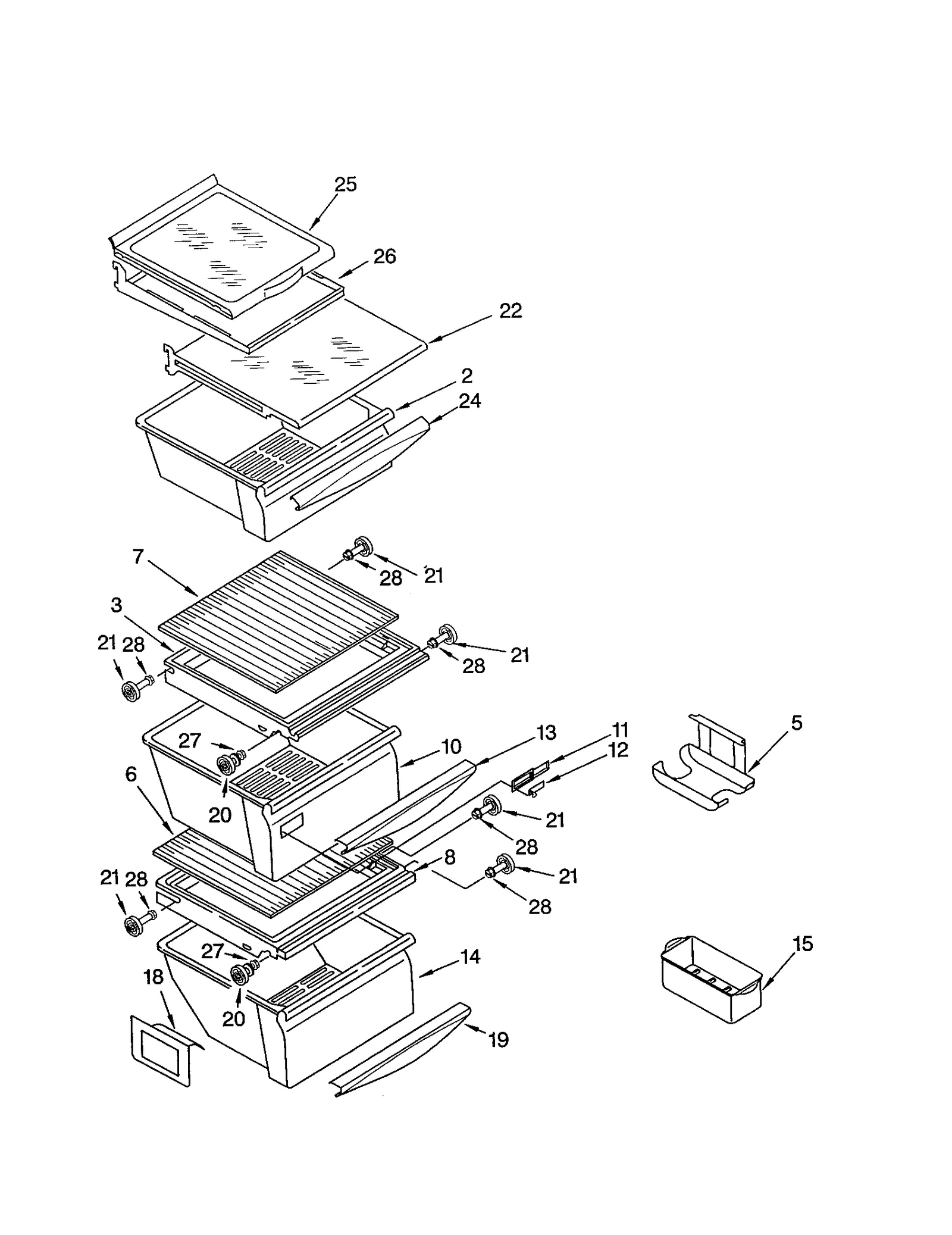

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

6

Refrigerator Tube WPL 2211760 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

7

Refrigerator Shield WPL 2149294 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $161.37

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2206934W Whirlpool Refrigerator Handle Backorder WPL WP2206934W $80.02

8

Refrigerator Suction Line WPL 2205765 Contact Us For Availability

8A

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $141.10

8A

Refrigerator Shim WPL 2209697 Contact Us For Availability

8B

WP2206934B Whirlpool Refrigerator Handle In Stock WPL WP2206934B $81.11

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

9

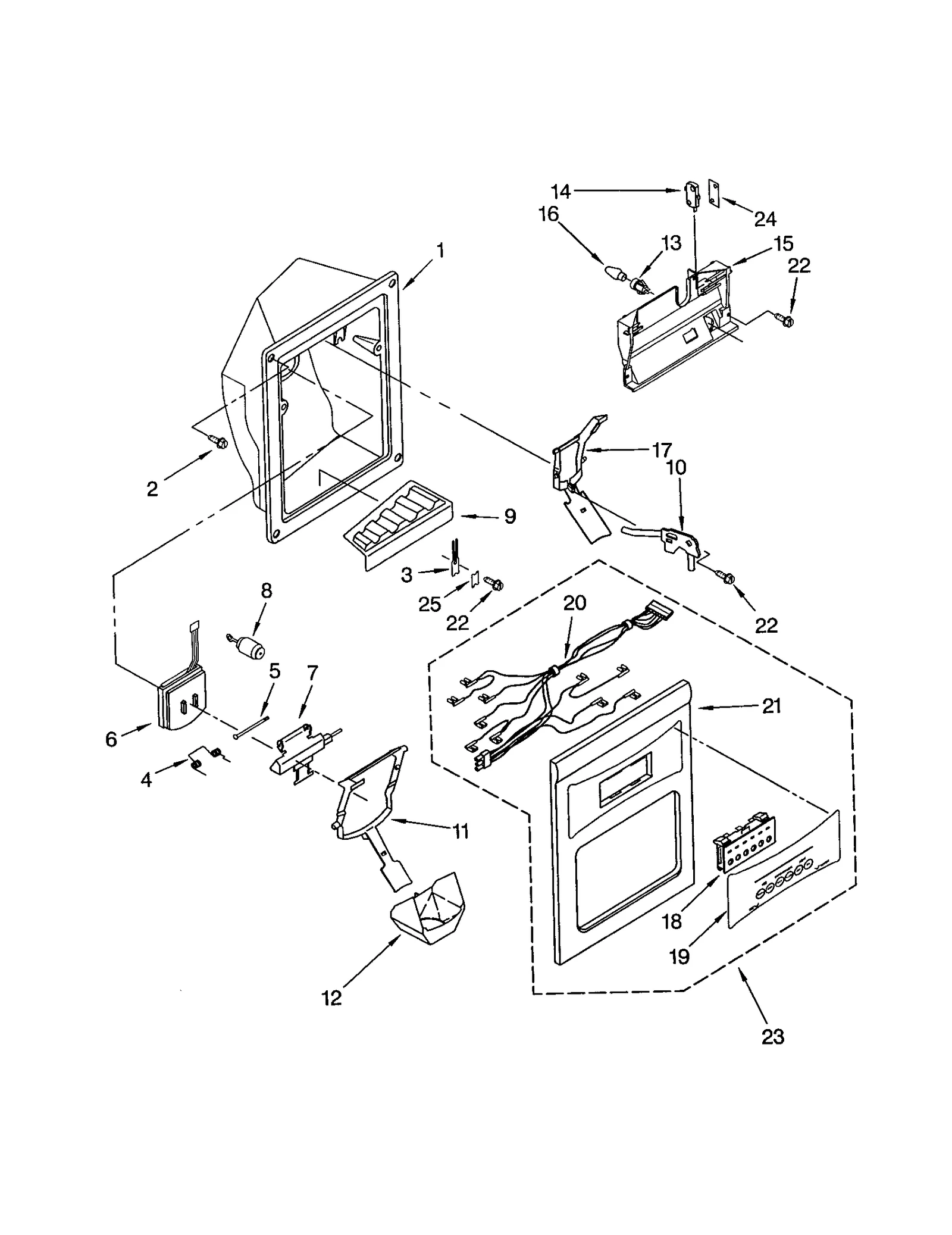

Refrigerator Dispenser Drip Tray WPL 2200088W Contact Us For Availability

9

Refrigerator Ladder WPL 2206273 Contact Us For Availability

9B

WP2200088B Whirlpool Refrigerator Grille In Stock WPL WP2200088B $43.61

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $54.96

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

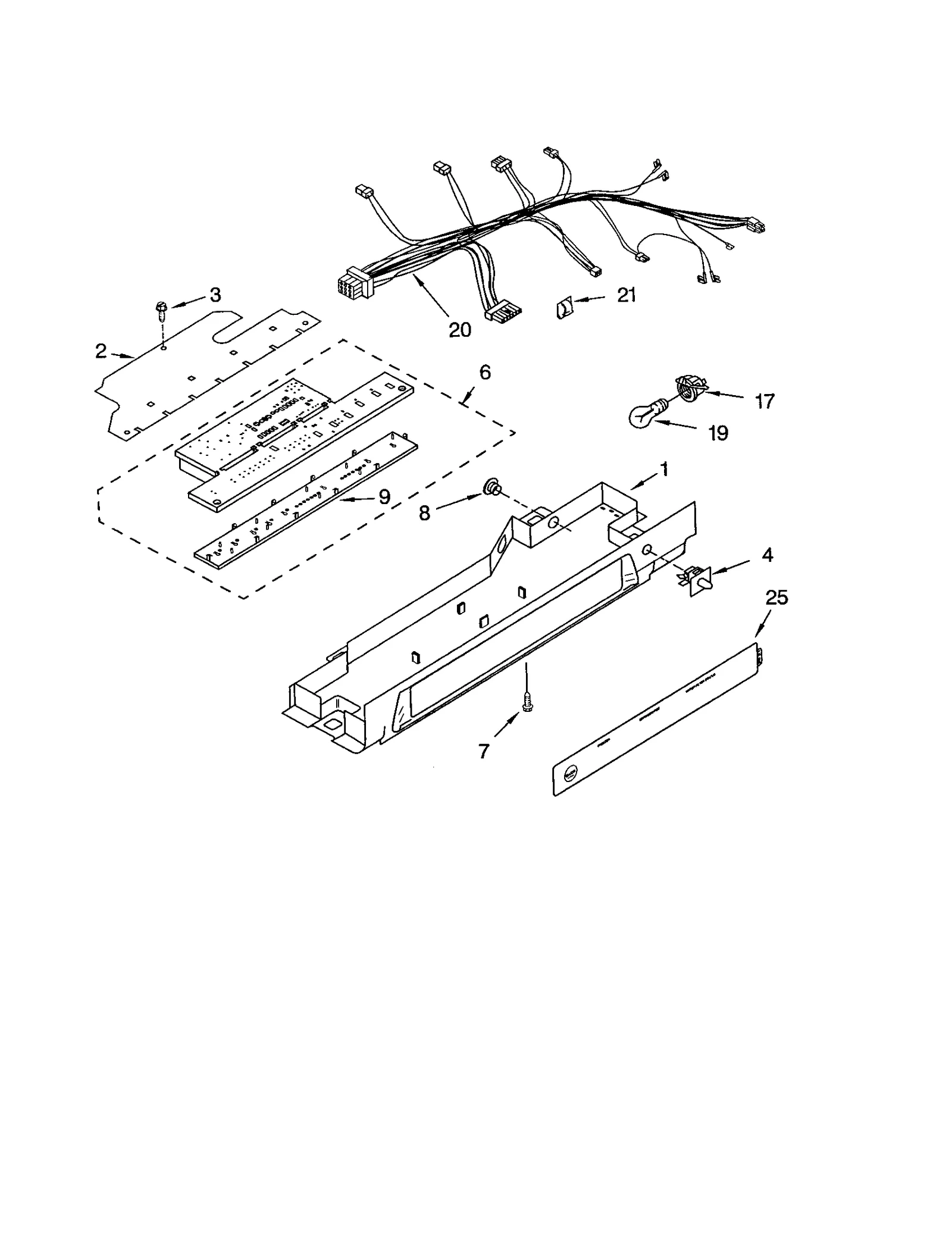

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Refrigerator Ice Dispenser Blade Rest WPL 2198602 Contact Us For Availability

Refrigerator Insert WPL 2216997 Contact Us For Availability

11A

Refrigerator Dispenser Lever WPL 2203562T Contact Us For Availability

11B

Refrigerator Dispenser Lever (Black) WPL 2203562B Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

12A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

12B

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.95

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $116.35

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.44

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

Refrigerator Bracket WPL 2206910 Contact Us For Availability

14B

WP2203570B Whirlpool Refrigerator Extension Backorder WPL WP2203570B $58.32

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

15

Refrigerator Door Handle Trim WPL 2203571W Contact Us For Availability

15A

Refrigerator Grille WPL 2198468T Contact Us For Availability

15B

WP2203571B Whirlpool Refrigerator Extension Backorder WPL WP2203571B $60.38

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $89.40

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Refrigerator Start Device WPL 2212194 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $37.97

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $90.19

17A

Refrigerator Dispenser Lever WPL 2203561T Contact Us For Availability

17B

Refrigerator Dispenser Lever WPL 2203561B Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $34.28

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $67.09

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Grommet WPL 509812 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

Refrigerator Cover Unit WPL 2200468 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Refrigerator Door Top Trim WPL 2203568W Contact Us For Availability

Refrigerator Light Lens WPL 2206269 Contact Us For Availability

21A

Refrigerator Extension WPL 2203568T Contact Us For Availability

21B

Refrigerator Door Handle Trim WPL 2203568B Contact Us For Availability

21C

Refrigerator Door Handle Trim WPL 2203568J Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $196.39

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $30.36

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Refrigerator Shelf WPL 2211581 Contact Us For Availability

Refrigerator Door Handle Trim, Lower (White) WPL 2203569W Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

22A

Refrigerator Extension WPL 2203569T Contact Us For Availability

22B

Refrigerator Door Handle Trim WPL 2203569B Contact Us For Availability

22C

Refrigerator Door Handle Trim WPL 2203569J Contact Us For Availability

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $15.49

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

23B

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $138.03

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $44.47

Spacer WPL 625834 Contact Us For Availability

Refrigerator Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Refrigerator Wire Harness WPL 2187425 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

27

WP2212370 Whirlpool Washer In Stock WPL WP2212370 $7.45

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

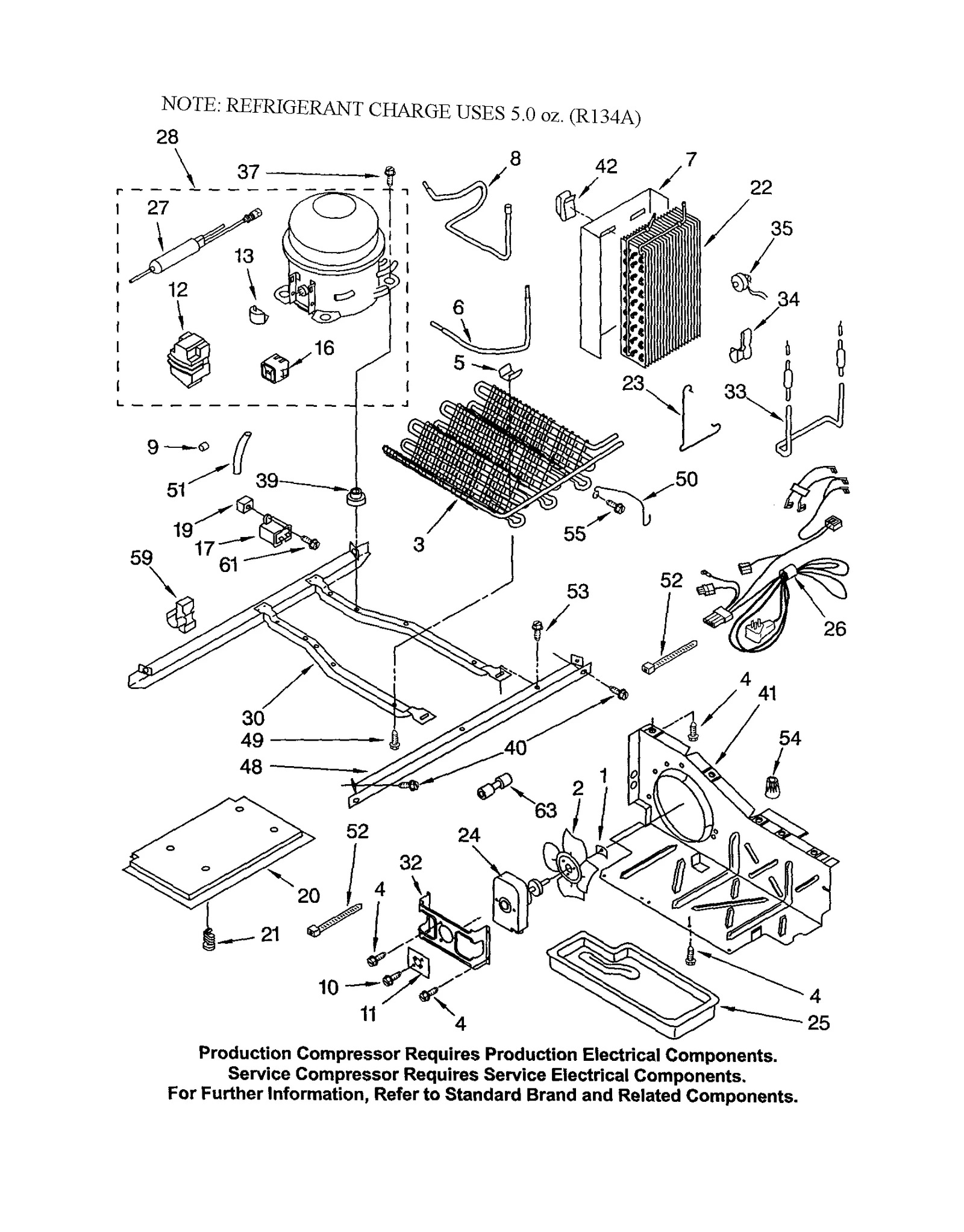

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $314.61

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $38.23

Refrigerator Ice Maker Cover Bracket, Right WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $39.69

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $115.36

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $33.10

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $45.77

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30A

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

30B

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $21.50

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $51.40

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Refrigerator Defrost Clip WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.05

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

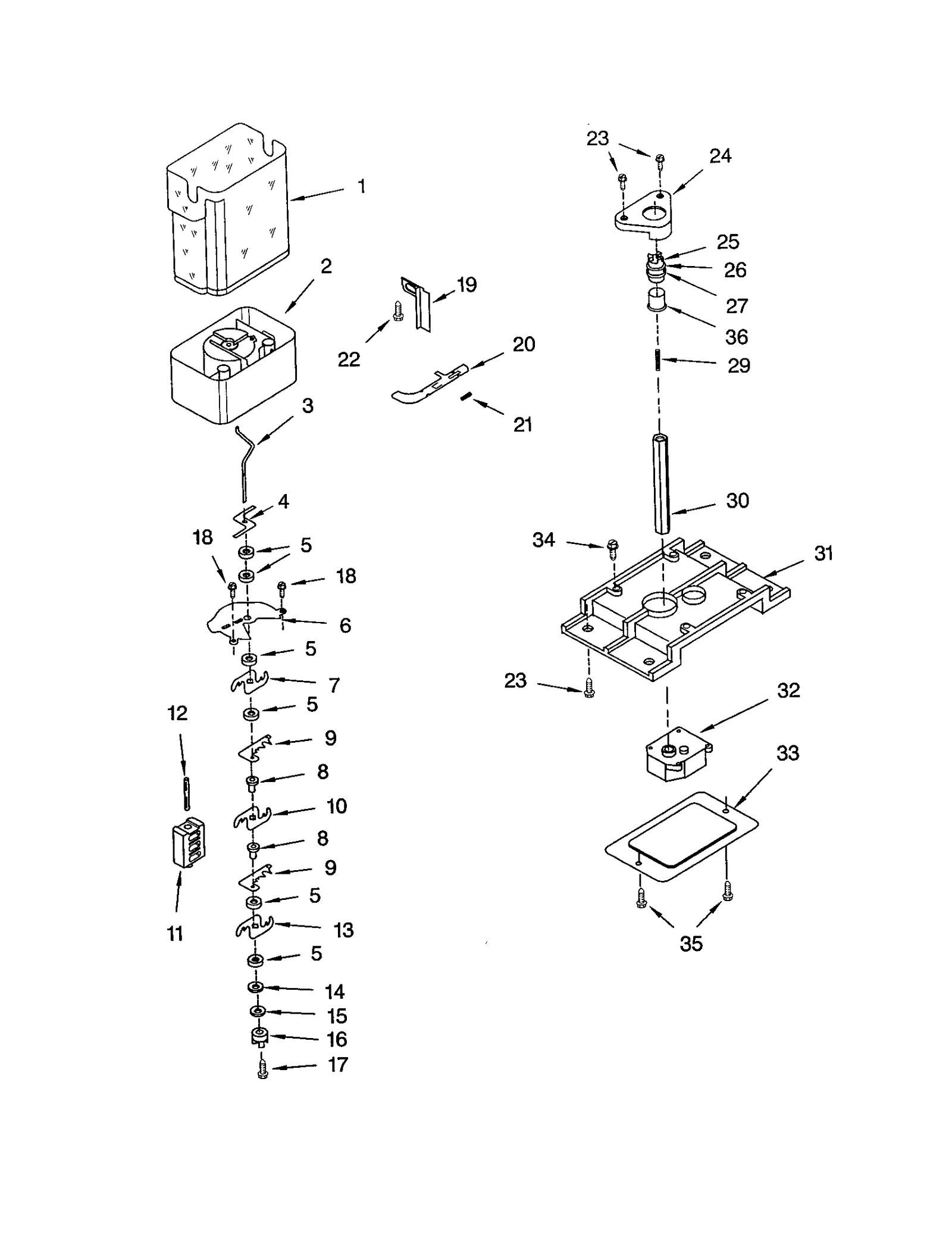

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

37

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

37

SCREW WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39A

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Refrigerator Nut WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Exchange Clip WPL 2155547 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $29.17

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Fan Guard WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Nut WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Ice Maker Wire Harness Clamp WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

63

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $25.22

NI01

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

NI02

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

NI03

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

NI04

Refrigerator Service Valve WPL 978028 Contact Us For Availability

NI05

Refrigerator Service Valve WPL 978029 Contact Us For Availability

NI06

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

NI07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

NI08

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

NI09

285006 Whirlpool Spray In Stock WPL 285006 $44.38

NI10

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

NI11

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

NI12

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

NI13

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

NI14

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

NI15

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

NI17

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

NI18

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

NI19

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

NI21

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

NI23

Foam Slab WPL 876029 Contact Us For Availability

NI24

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

NI25

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

NI26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

NI27

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

NI28

Adhesive WPL 542639 Contact Us For Availability

NI29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

NI30

Epoxy WPL 799833 Contact Us For Availability

NI31

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

NI32

Refrigerator Ice Container WPL 2216054 Contact Us For Availability

NI33

Pnt-blk-qrt WPL 799340 Contact Us For Availability

NI34

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

NI35

Paint, Bsq WPL 4392900 Contact Us For Availability

NI36

Paint (Graphite) WPL 8171358 Contact Us For Availability

NI37

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
