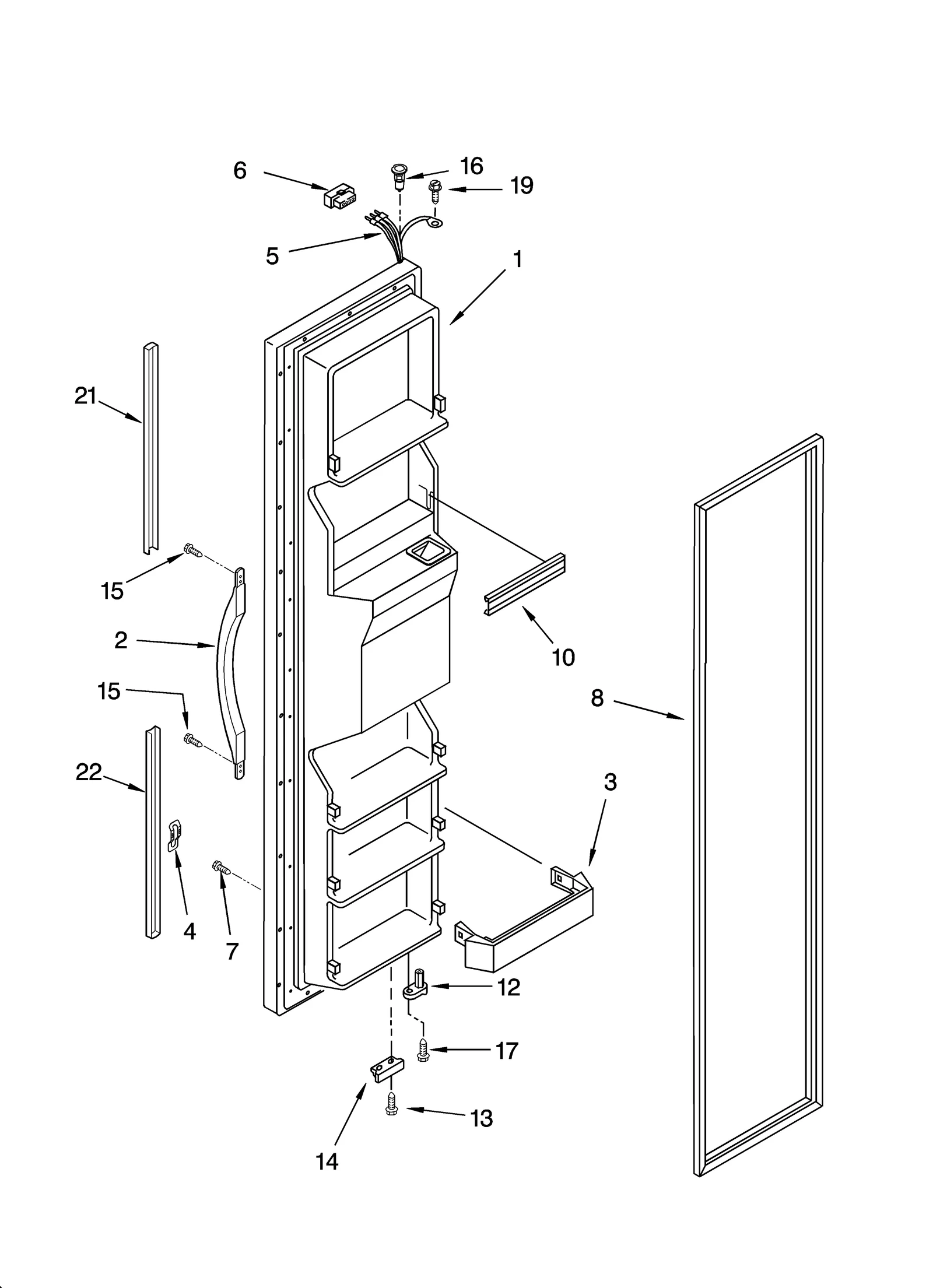

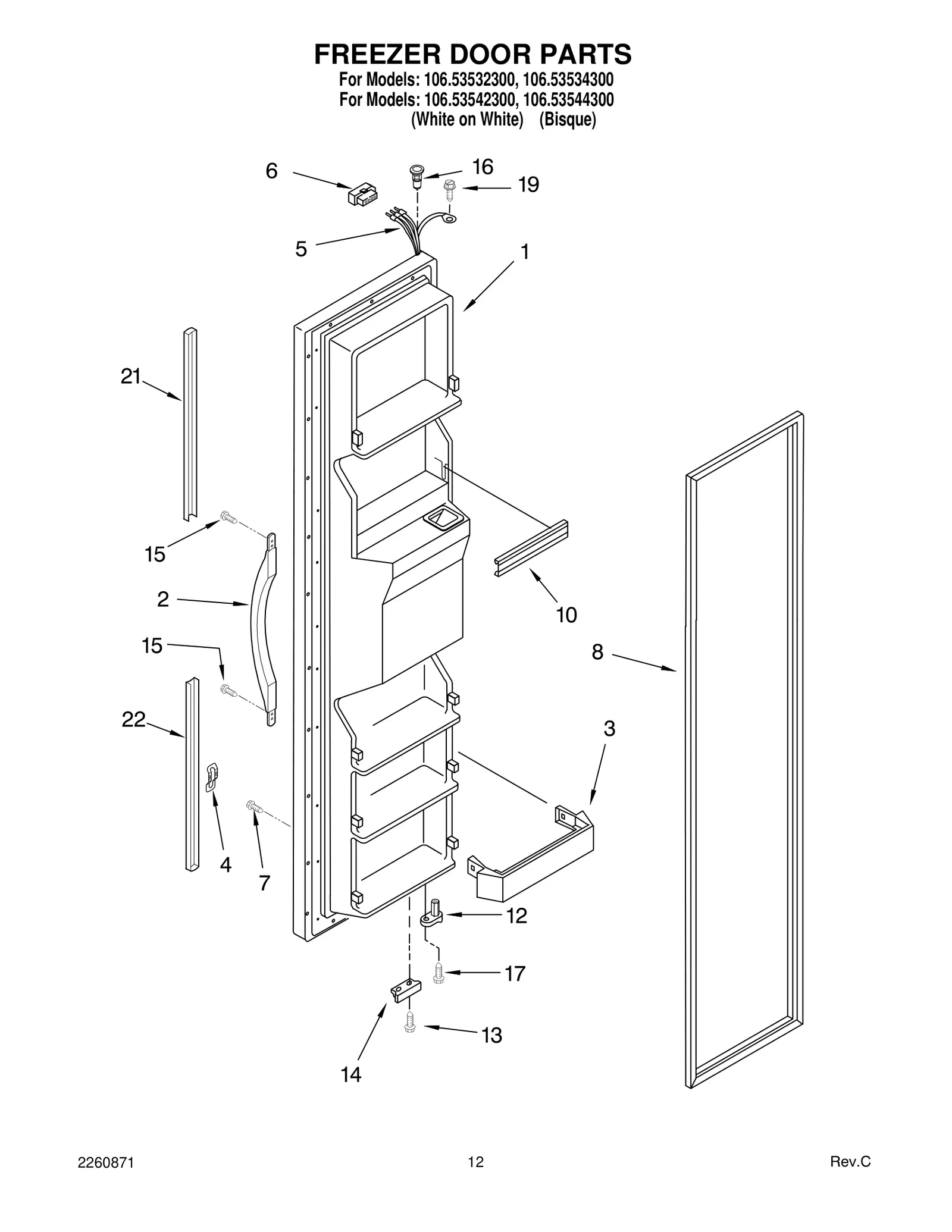

Model Whirlpool 106.53534300 Refrigerator (Kenmore 10653534300) – Common Parts &amp; Diagrams

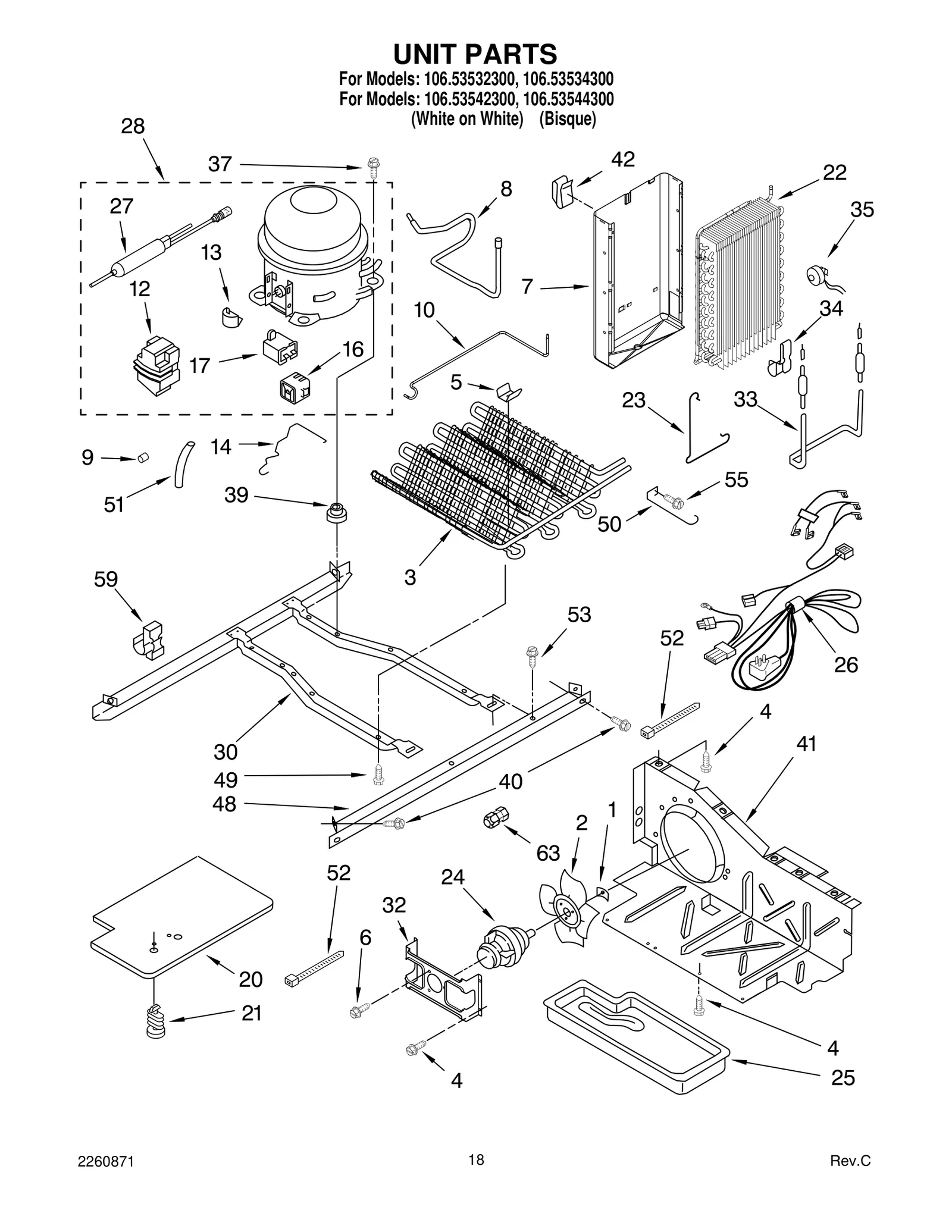

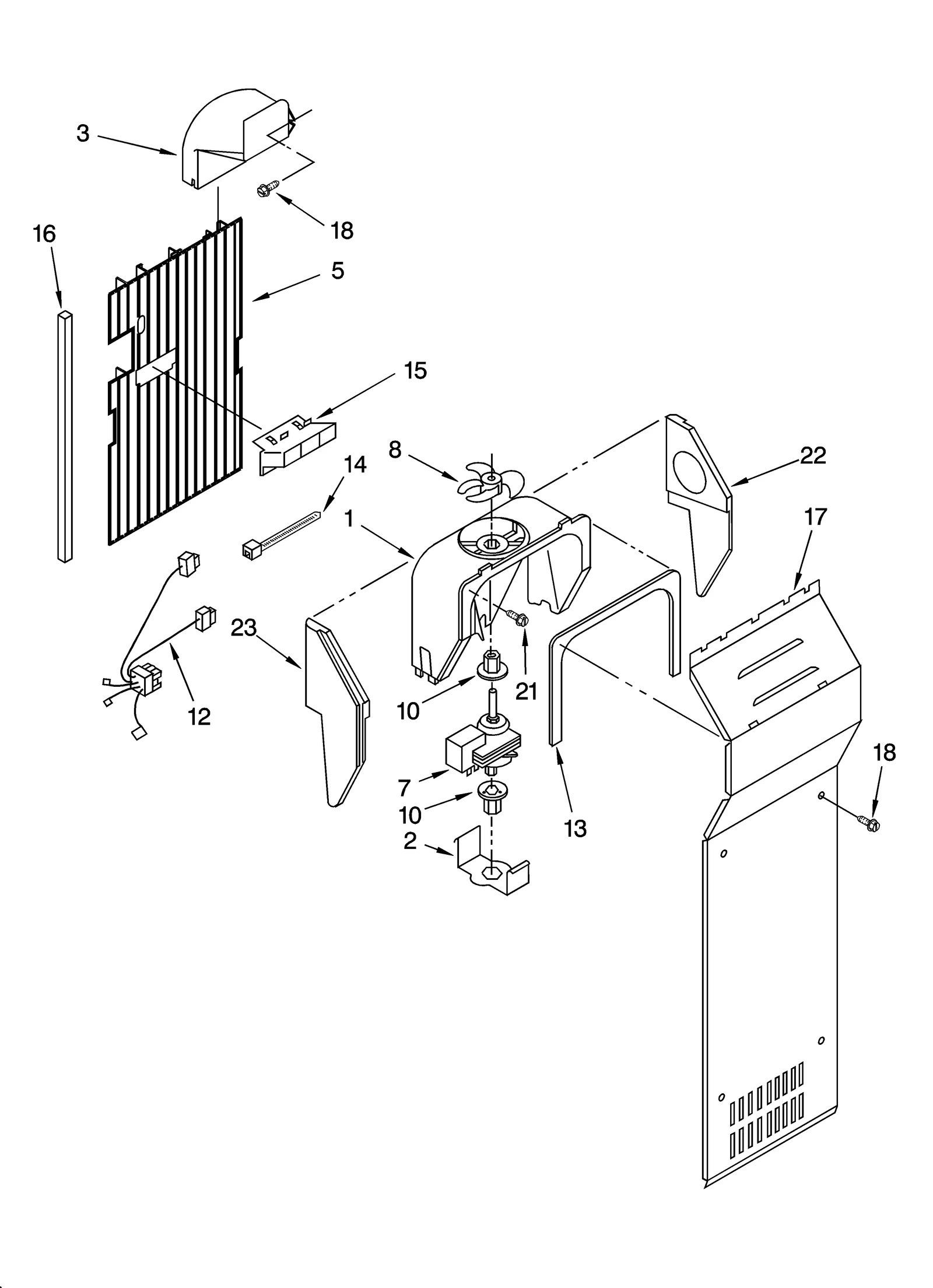

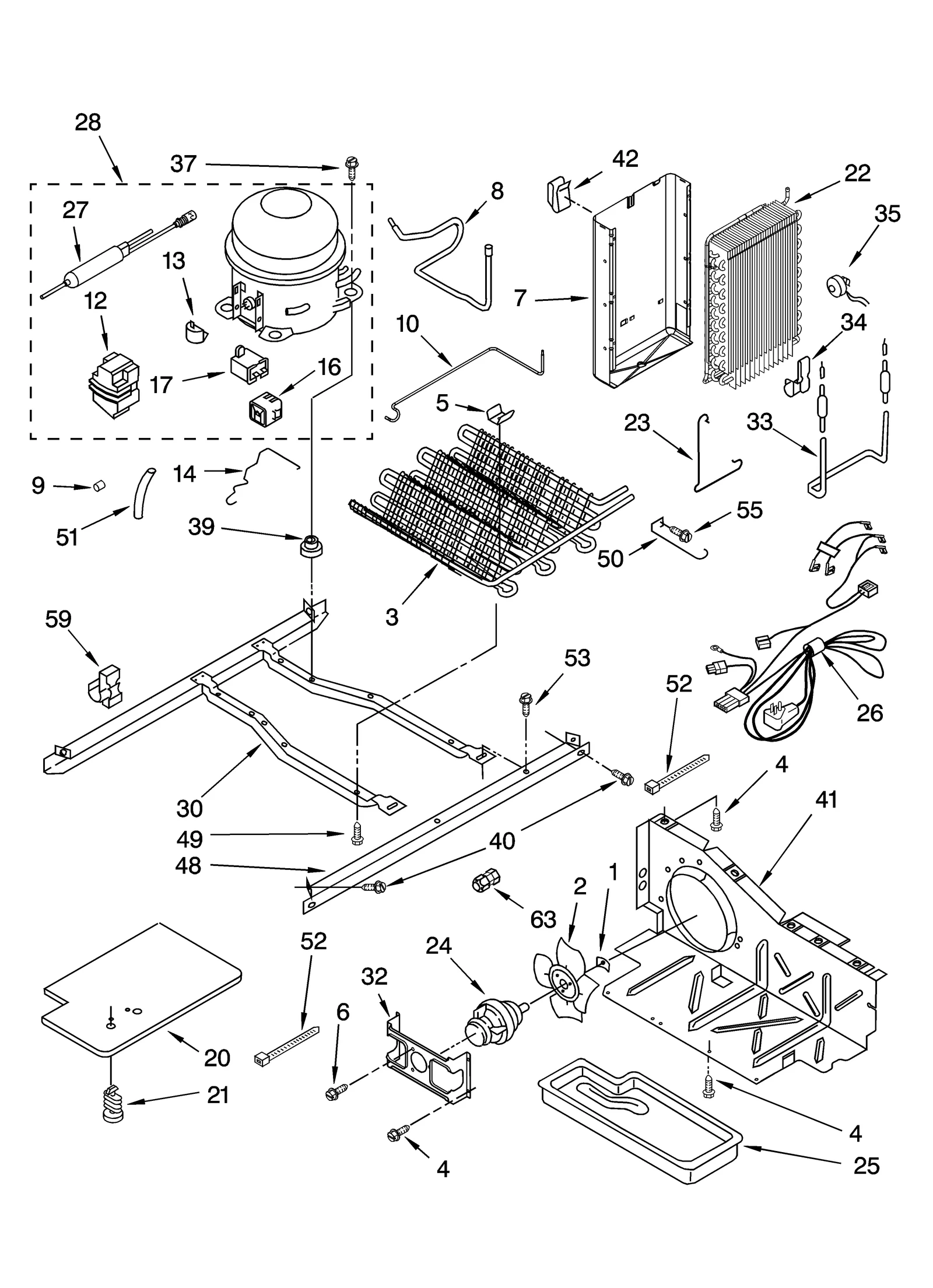

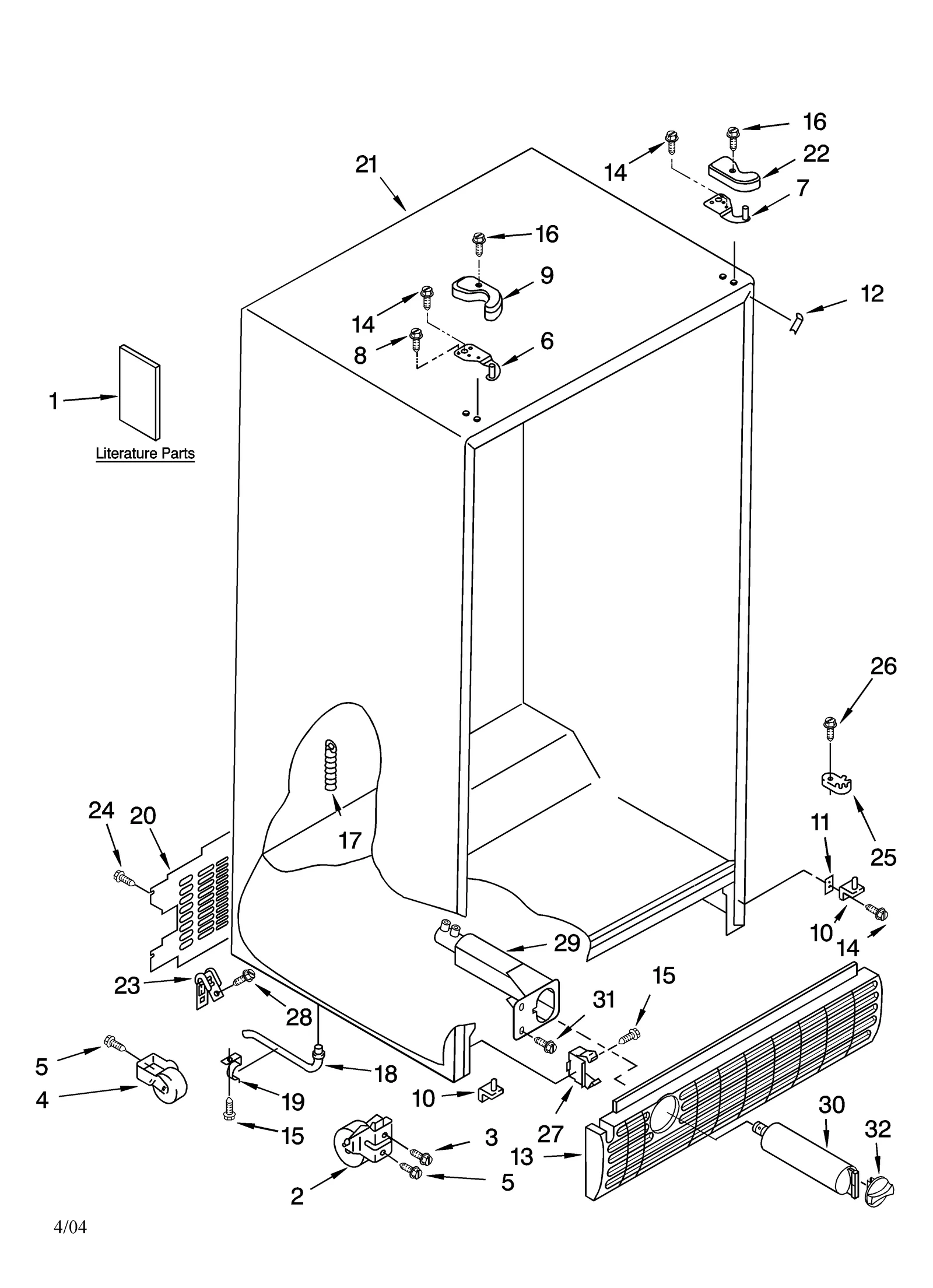

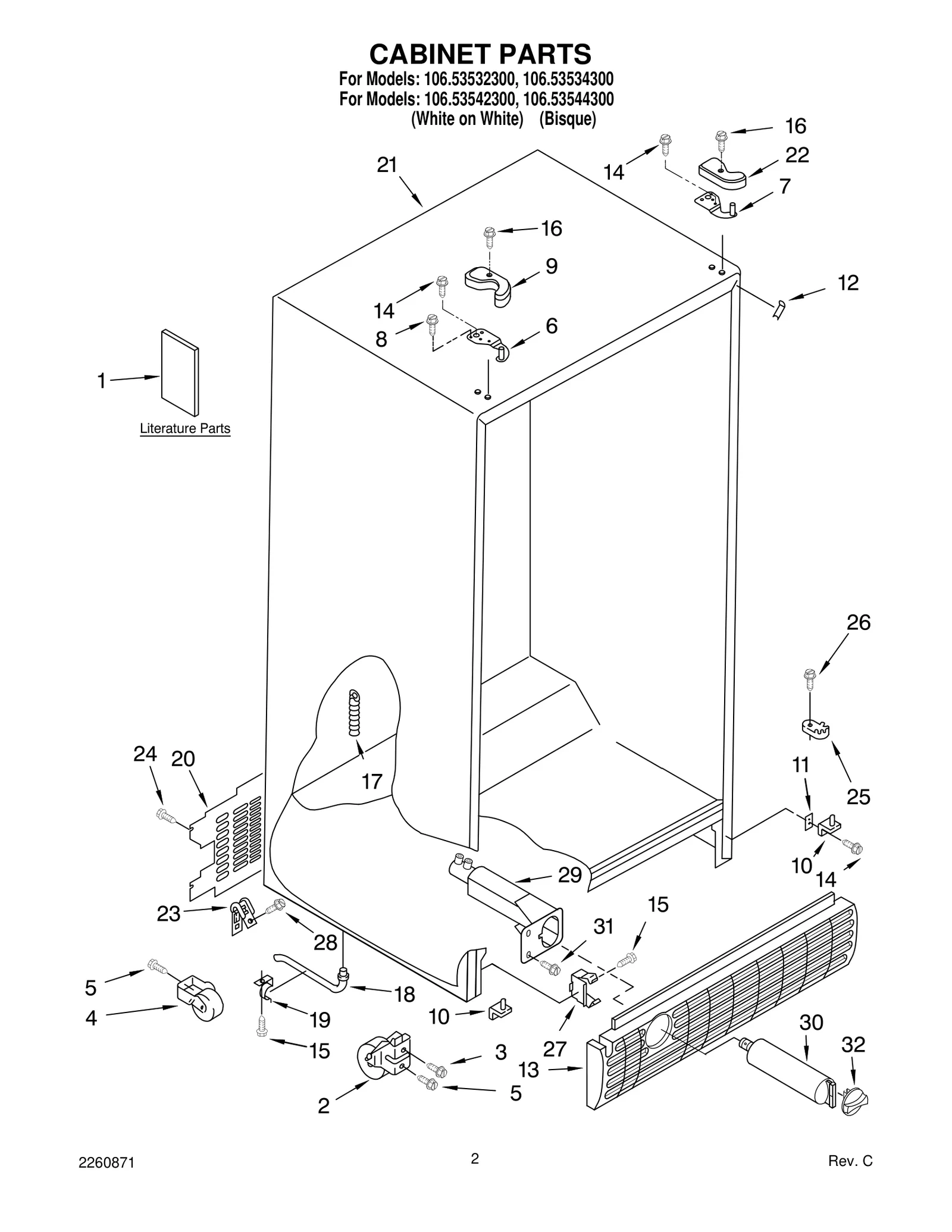

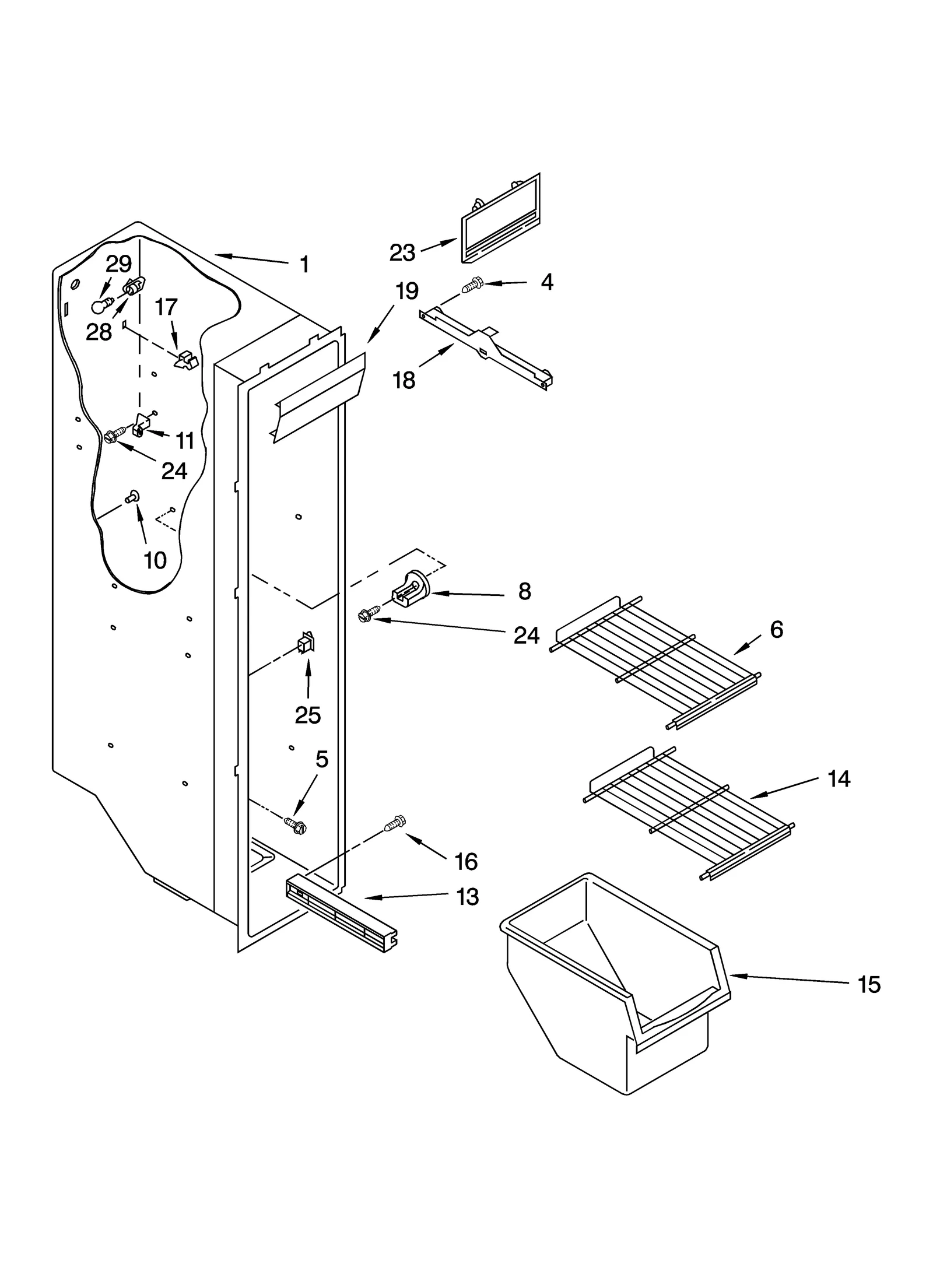

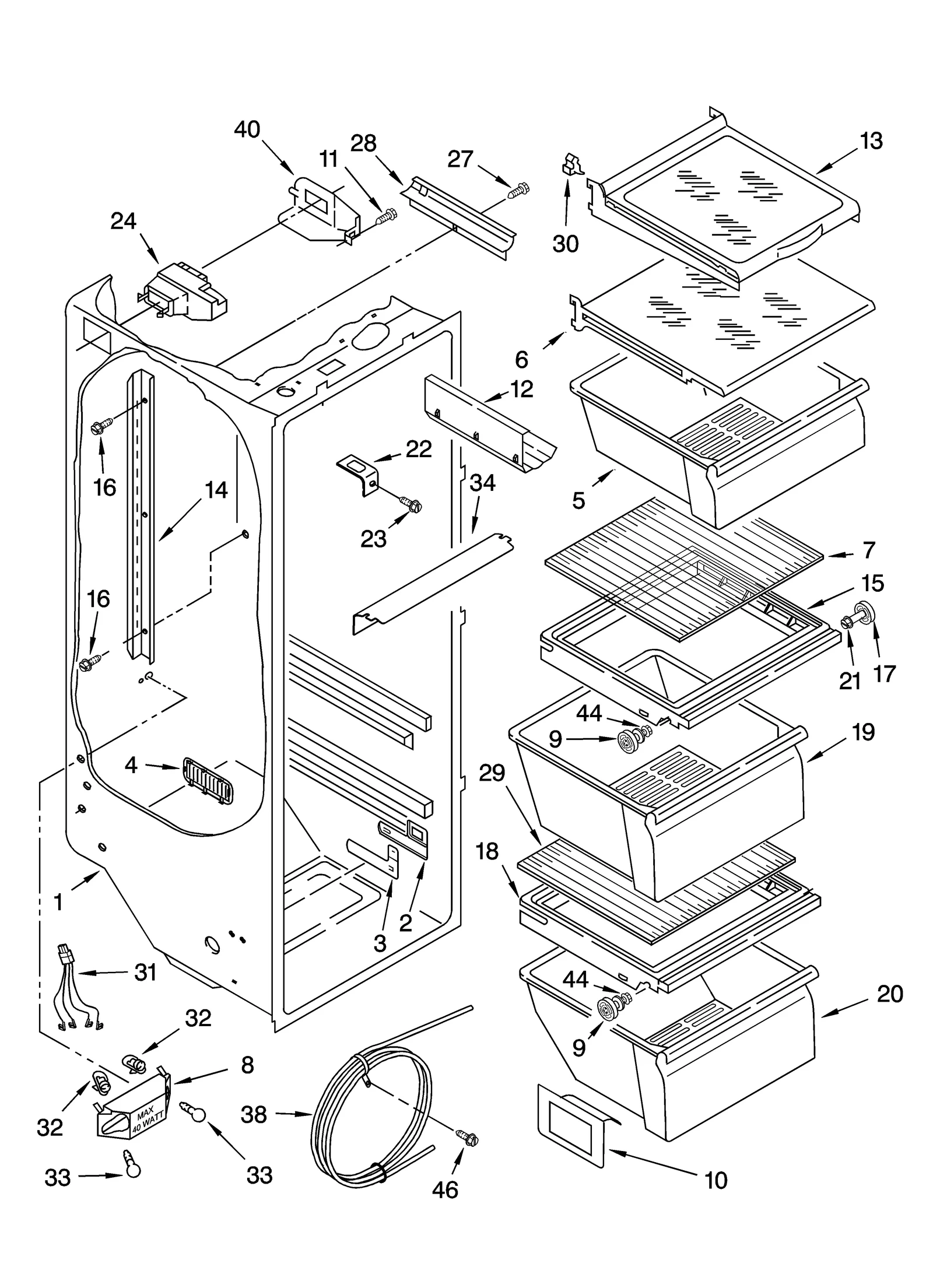

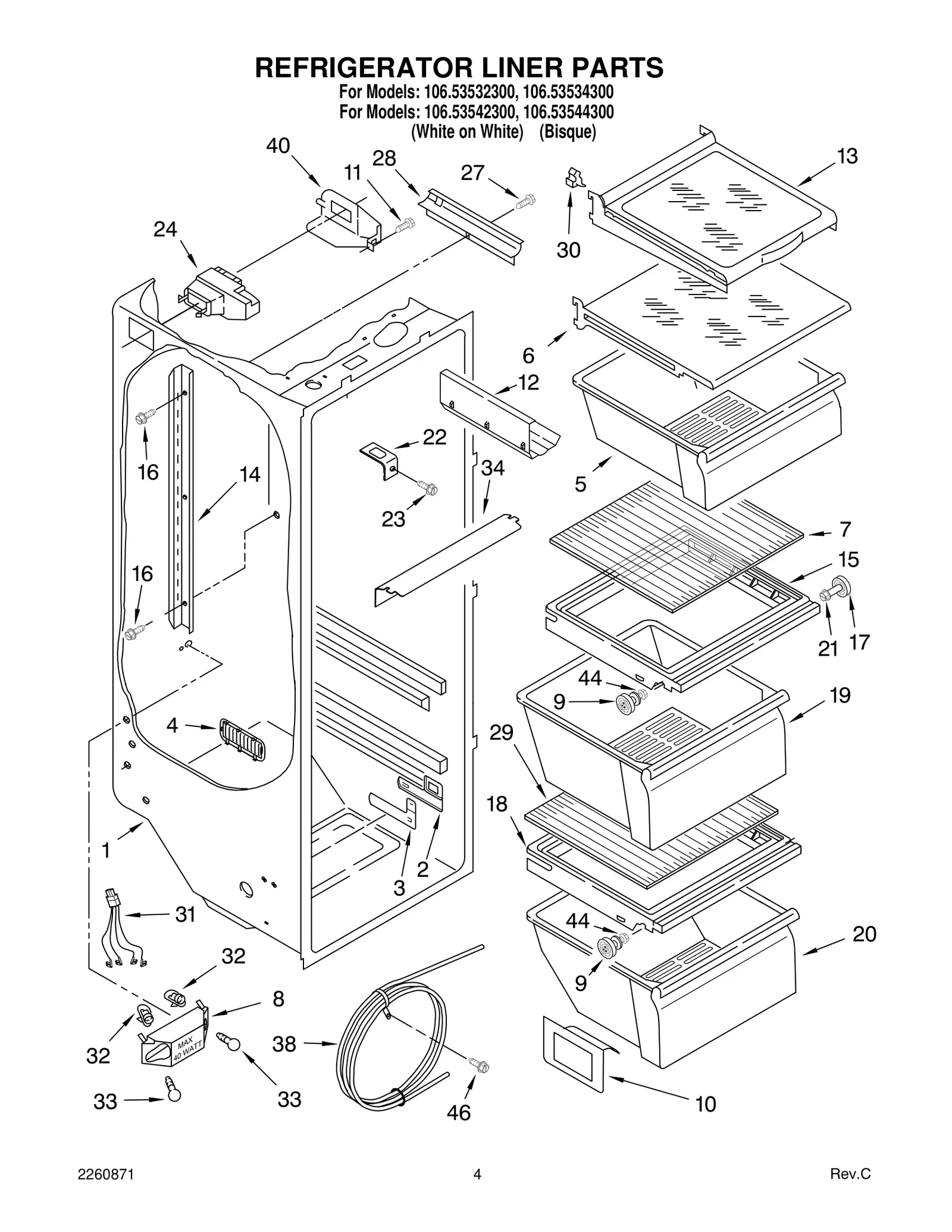

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

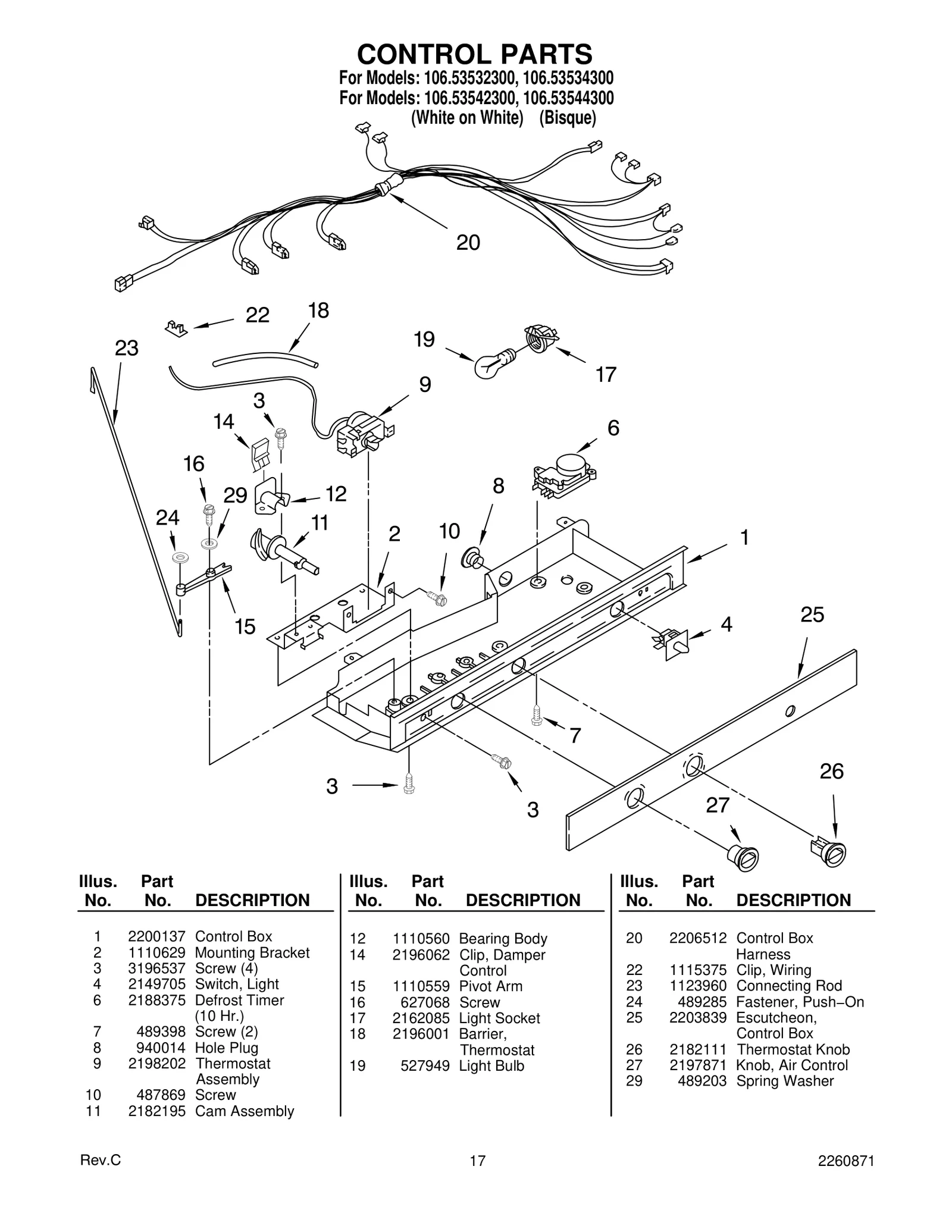

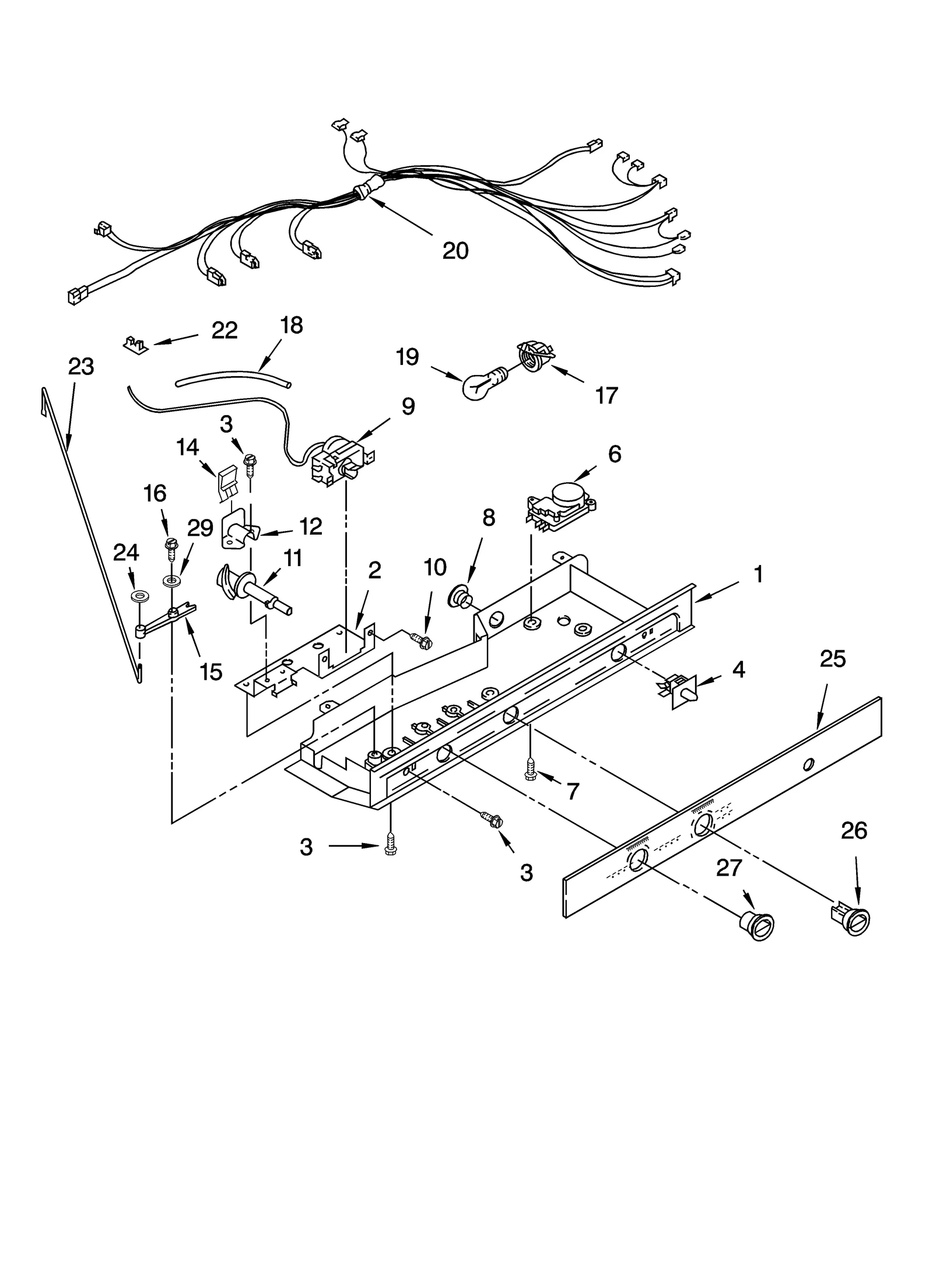

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $26.85

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

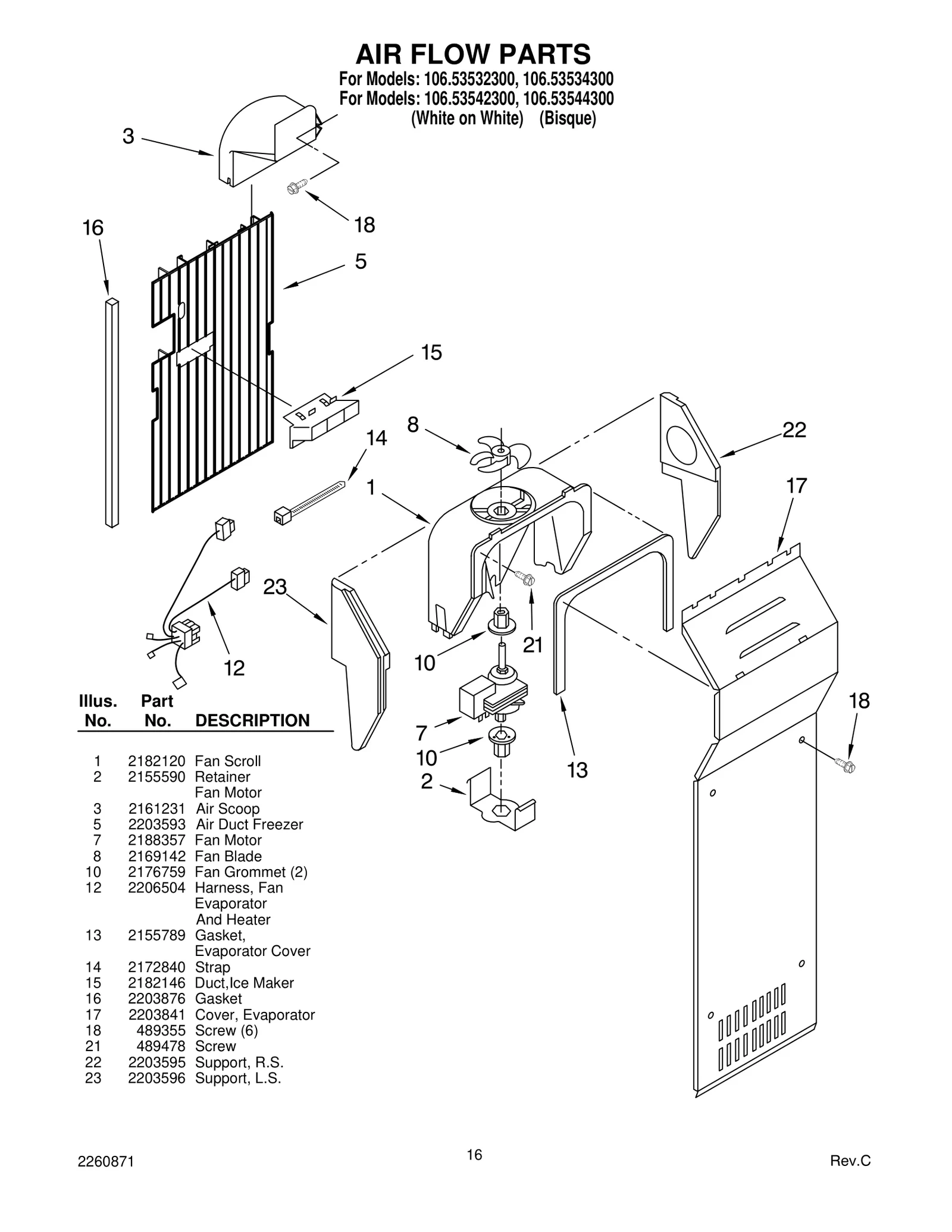

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $106.45

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

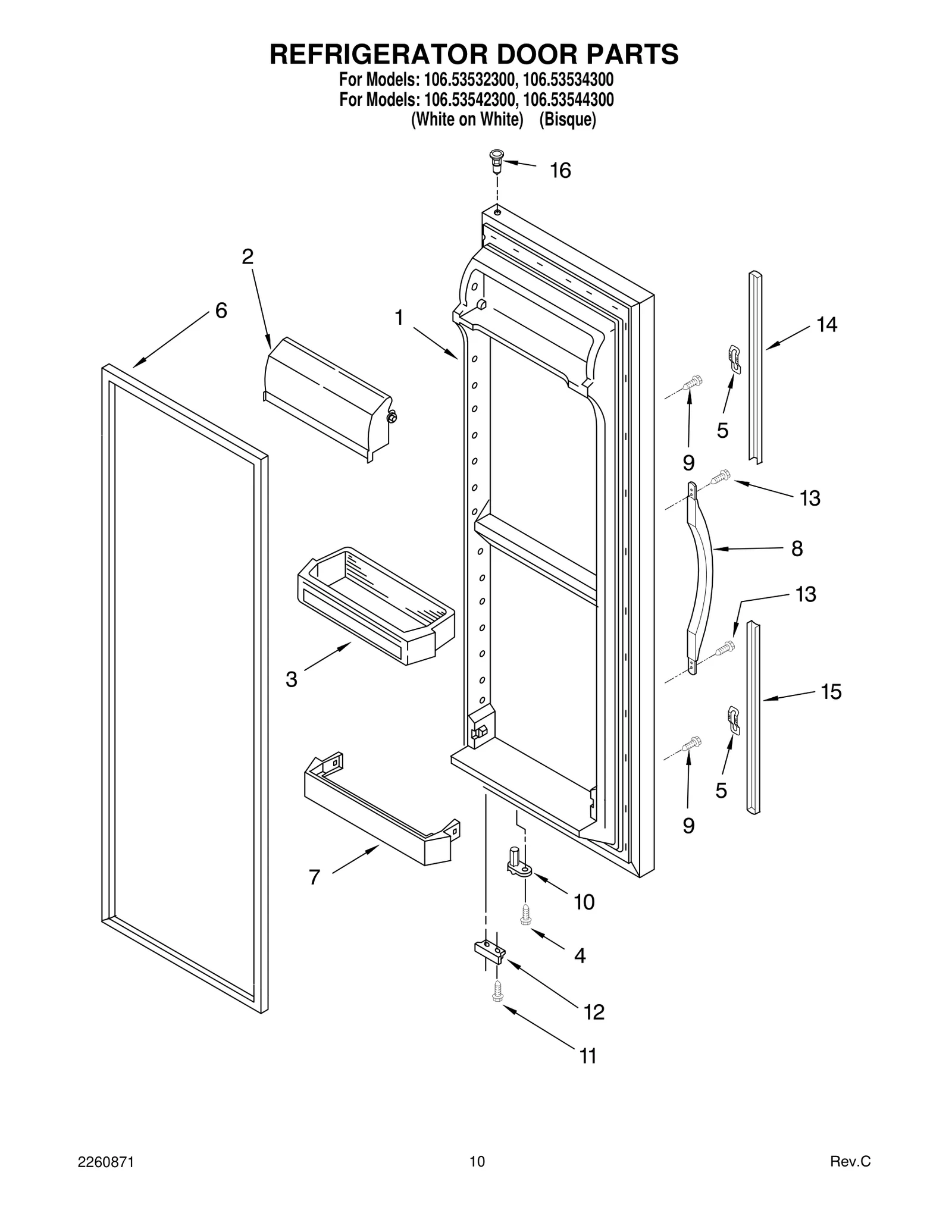

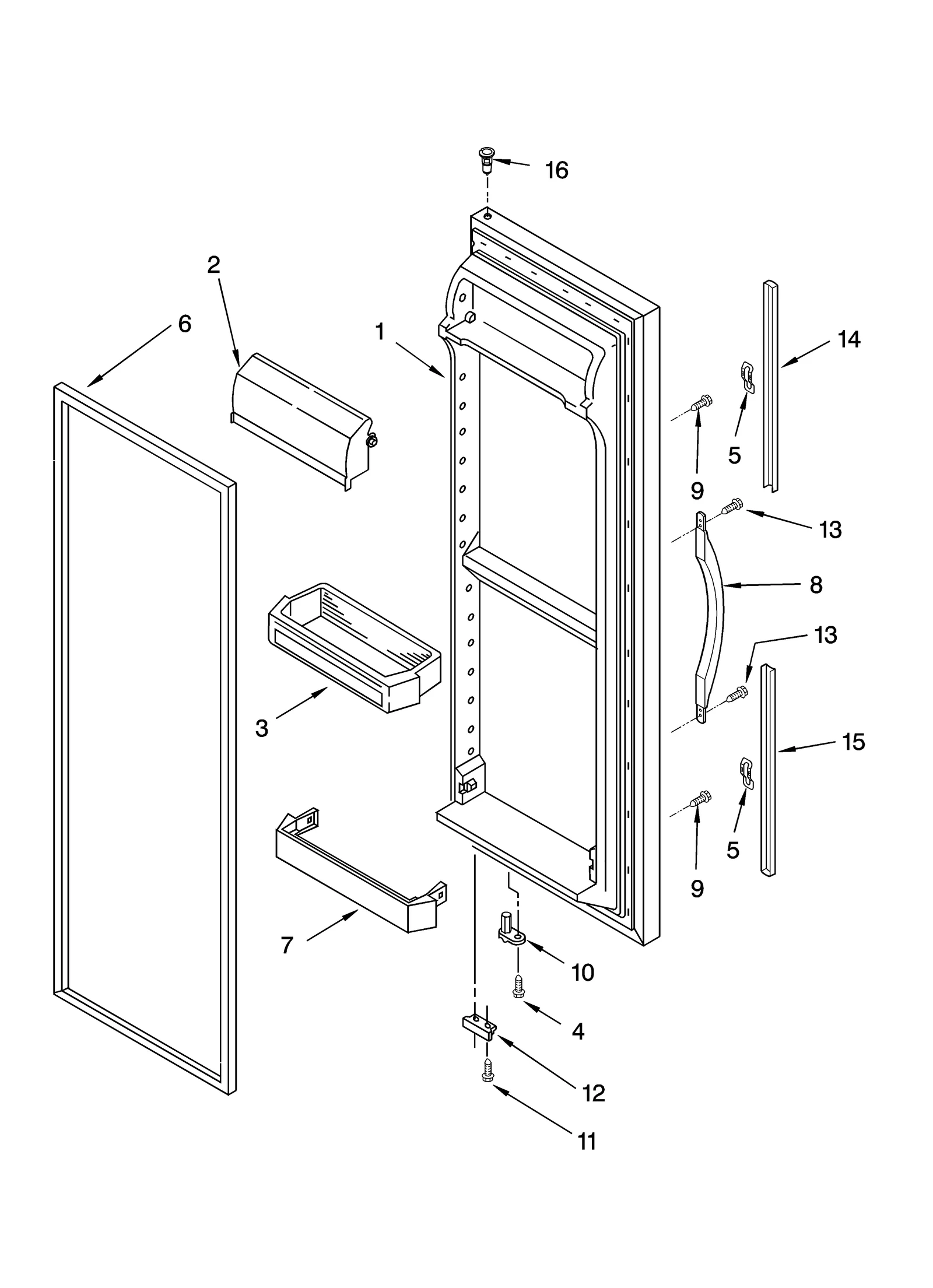

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $46.23

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $44.41

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $19.42

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

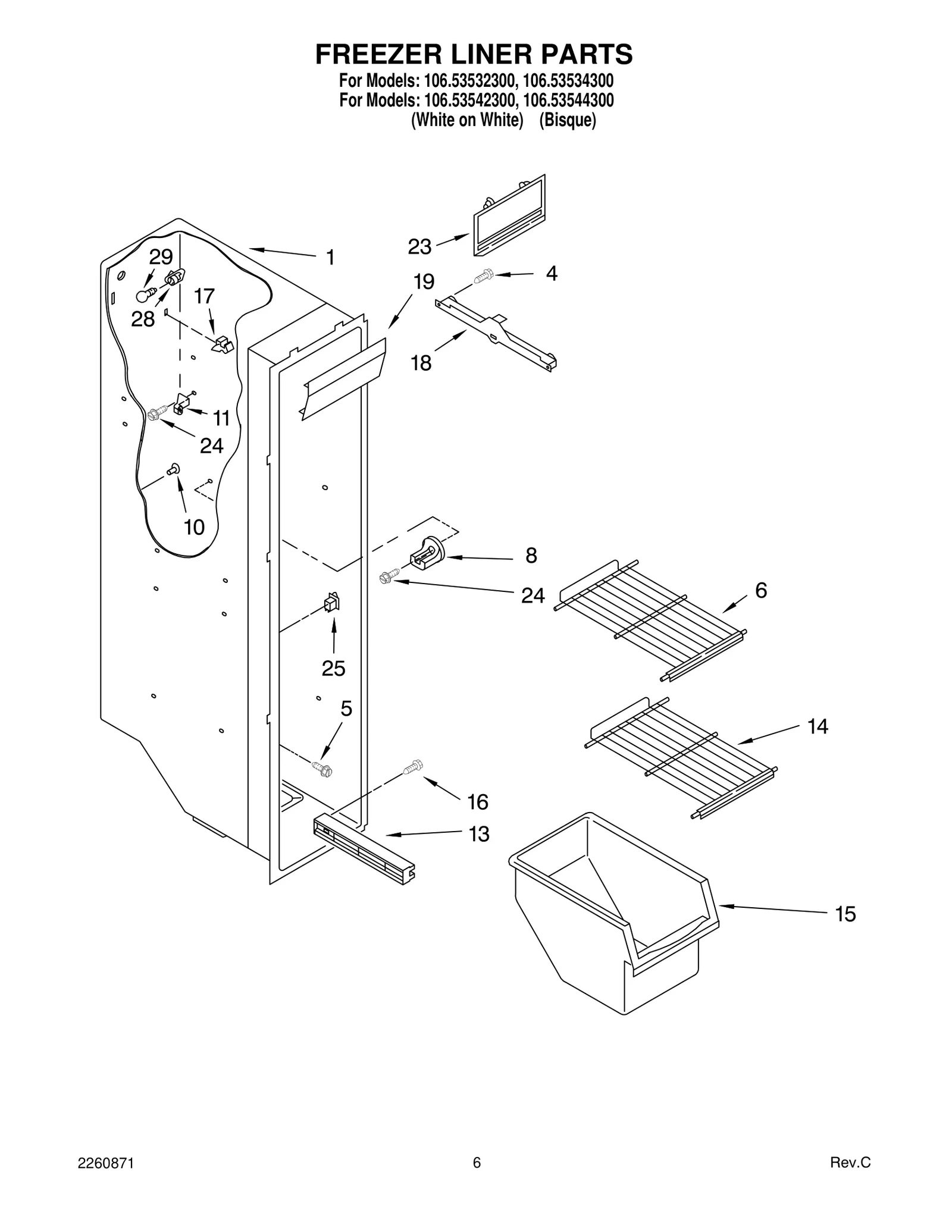

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $52.52

6

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $39.73

7

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

7

Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Refrigerator Shelf Stud WPL 2196207 Contact Us For Availability

8

Tube Suction WPL 2205765 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

9

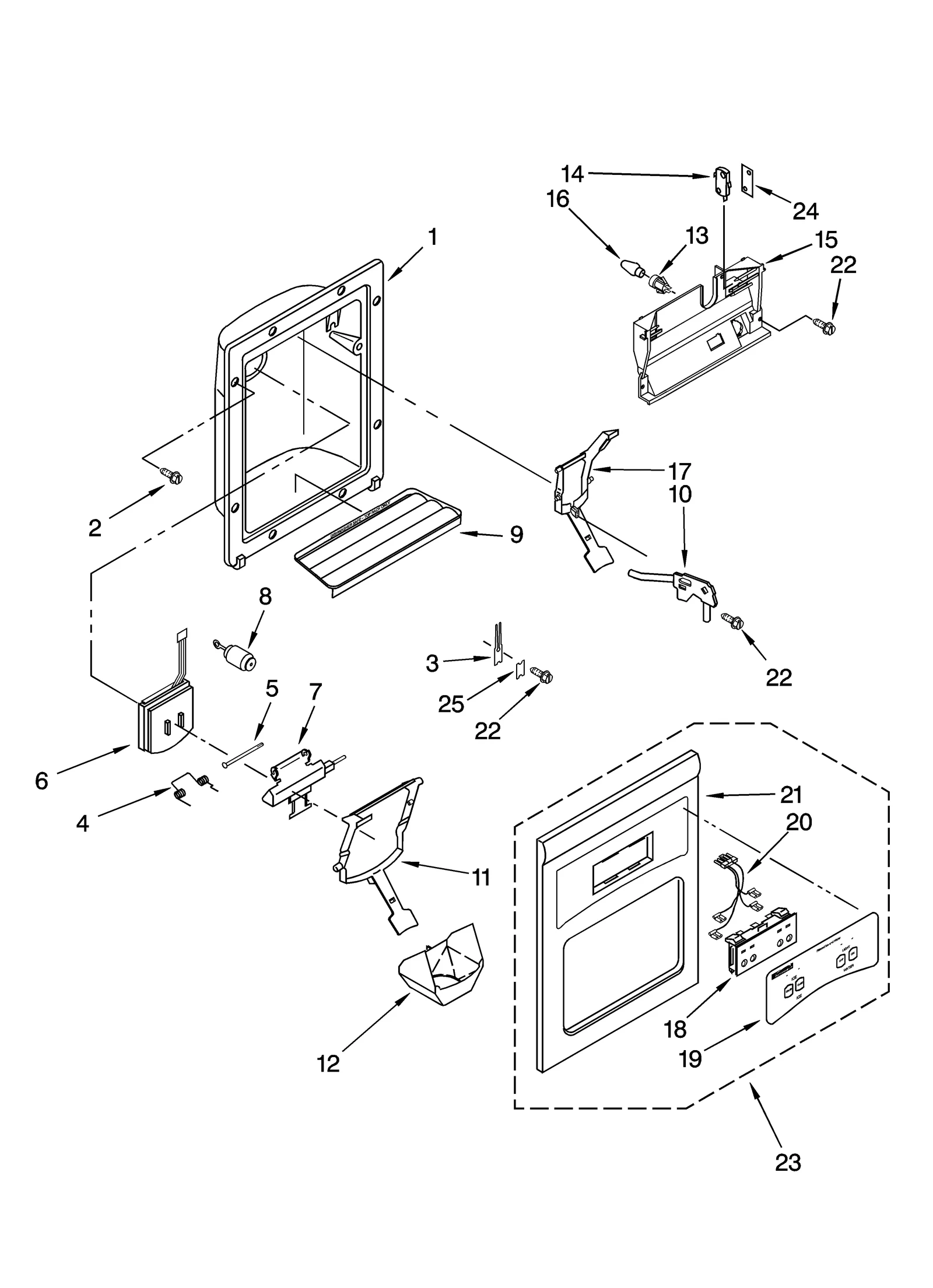

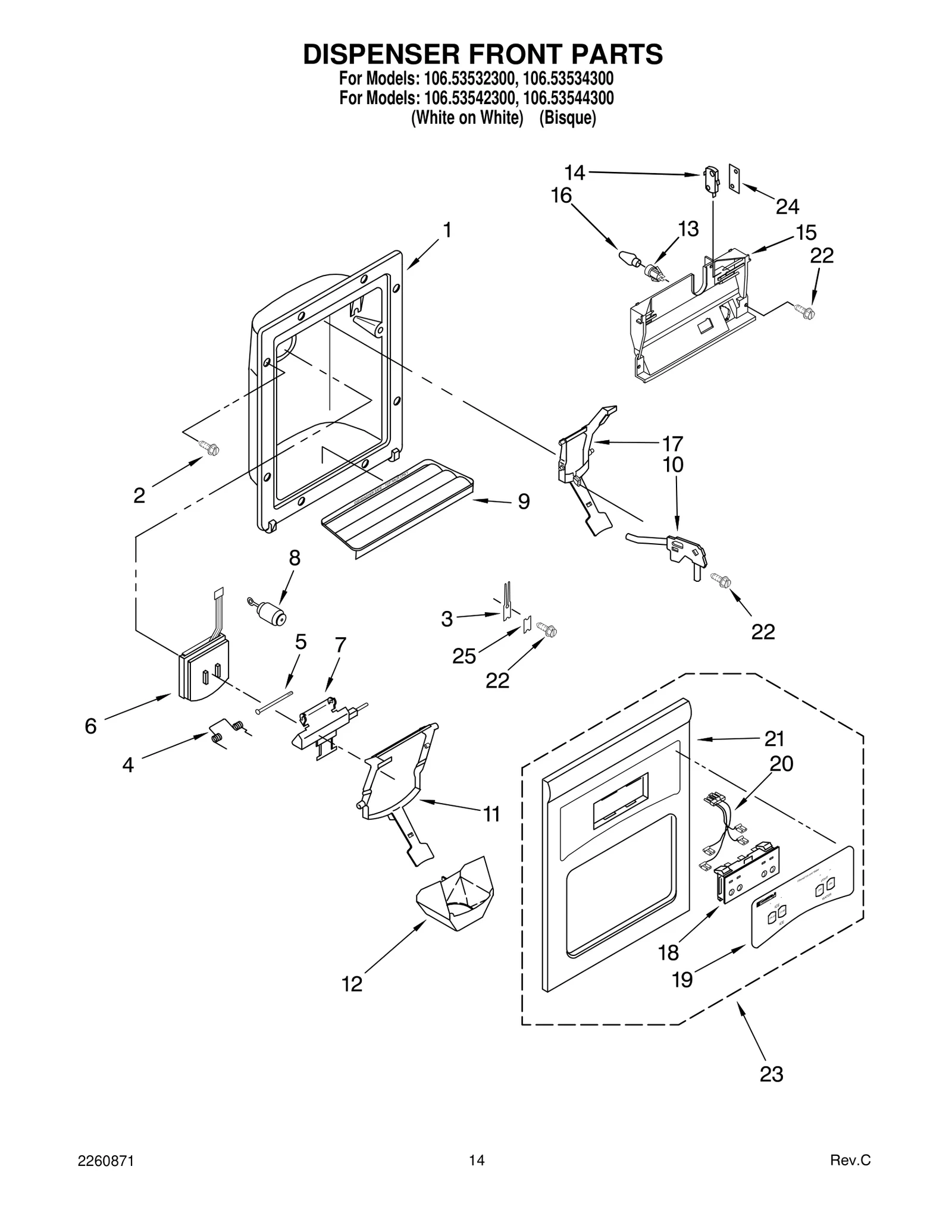

WP2206670W Whirlpool Dispenser Tray Backorder WPL WP2206670W $30.76

9A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

9A

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $40.39

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $54.96

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Refrigerator Freezer Shelf Support Grommet WPL 2176134 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

11

Lever, Ice Dispenser — Bisque WPL 2195089T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.95

13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.44

13A

Refrigerator Grille WPL 2198468T Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Refrigerator Wire Shelf WPL 2174268 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $80.00

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Pivot Arm WPL 1110559 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Start−Device, Combination (Start Relay and WPL 2220475 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

Lever, Water Dispenser — Bisque WPL 2195090T Contact Us For Availability

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $90.19

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $51.59

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

18A

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $56.13

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Refrigerator Light Lens WPL 2171705 Contact Us For Availability

20

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $138.34

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

20

Unit Cover, Bottom WPL 2200468 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

Trim, Door−Top — White WPL 2194707W Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $196.39

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Trim, Door−Bottom — White WPL 2194705W Contact Us For Availability

Clip, Wiring WPL 1115375 Contact Us For Availability

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $45.71

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Clip WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push−On WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

Escutcheon, Control Box WPL 2203839 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Thermostat Knob WPL 2182111 Contact Us For Availability

Harness, Unit WPL 2187511 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

Knob, Air Control WPL 2197871 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.52

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $314.61

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

29

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $38.23

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $115.36

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.40

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $33.10

32A

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

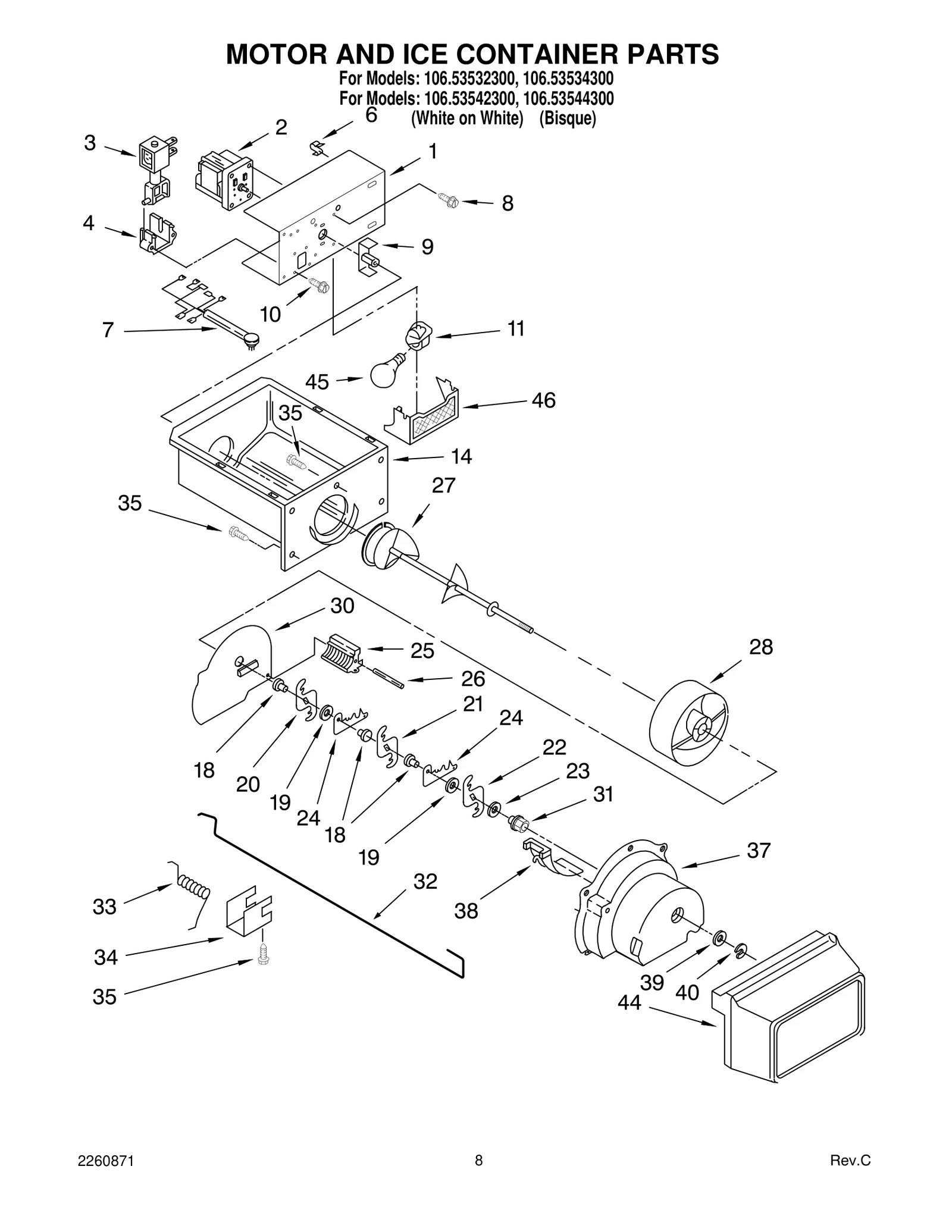

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

42

Clip, Heat WPL 2155547 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $33.64

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $29.17

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

63

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $25.22

63

Valve, Access WPL 978029 Contact Us For Availability

63

Valve, Access WPL 978028 Contact Us For Availability

100

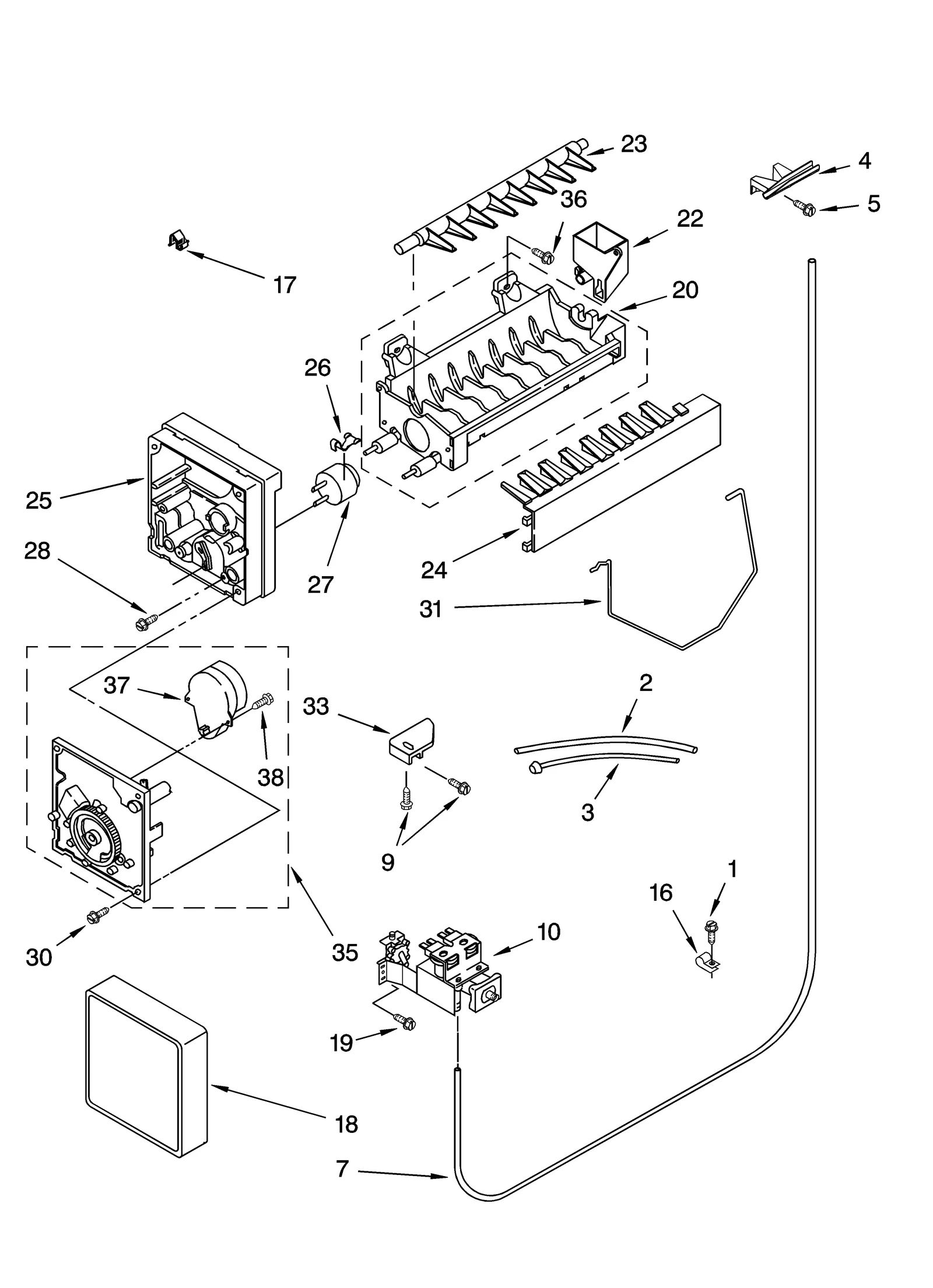

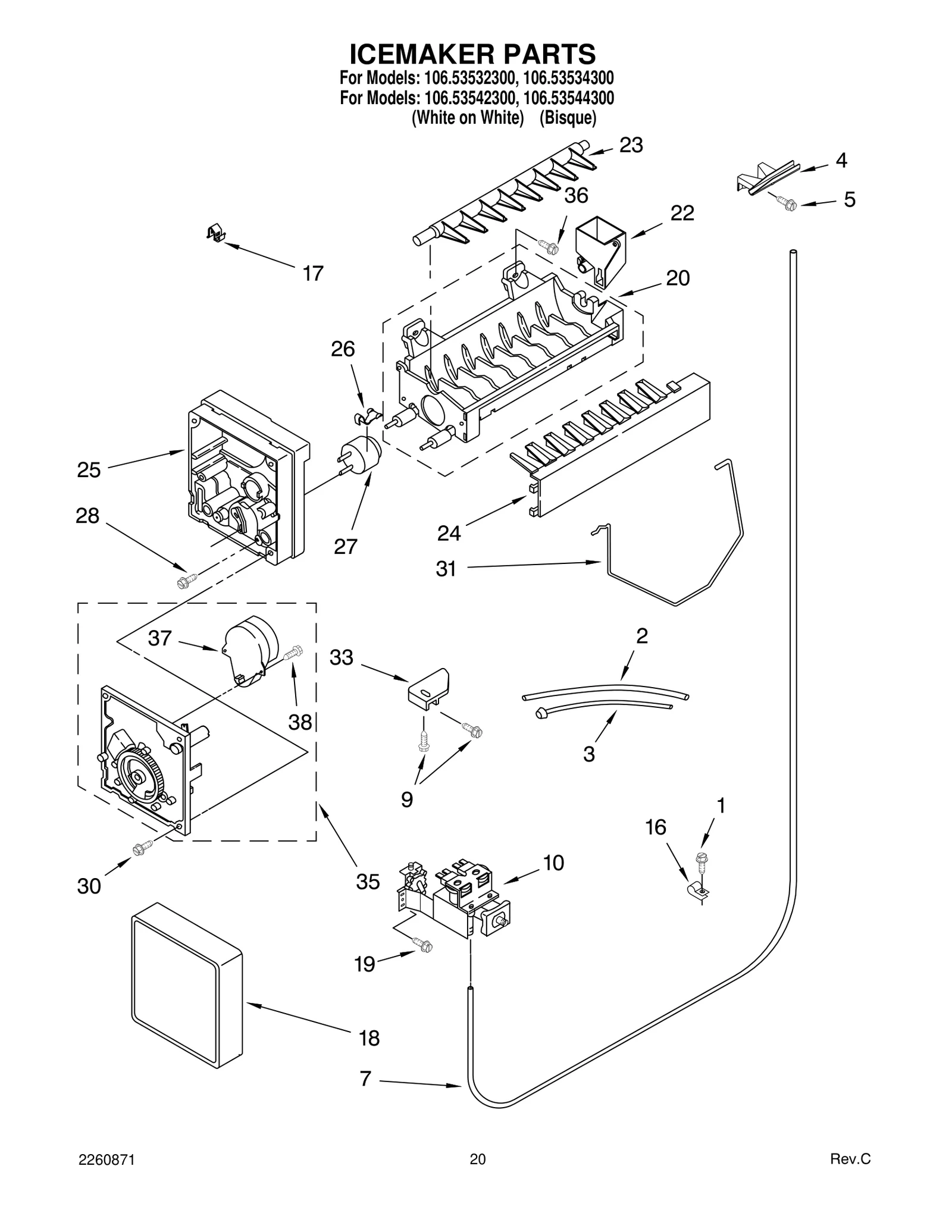

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

100

WPW10190965 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190965 $63.95

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

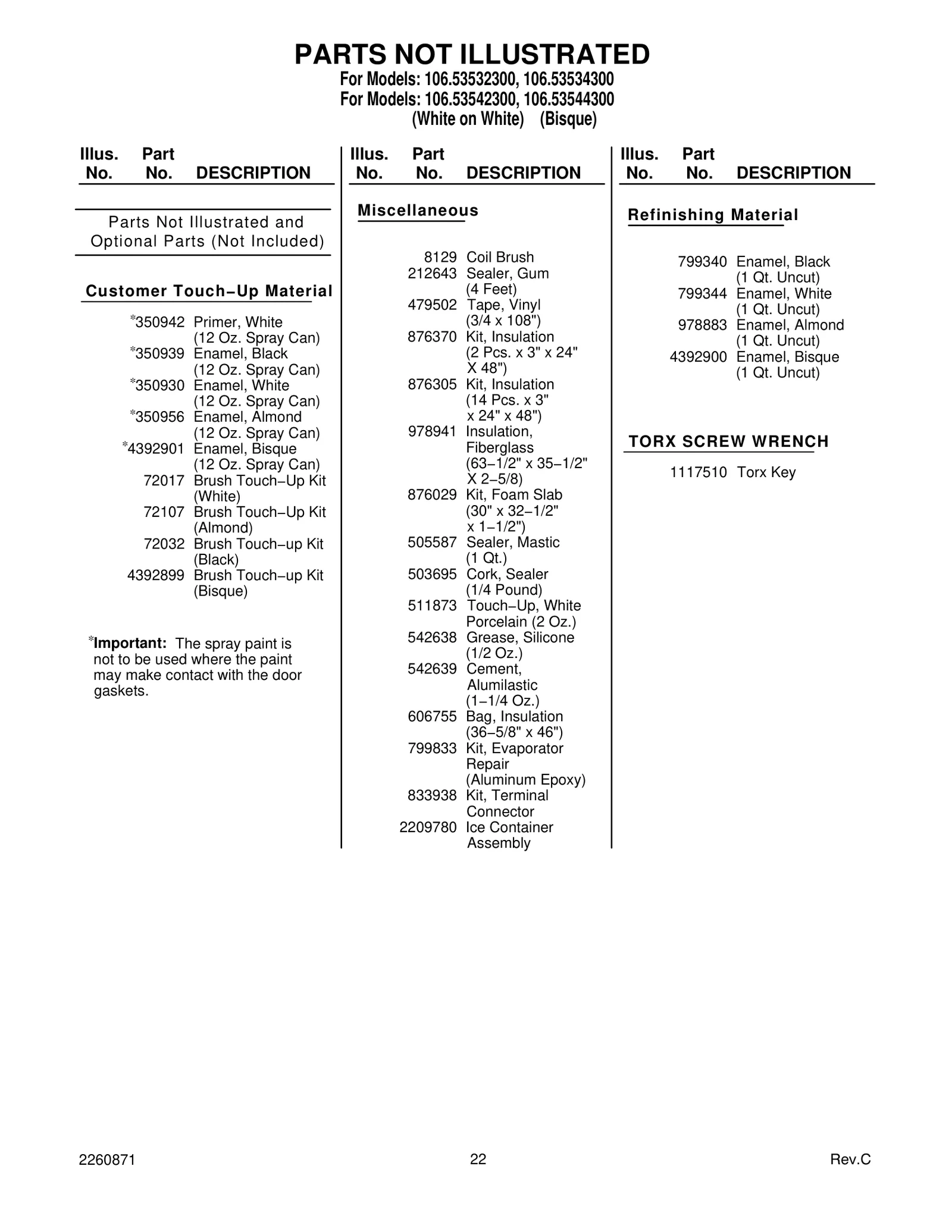

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

OPT-5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-7

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

OPT-8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

OPT-9

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

OPT-10

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

OPT-11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-12

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-14

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-16

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-17

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-19

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

OPT-20

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-21

Cement, WPL 542639 Contact Us For Availability

OPT-22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-23

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-24

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-25

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $185.42

OPT-26

Enamel, Black WPL 799340 Contact Us For Availability

OPT-27

Enamel, White WPL 799344 Contact Us For Availability

OPT-28

Enamel, Almond WPL 978883 Contact Us For Availability

OPT-29

Enamel, Bisque WPL 4392900 Contact Us For Availability

OPT-30

Torx Key WPL 1117510 Contact Us For Availability
